Drafting of various geometries using Chamfer, Fillet tool in AutoCad

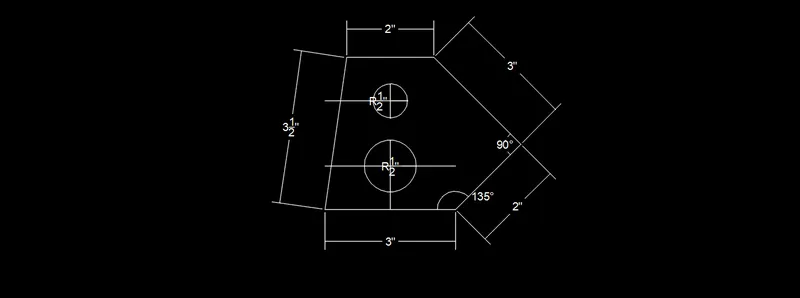

11. L enter

draw an angle 135 deg and mention the length 2 feet and another angle 90 deg and length 3 feet and distance of 2 feet and draw the final length 3 1/2 feet.

circle' C' enter with a radius of 1.20 dia and another circle of 0.80 dia.

measure the distance and angle with the distance tool.

10. L enter to draw the line of 8 feet and another 1'9" and another side of 2'5" draw another angle of 135 deg and length 2'10" and another angle of 90 deg another length of 2'6" and draw length of 3'.

mentions dimensions dim enter by using dimension tool

9. draw the length of 5'1.0" and another length of 1'6" and another length of 3'3" and another length of 2'6.5" finally draw an angle of 125 deg and draw another line and join them draw a circle enter dia of 1'6" and draw a circle at 1'6" from the baseline.

give required dimensions using the dimension tool.

8. draw a line of L of 2.50 and height of 0.5 and another length of 3.00 and another height of 3.00 and draw a line of 1.00 and height of 3.00 width of 2.50 and draw another length of 2.50 and 1.0 of width and height of 3.00

give the dimensions as or length.

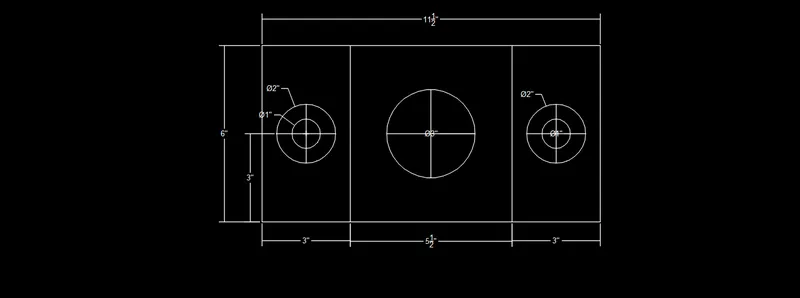

7. draw a line of 11.50 and give the offset of 3.00 and 3.00 for both sides.

draw another line of the height of 6.00 and length of 11.50 and at the center draw the circle of 2.0 dia and 1.0 of inner dia. daw same at the opposite direction at the center draw a circle of dia 3.00.

draw the dimensions according to the size by using the dimension tool.

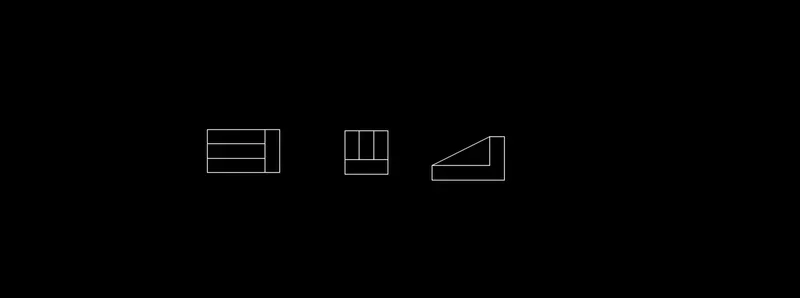

6. draw a line of 2.0 and height of 1.50 and thickness of 0.50 by using an offset tool with the thickness of 0.50 should be given.

by using the same size draw another 2 drawings with the same size and height and thickness.

5. draw a length of 210 and a length of 75 and another of 100 draw a radius of 15 and another radius of 15 at both ends.

draw a circle of 50 dia and another circle of 3dia use the tool of arc center radius and draw an arc of the radius of 35 dia and another radius of 25 dia draw a radius of 6 by using arc radius and center tool and also draw a radius of 25 radius.

draw two rectangles of 30 and 70

give dimensions by using the dimensions tool.

4. draw a cube and rotate it then draw another rectangle that is bigger than the other cube and fit in another cube and trim the excess lines.

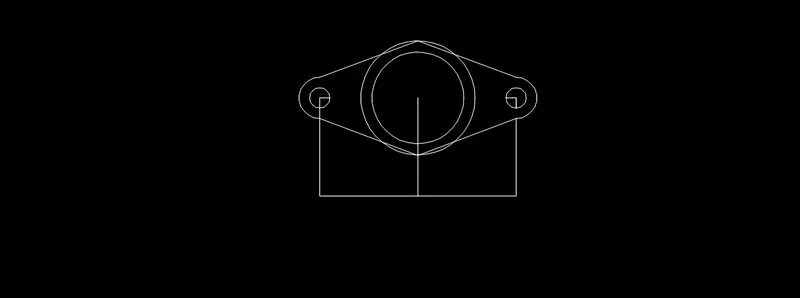

3. draw a circle of 5.0 dai and another circle of 4.0 dia and draw another two small circles of 0.90 dia from center to another center circle length of 4.275 and total length of 8.55.

give dimensions by using the dimensions tool.

2. draw a radius of 8' and another radius of 9' and by using ar radius and length draw an arc from one point to another point and draw another arc of 20'10" of by using tool arc radius center.

mention the dimensions in the dimension tool.

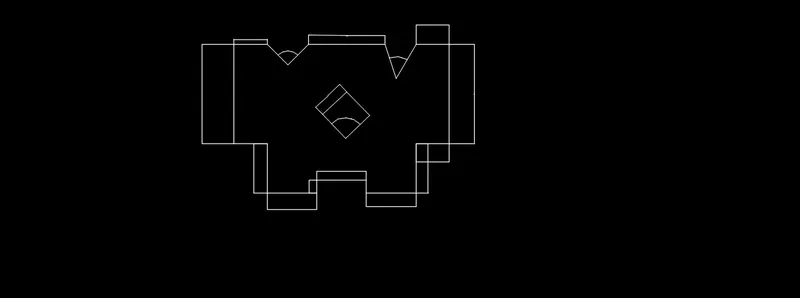

1. draw a line of length of 4.6 and height of 1.2 and continue for another two steps draw a line of the height of 9' at both sides draw an angle of 90 deg of the length of 3'7" and another angle of 60 deg 3'7" length at center draw a cube of the length of 3' and rate at 90 deg angle.

mention the dimensions and lengths by using the dimension tool.
