Drafting of various geometries using Chamfer, Fillet tool in AutoCad

AIM- To draw the given geometry in autoCAD in details.

INTRODUCTION-

• Drawing the given geometry using different commands like line, circle, dimension, text.
• Line- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
• Circle- To draw a circle with AutoCAD, enter the CIRCLE command and With this option, you first click where you want the center point of the circle to be, then move the pointing device to establish the perimeter of the circle.
• Dimensions- You can select objects or points on objects to dimension, and then click to place the dimension line. When you hover over an object, the DIM command automatically generates a preview of a suitable dimension type to use. Supported dimension types include vertical, horizontal, and aligned linear dimensions.
• Text- Select text command from the Annotation menu of the Home tab of this software. We have two types of text command in auto cad. One is Multiline text, and the other is Single line text. You can use any one of the text commands according to your requirement.

PROCEDURE-

Step 1

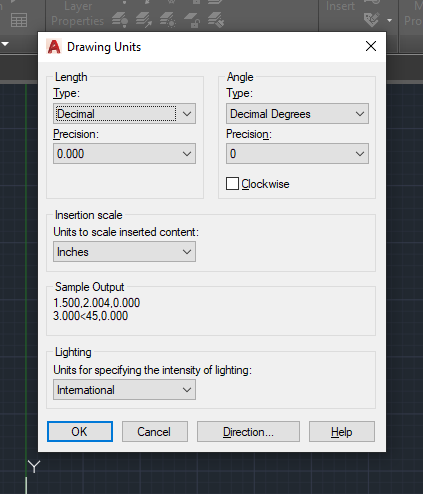

• Type units in command line and then select length type as decimal and precision as 0.
•

Step 2

• Then select line command, and draw 1st line taking 1st point as 1,1 and its length as 3 units.
• Then by using polar coordinate system select line command and type in command line as @2.12<45
• so thats how we well get our second line of 2.12 units at an angle of 135 degrees.
•

Step 3

• Next  by using polar coordinate system select line command specify 1st point and type @2.83<125
• Thats how we will get our 2nd line of 2.83 units at angle 90 degrees.
• Then ortho on then draw line of 2 units.
• and last line close.
•

Step 4-

• Then draw circles at horizontal distance of 1.5 units.
• 1st circle of 0.8 units diameter and at 2.5 units height.
• 2nd circle of 1.2 units diameter and at 1 unit height.
•

Step 4

• Now give dimensions to the figure.
•





AIM- To draw the given geometry in autoCAD in details.

INTRODUCTION-

• Drawing the given geometry using different commands like line, circle, dimension, text.
• Line- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
• Circle- To draw a circle with AutoCAD, enter the CIRCLE command and With this option, you first click where you want the center point of the circle to be, then move the pointing device to establish the perimeter of the circle.
• Dimensions- You can select objects or points on objects to dimension, and then click to place the dimension line. When you hover over an object, the DIM command automatically generates a preview of a suitable dimension type to use. Supported dimension types include vertical, horizontal, and aligned linear dimensions.
• Text- Select text command from the Annotation menu of the Home tab of this software. We have two types of text command in auto cad. One is Multiline text, and the other is Single line text. You can use any one of the text commands according to your requirement.

PROCEDURE-

Step 1-

• Type units in command line and then select length type as architectural and precision as 0'-0".
•

Step 2

• Select line command draw a line then by using polar coordinate system @2'10"<135
• So we get a line of 2'10" at an angle of 135 degrees.
• Now draw ortho on and then draw a line of 1'9"
• Then draw a line of 8'
• Then draw a line of 2'5"
• Then by using polar coordinate system draw line of 3' at an angle of 90 degrees.
• Then join 1st and last point.
•

Step 3

• Give all the dimensions to the geometry.
•





AIM- To draw the given geometry in autoCAD in details.

INTRODUCTION-

• Drawing the given geometry using different commands like line, circle, dimension, text.
• Line- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
• Circle- To draw a circle with AutoCAD, enter the CIRCLE command and With this option, you first click where you want the center point of the circle to be, then move the pointing device to establish the perimeter of the circle.
• Dimensions- You can select objects or points on objects to dimension, and then click to place the dimension line. When you hover over an object, the DIM command automatically generates a preview of a suitable dimension type to use. Supported dimension types include vertical, horizontal, and aligned linear dimensions.
• Text- Select text command from the Annotation menu of the Home tab of this software. We have two types of text command in auto cad. One is Multiline text, and the other is Single line text. You can use any one of the text commands according to your requirement.

PROCEDURE-

Step 1

• Type units in command line and then select length type as engineering and precision as 0'-0.0"
•

Step 2

• Select line command and first point as 2,2.
• As we have all the lengths of the lines by direct distance method.
• Draw all the lines.
•

Step 3

• Draw circle at vertical distance 1'6" and horizontal distance 1'3" of diameter 1'6".
•

Step 4

• Give all the dimensions to the figure.
•





AIM- To draw the given geometry in autoCAD in details.

INTRODUCTION-

• Drawing the given geometry using different commands like line, circle, dimension, text.
• Line- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
• Circle- To draw a circle with AutoCAD, enter the CIRCLE command and With this option, you first click where you want the center point of the circle to be, then move the pointing device to establish the perimeter of the circle.
• Dimensions- You can select objects or points on objects to dimension, and then click to place the dimension line. When you hover over an object, the DIM command automatically generates a preview of a suitable dimension type to use. Supported dimension types include vertical, horizontal, and aligned linear dimensions.
• Text- Select text command from the Annotation menu of the Home tab of this software. We have two types of text command in auto cad. One is Multiline text, and the other is Single line text. You can use any one of the text commands according to your requirement.

PROCEDURE-

Step 1

• Type units in command line and then select length type as decimal and precision as 0.0
•

Step 2

• As we have all the lengths of lines.
• Draw all the lines by direct distance entry.
•

Step 3

• Give all the dimensions to the figure.
•





AIM- To draw the given geometry in autoCAD in details.

INTRODUCTION-

• Drawing the given geometry using different commands like line, circle, dimension, text.
• Line- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
• Circle- To draw a circle with AutoCAD, enter the CIRCLE command and With this option, you first click where you want the center point of the circle to be, then move the pointing device to establish the perimeter of the circle.
• Dimensions- You can select objects or points on objects to dimension, and then click to place the dimension line. When you hover over an object, the DIM command automatically generates a preview of a suitable dimension type to use. Supported dimension types include vertical, horizontal, and aligned linear dimensions.
• Text- Select text command from the Annotation menu of the Home tab of this software. We have two types of text command in auto cad. One is Multiline text, and the other is Single line text. You can use any one of the text commands according to your requirement.

PROCEDURE-

Step 1

• Type units in command line and then select length type as decimal and precision as 0.00
•

Step 2

• As we have all the lengths of lines.
• Draw all the lines by direct distance entry.
• Draw all lines.
•

Step 3

• put object snap on.
• And Draw circles at vertical distance 3 and horizontal distance from sides 1.5 of diameter 2 & 1 unit. (use copy command to copy circles)
• Draw a circle at distance at center of diameter 3 units.
•

Step 4

• Give all dimensions to the figure.
•





AIM- To draw the given geometry in autoCAD in details.

INTRODUCTION-

• Drawing the given geometry using different commands like line, circle, dimension, text.
• Line- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
• Circle- To draw a circle with AutoCAD, enter the CIRCLE command and With this option, you first click where you want the center point of the circle to be, then move the pointing device to establish the perimeter of the circle.
• Dimensions- You can select objects or points on objects to dimension, and then click to place the dimension line. When you hover over an object, the DIM command automatically generates a preview of a suitable dimension type to use. Supported dimension types include vertical, horizontal, and aligned linear dimensions.
• Text- Select text command from the Annotation menu of the Home tab of this software. We have two types of text command in auto cad. One is Multiline text, and the other is Single line text. You can use any one of the text commands according to your requirement.
• Construction line- Construction line command from the Draw menu of the Home tab of this software with this type of line icon. Or you can use short cut command for the construction line, which is type XL, then press enter button of the keyboard and your command will be active. Now, it will ask you to specify the point from where you want to start the construction line.

PROCEDURE-

Step 1-

• Type units in command line and then select length type as decimal and precision as 0.0
•

Step 2-

• As we have all the lengths of lines.
• Draw all the lines by direct distance entry & draw all lines.
•

Step 3-

• Draw construction lines-horizontal
•

Step 4

• From that construction lines draw elevation.
•

Step 5

• Draw construction lines-vertical.
• And draw figure.
•

Step 6

• Now construction lines-layer off.
• And give dimensions to figures.
•





AIM- To draw the given geometry in autoCAD in details.

INTRODUCTION-

• Drawing the given geometry using different commands like line, circle, dimension, text, fillet.
• Line- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
• Circle- To draw a circle with AutoCAD, enter the CIRCLE command and With this option, you first click where you want the center point of the circle to be, then move the pointing device to establish the perimeter of the circle.
• Dimensions- You can select objects or points on objects to dimension, and then click to place the dimension line. When you hover over an object, the DIM command automatically generates a preview of a suitable dimension type to use. Supported dimension types include vertical, horizontal, and aligned linear dimensions.
• Text- Select text command from the Annotation menu of the Home tab of this software. We have two types of text command in auto cad. One is Multiline text, and the other is Single line text. You can use any one of the text commands according to your requirement.
• Fillet- Select the Fillet command from the ribbon panel, Or Type F on the command line or command prompt and press Enter. then Select the first object,Type R or Radius. Enter. Then Specify the radius of the Fillet and press Enter and Select the second object.
• Trim- Click Home tab Modify panel Trim. Find. Select the objects to serve as cutting edges. Press Enter when you finish selecting the cutting edges. Select the objects to trim and press Enter a second time when you finish selecting the objects to trim.

PROCEDURE-

Step 1-

• Type units in command line and then select length type as decimal and precision as 0.
•

Step 2

• Draw all the lines with line command and circle command.
•

Step 3

• Draw circles and arc with start end radius.
•

Step 4

• Select fillet tool from modify panel.
• Then type r for radius and then dimension of respective radius.
•

Step 5

• Give all dimensions to figure.
•





AIM- To draw the given geometry in autoCAD in details.

INTRODUCTION-

• Drawing the given geometry using different commands like line, circle, dimension, text.
• Line- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
• Circle- To draw a circle with AutoCAD, enter the CIRCLE command and With this option, you first click where you want the center point of the circle to be, then move the pointing device to establish the perimeter of the circle.
• Dimensions- You can select objects or points on objects to dimension, and then click to place the dimension line. When you hover over an object, the DIM command automatically generates a preview of a suitable dimension type to use. Supported dimension types include vertical, horizontal, and aligned linear dimensions.
• Text- Select text command from the Annotation menu of the Home tab of this software. We have two types of text command in auto cad. One is Multiline text, and the other is Single line text. You can use any one of the text commands according to your requirement.
• Fillet- Select the Fillet command from the ribbon panel, Or Type F on the command line or command prompt and press Enter. then Select the first object,Type R or Radius. Enter. Then Specify the radius of the Fillet and press Enter and Select the second object.
• Trim- Click Home tab Modify panel Trim. Find. Select the objects to serve as cutting edges. Press Enter when you finish selecting the cutting edges. Select the objects to trim and press Enter a second time when you finish selecting the objects to trim.

PROCEDURE-

Step 1

• Type units in command line and then select length type as decimal and precision as 0.000
•

Step 2

• Select circle command and draw circles of diameter 5 units and 4 units.
• From the center of that circles draw small circles on both sides of diameter 0.9 units.
•

Step 3

• Go to object snap settings and enable the tangent option.
• and draw 4 tangents to the circle.
•

Step 4-

• Now use fillet tool to join drawn lines with radius 0.9 units.
•

Step 5-

• Now give all the dimensions to the geometry.
•





AIM- To draw the given geometry in autoCAD in details.

INTRODUCTION-

• Drawing the given geometry using different commands like line, circle, dimension, text.
• Line- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
• Circle- To draw a circle with AutoCAD, enter the CIRCLE command and With this option, you first click where you want the center point of the circle to be, then move the pointing device to establish the perimeter of the circle.
• Dimensions- You can select objects or points on objects to dimension, and then click to place the dimension line. When you hover over an object, the DIM command automatically generates a preview of a suitable dimension type to use. Supported dimension types include vertical, horizontal, and aligned linear dimensions.
• Text- Select text command from the Annotation menu of the Home tab of this software. We have two types of text command in auto cad. One is Multiline text, and the other is Single line text. You can use any one of the text commands according to your requirement.
• Fillet- Select the Fillet command from the ribbon panel, Or Type F on the command line or command prompt and press Enter. then Select the first object,Type R or Radius. Enter. Then Specify the radius of the Fillet and press Enter and Select the second object.
• Trim- Click Home tab Modify panel Trim. Find. Select the objects to serve as cutting edges. Press Enter when you finish selecting the cutting edges. Select the objects to trim and press Enter a second time when you finish selecting the objects to trim.
• Arc- To create an arc, you can specify combinations of center, endpoint, start point, radius, angle, chord length, and direction values. Arcs are drawn in a counterclockwise direction by default. Hold down the Ctrl key as you drag to draw in a clockwise direction.

PROCEDURE-

• Type units in command line and then select length type as engineering and precision as 0'-0".
•

Step 2-

• Draw circles of radius 8' and 9' each.
•

Step 3-

• Draw an arc by taking arc command and start-end-radius.
• Select 9' circle as 1st point and 8' circle as 2nd point.
• and enter radius as 41'8".
•

Step 4

• Draw an arc by taking arc command and start-end-radius.
• Select 9' circle as 1st point and 8' circle as 2nd point.
• and enter radius as 20'10".
• And trim unwanted circle part.
•

Step 5-

• Give all the dimensions to the geometry.
•





AIM- To draw the given geometry in autoCAD in details.

INTRODUCTION-

• Drawing the given geometry using different commands like line, circle, dimension, text.
• Line- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
• Circle- To draw a circle with AutoCAD, enter the CIRCLE command and With this option, you first click where you want the center point of the circle to be, then move the pointing device to establish the perimeter of the circle.
• Dimensions- You can select objects or points on objects to dimension, and then click to place the dimension line. When you hover over an object, the DIM command automatically generates a preview of a suitable dimension type to use. Supported dimension types include vertical, horizontal, and aligned linear dimensions.
• Text- Select text command from the Annotation menu of the Home tab of this software. We have two types of text command in auto cad. One is Multiline text, and the other is Single line text. You can use any one of the text commands according to your requirement.
• Trim- Click Home tab Modify panel Trim. Find. Select the objects to serve as cutting edges. Press Enter when you finish selecting the cutting edges. Select the objects to trim and press Enter a second time when you finish selecting the objects to trim.
• Polygon- Click Polygon from the Rectangle drop-down list on the Draw panel of the Home tab, or type POL and press Enter. Type the number of sides for the polygon that you want to draw and then press Enter. Specify the center point by clicking a point or typing coordinates.

PROCEDURE-

Step 1-

• Draw a circle of 11 units diameter.
•

Step 2-

• Draw polygon of 4 sides circumscribed in circle of radius 5.5
•

Step 3-

• Select offset command then through distance of 0.5 units and offset that polygon.
•

Step 4-

• Then again draw a polygon of 4 sides circumscribed in circle of radius 5.5.
•

Step 5-

• Select offset command then through distance of 0.5 units and offset that polygon.
•

Step 6-

• Select trim command and then trim unnessesary lines from figure.
•





AIM- To draw the given geometry in autoCAD in details.

INTRODUCTION-

• Drawing the given geometry using different commands like line, circle, dimension, text.
• Line- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
• Circle- To draw a circle with AutoCAD, enter the CIRCLE command and With this option, you first click where you want the center point of the circle to be, then move the pointing device to establish the perimeter of the circle.
• Dimensions- You can select objects or points on objects to dimension, and then click to place the dimension line. When you hover over an object, the DIM command automatically generates a preview of a suitable dimension type to use. Supported dimension types include vertical, horizontal, and aligned linear dimensions.
• Text- Select text command from the Annotation menu of the Home tab of this software. We have two types of text command in auto cad. One is Multiline text, and the other is Single line text. You can use any one of the text commands according to your requirement.
• Trim- Click Home tab Modify panel Trim. Find. Select the objects to serve as cutting edges. Press Enter when you finish selecting the cutting edges. Select the objects to trim and press Enter a second time when you finish selecting the objects to trim.
• Polygon- Click Polygon from the Rectangle drop-down list on the Draw panel of the Home tab, or type POL and press Enter. Type the number of sides for the polygon that you want to draw and then press Enter. Specify the center point by clicking a point or typing coordinates.

PROCEDURE-

Step 1-

• Type units in command line and then select length type as architectural and precision as 0'-0".
•

Step 2-

• Draw all lines as we know the lenghts of that lines by keeping dynamic input on.
• And by using direct distance entry method.
• Now draw the centermost part by using polygon command.
• Draw polygon of 3' diameter circumscribed in circle.
•

Step 3-

• Draw angular lines.
•

Step 4-

• Give all dimensions to figure.
•



 RESULT- All the geometries are drawn as per reference drawings.





•

•
•

•

•

•

•

•

•

•

•
