Drafting of various geometries using Chamfer, Fillet tool in AutoCad
Aim
Drafting of various geometries using Chamfer, Fillet tool in AutoCad
Command use
Line, Circle, Fillet, Mirror, Trim, Move, Rotate, Annotate
Procedure
1. Decimal
1.new sheet unit decimal precision 0.00 meter ok
2.limit o,o and 420,210
3zoom all
4sekect the line tool and draw the length starting from base 3 unit

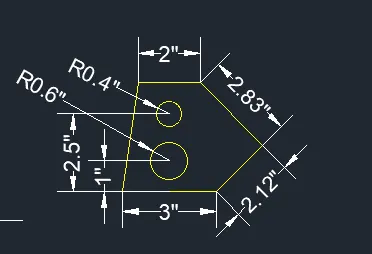

Give line command @2.12<24,@2.83<135,@2<180 and close
5.draw the first circle X=1.50 and Y =1.00 of diameter 1.20 units similarly draw another circle X =1.50 and Y =2.50 of diameter.80 unit
6.annotate and give dimension to all the line segment and circle
2.using architecture
1.new sheet unit architectual precision 0.00 feet ok
2.limit o',o' and 12',9'
3zoom all

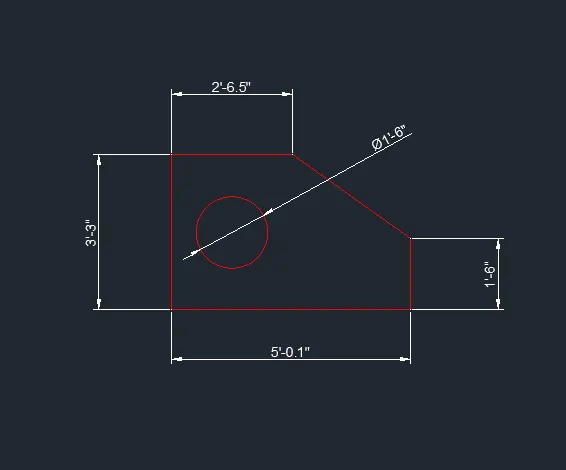

4sekect the line tool and draw the length starting from top line segments 2'65".now give line command position the cursor download with ortho on 3'3",5'0.1",1'6" and close
5.annotate and give dimension to all the line segment and circle
3.Decimal
Procedure
1.new sheet unit decimal precision 0.00 meter ok
2.limit o,o and 420,210
3zoom all

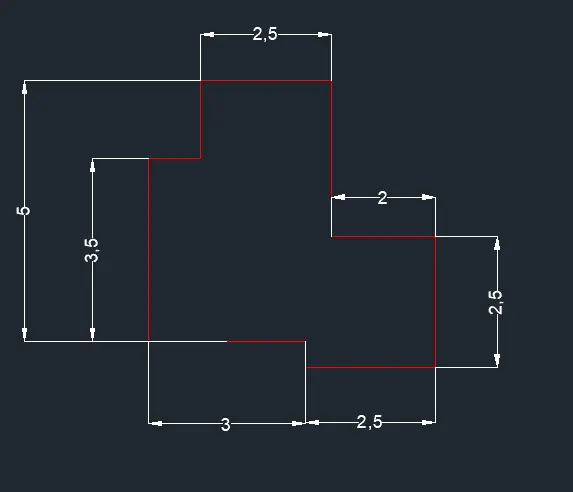

4sekect the line tool and draw the length starting from base of 2.50 units ,now give line command @2<270,@.5<180,@3<270,@.5<270,@2.5<0,@2.5<90,@2<180 and close
5.annotate and give dimension to all the line segment and circle
4.Architecture
procedure
1.new sheet unit architectual precision 0.00 feet
2.limit o',o' and 12',9'
3zoom al

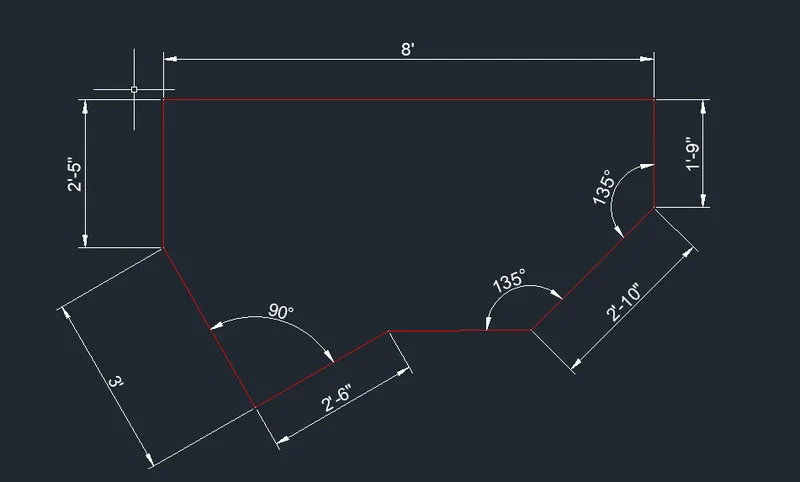

4sekect the line tool and draw the length starting top line segments of 8' nowgive line command position the cursor 270 degree with ortho on 1'9" enter
5.give ine command position the cursor at 270 degree with ortho on at first end and draw 2'5" enter
6.draw the line at 315 degree if 3' at 90degree 2'6" now draw the line 2'10" at 225 degree and joint the line
7.annotate and give dimension to all the line segment and circle
5.Decimal
Procedure
1.new sheet unit decimal precision 0.00 meter ok
2.limit o,o and 420,210
3zoom all

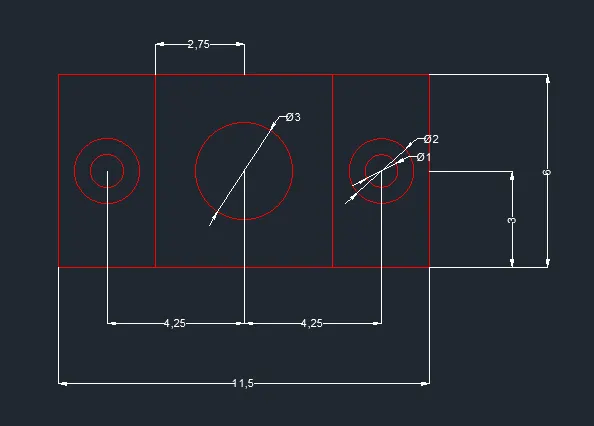

4sekect the line tool and draw the length starting from base of 11.50units ,now give line command @6<90,@11.50<180 and close.draw the vertical line 2.75 from the center of the rectangle of both side
5.draw concentric circle with x=1.50 and y=3 of diameter 1 and 2.copy the circle toward 4.25 right from the rectangle
6.draw another circle at center of the rectangle of diameter 3
7.annotate and give dimension to all the line segment and circle
6.Decimal
Procedure
1.new sheet unit decimal precision 0.00 meter ok
2.limit o,o and 420,210
3zoom all

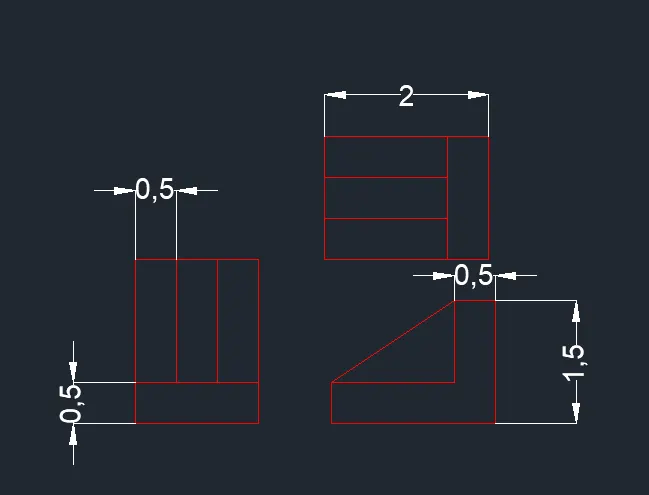

4sekect the line tool and draw the length starting from base 1.5 units draw offset at 0.50.taking and offset af 0.500for vertical segments
Follow the steps to draw2 the geometric and rotate towards left.using line command draw the l shape Geoffrey and connect to make the triangle portion
7.annotate and give dimension to all the line segment and circle
7.Decimal
Procedure
1.new sheet unit decimal precision 0.00 meter ok
2.limit o,o and 420,210
3zoom all

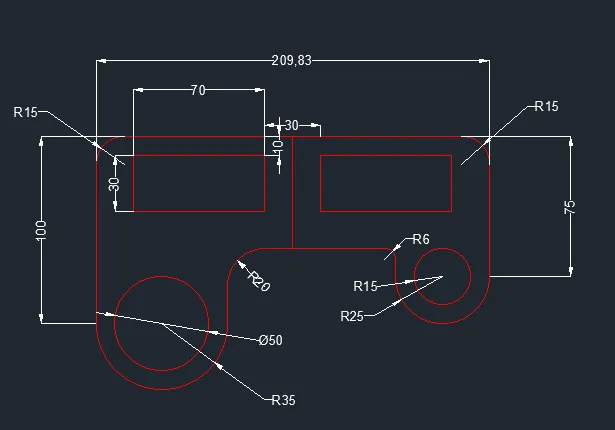

4sekect the line tool and draw the length starting from base of 210units ,now give line command @100<270,@75<270.draw the rectangle 70,30 and copy distance 30
5.draw concentric circle with y=100 and y=75
6.draw circle on both end of line and using fillet tool give of radius 35,20,6,15
7.annotate and give dimension to all the line segment and circle
8.Decimal
Procedure
1.new sheet unit decimal precision 0.00 meter ok
2.limit o,o and 420,210
3zoom all

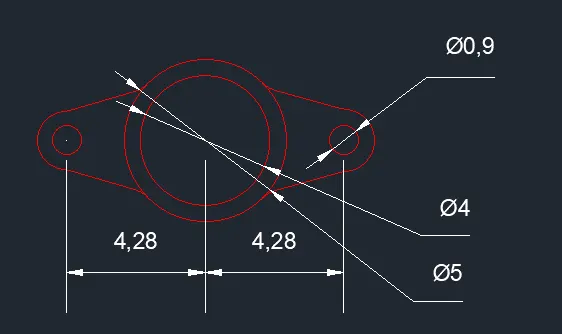

4 draw concentric circle with diameter 4 and 5 units
Draw one circleat 4.275 distance from the center mirror the same towards right and trim the extras in geometry
7.annotate and give dimension to all the line segment and circle
9.Architecture
Procedure
1.new sheet unit architectual precision 0.00 feet ok
2.limit o',o' and 12',9'
3.zoom all

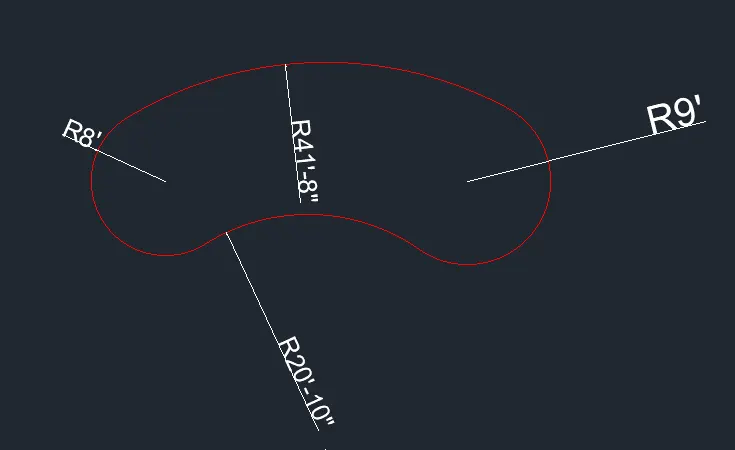

4.select circle tool and draw the circle of radius 8' and 9' at center to center distance of 32'6"
5.using fillet connect the circle with radius 41'8" and 20'10"
6.annotate and give dimension to all the line segment and circle
10.Decimal
Procedure
1.new sheet unit decimal precision 0.00 meter ok
2.limit o,o and 420,210
3zoom all

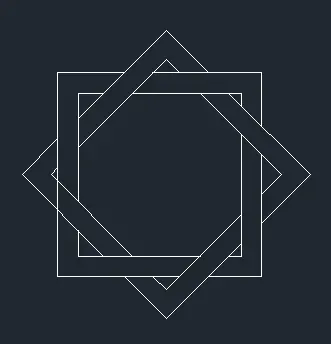

Draw square using rectangle tool with width 0.2 of equal sides.copy and rotate at 45 deg
Move the rotate rhombus over the square and trim the unwanted line
11.architecture
Procedure
1.new sheet unit architectual precision 0.00 feet ok
2.limit o',o' and 12',9'
3.zoom all

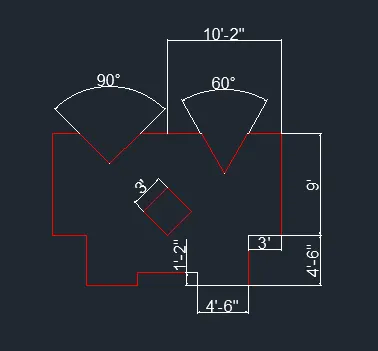

4.select the line tool and draw the length starting from top line segments of 9' changing the position of cursor in direction of the line with ortho on draw 3' ,4'6",4'6",1'2" .now take copy and
mirror the left to right and join to close.draw a square of side 3' and rotate to 45 deg and move tool to position. Using line tool draw vertical line of 2'8" and 3'7" and make 30deg line on each
side
5.annotate and give dimension to all the line segment and circle
