Drafting of various geometries using Chamfer, Fillet tool in AutoCad

1. AIM: TO DRAW THE GIVEN DRAWING BY USING AUTOCAD SOFTWARE:

Procedure: -

• Open AutoCAD software
• Select file click NEW
• select ADVANCE SETUP
• unit: decimal, precision :0.00
• angle: decimal degree, precision :0.00
• angle measure: East
• angle direction: clockwise
• area: 20*20
• and finished, let’s start
• command pl enter
• select starting point 1,1
• @3<0
• @2.12<45
• @2.18<135
• @2<180
• And join the end point press esc
• Select line command
• Select mid-point of (@3<0)
• Draw line @1<90
• Command C (circle)
• Select end point of @1<90
• Press diameter of 1.2
• Then select l command
• Select the mid-point of @3<0
• Draw line @2.5<90
• And delete the unwanted lines
• Give the dimensions of all points

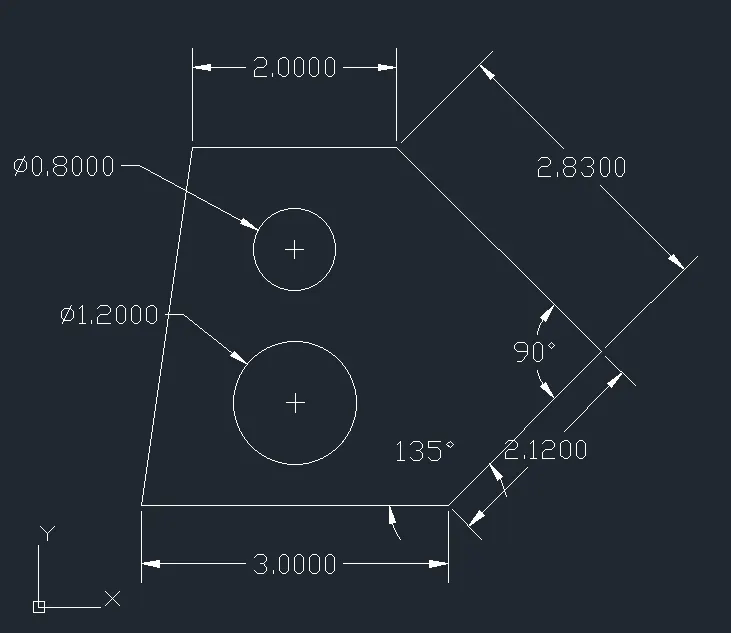

Result: below diagram show the result of above procedure

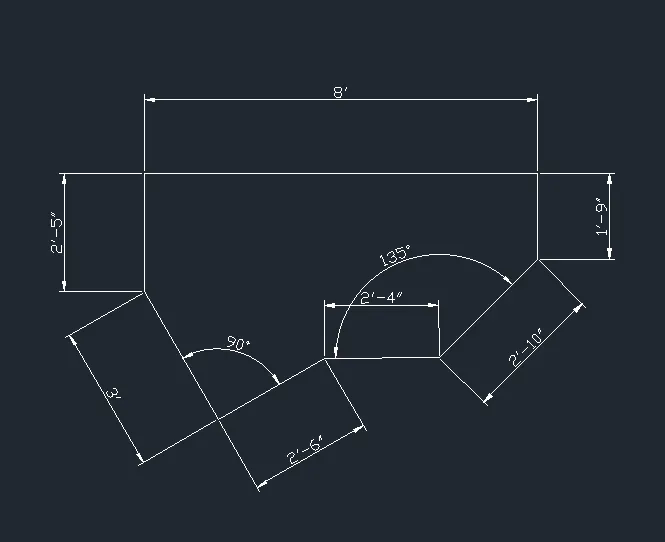

2. Aim: draw the given figure by using the AutoCAD software

Procedure: -

• Open AutoCAD software
• Select file click NEW
• select ADVANCE SETUP
• unit: decimal, precision :0.00
• angle: decimal degree, precision :0.00
• angle measure: East
• angle direction: clockwise
• area: 20*20
• and finished, let’s start
• select polar tracking 45,90,135,180
• command “pline” polyline
• @8’<0
• @1’-9” <90
• @2’-10” < 135
• @2’-4” < 0
• @2’-6” < 150
• @3’ < 120
• @2’-5” < 90
• Press esc key
• Give the all dimensions

Result: the given drawing by using autocad is shown below

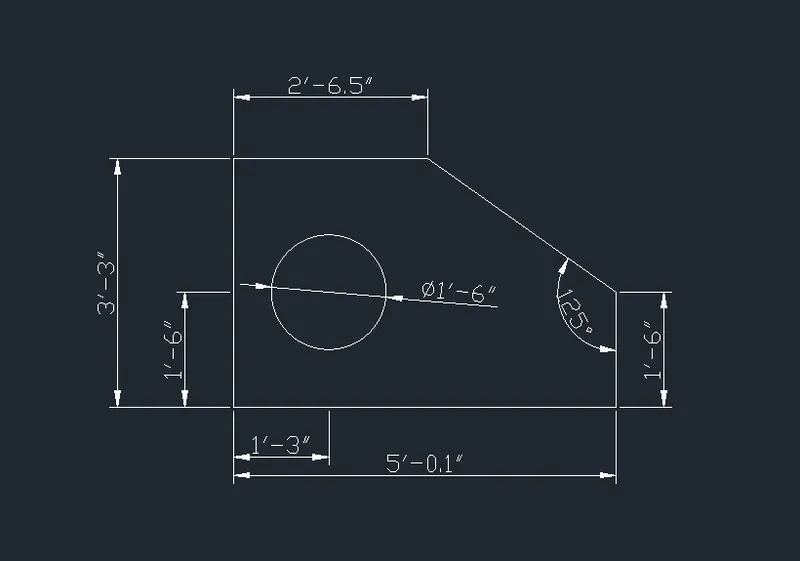

3. AIM: DRAW THE GIVEN DIAGRAM BY USING VARIOUS COMMAND AND TOOLS BY USING AUTOCAD

Procedure:

• Open AutoCAD software
• Select file click NEW
• select ADVANCE SETUP
• unit: decimal, precision :0.00
• angle: decimal degree, precision :0.00
• angle measure: East
• angle direction: clockwise
• area: 20*20
• and finished, let’s start
• command :L (line )
• @3'-3.0"<90
• @2'-6.5"<0
• press :ENTER
• command :L (line )
• objest snap :ON , endpoint and midpoint
• starting point :first point of line (@3'-3.0"<90)
• @5'-0.1"<0
• then joint the endpoint of line (2'-6.5"<0) by using object snap
• press :enter
• command :L (for line )
• starting point :first point of line (3'-3.0"<90)
• @1'-3.0"<0
• @1'6.0"<90
• press enter
• command :C (for circle )
• starting point :endpoint of (@1'-6.0<90) by using object snap
• give the diameter :1'-6.0"
• press :enter
• delete :line @1'-6.0"<90
• give the all dimensions in the drawing

Result: the given drawing by using autocad is shown below

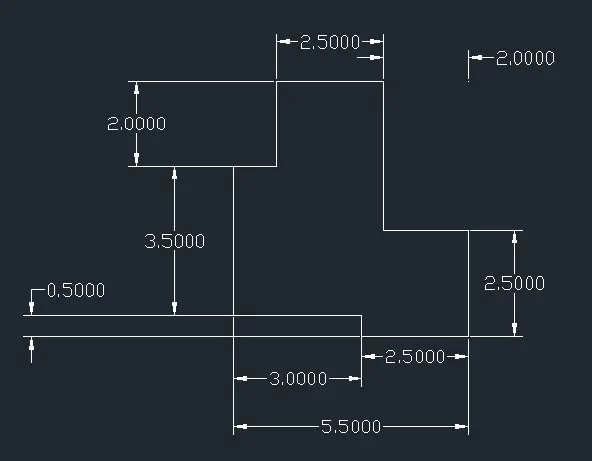

4. AIM: DRAW THE GIVEN DIAGRAM BY USING VARIOUS COMMAND AND TOOLS BY USING AUTOCAD

Procedure: -

• Open AutoCAD software
• Select file click NEW
• select ADVANCE SETUP
• unit: decimal, precision :0.00
• angle: decimal degree, precision :0.00
• angle measure: East
• angle direction: clockwise
• area: 20*20
• command : PL ( for polyline ) select starting point

• @0.50<90
• @3.00<180
• @3.00<90
• @1.00<0
• @2.00<90
• @2.50<0
• @3.00<270
• @2.00<0
• @2.50<270
• then join the endpoint of line (@0.50<90)
• press : ENTER
• command :DIM (for dimension )
• give the dimension to all points

Result: the given drawing by using autocad is shown below

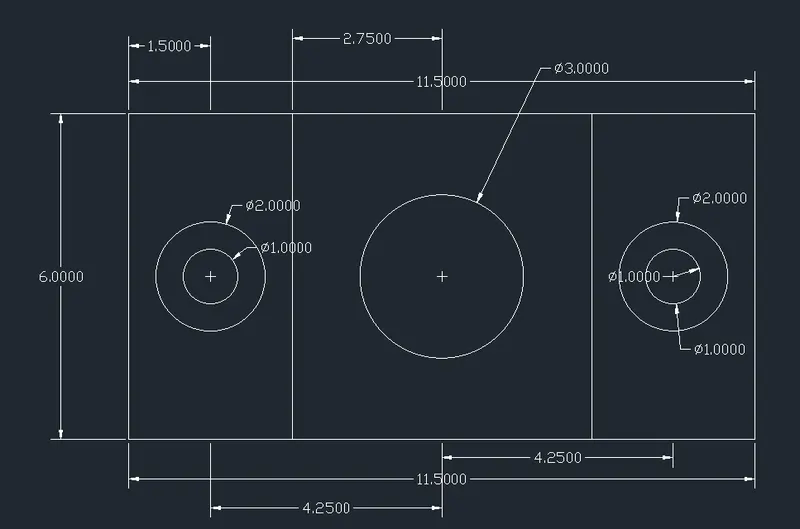

5. AIM: DRAW THE GIVEN DIAGRAM BY USING VARIOUS COMMAND AND TOOLS BY USING AUTOCAD

Procedure:

• Open AutoCAD software
• Select file click NEW
• select ADVANCE SETUP
• unit: decimal, precision :0.00
• angle: decimal degree, precision :0.00
• angle measure: East
• angle direction: clockwise
• area: 20*20
• and finished, let’s start
• ortho mode : ON
• object snap : ON select endpoint and midpoint
• command : PL ( for polyline )
• select the starting point
• @11.50<0
• @6.00<90
• @11.50<180
• @6.00<270
• closed
• command :L (for line )
• select the first point of line (11.50<0)
• @1.50<0
• @3.00<90
• press : ENTER
• command :C (for circle )
• select the point of line (3.00<90)
• diameter :1.00
• press :ENTER
• again go for command :c (for circle )
• select the endpoint of line (@3.00<90)
• diameter :2.00
• press : ENTER
• delete line :@3.00<90
• press :ENTER
• command :l( for line)
• starting point : select the midpoint of circle (
• @4.25<0
• @3.00<90
• press :ENTER
• command :C (for circle )
• select the starting point of line (@3.00<90)
• click on DIAMETER
• dimater :3
• press : ENTER
• delete :@3.00<90
• command : L (FOR LINE )
• select the midpoint of circle having diameter is 3
• @4.25<0
• @3.00<90
• press :ENTER
• command :C (for circle )
• starting point :click on endpoint of line (@3.00<90)
• clinck on DIAMETER
• diameter :1
• press :ENTER
• Command :C (For circle )
• select last point of line @3.00<90
• click on diamter
• diamter :2
• press : ENTER
• delete line 1:@3.00<90
• command :L (For line )
• starting point :midpoint of circle having diamter 3
• @2.72<180
• @6.00<900
• press : enter
• again click on midpoint of circle having diameter 3
• @2.75<0
• @6.00<90
• press : ENTER
• Give the dimensions

Result: the given drawing by using autocad is shown below

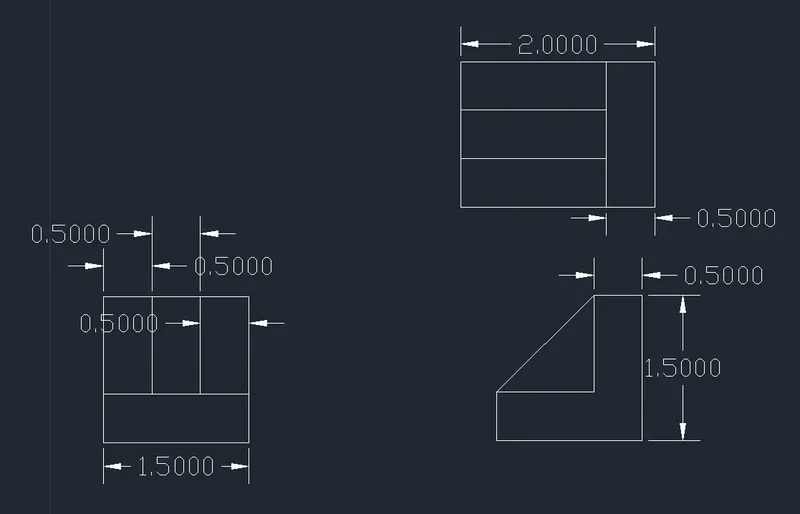

6. AIM: DRAW THE GIVEN DIAGRAM BY USING VARIOUS COMMAND AND TOOLS BY USING AUTOCAD

Procedure:

• Open AutoCAD software
• Select file click NEW
• select ADVANCE SETUP
• unit: decimal, precision :0.00
• angle: decimal degree, precision :0.00
• angle measure: East
• angle direction: clockwise
• area: 20*20
• and finished, let’s start
• Fig no :1
• command :L (for a line )
• select starting point
• ortho mode :ON
• object snap :ON select endpoint and midpoint
• @1.5<90
• @1.5<0
• @1.5<270
• closed
• command : O (ofset )
• give ofset distance 0.5
• select horizontal line object
• press :ENTER
• again go for ofset command
• and select the vertical line
• and give the 2 ofset line having each distance is 0.5
• fig no :2
• command :L (for line )
• select starting point
• @2.00<0
• @1.5<90
• @2.00<180
• @1.5<270
• press :ENTER
• command :o (for ofset)
• give the ofset distance 0.5
• select the object
• and give the one ofset
• press :ENTER
• command :o (ofset )
• give the offset distance is 0.5
• select the object
• and give the 2 offset line
• press :ENTER
• Fig no :3
• command : L (for line )
• select the startig point
• @2<0
• @2<90
• @0.5<180
• @1.5<270
• @1.5<180
• @0.5<270
• press :ENTER
• ortho mode : OFF
• command :L ( FOR LINE )
• select the endpoint of line (@0.5<270)
• and join the endpoint of line @(0.5<180) by using object snap mode
• press : ENTER
• give the dimensions to all fig

Result: the given drawing by using autocad is shown below

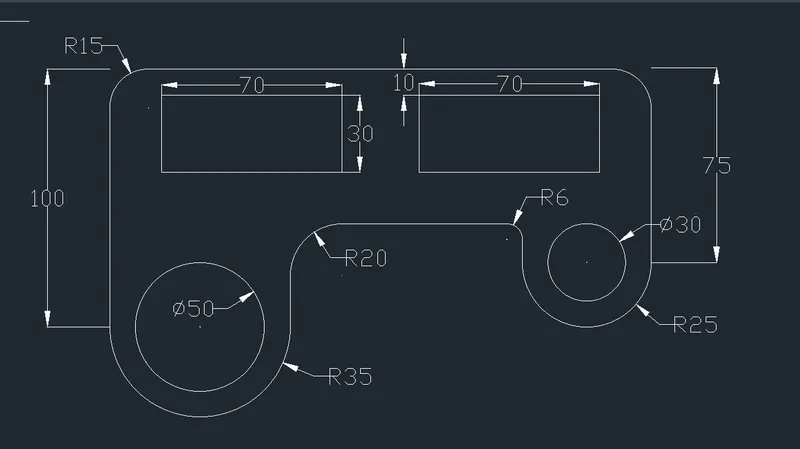

7. AIM: DRAW THE GIVEN DIAGRAM BY USING VARIOUS COMMAND AND TOOLS BY USING AUTOCAD

Procedure:

• Open AutoCAD software
• Select file click NEW
• select ADVANCE SETUP
• unit: decimal, precision :0.00
• angle: decimal degree, precision :0.00
• angle measure: East
• angle direction: clockwise
• area: 20*20
• command :L (for line )
• select the starting point
• @100<90
• @210<0
• @75<270
• press :ENTER
• command :F (fillet )
• mode :triam
• radius :15
• click on line (@100<900)and (210<0)
• again same way
• command :F (fillet )
• radius :15
• select line (210<0) and (75<270)
• command :L (Line )
• starting point :endpoint of line (@100<90)
• @20<0
• @10<270
• @70<0
• @30<270
• @70<180
• @30<90
• press : ENTER
• delete line :(@10<270)
• command :L ( for line )
• starting point :endpoint of line (@210<0)
• @20<180
• @10<270
• @70<180
• @30<270
• @70<0
• @30<90
• press : ENTER
• delete line :@10<270
• command :L (for line )
• starting point :first point of line (@100<90)
• @70<0
• @40<90
• press : ENTER
• command : C (For circle )
• select circle ,radius option
• starting point :Midpoint of line (@70<0)
• radius :35
• press :ENTER
• again ,command :C (circle )
• select circle ,diameter mode
• diameter :50
• press :ENTER
• command : E (erase )
• delete line :@70<0
• command :L (for line )
• starting point :endpoint of line (@75<270)
• @50<180
• @15<90
• press : ENTER
• Command :C (for circle )
• start point :midpoint of line (@50<180)
• select circle ,radius mode
• radius :25
• press : ENTER
• command : C ( for circle )
• select circle ,diameter mode
• starting point :midpoint of line (@50<180)
• diameter :30
• press : ENTER
• DELETE LINE :@50<180
• then ,
• command :L (for line )
• join the line (@15<90) and (@40<90)
• press : ENTER
• command :F (for FILLETE)
• radius :6
• select line (@15<90) and another connected line
• again fillete opetion
• radius :20
• select line (@40<90) and another connected line
• press :ENTER

Result: the given drawing by using autocad is shown below

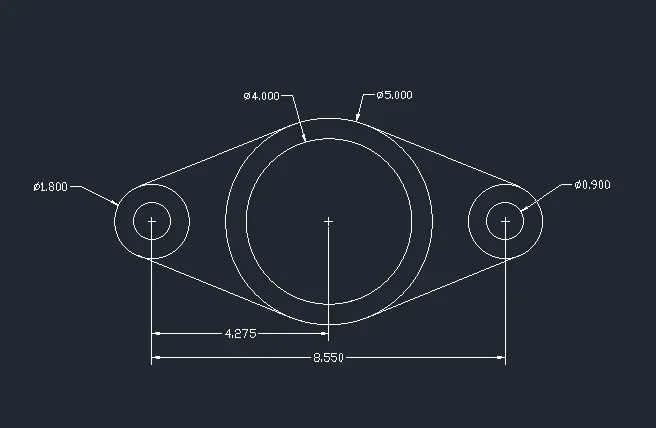

8. AIM: DRAW THE GIVEN DIAGRAM BY USING VARIOUS COMMAND AND TOOLS BY USING AUTOCAD

Procedure:

• Open AutoCAD software
• Select file click NEW
• select ADVANCE SETUP
• unit: decimal, precision :0.00
• angle: decimal degree, precision :0.00
• angle measure: East
• angle direction: clockwise
• area: 20*20
• command :L (for line )
• select the starting point
• @8.550<0
• press : ENTER
• command :C (for circle )
• select the circle,radius mode
• starting point :starting point of line (@8.550<0)
• radius :0.90
• press : ENTER
• command :C (for circle )
• select the circle , diameter mode
• diameter :0.90
• press : ENTER
• Command :c (for circle )
• starting point :endpoint of line (@8.50<0)
• select circle radius mode
• radius :0.90
• press : ENTER
• command : c (for circle )
• select circle ,diameter mode
• starting point : endpoint of line (@8.500<0)
• diameter :0.90
• then :
• delete line: @8.850<0
• give the all dimensions

Result: the given drawing by using autocad is shown below

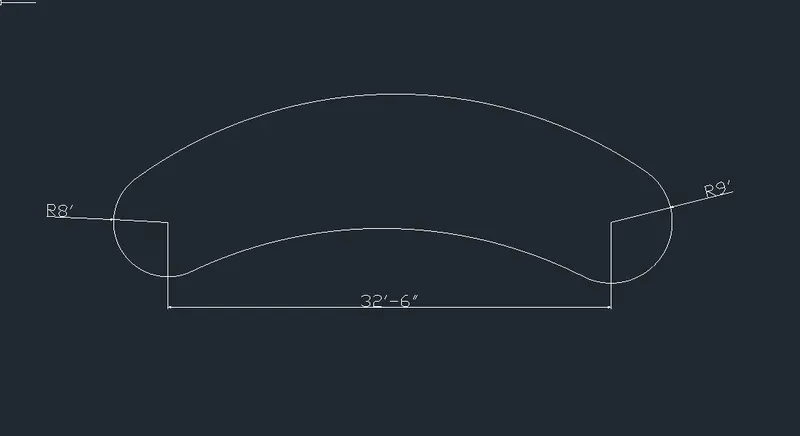

9. AIM: DRAW THE GIVEN DIAGRAM BY USING VARIOUS COMMAND AND TOOLS BY USING AUTOCAD

Procedure:

• Open AutoCAD software
• Select file click NEW
• select ADVANCE SETUP
• unit: decimal, precision :0.00
• angle: decimal degree, precision :0.00
• angle measure: East
• angle direction: clockwise
• area: 20*20
• command:L (for line )
• @32'-6" <0
• press : ENTER
• command :C (for circle )
• select the first point of line (@32'-6"<0)
• select circle, radius mode
• radius :8'
• press : ENTER
• Command :c(for circle )
• select the endpoint of line (@32'-6"<0)
• select the circle ,radiuds mode
• radius :9'
• press enter
• command :c ( for circle )
• select the tan tan radius mode
• click on circle having radius is 8' and 9'
• and radius is 20'-10"
• press : ENTER
• Tream the unrequired part
• again
• command :c (for circle )
• move the curcor upward direction
• select the tan tan mode
• click on both two circle
• and radius is 41'-8"
• press : ENTER
• Trim unrequired part
• give the all dimensions

Result: the given drawing by using autocad is shown below

10. AIM: DRAW THE GIVEN DIAGRAM BY USING VARIOUS COMMAND AND TOOLS BY USING AUTOCAD

Procedure:

• Open AutoCAD software
• Select file click NEW
• select ADVANCE SETUP
• unit: decimal, precision :0.00
• angle: decimal degree, precision :0.00
• angle measure: East
• angle direction: clockwise
• area: 20*20
• command :REC (rectangle)
• select the starting point
• click on DIMENSION
• length: 5
• width :5
• press :ENTER
• Command :o (ofset )
• give the ofset distance 0.5
• select the object
• press :ENTER
• command: MIR (mirror)
• select the object
• and rotate it
• press : ENTER
• command :TR (trim)

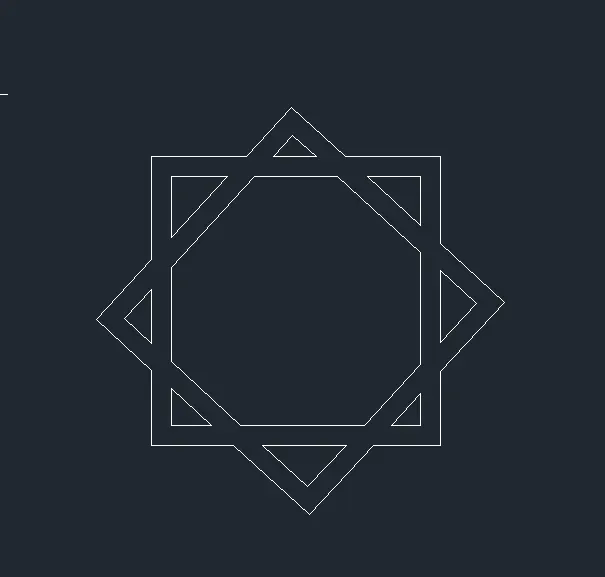

Result: the given drawing by using autocad is shown below

11. AIM: DRAW THE GIVEN DIAGRAM BY USING VARIOUS COMMAND AND TOOLS BY USING AUTOCAD

Procedure:

• Open AutoCAD software
• Select file click NEW
• select ADVANCE SETUP
• unit: decimal, precision :0.00
• angle: decimal degree, precision :0.00
• angle measure: East
• angle direction: clockwise
• area: 20*20
• command :L (For line )
• @9'<270
• @3'<0
• @4'-6"<270
• @4'-6"<0
• @1'-2"<90
• @5'-4"<0
• @1'-2"<270
• @4'-6"<0
• @4'-6"<90
• @3'<0
• @9'<90
• @10'-2"<180
• press :ENTER
• command :L (FOR LINE )
• start point : midpoint of line (@10'-2"<180)
• @3'-7"<270
• press : ENTER
• polar tracking :ON
• select the mode 30,60,90,120
• commad :L (for line )
• select the endpoint of line (@3'-7"<270)
• mark the v having angle is 60 degree
• delete the line (@3'-7"<270)
• triam the midline of v portion
• press : enter
• command :L ( for line )
• select the endpoint of line (@10'-2"<180)
• @10'-2"<180
• press : ENTER
• command :l(for line )
• select the mid point of line (10'-2"<180)
• @2'-8"<270
• press :ENTER
• command :L (for line )
• go for v portion
• polar tracking :ON
• select the mode 45,90,135,180
• draw the v portion at angle og 90 degree
• trim the midline of v portion
• command :L (for line )
• select the midpoint of line 20'-4" from upper face
• @6'-9"<270
• press : enter
• command :REC ( for rectangle )
• starting point : select the endpoint of line (@6'-9"<270)
• click on DIMENSION
• Length:3'
• width :3'
• then rotate it at an angle of 90 degree
• press :ENTER
• delete line :(@6'-9"<270)
• give the dimension to all points

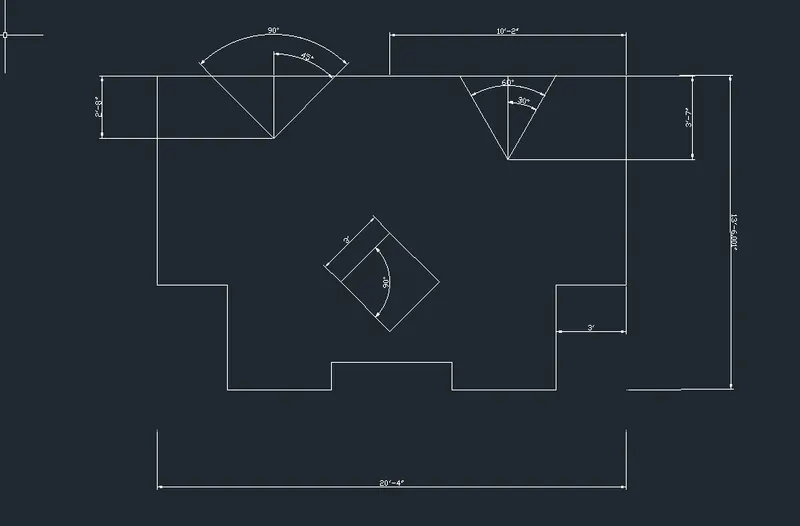

Result: the given drawing by using autocad is shown below
