Drafting of various geometries using Chamfer, Fillet tool in AutoCad

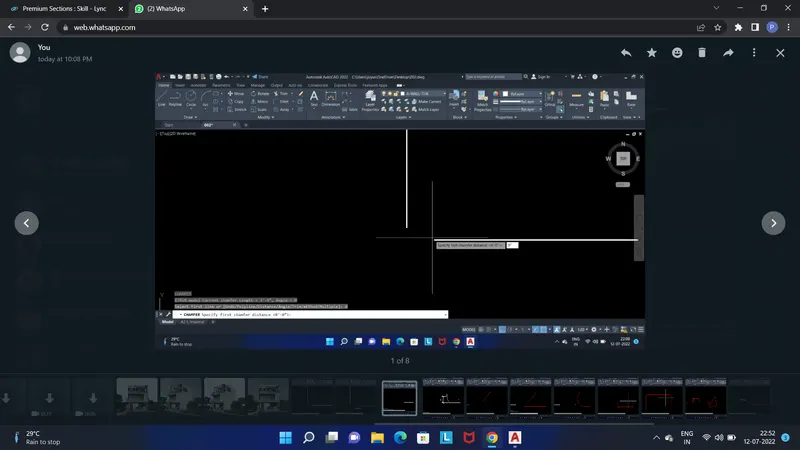

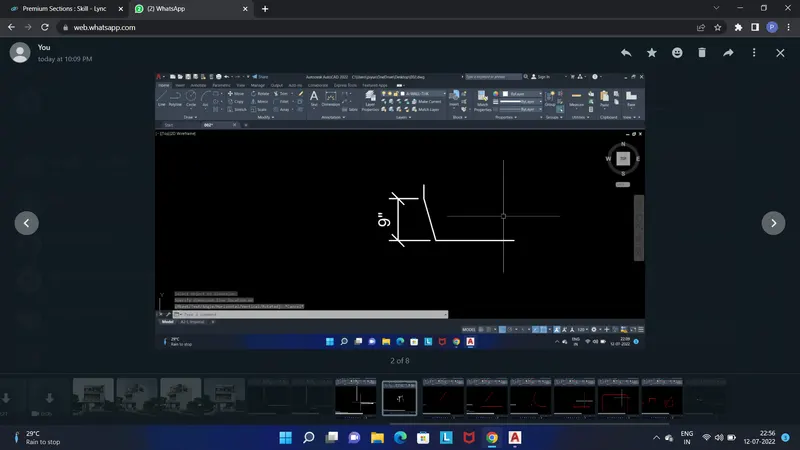

CHAMFER COMMOND:

STEP: 01

•
• TYPE COMMOND CHAMFER
• SELECT DISTANCE IN COMMOND LINE.
• TYPES DISTANCE 9" .
• SELECT FIRST POINT.
• SELECT SECOND POINT.
• ENTER
• SELECT FIRST CHAMFER LINE
• SELECT SECOND CHAMFER LINE.
•
• SELECT ANGLE .
• TYPE ANGLE LIKE 85 DEGREE.

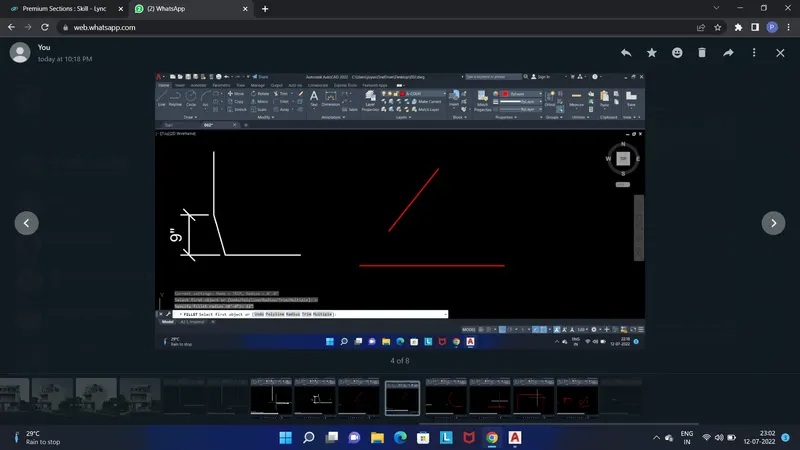

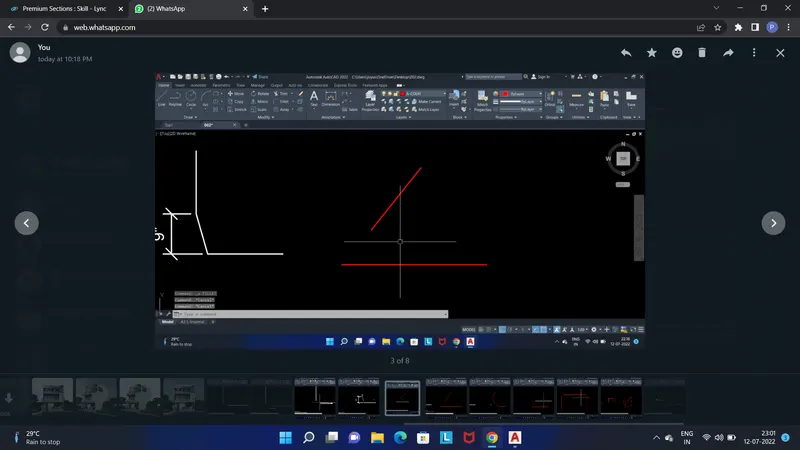

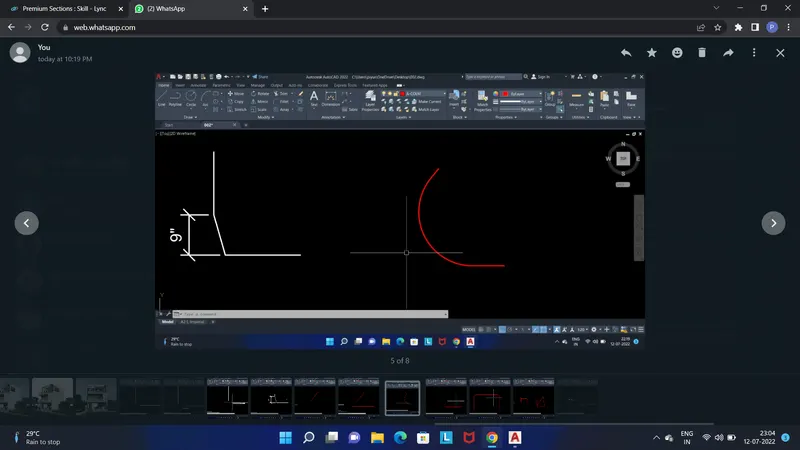

FILLET COMMOND:

STEP 01:

•
• TYPE COMMOND FILLET.
•
• TYPE RADIUS 12".
• SELECT FIRST LINE.
• SELECT SECOND LINE.
•
• U CAN CHECK RESULT ON SCREEEN.
• I KNOW FILLET COMMOND USING THEN MANY TYPE TO ASK LIKE RADIUS, DISTANCE, ANGLE ETC.
• I KNOW ALL TYPE .
• BT I AM NOT SHOW IN THIS PRACTICE TIME.
• ASK ME ONE TO ONE SECCION
