Drafting of various geometries using Chamfer, Fillet tool in AutoCad

Aim:

To draft the given sketches draft of various geometries using chamfer, fillet tool in AutoCAD.

Introduction:

The main objective of this assignment is to get knowledge of various tools in AutoCAD. It offers various tools like rotate, chamfer, fillet, move, offset, etc to ease the sketching process.

Procedure:

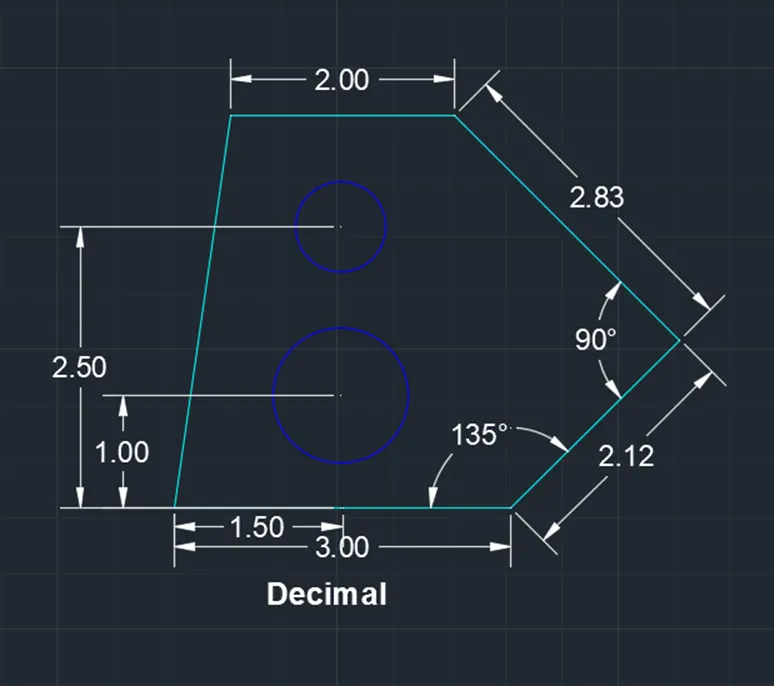

Drawing 1:

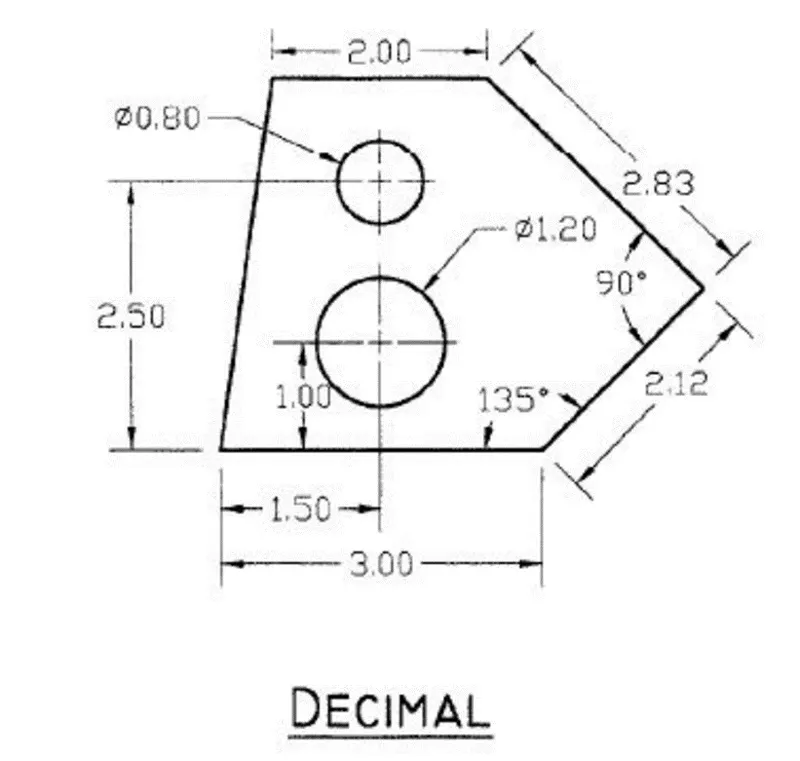

• Open a new file and set decimal and precision to 0.00.

• Command-line: From a random point draw a 3.00 m line and @2.12<45, @2.83<135 then 2.00m line and close.

• Command offset: Offset 3.00m line to 1.00m and 2.50m.

• Command circle: From the midpoint of the 3.00m line at 2.50m and 1.00m draw a circle of diameter of 1.20 at 1.00m and 0.80 at 2.50m.

• Command erase: Erase the offsets.

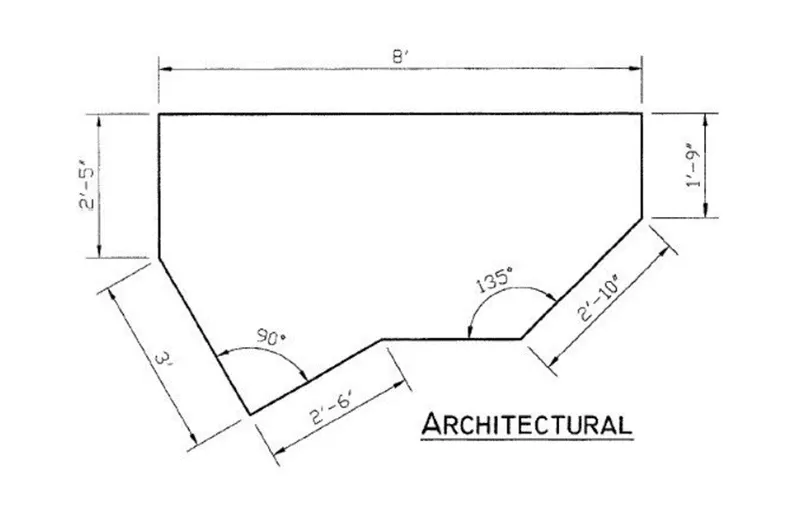

Drawing 2:

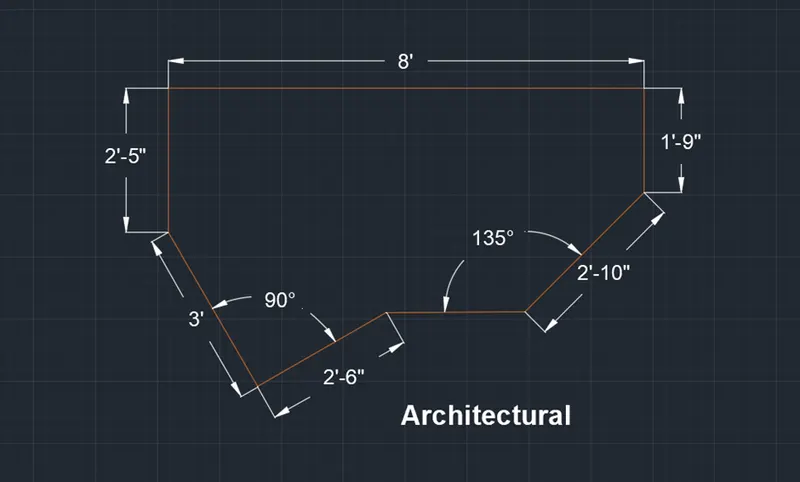

• Select architectural and polar tracking for angles 15,30,45,60 and so on.

• Command-line: Draw 2'10" line at 45 degrees, draw upside 1'9” vertical line to it, and draw left side 8' horizontal line, 2'5" vertical line downside and draw @3’<300 degrees and again draw 2’6” line at 30 degrees.

• Close Command: C Enter close.

Drawing 3:

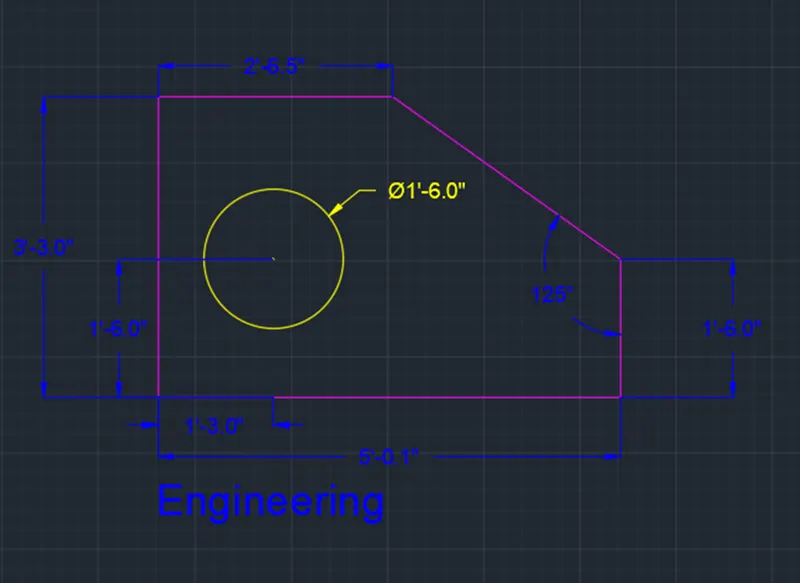

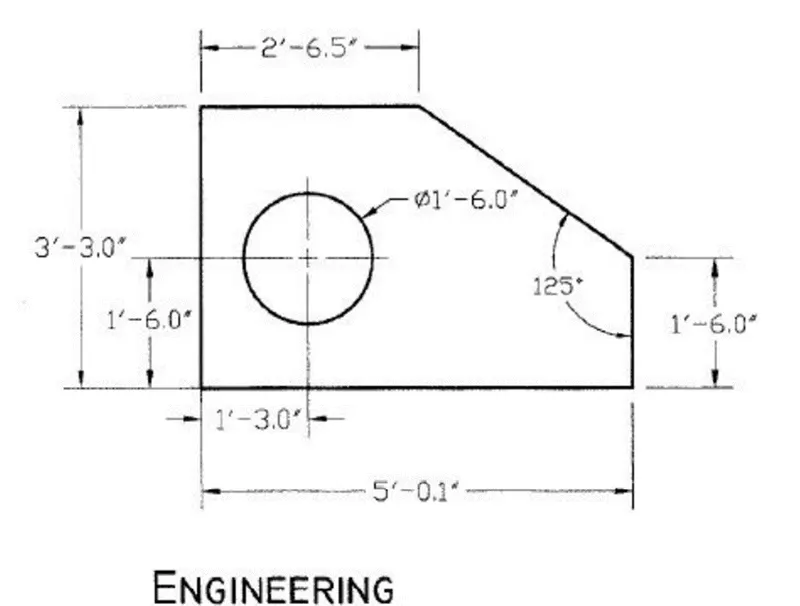

• Open a new file and set engineering and precision to 0'-0.0"

• Command-line: 2'-6.5" in Negative X-axis, 3-3" in Negative Y-axis, 5-0.1" in Positive X-axis, 1-6.0" in Positive Y-axis and close.

• Command offset: offset 3'-3" line at a distance of 1-3.0" and 5'-0.1" at a distance of 1-6.0"

• Command circle: draw a circle of diameter of 1'-6.0" from the center of offset lines.

• Command erase: Erase the offsets.

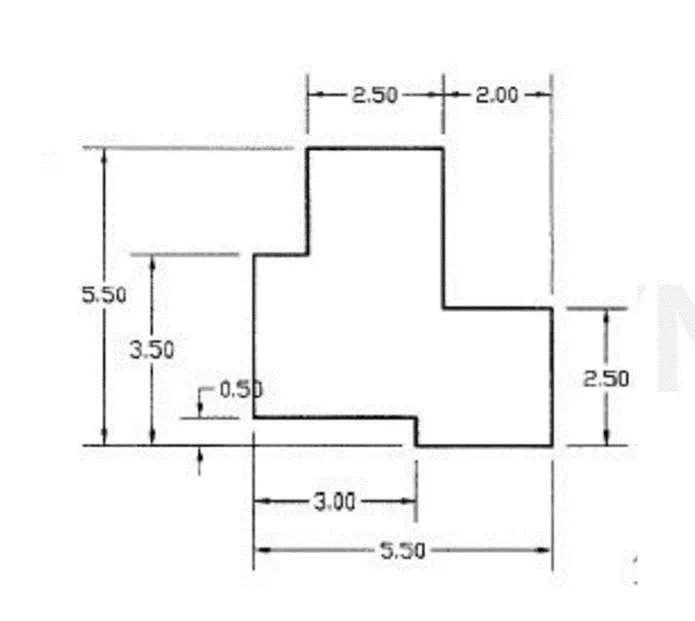

Drawing 4:

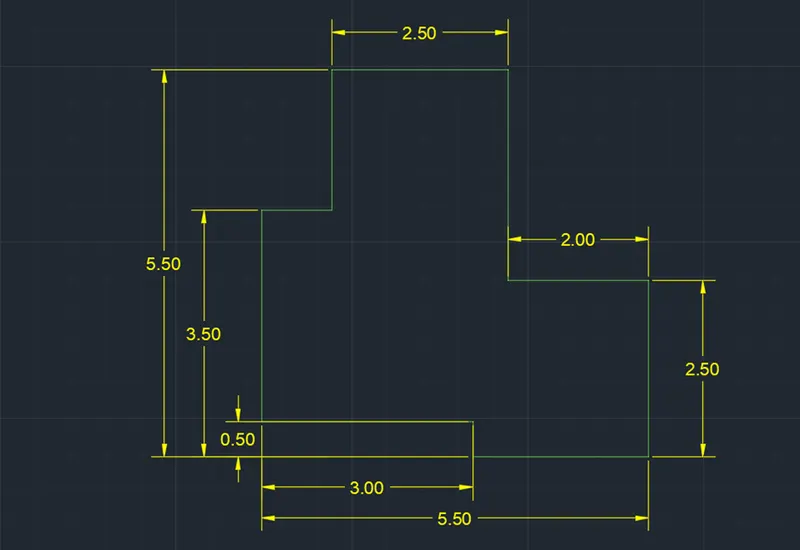

• New page and select decimals with a precision of 0.00 while keeping ortho on.

• Command-line: Draw 3.00m line in +ve X axis

• 50 In -ve Y axis, 2.50m in +ve X axis, 2.50m in +ve Y axis, 2.00m in -ve X axis, 3.00m in +ve Y axis, 2.50m in -ve X axis, 2.00m in -ve Y axis, 3.00m in -ve Y axis and close.

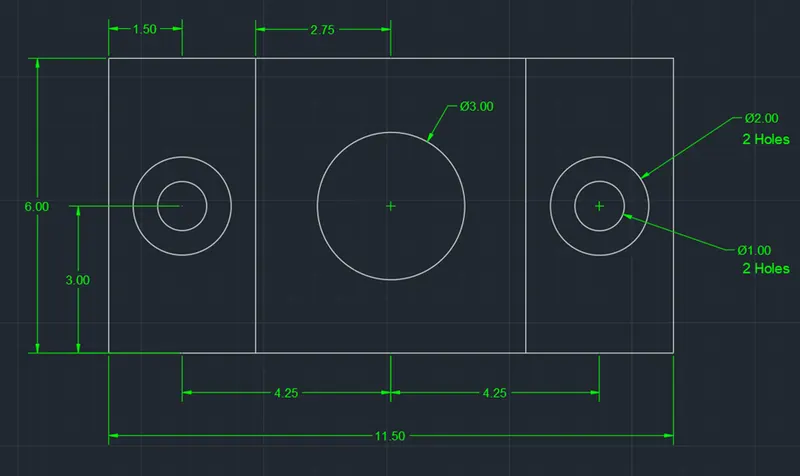

Drawing 5:

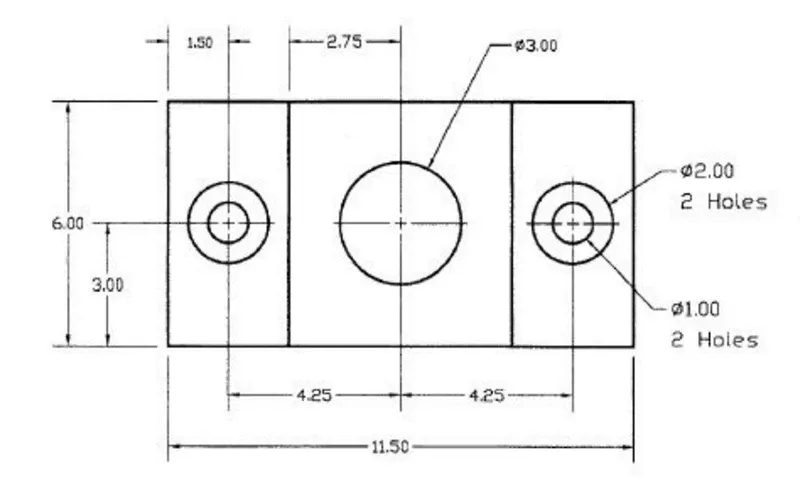

• New page Select decimal and precision 0.00 while keeping ortho on.

• Command-line: 6.00m vertical. 11.50m horizontal and 6.00m vertical and 11.50m horizontal.

• In object snap settings keep midpoint, center, intersection, and geometric center on.

• Command Circle: Draw a circle at the center with a diameter of 3.00m

• Command offset: offset the 6.00m line at a distance of 3.00m on both sides and offset the 11.50m line at a distance of 3.00m.

• Command circle: Draw concentric circles at the intersection of the offset line of diameters 1.00m and 2.00m on both sides.

• Command erase: Erase the offsets.

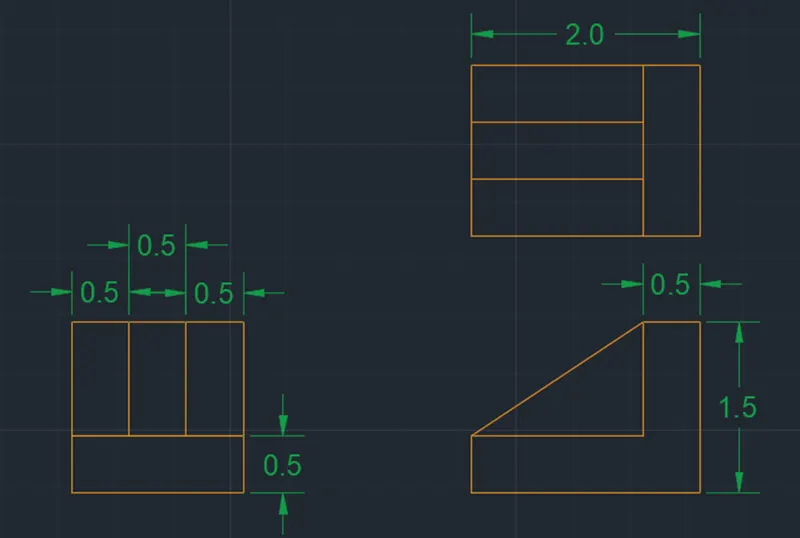

Drawing 6:

• The new page selects decimal with a precision of 0.0.

• Command-line: 1.5m horizontal and 1.5m vertical on both sides.

• Command offset offset1.5m line to 0.5m.

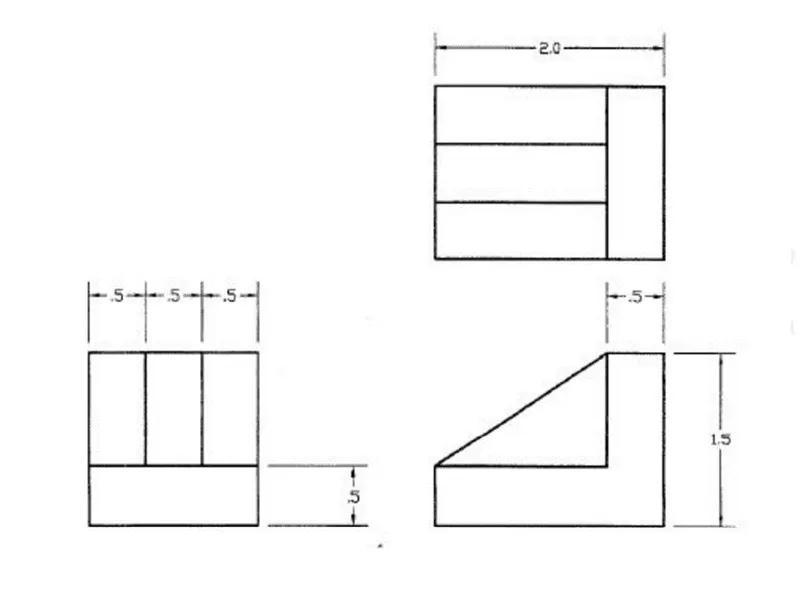

• Command divide: Divide 1.5m line into 3 segments.

• Command-line-: Join the divided lines.

• In object, snap setting keep the Extension On.

• Command-line: Draw 2.0m line and 1.5m line and 0.5m horizontal on top and in vertical and 1.5m horizontal and 0.5m vertical and join the slant line.

• Command line:2.0m horizontal and 1.5m vertical on both sides.

• Command offset: offset 1.5m line to 0.5m.

• Command divide: Divide 1.5m line into 3 segments.

• Command-line: Join the divided lines.

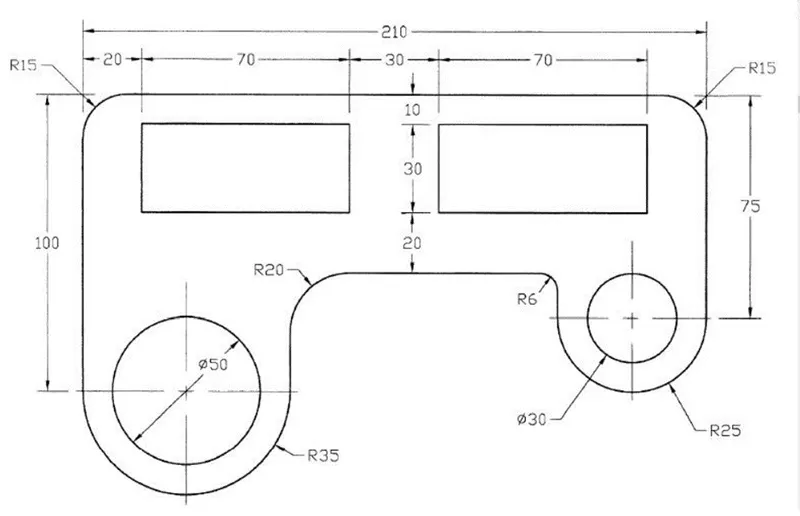

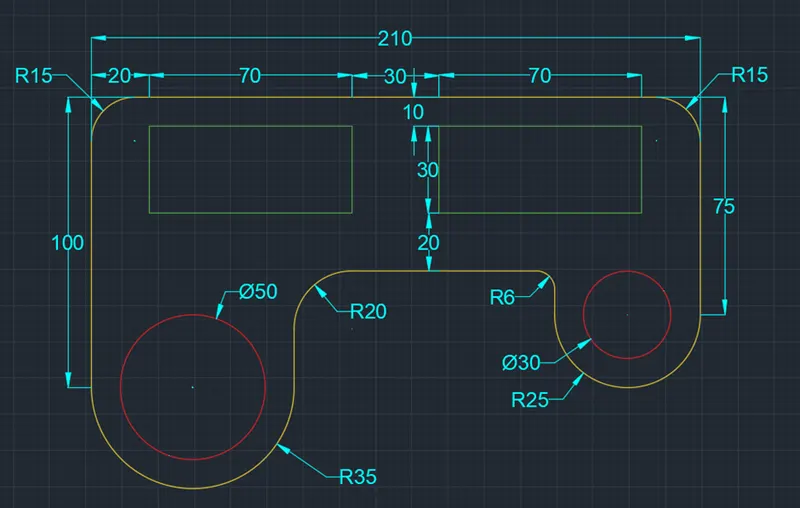

Drawing 7:

• New page and set decimal and precision to 0

• Command-line: Drawing 210m horizontal line and 100m vertical line on the left side and 75m vertical line on the right side, since the arc has a radius of 35m drawing a line of 70m on the left side and has a radius of 25m drawing a line of 50m on the right side.

• Command Arc: From the start, end and radius draw an arc of radius 35m on the right side and an arc of radius 25m on the left side.

• Command Circle: From the midpoint of the 70m line on the left side, draw a circle of diameters 50 and 30m on the right side.

• Command offset: Offset 210m line at a distance of 60m.

• Command fillet: Filleting to a radius of 15m on the top right and left and radius of 20m on the inner left and a radius of 6m on the inner right.

• Command offset: Offset 210m line to 10m and 100m and 75m line to 20m.

• Command rectangle:70m length and width of 30m from offset line on both sides.

• Command erase and Trim Command: Erasing the offset line and cutting unwanted lines.

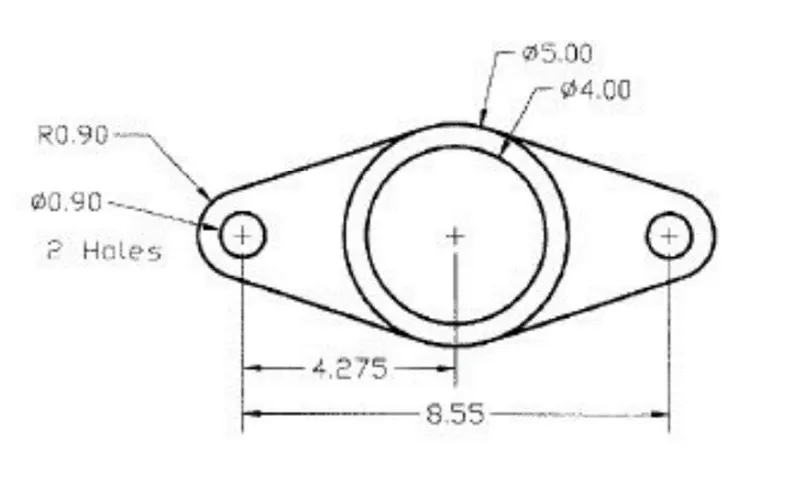

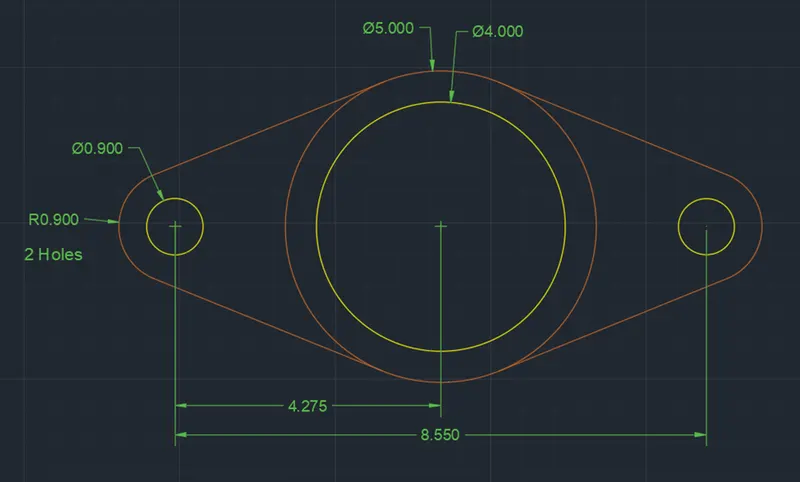

Drawing 8:

• The new page set decimal and precision to 0.00

• Command circle: Draw concentric circles of diameters 5.00m and 4.00m

• Command-line: From the center point of the circle draw a 4.275m line on both sides.

• Command circle: Drawing a circle of a diameter of 0.90m on both sides.

• Command arc: from the start, end and radius draw an arc of radius 0.90 on both sides

• Command-line: Join the lines to the arc.

Drawing 9:

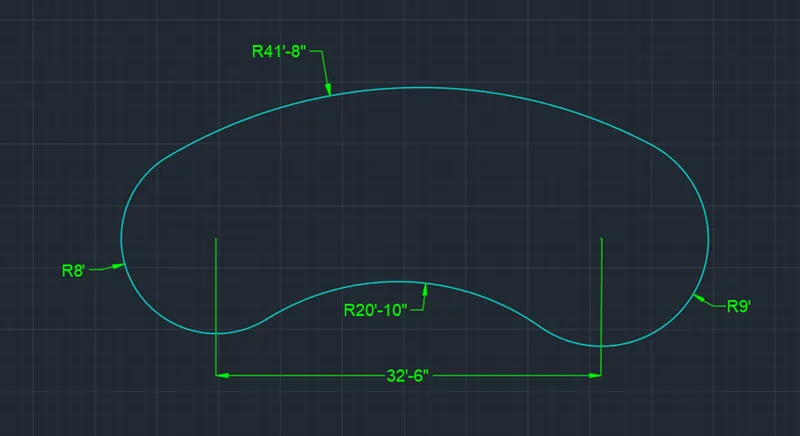

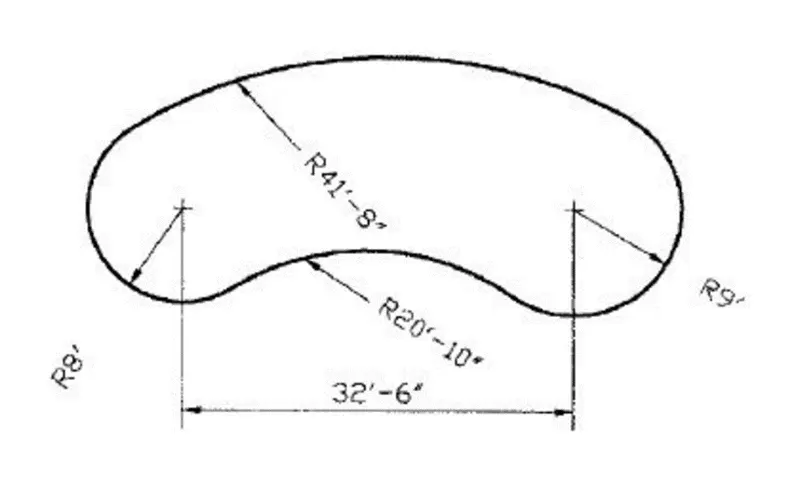

• New page and set Engineering and precision to 0'-0"

• Command Line: Draw a 32'-6" horizontal line.

• Command circle: Draw a circle of radius 8' on the left side of the line and a radius of 9' on the right side of the line.

• Command Circle: Draw a circle using Tangent Tangent Radius first 41'-8" on top and second 20'10" on the bottom.

• Command trim: trim the unwanted line and curves.

Drawing 10:

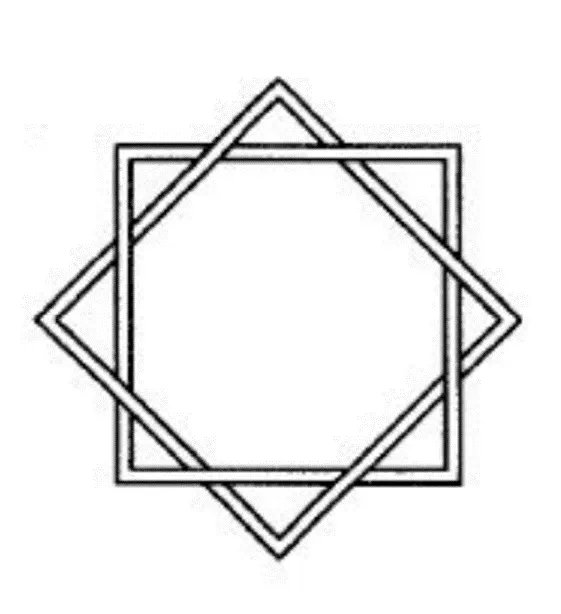

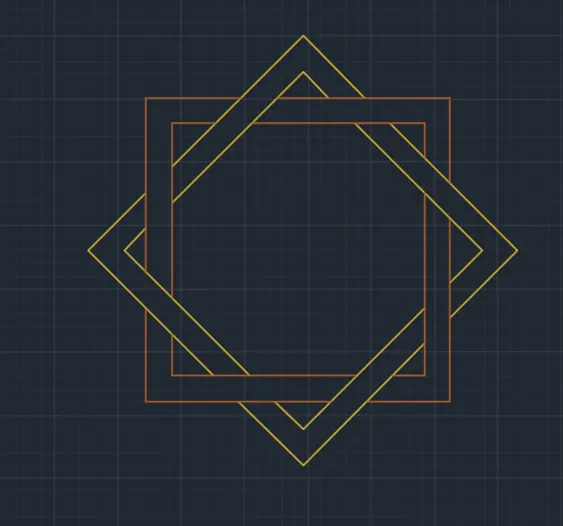

• Command rectangle: Draw a rectangle of the same length and the same width of one smaller size and another slightly bigger one from the common center.

• Command Rotate: Rotating the drawn squares by 45 Degree keeping the copy.

• Command trim: Trim the crossing lines according to the figure.

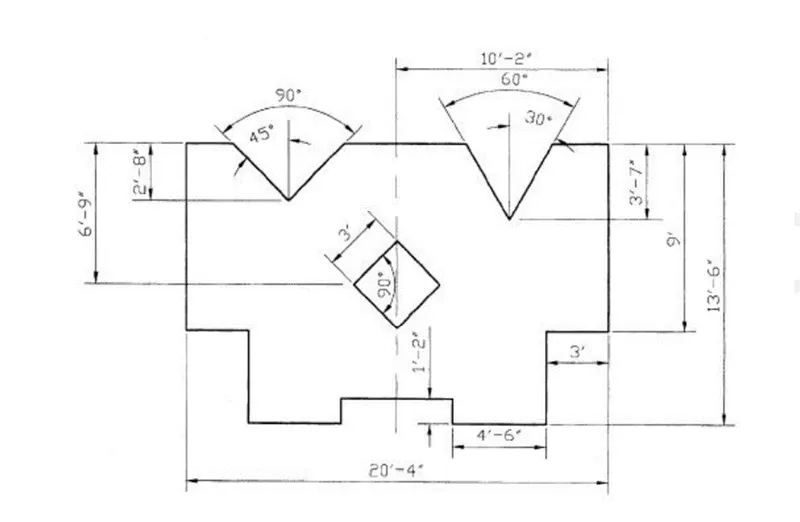

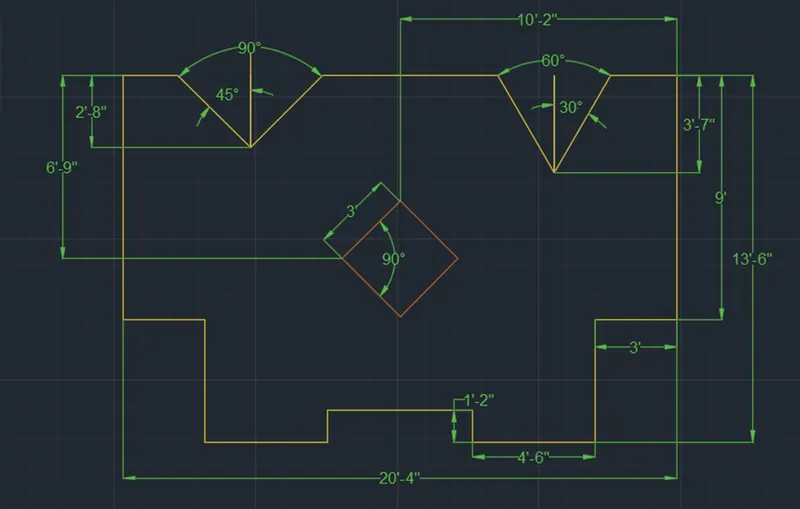

Drawing 11:

• New page and set engineering and precision 0'0"

• Command-line: Draw 10' -2" horizontal line, 9' vertical line, 3' horizontal line,4'-6" vertical and horizontal line and 1-2" vertical line.

• Command mirror: Mirror the above lines at the center axis.

• Command offset: offset the 20'-4" to a distance of 6'-9" and 13'-6" to a distance of 10'-2"

• Command Rectangle: Draw a rectangle of length and width of 3' from the center point) offset line.

• Command Move: moving the center of the rectangle to the center of the offset line.

• Command Rotate: Rotating the Rectangle by 45 degrees.

• Command offset: Offsetting 20'-4" to a distance of 2'-8" with polar tracking on draw an angle of 90 degrees. Offset 20'-4" to a distance of 3'-7' with polar tracking to draw an angle of 60 degrees.

• Command erase: Erase the unwanted lines.

Result: The given drawings have been drafted using chamfer, filler, circle, and line tool in AutoCad inaccurate measurement.
