Creating a Floor plan, Footing detail and Isometric view using AutoCad
AIM:
To create a Floor plan, Footing detail, and Isometric view using AutoCAD.
INTRODUCTION:
The main objective of this assignment is to get knowledge in various tools in AutoCAD like the rectangle, polylines, modification tools like copy, move, offset, and modes like snap mode and ortho mode. These tools will be understood by creating a footing detail, a two-bedroom building, the cross-section of a 2-bedroom building showing foundation details, and an isometric view of steps and gable wall.
Note: Referencing alphabets are provided only when required.

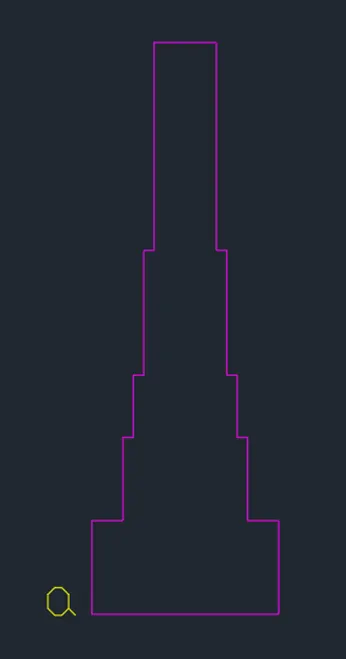

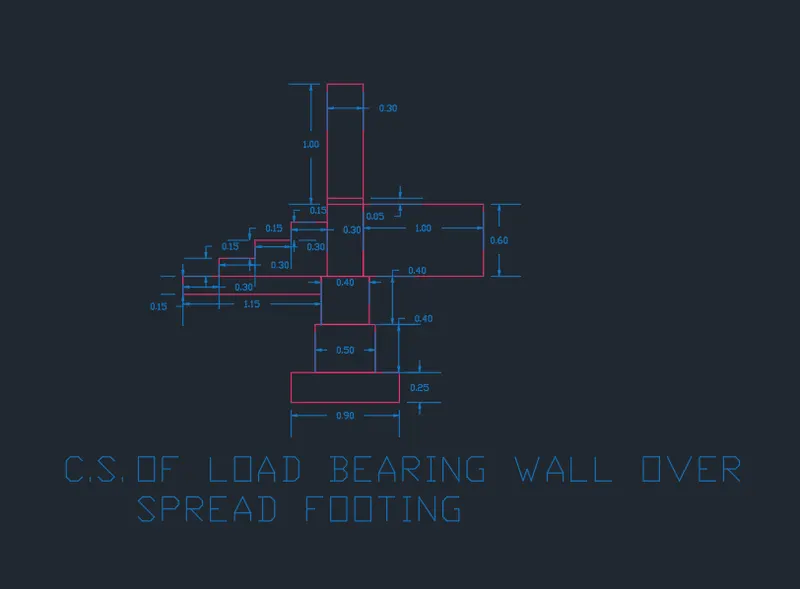

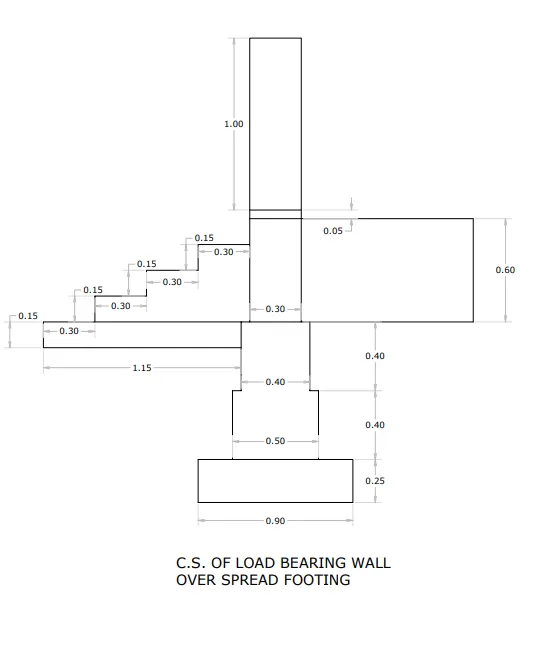

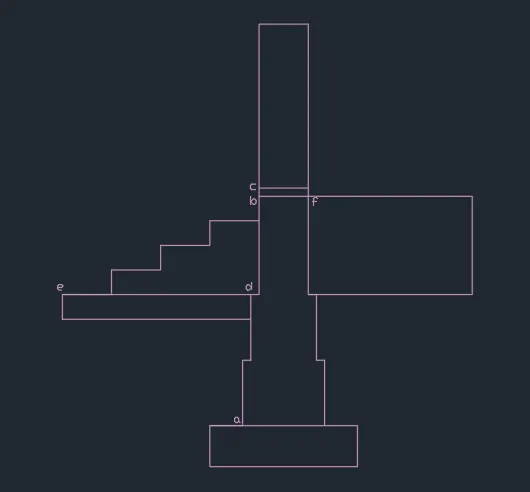

PART I: Cross-section of the load-bearing wall overspread footing

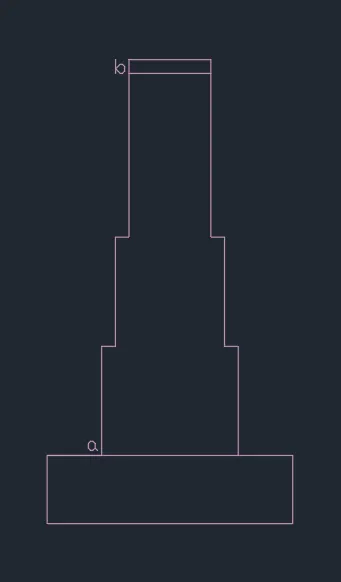

The step-by-step procedure for drawing C.S of Load bearing wall overspread footing is as follows.
PROCEDURE:

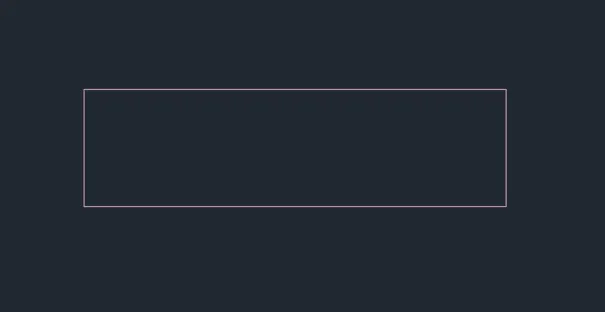

Type Rec or Rectangle in the command line and press Enter.
Specify the first corner of the rectangle.
Enter D for Dimensions.
Enter the length: 0.90
Enter the width: 0.25
Specify the other corner.

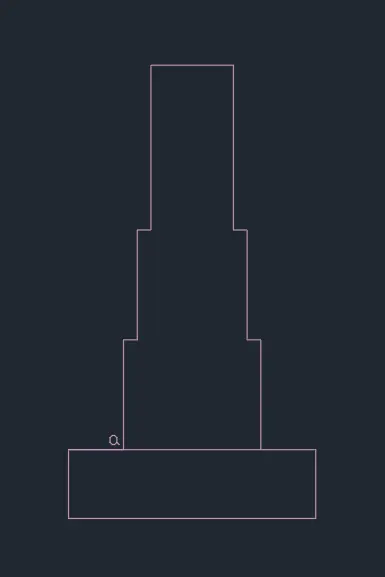

Type L in the command line and press Enter.
Specify the start point a.
Specify next point: @0.20,0
Specify next point: @0,0.40
Specify next point: @0.05,0
Specify next point: @0,0.40
Specify next point: @0.05, 0
Specify next point: @0,0.60
Specify next point: @0.30, 0
Specify next point: @0, -0.60
Specify next point: @0.05, 0
Specify next point: @0, -.40
Specify next point: @0.05, 0
Specify next point: @ 0, -0.40
Type L in the command line and press Enter.
Specify the start point b.
Specify next point: @0,0.05
Specify next point: @0.30,0
Specify next point: @0, -.05
Type L in the command line and press Enter.
Specify the start point c.
Specify next point: @0, 1
Specify next point: @0.30,0
Specify next point: @0, -1
Type L in the command line and press Enter.
Specify the start point d.
Specify next point: @ -1.15, 0
Specify next point: @0, -0.15
Specify next point: @1.15, 0

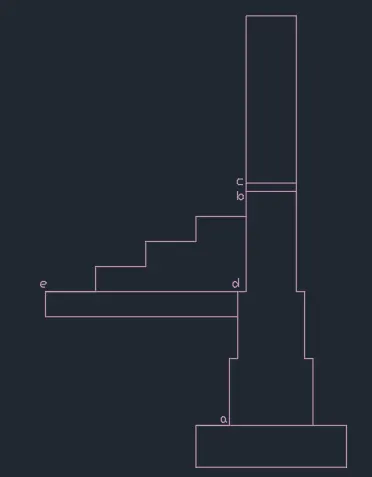

Type L in the command line and press Enter.
Specify the start point e.
Specify next point: @.30,0
Specify next point: @0,0.15
Specify next point: @0.30,0
Specify next point: @0,0.15
Specify next point: @0.30,0
Specify next point: @0,0.15
Specify next point: @0.30,0
Type L in the command line and press Enter.
Specify the start point f.
Specify next point: @ 1, 0
Specify next point: @0, -0.60
Specify next point: @ -1, 0
Give the dimensions as per the drawing using the dimension command DIMLINEAR from the command bar.
The C.S of Load bearing wall overspread footing is completed.

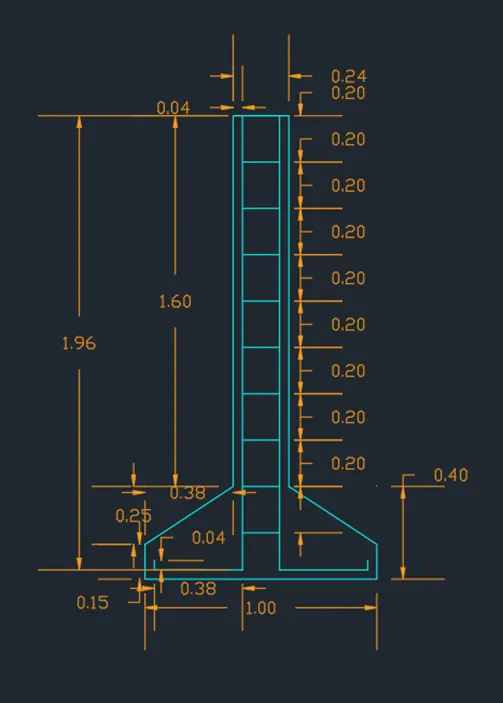

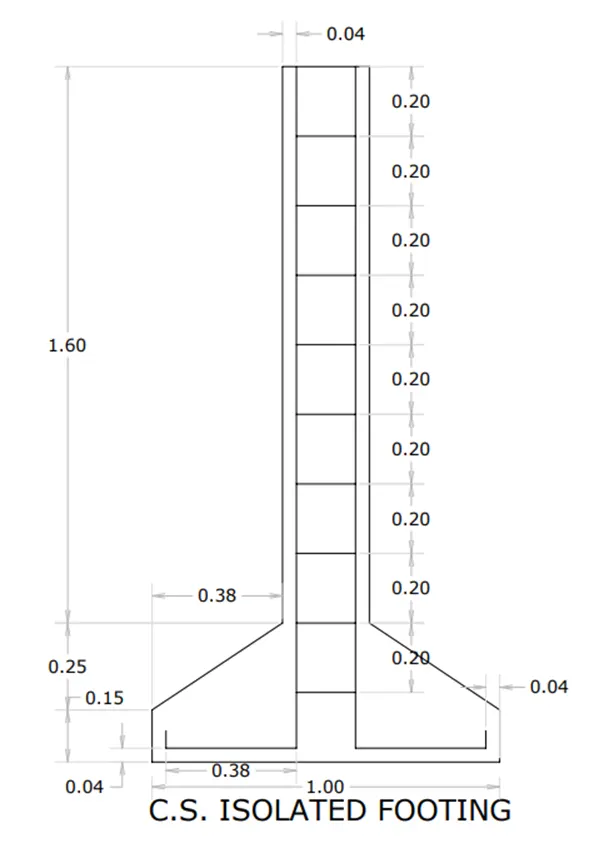

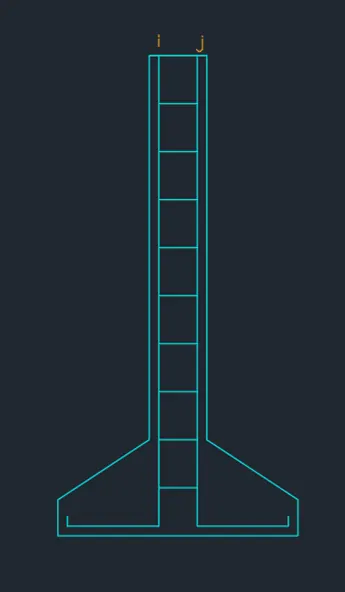

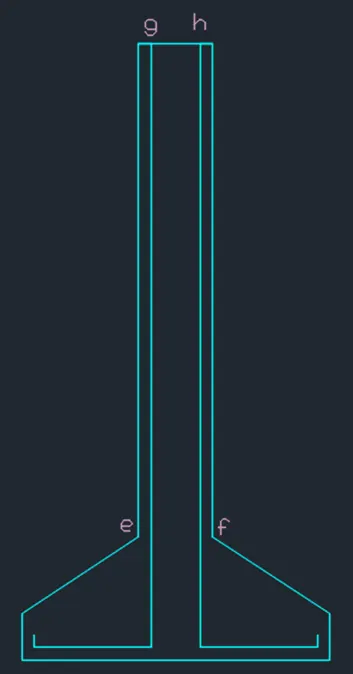

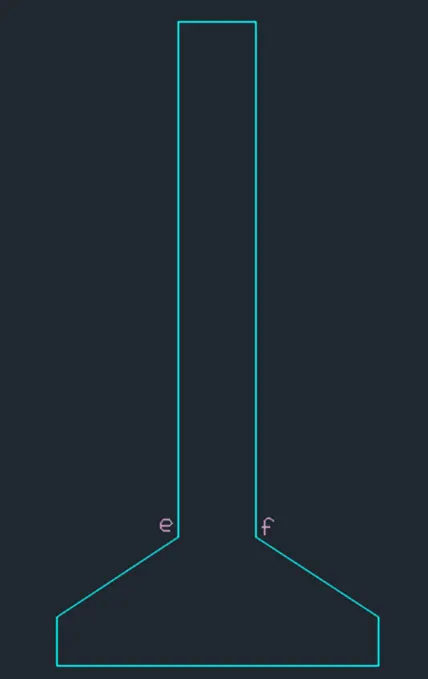

Part II: C. S of isolated footing
The step-by-step procedure for drawing C.S of isolated footing is as follows.
PROCEDURE:
Type Rec or Rectangle in the command line and press Enter.
Specify the first corner of the rectangle.
Enter D for Dimensions.
Enter the length: 1
Enter the width: 0.40
Specify the other corner.

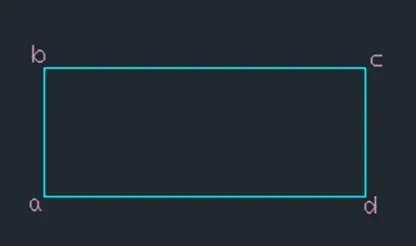

Type CHA or CHAMFER in the command line and press Enter.
Enter D for Distance
Specify the first chamfer distance: 0.25
Specify the second chamfer distance: 0.38
Select the first line ab and the second line as bc
Repeat the same step on the opposite side on
line cd and bc

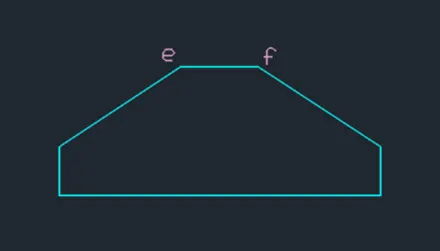

Trim line ef
Type L in the command line and press Enter.
Specify the start point e.
Specify next point: @0, 1.60
Specify next point: @0.24, 0
Specify next point: @0, -1.60

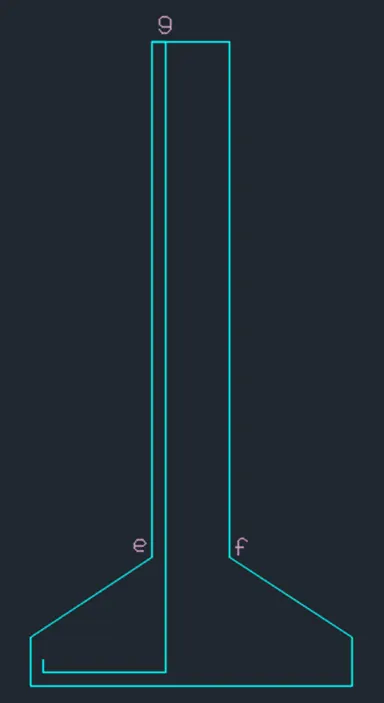

Type L in the command line and press Enter.
Specify the start point g.
Specify next point: @0.04, 0
Specify next point: @0, -1.96
Specify next point: @-0.38,0
Specify next point: @0,0.04
Type L in the command line and press Enter.
Specify the start point h.
Specify next point: @ -0.04,0
Specify next point: @0, -1.96
Specify next point: @0.38,0
Specify next point: @0,0.04
Type L in the command line and press Enter.
Specify the start point i.
Specify next point: @0.16,0
Type O or offset on the command line and press Enter.
Specify the value of offset distance: 0.20
Select the object to offset ij
(We need to select the line ij with a small square cursor.)
Move the cursor inside to place the line and continue till required.
Give the dimensions as per the drawing using the dimension command from the command bar.
The C.S of the isolated footing is completed

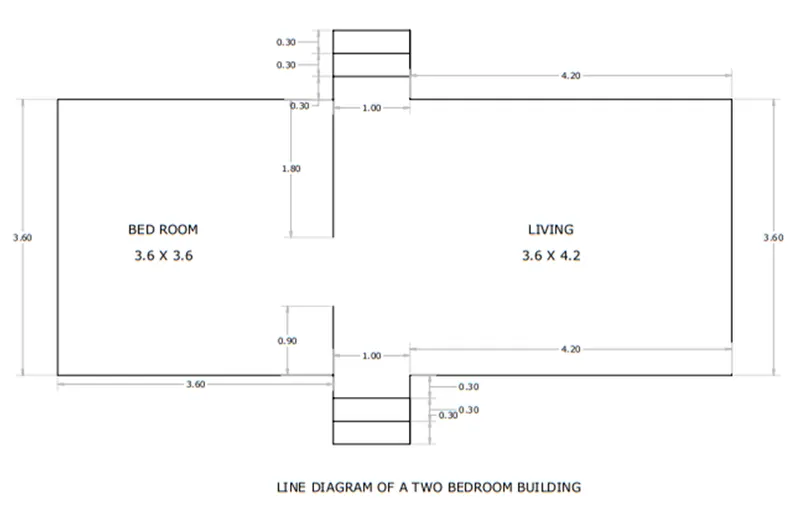

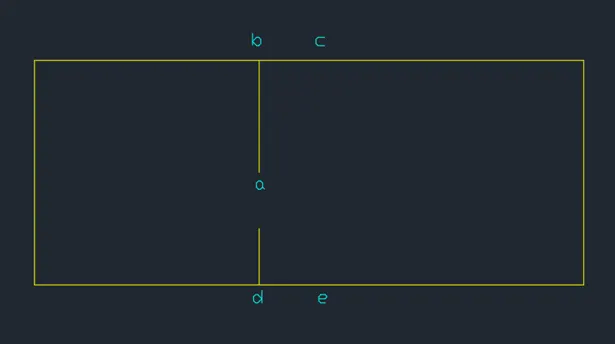

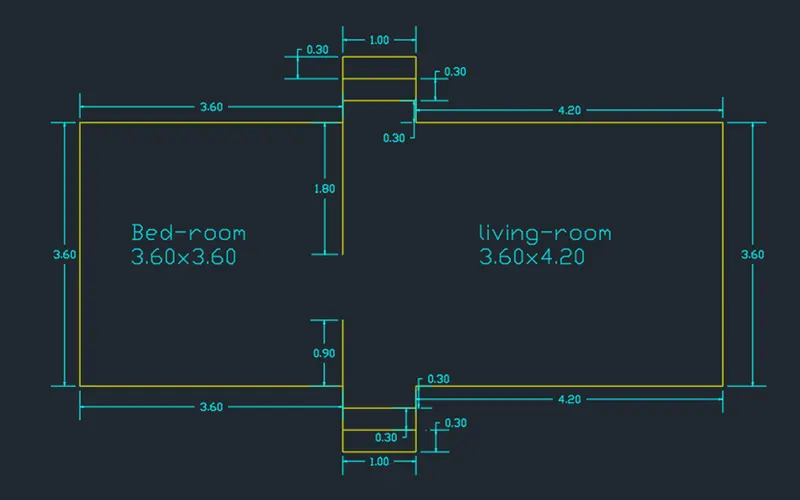

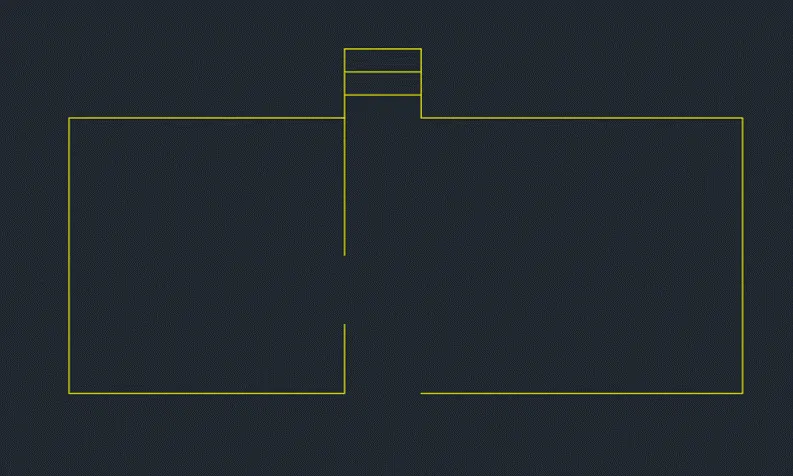

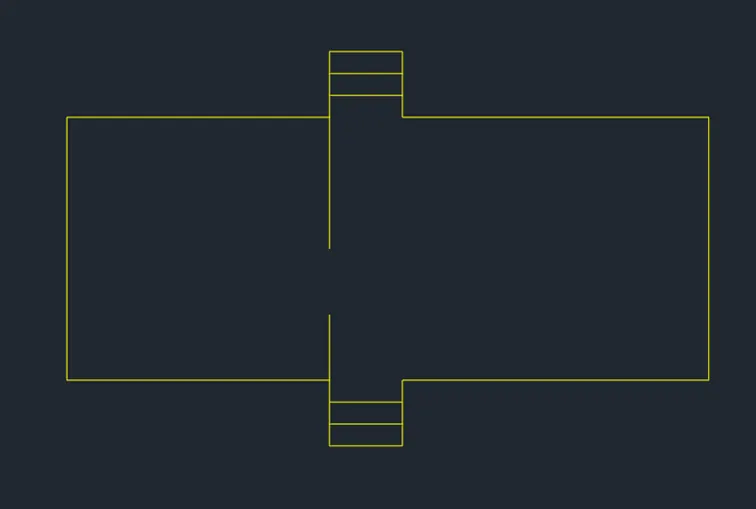

PART III: LINE DIAGRAM OF A TWO-BEDROOM BUILDING
The step-by-step procedure for drawing a line diagram of the two-bedroom building is as follows.
PROCEDURE:
Type L in the command line and press Enter.

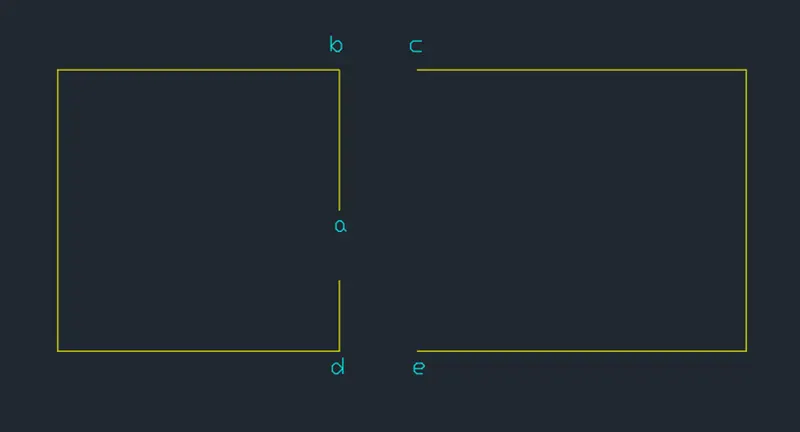

Specify the start point a.
Specify next point: @0, 1.80
Specify next point: @ -3.60,0
Specify next point: @0, -3.60
Specify next point: @3.60, 0
Specify next point: @1, 0
Name this line (bc)
Specify next point: @4.20, 0
Specify next point: @0, 3.60
Specify next point: @ -4.20,0
Specify next point: @ -1, 0
Name this line (de)
Specify the d point to draw a line @0,0.90
Delete the lines bc and de
Type PL in the command line and press Enter.

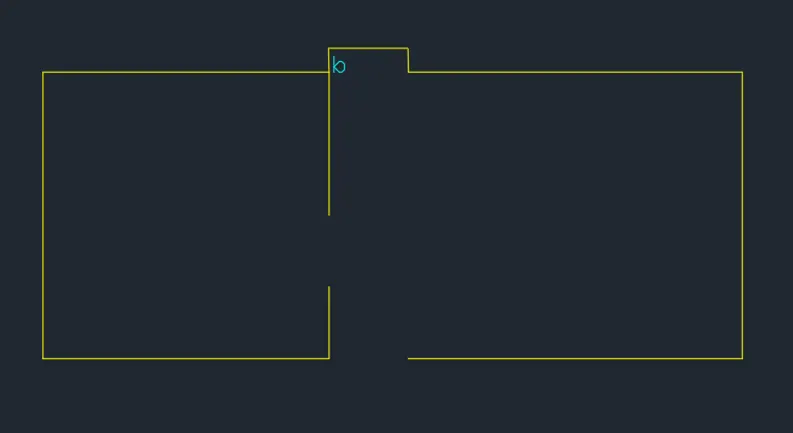

Specify the first point of the polyline b
Specify the next point: @0, 0.30
Specify the next point: @1, 0
Specify the next point: @0, -0.30
Type co in the command line and press Enter
Select the above polyline and specify the base point and paste it as required
The above two steps are to be followed here also in the same manner
Give the dimensions as per the drawing using the dimension command from the command bar.
The line diagram of the two-bedroom building is completed

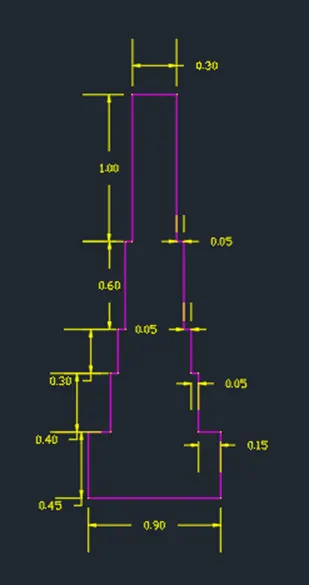

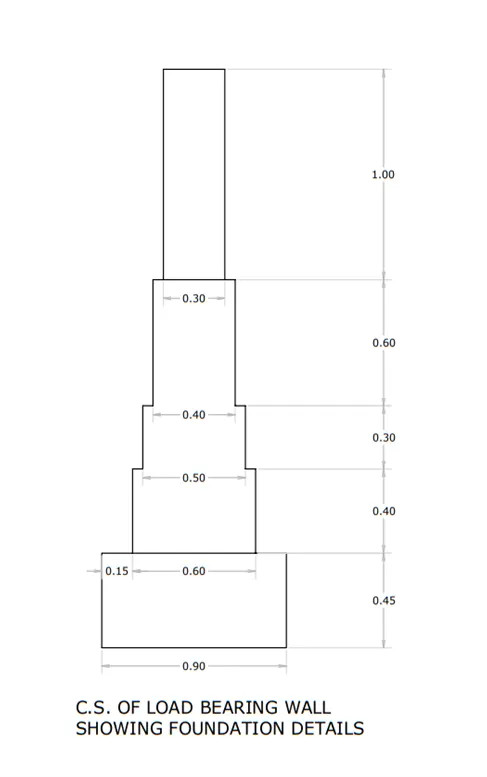

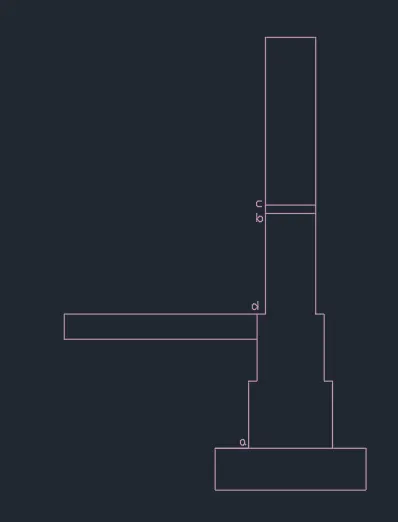

PART IV: C.S. OF LOAD BEARING WALL SHOWING FOUNDATION DETAILS
The step-by-step procedure for drawing C. S of a load-bearing wall is as follows.
PROCEDURE:

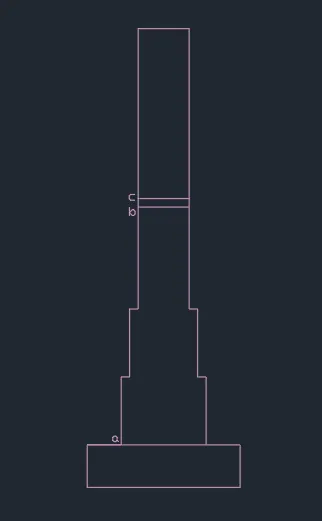

Type L in the command line and press Enter.
Specify the start point a.
Specify next point: @0,0.45
Specify next point: @0.15,0
Specify next point: @0,0.40
Specify next point: @0.05,0
Specify next point: @0,0.30
Specify next point: @0.05,0
Specify next point: @0,0.60
Specify next point: @0.05,0
Specify next point: @0, 1
Specify next point: @0.30,0
Specify next point: @0, -1
Specify next point: @0.05, 0
Specify next point: @0, -0.60
Specify next point: @0.05,0
Specify next point: @0, -0.30
Specify next point: @0.05, 0
Specify next point: @0, -0.40
Specify next point: @.15, 0
Specify next point: @0, -0.45
Specify next point: @ -0.90, 0 or C
Give the dimensions as per the drawing using the dimension command from the command bar.
The C. S of the load-bearing wall is completed

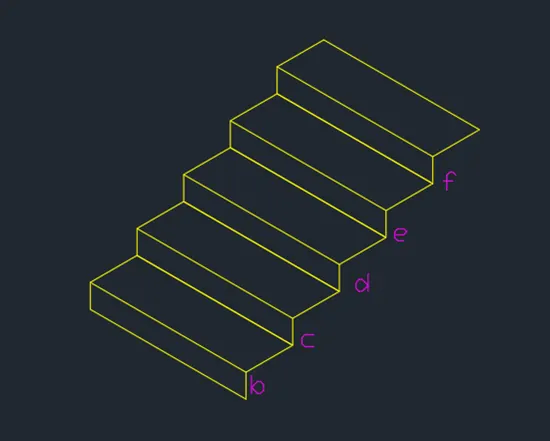

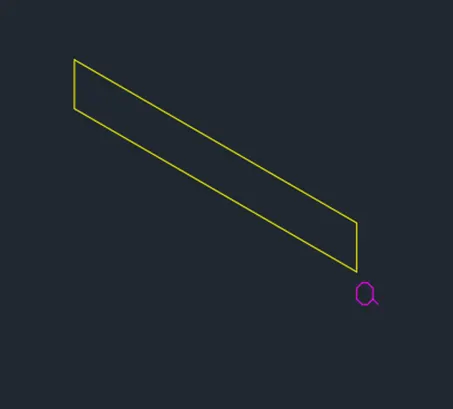

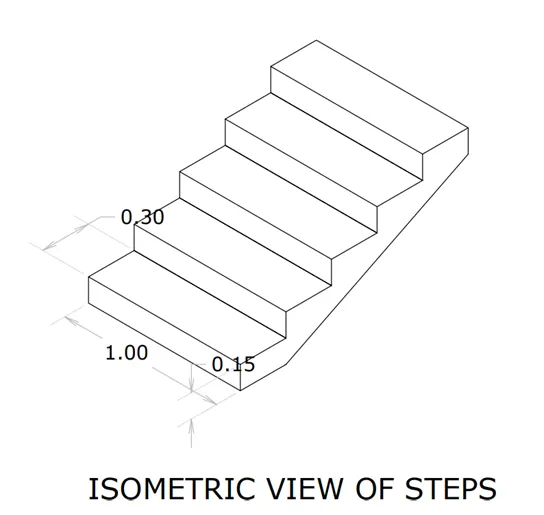

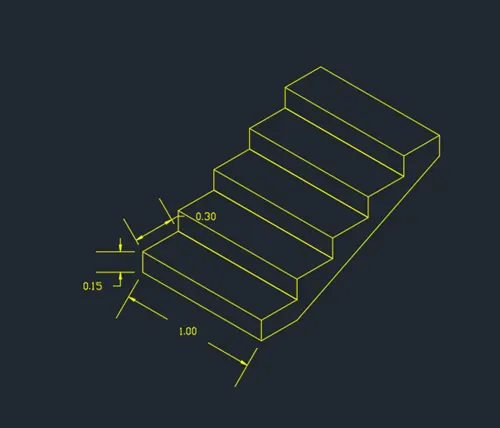

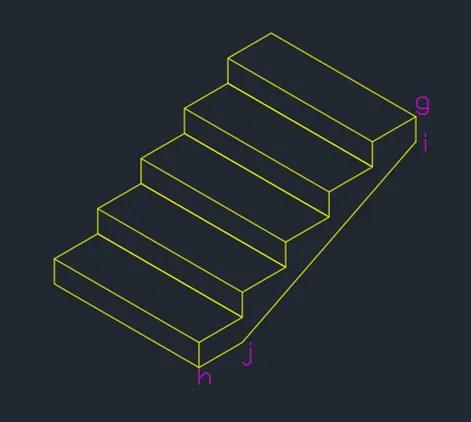

PART V: ISOMETRIC VIEW OF STEPS
The step-by-step procedure for drawing an isometric view of steps is as follows.
PROCEDURE:
Type DS in the command line and press enter.
Unpick snap on and grid on options
Tick on isometric snap in snap type.
This will activate the isometric screen.
Type PL in the command line and press Enter.
Specify the start point a.
Take isoplane left
Specify the next point:1, cursor towards NW
Take isoplane right
Specify the next point:0.15, cursor towards N
Specify the next point:1, cursor towards SE
Specify the next point:0.15, cursor towards E
Type PL in the command line and press Enter.

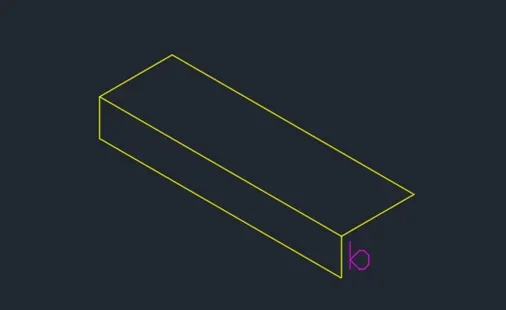

Specify the start point b.
Take isoplane top
Specify the next point:0.30, cursor towards NE
Specify the next point:1, curser towards NW
Specify the next point:0.30, curser towards SW
Type co in the command line and press enter.
Select the complete step and press enter
Select b as the base point and place it 4 times at the positions c, d, e and f
Type L in the command line and press Enter.
Specify the start point: g
Take isoplane right
Specify the next point: 0.15, curser towards S Type L in the command line and press Enter.
Specify the start point: h
Take isoplane right
Specify the next point: 0.30, curser towards NE
Type L in the command line and press Enter.
Specify the start point: i
Specify the start point: j
Give the dimensions as per the drawing using the dimension command in the command bar.
The Isometric view of the step is completed

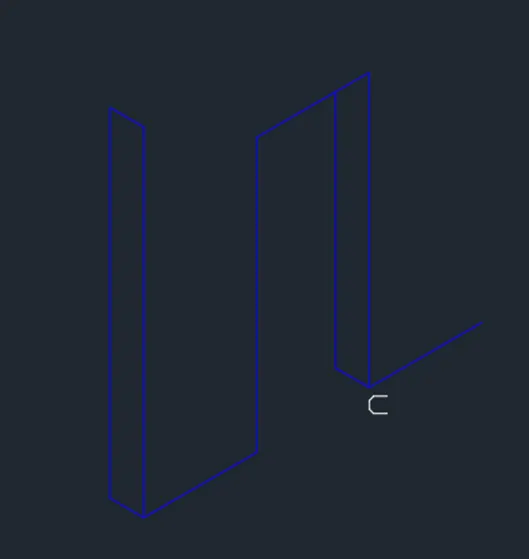

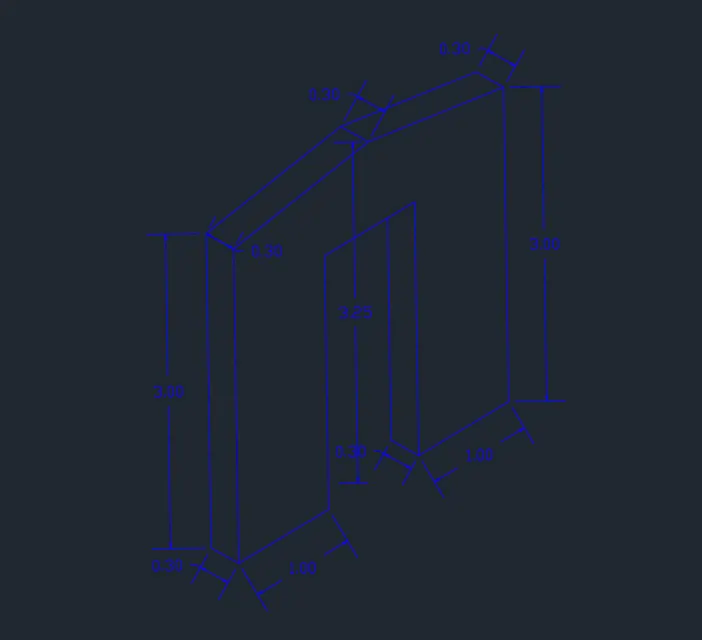

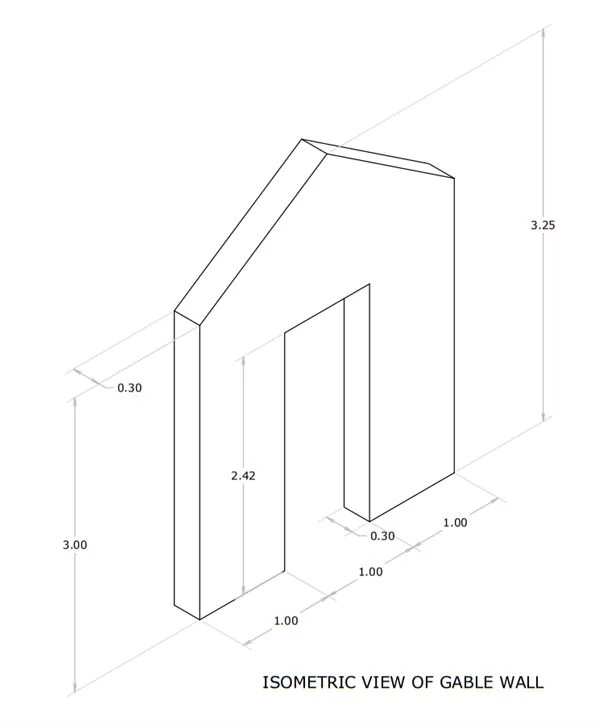

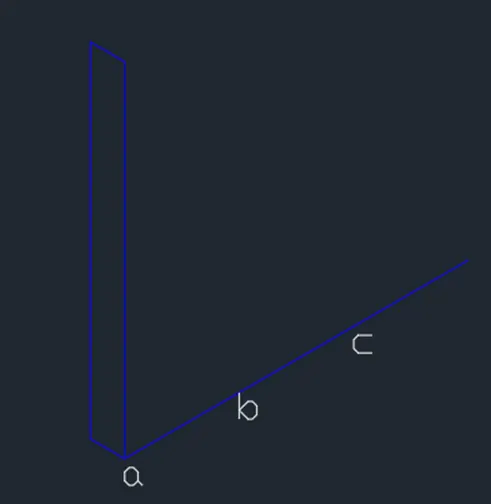

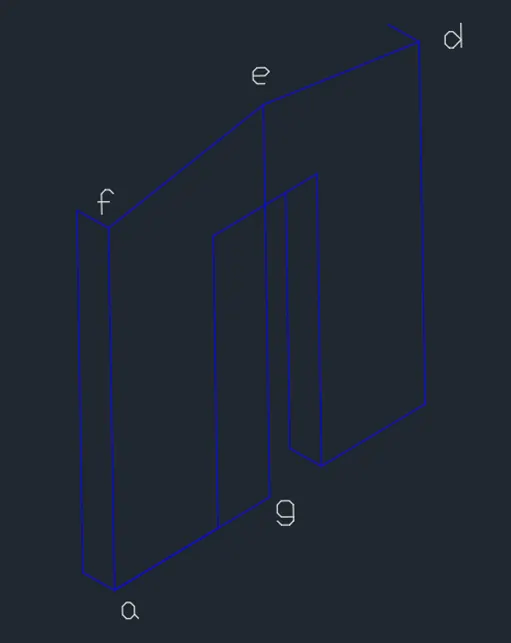

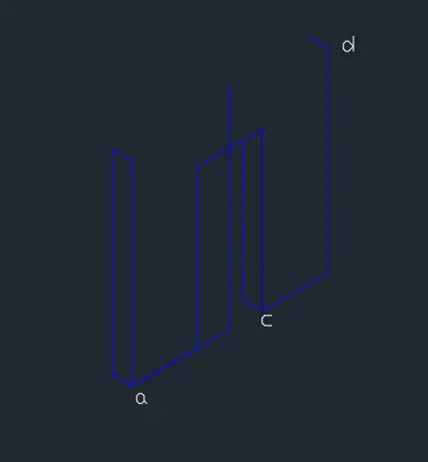

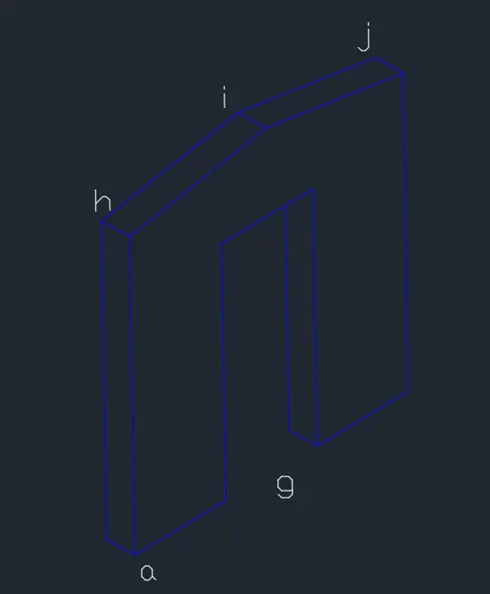

PART VI: ISOMETRIC VIEW OF GABLE WALL
The step-by-step procedure for drawing an isometric view of a gable wall is as follows.
PROCEDURE:
Type DS in the command line and press enter.
Unpick snap on and grid on options
Tick on the isometric snap type.
This will activate the isometric screen.

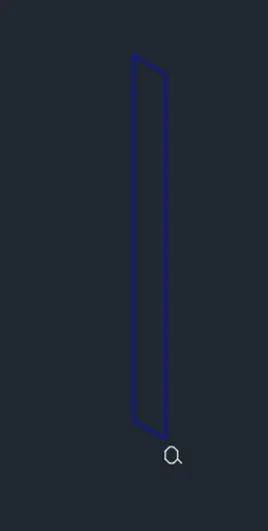

Type L in the command line and press Enter.
Specify the start point a.
Take isophane left
Specify the next point: 0.30, curser towards NW
Specify the next point: 3, curser towards N Specify the next point:0.30, curser towards SE
Specify the next point:0.3, curser towards E
Type L in the command line and press Enter.
Specify the start point a.
Take isoplane top
Specify the next point:1, curser towards NE
Specify the next point:1, curser towards NE
Specify the next point:1, curser towards NE
Delete the line bc

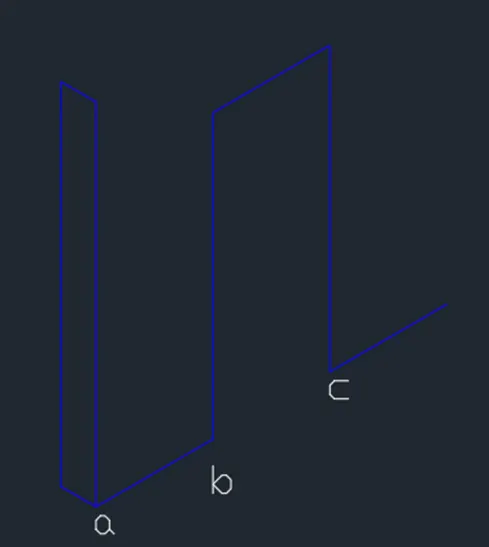

Type L in the command line and press Enter.
Specify the start point b.
Take isoplane right
Specify the next point:2.42, curser towards N
Take isoplane top
Specify the next point:1, curser towards NE
Specify the next point:2.42, curser towards E
Type L in the command line and press Enter.
Specify the start point c.
Take isoplane left
Specify the next point:0.30, curser towards NW
Take isoplane right
Specify the next point:2.12, curser towards N
Type L in the command line and press Enter.
Specify the start point a.
Take isoplane top
Specify the next point:1.5, curser towards NE
Take isoplane right
Specify the next point:3.25, curser towards N
Type L in the command line and press Enter.
Specify the start point d.
Take isoplane left
Specify the next point:0.30, curser towards NW
Type L in the command line and press Enter.
Specify the start point d.
Specify the next point: e
Specify the next point: f
Delete the line: eg and ag
Type L in the command line and press Enter.
Specify the start point h.
Specify the next point: i
Specify the next point: j
Give the dimensions as per the drawing using the dimension command from the command bar.
The Isometric view of the gable wall is completed
RESULTS
Created a Floor plan, Footing detail, and Isometric view using AutoCAD and had a good understanding of various tools in AutoCAD like the rectangle, polylines, modifications tools like copy, move, offset, Chamfer, and modes like snap mode and ortho mode
