Drafting of various geometries using Chamfer, Fillet tool in AutoCad

AIM:- To draw the geometrics using chamfer and fillet command.

COMMAND USERS:- LINE,CIRCLE,CHAMFER, MIRROR,TRIM,MOVE,ROTATE,ANNOTE.

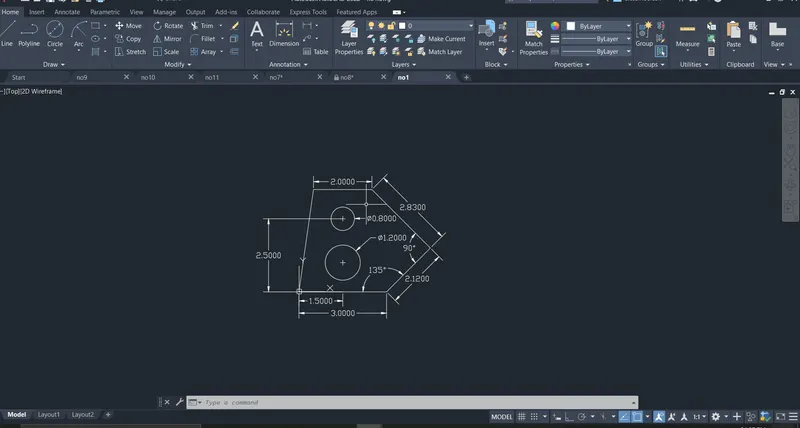

PROCEDURE:-

1. New sheet -units-decimal-precision-0.00-metre-ok
2. Limts-0,0 and 420,210
3. Zoom all
4. select line tool and draw the lengths starting from base of 3.00 units, now give line command @2.12<45,@2.00<180,and close.
5. Draw the first circle at x=1.50 and y=2.50 of diameter 0.80 units.
6. Annote and give dimension to all the line segments and circles.

RESULT:

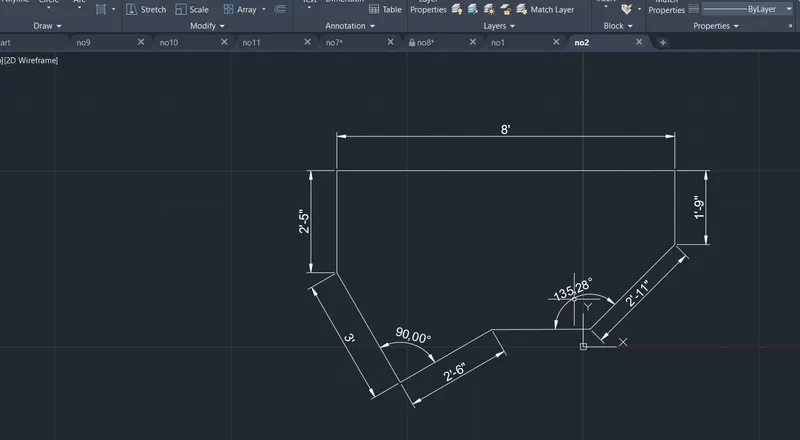

NO-2

1. New sheet -units-architectural-precision-0'0" feet-ok
2. slect line tool and draw the lengths starting from top line segment of 8' now give line command positiong the cursior at 270dgrees with ortho on 1'9" enter
3. give line command positiong the cursor at 270dgrees with ortho on at first end and draw 2'5" enter.
4. Draw the line at 315degrees of 3' at 90 dgree 2'6" now draw the line 2'10" at 225 dgrees and join the line
5. annote and give dimmensions to all the line segments

RESULT:-

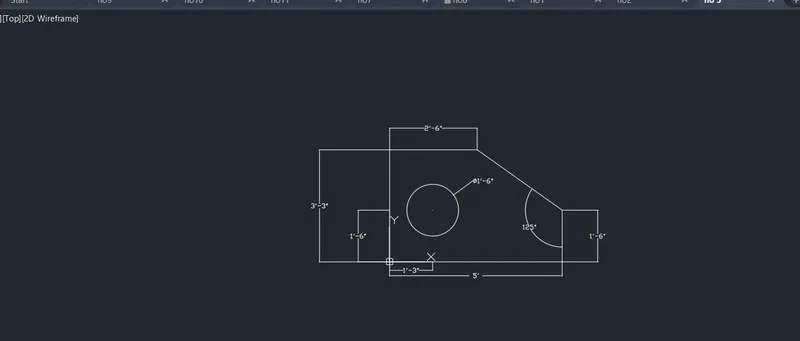

NO3

1. New sheet - units-arctectural- precision 0'0" feet ok
2. select line tool and draw the lengths starting from top line segment of 2'6.5", now give line command positiong the cursor downwards with ortho on ,3'-3.0"
3. Draw the circle inside by using x=5',y=3' and press esc
4. annote and give dimensions to all the line segments.

RESULT:-

NO4

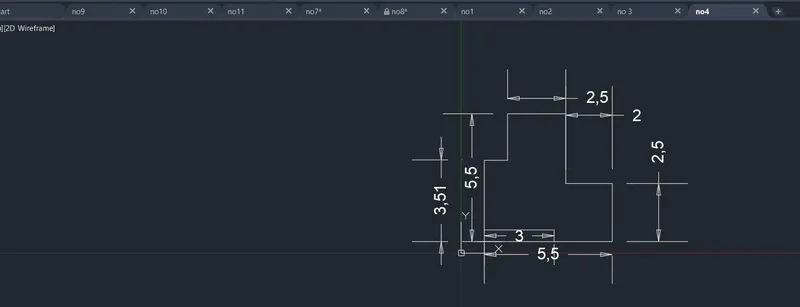

1. New sheet units decimal-precision 0.000-meter-ok
2. slect line command and draw the lengths starting from base of 2.500 units, now give line command @2<270,@0.5<180,@3.00<270,@3<0,@0.5<[email protected]<[email protected]<90@2<180 and close.
3. annote and give dimensions to all the line segments and circles.

RESULT:-

NO5

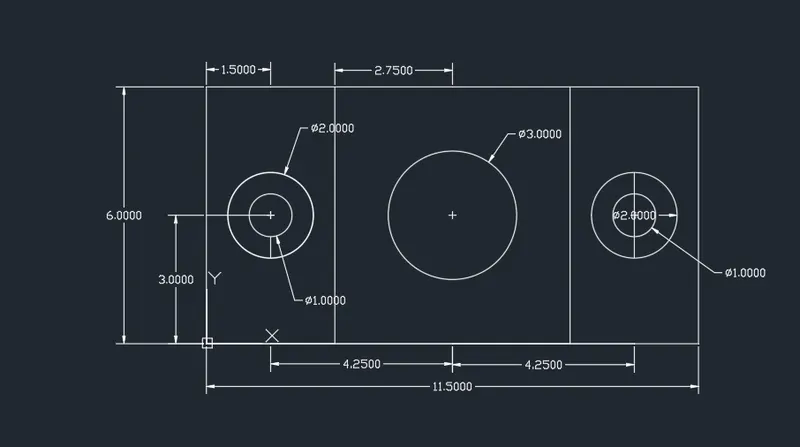

1. NEWsheet -units-decimal-precision-0.000-meter-ok.
2. select line tool and give first point 5,5 and draw the lengths starting from base of 11.50 units, now give line command@6<90,@11.50<180, and close draw the vertical lines at 2.75 from the center of the rectangle on both sides
3. draw concentric circles with center at x=1.50 and y= 3.00 of diameter 1.00 and 2.00 copy the circle towards 4.25 right from the of the rectangle
4. draw another circle at center of the rectangle of diamete r 3.00
5. Annote and give the dimensions to all lines and the circle.

RESULT:

NO6

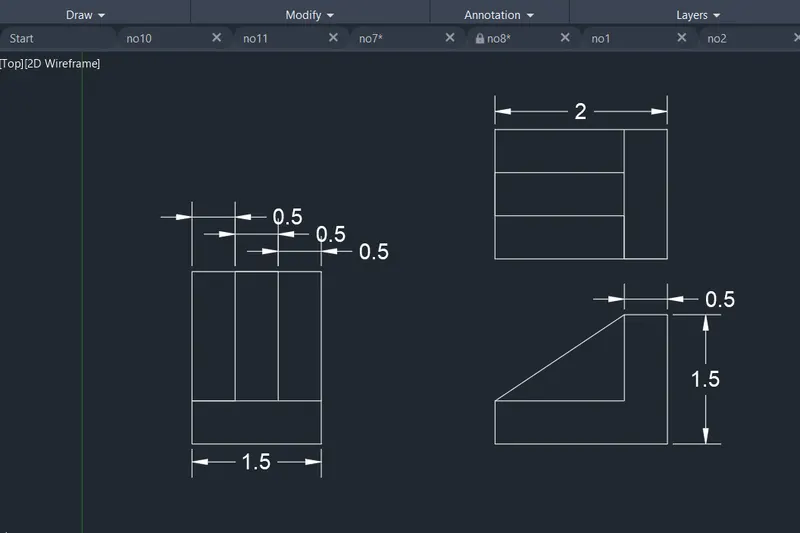

1. New sheet-units-decimal-precision 0.00-meter-ok.
2. select the line tool and draw the lengths starting from base of 1.500 units, draw offset at 0.500. taking the total length 1.500 draw an outer boundry and take offset of 0.500 for the vertical segments follow the steps to draw 2.00 ht gemometry and rotate towads left. using line command draw the l shape gemometry and coonect to make the triangular portion.
3. annote and give dimensions to all.

RESULT:

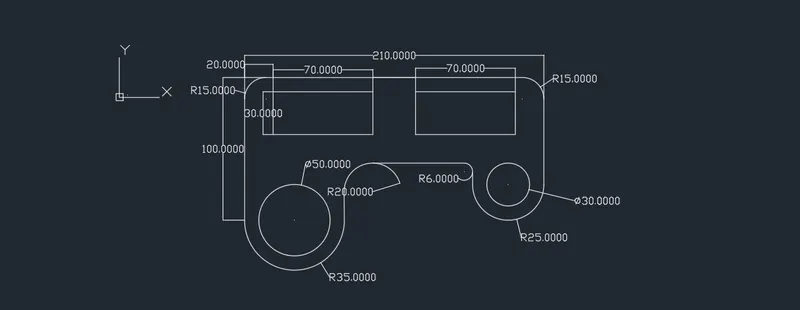

NO7

1. New-sheet-units-decimal-precsion0.0000-meter-ok
2. select the line command draw the lengths starting from base of 210units, now give the line command @100<270. draw @75<270.Draw the rectangle 70,30and copy at distance 30.
3. Draw the circle with center at x=100 and y=75 draw prallel lines from bothn the circle and using fillet tool give radius of 35,20,6 and 15.
4. annote and give dimensions to all the line segments and circle.

RESULT:-

NO8

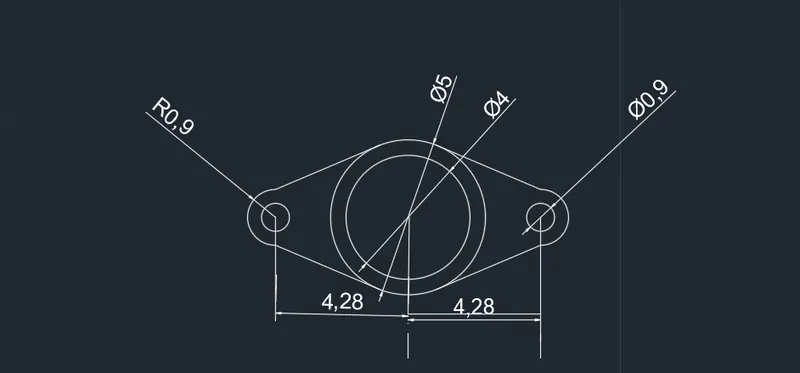

1. New-sheet-units-decimal-precsion0.0000-meter-ok
2. Draw concentric circle with diameter 4 and 5 units. Draw one circle at 4.275 diatance, from the center draw prallel line and draw a fillet of radius 0.9 and extend the lines to draw the tangent of bigger circle. mirror the same towards right and trim the extras in geometry.
3. annote and give radius and dimension to the lines.

RESULT:

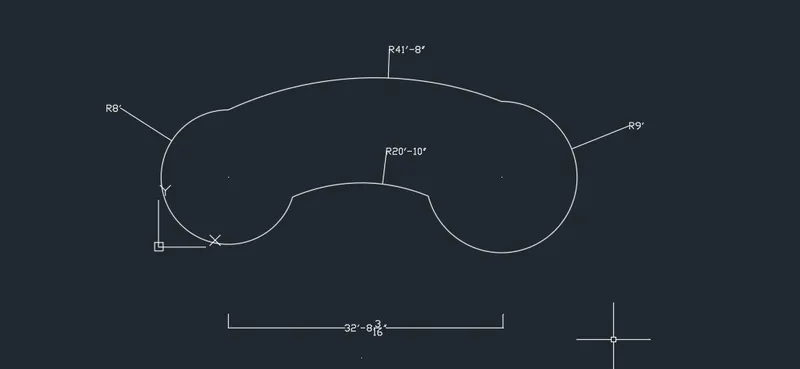

NO9

1. NEWsheet- units-archirectural-precision 0'0"
2. select the circle tool and draw the circle of radius 8',9' at a center distance of 32'6" using arc command start-end-radius. give 41'8" and 20'10"
3. annote and give radius and dimensions to the lines.

RESULT:

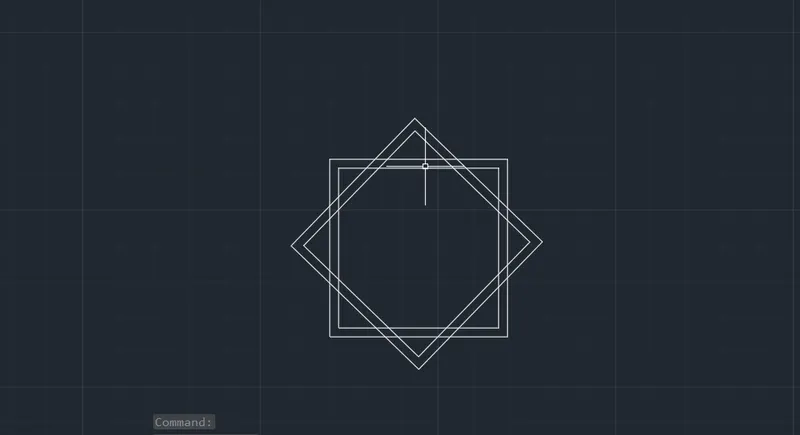

NO10

1. New sheet-units-demical-presions 0.0000- meters-ok.
2. Draw square using rectangle with dimmensions 50,50 and give offset of 10 units or accordingly to ur limts then rotate to 45dgrees and move according to the diagram.

RESULT:

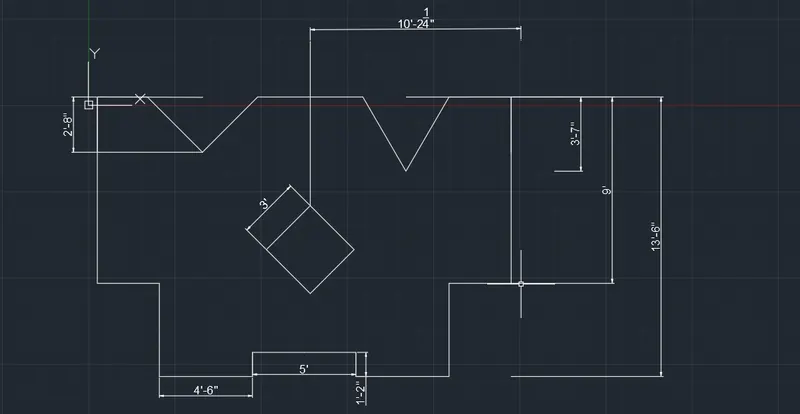

NO11

1. NEW SHEET-units- archirectural-precision 0'0" feet ok
2. select line tool and draw the lengths starting from top line segment of 9'-0", changing the position of cursor in direction of the line with ortho on draw 3'-0" and rotate to 45dgrees and position it using move tool. using line tool and draw vertical lines of 2'8" and 3'7" and make 30dgres lines on each side with respect to reference vertical line and 60 degrees on the other end
3. Annote and give dimmensions to all line segments.

RESULT:-

RESULT:- The given geometries are drafted using chamfer, fillet,circle,and line tool in autocadd in accurate measurement.
