Door Arm Rest Week 8 Challenge

DOOR ARM REST

AIM

To create the door arm rest with the given thickness of 2.5mm and to check wheather the door arm rest is feasible or not with the help of draft analysis. Draft analysis should be minimum 3 degree.

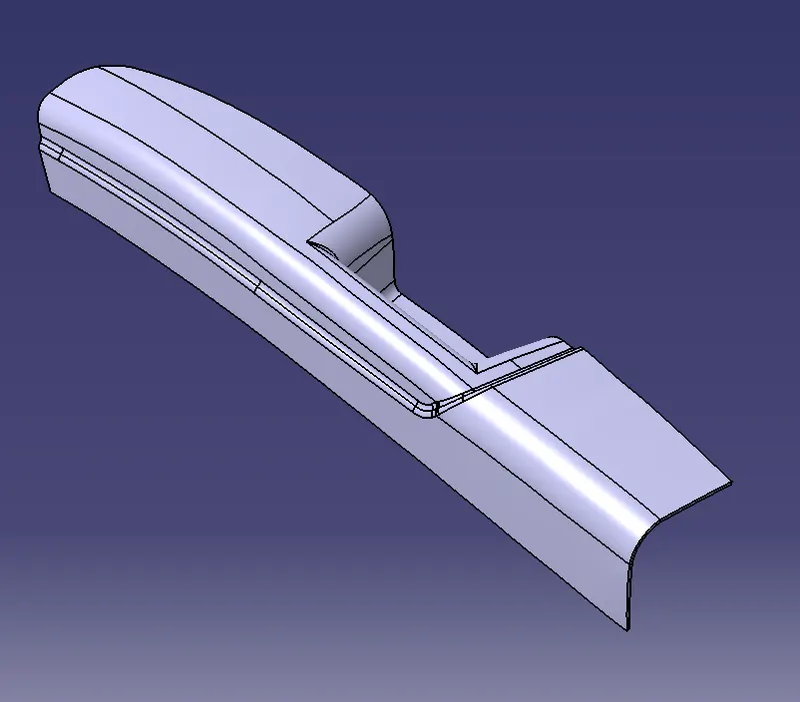

CLASS A SURFACE

Check the feasibility of class A and whether it is manufacturable or not with the help of draft analysis. If the given class A is not feasible then resend the class A to the ALIAS team.

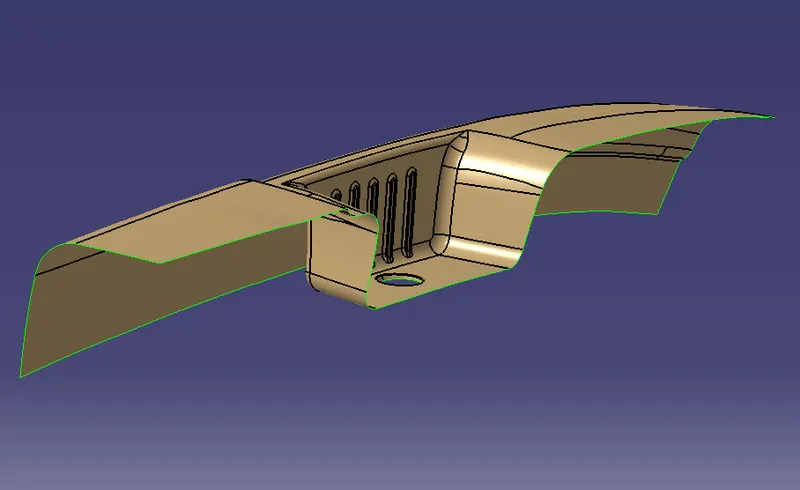

CLASS B SURFACE

Class B surface is created by taking the 2.5mm offset. Some patches where there that has been clear by using the various commands.

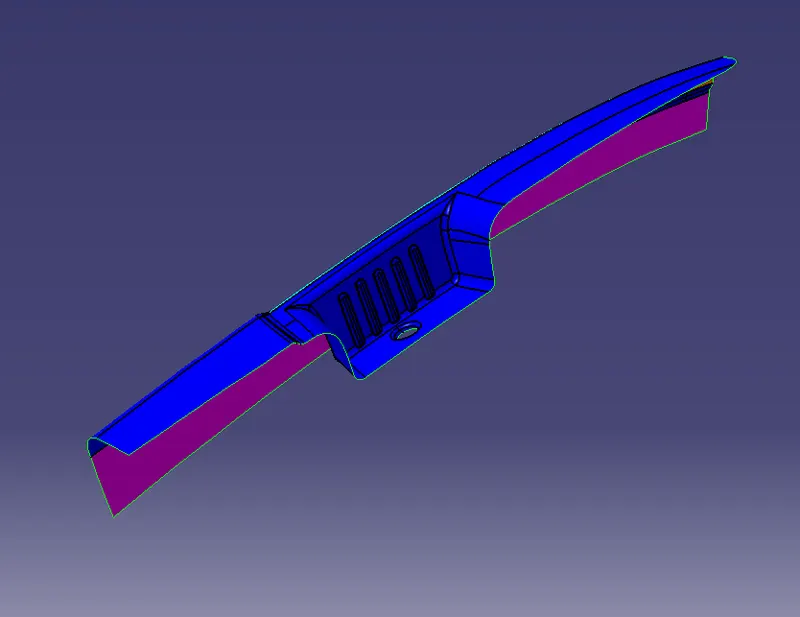

CLASS C SURFACE

Created with the reference of class A and class B surface.

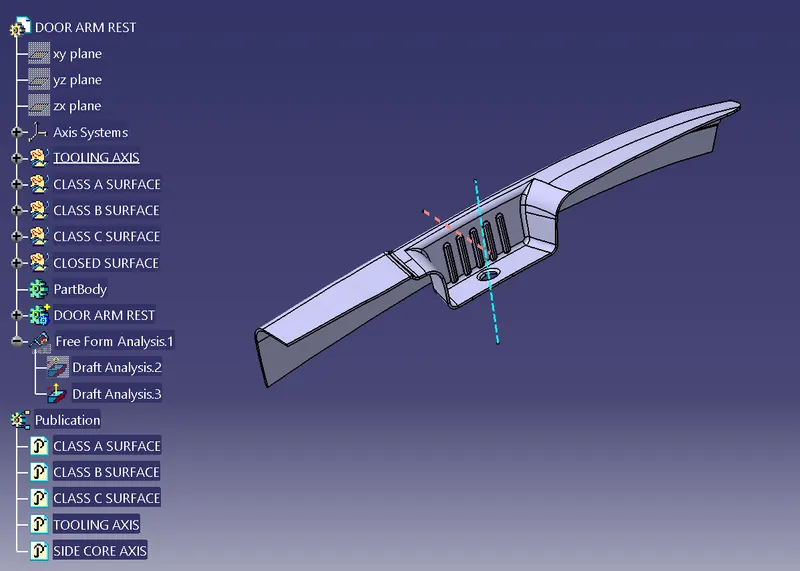

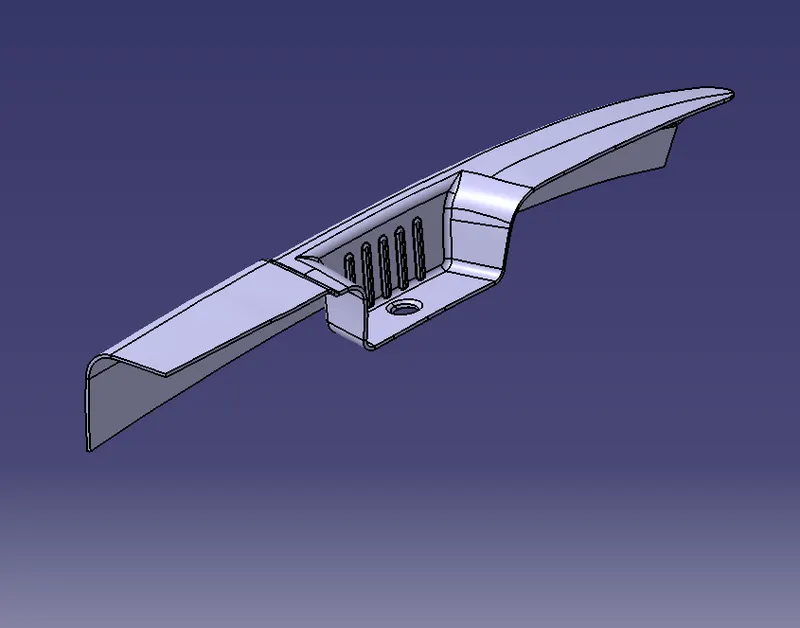

Door Arm Rest

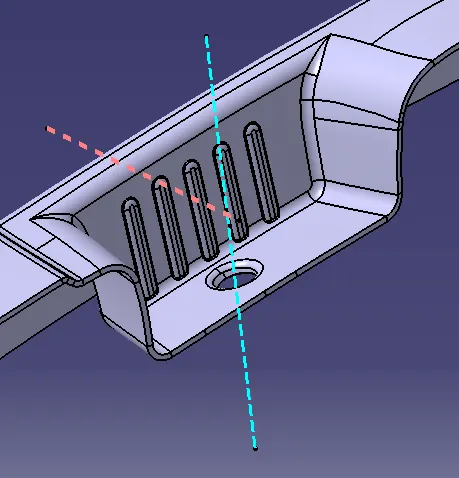

TOOLING AXIS AND SIDE CORE

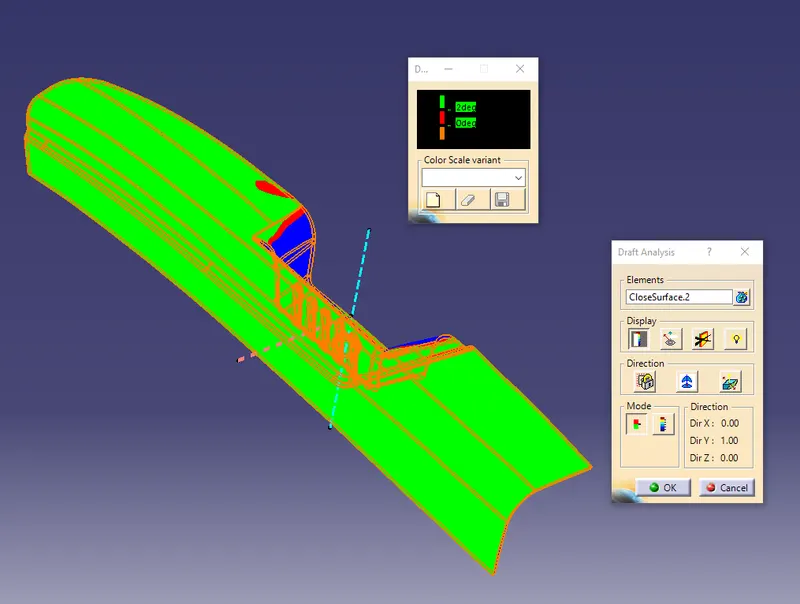

DRAFT ANALYSIS OF DOOR ARM REST WITH TOOLING AXIS

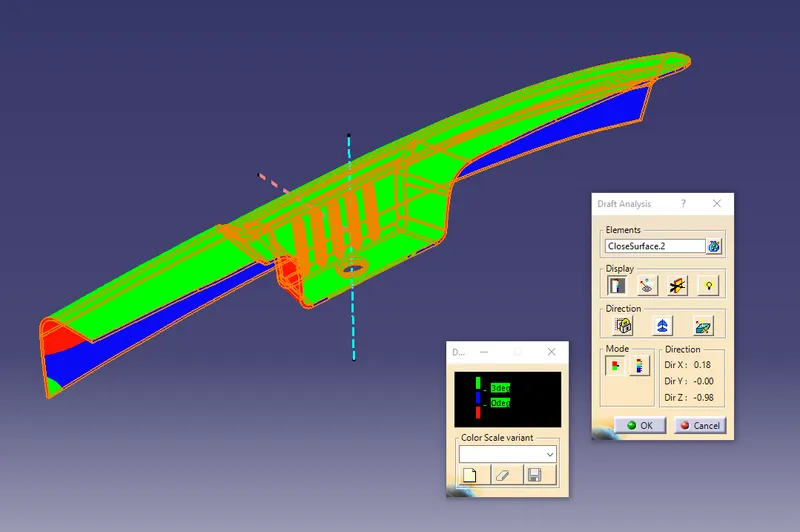

DRAFT ANALYSIS OF DOOR ARM REST WITH SIDE CORE
