Door Arm Rest Week 8 Challenge

DOOR ARM REST:

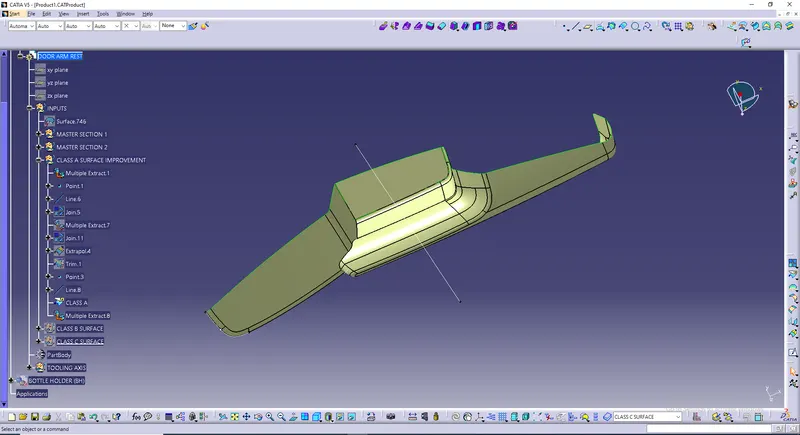

CLASS A SURFACE:

Class B surface:

• From Class A surface Given above we have to create Class B surface.
• Insert a Geometical set & name it has CLASS B SURFACE.
• Intially create a offset for 2.5mm in Class A surface.
• Multiple Extract the offseted sutface.
• Create sweep for surfaces.
• Create splines for one filleted surfaces and perform multi scetion for filleted faces.
• Join the multi section surface and sweep surface to obtain Class B surface.

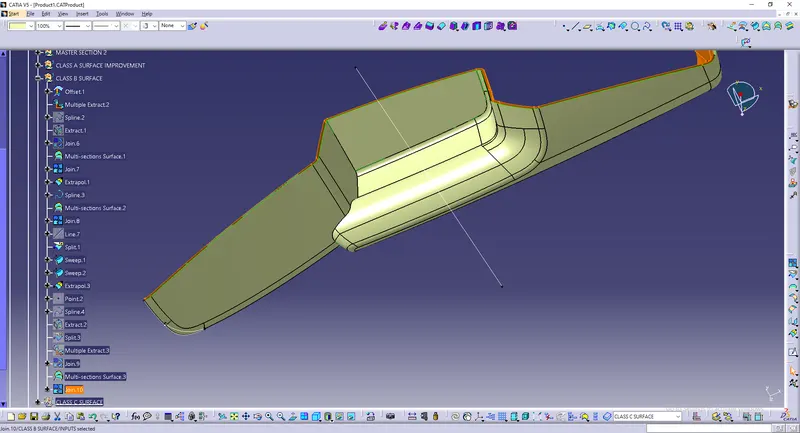

CLASS B SURFACE:

Class C surface:

• Hide Class B surface to create Class C surface.
• Intially Create boundries for Class A surface.
• Sweep all surfaces where boundries were added.
• Create multi section for filleted or curved surface.
• Multiple Extract the sweeped surface.
• Join the multiple extracted surface.

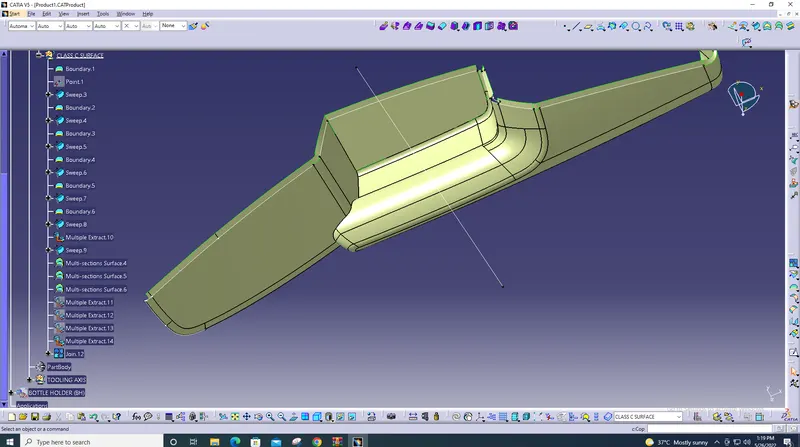

CLASS C SURFACE:
