Door Arm Rest Week 8 Challenge

DRAFT ANALYSIS REPORT ON DOOR ARM REST

Dear team,

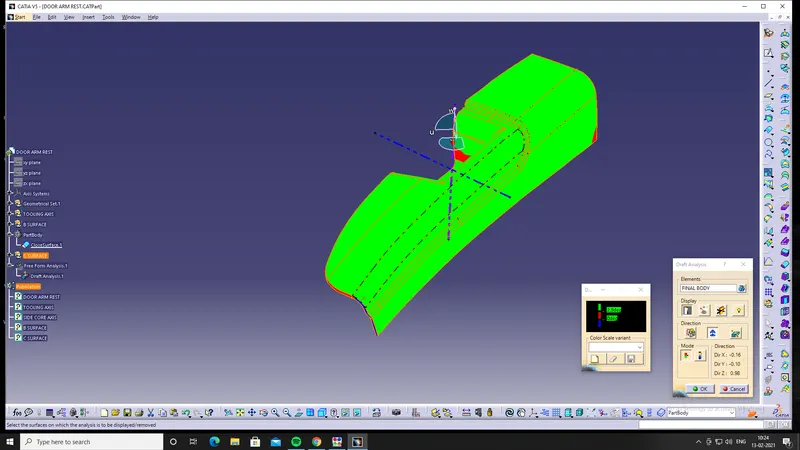

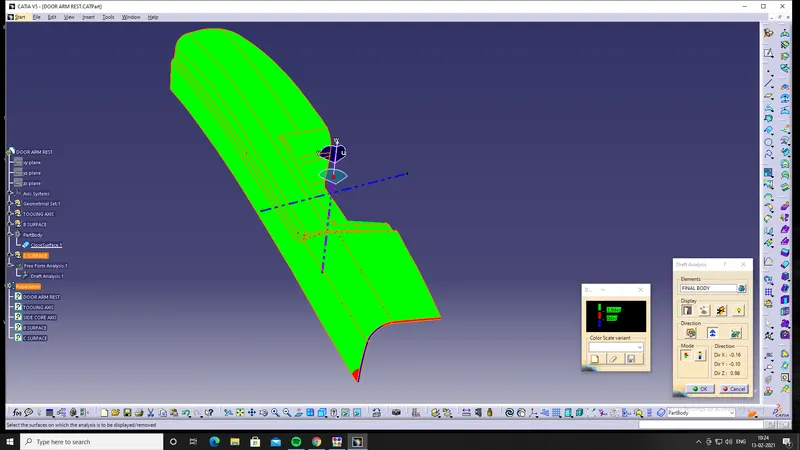

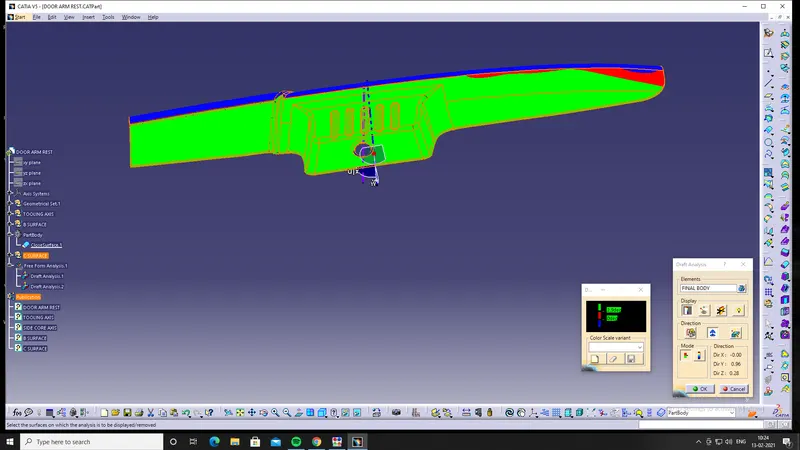

As per the below images, I am able to get a draft angle every where on the body using main tooling axis and side core tooling axis except the left corner portion of the body. Since it has a bend shape I am unable to get draft angle at that position. So I request you to please change the corner shape if possible or else give us an approval to continue with the same design. The draft angle at that corner body shows more than 0.5 which is 1.38.

Thankyou.

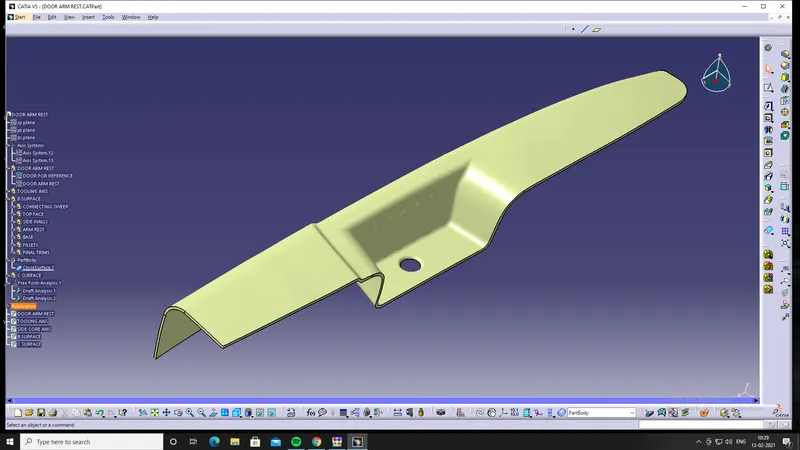

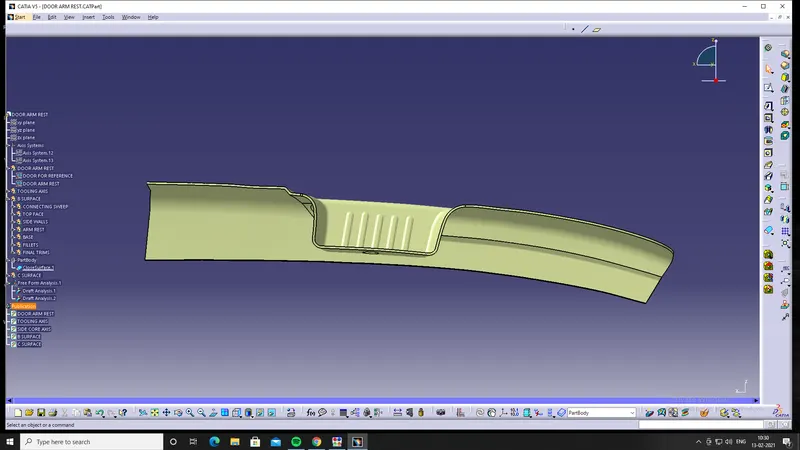

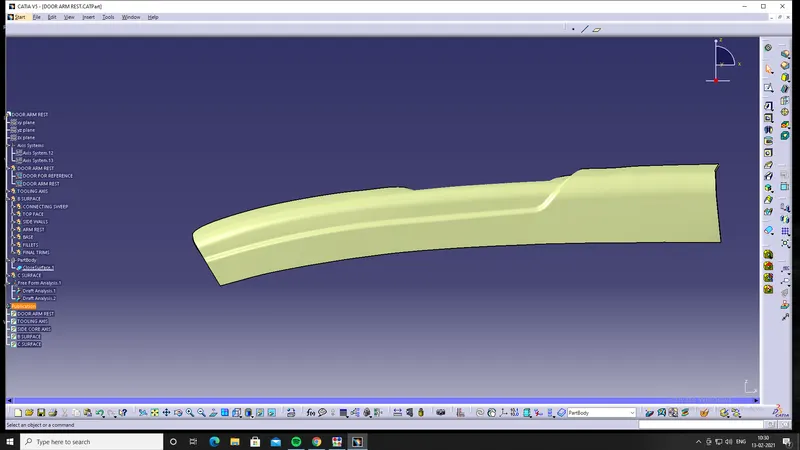

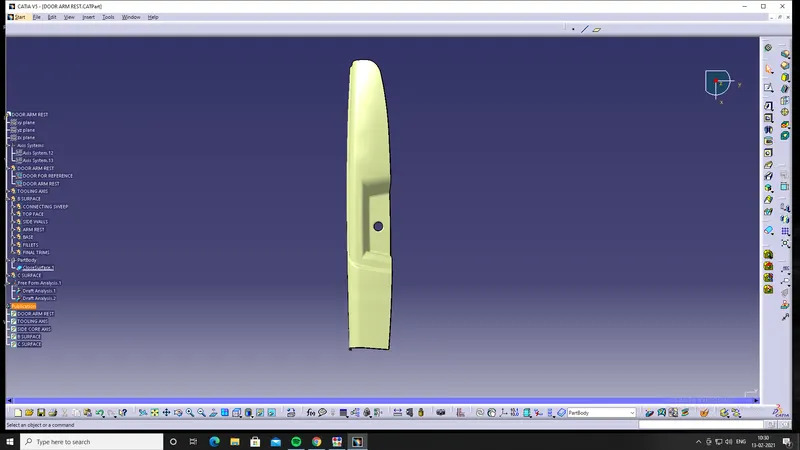

PART BODY WITH ALL ORIENTATION
