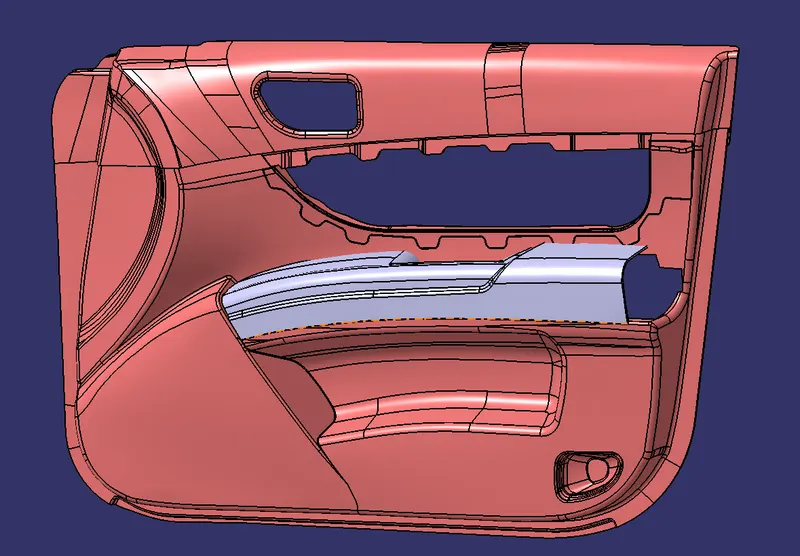

Door Arm Rest Week 8 Challenge

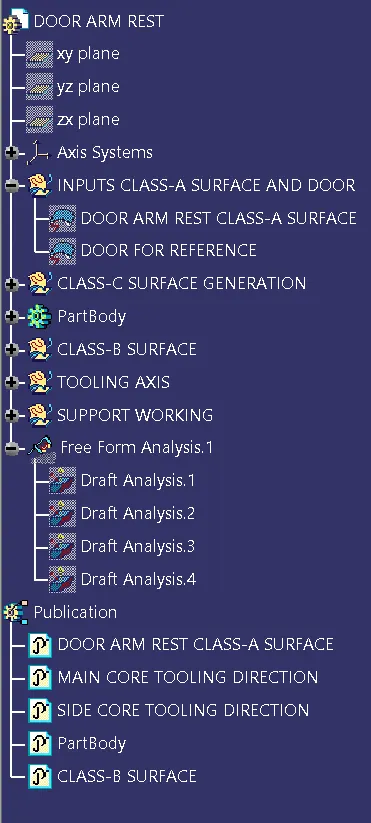

- Tree structure in simplified view with important surfaces and tooling direction in publication.
-

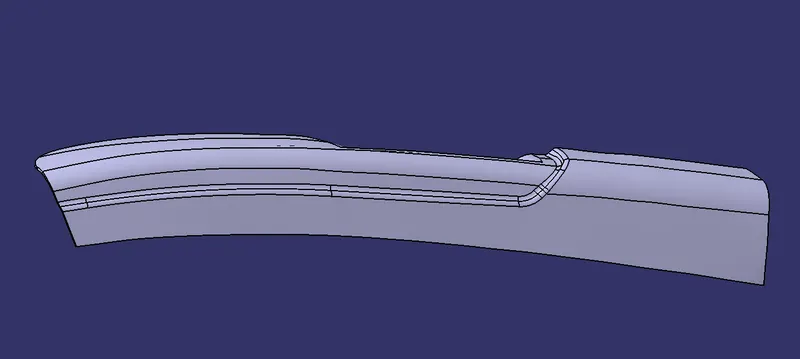

Given class-A surface designed in Alias software

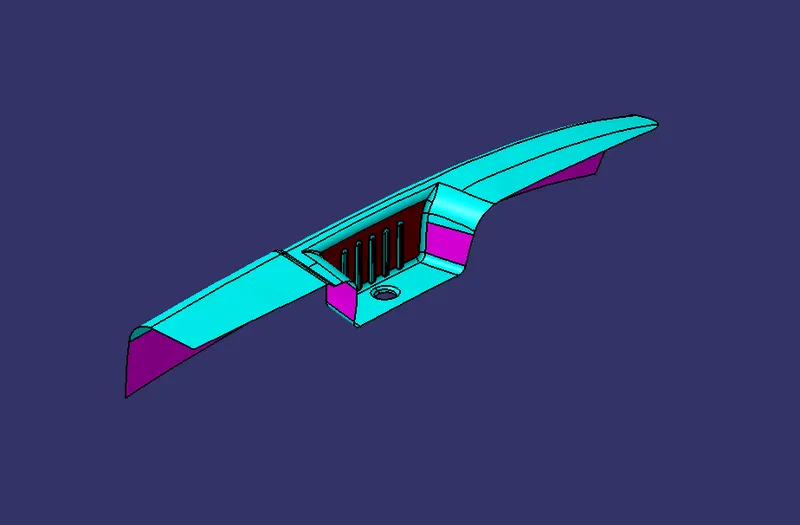

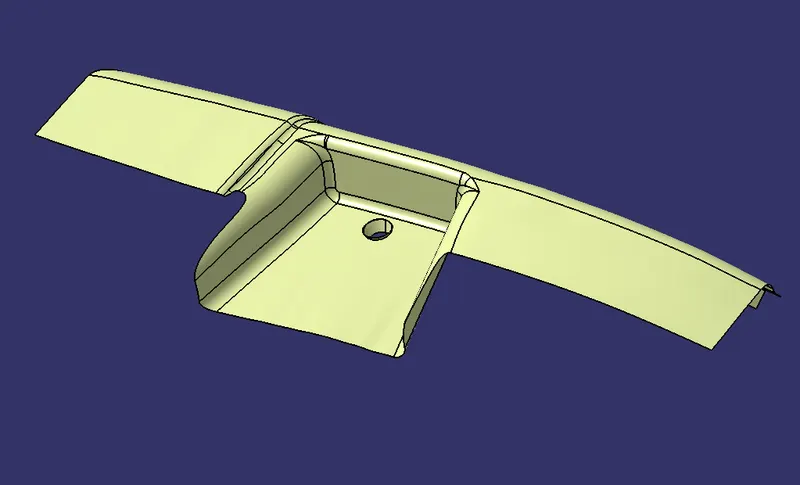

- class-B surface is created according for a thickness of '2.5'mm in solid part

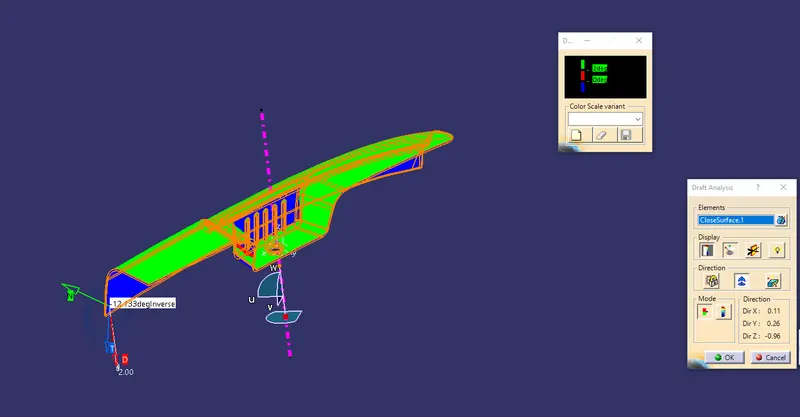

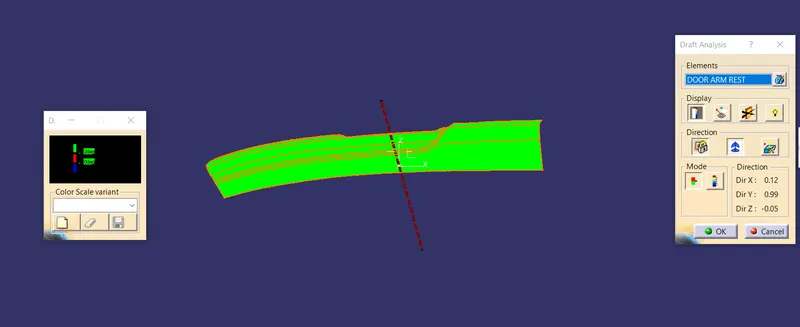

- Tooling direction is decided based on Draft analysis on class-A surface, before draft analysis a dummy tooling axis is created, later selecting the faces which are presumed to have a draft less than ‘Three degree’ is selected and taking appropriate intersection and the Main tooling direction is created.
- As this part requires side core for manufacturing draft analysis is in two steps,

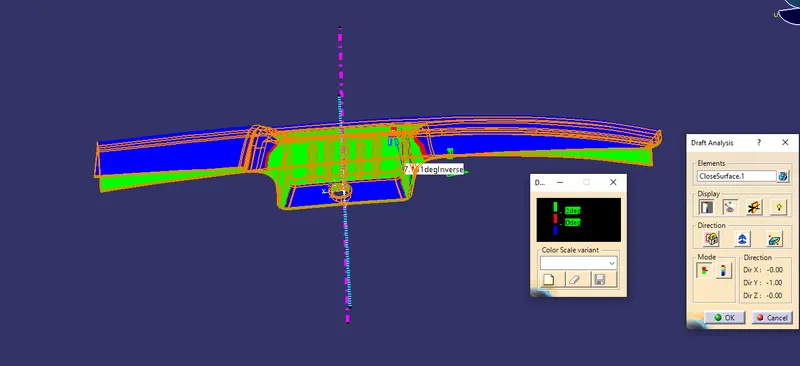

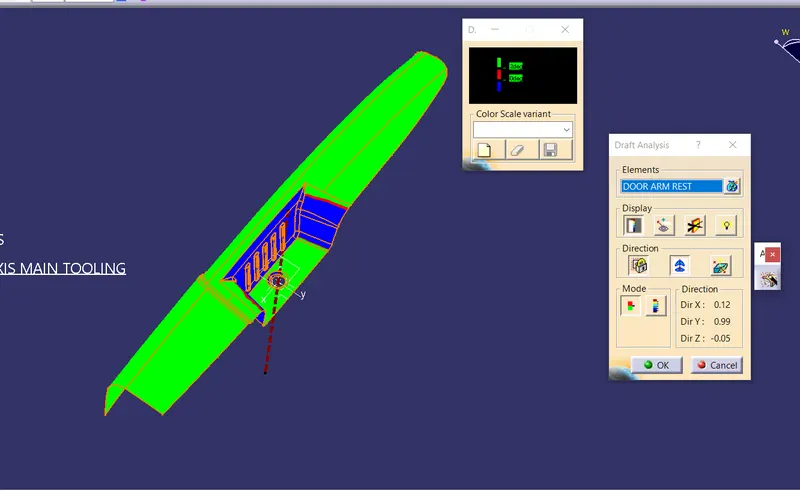

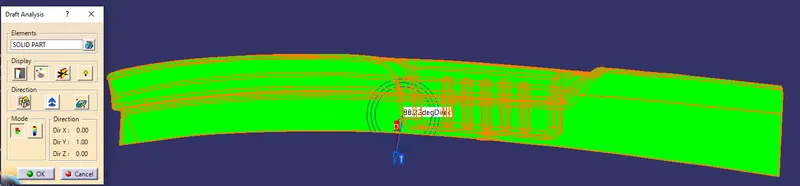

- For main tooling

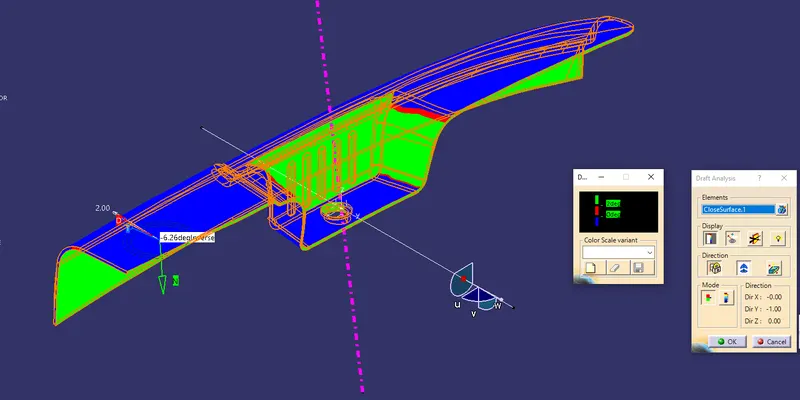

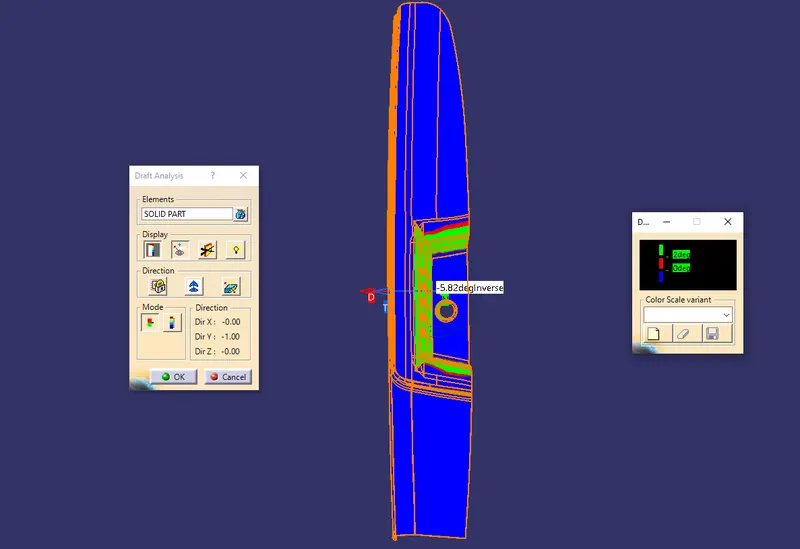

- Side core axis
-
