Door Arm Rest Week 8 Challenge

DOOR ARM REST DESIGN

• Tooling Axis Creation for Side and top Surface
• Creating Class B
• Creating Class C
• Joining Class A & Class C Surface
• Trimming and making Final Part of 2.5mm thickness

Draft Analysis-The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.Draft angle taken is 3 Degree and 2.5mm part thickness.

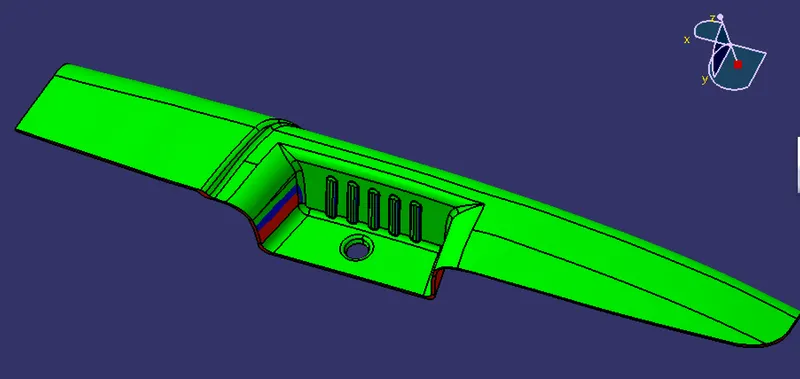

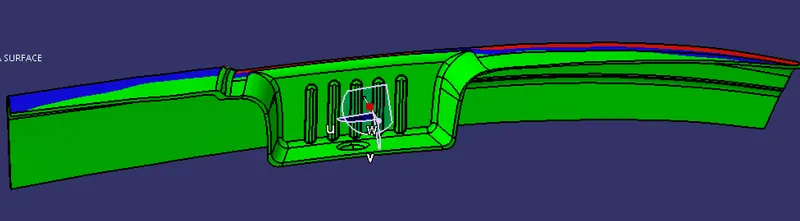

From top From Side

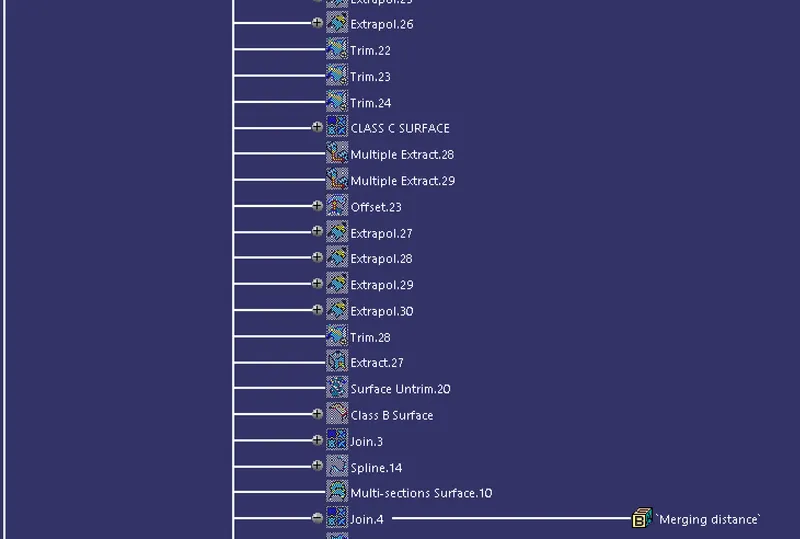

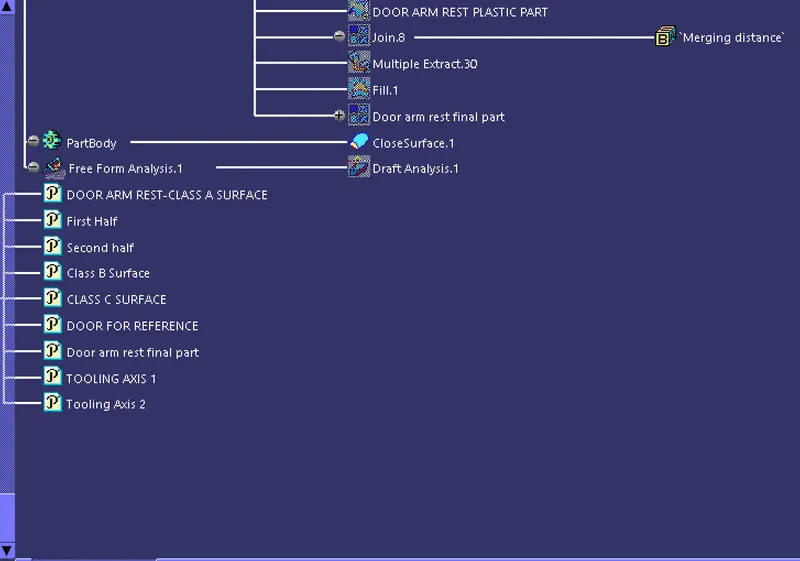

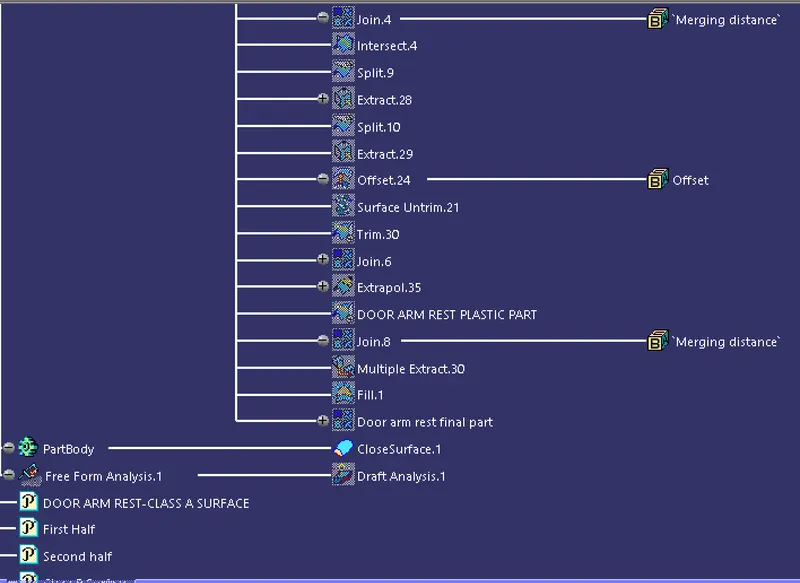

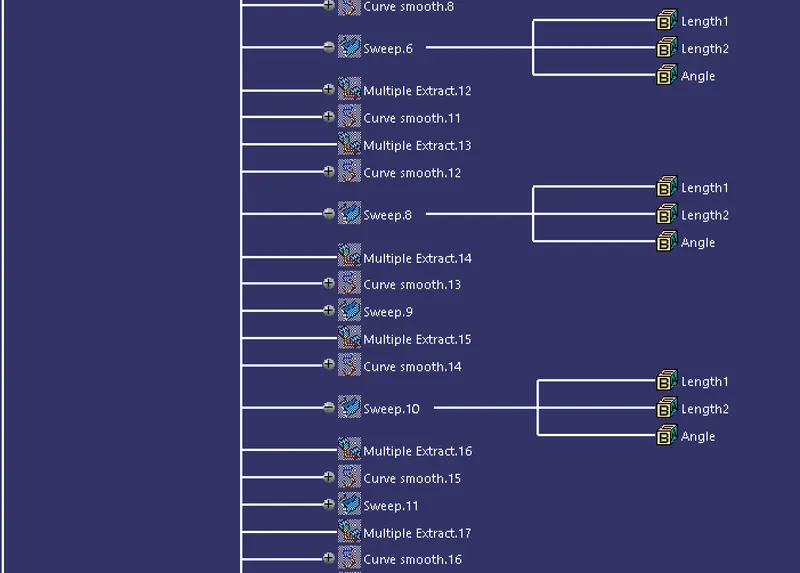

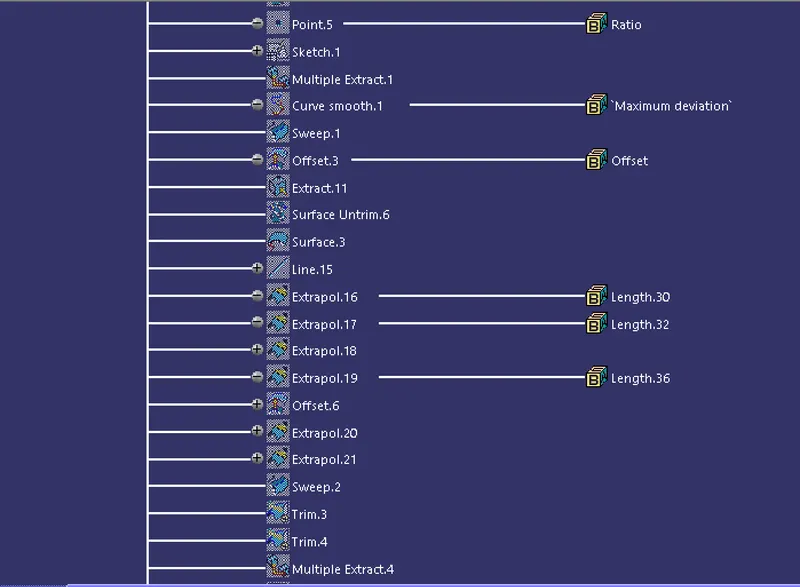

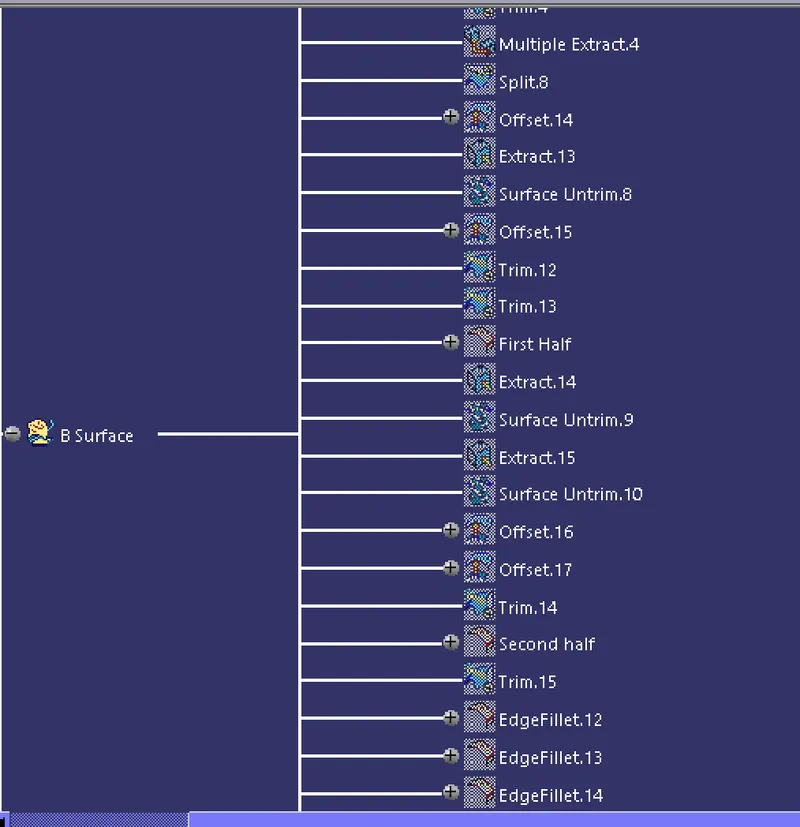

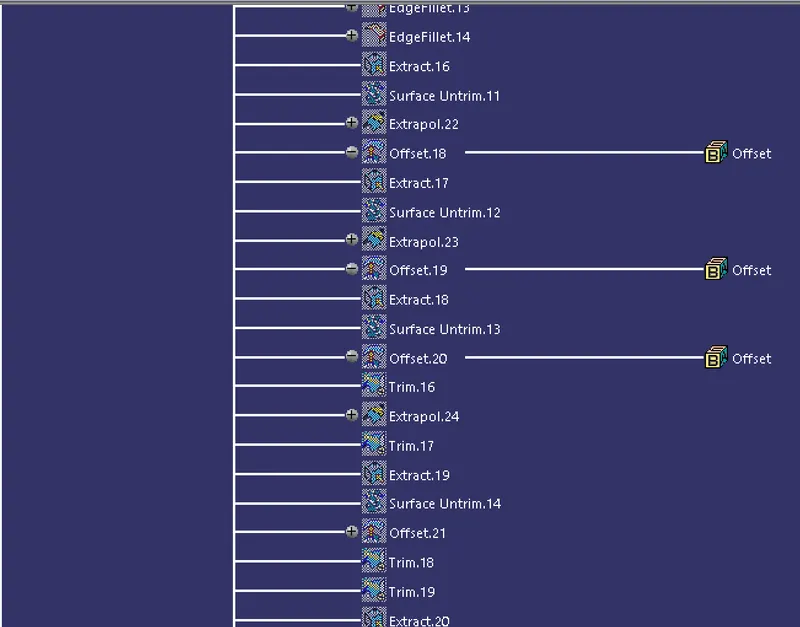

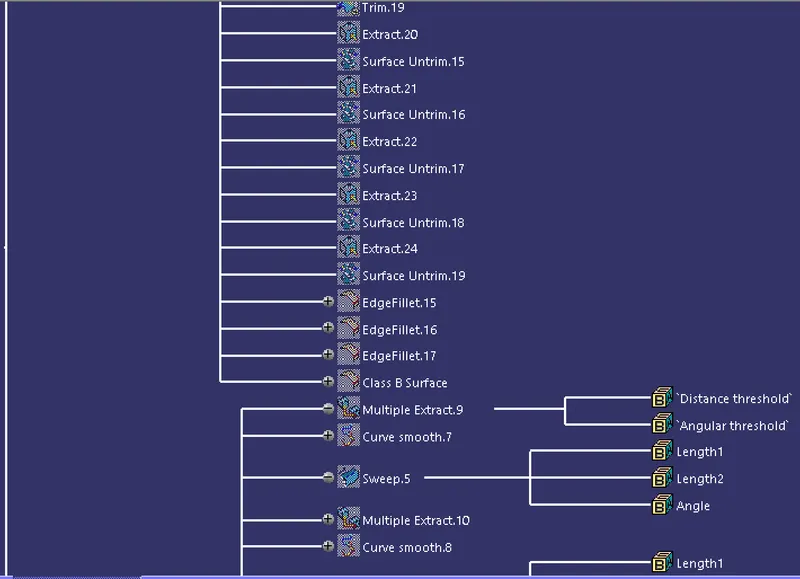

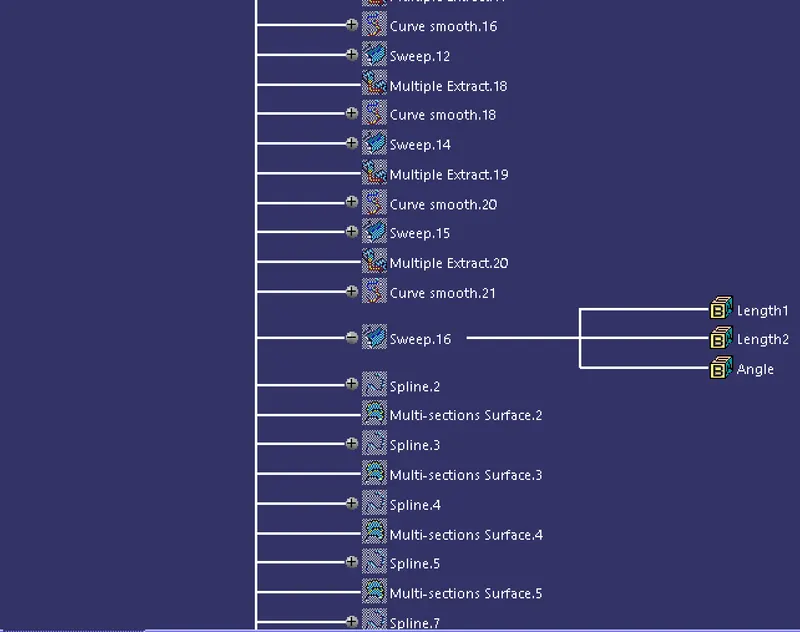

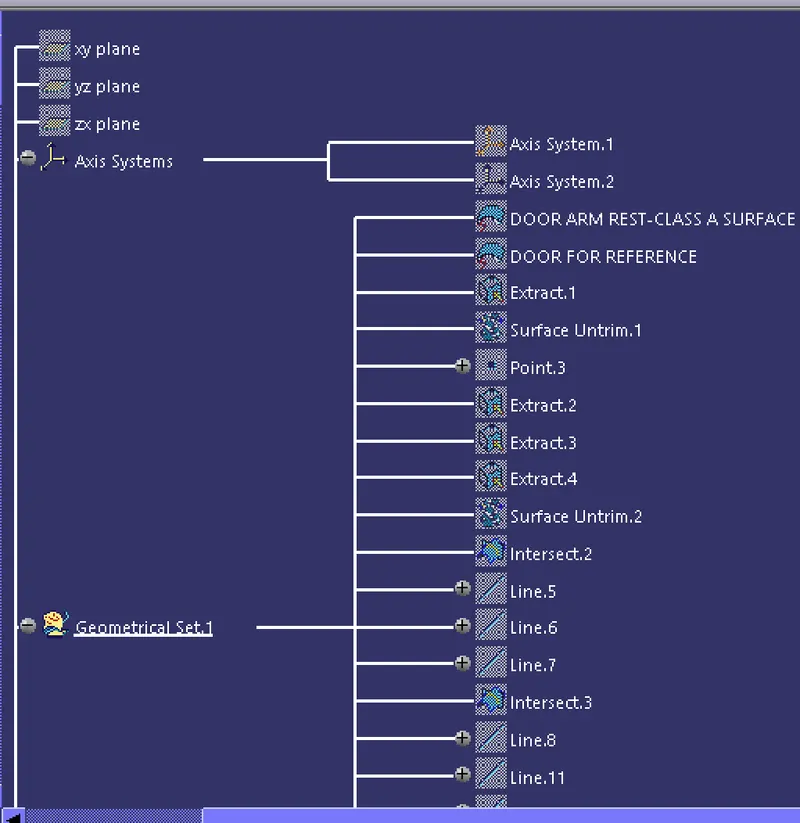

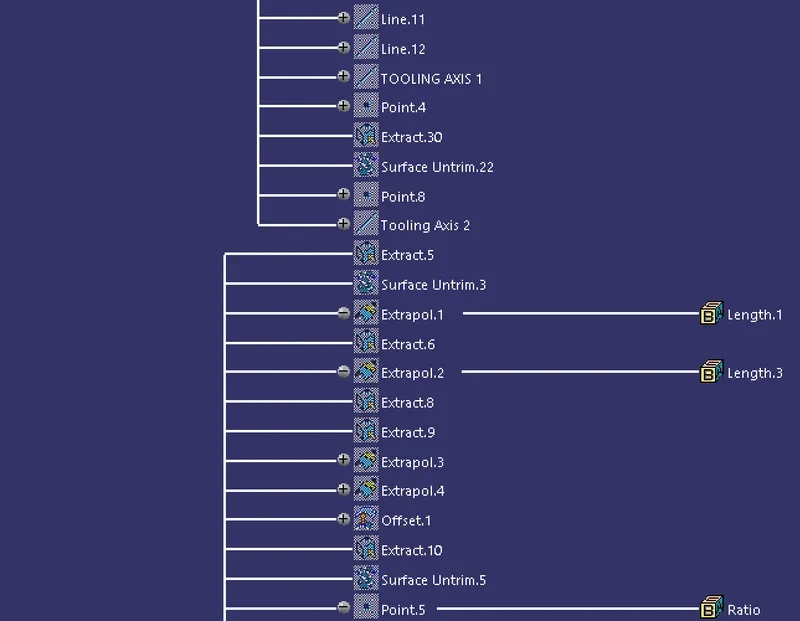

Feature Tree

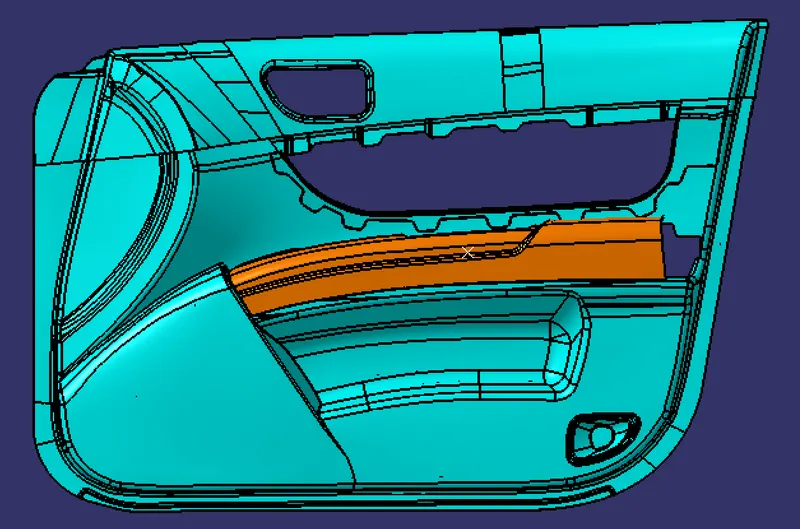

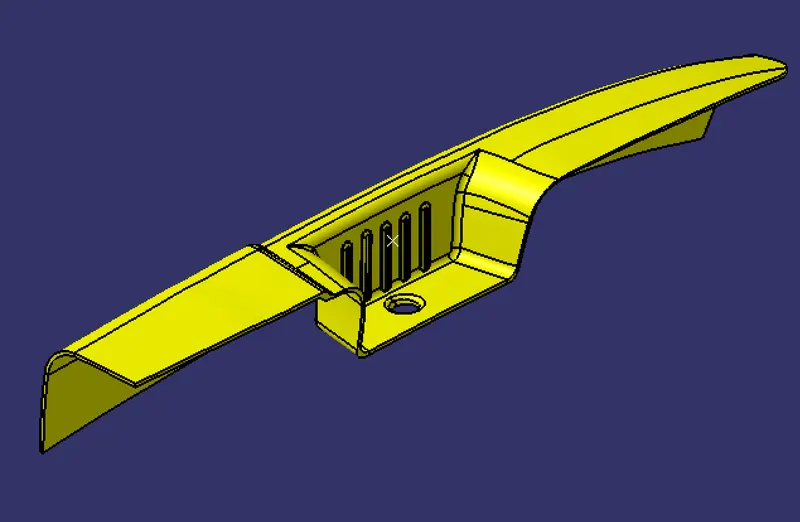

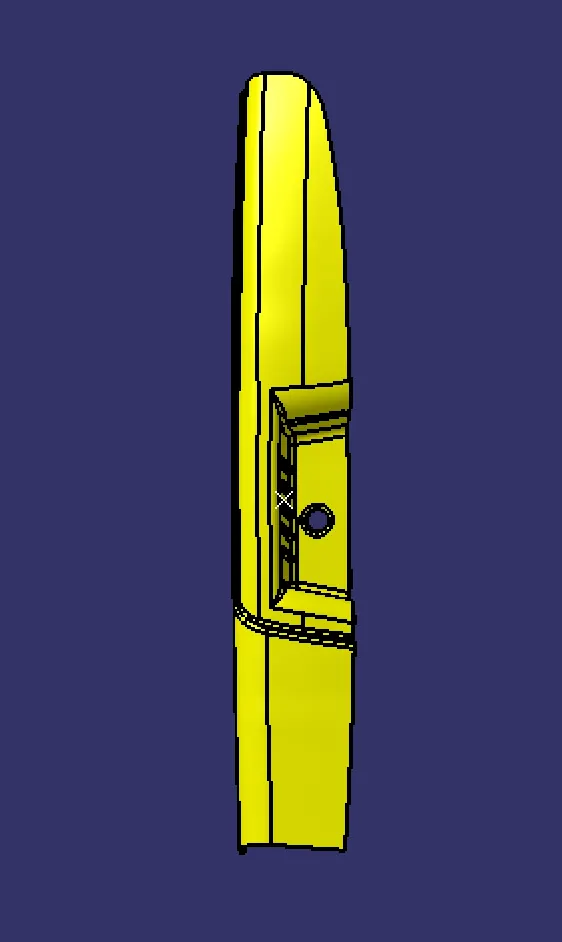

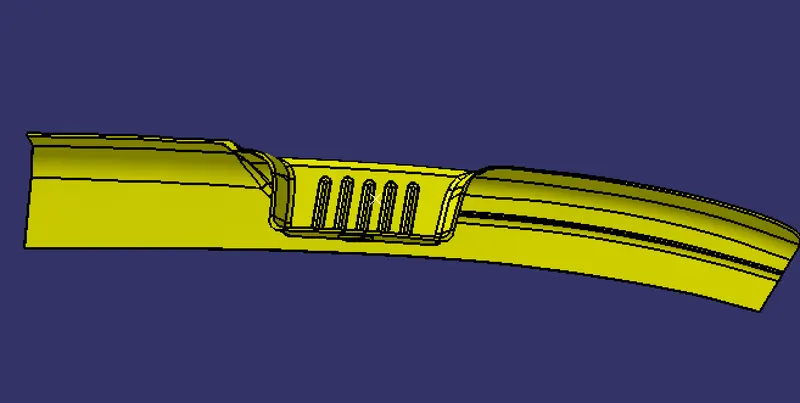

Final part Images
