Door Arm Rest Week 8 Challenge

Drive link: https://drive.google.com/file/d/1PisAvNV6zv6o8xo83Px2g0thXzjYklaV/view?usp=sharing

From the given class A surface of the door arm rest, class B and class C surface are created and is converted into a solid of thickness 2.5mm

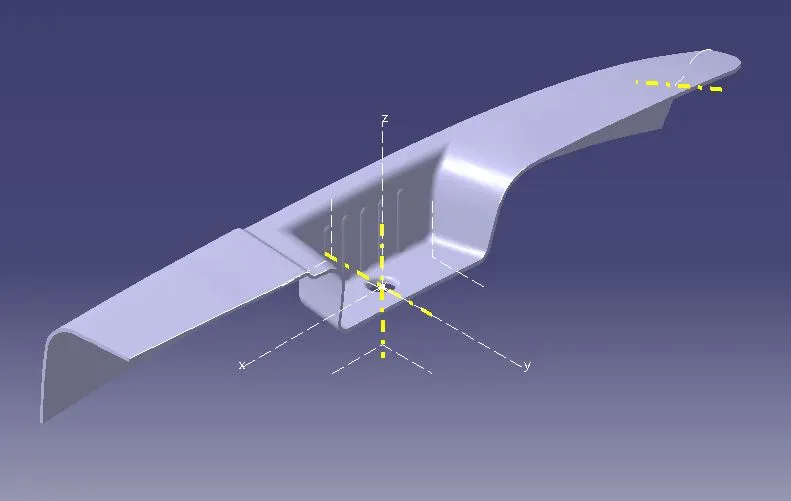

Figure 1 shows the door arm rest with main tooling axis and two sliding axis

the sliding axis is provided to aid the main tooling axis

The following images shows the draft analysis done with main tooling axis and slider axis

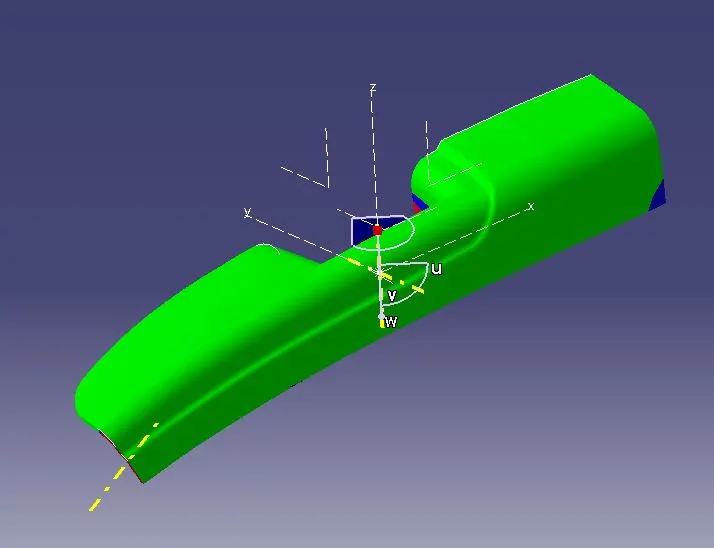

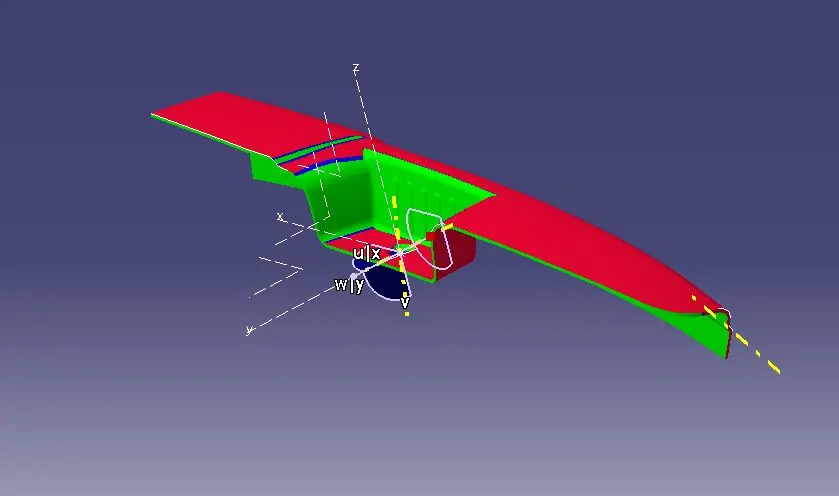

Figure shows the draft analysis done using main tooling axis

from the above images we can infer that the main tooling axis cannot cover all the areas of the arm rest, therefore we provide slider axis to completely fill the material

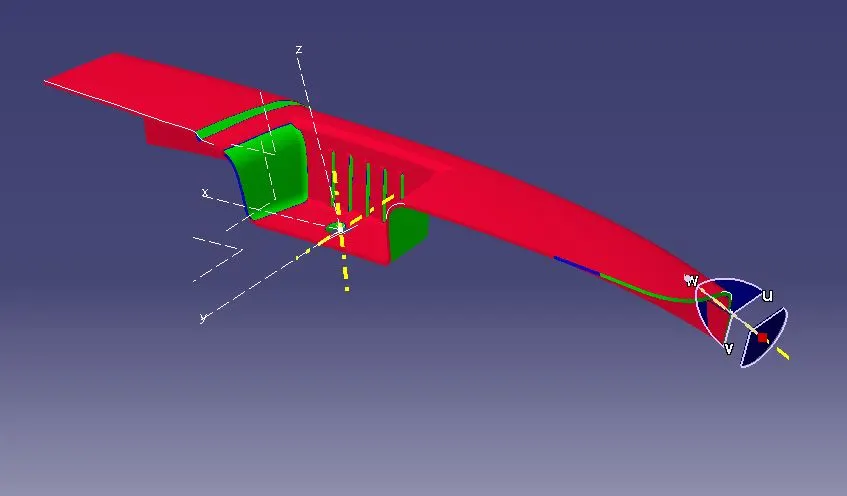

Figure shows the draft analysis using sliding axis 1 the area which are not covered by main tooling axis are compensated with slider axis 1

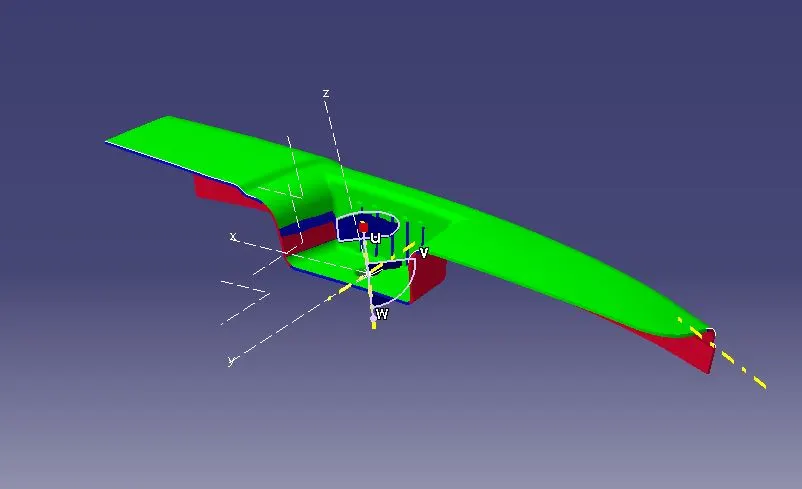

Figure shows the draft analysis using sliding axis 1 the area which are not covered by main tooling axis and slider axis 1 are compensated with slider axis 2

thus the door arm rest is designed with 3 tooling axis
