Door Arm Rest Week 8 Challenge

• Draft Analysis with Main Tooling Axis

• Draft Analysis with Side Core Tooling Axis

Report

Here tooling Axis for side core also need to be created because of the projection found on the arm rest. Therefore the main tooling axis and side core tooling axis has been created with the help of intersection and bisectiong lines.

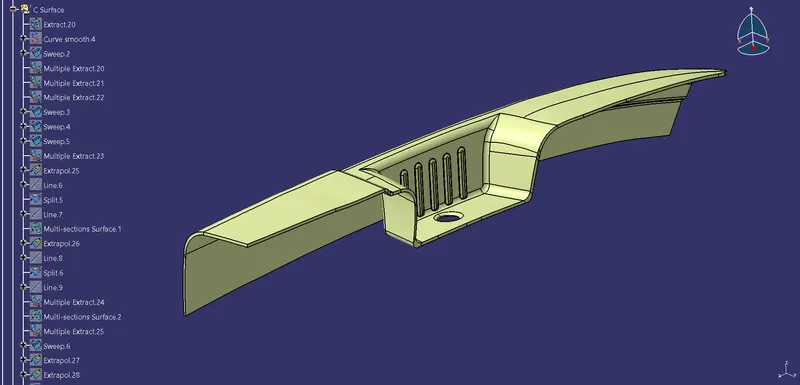

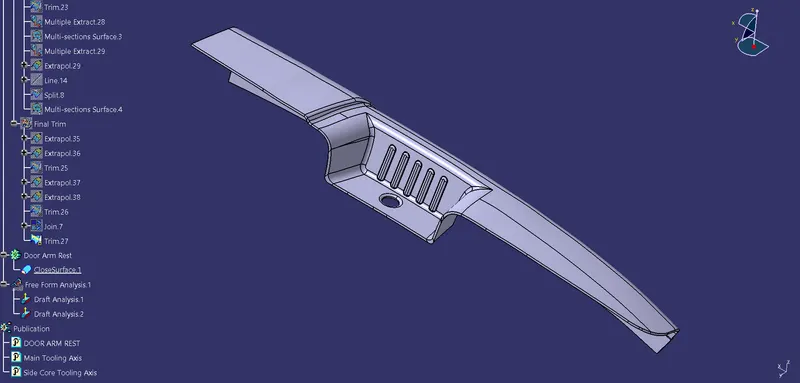

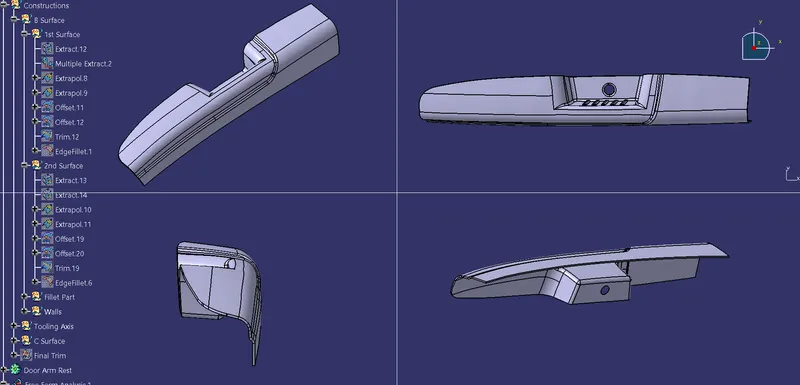

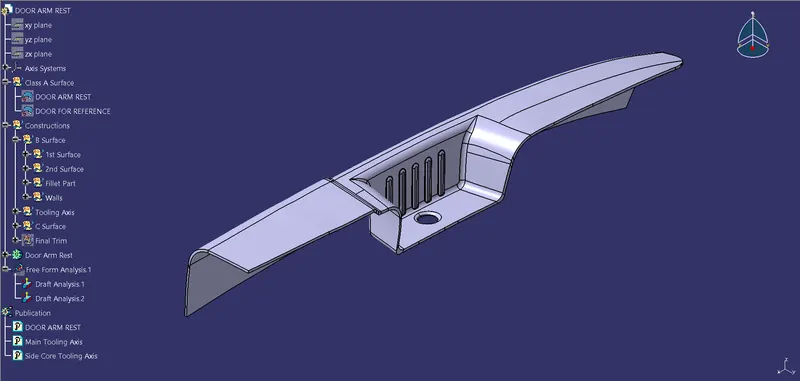

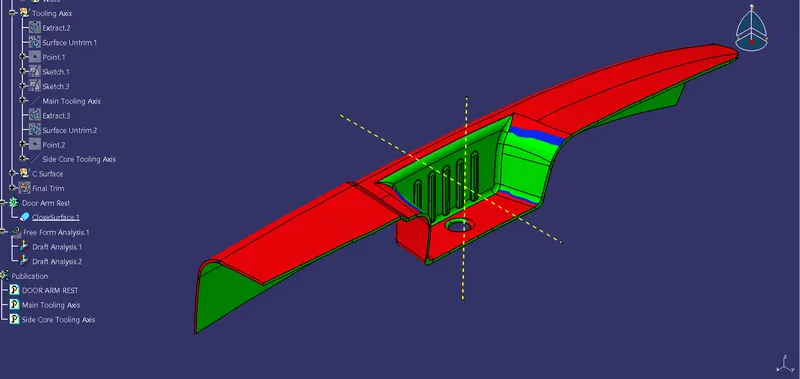

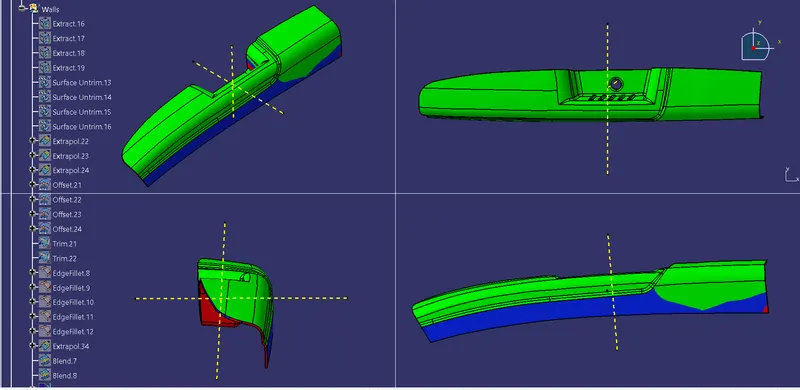

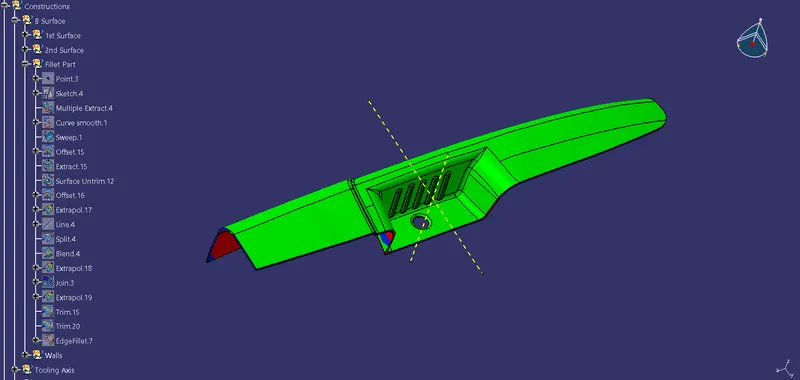

The Draft Analysis for both the side core axis and main tooling axis is hereby done where the Green side indicates the draft given is 3 degrees while the blue colour indicates the draft is at 0 degrees. The red side indicates there's no draft necessary. Since it is for a Door Arm rest setup the draft side angle is not much important.
