Design of Shallow Foundation (Isolated Footings)

Aim - To design a square footing for a column size of 400x400 .

Introduction -

• The footing is a structural member that safely transmits the load of the upper building to the ground, and is the first construction member of the building.
• The basic method of footing design is to distribute the load so that the size per area of ​​the load transmitted from the upper part of the building is less than the strength that the ground can support, that is, the bearing capacity.
• With this function, the footing is a structure installed between the ground and the column or wall immediately above it, The basic design is to reduce the total amount of settlement and prevent the occurrence of immobile settlement.
• In a general building, the footing design is to determine the area of ​​the footing, the thickness of the footing and the amount of required rebar.

Procedure -

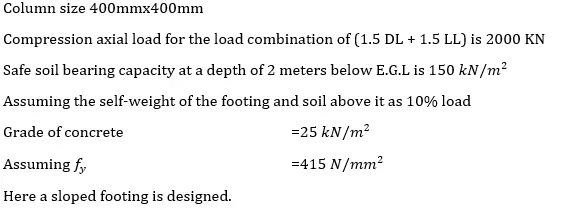

Step 1) Given Data

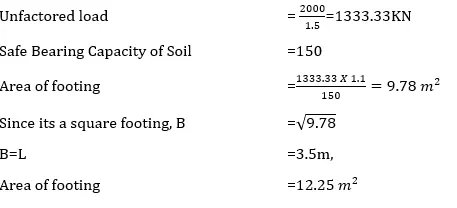

Step 2) Size of the footing -

Therefore area of footing provided is greater than area of footing required

12.25 > 9.78 ........................Okay

Step 3) Net soil upwared pressure .

Netupward Pressure = Factored Load/Area of footing provided

= 2000/12.25

= 163.26 kn/m2

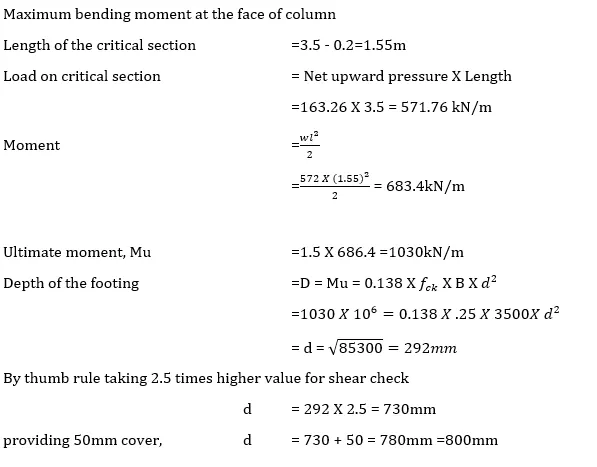

Step 4) Depth of footing -

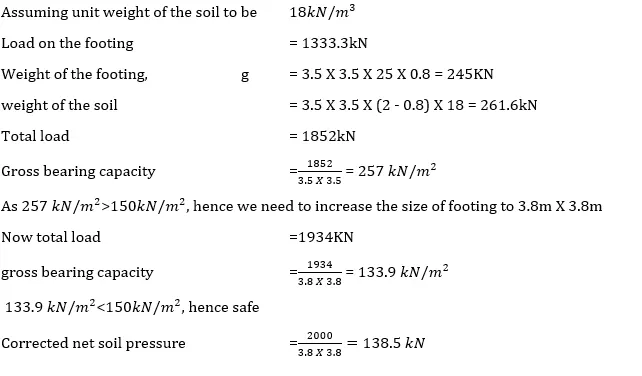

Step 5) Gross bearing Capacity

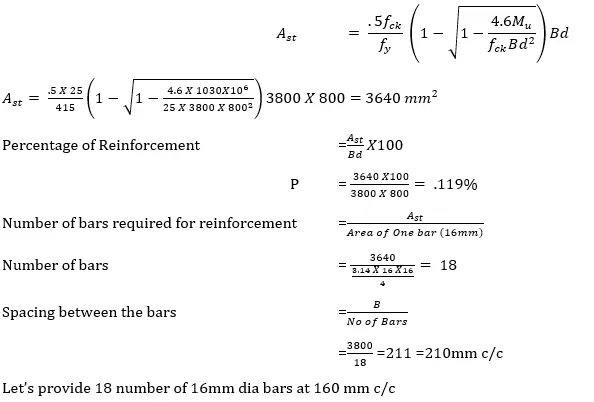

Step 6) Reinforcement

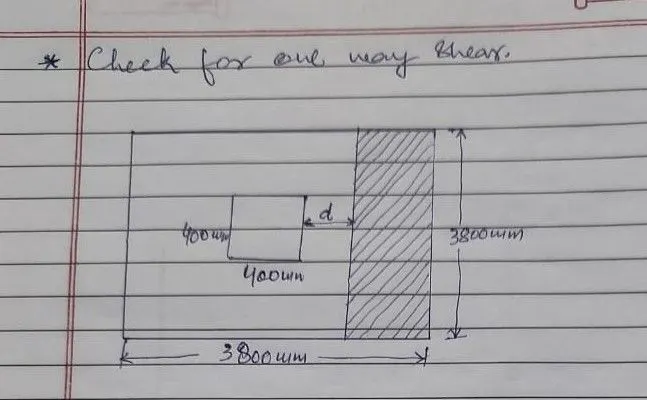

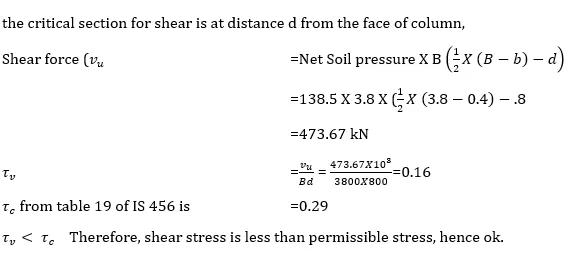

Step 7) Check for One way Shear

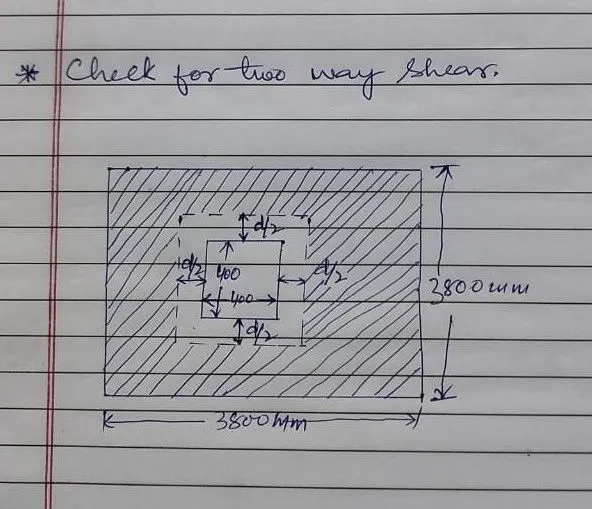

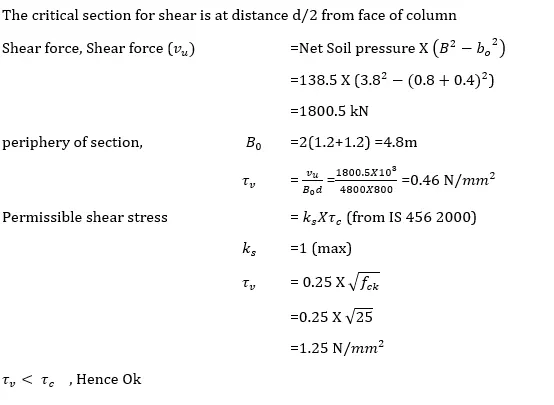

Step 8) Check For two way shear

Step 9) Developement Length

Results -

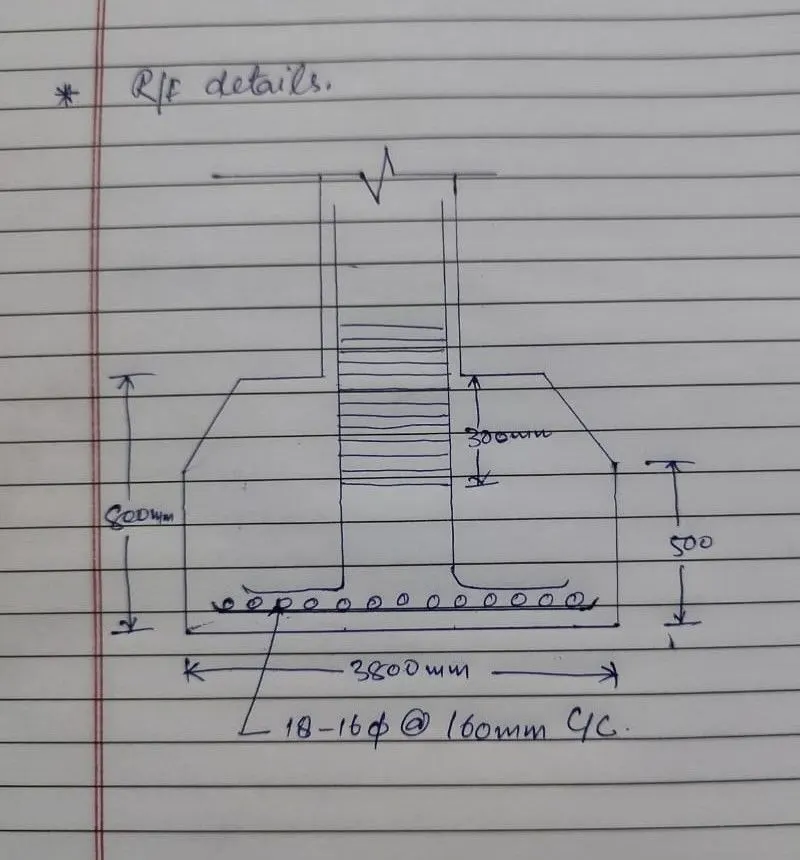

i) The Sloped Isolated fotting is designed for Square Column of size 400mm x 400mm

ii) The footing is safe against the bearing pressure

iii) Footing is safe against the one way and two way shear ( Less than 1)

iv) Permissible stress is less than the 0.45 fck.
