Design of Shallow Foundation (Isolated Footings)

 AIM: To design and analysis of G+3 hostel building in ETABS and Foundation in CSI SAFE. Introduction : The procedure and anaylsis and design of given building will depend on the type of building, its complexity, the number of stories etc. First architectural drawings of the building are studied, structurl systems…

Answers. 1.1 State the primary load cases to be considered for design. Answer. The primary load cases that are to be considered for design are listed below: Dead Load (IS 875: Part I). Live Load (IS 875: Part II). Wind Load (IS 875: Part III). Snow Load (IS 875: Part IV). Seismic Load (IS 1893:…

ANSWERS.   1.1 How will you assign Circular section to column? The detailed procedure of assigning the circular section to column is discussed below: So in order to assign the circular section to the column first we need to go to the properties panel. Then click on the option Define. Then there will be another dialogue…

Q 1. 1)  Write the steps involved to upload a .std file through web mail?  Answer:- steps involved to upload a .std file through web mails are as follows, open the staad pro software and locate the share option available on the introduction screen. after clicking on the share button, select and send mail…

answer:- self weight of slab = 0.12 *25= 3 kn/m self weight of beam = 0.5*0.75*25= 9.375 kn/m floor finish = 5kn/m live load= 5 kn/m total load = 11 kn/m load on beam = total weight * tributary width  let us give the names to all the beams in order as B1, B2, B3......ETC Load on B1= W* tributary width + self weight…

AIM: To analyze and design the isolated  footing from week 11 challenge on Safe  To verify the size, depth and steel provided as per calculations   INTRODUCTION: csi safe ( slab analysis by the finite element mehod) is the best tool for designing concrete slabs and foundations. safe provide easiness…

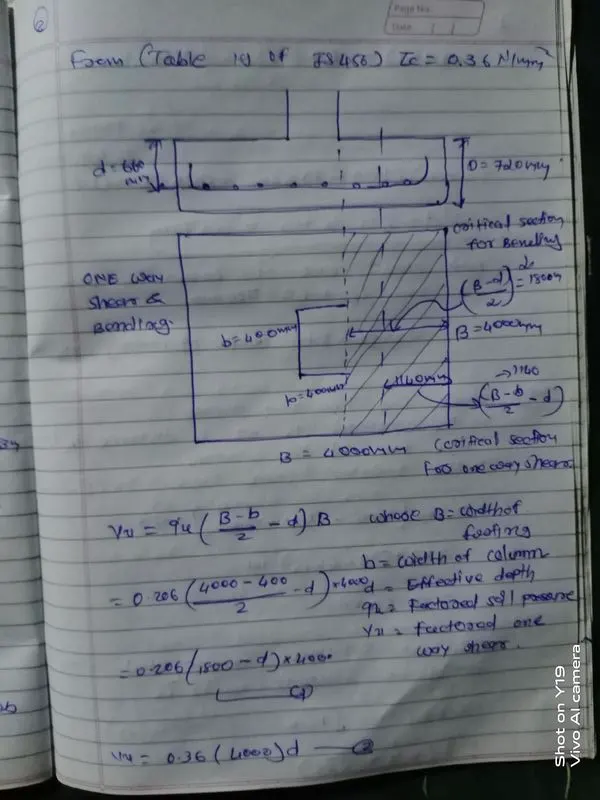

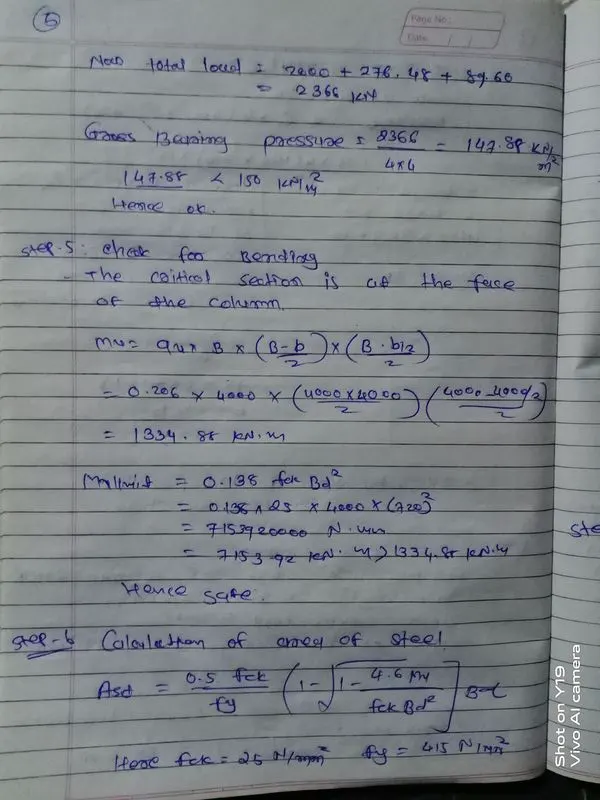

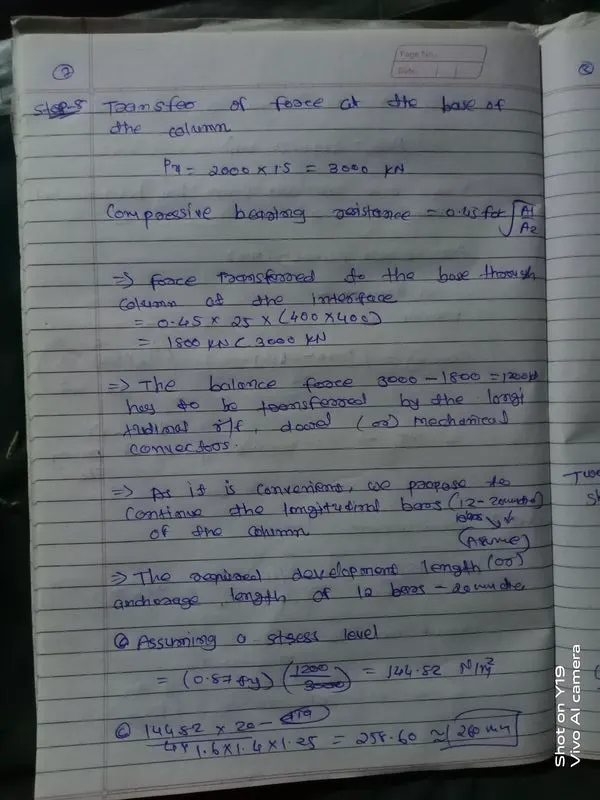

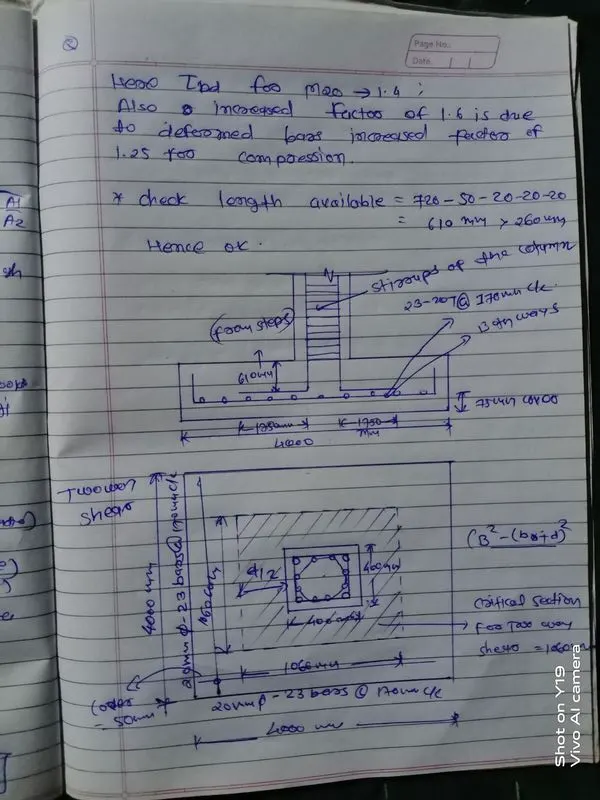

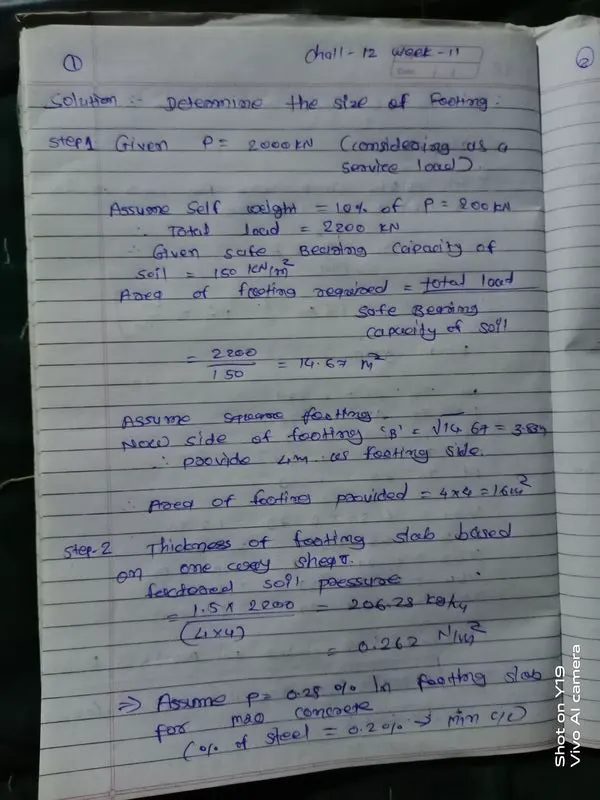

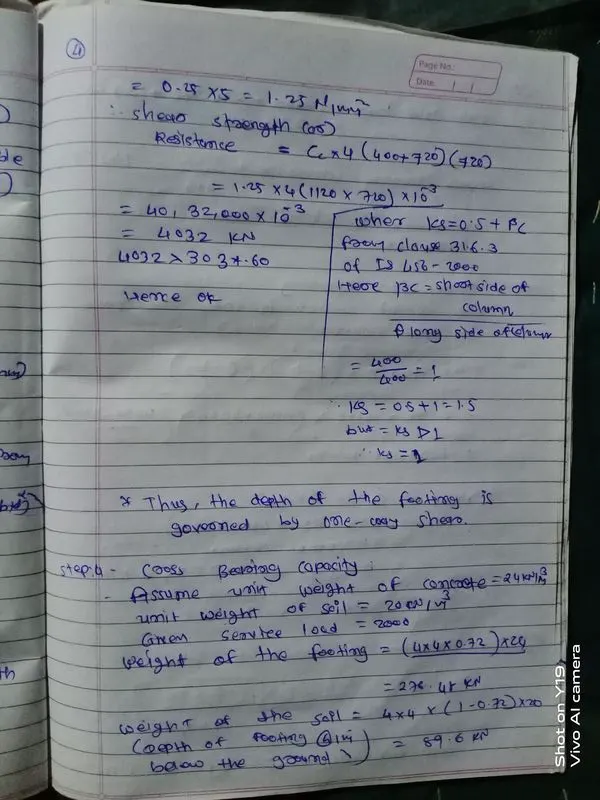

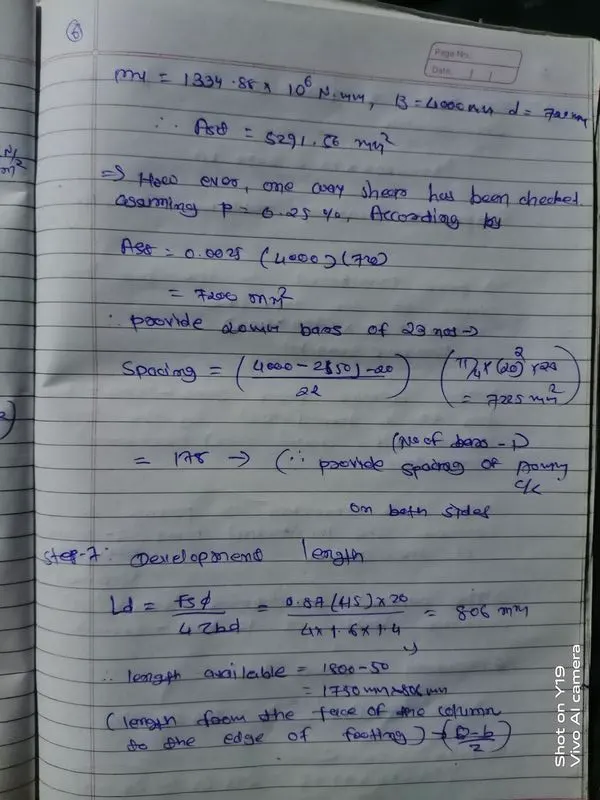

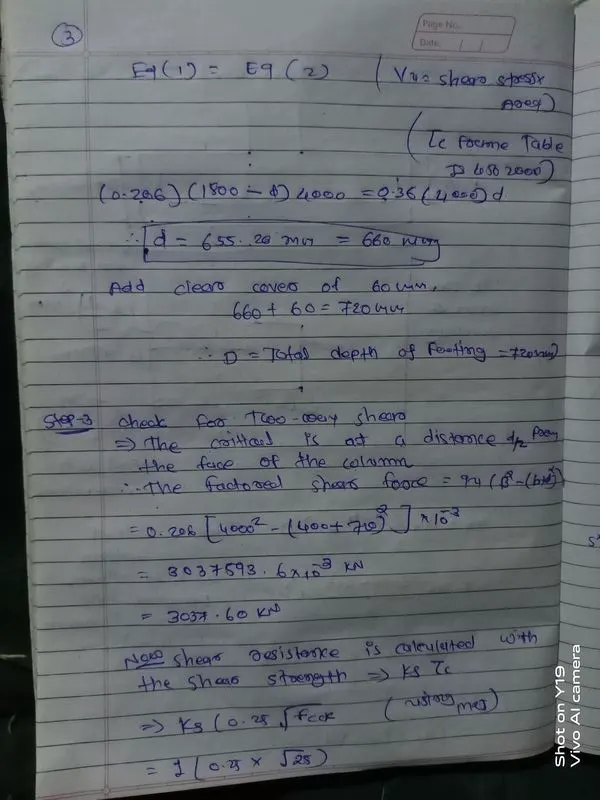

Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 metres below E.G.L. Participants are free to go for either a tapered or stepped footing.  If the gross bearing pressure…

Aim:-  To model and analyze the G+7 Residential building from the given architectural drawings the ETABS 2018. Introduction:- ETABS is an engineeering software product that caters to multi -story building analysis and design. modeling tools and templates, code based load prescriptions, analysis methods and solution techniques,…

Aim: To run the analysis and design the RCC shear walls shown in the etabs model. step 1: 1) open the ETABS filr 2) After the analysis click concrete frame design  step 2: 1) Need to check there is any failure occurs 2) click shear wall design tool 3) select display info and choose PM failure  Step 3: 1) click…

Aim: To Providing details of longitudinal reinforcement for the two columns from foundation to terrace level. Step 1: 1) Open a G+4 Etab file 2) Click the Concrete Frame Design tool 3) Select the Display Design Info option 4) Choose design output as Longitudinal Reinforcement Step 2: 1) After Selecting the Longitudinal…

AIM: 1) To design the beams in detail from the etabs 2018. 2) To provide the detailing of longitudinal and shear reinforcement for two continuous beams. 3) To calculate the value of maximum shear force in any one of the spans in the continuos beam. 4) To provide the reasons of failure of middle span along grid A  …

AIM: TO MODEL AND ANALYZE MULTIPLE BUILDINGS WITH DIFFERENT FLOOR LEVELS AND DESIGN PARAMETERS USING ETABS SOFTWARE AND COMPARE THE RESULTS TO UNDERSTAND THEIR OVERALL SEISMIC BEHAVIOUR. INTRODUCTION:          The structural configuration of the building plays a major role in determining the overall…

Aim: to model and analyse a 25 storey building with given specifications and to cross check the parameters as per IS 1893 provisions. Procedure: Open the ETABS software. Click the file menu and choose to create a new model option. After choosing a new model a dialogue box will appear as model intialization. Choose the…

Ans. (1) As the structure is more restrained it will be more shrinking , expanding and cracking. There will be more floor shrinkage a whereas there will be minimum cracks in structure B and C. The shear walls in the structure also decide whether the floor vibration is more or less in the structure it will be better placing…

ans. (1) symmertry: it is observed that the distribution of mass, stiffness is across the plan has good symmetrical aspects. this tends to reduce the horizontal displacement in both of the two horizontal displacements in both of the two orthogonal horizontal directions. it also has a very good uniformity also. Redundancy:…

AIM:- To complete Ln ,Mn and Γn for each of the five modes from the given equations.         to calculate the effective modal mass Mn* and the modal mass participating ratio for the 5 modes.         To obtain the base shear for each of the 5 modes of vibration and the…

1. Differentiate Static analysis and Dynamic analysis with proper representing pictures. the nature of loading governs the kind of analysis to be performed on the structure. the loads are divided into two basic categories. static loads are the load with respective time is very slowly(the acceleration of load is very less…

Question 1: What is the mode of failure or damage of the beams in the figure above? Would you characterize the case as damage or as a failure? Are the damages repairable? Elaborate a)    Crack is formed due to flexural failure in beams. As we can see that damage is caused more to the beam then column. Damage…

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class Aim: To export the Revit architecture and structure model to Navisworks Cache file following the export settings.…

1. Aim: To create a set of sinusoidal points, a curve and a surface out of the curve using dynamo. Procedure:  Initially, open the architecture template of Revit software and go to manage tab. In manage tab select the dynamo. Then dynamo window opens and then go to new option.   Now, start the process by inserting…

Q1) AIM:  Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School. ANS) OFFICE BUILDING Q2) AIM :  Assume reasonable assumptions for geographic…

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.     AIM:- To model a Ceiling from the architecture tab above the walls at the first-floor level.     INTRODUCTION:- The creation…

PROJECT- 2 AIM OF THE PROJECT- Creating a 3D rendered model for a Residential Building in AutoCad.   INTRODUCTION- COMMANDS USED FOR DRAWING THE 3D RENDERED VIEW OF BUILDING ARE AS FOLLOWS. -         Extrude- Location: Draw > Modeling > Extrude This AutoCAD 3D Extrude…

 AIM:- To create a 3D isometric view of the given building with plan and elevation.    INTRODUCTION:-  An isometric drawing is a 3D representation of an object, room, building or design on a 2D surface. One of the defining characteristics of an isometric drawing, compared to other types of 3D representation, is that the…

AIM: To create 3D model and view of: Furniture element Isolated footing AASTHO type girder Drop column with panel A wall Commands used: Extrude. Offset. UCS. Box. Union. Subtract. Move. 3d orbit. Loft. Sweep. Cone. Region. Boundary. PROCEDURE:  Open the AutoCAD, click on workspace switching and change it to 3d…

(1)AIM:To Create a layout of the plan and section A of the project in challenges 7 .PROCEDURE: In the command prompt type units > mm> decimalIn the command prompt type limax >100,100In the command prompt type limits>0,0In the command prompt type layout > template>Tutorial arch .m In the command prompt type Ms to specify…

(1) AIM: To create the layout of the kitchen and providing hatches to it using the autocad in detail. INTRODUCTION: kitchen layout is the most important part of designing your perfect kitchen. It's the layout that will determine how you cook, how you eat and how you socialise. So whether you're totally remodelling the…

Aim: To create: Template, inserting text and attributes Doors of warehouse and placing it in blocks Electrical legend and making it blocks Different types of door for residential project Drawing bars, making it as block and making it as a table as bar bending schedule.   Commands used:  Block. Insert. Attributes. Field.…

AIM:             To draw the residential building of dimensions 60'x 20' with the following drawings 1) Architectural drawing plot drawing  ground floor plan  first floor plan  elevation plan  2) Structural drawing  section view footing layout column layout beam layout INTRODUCTION: THE RESIDENTIAL BUILDING TO BE DRAWN…
