Design of Shallow Foundation (Isolated Footings)

aim

to design the square footing using given details

steps

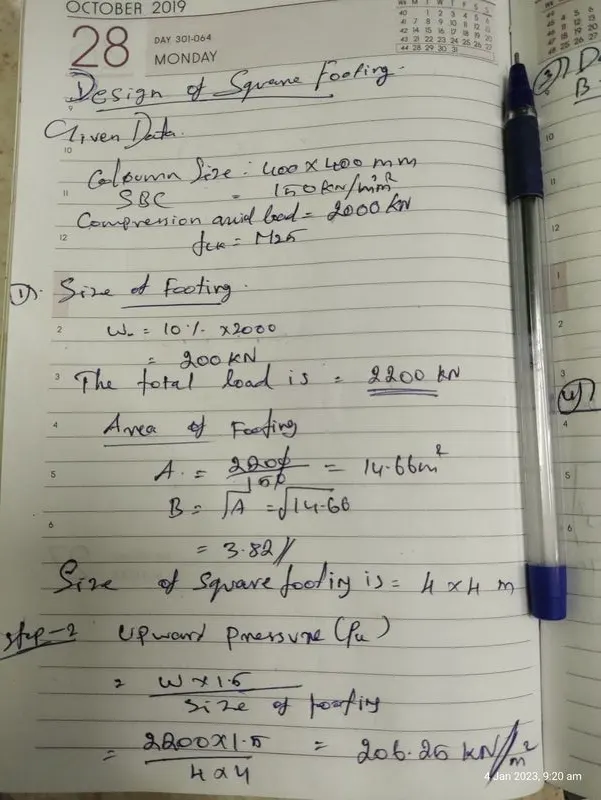

• deternine the size of footing
• upward pressure

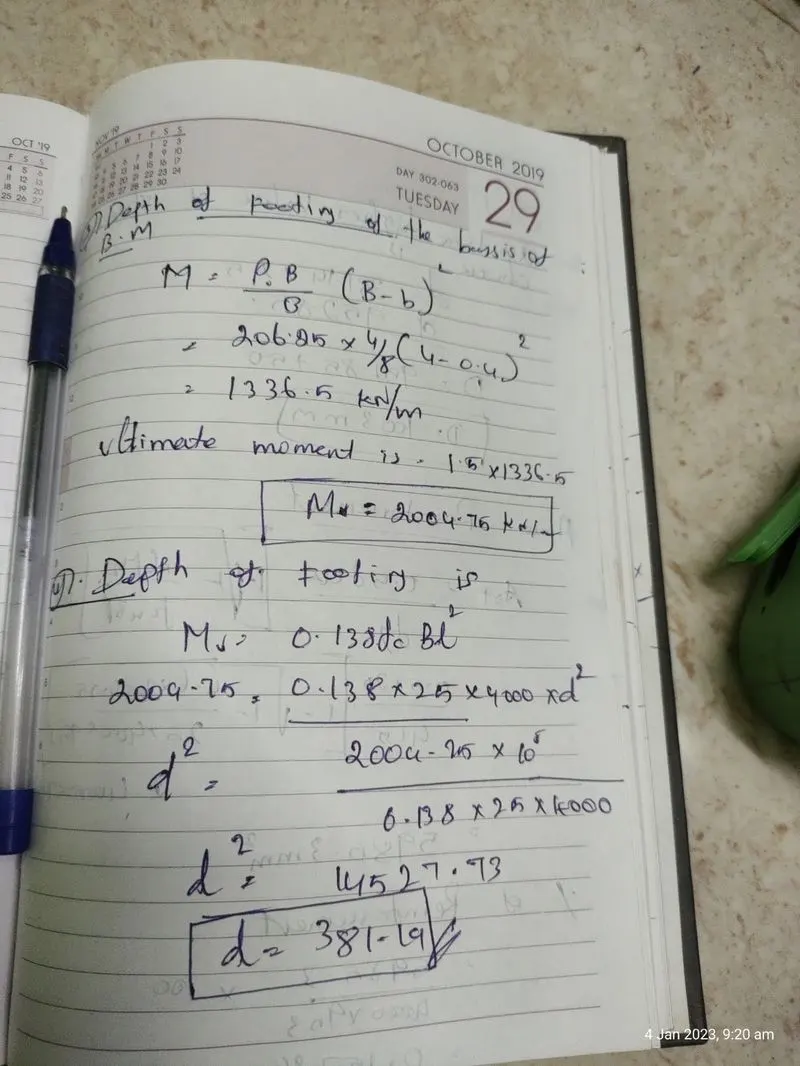

• depth of footing on basis of B.M

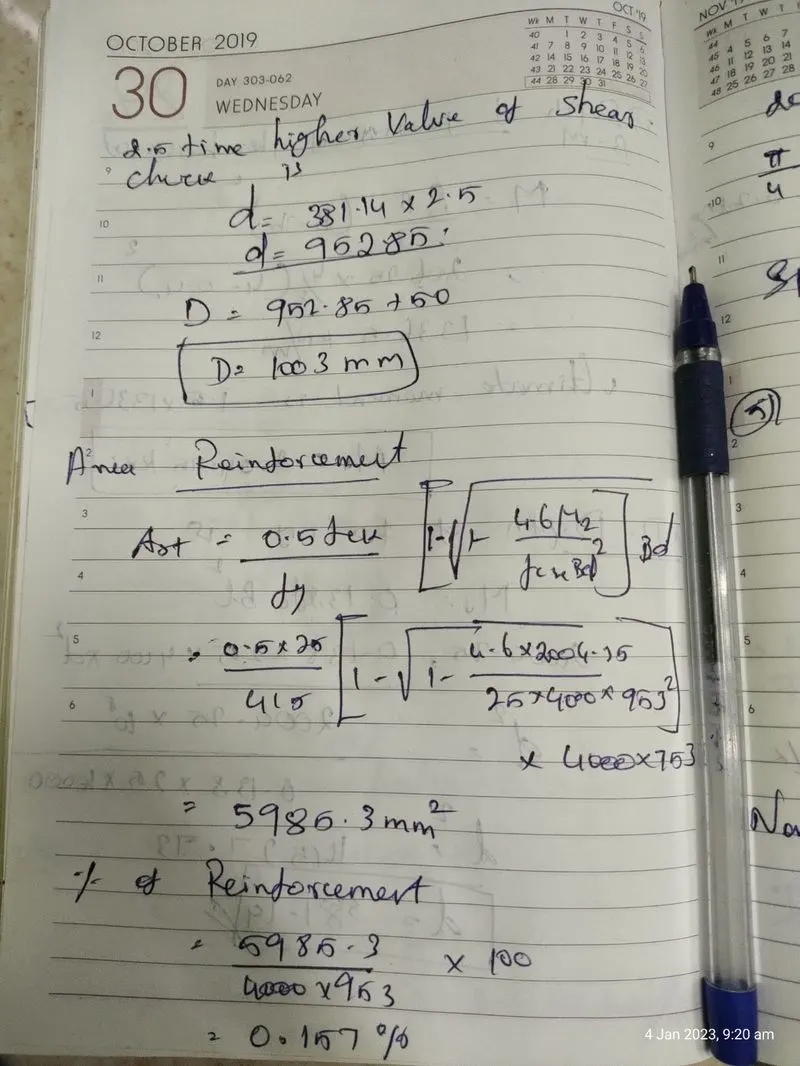

• area of reinforecement

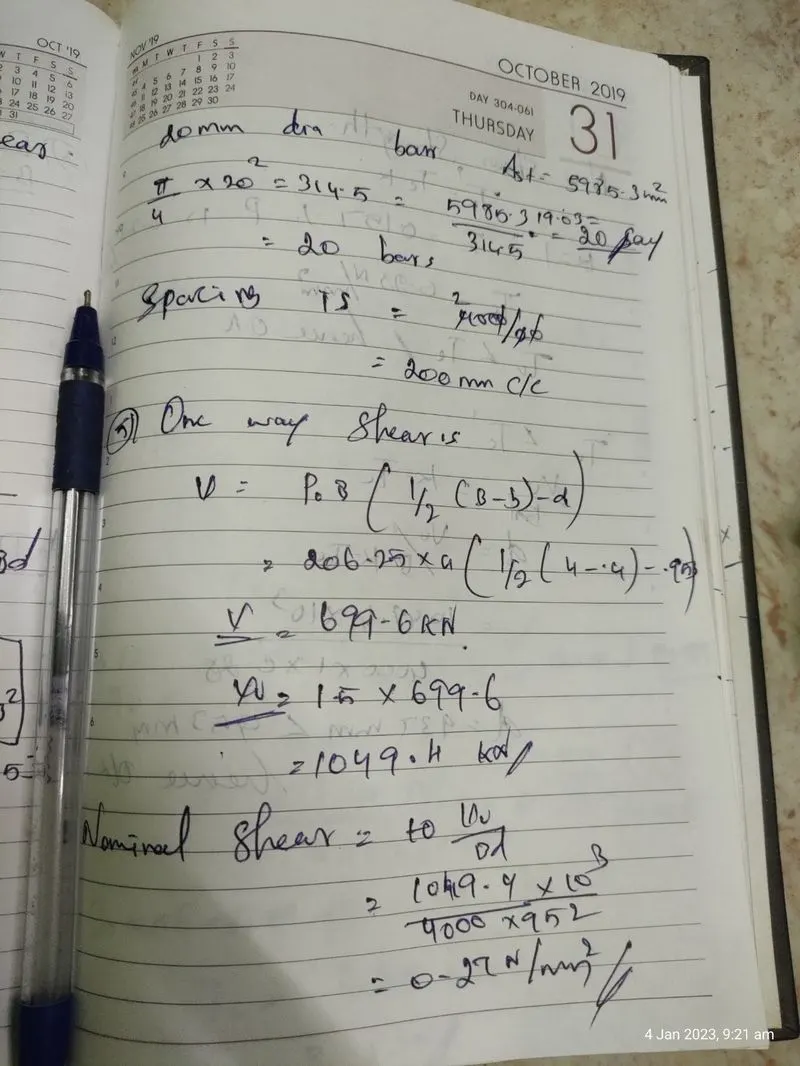

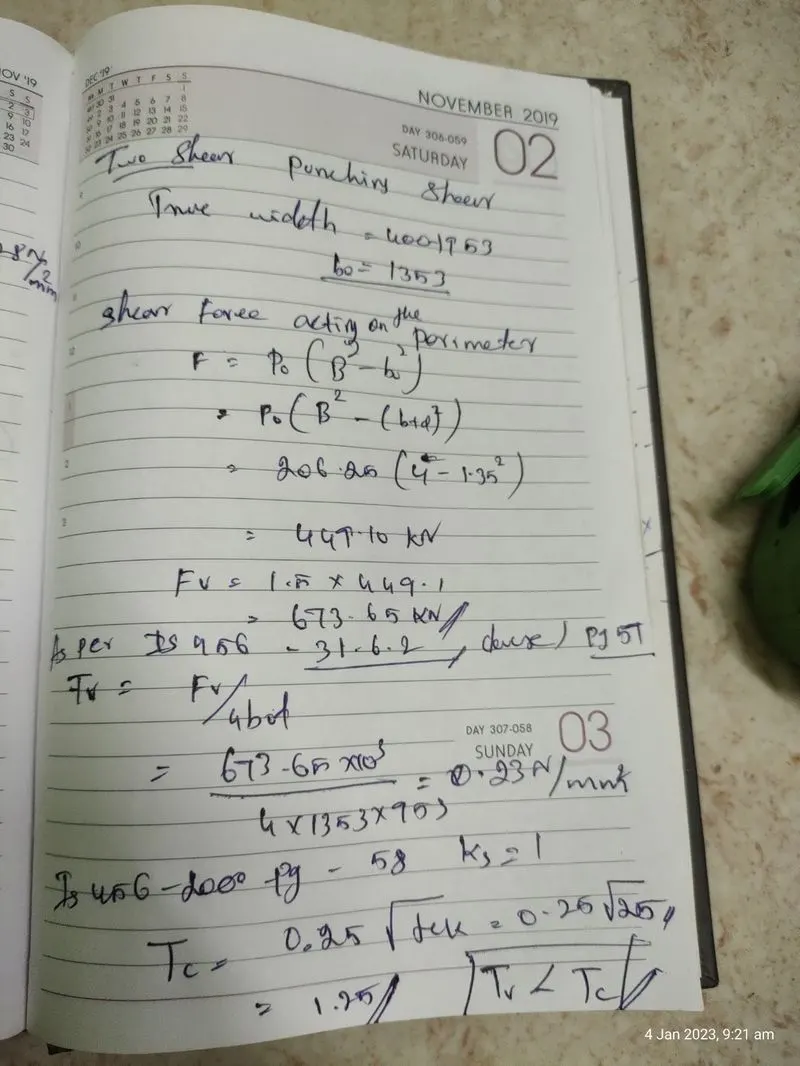

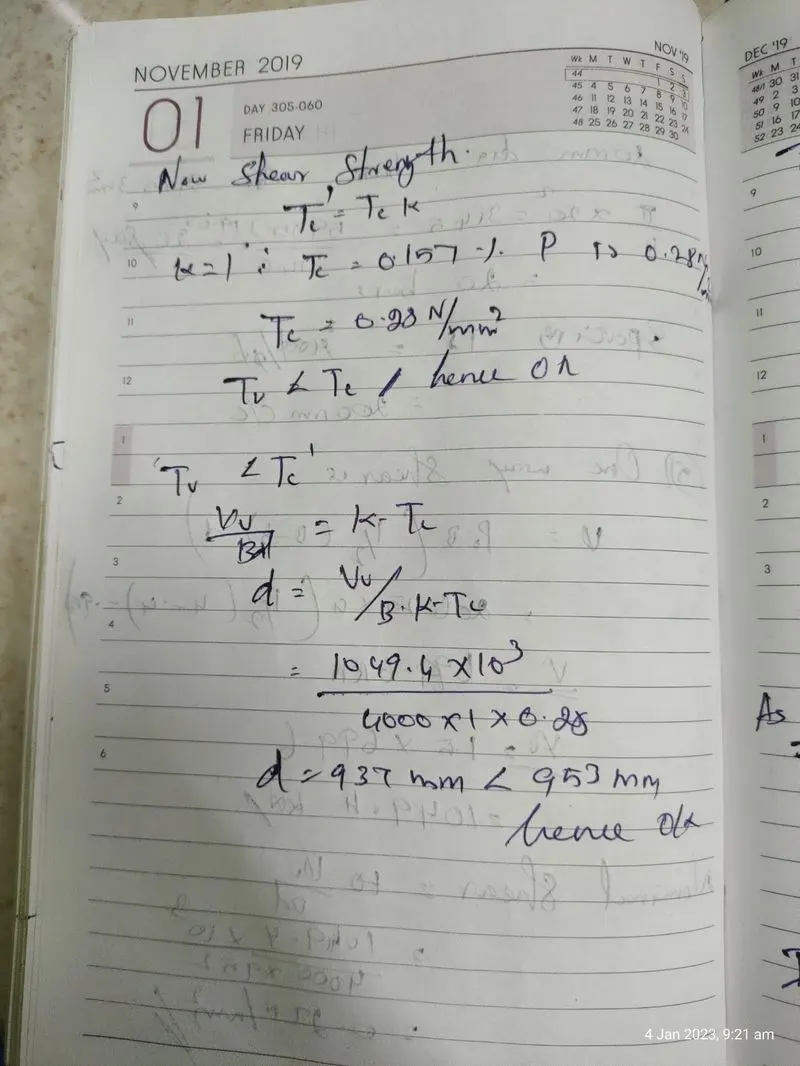

• check oneway and twoway shear

results

by using given details the square footing designed successfully
