BACK DOOR

By given aesthetic or class A surface can create the Outer, inner and reinforcement of Back door

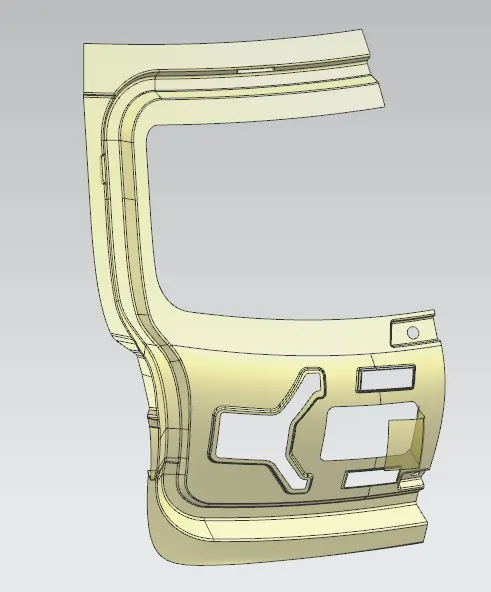

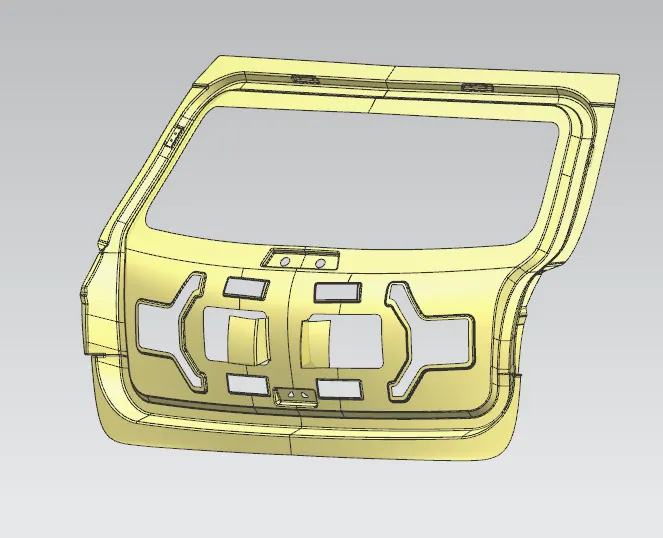

Inner Panel -

The back door of inner panel acts strengthens the back door which made of steel and Aluminum to achieve efficiency of the vehicle.

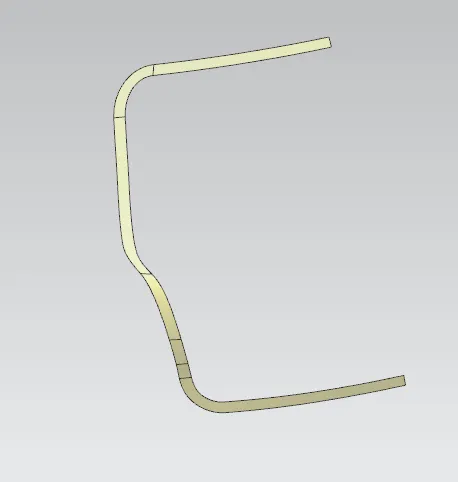

Sealing Flange -

The attached with body of the car Rubber sealing flange part of backdoor

Windshield -

Extract the surface from the class A surface and trim with the Final flange of the panel which most parts occurred like wiper motor area and glass etc.

Emboss And Mastic cutouts -

Emboss acts strengthen the back door its deviate from the external force in the crash and mastic which supports the outer and inner panel

mastic material.

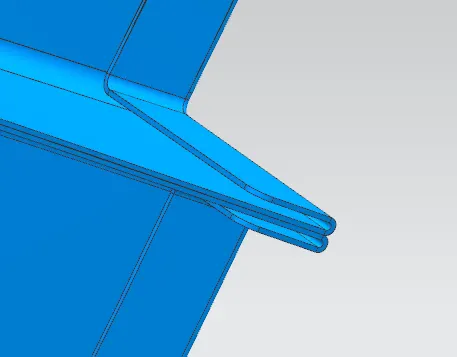

Hemming -

Hems are flange which guides the inner panel its parrel to the outer panel and connects circular curvy flange

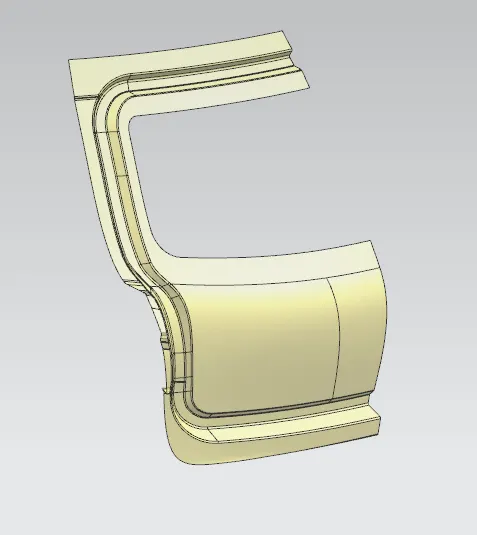

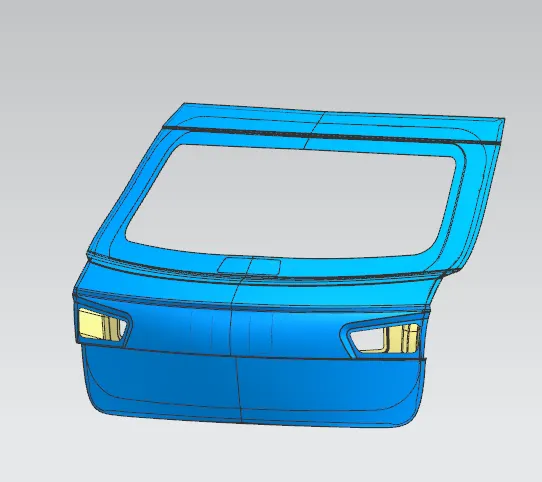

Outer panel -

Backdoors are divided into upper and lower part in the outer panel it's made up of steel acts as cover of inner panel.

File Folder Drive Link - https://drive.google.com/drive/folders/1JH1cT9sUmXXyvT21prqR_692MyoF5Sec?usp=sharing
