Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

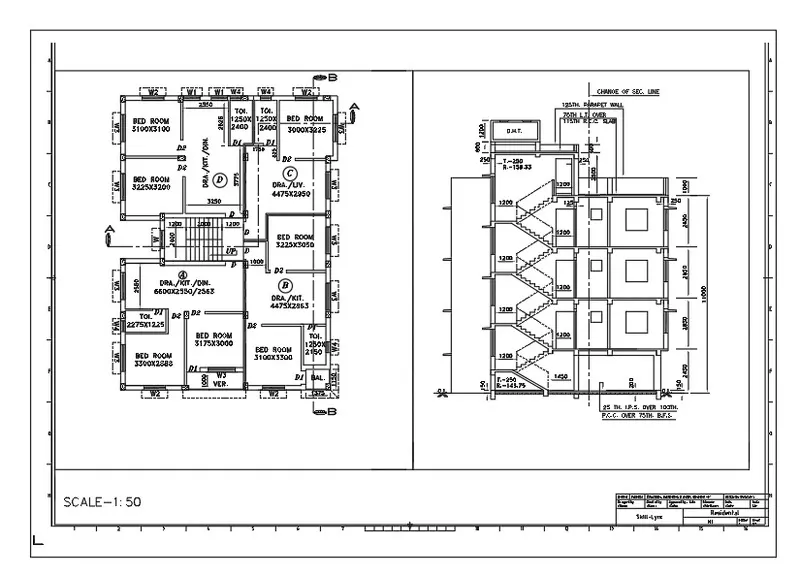

1. Aim: To Create a layout of the plan and section of Challenge 7.

Steps-

Open the drawing of the plan and section already drawn in challenge no 7.

In the left corner of the auto cad there is the tab named model. On the right side of the model tab, there is a tab named layout

Left-click on the layout and create a new layout from the option from the template.. select M arch template and select ISO A1 layout.

Then open the new layout created.

Rename the layout as plan and section.

Now enter the command page setup manager.

A new window of page setup will be opened.

Modify the layout.

Select printer as DWG to PDF.

Elect paper size as A1. Click OK.

Now enter the command as MS in the command box and draw rectangles of 440 X 445 and another of 375 X 445.

Now enter the command MV and select both rectangles.

Set the scale as 1:50 for the drawing.

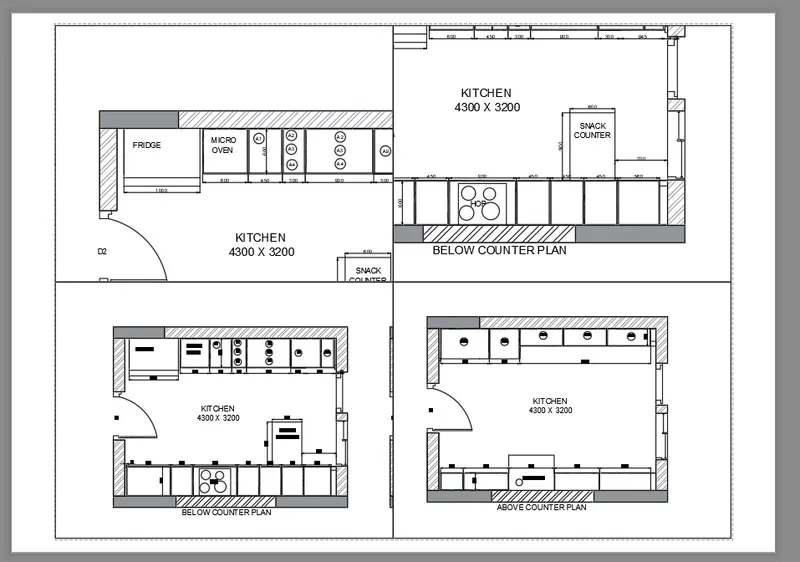

2. Aim: to Create a Layout of a Kitchen Plan drawn in Challenge 10.

Open the drawing of the Kitchen which is already drawn in challenge 10.

In the left corner of the auto cad, there is the tab named model. On the right side of the model tab, there is a tab named Layout.

Left-click on the layout and create a new layout.

Then open the new layout created.

Rename the layout as a kitchen layout.

Now enter the command page setup manager.

A new window of page setup will be opened.

Modify the layout.

Select printer as DWG to PDF.

Elect paper size as A4. Click OK.

Enter the command as VIEWPORTS.

A window of viewports will appear on the screen.

Select the viewport type as four equal and enter ok.

Then specify the first corner point at the left top of the page and drag to another corner point at the right bottom of the page.

Using the MS command zoom in on the views as desired of the below and above counter plan.

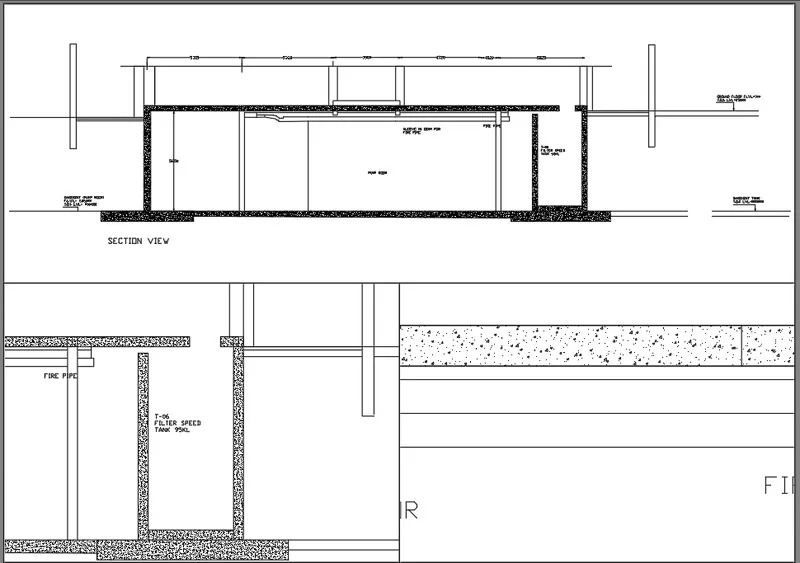

3. Aim: to Create a Layout of the section Created in Challenge 10.

Open the drawing of the INDUSTRIAL SECTION already drawn in challenge 10.

In the left corner of the auto cad, there is the tab named model. On the right side of the model tab, there is a tab named Layout.

Left-click on the layout and create a new layout.

Then open the new layout created.

Rename the layout as section layout.

Now enter the command page setup manager.

A new window of page setup will be opened.

Modify the layout.

Select printer as DWG to PDF.

Elect paper size as A4. Click OK.

Enter the command as VIEWPORTS.

A window of viewports will appear on the screen.

Select the viewport type as THREE; ABOVE and enter ok.

Then specify the first corner point at the left top of the page and drag to another corner point in the right bottom of the page.

Using the MS command zoom the views as desired of the section.
