Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

1.

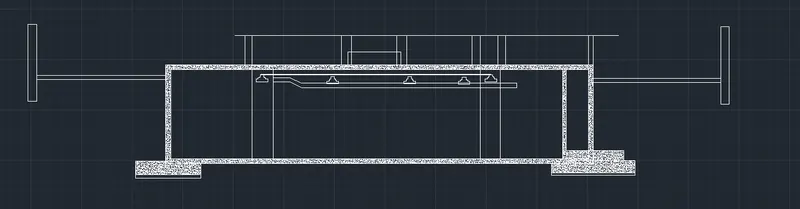

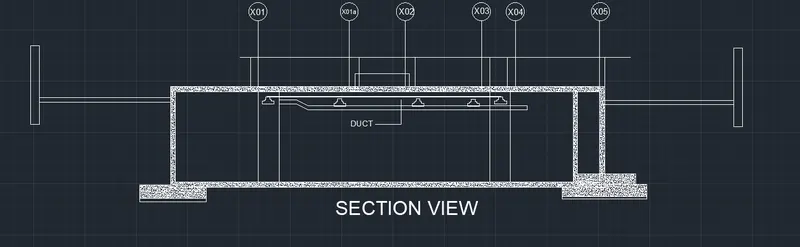

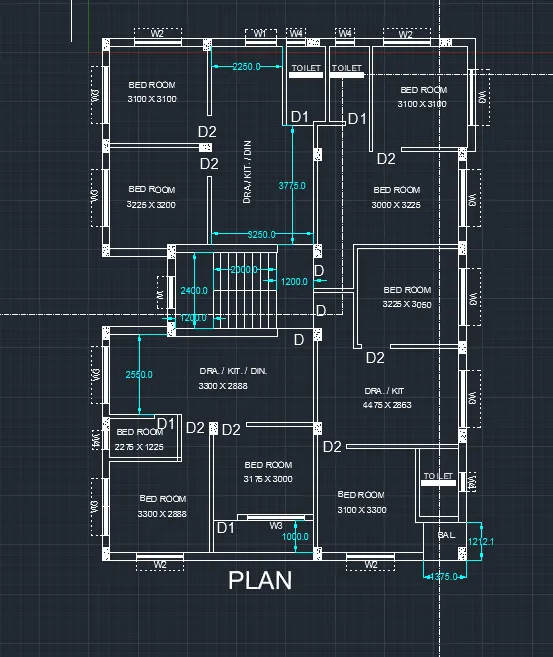

Aim : To create the layout of the plan and section A of the project in in the previous challenge

Procedure :

• In the command prompt type units>mm> decimal
• In the command prompt type limax>100,100
• In the command prompt type limits >0,0
• In the command prompt type layout > template>tutorial arch.m
• In the command prompt type Ms to specify the centre of the plot
• The click on the title box to edit the title
• In the command prompt type Mv to add the view
• In the command prompt type ctrl+p to plot it
• In the command prompt type pagesetup





Final Result :



2.

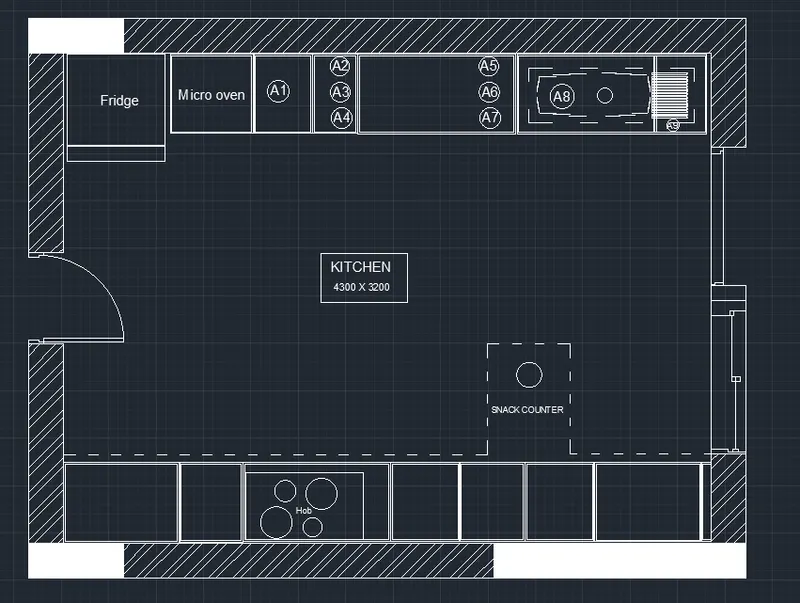

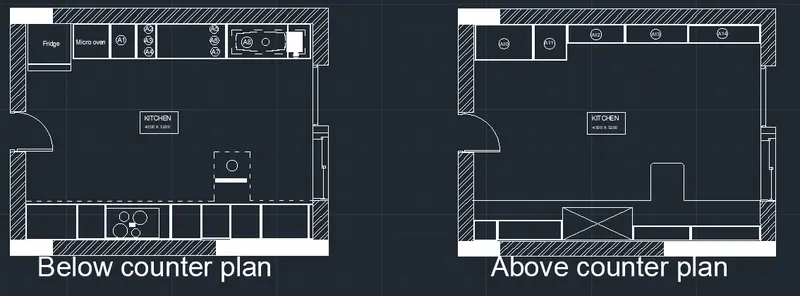

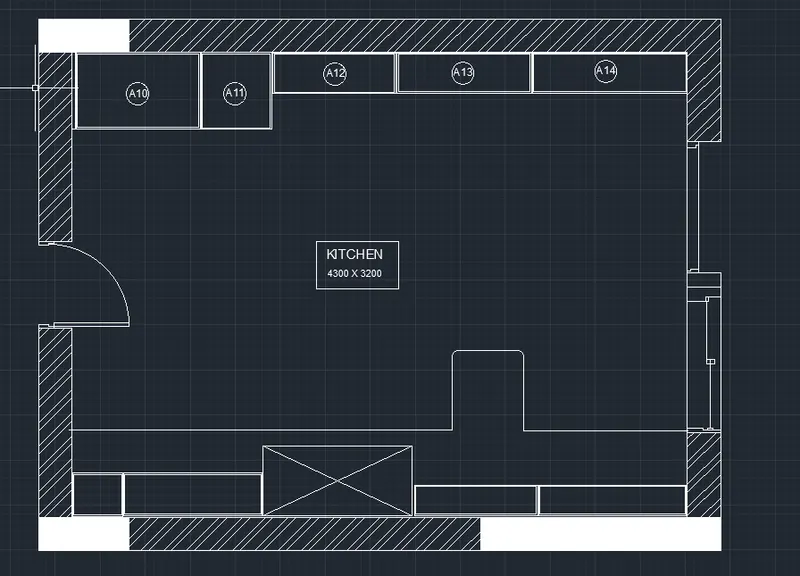

Aim : To create the layout of the kitchen drawn in the previous challenge, use A4 size page for the layout and take the plot

Procedure :

• In the command prompt type ps and ms to adjust the view
• In the command prompt type pagesetup to make the size to A4 change
• Click on the arrow mark to change the view





Final result :

3.

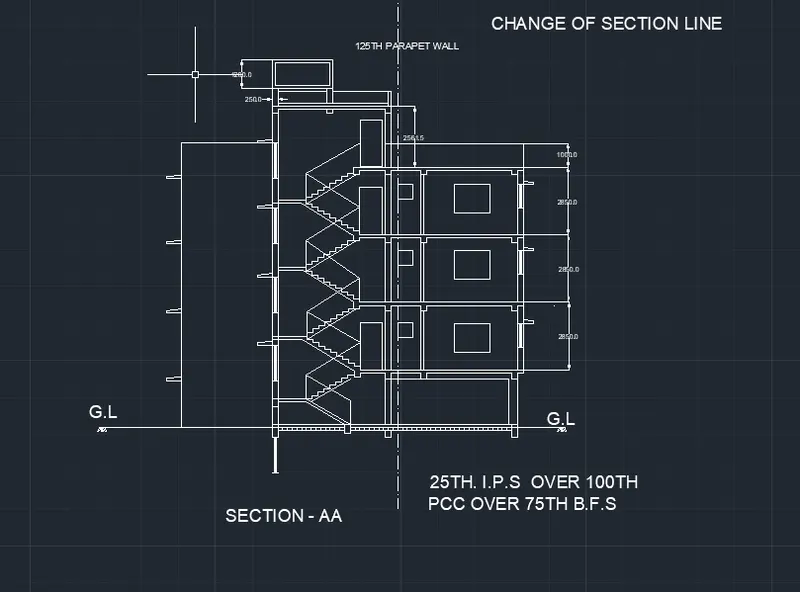

Aim : To create the layout of the section created in the previous challange

Procedure :

• Open the files in which challenge 9 is created
• Go to the layout in the command prompt type MV
• Change the scale accordingly scale
• In the command prompt using the Ms and ps adjust the view accordingly





Final result :
