Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

1. Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.

Procedure - First to set units and limts .

In the command prompt type layout > Template >Tutorial arch.m

Click on the title box to edit the title.

In the command prompt type mv to add the view.

In the command prompt type cntrl+p to plot it.

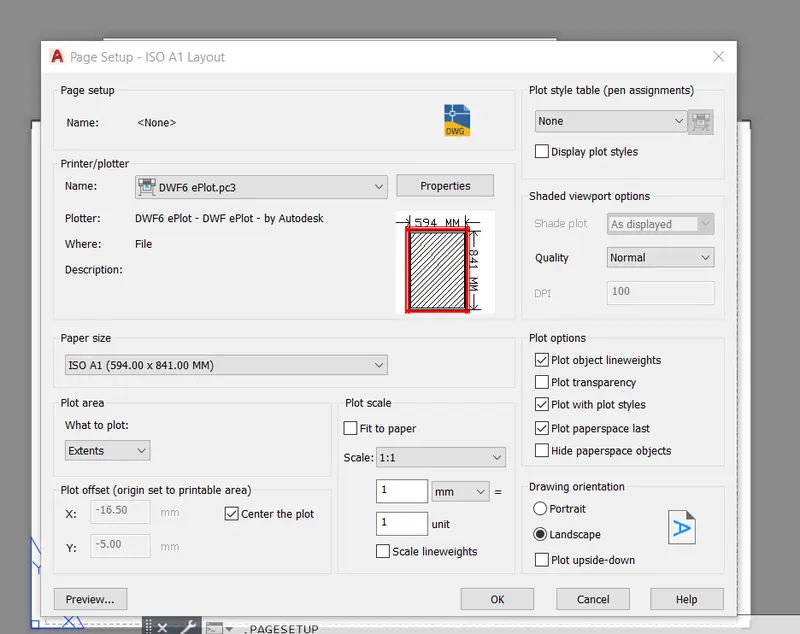

In the command prompt type pagesetup.

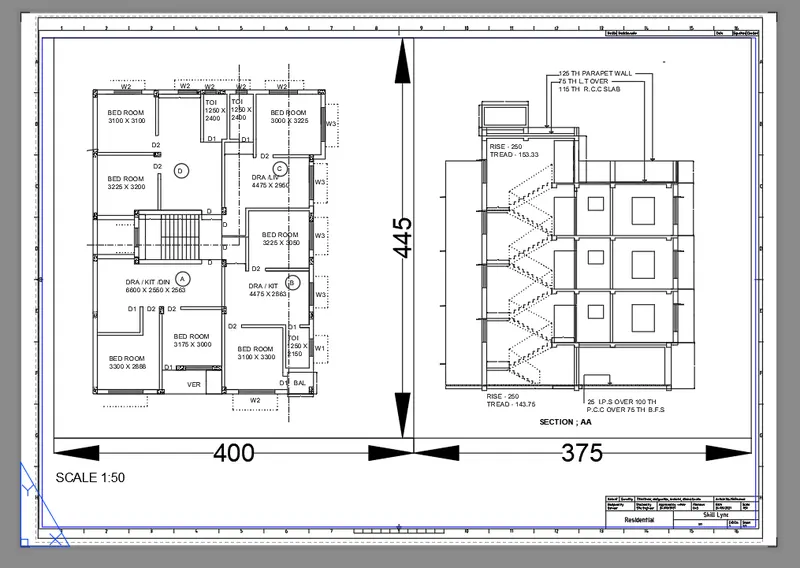

Final Result -

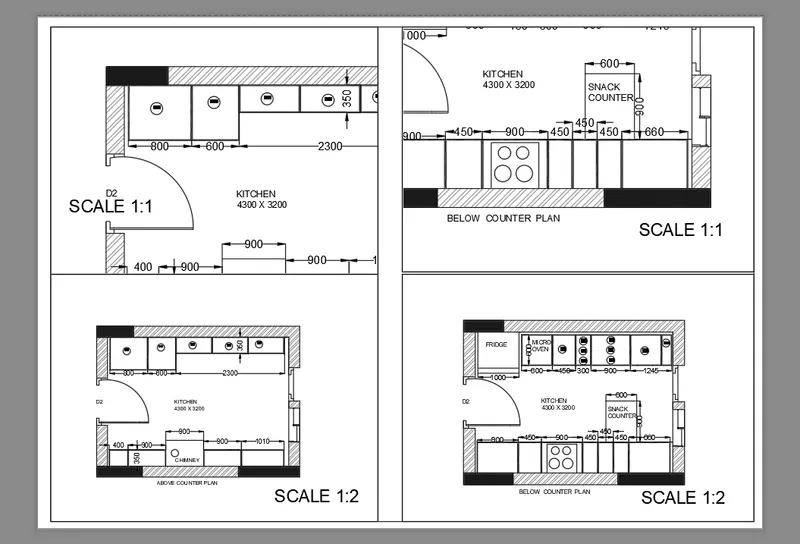

2. Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.

Procedure -In the command prompt type ps and ms to adjust the view.

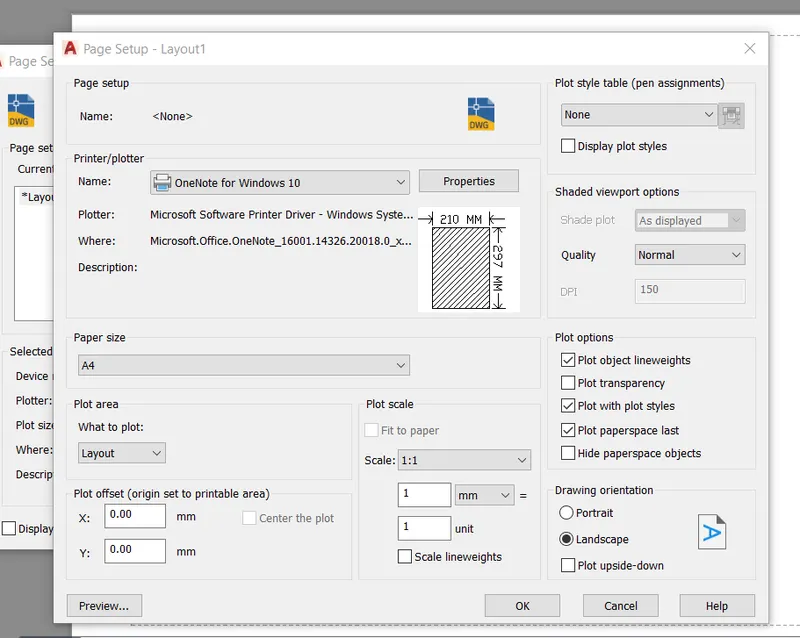

In the command prompt type pagesetup to make the size to A4 to change.

Click on the arrow mark to change the view.

Page divide the 4 equal parts. and set the scale.

Final Result -

3. Create a layout of the section created in Challenges 9.

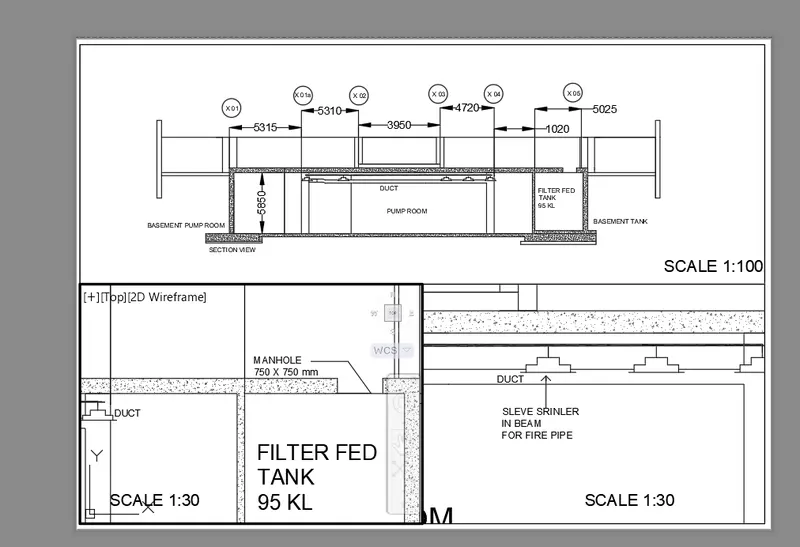

Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.

Procedure - Open the file in which challenge 9 is created.

go to layout in the command prompt type MV

Vhange the scale accordingly scale.

In the command prompt type using MS and PS adjust the view accordingly.

Final Result -
