Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

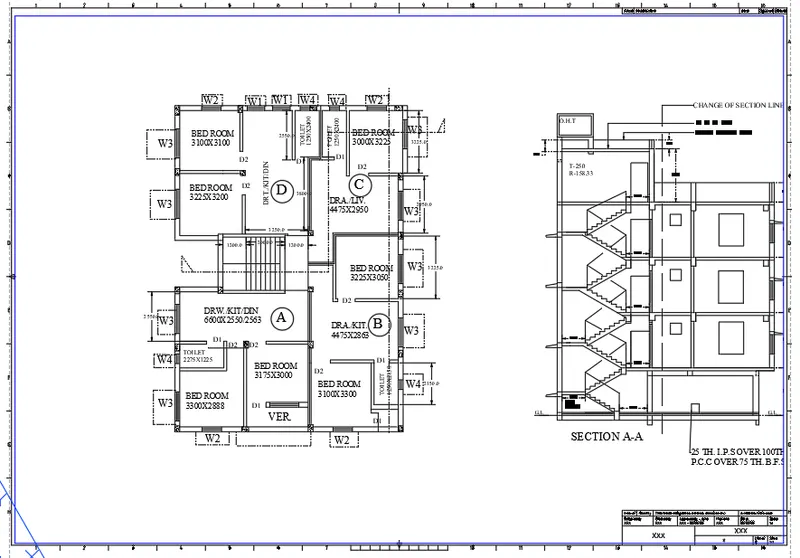

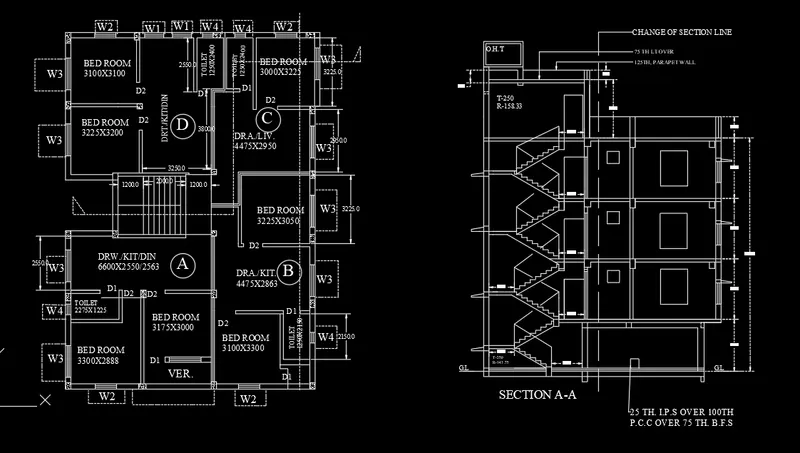

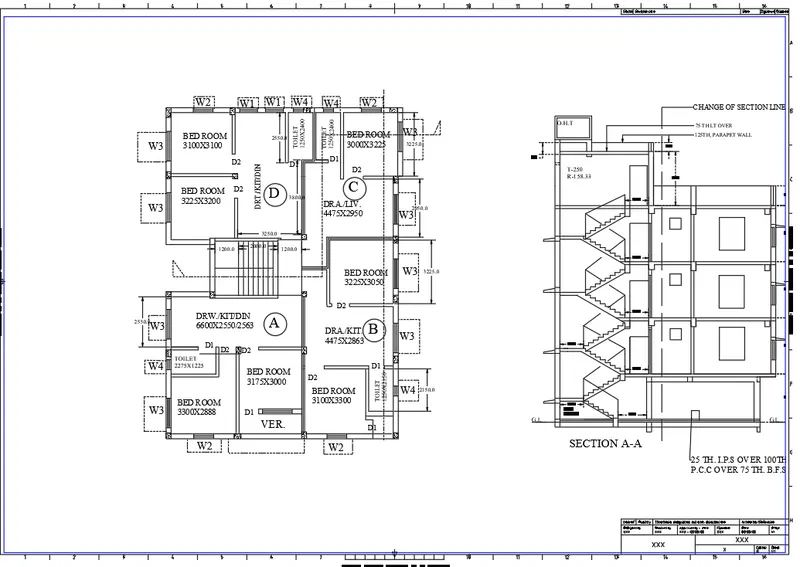

1. Aim: To create a layout of the plan and section A.
Procedure:
- In the command box type units-mm-decimal
- In the command box type limax-100,100
- In the command box type limits-0.0
- In the command box type layout-template-tutorial arch.m
- In the command box type ms to specify the center of plot
- To click on the tittle box to edit the tittle.
- In the command box type mv and add the view.
- In the command box type crtl+p to plot it

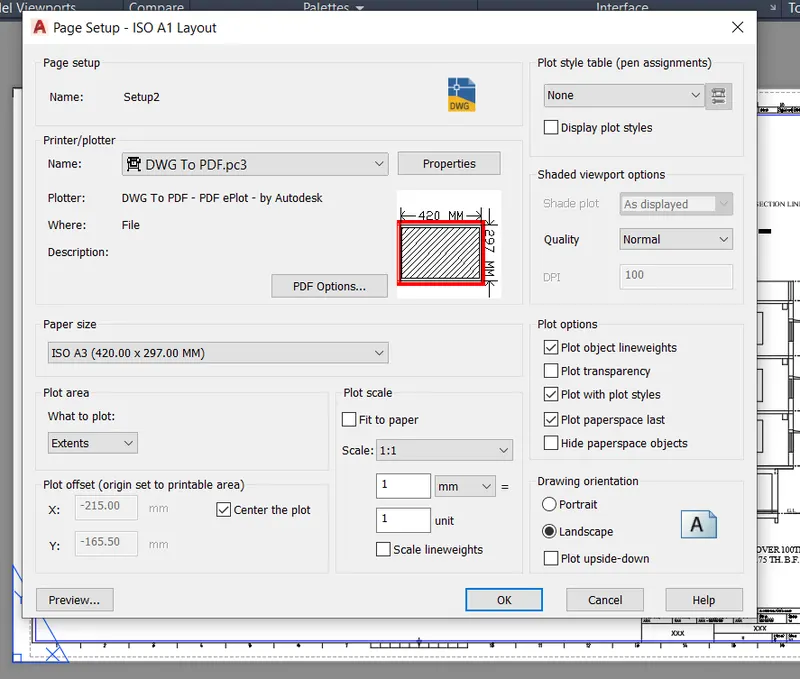

- In the command box type pagesetup
Result:

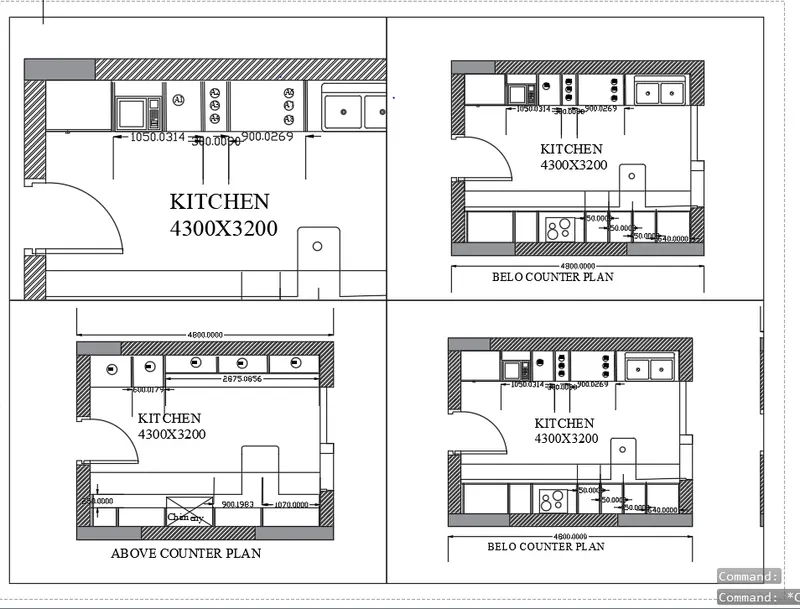

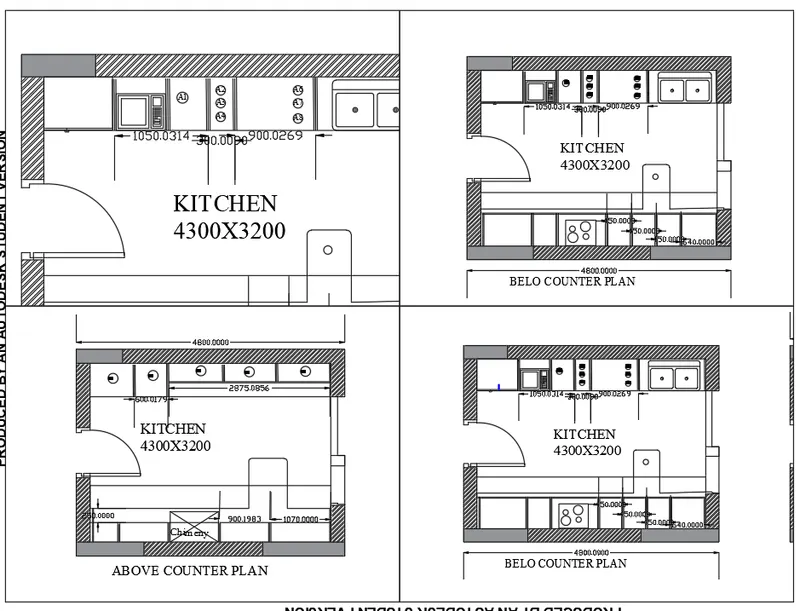

2. Aim: To create layout of the kitchen drawn in challenge 9. use A4 size page for layout and plot.
Procedure:
- In the command box type ps and to adjust the view.

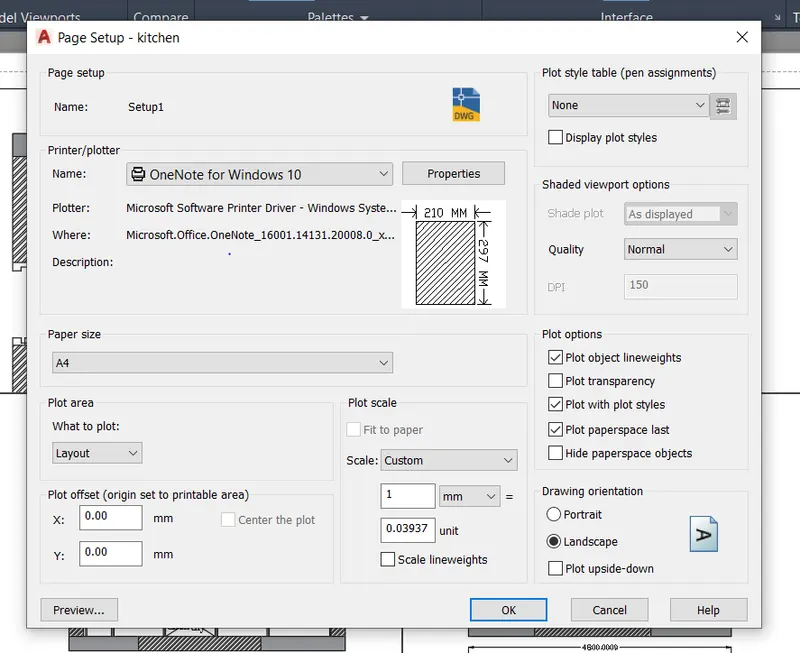

- In the command box type pagesetup to make the size to A4 change.
- click of the arrow make the change in the view
Result:

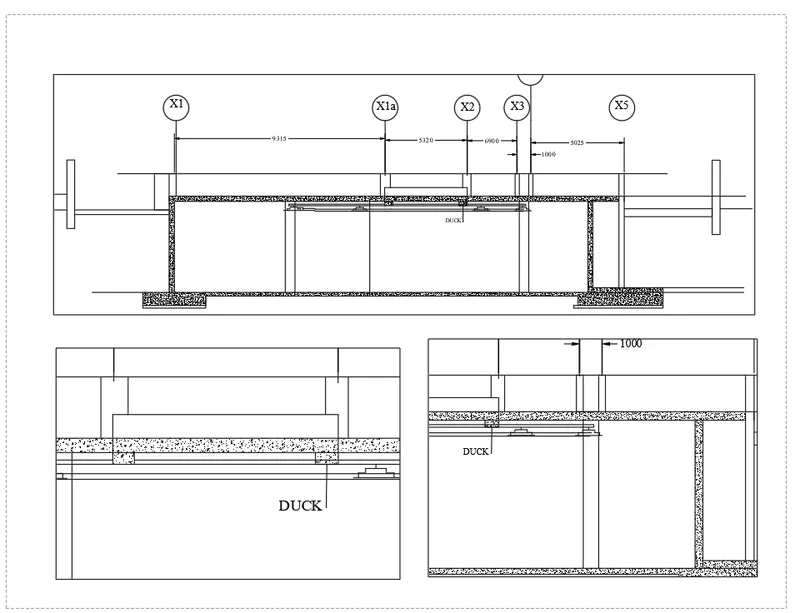

3. Aim: To create layout of the section created in the challenge 9
Procedure:
- Open the file in which challenge 9 is created
- Go to layout in the command type mv
- Change the scale accordingly scale
- In the command type using Ms and ps adjust the view accordingly.
Result:
