Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

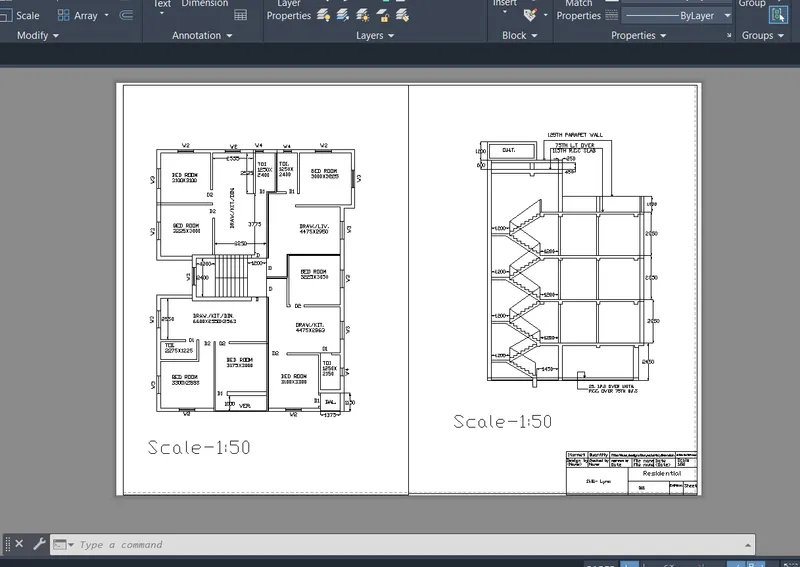

1.To create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial mArch .dwt in a scale as given in the Figure.
Introduction: To create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial mArch.dwt in a scale and using the MV command to create the viewport of the size as shown in Figure and also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.
Step 1: By PAGESETUP command select the paper size A1 and select plotter DWG to PDF
Step 2: By using MV command create the two view first for the plan and second for the section
Step 3: By using MS command create the view as given in the figure
Step 4: Take the scale as 1:50 and write it on the first view
Step 5: By using MS command create the view as given in the figure
Step 6: Take the scale as 1:50 and write it on the second view created

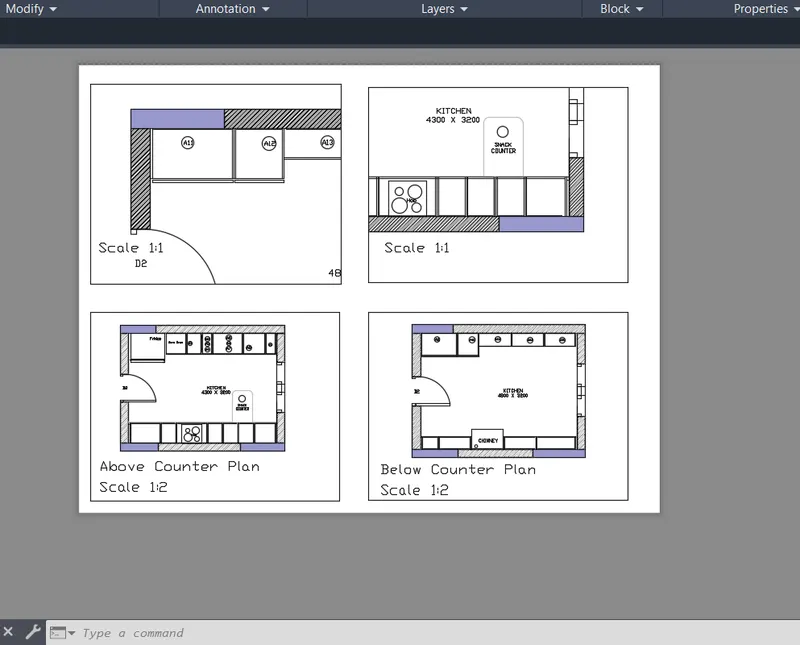

- Aim: To create a layout of the Kitchen drawn in Challenge 9 as shown in Figure.
Introduction: Creating a layout of the Kitchen drawn in Challenge 9 as shown in Figure and Using the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.
Step 1: By PAGESETUP command select the paper size A4 and select plotter DWG to PDF
Step 2: By using MV command create the 4 view
Step 3: By using MS command create the view as given in the figure name it Above counter plan
Step 4: Take the scale as 1:2 and write it on the first view
Step 5: By using MS command create the view as given in the figure name it Below counter plan
Step 6: Take the scale as 1:2 and write it on the second view created
Step 7: Take the scale 1:1 and by using MS command create the view as shown in the figure
Step 8: Take the scale 1:1 and by using MS command create the second view as shown in the figure

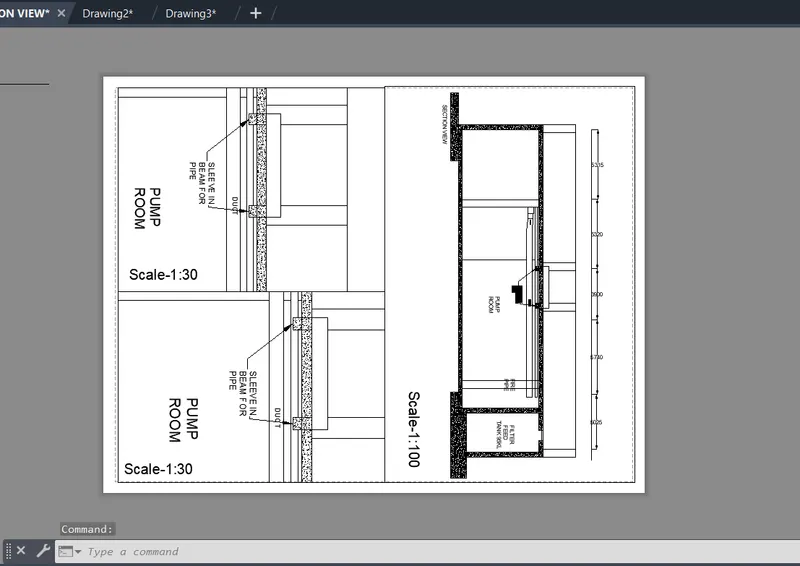

- Aim: To create a layout of the section created in Challenges 9.
Introduction: Creating a layout of the section created in Challenges 9 by using scale as mentioned in the Figure. Use MV command create multiple viewports and take a plot
