Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

1. Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.

AIM:

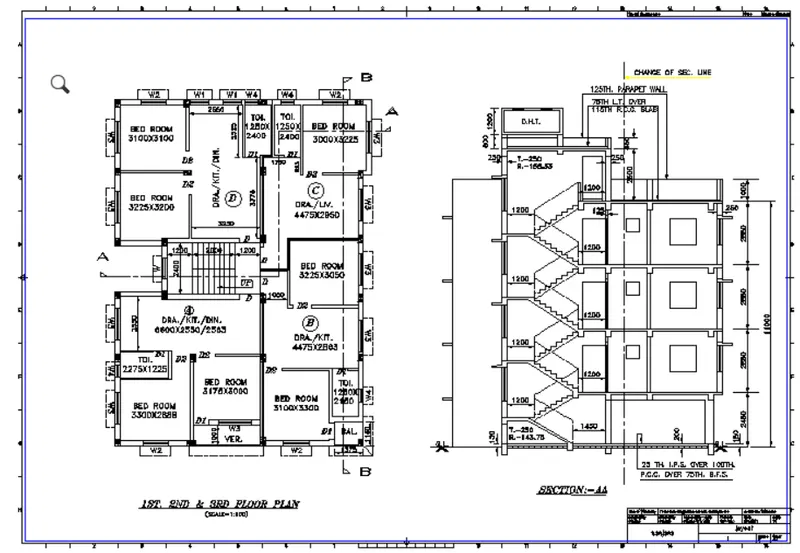

To create a layout of the plan and section A of the project.

PROCEDURE:

• In the command prompt type units>mm>decimel
• In the command prompt type limax>100,100
• In the command prompt type limits>0,0

• In the command prompt type layout>template>Tutorial arch.m

• In the command prompt types ms to specify the centre of the plot

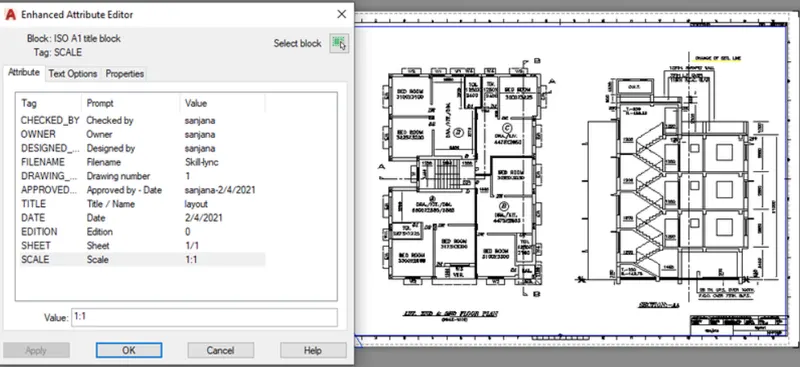

• Then click to the tittle box to edit the tittle
• In the command prompt type Mv add the view

• In the command prompt type ctrl+p to plot it

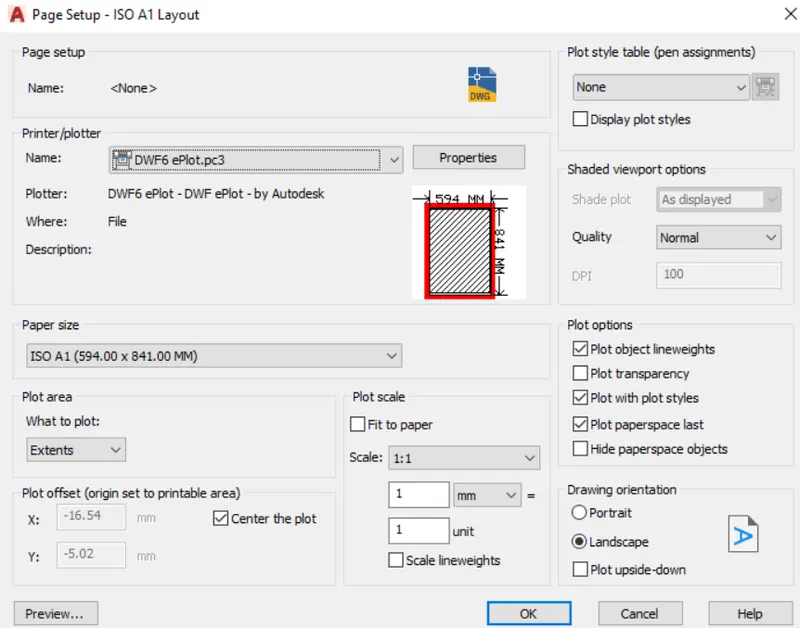

• In the command prompt type page setup

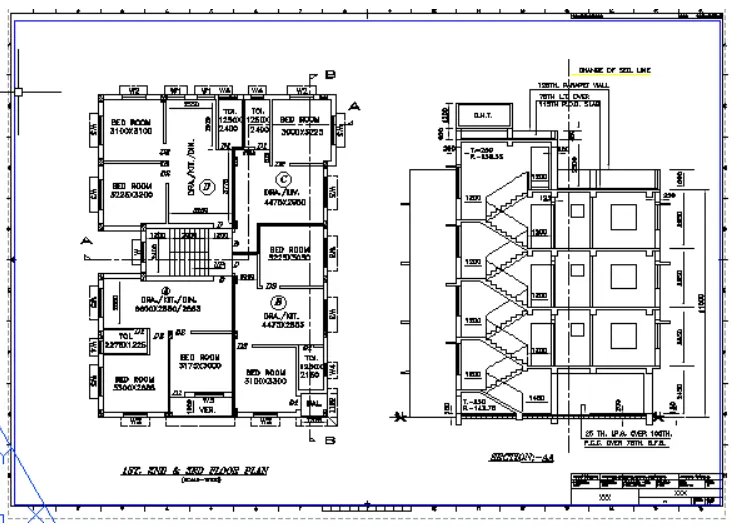

RESULT:

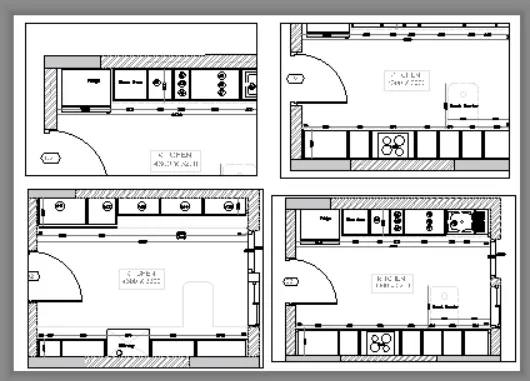

2. Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.

AIM:

To create layout of the kitchen drawn. Use A4 Size page for the layout and take a plot.

PROCEDURE:

• In the command prompt type ps and ms to adjust the view

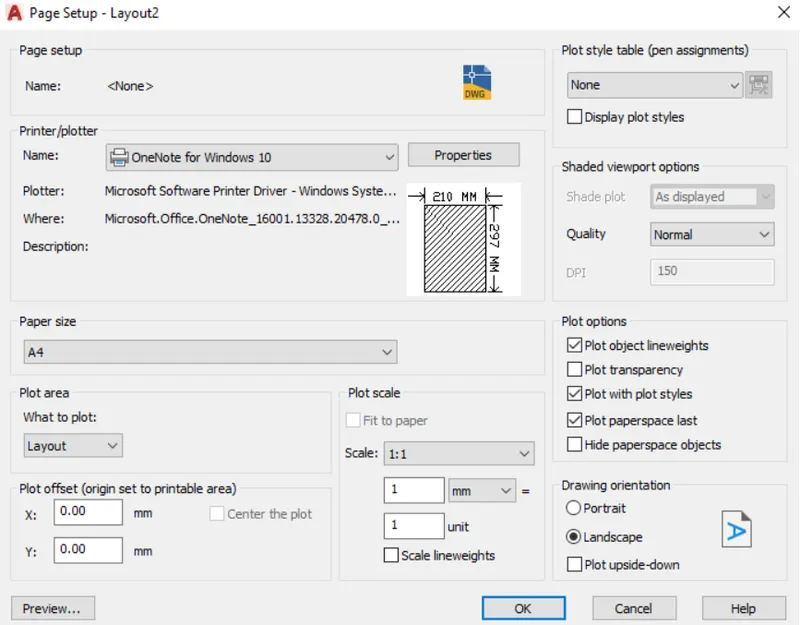

• In the command prompt type page setup to make the size
• Click on the arrow mark to change the view.

RESULT:

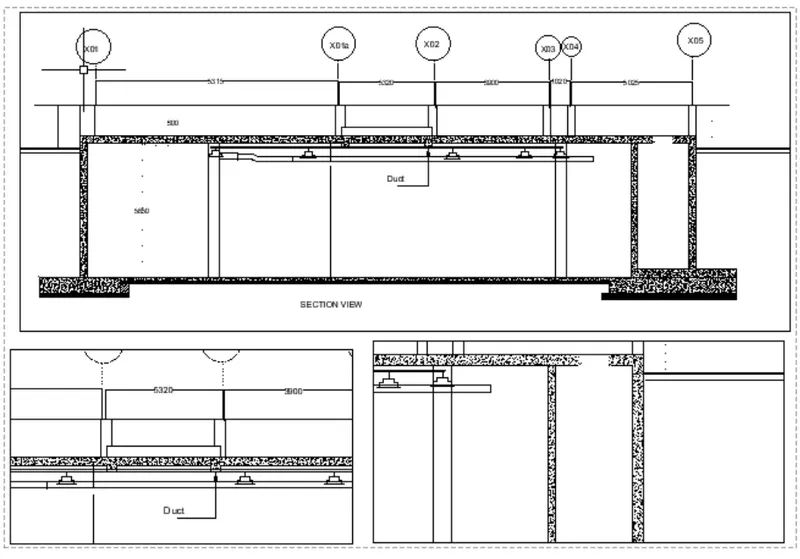

3. Create a layout of the section created in Challenges 9.

Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.

AIM:

To create layout of the section.

PROCEDURE:

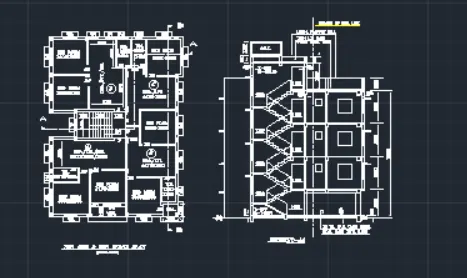

• Open the file in which created the given figure
• Go to layout in the command prompt type MV

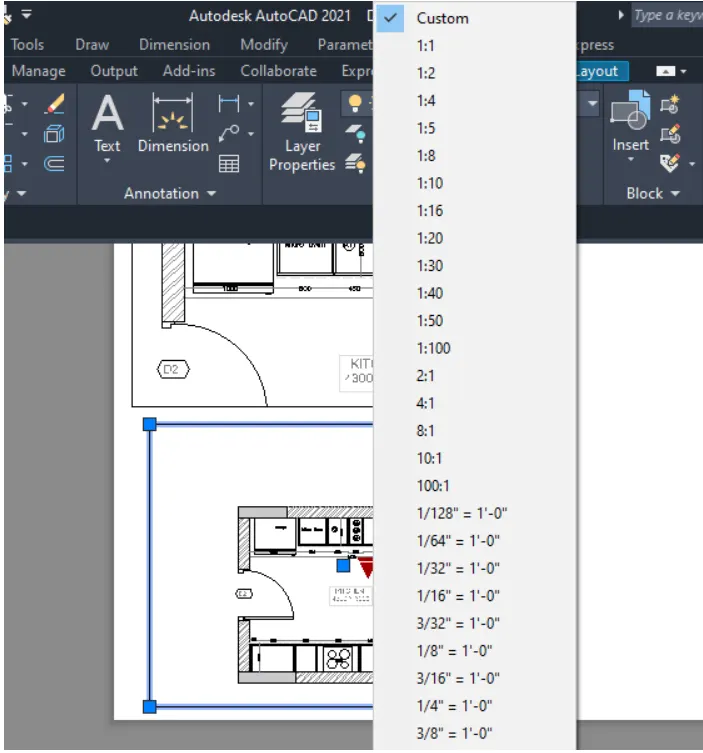

• Change the scale accordingly scale
• In the command prompt using MS and PS adjust the view accordingly

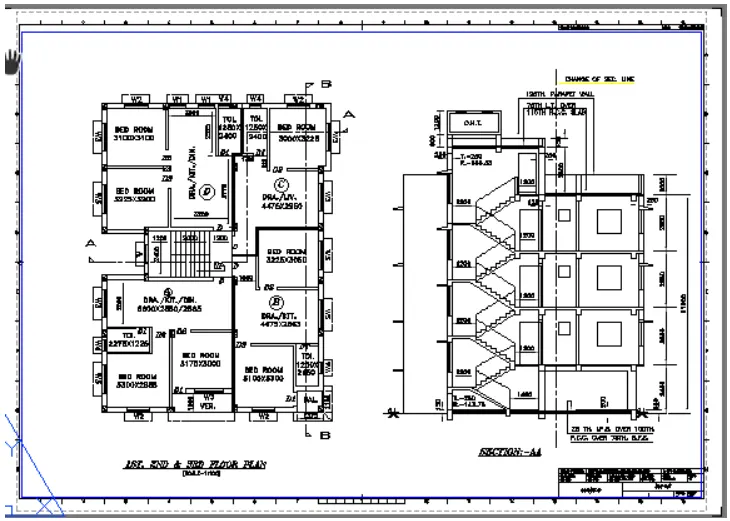

RESULT:
