Creation of Column Schedule and Drawing Template using AutoCad

Aim:-

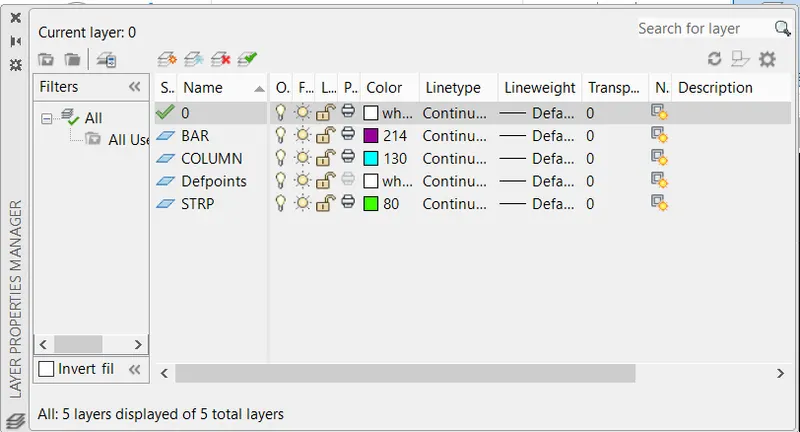

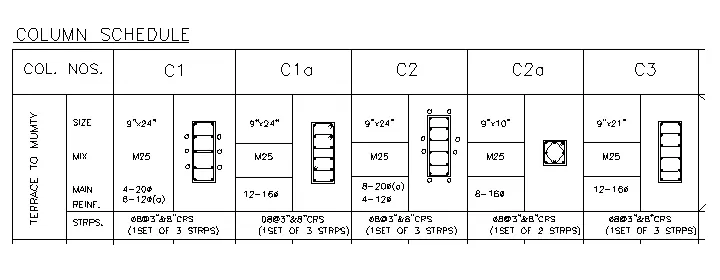

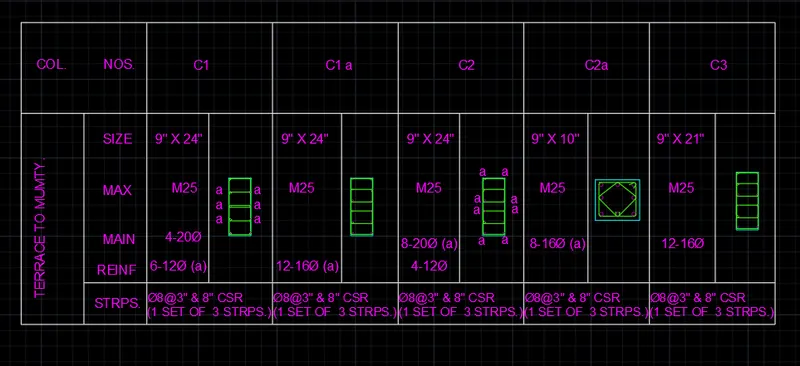

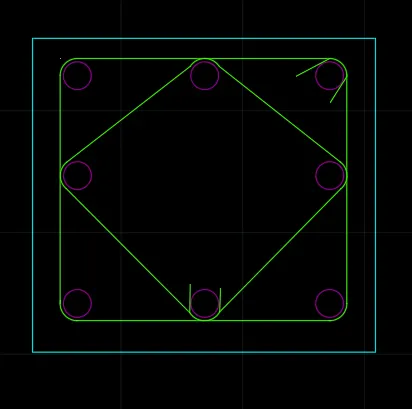

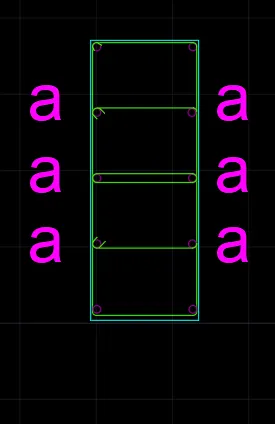

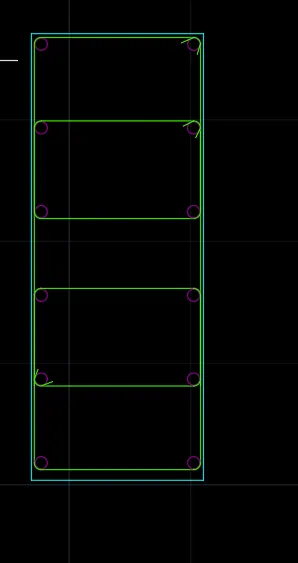

Create a column schedule as shown in the figure.

Note: Create a column schedule with the help of lines. Also, insert text with the help of Dtext command or Single Line text.

Hint: Use font name: romans.shx; Height: 8”, Justify: Left

PROCEDURE:

STEP1

• In the command prompt type line to create tables
• In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left (justify)
• In the command prompt type text to text the given text in the drawing
• In the command prompt type MTEXT (multiline text) > symbols > to get diameter symbol.

RESULT:-

Question:- 2)

AIM:

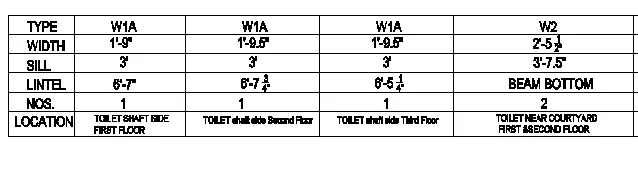

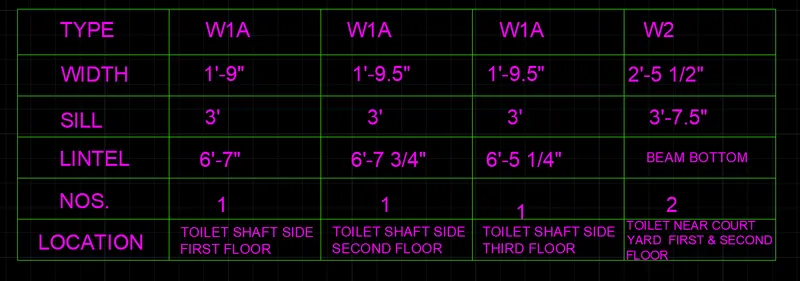

To Create a window schedule as shown in the figure:

PROCEDURE:

STEP 1:

• In the command prompt type line to create tables
• In the command prompt type ST (text style ) > romans.shx (font name ) > 8" (height ) > center(justify )
• In the command prompt type text to text the given text in the drawing

RESULT:-

3)

AIM:

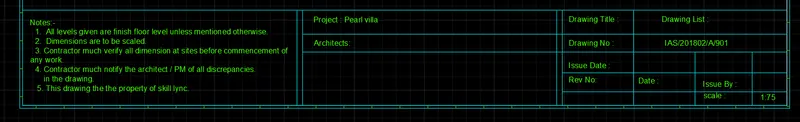

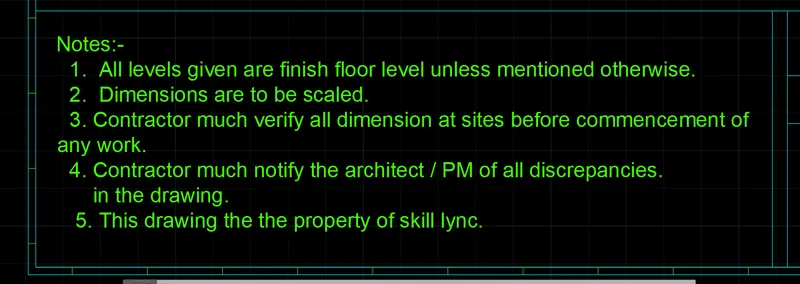

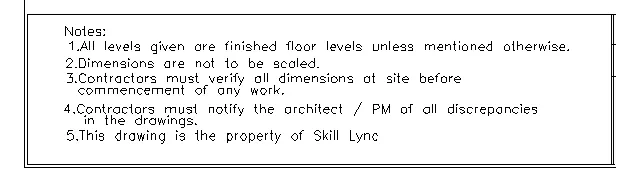

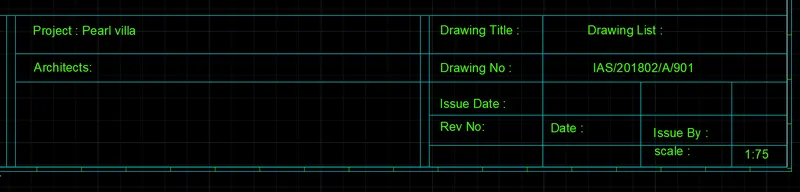

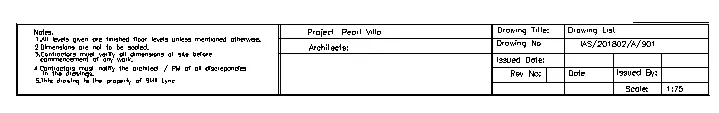

To Create the drawing template as shown in the figure:

PROCEDURE:

• In the command prompt type line to create tables .
• In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left(justify).
• In the command prompt type text to text the given text in the drawing .

RESULT:-

question 4:-

AIM:-

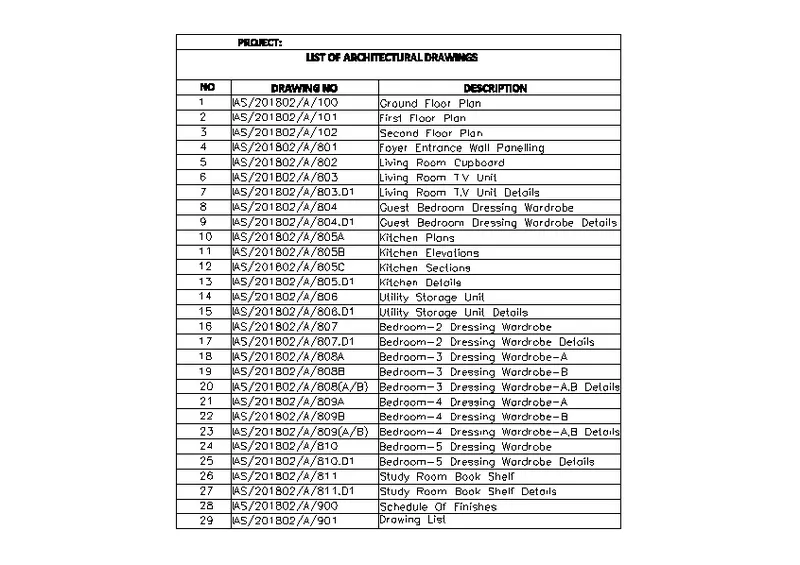

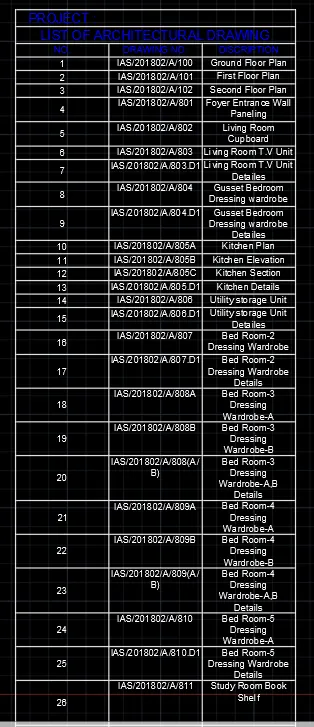

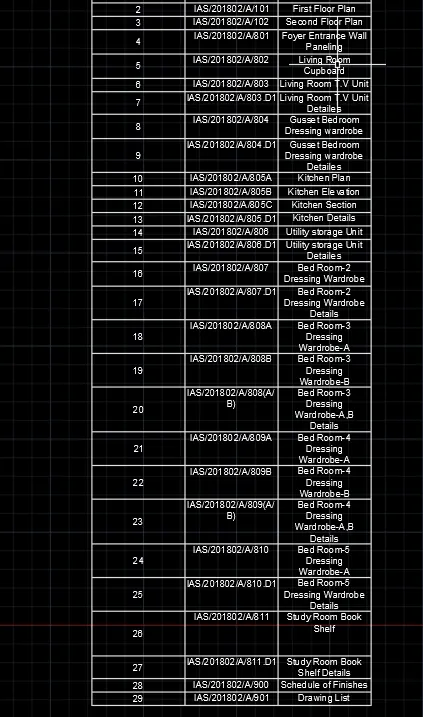

Create the list of drawing schedule as shown in the figure:

INTRODUCTIO: above table consist of list of architecural drawing with specified drawing nubers and description, which helps during planning and constrcution process.

PROCEDURE:

• enter TAB for table option and edit as per required.
• click on first line (Title)add insert below line option.
• enter the given details using text option.
• to copy paste property or text, scrool blue arrow head grid down.

RESULT:

Question 5:-

AIM:-

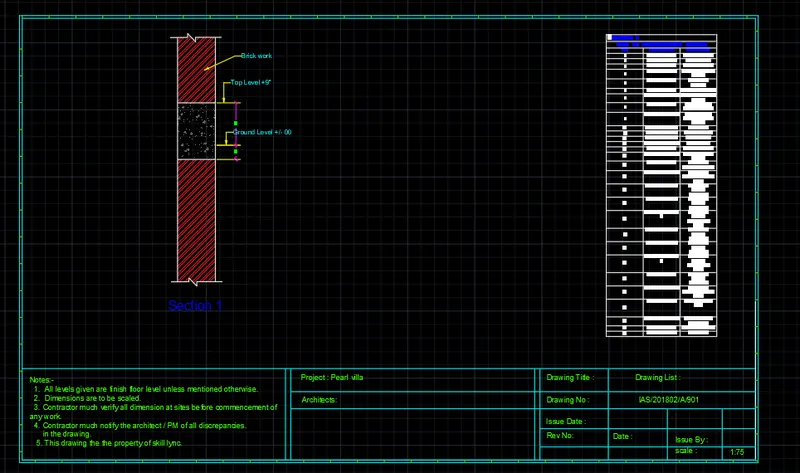

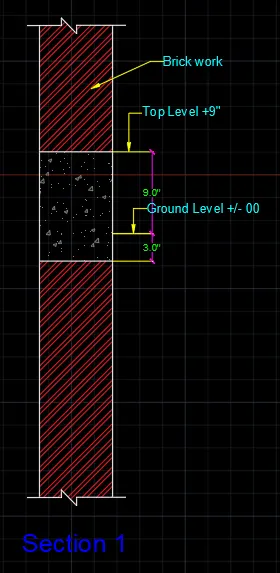

Create the Beam detail as shown in the figure and provide text wherever given.

INTRODUCTION: given beam with brick work and levels .

PROCEDURE:

• enter L for line command and draw a horizontal line.
• repeat the command and draw a vertical line of height 3.6".
• offset the vertical line at distance of 9".
• offset horizontal line with distance 1.5',1.8',2.5' and 3.5'.
• provide the break line on both ends
• use LEADER command for test with arrow indication.
• enter H for hatchs-select ASI32 for brick work with scale 10 and select pick point.
• similarly for Arc-CONC with scale factor-0.5

RESULT:
