Creation of Column Schedule and Drawing Template using AutoCad

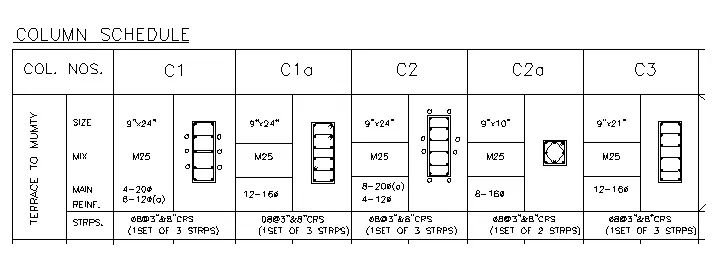

1. Creation of column schedule :

Introduction:

• column c1 is provided with 4 bars of 20 mm dia and 6bars of 12mm dia . the 12mm dia are marked with 'a'
• column c1a and column c3 are provided with 12bars of 16mm dia bars
• column c2 is provided 8 bars of 20mm dia and 4 bars of 12mm dia . the 20mm dia are marked with 'a'
• column c2 a is provided with 8bars of 16mm dia
• all columns are provided with 8mm dia stirrups with 3"spacing cc near the ends and 8" cc mid the length
• the clear cover for all the columns is assumed to be 1.5" as per IS256 , the minimum cover to the column should not be less than 40mm

Procedure :

• Open a new auto cad file in imperial units
• convert the dia of the bars into inches , the following table contains conversion (divide by 25.4)

Values in mm values in inches

20 0.7874

16 0.6299

12 0.4725

8 0.3150

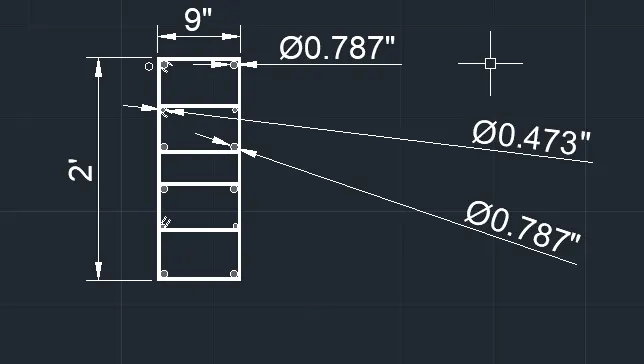

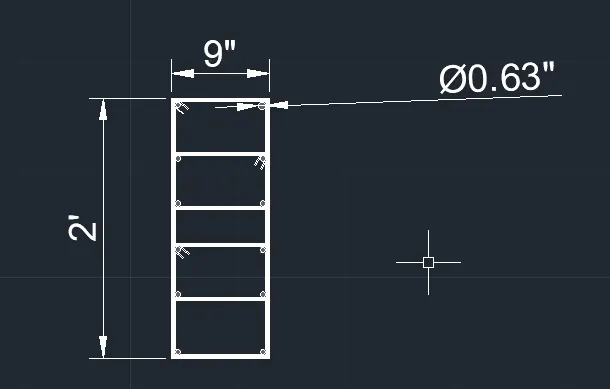

• Make the column c1 as shown

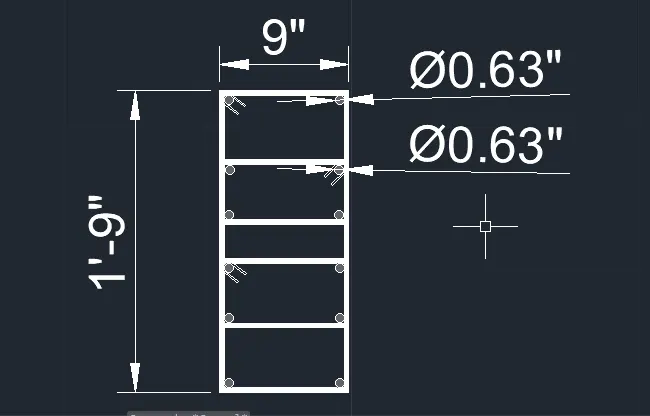

• make the column c1a as shown.

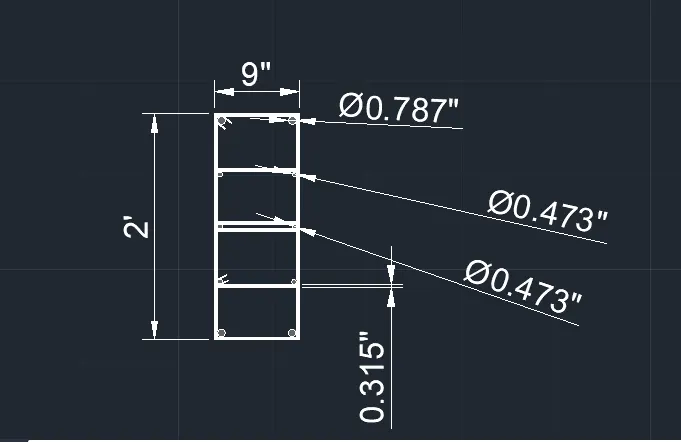

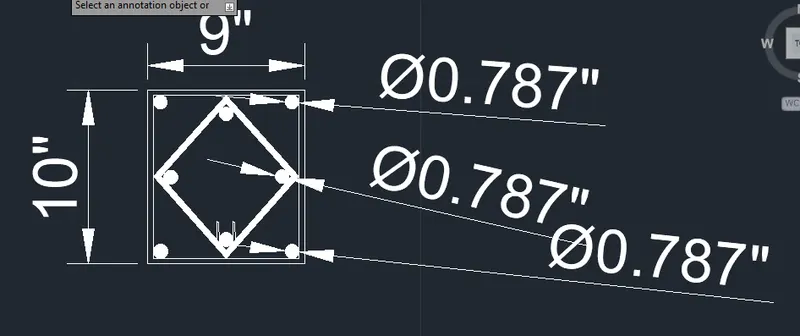

• Make the column c2 as shown

• Make column c2a as shown

Make the column 3 as shown:

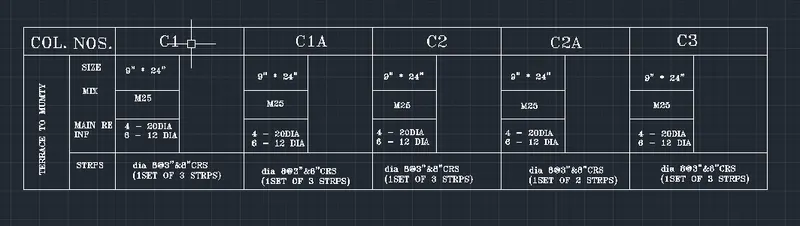

• make this table as shown

RESULT :

• Make a new text style with font and create a table.

• Sclae the columns made in 3-7 by a factor 3.2 in order to fit them in their respective place.
• move the columns one by one by respective places.

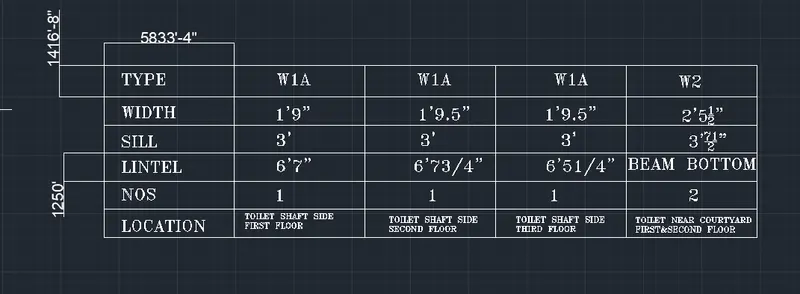

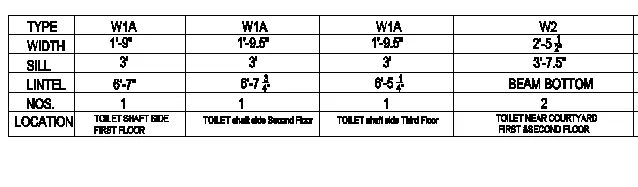

2.Create a window schedule as shown in fig .

Introduction.

the table contains the width , sill and width height their numbers and respective location for different types of beams.

Procedure.

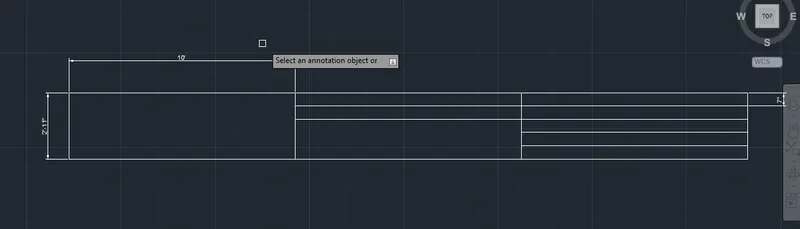

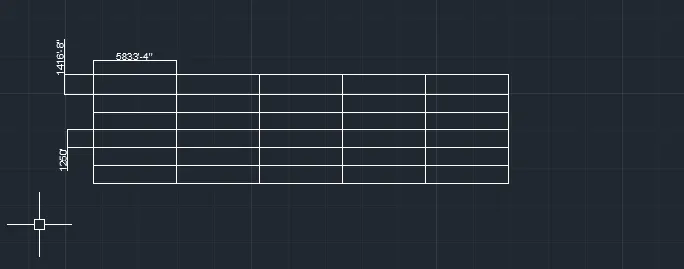

Make the following table.

• Using multiline fill in the following data

RESULT :

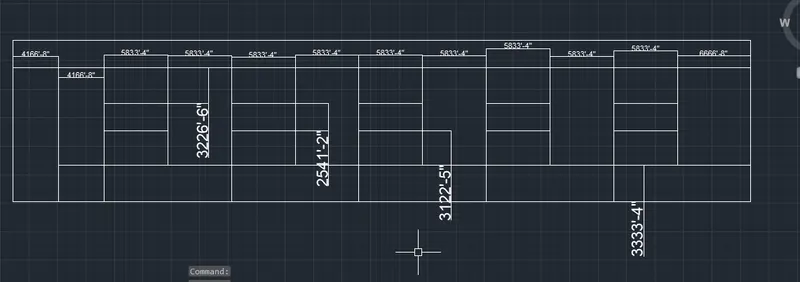

WINDOW SCHEDULE

3. Create a drawing fig as shown in fig.

Procedure:

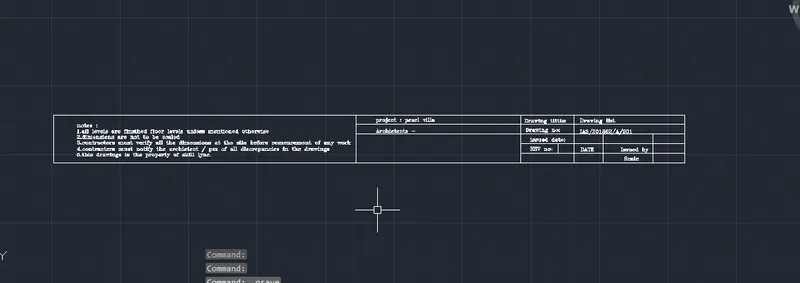

Make the following table.

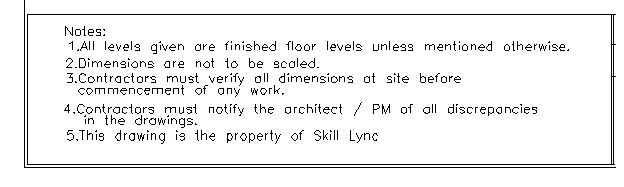

using muti text type as shown in fig .

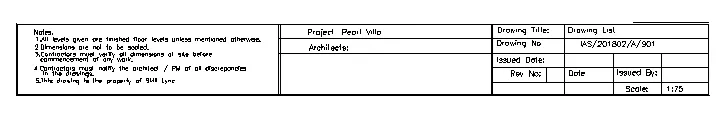

RESULT :

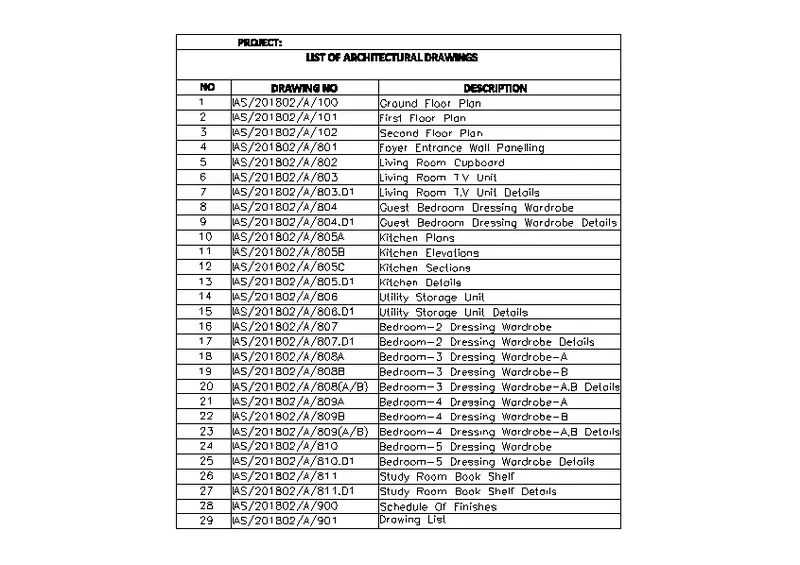

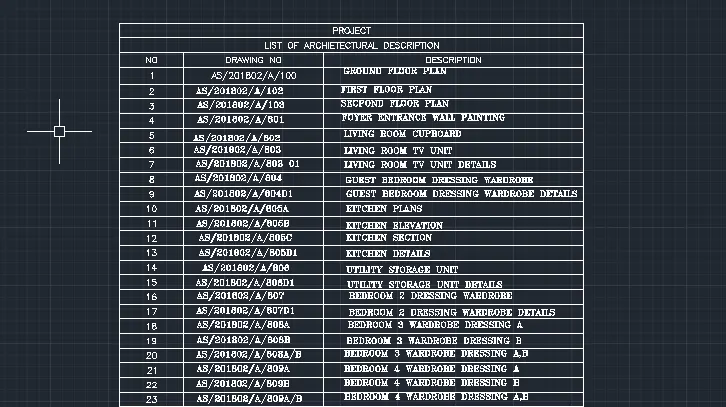

4. Create the list of drawing schedule as shown in fig.

Procedure:

• Open the table command
• create a new table style by selecting the required text style, text height etc. for all cell types

RESULT:

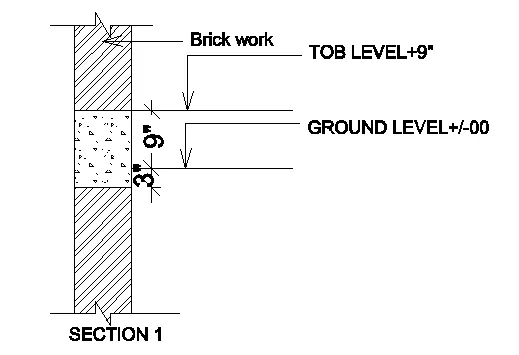

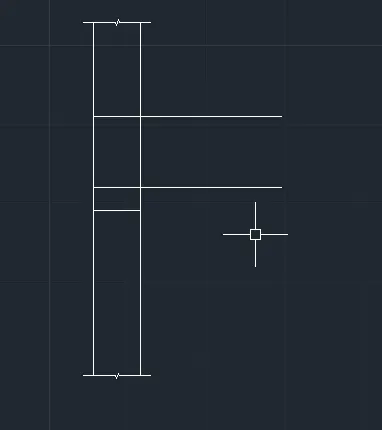

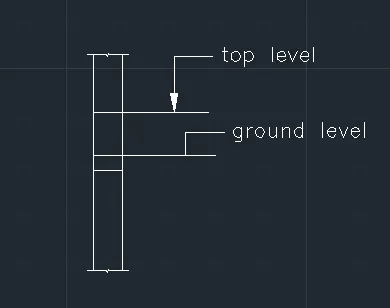

5. Create the beam detail :

procedure:

• make two parallel lines 45" long @ distance 6" from each other

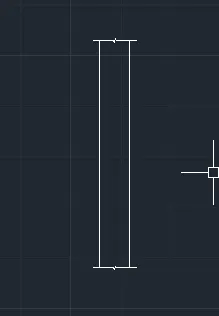

• use the breakline command, make the break line @ top and bottom

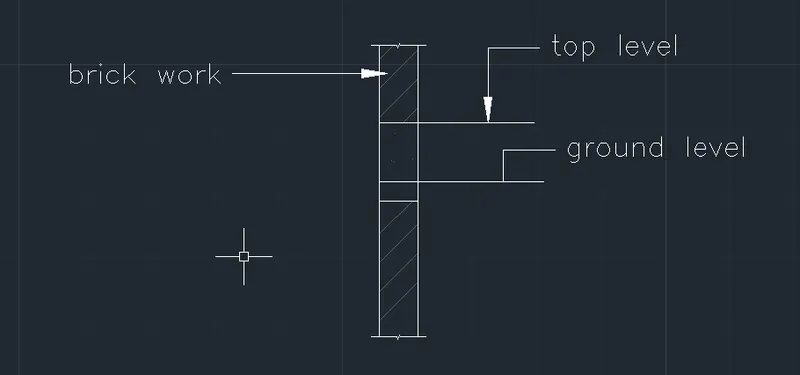

• make the horizontal lines
• give the required labelling using leader and multi text
• modify the dimensiion to match with the dimension
• give the hatching of brick work and concrete as shown.

RESULT :

SECTION 1
