Creation of Column Schedule and Drawing Template using AutoCad
1. AIM:

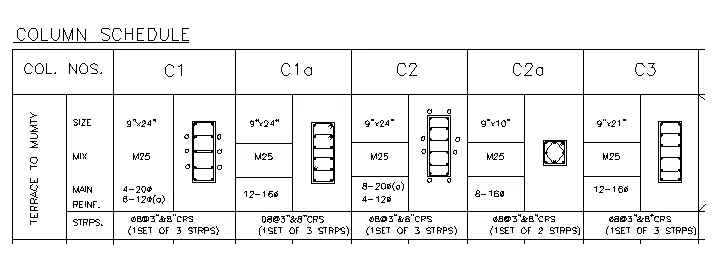

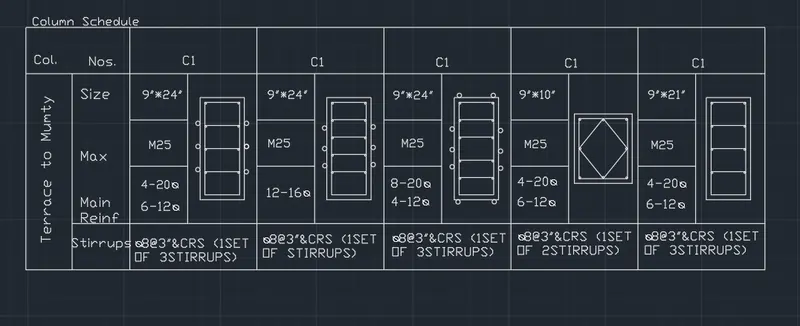

- To create a column schedule as shown in the figure.
Procedure:
Step 1:
- In the Command of line to use create a tables.
- Select the Text style and Text Height
- To type the given text in the table
- Get Multiline Text to get the diameter.
Result:
2. AIM:

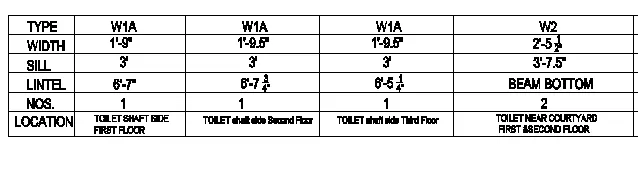

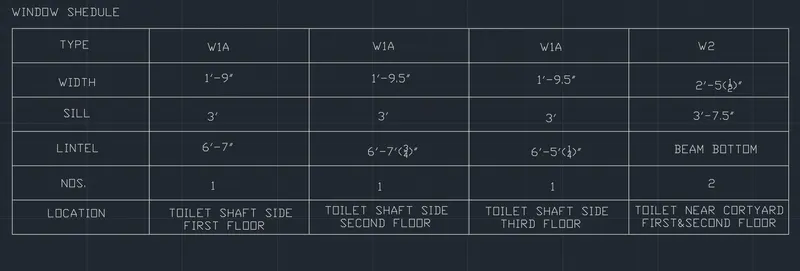

- To create a window schedule as shown in the figures.
Procedure:
Step 1:
- Type the command L line and create the tables.
- Select the Text style and Text Height
- To type the given text in the table
Result:
3. AIM:

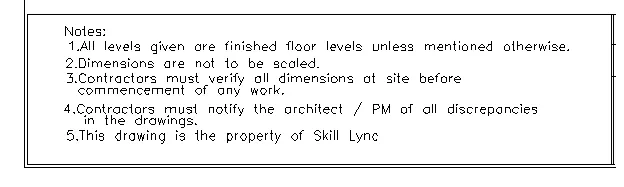

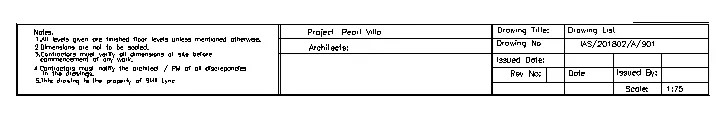

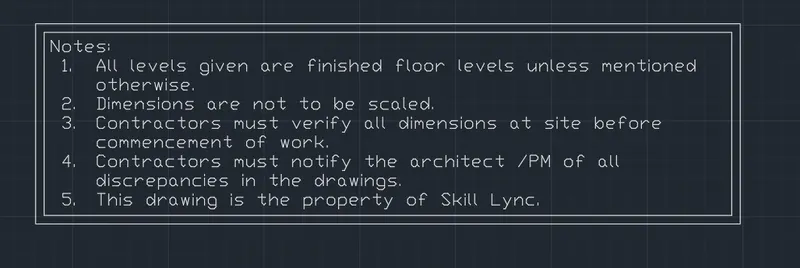

- To Create the drawing template as shown in the figure:< Use the Notes as in the figure>
Procedure:
Step 1:
- Type the command L line and create the tables.
- Select the Text style and Text Height
- To type the given text in the table
RESULT:
4. AIM:
-

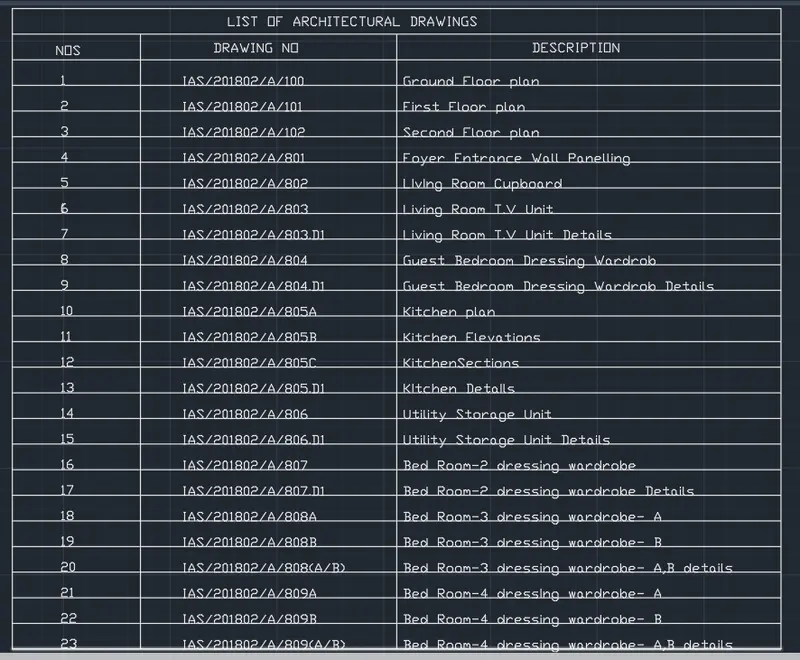

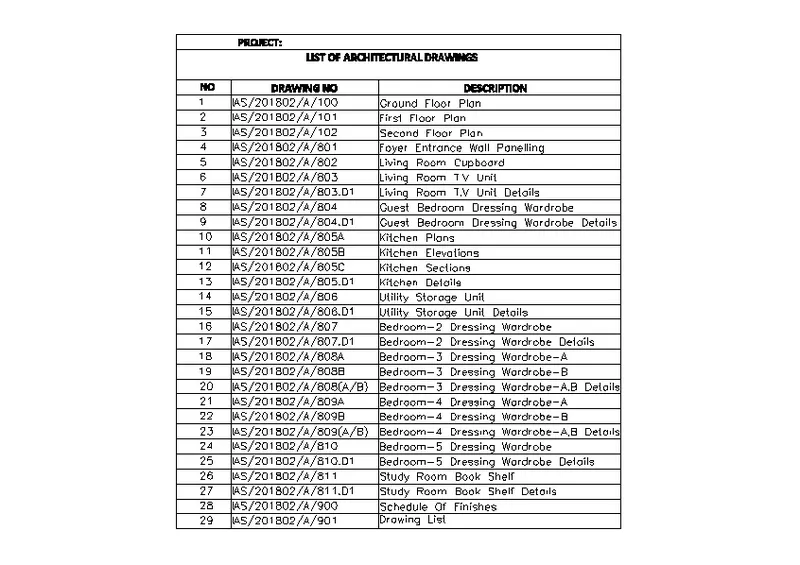

To Create the list of drawing schedule as shown in the figure:
Procedure:
Step 1:
- Type the command L line and create the tables.
- Select the Text style and Text Height
- To type the given text in the table
RESULT:
5. AIM:

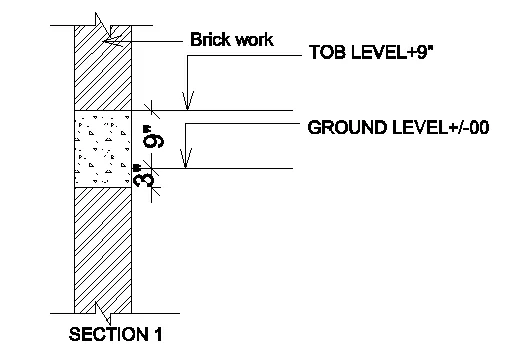

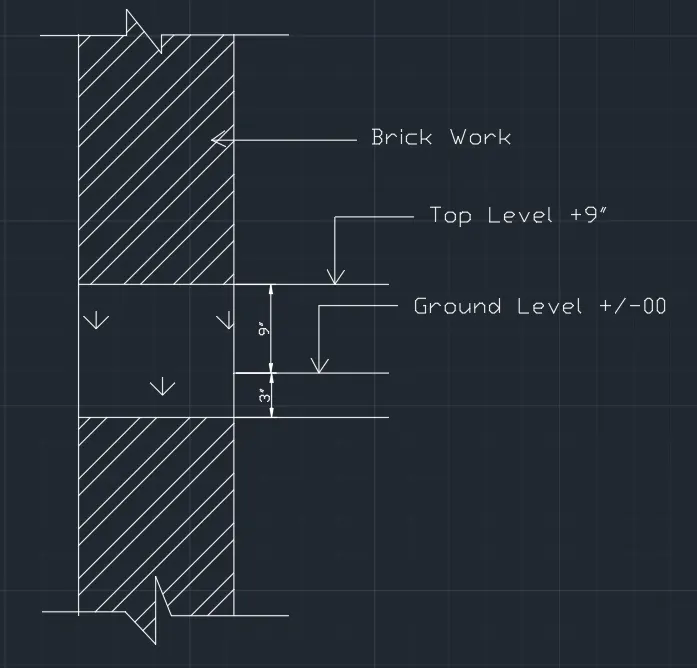

- To Create the Beam detail as shown in the figure and provide text wherever given.
Procedure:
Step 1:
- Set the units of Engineering and inches.
Step 2:
- Select the line command to create a column
- Select the Text style and Text Height
- Select the command of Hatch to hatch the given object.
Result:
