Challenge

Creation of Column Schedule and Drawing Template using AutoCad

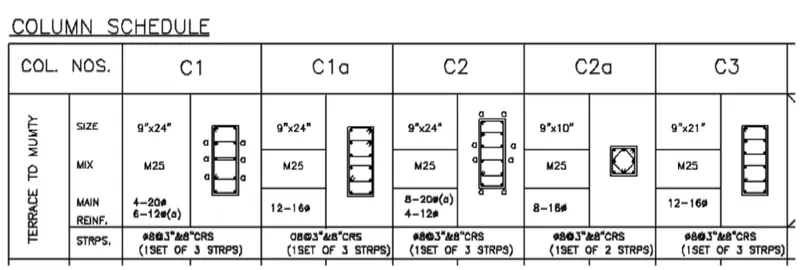

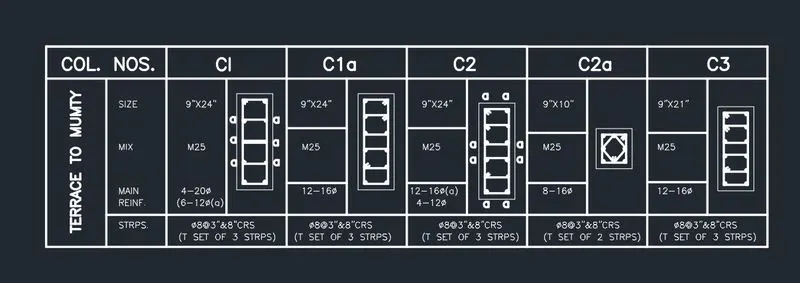

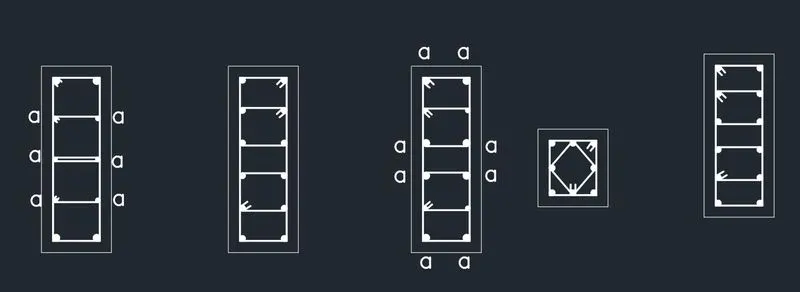

AIM : To Create a column schedule as shown in the figure:

Introduction :

1. Column C1 is provided with 4 bars of 20 mm dia. and 6 bars of 12 mm dia. The 12 mm dia bars are marked with 'a'.
2. Column C1a and Column C3 are provided with 12 bars of 16 mm dia bars.
3. Column C2 is provided with 8 bars of 20 mm dia and 4 bars of 12 mm dia. The 20 mm dia bars are marked with 'a'.
4. Column C2a is provided with 8 bars of 16 mm dia.
5. All columns are provided with 8 mm dia stirrups with 3" spacing cc near the ends and 8" cc in mid-length.
6. The clear cover for all the columns is assumed to be 1.5" (approx 40 mm). As per IS 256, the minimum cover to the column should not be less than 40 mm.

PROCEDURE:

  • In the command prompt type line to create tables.
  • In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left (justify)
  • In the command prompt type text to text the given text in the drawing
  • In the command prompt type MTEXT (multiline text) > symbols > to get diameter symbol.

Command using Line,Circle,Offset,Trim,Text,Hatch

Convert values mm to inch by divide 25.4.

Values in mm Values in Inches
20 0.7874
16 0.6299
12 0.4725
8 0.3150

RESULT:

2)

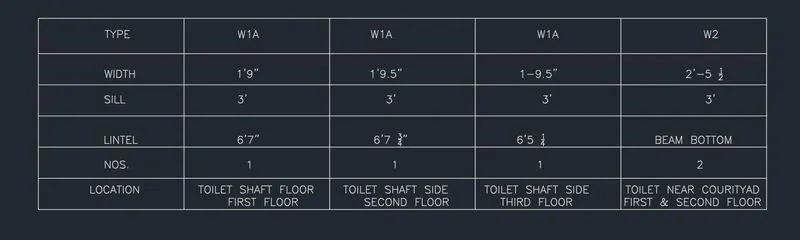

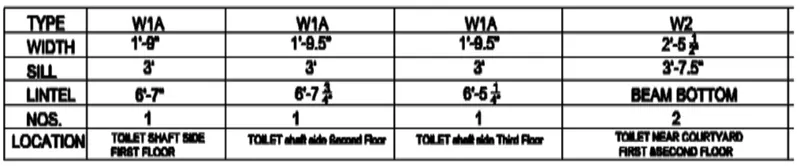

AIM: To Create a window schedule as shown in the figure:

Introduction :

The table contains the width, sill and lintel height, their numbers and respective location for different types of windows.

PROCEDURE:

  • In the command prompt type line to create tables
  • In the command prompt type ST (text style ) > romans.shx (font name ) > 8" (height ) > center(justify )
  • In the command prompt type text to text the given text in the drawing

Command using Line,Offset,Trim,Text

RESULT:

3)

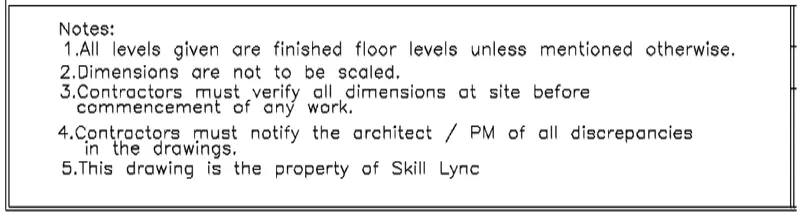

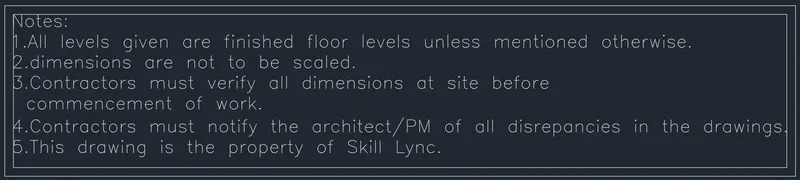

AIM: To Create the drawing template as shown in the figure:

Introduction :

Some tips on construction sites before constructing.

PROCEDURE:

  • In the command prompt type line to create tables .
  • In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left(justify).
  • In the command prompt type text to text the given text in the drawing .

Command using Line,Text

RESULT:

4)

AIM:

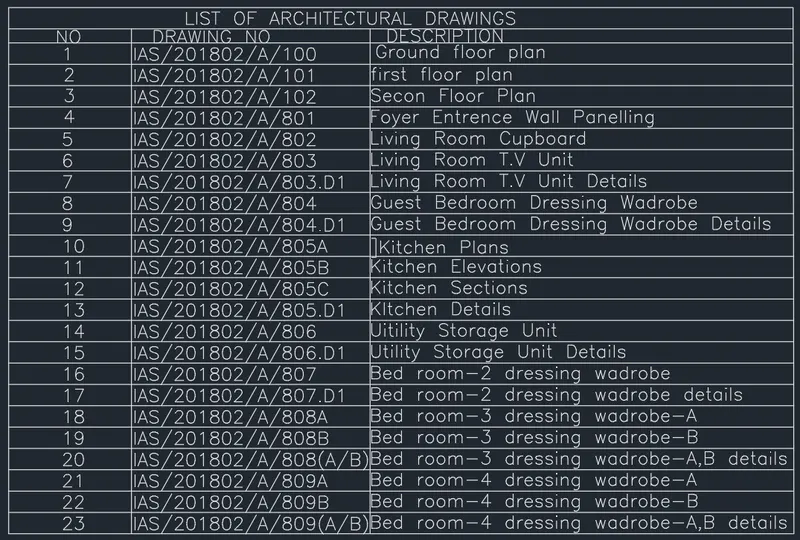

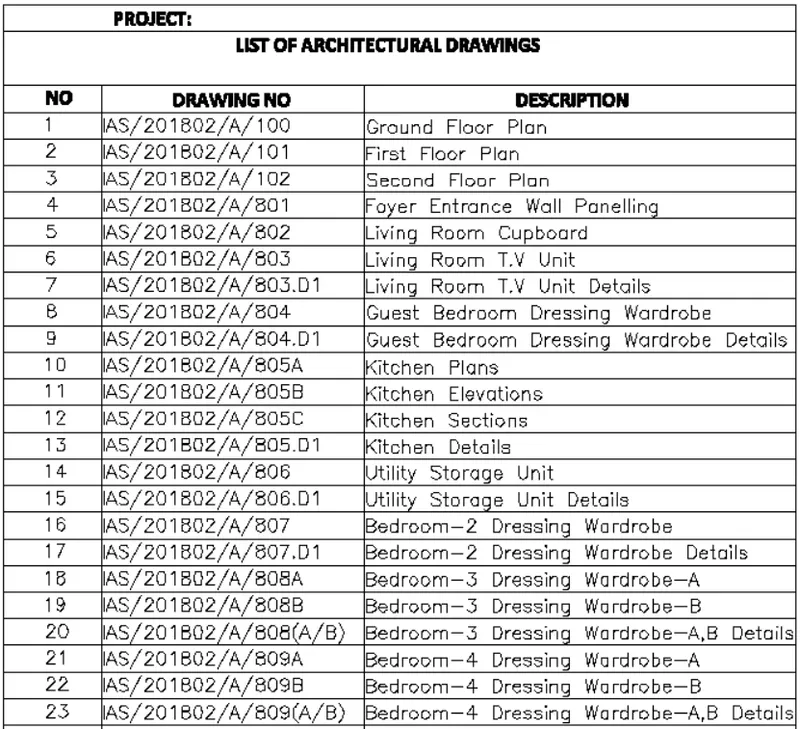

To Create the list of drawing schedule as shown in the figure:

Introduction :

List of Architectural Drawings.

PROCEDURE:

  • In the command prompt type line to create tables .
  • In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left(justify) .
  • In the command prompt type text to text the given text in the drawing .

Command using : Table

RESULT:

5)

AIM:

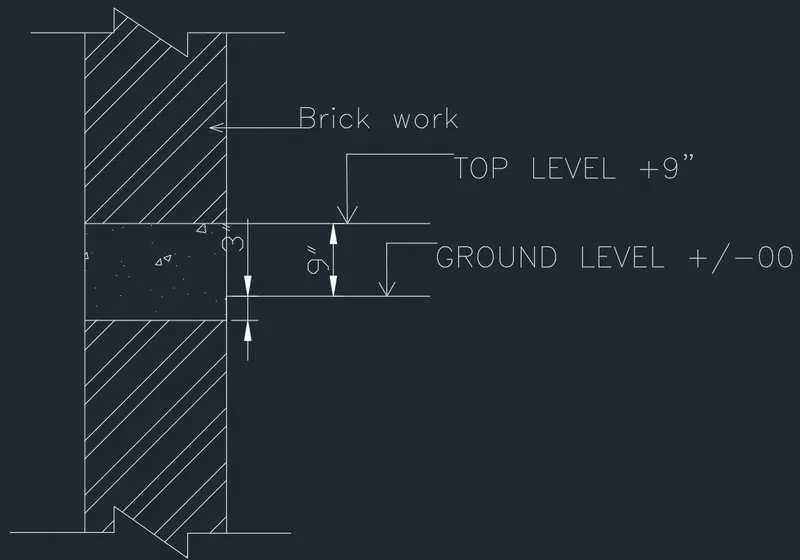

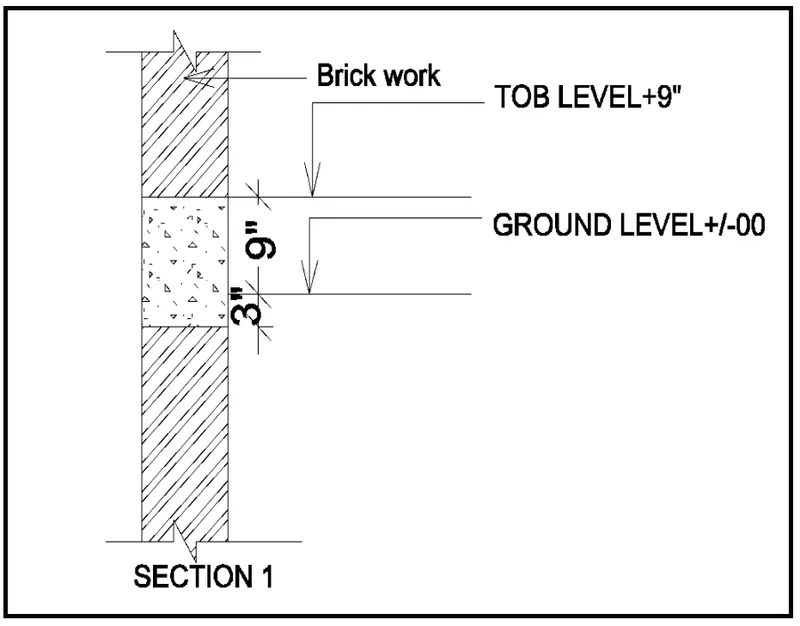

To Create the beam detail as shown in the figure:

Introduction:

A beam is a structrual element that primarily resists loads applied laterally to the beam's axis.

PROCEDURE:

STEP 1:

  • In the command prompt type UNITS > Engineering> Inches .

STEP 2:

1. Make two parallel lines 45" long at a distance of 6" from each other.
2. Using the breakline command, make a breakline at the top and bottom.
3. Make the horizontal lines.
4. Give the required labeling using leader and multitext.
5. Modify the dimension to match with that in the question. (Arrowheads, suffix ("), etc.)
6. Give the hatching of brickwork and concrete as shown.

Command using Line,Offset,Trim,Breakline, Dimension,hatch

RESULT:

Hence : We have created all above Using AutoCad.
