Creating Walls, Partition walls and Floors for a residential layout using REVIT
1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2
AIM: To create a floor slab and have to change the floor type and thickness were to do.
PROCEDURE:
STEP-1:

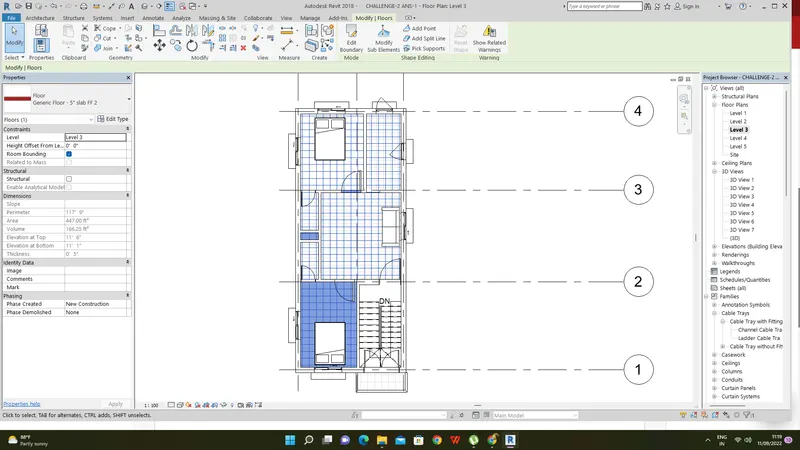

To create a floor slab from the architecture floor plan by using specified area and
Select the room inner wall area to find out the floor and click ok
STEP-2:

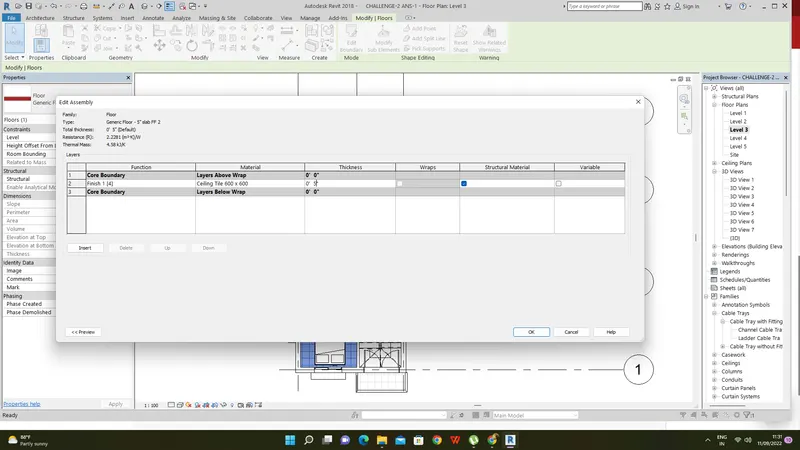

Go to edit option and change the dimension thickness of the slab and apply and ok then it changed.
RESULT: Therefore, the floor slab created to changed the floor type and thickness were to done.
2) Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.
AIM: To create a Walls from the plan and to edit the wall type and thickness.
PROCEDURE:
STEP-1:
To create a floor wall from the architecture floor plan by using specified area and
Select the room inner wall to create the walls as per layout and click ok
STEP-2:

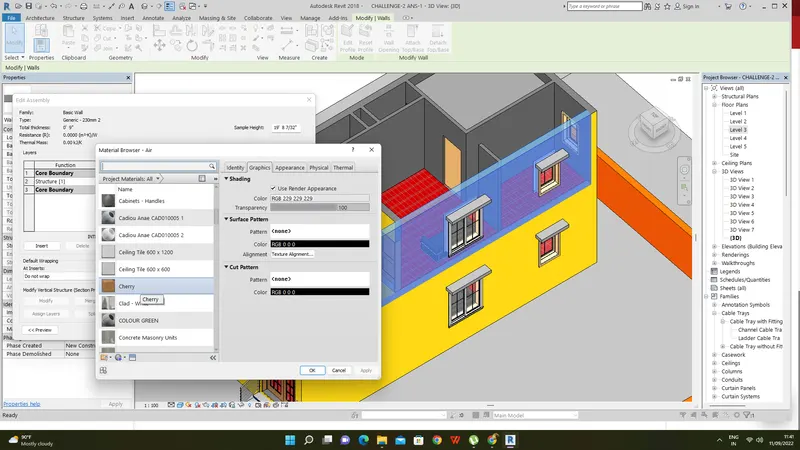

To create a floor wall and go to edit type to change the wall thickness and material have to done.
This all we need to create the proper levels and has to be applicable to done a proper wall height.
RESULT: Therefore, the floor wall has created to changed the floor type and thickness were to done.
3) Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align
elements to a different level
AIM: To create a floor plans and elevation from the level using and also to copy the layout from the aligned level-2 as same structure.
PROCEDURE:
STEP-1:
To created a floor plan by own created dimensions

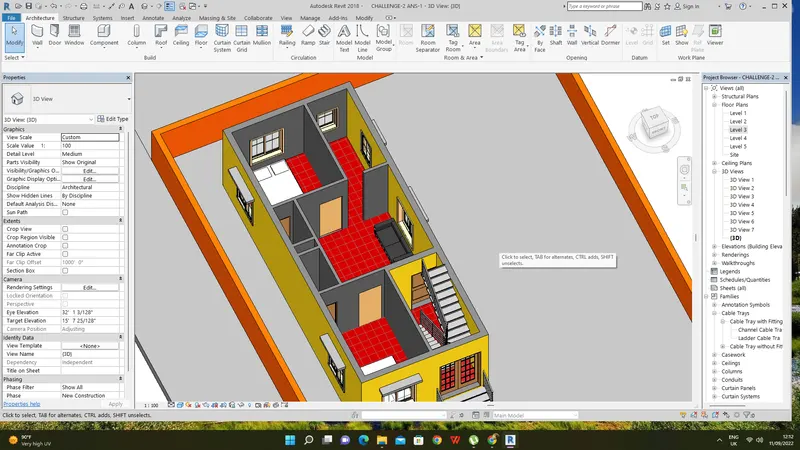

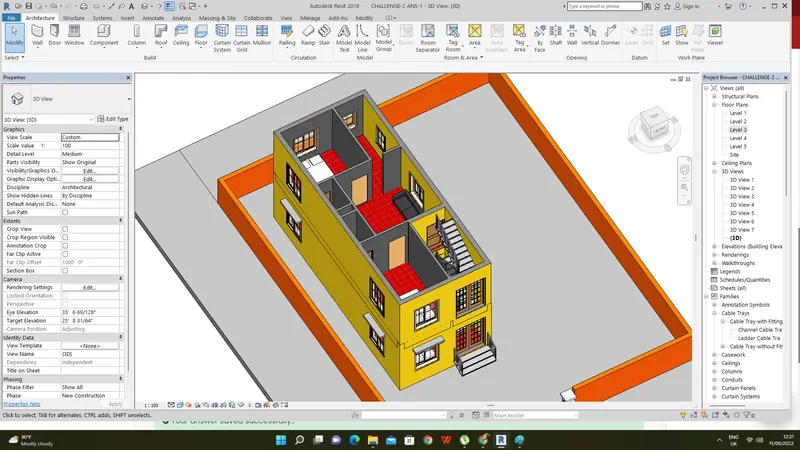

The floor plan has make in 3d attached in below
STEP-2:
To create a floor plan and the next step to copy the floor to next level have to do the step

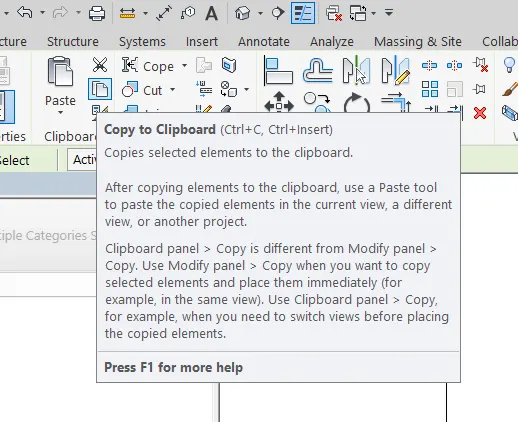

select the clip board and to copy the all the floor elements to create a next floor lane.
STEP-3:
Select the level-2 and make the paste from the grid line of the wall then to apply the wall sequence equal it to done
RESULT: Therefore, the floor elements are to copy and pasted from another level of the plan is done.

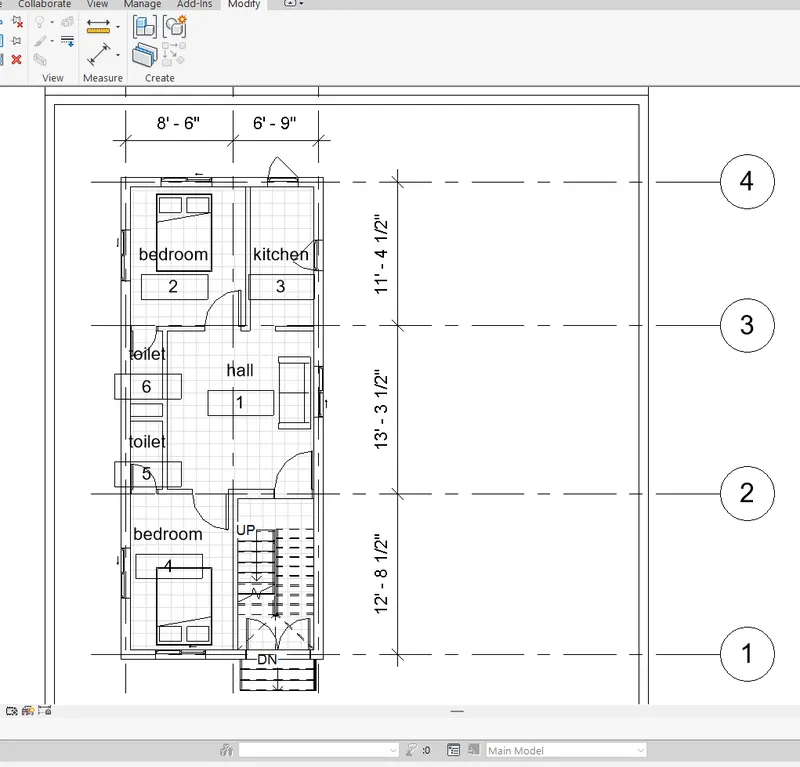

4) Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms
a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’)
5) Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model
a. Place Doors and windows in the wall at appropriate locations

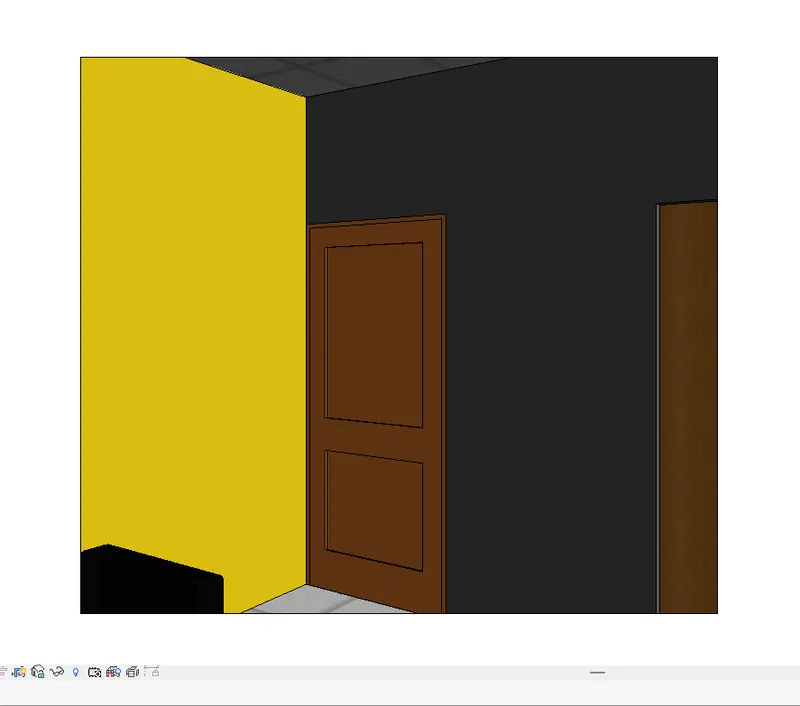

i) Door elevation

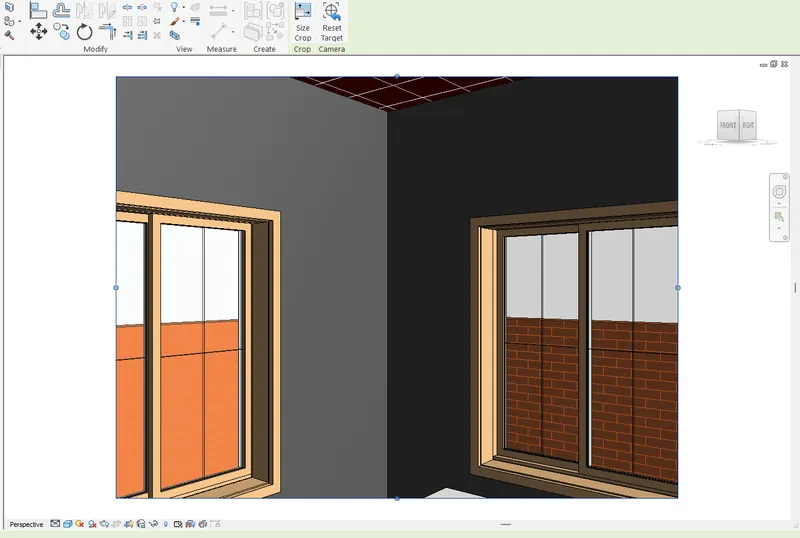

ii) Window elevation

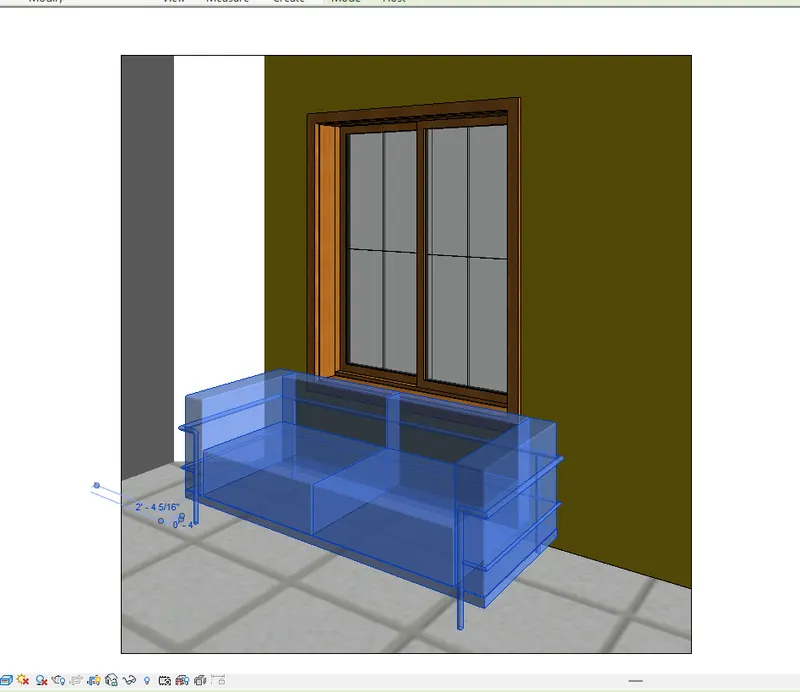

b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets

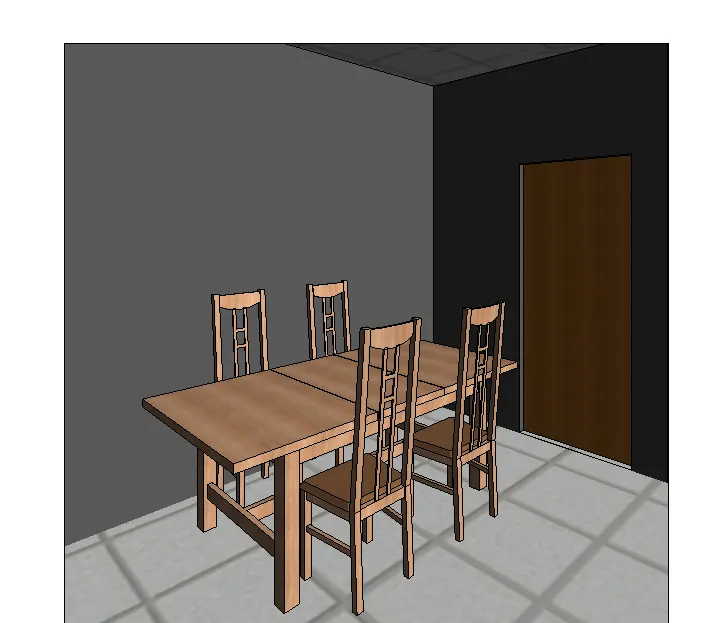

c. The Dining Room must include a table and chairs serving the purpose of eating

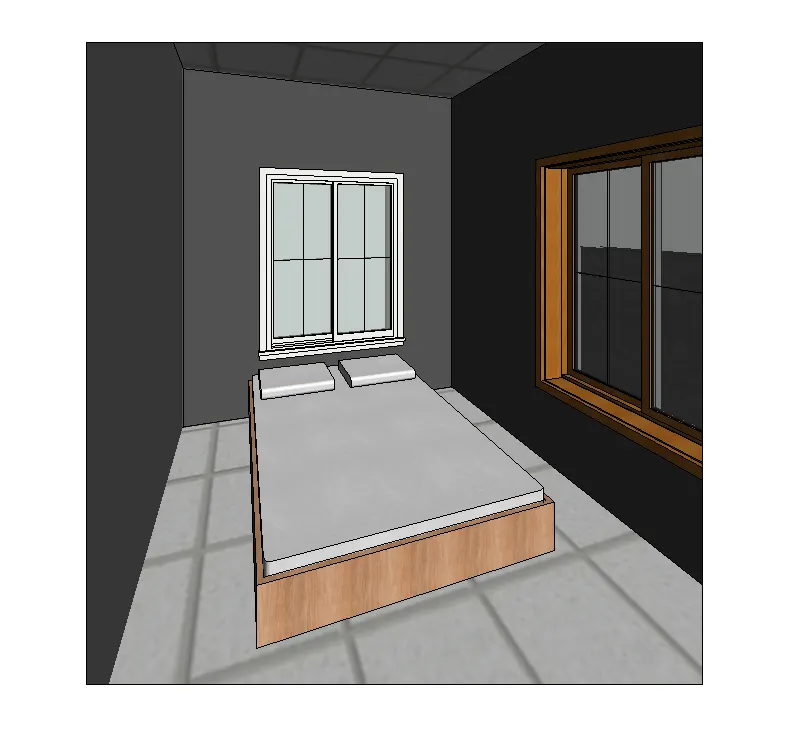

d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair

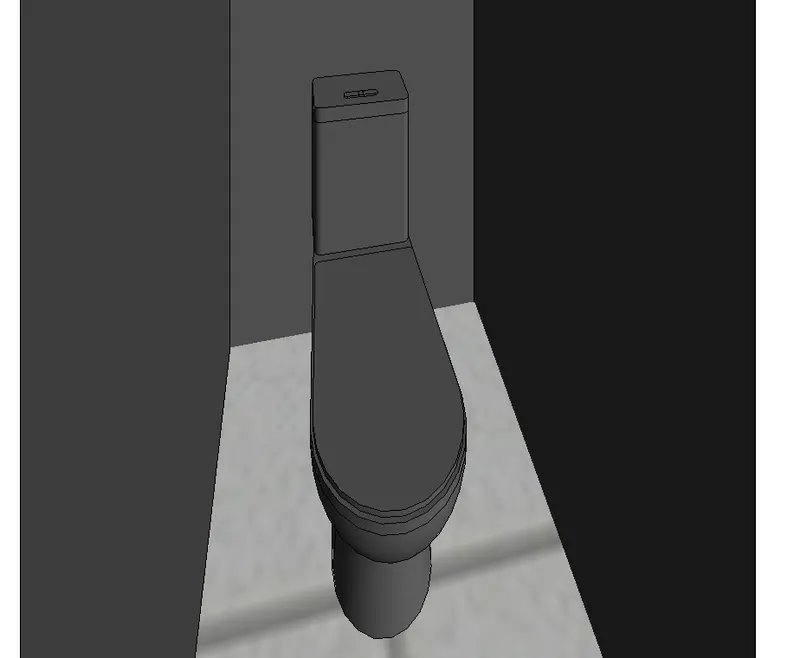

e. Rest room should include bath tub and plumbing fixtures discussed in class

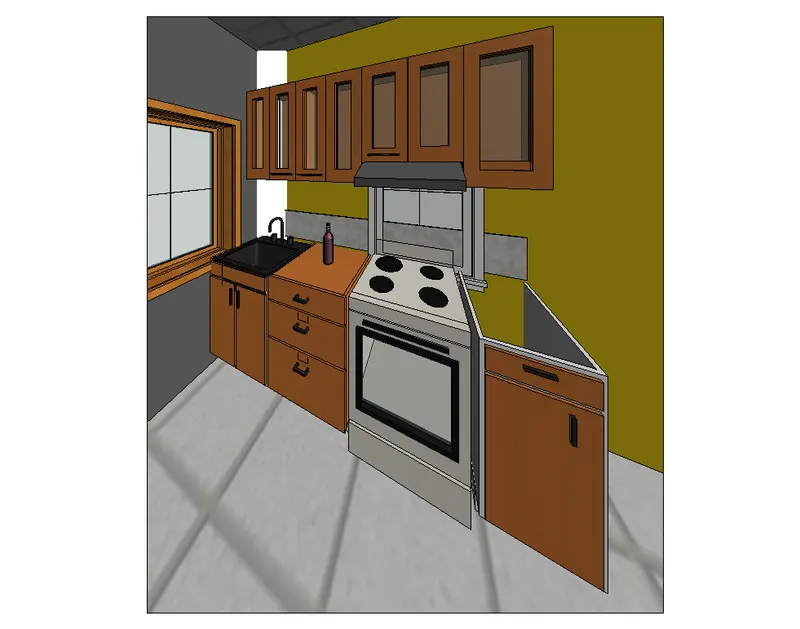

f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
