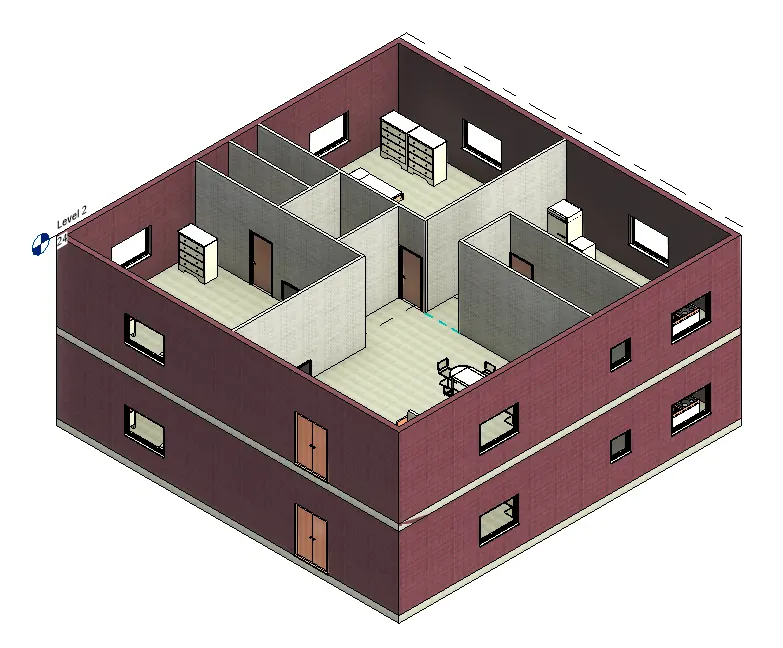

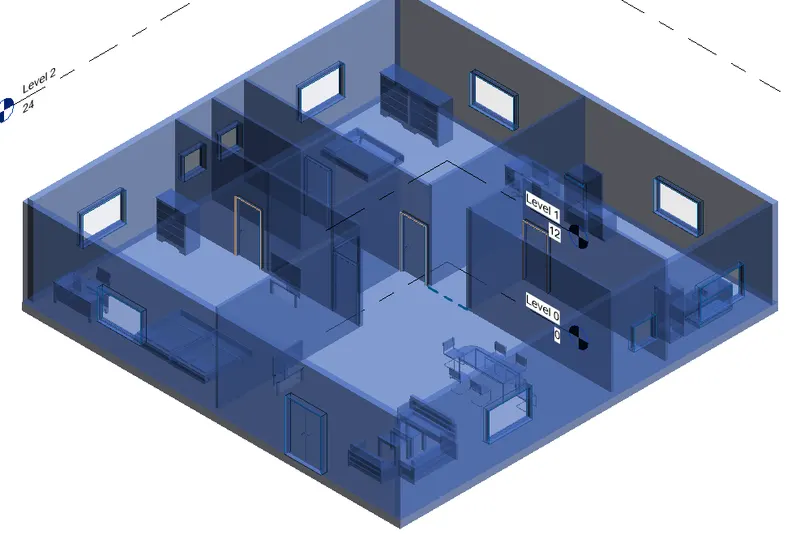

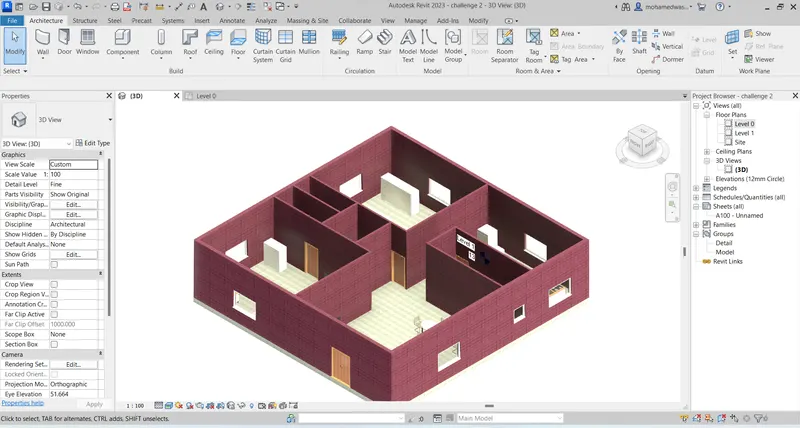

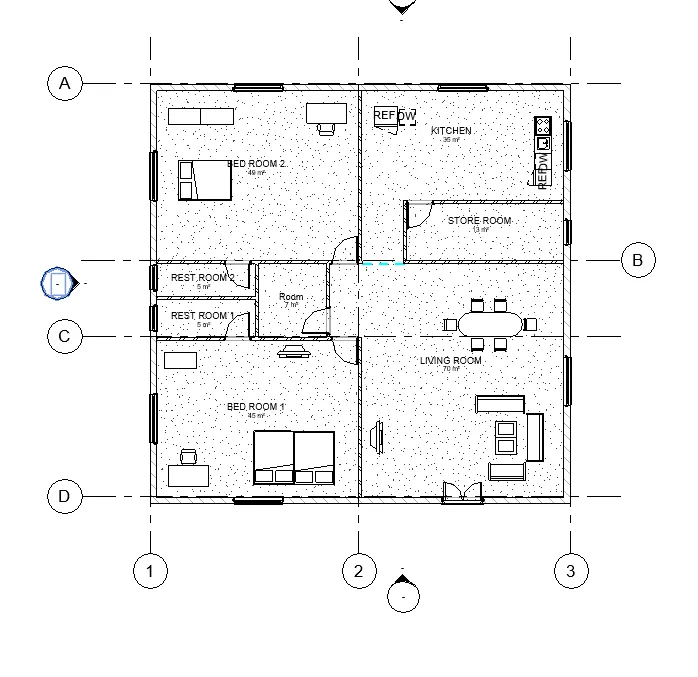

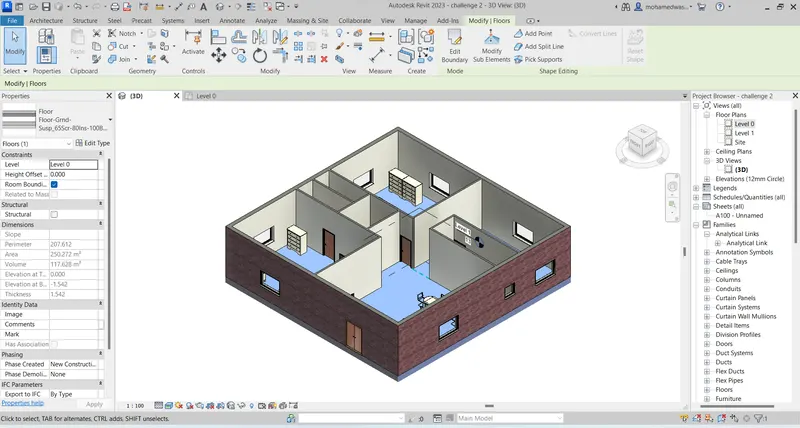

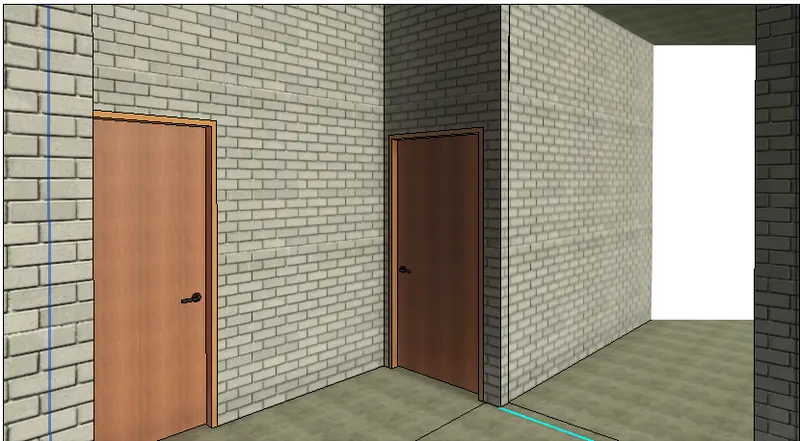

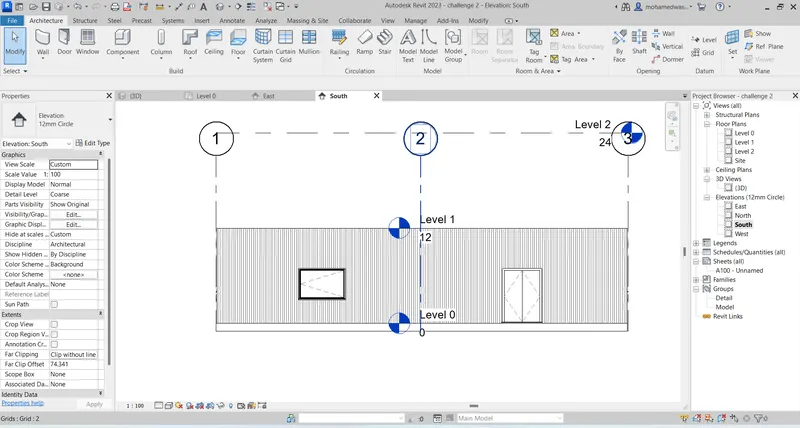

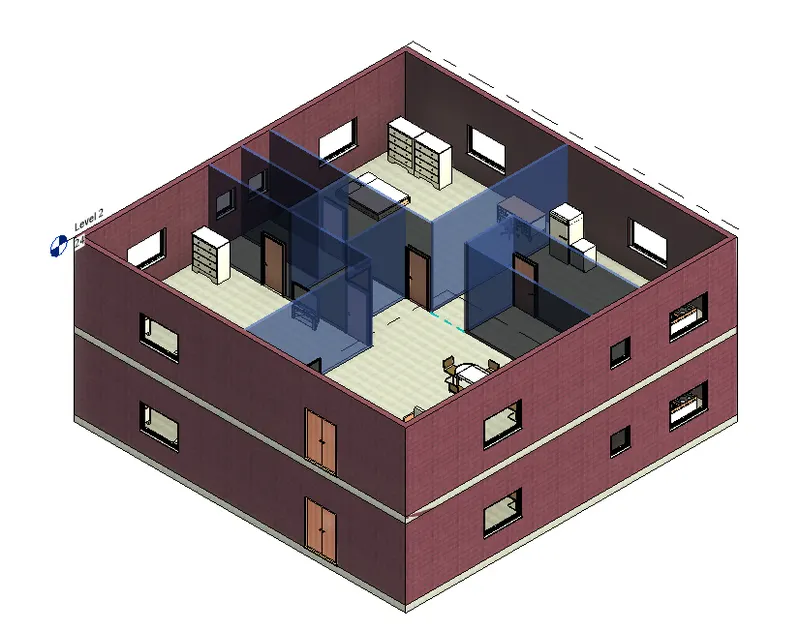

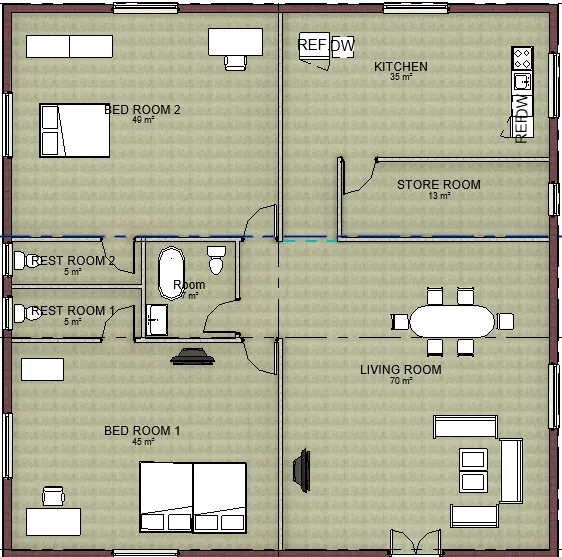

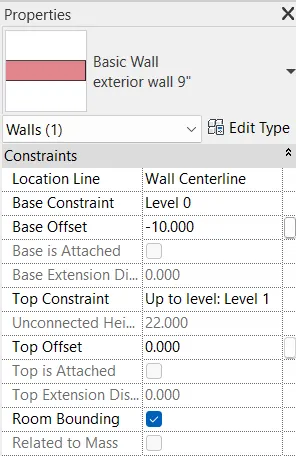

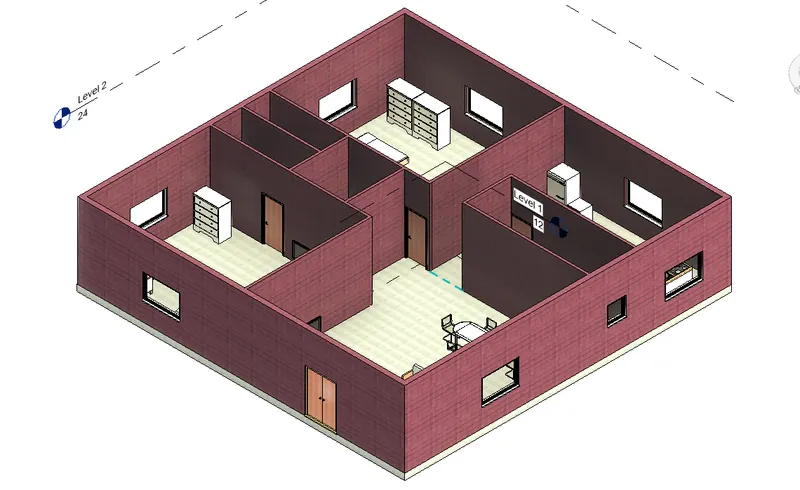

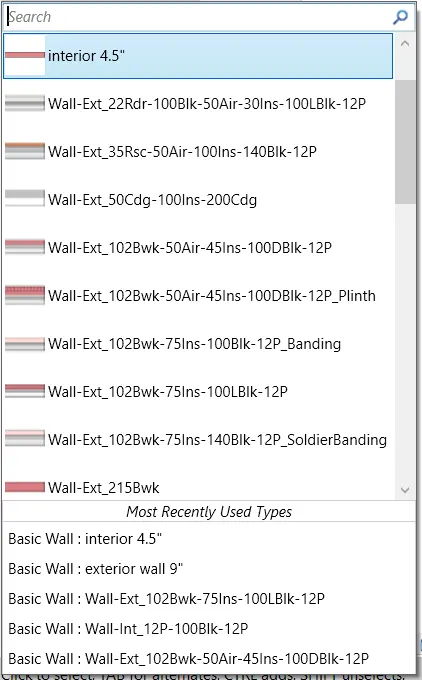

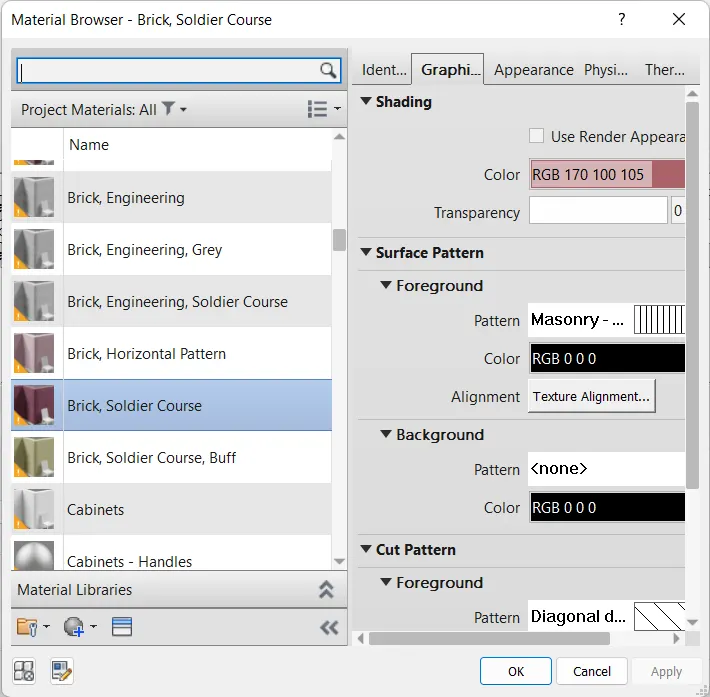

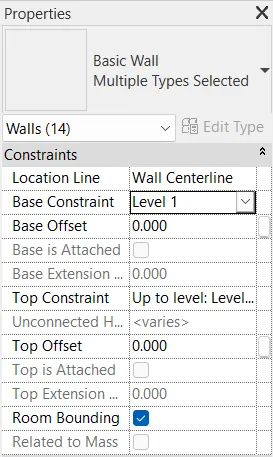

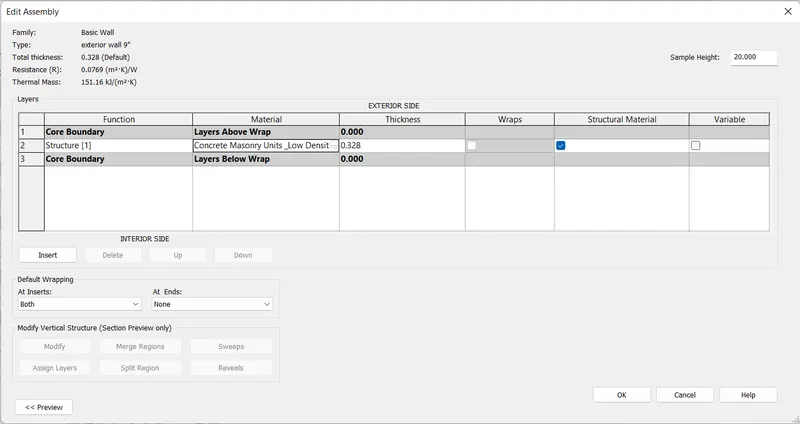

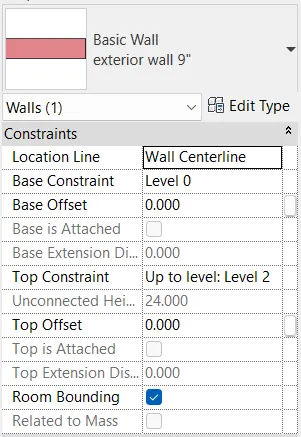

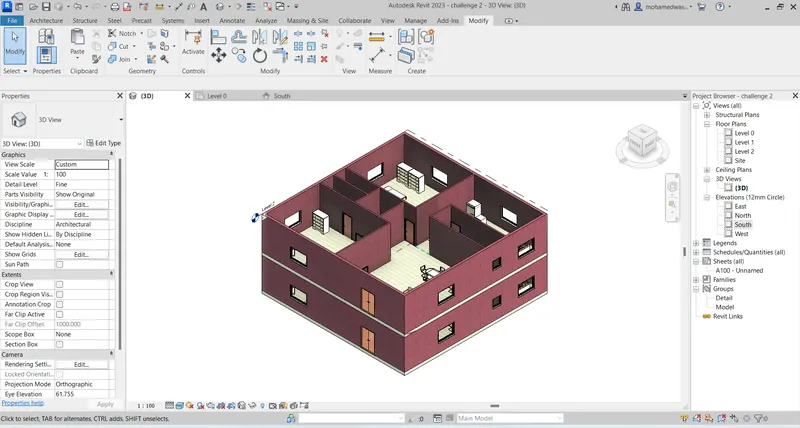

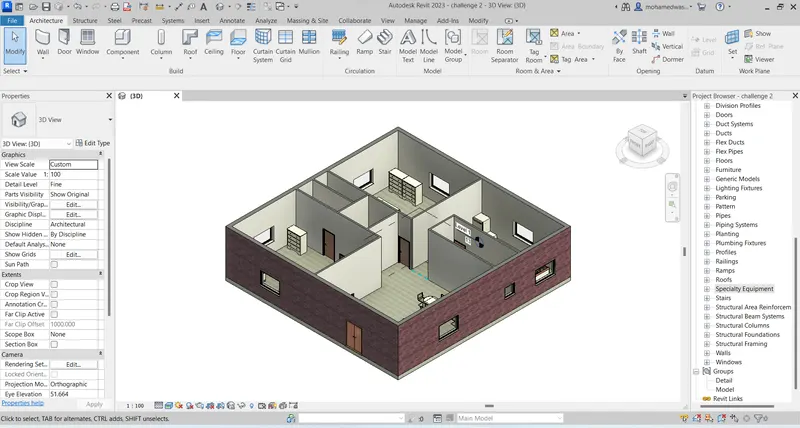

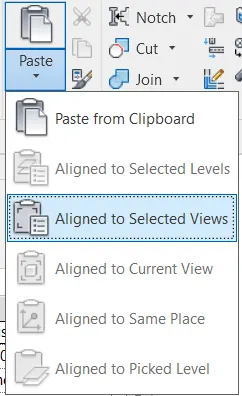

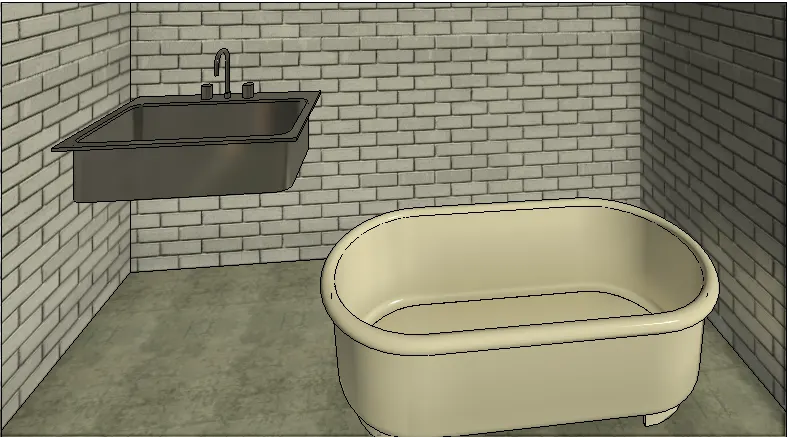

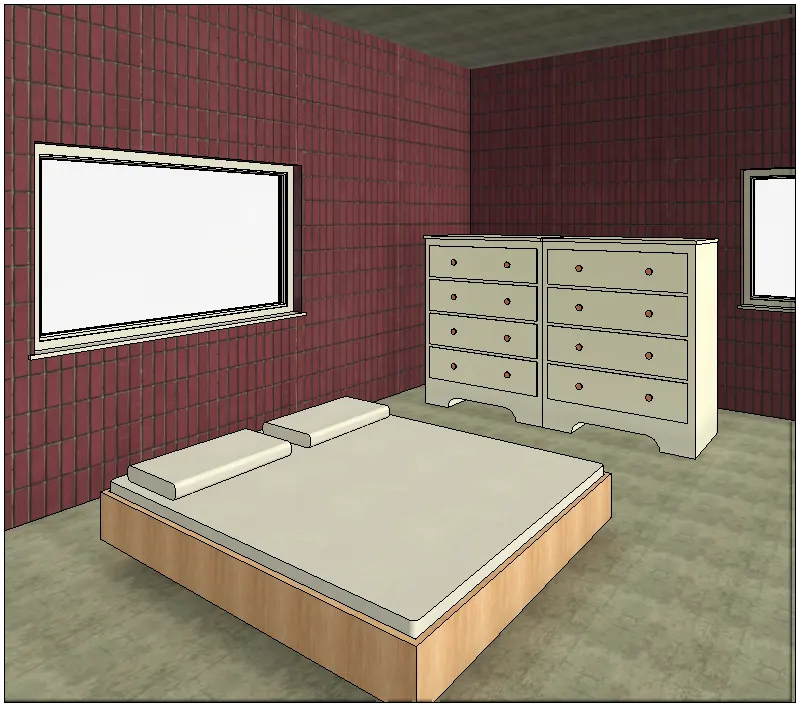

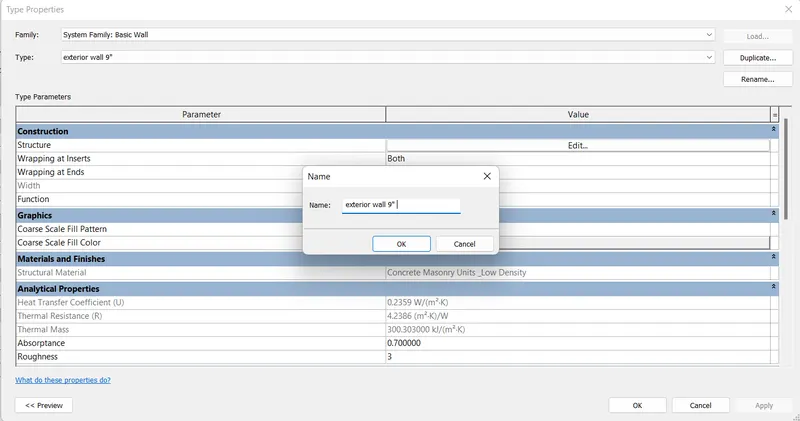

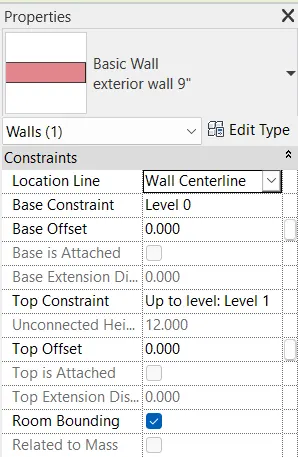

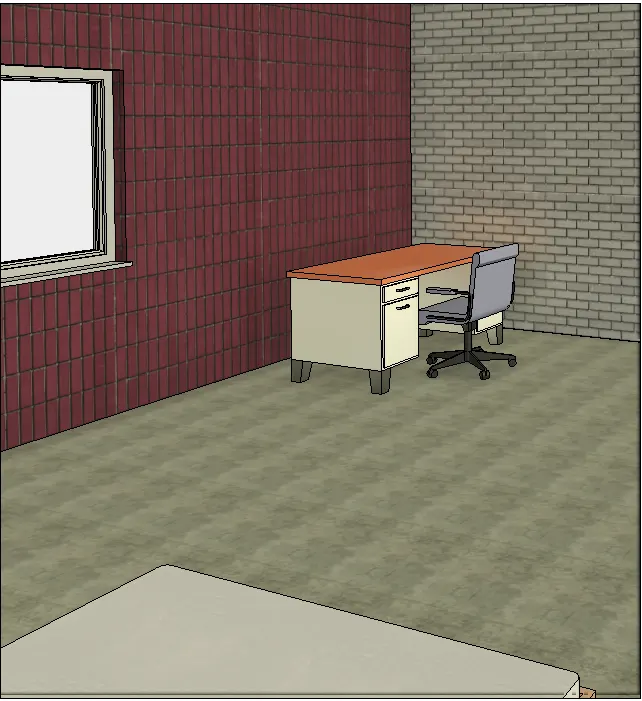

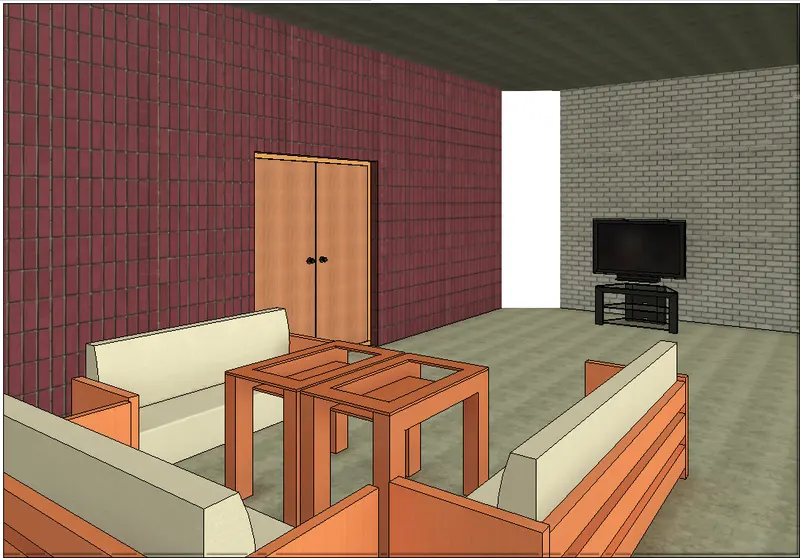

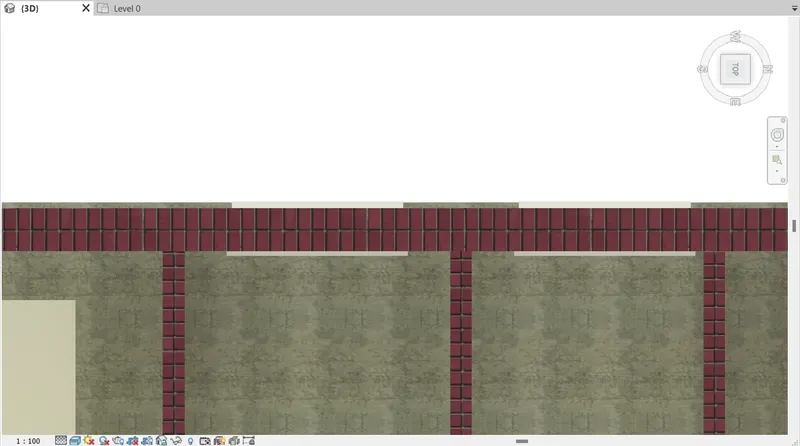

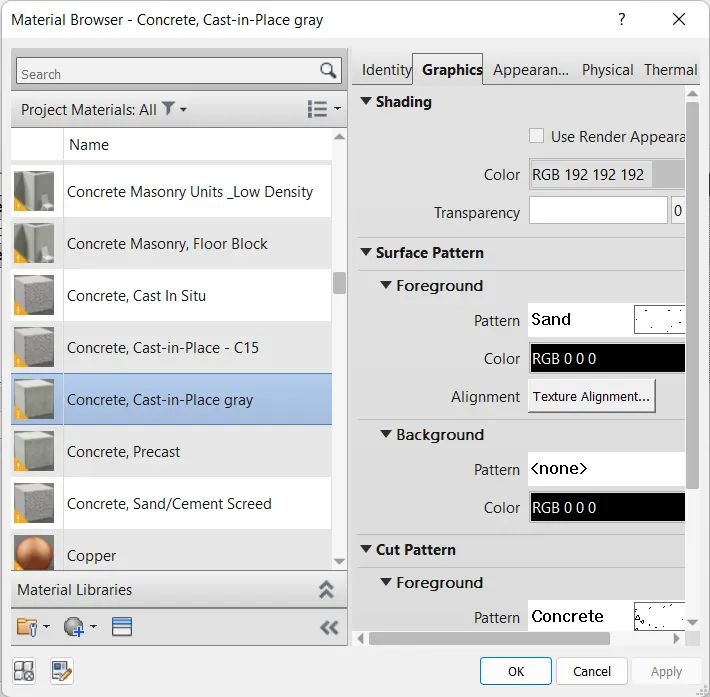

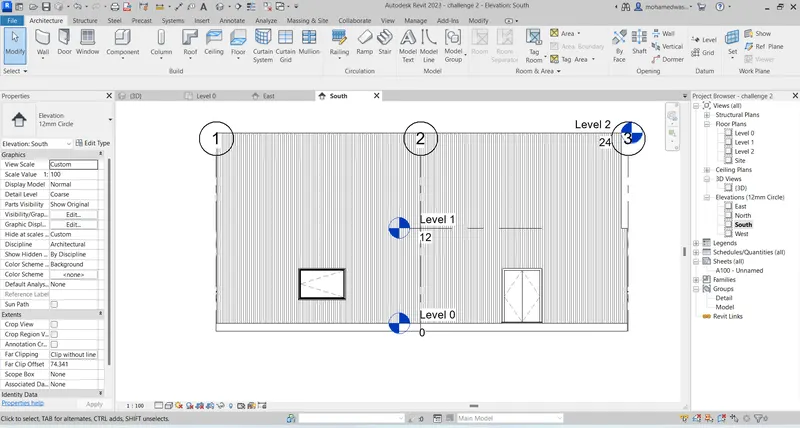

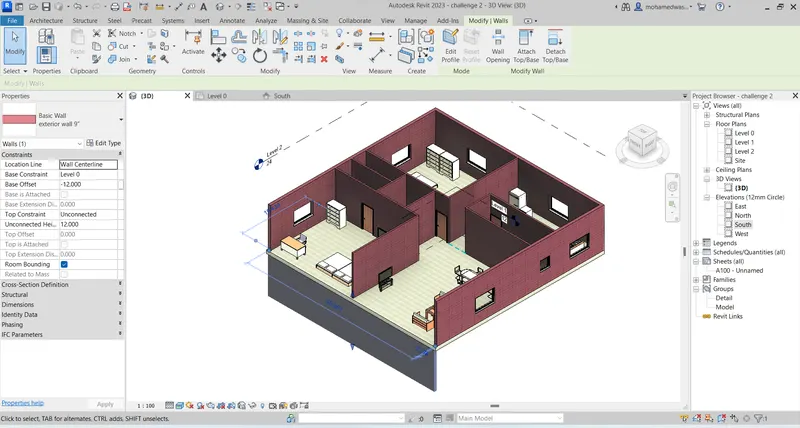

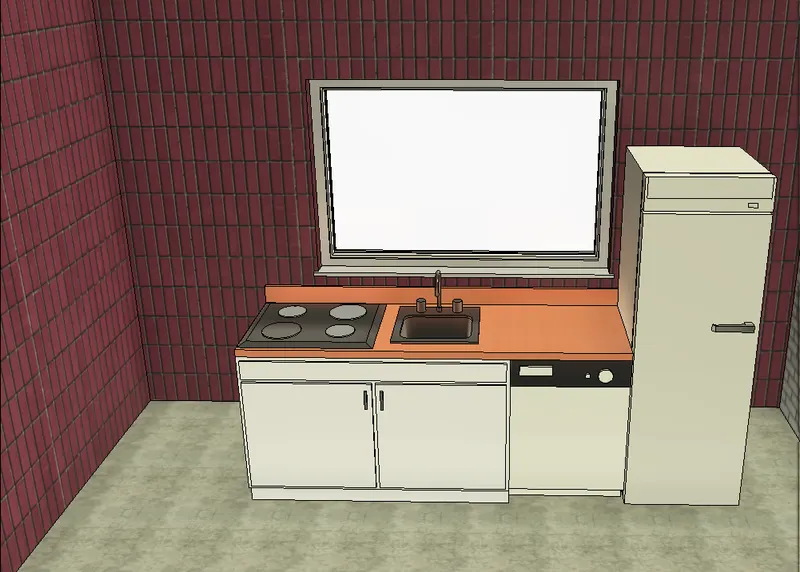

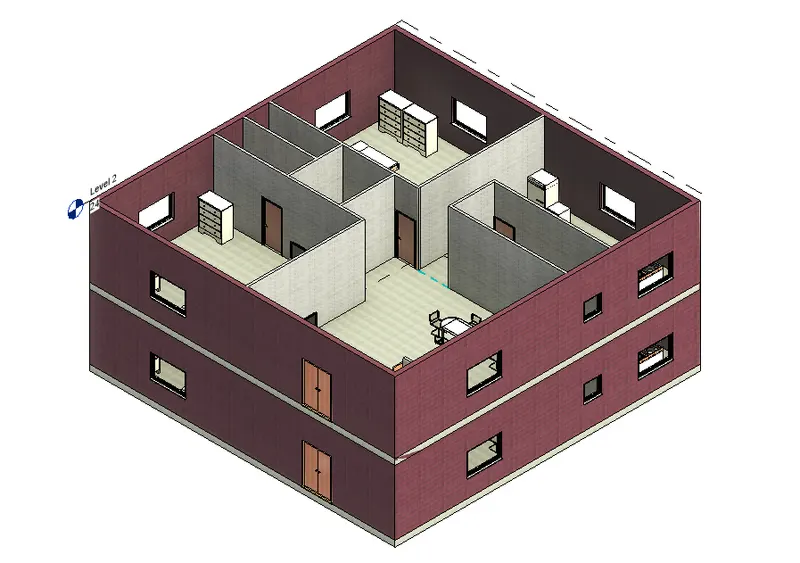

Creating Walls, Partition walls and Floors for a residential layout using REVIT

AIM:-To Create and Analyse the given building in ETABS 2018, the structural model has to be prepared in accordance with IS 1893 and as per IS 13920. To design the pile cap and pile reinforcement details,Tie  beam  connecting the pile caps, to sketch the column reinforcements, to produce the framing plan and beam detailing…

QUESTION:1 Model the isolated footing provided in week 11 challenge on SAFE. Analyze and design it to verify the size, depth and steel provided as per calculations. ANS: AIM: To Analyze and designthe isolated footing from week 11 challenge on SAFE To verify the size, depth and steel provided as per calculations.   INTRODUCTION:…

Design of Shallow Foundation(Isolated Footings)   QUESTION:- Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 metres below E.G.L. Participants are free to go for either a…

Structural Modelling of Residential Building using Etabs 2018   QUESTION:- The architectural drawings for a G+7 residential building in zone 5 has been provided. The floor plan is the same for all 7 floor levels. Possible column positions have also been provided. Conceptualize a framing plan layout and then model the building…

Aim:   To run the analysis and design the RCC shear walls shown in the etabs model. Step 1: 1) Open the ETABS file 2) After the analysis click Concrete frame design Step 2: 1) Need to check there is any failures occurs 2) Click Shear wall design tool 3) select Display info and choose PM failure  Step 3: 1) Click any wall…

Answer: Aim: To Providing details of longitudinal reinforcement for the two columns from foundation to terrace level. Step 1: 1) Open a G+4 Etab file 2) Click the Concrete Frame Design tool 3) Select the Display Design Info option 4) Choose design output as Longitudinal Reinforcement Step 2: 1) After Selecting the Longitudinal…

QUESTION:- Detail design of beams in Etabs 2018.The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment ResistingFrame. The following challenge deals specifically with two continuous beams in the 1st floor.         1) 3 span continuous beam along grid A   …

AIM: TO MODEL AND ANALYZE MULTIPLE BUILDINGS WITH DIFFERENT FLOOR LEVELS AND DESIGN PARAMETERS USING ETABS SOFTWARE AND COMPARE THE RESULTS TO UNDERSTAND THEIR OVERALL SEISMIC BEHAVIOUR. INTRODUCTION: The structural configuration of the building plays a major role in determining the overall response during an earthquake.…

Aim: to model and analyse a 25 storey building with given specifications and to cross check the parameters as per IS 1893 provisions. Procedure: Open the ETABS software. Click the file menu and choose to create a new model option. After choosing a new model a dialogue box will appear as model intialization.   Choose the…

1. The building shown, 20 x 30m in plan, has column on a 5 x 5m grid and shear walls( with dimensions shown in m, 250mm in thickness) in three alternative arrangements. (a, b, c), all with the same cross sectional area of the shear wall. Compare the three alternatives, taking into account the restraint of floor shrinkage,…

Question 1: Comment on the layout of the framing plan concerning earthquake resistance in the two horizontal directions X or Y (dots are columns, lines depict beams). Look into aspects of symmetry, redundancy and bi-directional stiffness and ductility. Ans: Symmertry: It is observed that the distribution of mass,stiffness…

Aim: To compute the values of seismic parameters based on the given structural data Step-1 Step-2: Step-3 Step-4 Step-5 Ln, Mn, Tn values are calculated for each of the 5 modes The base shear force for each of the 5 modes is obtained. Effective modal mass and the modal mass participating ratio for 5 modes are obtained

1. Differentiate Static analysis and Dynamic analysis by proper representing pictures                              STATIC ANALYSIS                            DYNAMIC ANALYSIS Load is not variable with time and neglected due to slow applying of load. Load is variable with time due to fast applying of load and vibration. …

IDENTIFICATION OF CRACKS: 1) What is the mode of failure or damage of the beams in the figure above? Would you characterize the case as damage or as a failure? Are the damages repairable? Elaborate. a) This crack will be formed due to the flexural failure of a beam. The flexural strength, known as modulus of rupture,…

Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo Introduction: Dynamo is an open source visual programming language for Revit, written by designers and construction professionals. Its a programminglanguage that allows you to type lines of code;  while also creating…

1) Select the type of structure you want to build from one of the three below: Multi-Unit Residential Apartment Office Buildings School Ans:OFFICE BUILDING   2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify…

1) Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project.   Aim: To set project base point and project shared coordinates for the project. Procedure: To create project shared coordinates: Open architectural tab. Open Manage tab. Click on project…

1) Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit ? A building code (also building control or building regulations) is a set of rules that specify the standards for constructed objects such as buildings and nonbuilding structures.  Building codes specify minimum standards…

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level. AIM:-  To model a Ceiling from the architecture tab above the walls at the first-floor level. INTRODUCTION:- The creation of Ceilings within Revit is a…

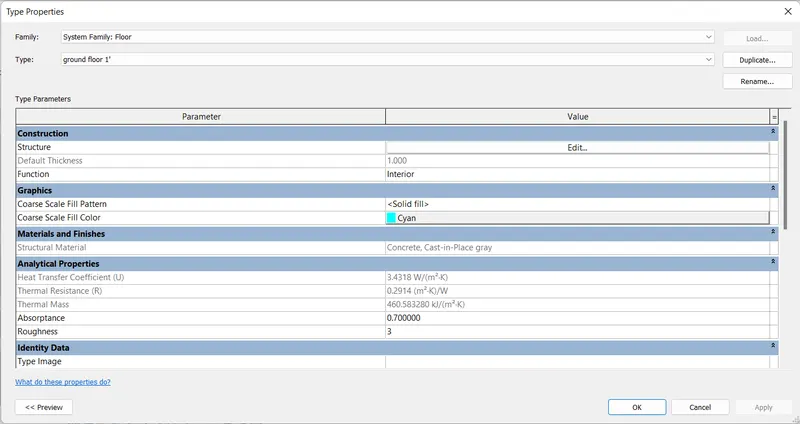

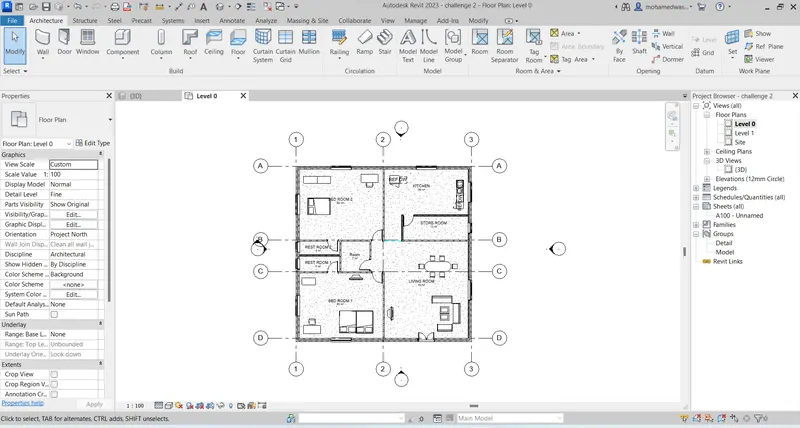

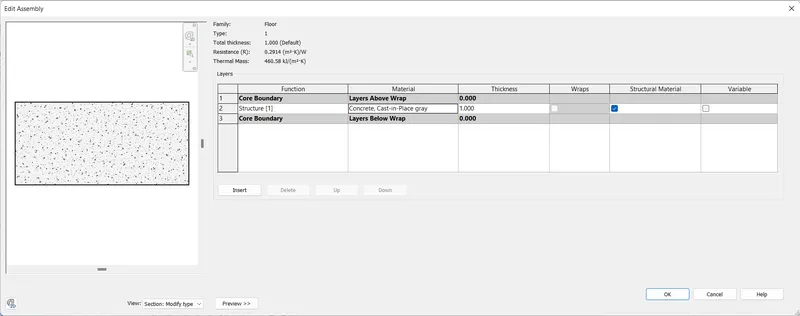

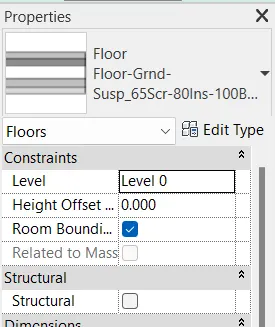

1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from…

1) What is BIM? Summarize the features of BIM and benefits of using BIM over 2D CAD tools.   Building Information Modelling (BIM)- Building information modeling (BIM) is a process supported by various tools, technologies and contracts involving the generation and management of digital representations of physical and…

1) From the file menu, create a new project (Structural / Architectural / Construction template ) and name the project appropriately. AIM: To create the new project(struCtural/Architectural/Construction template) and name of the project appropriately. INTRODUCTION OF REVIT: Revit architecture is designed to accommodate…

Project 2_Creating a 3D rendered model for a Residential Building in AutoCad   AIM: Creating a 3D rendered model for a Residential Building in AutoCad. PROCEDURE FOR 2D PLAN: Open Auto Cad. In the right left corner click on the settings icon that is the icon of workspace. Select 3d modelling. Enter UN (Units ) command…

CHALLENGE:-1 Q] Create a 3D Isometric View of the building with plan and elevation given. AIM:-  To create a 3D isometric view of the given building with plan and elevation. INTRODUCTION:-  An isometric drawing is a 3D representation of an object, room, building or design on a 2D surface. One of the defining characteristics…

1) AIM To create a 3D Furniture elements using the various commands in Auto CAD. INTRODUCTION BY 3D VIEW The process of creating a mathematical representation of any surface of an object in three dimensions by using special software. A 3D model can even be represented as a two dimensional image by using the 3D  rendering…

1. Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout.…

1. Creating the Kitchen Layout and providing hatch pattern as shown in the figure: Aim:  To draw the kitchen layout and provide the hatch pattern as shown in the figure above, in AutoCAD. Introduction:  The kitchen layout is created in AutoCAD using primarily the Rectangle and Line tools and after sketching, the objects,…

1) Aim: To create template,inserting text and attributes. Procedure: a) Custom 1_title block Create a rectangle of 66.63mm and 158mm. Divide the line for the text into columns. For rows take offset of 5,10,5,5,8,30,15,15,20,20,10,15mm. By multiline text,type rev,description,by date,date on the first row by text height…

AIM:  To draw Design and Draft a layout of a residential building with the following details: Plot Size: 60’x20’(18.3m x6m)  Orientation- Facing East  Develop the following: Architectural Drawing (Floor Plan, Elevations, and Sections Structural Drawing (Column, Bean, Footing Plan) COMMANDS USED:…

1) AIM: To create the plan and sections as shown in the fiqure. Use proper dimension techniquesa and  dimension styles to document the project using AUTOCAD PROCEDURE: STEP 1: in the command prompt type units > mm. in the command prompt type limmax > 100,100 in command prompt type limits > 0,0 in the command…

1) AIM: To draw the elevation and details of a wardrobe as shown in the fiqure. After sketching, you need to provide the dimensions and text with the use of layers. PROCEDURE: STEP 1: Units are set to mm Limits and limax are also set Zoom command is also used STEP 2: In the command line type rec > 2800,2600 In the command…

1) AIM: To Create a column schedules as in the fiqure: COLUMN SCHEDULE: PROCEDURE: STEP1: In the command prompt type line to create tables In the command prompt type ST(text style)>romans.shx(font name)>8"(height)>left(justify) In the command prompt type text to text the given text in the drawing In the command…

Q] Residence plan: Sketch the layout of a residence as shown in figurel. Consider all dimensions as reference to sketch the unit plan. Also the text in the layout are only for reference. Assume the mixing dimensions. Also, refer the for size of the doors. Aim: To draw the given residential plan in detail. Introduction:…

Challenge 3, Submitted by M.Mohamedwaseem Commands used: Line circle chamfer fillet mirror trim move rotate annotate AIM: To draw the geometries using Chamfer, fillet tool in Autocad. Procedure: New sheet- units- decimal-precision 0.00- meter-ok. Limits-0,0 and 420,210. zoom-All. Select Line tool and draw the lengths…

Challenge 2, Submitted by M.Mohamedwaseem Commands used in this challenge Line Polyline Rectangle Trim Chamfer  Offset Isometric Views Copy Question 1: Drawing Cl figure in AutoCAD Aim: To draw the figure Cl of a C.S. of load bearing wall over spread footing Introduction: Wall footing is a type of footing which is…

A] Now we draw the given drawings using the co-ordinate system methods in autocad. And that should be drawn and discussed in detail. AIM: Create the geometries from P1 to P8 using all the coordinates system methods. And we need to use line tool, and find the missing dimensions. Civil related problems- Draw the profile…

AIM : To sketch a plan of G+1 floor residential building according to Vaastu Shastra and listing down the names of the structural drawings required to be provided to the construction site. INTRODUCTION TO VAASTU SHASTRA : Vaastu Shastra : Vastu Shastra is the Ancient Indian Science of architecture and acts as a guideline…

AIM: To Calculate the Concrete Mix Design for M35 grade concrete with fly ash & M50 grade concrete without Fly ash INTRODUCTION: Concrete mix design is the method of finding the precise proportion of cement, sand and aggregates for concrete to achieve the target strength in structures, therefore concrete mix design…
