Creating Walls, Partition walls and Floors for a residential layout using REVIT

1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2

Ans:

Aim: Create a floor layout and add properties in the floor.

Command used

• Architectural command
• Floor command
• properties command
• select floor sizes

Procedure:

1. select the architetural in ribbon bar
2. select the floor command and architectural floor

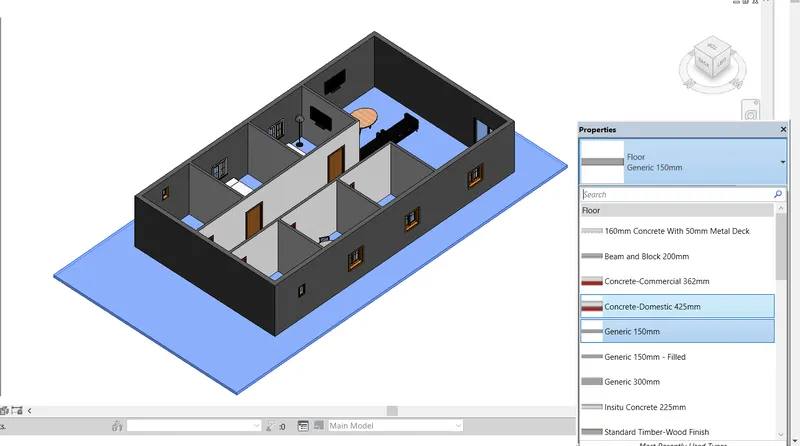

3. In properties box select the floor thickness and if we want to change thickness select edit type to change floor style.
4. And also change different flooring styles
5. Drag the cursor to the area we requried to fill the flooring or select the total wall boundary to complete the flooring inside the buliding only.

Results:

2) Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.

Aim: After created the partition walls and verfiy the tob and bottom of the walls are constrained.

command used:

• Architectural
• walls

Procedure:

1. select the architectural walls
2. select the partition wall in proerties box with wall thickness as required for partition
3. draw the wall as required to the room dimensions for bed room,kitchen,rest room,dinning hall.
4. click 3d view

In the above picture, you can see all walls are constrained in the same level.

a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected

when walls are connected with the constrains any changes in the height of the bulding in any view the walls automatically adjusts its height with the buliding levels and wherever if walls are unconnected then we have to edit the heights of the walls manually which will take lots of time and chances of errors.

b. Which option is convenient for modeling walls, By Height or By Depth?

The best way to model walls is by height rather than by depth.

3) Copy the model elements ( wall, floor ) modelseleled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align
elements to a different level

Aim: Use the command copy the wall, floor and paste for modeling the plan.

command used:

• copy
• paste
• Aligned the levels

Procedure:

1. select the wall and floor and place the cursor
2. select the copy and paste the aligned to the first floor and press enter

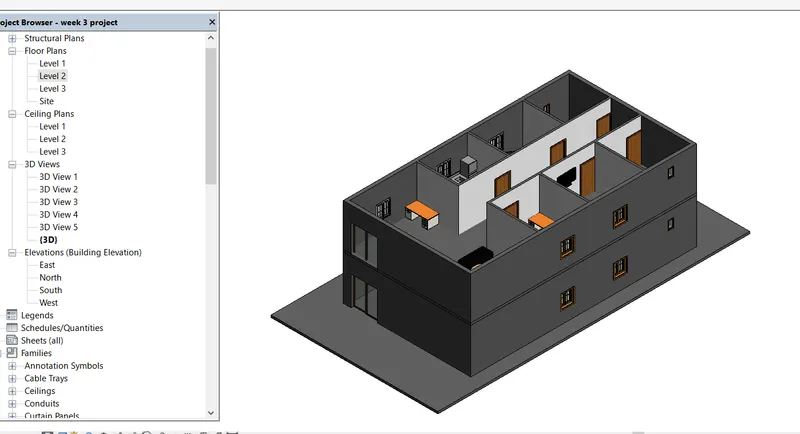

3. 3d view

Results:

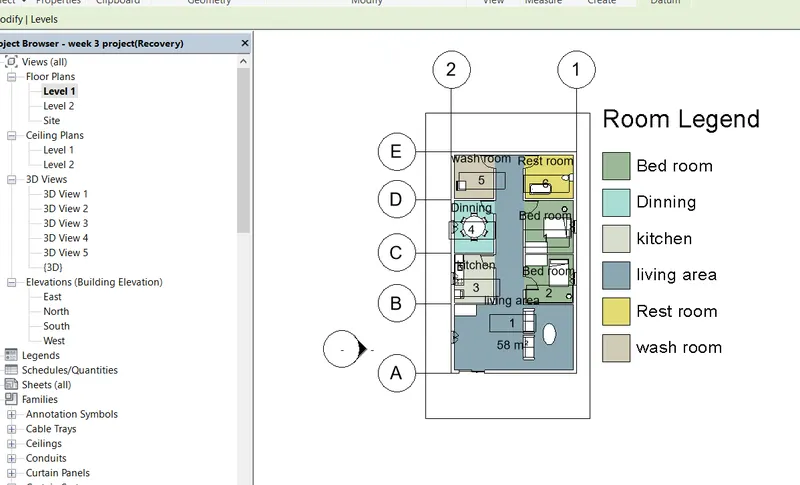

4) Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms

a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’)

The above are for examples. You can use them or use your measured entities to create your model based on your layout. You may include entry walkway, Patios or Guest
rooms based on your creativity and purpose of modeling. Convert units if you are using metric system

Aim: create interior partition walls to create separate rooms in residential units.

command used:

1. wall
2. architectural walls

Procedure:

1. properties select the wall thickness
2. select the wall and place wall in the layout.

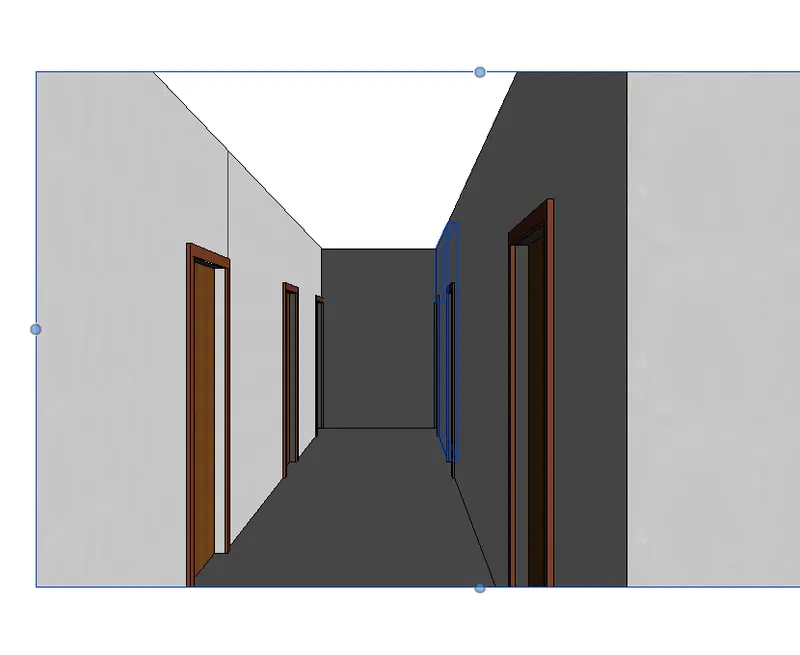

3. select the doors and windows place it where it necessary.
4. click 3d view

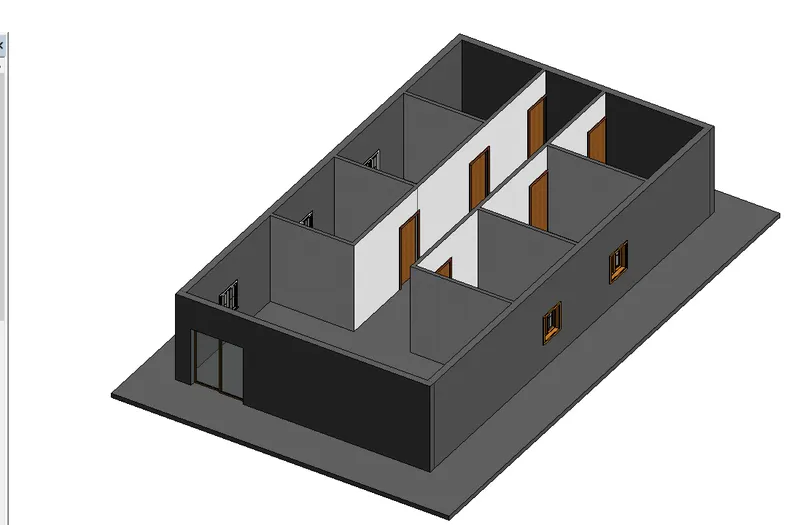

Results:

5) Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model

a. Place Doors and windows in the wall at appropriate locations

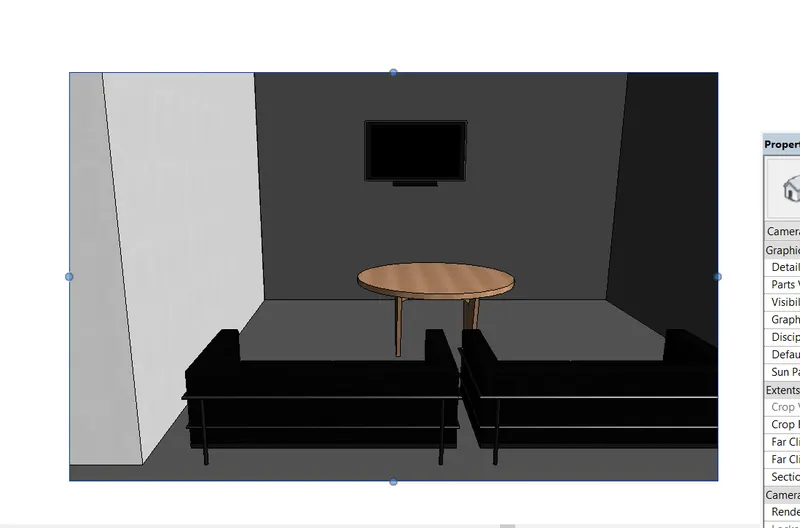

b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets

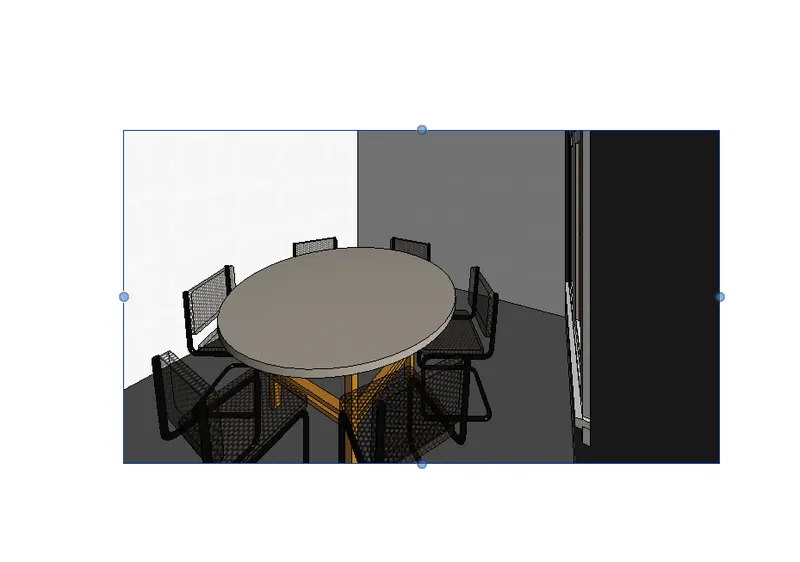

c. The Dining Room must include a table and chairs serving the purpose of eating

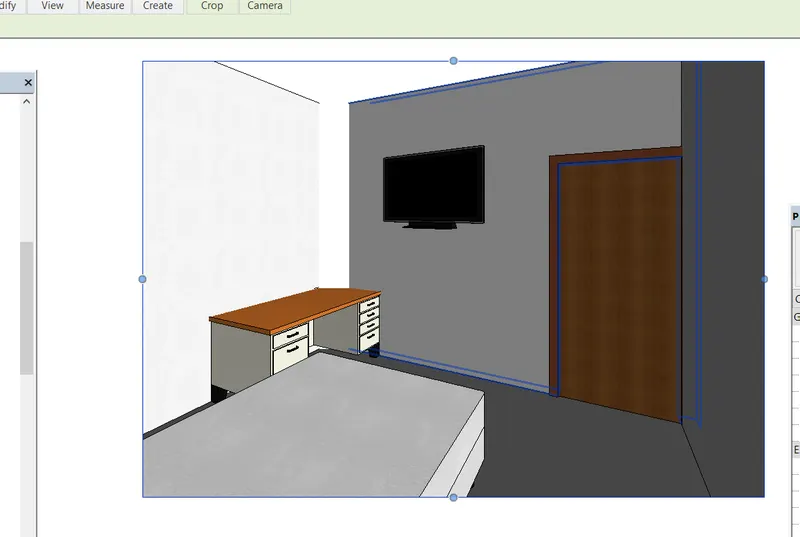

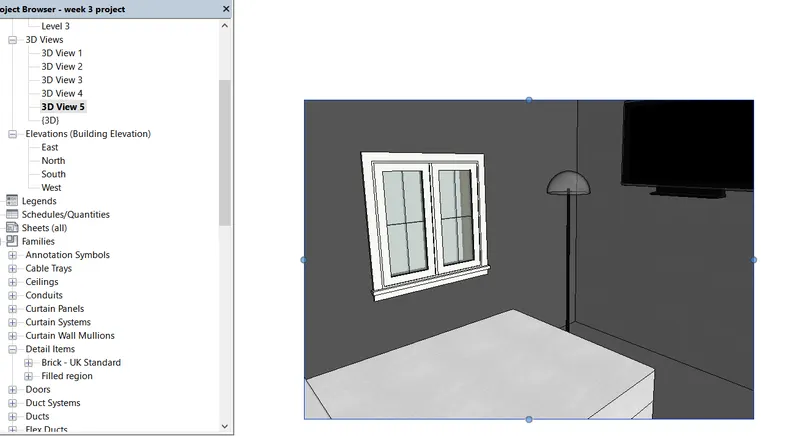

d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
e. Rest room should include bath tub and plumbing fixtures discussed in class
f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes

Aim: In the residential building instert the components and view the building in 3d.

command used:

• Architectural
• Components
• Select the components and load the family
• Insert
• Load family
• Select the furniture set, couch table and tv desk and cabinets

Procedure:

1. select the architectural and then components
2. select the components we requires to use and click it to place where it necessary.
3. select the bed , table, light,and cabinets place it in bed room
4. click insert and load family
5. In load family select the required components washing machine, table, soaf, tv units, and bath dub for the rest room
6. After load all the components and place it in planned rooms.

Results:
