Creating Walls, Partition walls and Floors for a residential layout using REVIT
1)+ Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2.
AIM:To create the Floor layout in the ground floor level by using the project file created froom week 2
TOOLS USED:
Architectural taab
Floor
Boundary line
Properties Browser
Edit typerr
PROCEDURE:
STEP-1:Open the Revit Software.
STEP-2:Go to File>Open and select the project file which is saved in Week-2.

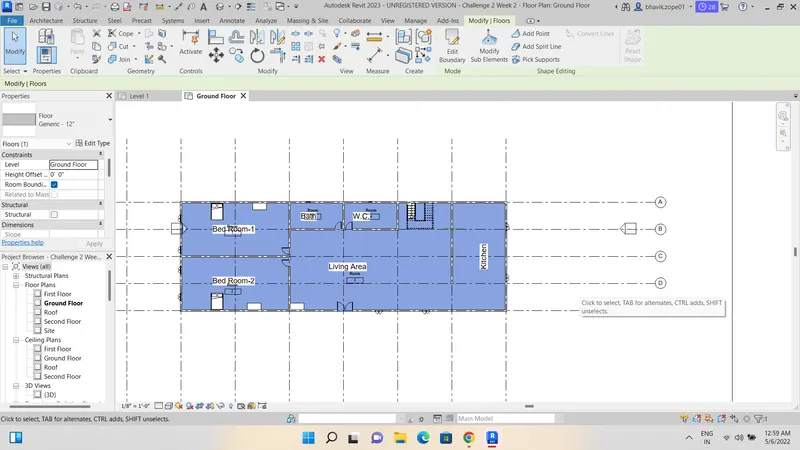

STEP-3:select the Architectural tab>Floor>Floor Architectural
STEP-4:Click on Boudary Line and select the Pick Line .
STEP-6:Now select the walls of the Layout and click ok.
STEP-7:Go to properties >Edit Type>Duplicate .
STEP-8:Name it as required.Click ok

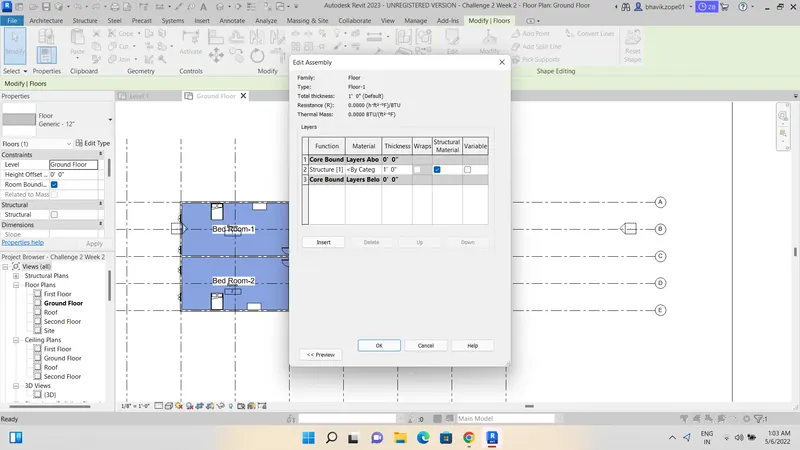

STEP-9:Now Click on EDIT in the Structure parameter .You will get the Dialouge box as shown below.
STEP-10:Click on By Category ,You will find the MAterial browser where you can see the different types of materials.
STEP-11:Select the material which you want to apply for floor and also change the Thickness.

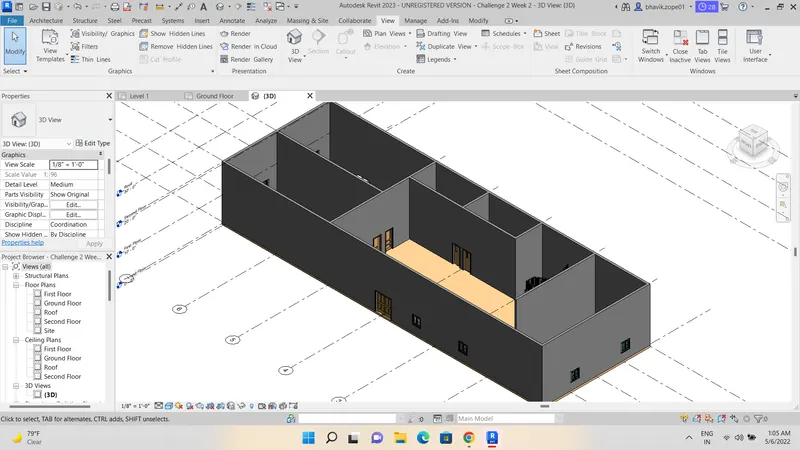

STEP-12:Go to 3D view and view the floor.
STEP-13:Align the grids to the plan by clicking on Architectural>Grids
RESULT:
The Floor is created with the required thickness and with the suitable material by using the architectural tab and the properties Browser successfully. Grids are Aligned.

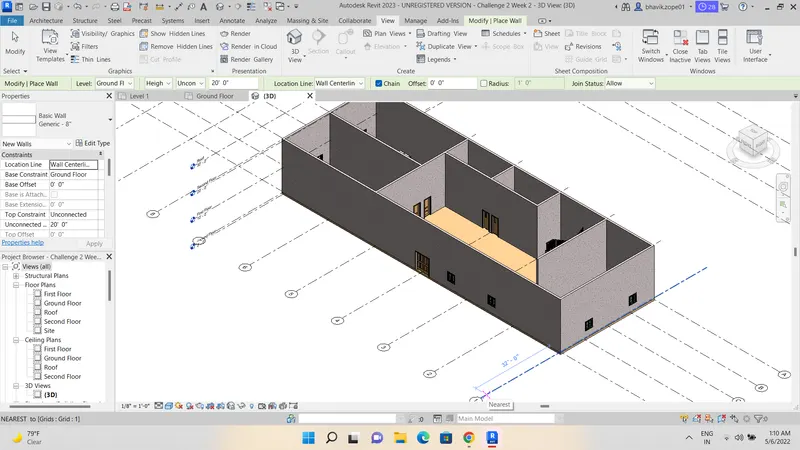

2) Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.
a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected.
b. Which option is convenient for modeling walls, By Height or By Depth?
AIM:To Add Walls Based on floor Layout and Modifying the Boundary wall and selecting appropriate material and thickness for walls and verifying Wheather the top and bottom walls are constrained.
TOOLSUSED:
Draw tool
Property browser
Walls
Architectural Tab
Wall
PROCEDURE:
STEP-1:Open the model that you have drawn already .
STEP-2:Go to Architectural tab>Wall>Wall:Architecture>properties>Edit type .A Type properties dialouge box appears click on edit .
STEP-3:A Edit Assembly dialouge box appears ,Go to By catagerios and change the material for the Walls and thickness.
STEP-4:Select the material and click ok.
STEP-5:In Properties you can able to see the top and bottom Constraints check wheather they are Unconnected or upto level 1 and select upto which level you need the wall and click apply.
STEP-6: select the Walls Upto Level 2 and Click Apply.Now all the walls will bw in same height.
RESULT:
The Walls Are created with the suitable Material and thickness by using properties browser and verified the constraints of the wall successfullly.
a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected.
Based on my observation When we connect the Walls upto the assosiated levels we don't have much work because all the wall are directly erected upto the level we need not to further change the each height of the wall .When the walls are Unconnected its takes much time to edit each wall upto the same level.
b. Which option is convenient for modeling walls, By Height or By Depth?
Height option is convenient than the Depth
3) Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align
elements to a different level.
AIM:To Copy the model elements modelled to ground floor Level and paste it aligned to First Floor Level by using the modify tab.
TOOLS USED:
Modify tab
Paste
copy
PROCEDURE:
STEP-1:Firstly,Select the model that you have created for Ground floorlevel.
STEP-2:Select the Modify toolbar >copy>paste>Aligned to selected views >Floor plan level 2 .Then click ok.
STEP-3: Now you will be able to view the ground floor plan in the Level-2.
STEP-4:Change the level-2 to First Floor level by clicking on it .
STEP-5: click on View>3D view default.
RESULT:
The model elements in the Ground floor level are copied and Aligned to the First Floor level successfully by using the Modify toolbar .
4) Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms
a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’)
The above are for examples. You can use them or use your measured entities to create your model based on your layout. You may include entry walkway, Patios or Guest
rooms based on your creativity and purpose of modeling. Convert units if you are using metric system.
AIM:To Create the Residential unit by Including the interior partiton walls .
TOOLSUSED:
Wall
Architecture
properties browser
Manage
annotate
PROCEDURE:
STEP-1:Open the Revit software.
STEP-2: Go to projects>new> Architectural Template .click ok.
STEP-3: Go to Manage tool and change the project units to Imperial units.
STEP-4:select the Architectural tab >Walls> Wall:Architecture.Draw the Layout of the Building.
STEP-5:Click on the wall.Select the properties and select the Exterior wall of Required thickness.
STEP-6:Draw the interior walls of required thickness .

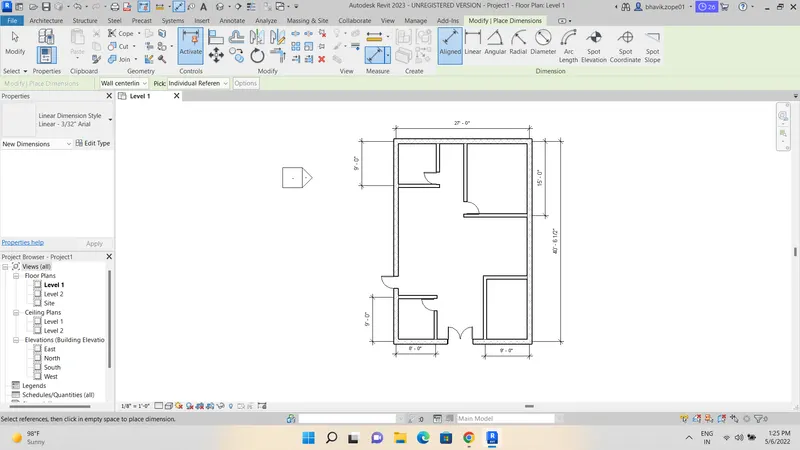

STEP-7:Align the dimensions to the Model By Clicking the Annotate>Aligned .and selecting the two end points in the model.

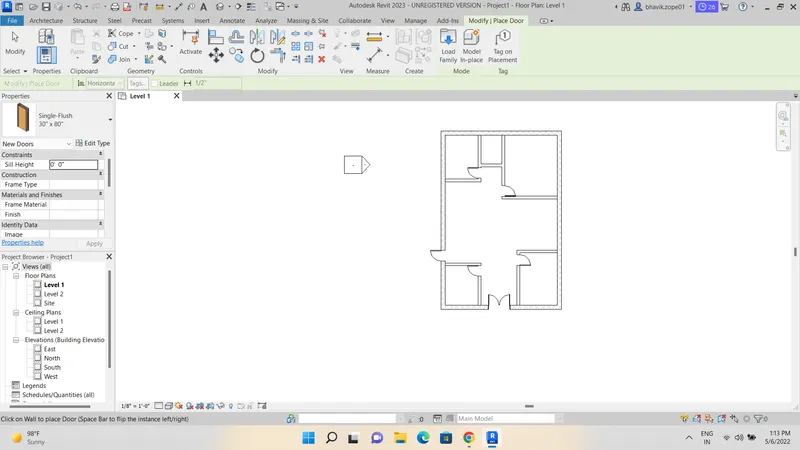

STEP-8:select the Architectural tab>Doors and select the door in the properties or load it from the load families.

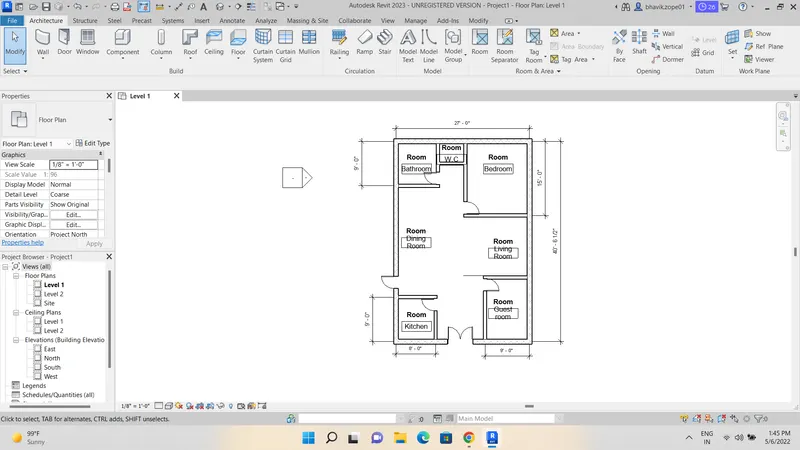

STEP-9 :Now Add the room by Selecting Architectural tab>Rooms.And rename them based on our usage .

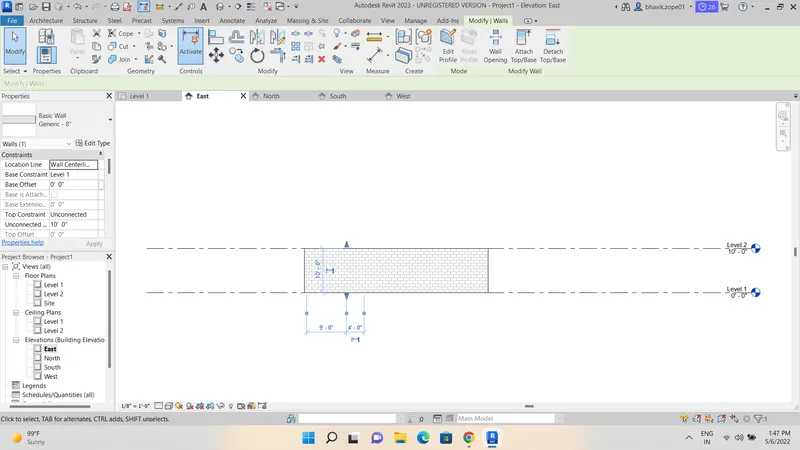

STEP-10:Go to the propertiesbrowser and elevation and east and select the levels up to the required height.by clicking on it.and Adjust the walls upto the level-2 so that all walls are at same height.

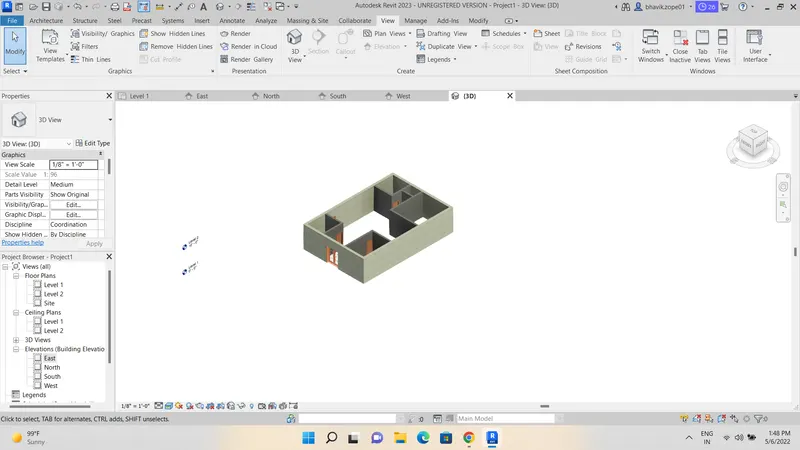

STEP-11:Go to View>3d view>3D default view. To view the model in 3D.
RESULT:
The Residential layout with the interior partion walls are created and rooms are named successfully by using room tab and the dimensions also aligned and it is viewed in 3D.
5) Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model
a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
c. The Dining Room must include a table and chairs serving the purpose of eating
d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
e. Rest room should include bath tub and plumbing fixtures discussed in class
f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes
All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real time basis to verify the model
AIM:To Add the components to the Residential unit from the revit Library and placing them at appropriate loacations .
TOOLSUSED:
LoadFamilies
Insert
Properties browser
View
PROCEDURE:
STEP-1:Open the revit software .Go to open and open our revit file that saved on week-2.
STEP-2:Select the Insert tab >Loadfamilies and load the elements from the required families.
STEP-3:Go to Properties Browser and Select the catagery and you will find the group of same elements that you loaded from the Load family .
Select it and place it in the suitable place .
STEP-4: To place the Windows to the model.By Selecting INSERT>LOAD FAMILIES.you will find the Dialouge box and select the window category and select the required type of window you need.
STEP-5:Now go to properties browser and Windows Categary now you will find the family of windows in which you will have the component that you have loaded in the Load Family . Select and place at suitable place.
STEP-6:Place All the required components for LIVING ,KITCHEN,BEDROOM,RESTROOM,TOILET by using the Step-2 and Step-3.

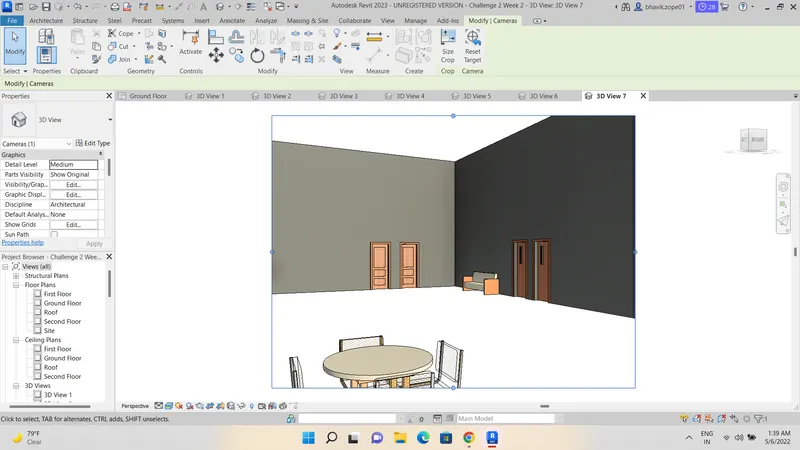

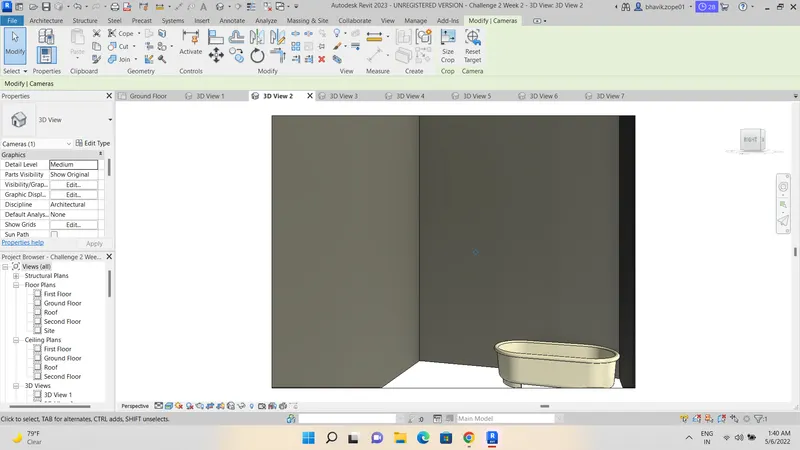

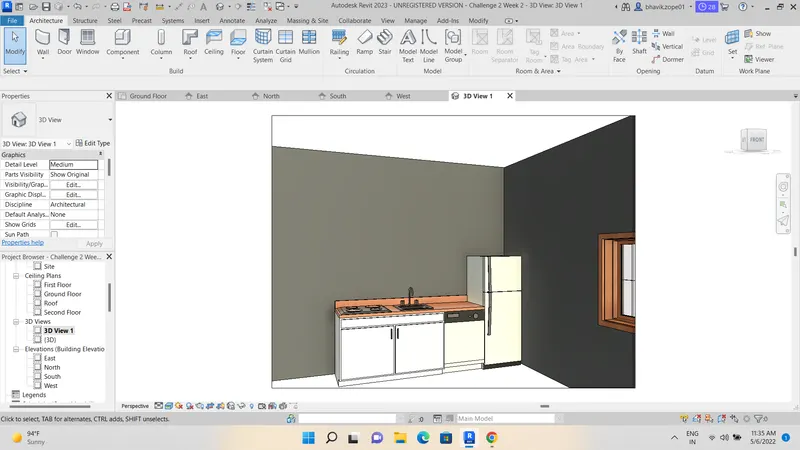

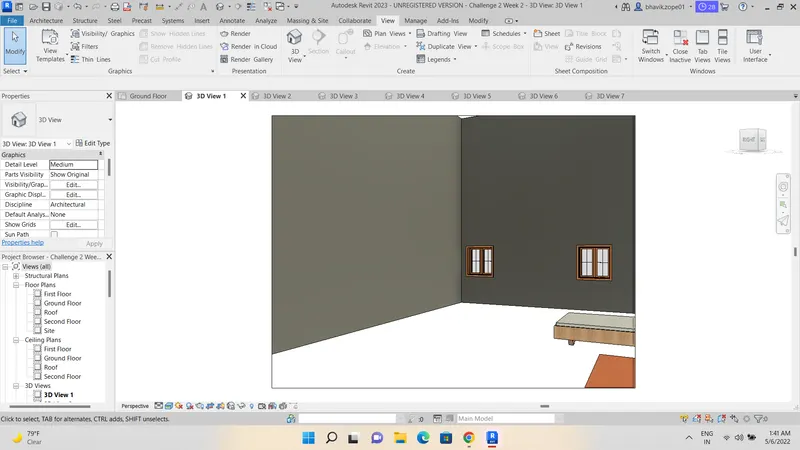

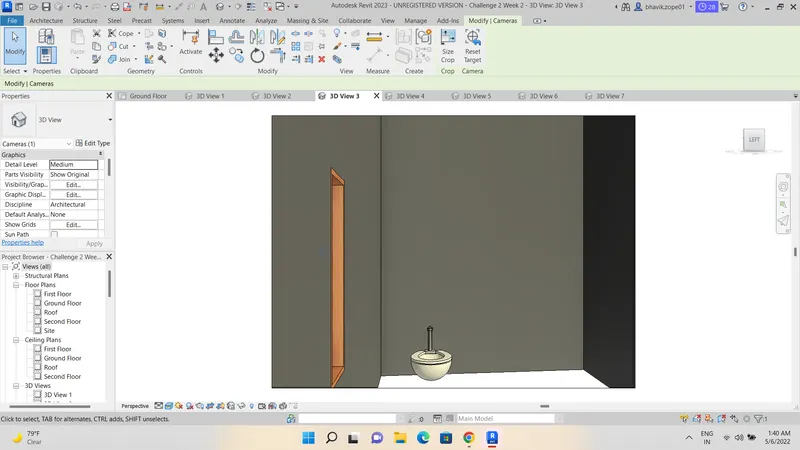

STEP-7: You can View the Components in the individual room by clicking on View>Camera.
STEP-8:Place the Camera in which direction you need the view.
STEP-9:Now you can able to view the components in 3d.You can Rename the view name by right click and go to rename and name it as required.I.E BEDROOM,LIVING TOILET ,KITCHEN.
RESULT:
The component which are extracted from the revit library are added at suitable place successfully to the model and components are Viewed by the camera.
