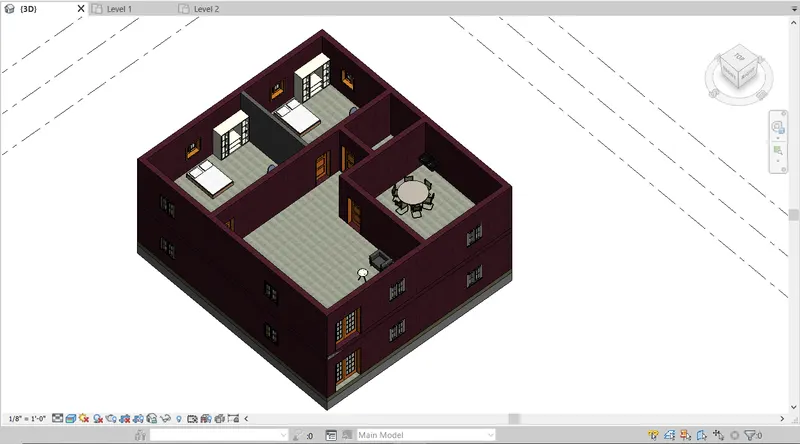

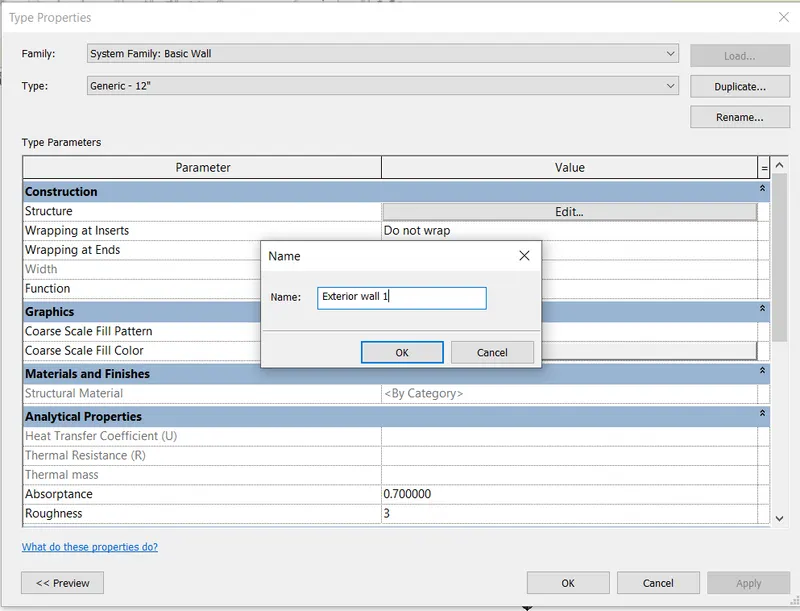

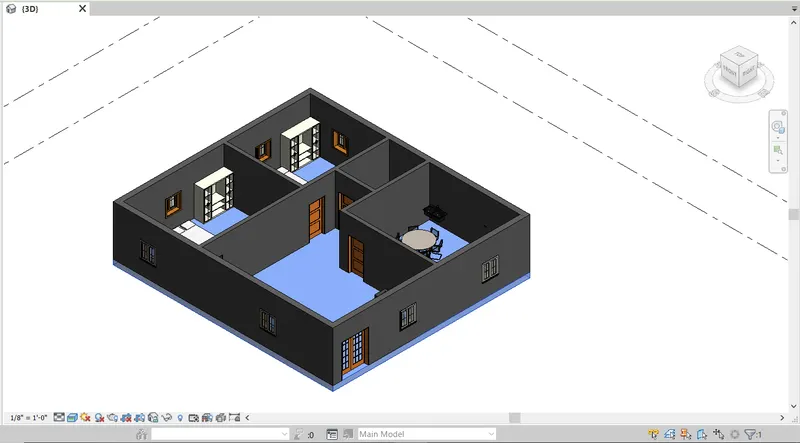

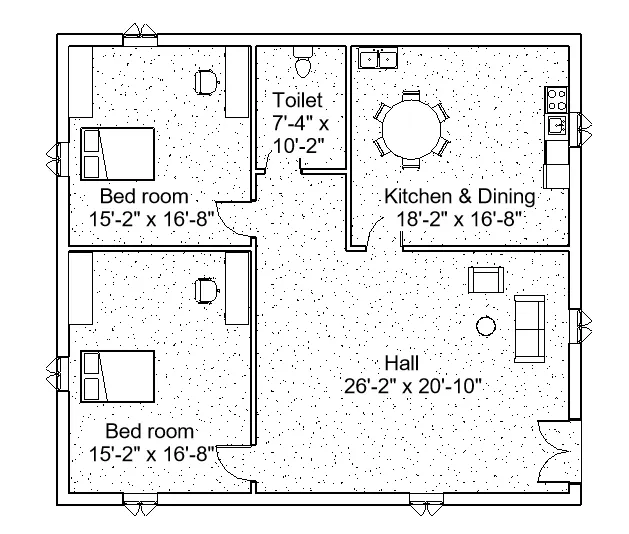

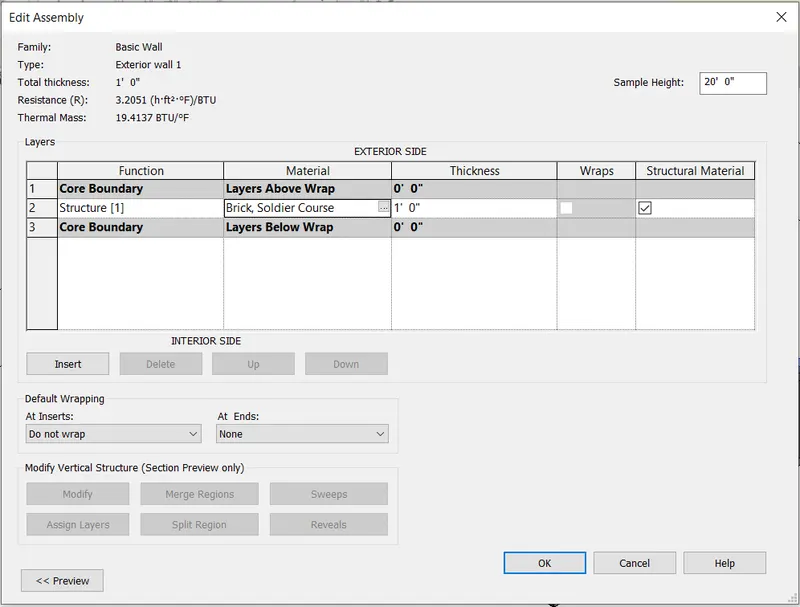

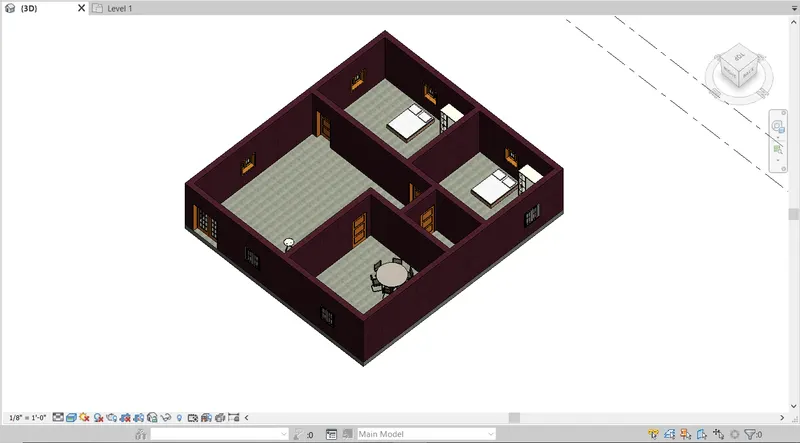

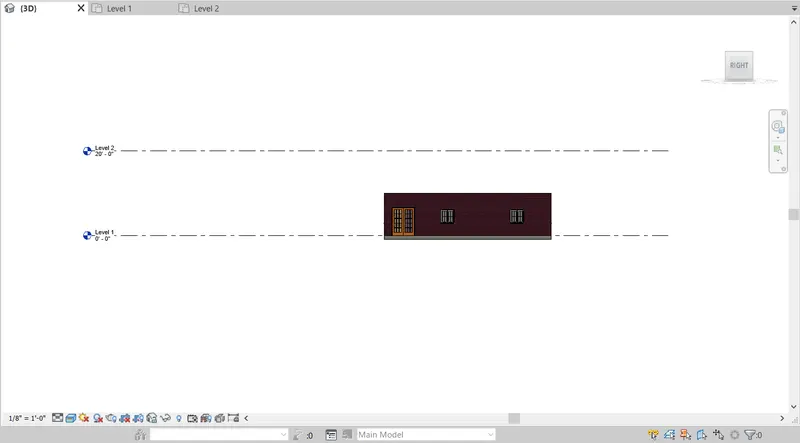

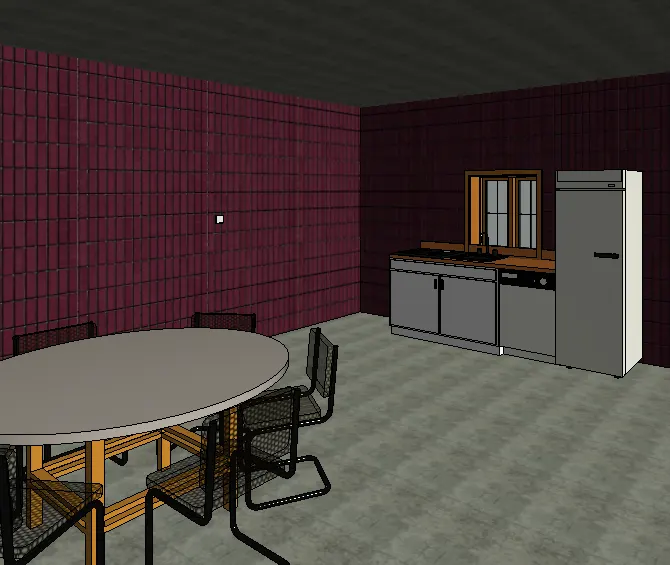

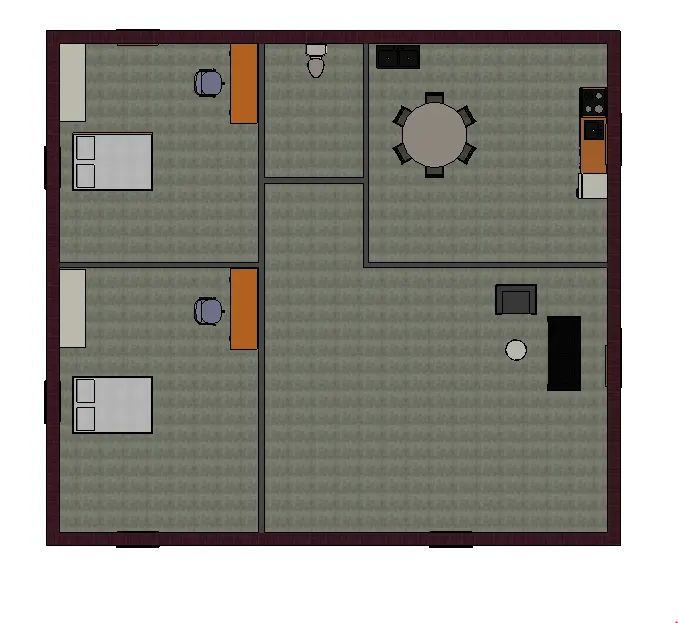

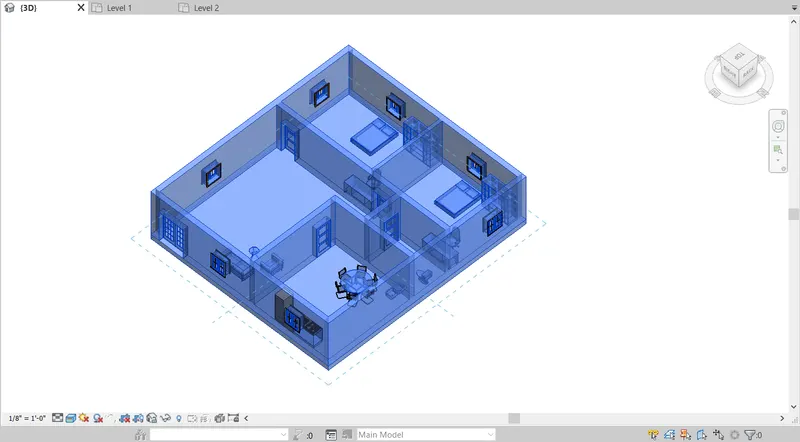

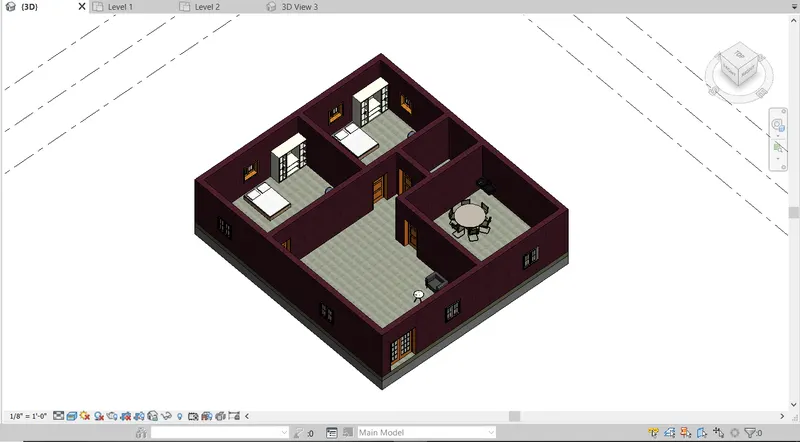

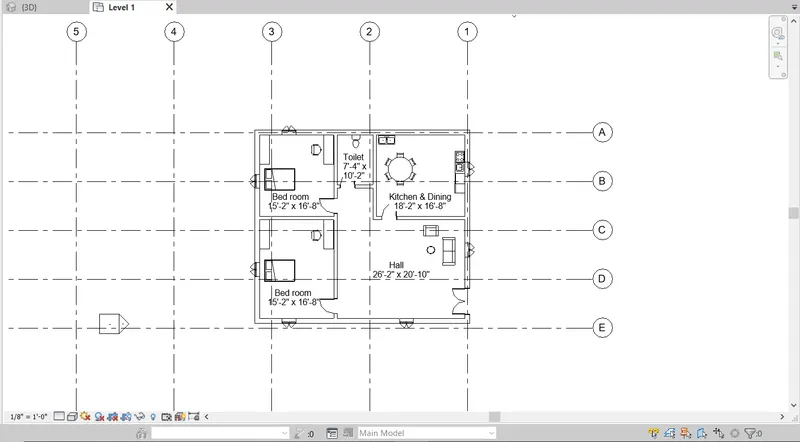

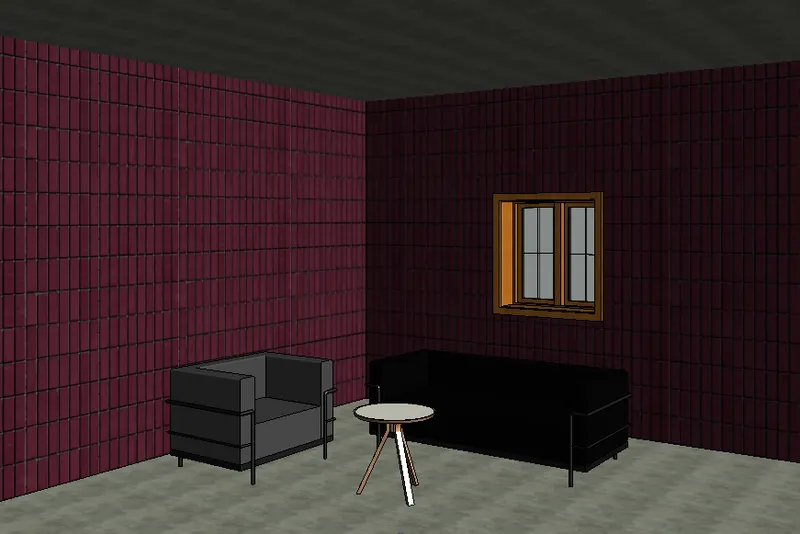

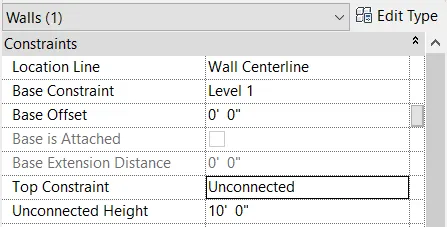

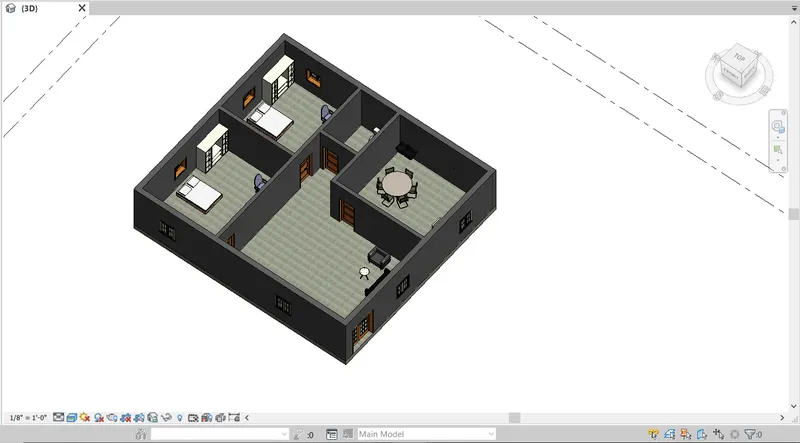

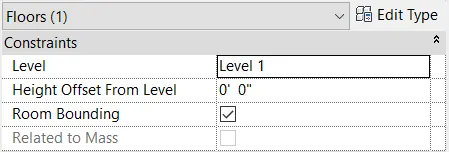

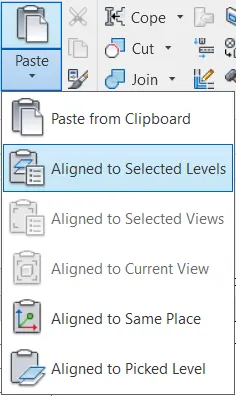

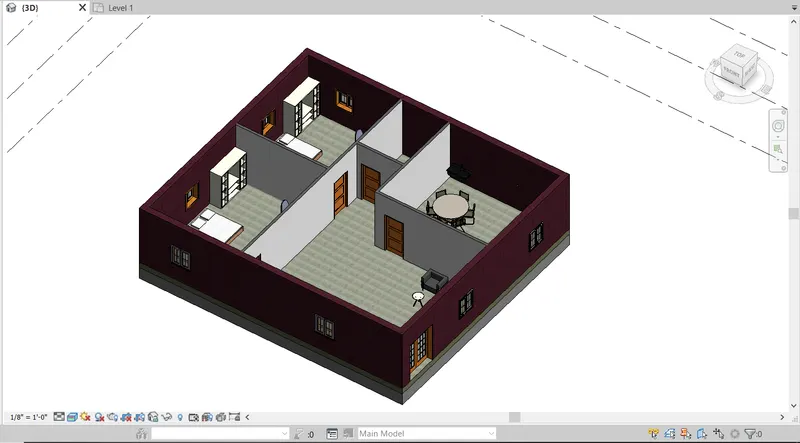

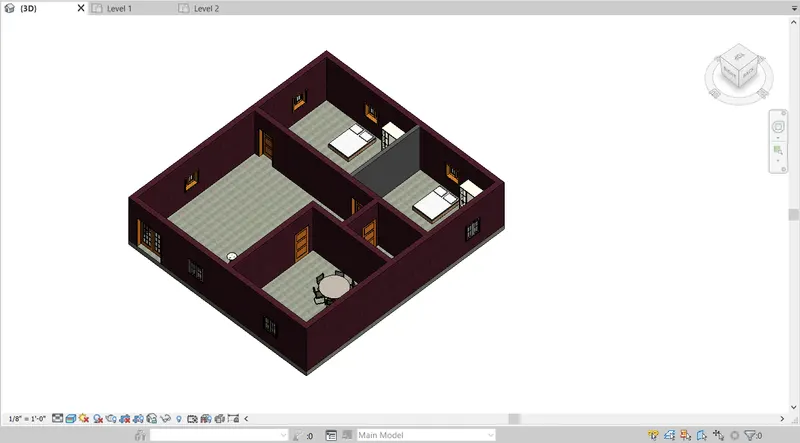

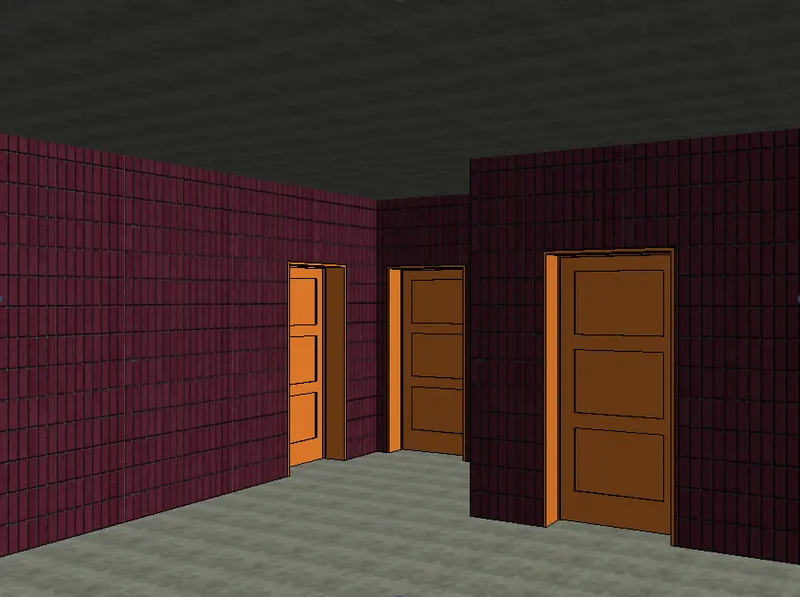

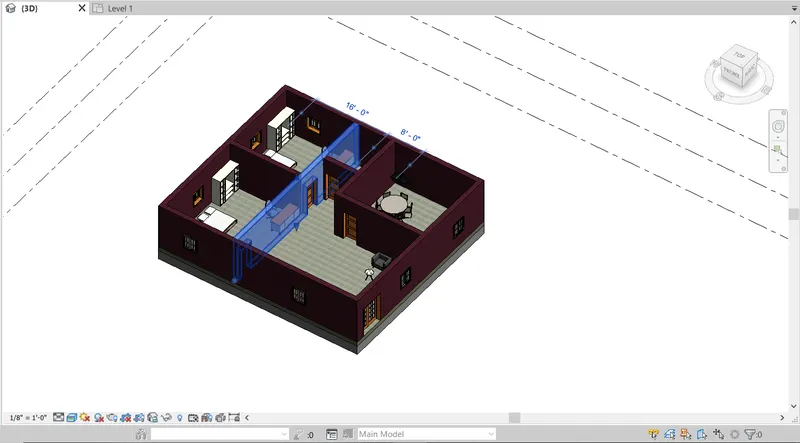

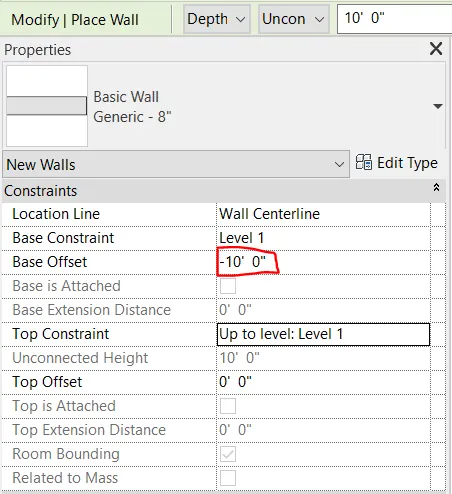

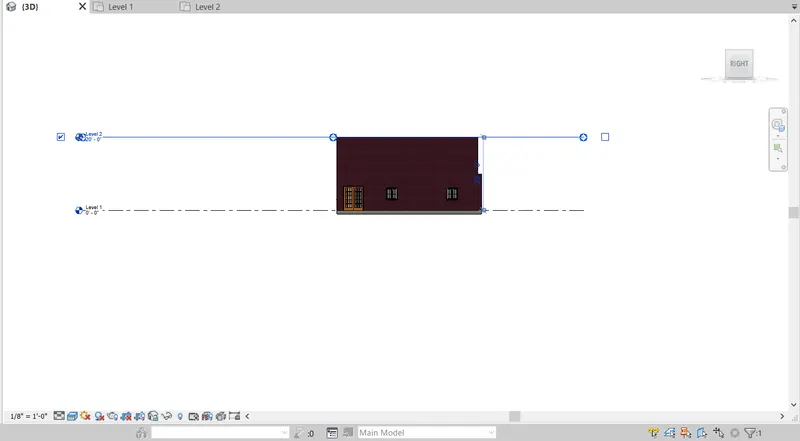

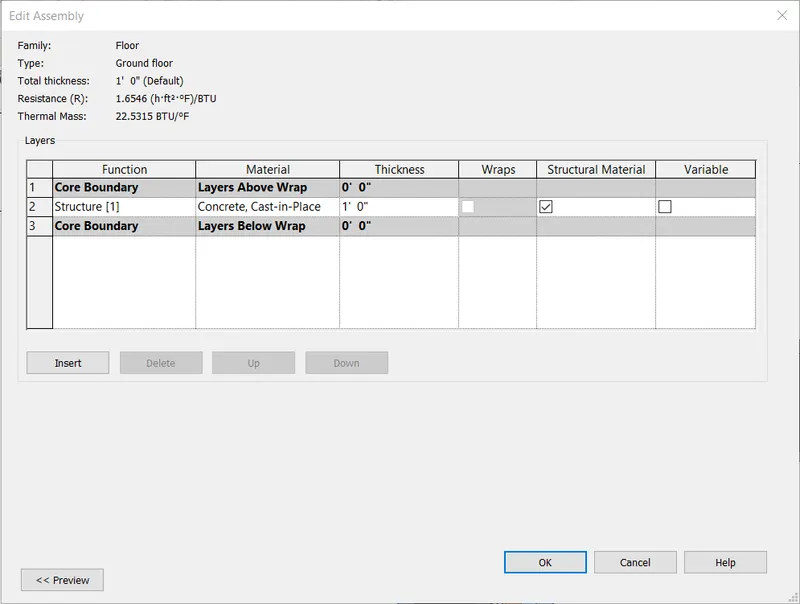

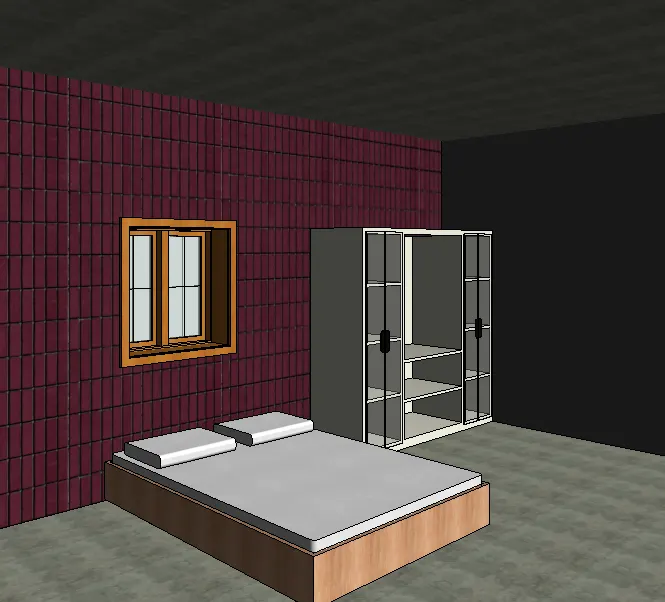

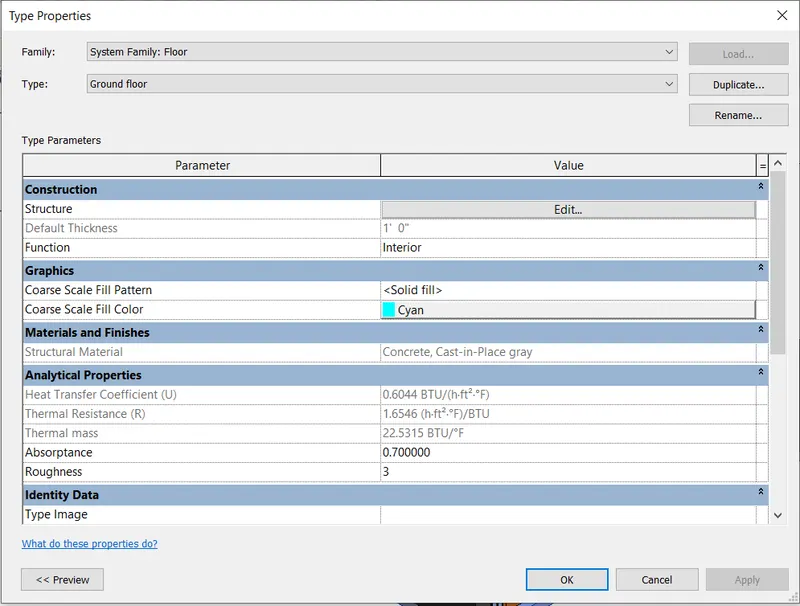

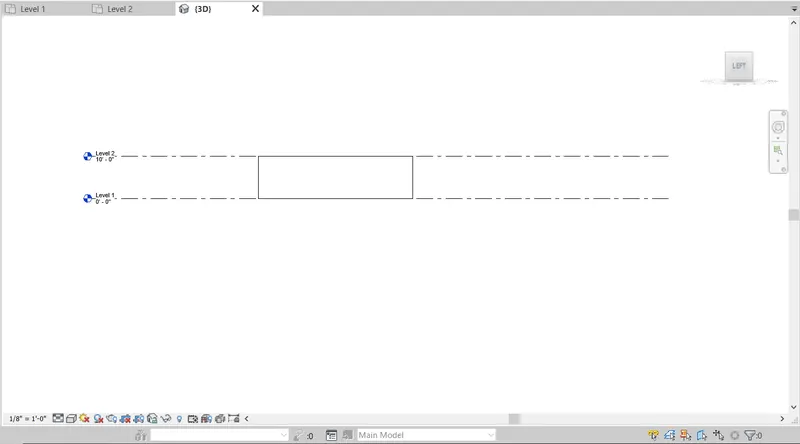

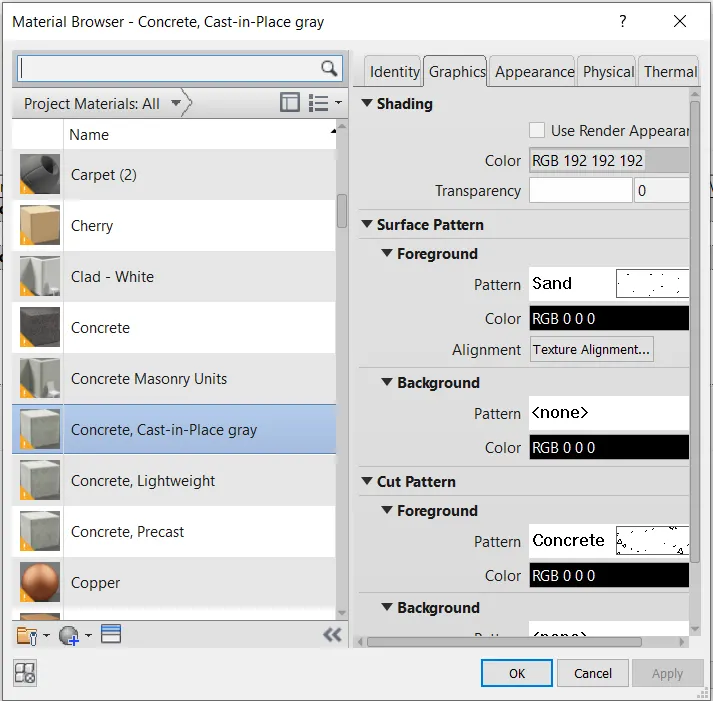

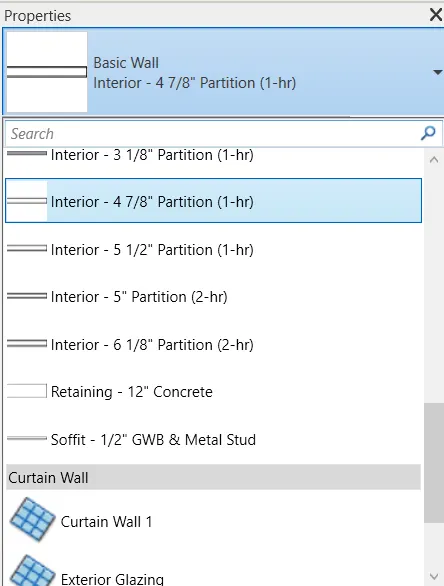

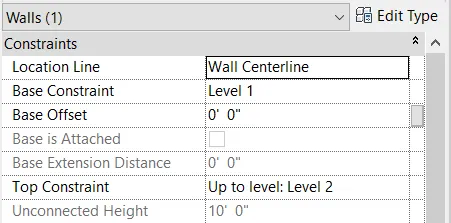

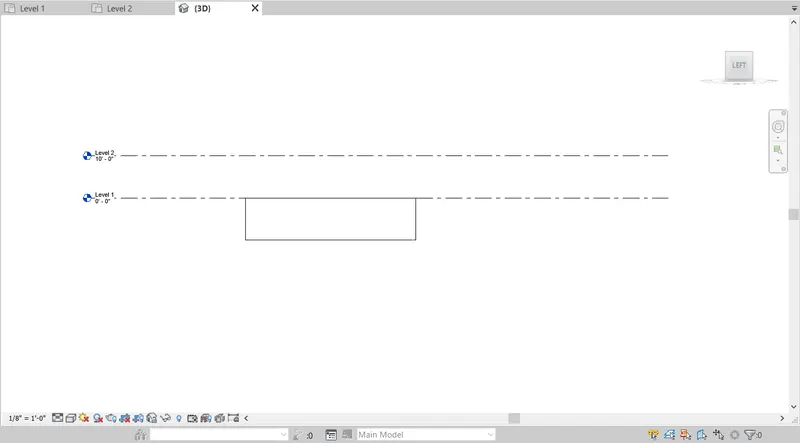

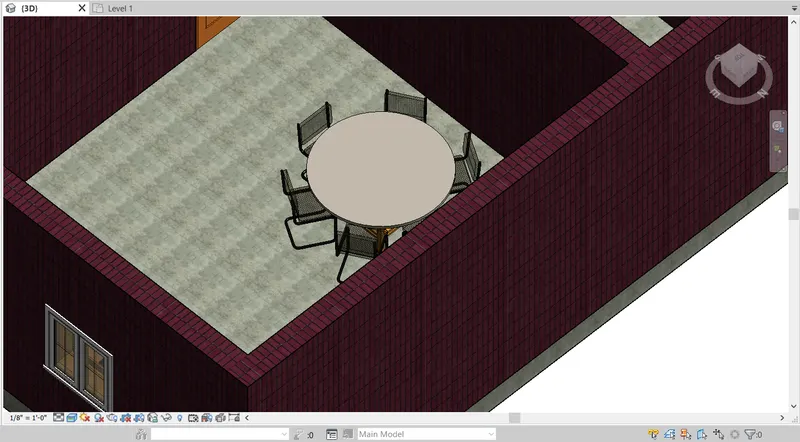

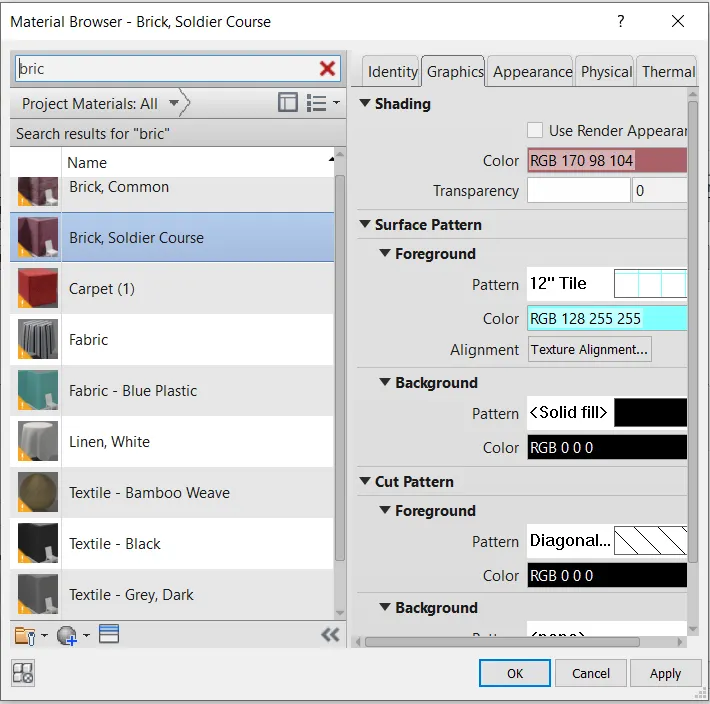

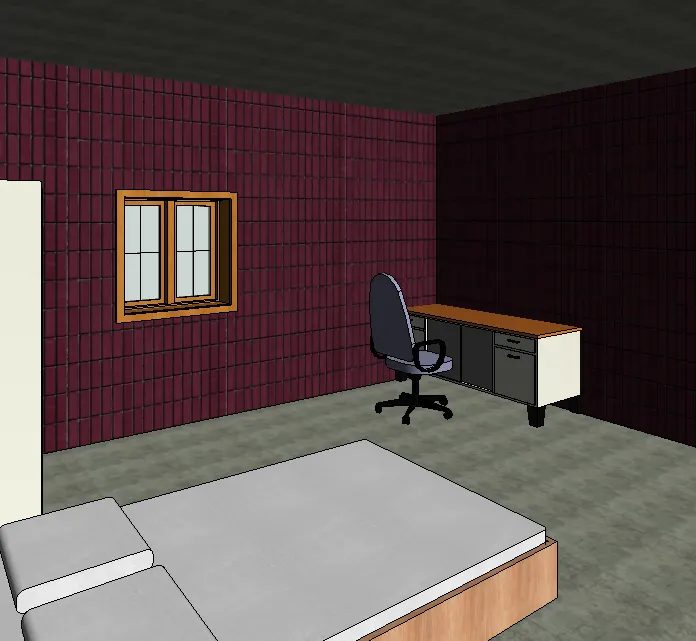

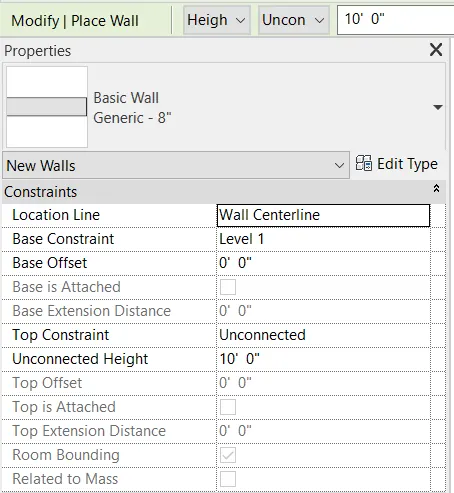

Creating Walls, Partition walls and Floors for a residential layout using REVIT

USAGE OF NAVIGATION TOOL, TIMELINER AND CLASH DETECTION TEST USING NAVISWORK   1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class AIM:- To export the Revit…

) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. AIM: To create a set of sinusoidal points, create a curve and provide surface to the curve. INTRODUCTION: A sine wave or sinusoidal wave is the most natural representation of how many things in nature…

PREPARING SCHEDULE AND COST ESTIMATION FOR A BUILDING   1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below           a. Using 3D model create a section box           b. To create similar doors and windows…

1) What are HVAC systems? Why are they essential in the modeling of buildings A) HVAC Systems: HVAC systems are responsible for the regulation of heat, airflow, ventilation, and air conditioning of an entire building. You won’t see the machines when you enter the building but you will most certainly feel the…

1) Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School A) My project is to built the Multi-unit residential apartments from the given three options.…

1) Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project.     AIM:- To set project base point and project shared coordinates for the project using manage tab in the architectural template.     INTRODUCTION:- …

1) Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit ? A) Building codes essential for the modeling/ efficiency of drawings in Revit Building codes address many of a society’s most important concerns, including public health and safety, and environmental protection.…

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.     AIM:- To model a Ceiling from the architecture tab above the walls at the first-floor level.     INTRODUCTION:- The creation…

1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from…

1) What is BIM? Summarize the features of BIM and benefits of using BIM over 2D CAD tools. A) Building Information Modeling(BIM):- BIM is an acronym for Building Information Modeling or Building Information Management. It is a highly collaborative process that allows architects, engineers, real estate developers,…

1) From the file menu, create a new project (Structural / Architectural / Construction template ) and name the project appropriately AIM:- To create a new project from the file menu and need to name the project appropriately.     INTRODUCTION:- For creating a project, select a template from the Projects list…

Aim : To draw the 3D residential building and to create the rendered view  Introduction :- The general commands used for drawing the building is as follows : Line Polygon Rectangle Circle Erase Copy Trim Offset Extend Move Rotate Dimension Text Fillet Extrude 3D Rotate Etc.   The dimensions: External and Internal…

CREATING 3D ISOMETRIC VIEW OF VARIOUS STRUCTURAL ELEMENTS   Introduction Isometric drawings: These drawings are not actual 3D drawings, they are made with 2D geometries but they appear like 3D. Isometric drawing in AutoCAD can be made by tilting viewing angle to 30 degrees for all of its sides in the 2D plane. Isometric…

AIM: To create a 3D Furniture element as given in the figure and need to assume dimensions which are missing in the drawing.    INTRODUCTION: The three dimensional furniture element was drawn in the autocad using the different tools in the autocad. 3D models are widely used anywhere in 3D graphics and CAD.…

 AIM:- To create a layout of the plan and section A of the project in challenge 7 using the template                 And use the MV command to create the viewport of the size from the given figure.      INTRODUCTION: Plan and Sections are different types…

AIM: To create a Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad   INTRODUCTION: The main objective of doing this project is to understand in detail about the various options and tools which are used for hatching. The various tools which are used for doing this…

CHALLENGE-1 Q] Create the templates as shown in Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock,…

DEVELOPING ARCHITECTURAL AND STRUCTURAL DRAWINGS OF A RESIDENTIAL BUILDING   AIM: To draw, Architectural Drawings of Floor Plan, Elevations, and Sections Structural Drawings of Column, Beam and Footing Plan.   INTRODUCTION:  Architectural and structural drawings are generally considered to be the drawings of steel, wood,…

1. Create the Plan and Sections as shown in the Figures. Use proper dimension techniques and dimension styles to document the project. Assume the sizes of the doors and windows as per construction standards. Refer to sections for stair details if required. 1.Aim:     To Create a Floor Plan 1,2&3 by using Auto Cad. INtroduction:…

1) ELEVATION AND DETAILS OF A WARDROBE AIM: To create the elevation and details of a wardrobe using AutoCAD. INTRODUCTION: The elevation and details of a wardrobe using AutoCAD is created by Lines and Circles. The procedure and result should be written after creating the elevation and details of a wardrobe. PROCEDURE:…

1) COLUMN SCHEDULE AIM: To create the column schelude using autocad INTRODUCTION: The column schelude using autocad is created by lines and circles. the procedure and result should be written after creating yhe column  schelude PROCEDURE: STEP1: open the autocad softwareand click start drawing tab enter units in commnd…

AIM: To draw the given residential plan with the details given. INTRODUCTION: Residential Layout is ideal for students and practitioners of urban design, planning, engineering, architecture and landscape seeking a comprehensive guide to the theory and practice of designing and laying out residential areas Commands…

  CROSS SECTION OF WALL OVER SPREAD FOOTING: AIM:  To draw c/s of wall over spread footing PROCEDURE:  LINE Specify first point : 1,1  Specify next point : @0.90<0  Specify next point : @0.25<90  Specify next point : @0.90<180  Specify next point [close/undo] : close  Specify…

1. AIM:  Drafting of various given geometries using Chamfer, Fillet tool in AutoCad PROCEDURE: Setting the units select decimal and precision 0,0 Using command POLYLINE,  Specify first point ; 1,1 Specify the next point @3<0 Specify the next point @2.12<45 Specify the next point @2.83<135 Specify the…

CROSS SECTION OF WALL OVER SPREAD FOOTING: AIM:  To draw c/s of wall over spread footing PROCEDURE:  LINE Specify first point : 1,1  Specify next point : @0.90<0  Specify next point : @0.25<90  Specify next point : @0.90<180  Specify next point [close/undo] : close  Specify next…

AIM:   Create the geometries from P1 to by using all the coordinates system methods. PROCEDURE: ABSOLUTE COORDINATES: Choose the line tool LINE Specify first point: 2,1 Specify next point or [undo] : 2,7 Specify next point or [undo] : 8,7 Specify next point or [undo] : 8,6 Specify next point or [undo] : 3,6 Specify…

DEAD LOAD: SELF WEIGHT OF SLAB:      Self weight of slab = Slab thickness x unit weight of RCC      Thickness of slab = 125mm      Self weight of slab = 0.125x25KN/m^3 = 3.125KN/m^2 SELF WEIGHT OF BEAM :      Self weight of beam = beam depth x beam width x unit…

CONCRETE MIX DESIGN FOR M35 GRADE CONCRETE WITH FLY ASH: Stipulations for proportioning:         a) Grade designation             : M35         b) Type of cement                 : OPC 53 Grade conforming…
