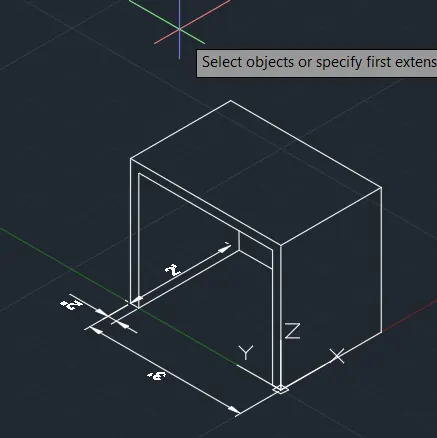

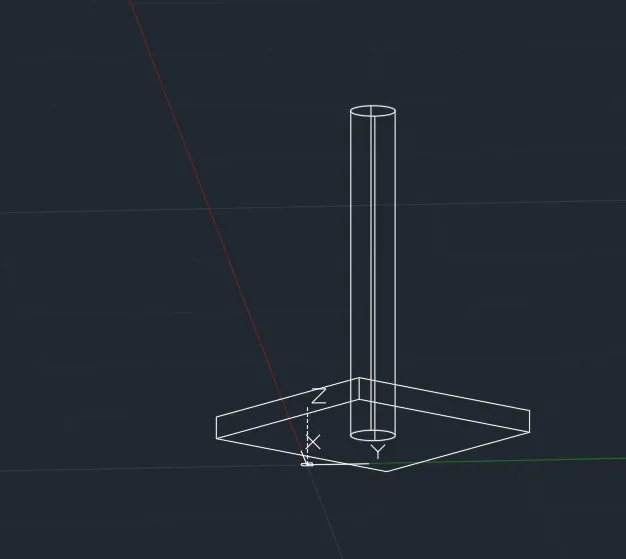

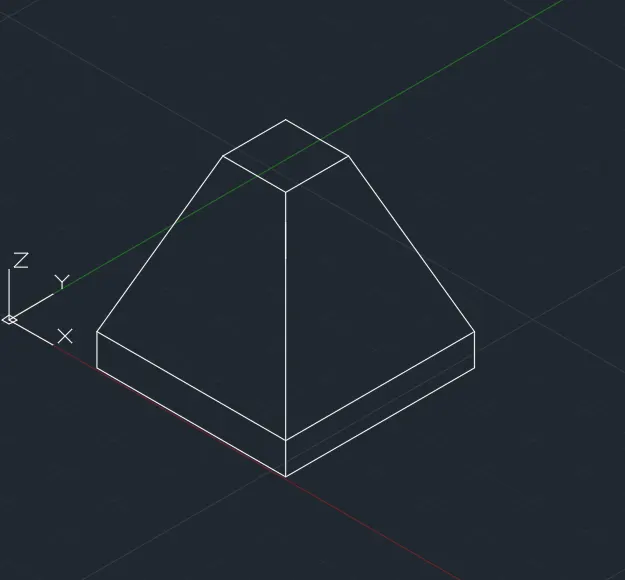

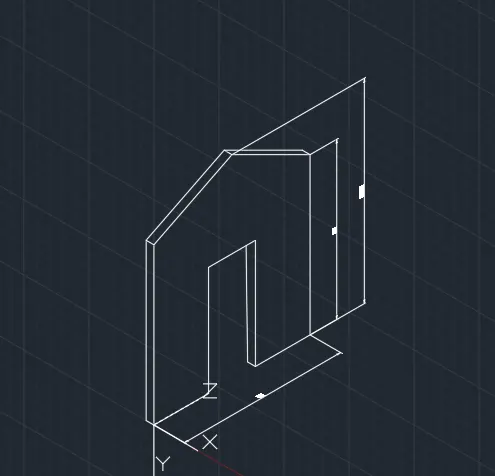

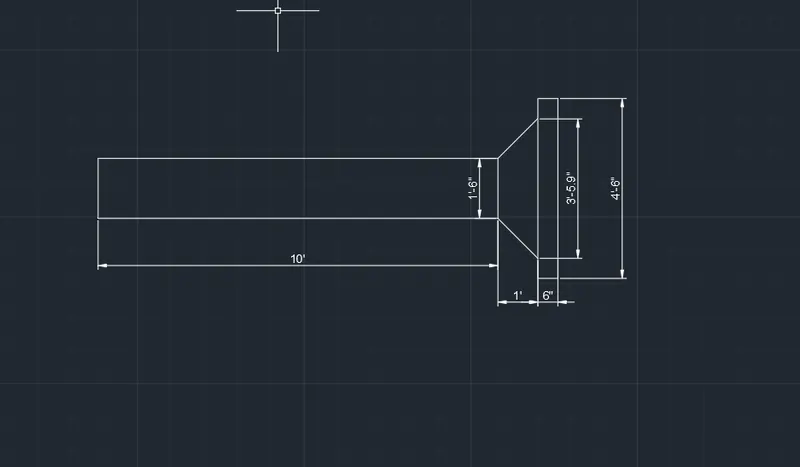

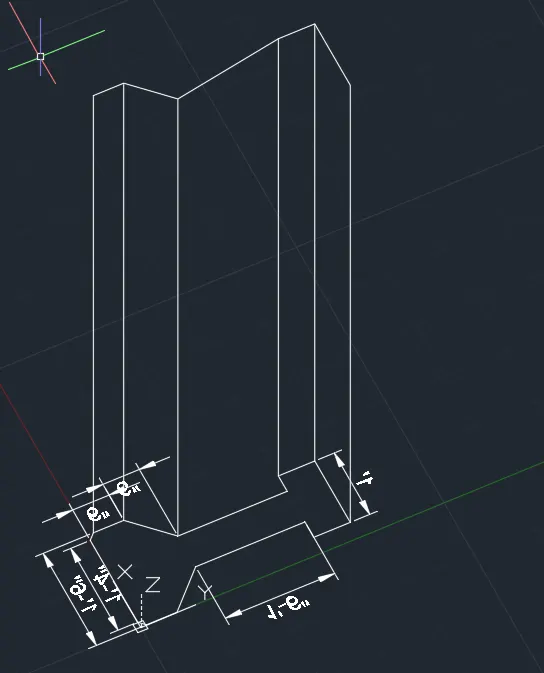

Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad

AIM : TO DRAW THE ABOVE IMAGES IN AUTO CAD SOFTWARE IN 3D

PROCEDURE :

GO TO WORK SPACE AND KEEP 3D MODELING (AT BOTTOM SETTING SYMBOL)

WE CAN OBSERVE X,Y,Z AXIS

APPLY UNITS

WE HAVE GIVE THREE DIMESIONS TO DRAW ANT FIG

LIKE ( L ENTER (0,0,0)

SO LINE STRAT FROM ORIGIN

IF WE WANT TO MOVE IN X AXIS 3' (3,0,0,)

3' IN Y AXIS (3,3,0)

IN SAME WAY WE CAN DRAW

IF WE ARE MOVING IN -VE WE NEED TO APPLY -VE ONLY

AND ALSO WE CA APPLY ANGLE @3<50 LIKE THAT

RESULT : ABOVE FIGURES ARE DRAWN IN AUTO CAD SOFT WARE IN 3D VIEW
