Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad

ANSWER1.

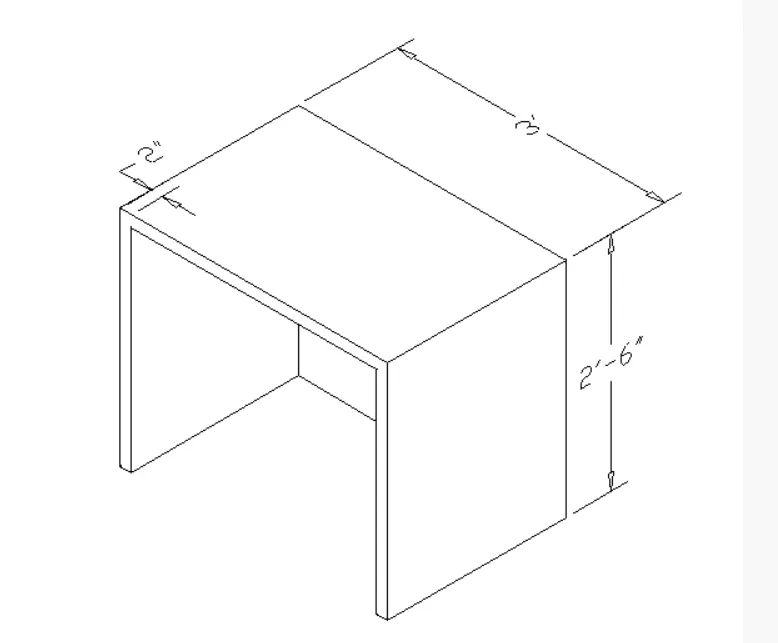

AIM :TO CREATE A 3D FURNITURE ELEMENT AS GIVEN IN THE FIGURE AND NEED TO ASSUME DIMENSION WHICH ARE MISSING IN THE DARWING .

INTRODUCTION :

• THE THREE DIMENSION FURNITURE ELEMENT WAS DRAWN IN THE AUTOCAD USING THE DIFFERNENT TOOLS IN THE AUTOCAD .
• 3D MODELS ARE WIDELY USED ANYWHERE IN 3D GRAPHICS AND CAD.
• THEIR USE PREDATES THE WIDESPREAD USE OF 3D GRAPHICS ON PERSONAL COMPUTERS.
• THE 3D MODELS ARE MAINLY PREFERABLE IN THE CIVIL ENGINEERING AND WHEN WE DESIGN A BUILDING IN THE AUTOCAD THEN CREATING 3D MODELS SHOULD BE MUST .

PROCEDURE:

STEP 1 :

• FIRST WE HAVE TO OPEN THE AUTOCAD AND NEED TOSET THE UNITS AND DIMSTYLE.
• NEXT WE HAVE TO ENTER THE UCS COMMAND AND ADJUST UCS ICON ON THE SCREEN.
• AFTER SETTING THE UCS ON THE SCREEN WE NEED TO DRAW THE LINE WITH THE LENGTH OF 3'.
• NEXT DRAW THE LINE FROM THE PREVIOUS LINE UPWARDS WITH THE LENGTH OF 2'6".
• AGAIN DRAW THE LINE FROM THE PREVIOUS LINE WITH THE LENGTH OF 3' HORZONTALLY.
•  NEXT WE DRAW THE LINE FROM THE FIRST LINE AND LAST  LINE TO CLOSE THE RECTANGLE .
• NEXT WE HAVE TO USE THE EXTRUDE COMMAND TO EXTRUDE THE RECTANGLE TOWARDS BACK WITH THE LENGTH OF 2'.

STEP 2:

• NEXT WE DRAW THE RECTANGLE INSIDE THE ETRUDED BOX AS SHOWN IN THE BELOW FIGURE.
• NEXT WE HAVE TO EXTRUDE THE INSIDE RECTANGLE WITH THE LENGTH OF 1'-10' , AS SHOWN IN THE BELOW FIGURES.

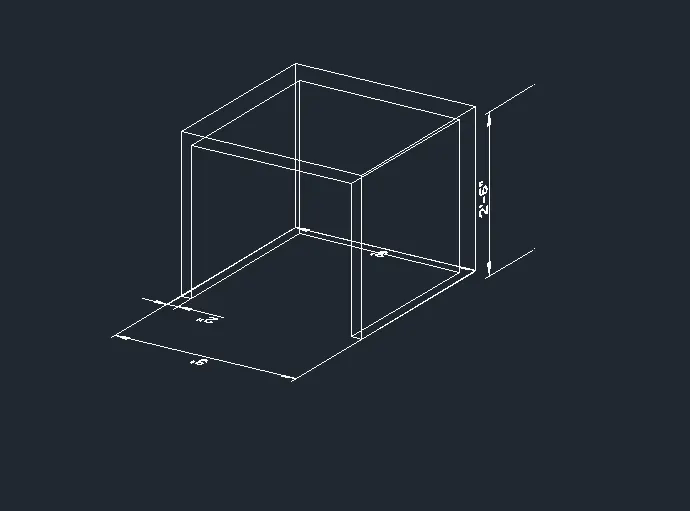

• NEXT WE SUBTRACT THE INSIDE BOX FROM THE OUTER BOX USING THE SUBSTRACT COMMAND AS SHOWN IN THE BELOW FIG.
•

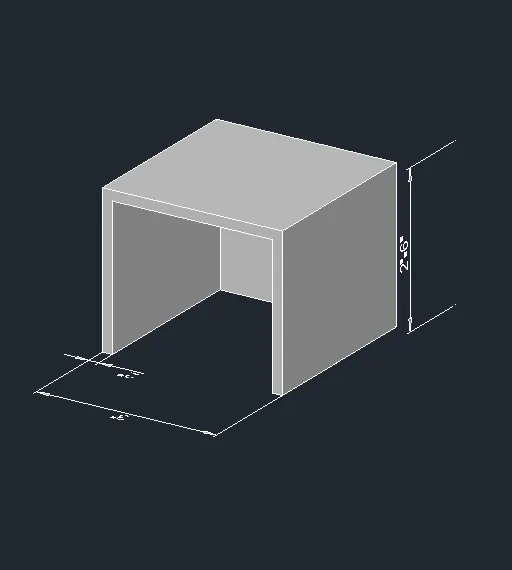

• NEXT WE CLICK THE CUSTOM VISUAL STYLE AT THE TOP LEFT CORNER OF THE DRAWING SCREEN, AND SELECT THE SHADED OPTION INTHE CUSTOM VISUAL STYLE .
•

RESULT :

• CREATED THE 3D MODEL OF THE GIVEN FURNITURE ELEMANT WITH THE PROPER DIMENSION IN THE AUTOCAD IN DETAIL.

ANSWER 2 :

AIM : TO CREATE THE 3D MODEL OF AN ISOLATED FOOTING IN THE AUTOCAD IN DETAIL .

INTRODUCTION :

• THE THREE DIMENSION OF ISOLATED FOOTING WAS DRAWN IN THE AUTOCAD USING THE DIFFERMENT TOOLS INT HE AUTOCAD .
• 3D MODEL ARE WIDELY USED ANYWHERE IN 3D GRAPHICS AND CAD.
• THEIR USE PREDATES THE WIDESPREAD USE OF 3D GRAPHICS ON PERSONAL COMPUTERS.
• THE 3D MODEL ARE MAINLY PREFERABLE IN THE CIVIL ENGINEERING  AND WHEN WE DESIGN A BUILDING IN THE AUTOCAD THEN CREATING 3D MODELS SHOULD BE MUST .

PROCEDURE :

STEP 1 .

• FIRST WE HAVE TO OPEN THE AUTOCAD AND SET THE UNIT USING THE UNITS COMMAND .
• NEXT WE DRAW THE RECTANGLE USING THE LINE COMMAND WITH SIZE OF 3'X3'.

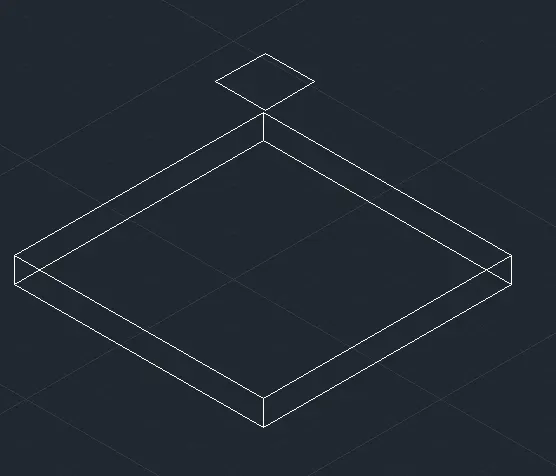

• NEXT WE DRAW THE RECTANGLE UPWARD WITH THE LENGTH OF 6" .

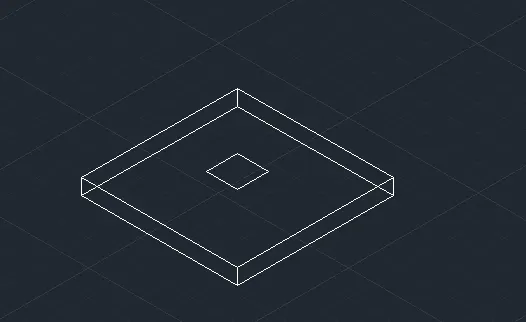

• NEXT AGAIN WE DRAW THE ANOTHER RECTANGLE AT THE CENTRE OF THE OUTER RECTANGLE .
•
• NEXT WE  USE THE MOVE COMMAND TO MOVE THE INNER REC. UPWARD WITH THE LENGTH OF 2'.
•

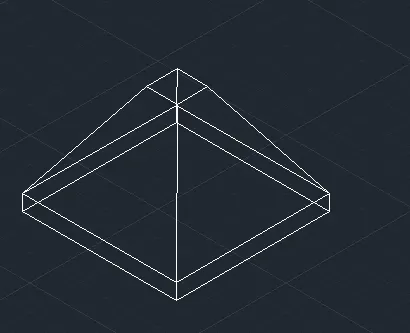

• NEXT WE USE THE LOFT COMMAND TO JOIN THE 4 CORNER OF THE MOVED REC. AND FOUR CORNER OF THE EXTRUDEED REC. TO CO-ORDINATE EACH OTHER .
•

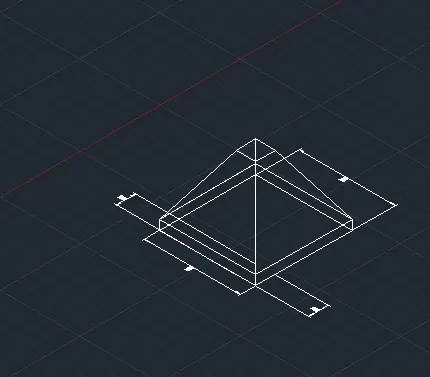

• NEXT WE PUT THE DIMENSION OF EVERY PART IN THE DRWING AS SHOWN IN THE BELOW FIG.
•

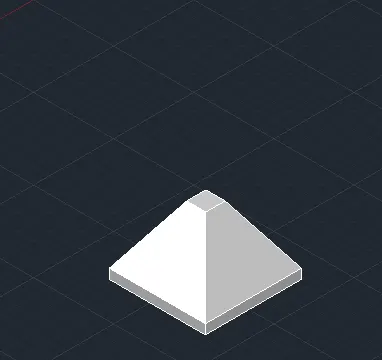

• NEXT WE CLICK THE CUSTOM VISUAL STYLE AT THE TOP LEFT CORNER OF THE DRAWING SCREEN, AND SELECT THE SHADED OPTION IN THE CUSTOM VISUAL STYLE .
•
• RESULT :
• THE GIVEN 3D MODEL OF THE ISOLATED FOOTING IS DRAWN SUCCESSFULLY IN THE AUTOCAD IN DETAIL.

ANSWER 3 .

AIM : TO CREATE THE 3D MODEL OF AASTHO TYPE GRIDER IN THE AUTOCAD IN DETAIL .

INTRODUCTION :

• TTHE THREE DIMENSION OF AASTRO TYPE GRIDER WAS DRAWN IN THE AUTOCAD USING THE DIFFERENT TOOLS IN THE AUTOCAD.
• 3D MODEL ARE WIDELY USED ANYWHERE IN 3D GRAPHICS AND CAD .
• THEIR USE PREDATES THE WIDESPREAD USE 3D GRAPHICS ON PERSONAL COMPUTER.

PROCEDURE :

• FIRST WE HAVE TO OPEN THE AUTOCAD AND SET THE UNIT USING UNIT COMMAND .
• NEXT WE HAVE DRAW THE HORIZONTAL LINE WITH THE LENGTH OG 1'-4" .
• NEXT WE DRAW THE INCLINED LINE FROM THE PREVIOUS LINE.
• NEXT FROM THE PREVIOUS LINE WE HAVE TO DRAW THE ANOTHER VERTIAL LINE UPWARD WITH THE LENGTH 6" .
• NEXT AGAIN WE DRAW THE LINE FROM THE PREVIOUS LINE WITH THE ANGLE OF 135 DEGREE WITH THE LENGTH 8''.
•  DRAW THE VERTICSL LINE OF 1'6" THE PREVIOUS LINE WITH THE ANGLE OF 45 DEGREE WITH THE LENGTH OF 4" .
• NEXT DRAW A VERTICAL LINE FROM THE PREVIOUS LINE WITH THE LENGTH OF 6" .

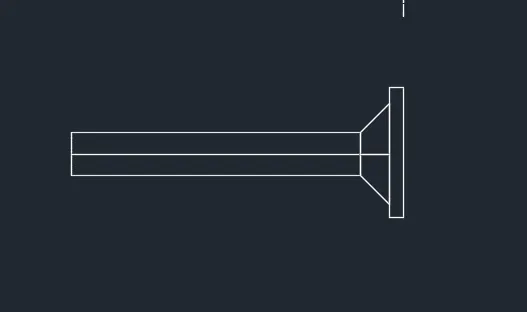

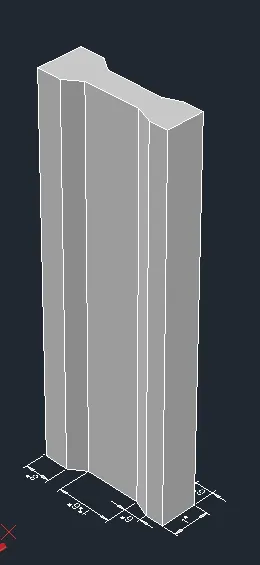

• NEXT WE USE THE MIRROR COMMAND AND PRESS ENTER , THEN SELECT REIGTH PORTION AND PLACE A CURSOR AT THE MIDDLE OF THE FIRST LINE, THEN AUTOMATICALLY RIGTH SIDE PORTION WILL BE MIRROED TO THE OPPOSITE SIDE AS SHOWN IN THE BELOW FIGURE.
•
• NEXT CLICK THE CUSTOM VISUAL STYLE AT THE TOP LEFT CORNER OF THE DRAWING SCREEN, AND SELECT THE SHADED OPTION IN THE CUSTOM VISUAL STYLE.
•
• RESULT :
• THE GIVEN 3D MODEL OF THE AASTHO TYPE GRIDER IS DRAWN SUCCESSFULLY IN THE AUTOCAD IN DETAIL.

ANSWER 4 :

AIM : TO CREATE THE 3D MODEL OF A DROP COLUMN WITH PANEL IN THE AUTOCAD IN DETAIL .

INTRODUCTION :

• THE THREE DIMENSION OF DROP COLUMN WITH PANEL WAS DRAWN IN THE AUTOCAD USING THE DIFFERENT TOOLS IN THE AUTOCAD .
• 3D MODELS ARE WIDELY USED ANYWHERE IN 3D GRAPHICS AND CAD.
• THEIR USE PREDATES THE WIDESPREAD USE OF 3D GRAPHICS ON PERSONAL COMPUTER.
• THE 3D MODELS ARE MAINELY PREFERABLE IN THE CIVIL ENGINEERING AND WHEN WE DESIGN A BUILDING IN THE AUTOCAD THEN CREATING 3D MODELS SHOULDS BE MUST .

PROCEDURE.

• STEP1.
• FIRST WE HAVE TO OPEN THE AUTOCAD AND SET THE UNITS USING THE UNITS COMMAND .
• NEXT WE DRAW THE SQ. OF 4'-6"X4'-6" ' WITH RECTANGLE TOOL . AND EXTRUDE THE 6" WITH EXTRUDE COMMAND .
• NEXT WE DRAW THE CIRCLE 3'-6" WITH CIRCLE COMMAND .
• NEXT AGAIN DRAW THE CIRLE 1'-6" INSIDE THE 3'-6" CIRCLE .
• NEXT WE HAVE USE THE CUTSOM TOOL AND SHADE THE CIRCLE .

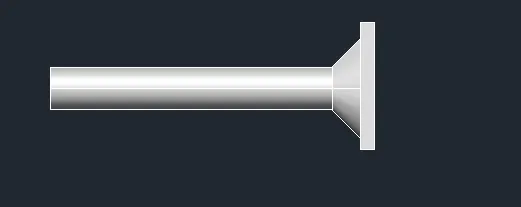

• NEXT WE DRAW THE CIRCLE OF 1'-6" WITH CIRCLE COMMAND , AND EXTRUDE THE HEIGTH WITH 10' USING EXTRUDE COMMAND .

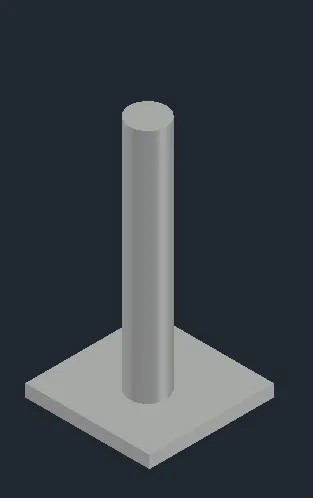

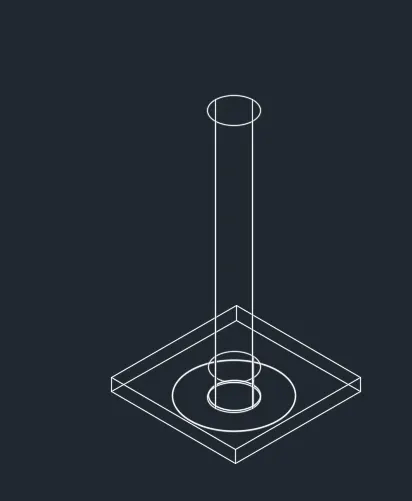

• NEXT ASSEMBLE THE ALL 3 OBJECT AND MAKE THE DROP COLUMN .SHOWN IN BELOW THE FIG.
•
•
• NEXT WE CLICK THE CUSTOM VISUAL STYLE AT THE TOP LEFT CORNER OF THE DRAWING SCREEN , AND SELECT THE SHSDED OPTION IN THE CUSTOM VISUAL STYLES.
•

RESULT :

THE GIVEN 3D MODEL OF THE AASTHO TYPE GIRDER IS DRAWN SUCCESSFULLY IN THE AUTOCAD IN DERTAIL.

ANSWER 5 :

AIM : TO CREATE THE 3D MODEL OF A WALL BY ASSUMING THE WALL THICKNESS AS 9" IN THE AUTOCAD IN DETAIL.

INTRODUCTION :

• THE THREE DIMENSION OF A WALL IS DRAWN IN THE AUTOCAD USING THE DIFFERENT IN THE AUTOCAD USING THE DIFFERENT TOOLS IN THE AUTOCAD.
• 3D MODEL ARE WIDELY USED ANYWHERE IN 3D GRAPHICS AND CAD .
• THEIR USE PREDATES THE WIDESPREAD USE OF 3D GRAPHICS ON PERSONAL COMPUTERS .
• THE 3D MODELS ARE MAINLY PREFERABLE IN THE CIVIL ENGINEERING AND WHEN WE DESIGN A BUILDING IN THE AUTOCAD THEN CREATING 3D MODELS SHOULD BE MUST .

PROCEDURE:

• FIRST WE DRAW THE HORIZONTAL LINE FORWARD WITH THE LENGTH OF 10' .
• NEXT WE DRAW THE ANOTHER LINE VERTICALLY UPWARD WITH THE LENGTH OF 10' NEXT WE DRAW THE LINE FROM THE PREVIOUS LINE WITH THE ANGLE 125 DEGREE.
• AGAIN FROM THE PREVIOUS LINE WE DRAW THE ANOTHER LINE WITH THE ANGLE OF 225 DEGREE AND WITH THE LENGTH OF 5'.
• NEXT JOIN THE LINE FROM THE FIRST LINE TO THE LAST LINE .
• NEXT WE DRAW THE RECTANGLE INSIDE THE WALL .
• NEXT USE THE EXTRUDE VOMMAND TO EXTRUDE THE INSIDE WALL WITH 9" THICKNESS .
• NEXT WE SUBSTRACT THE DOOR PART FROM THE WALL USING THE SUBSTRCT COMMAND .

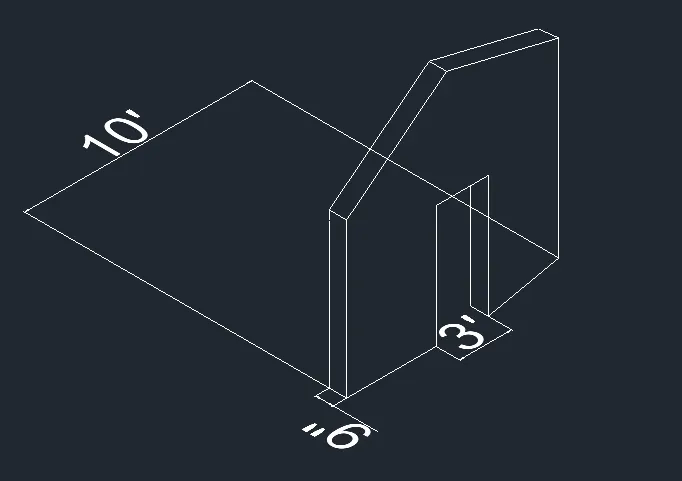

• WE PUT THE DIMENSION FOR THE EVERY PART IN THE DRAWING AS SHOWN IN THE FIG.
•

RESULT :

THE GIVEN 3D MODEL OF A WALL IS DRAWN SUCESSFULLY IN THE AUTOCAD IN DETAIL.
