Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

Aim:

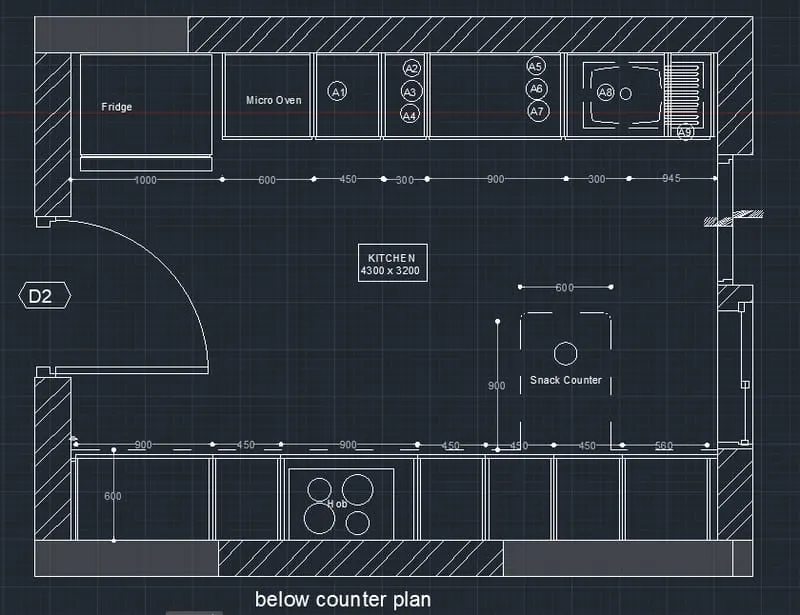

To create the kitchen layout and to Also,use proper dimension techniques to dimension the kitchen layout.Also ,insert text wherever required.All dimensions are in mm.

PROCEDURE:

step 1:

• Units are set to mm
• Limits and limax are also set
• Zoom comand also used.

Step 2:

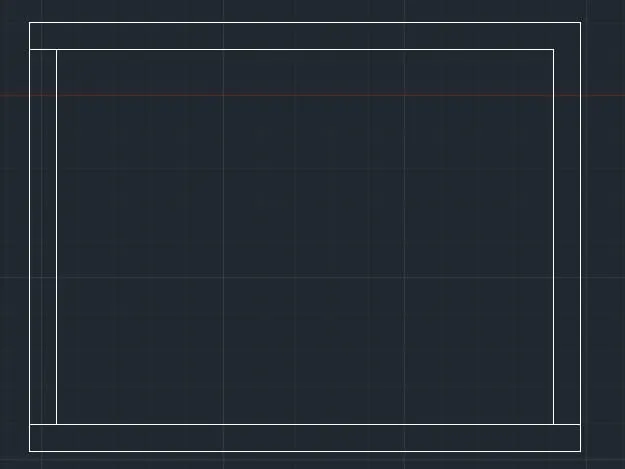

In the command prompt type rec and the dimensions are 4734*3688 mm

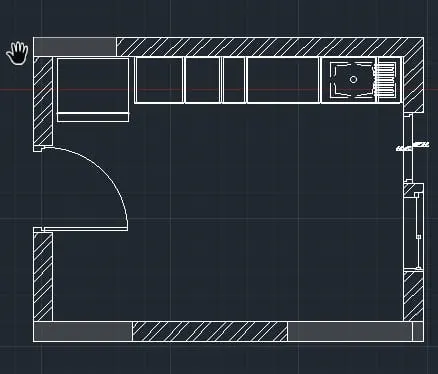

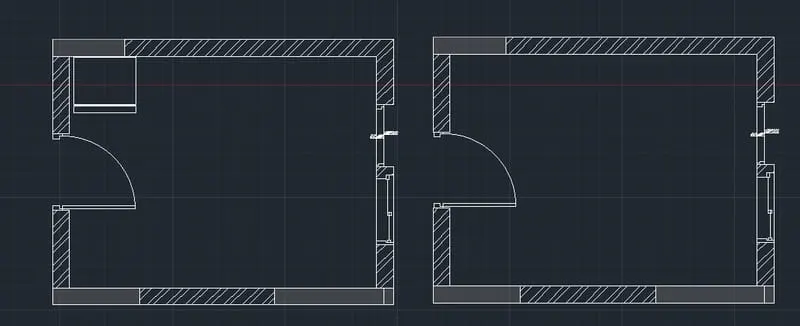

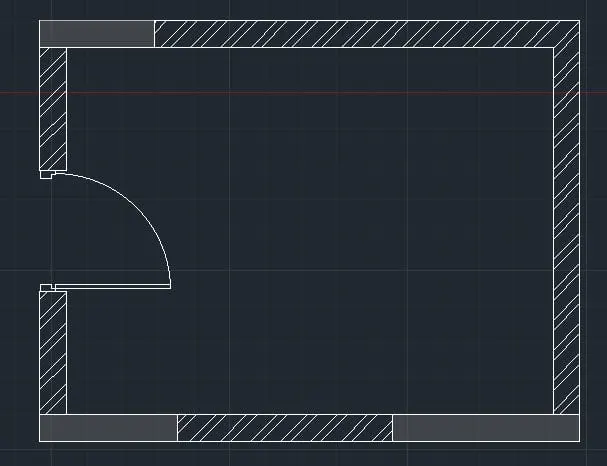

In the command prompt type offset and offset it to the distance of 230mm .Using arc and lines the door is drawn in the command prompt type hatch to hatch the model.

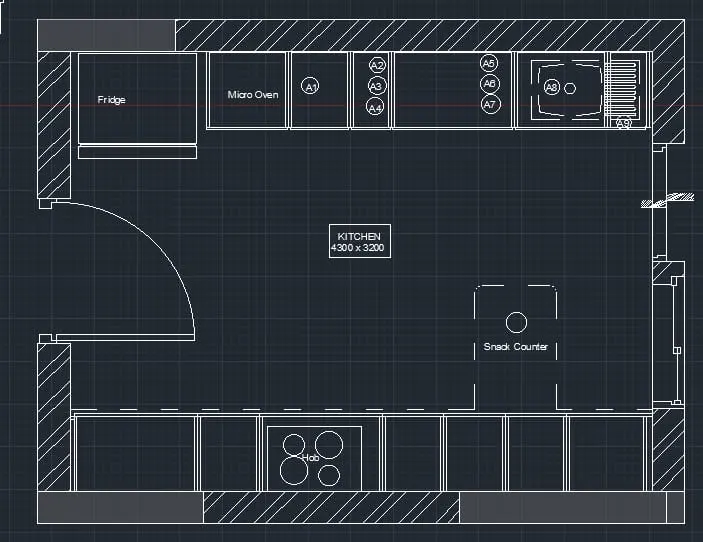

In the command prompt type rec>dimensions,to do the fridge .In the command prompt type offset and offset it to the desired distance to micro Oven.

In the command prompt type trim to trim the extras.

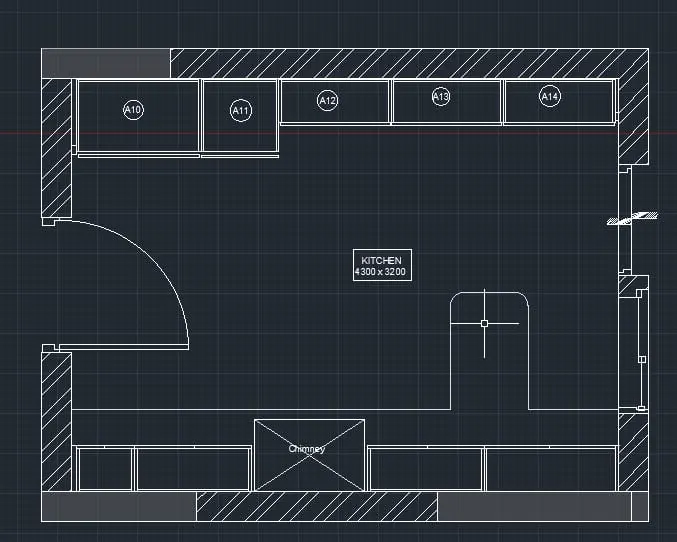

In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560.

In the command prompt type trim to trim the extras.

In the command prompt type line type and load the dotted lines.

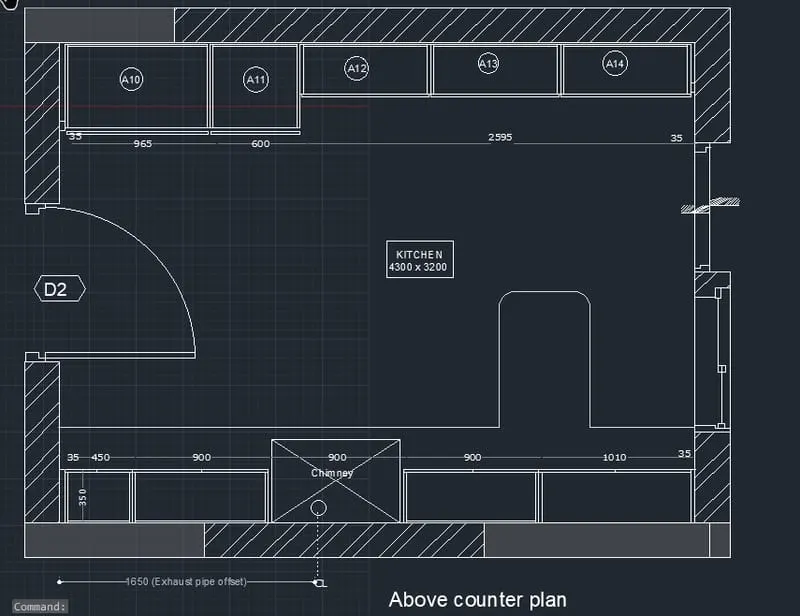

In the comnmand prompt type text to text to given annotations.In the command prompt type dimensions to your plan.

In the command prompt even to leadercommand is used to name the dimensions.

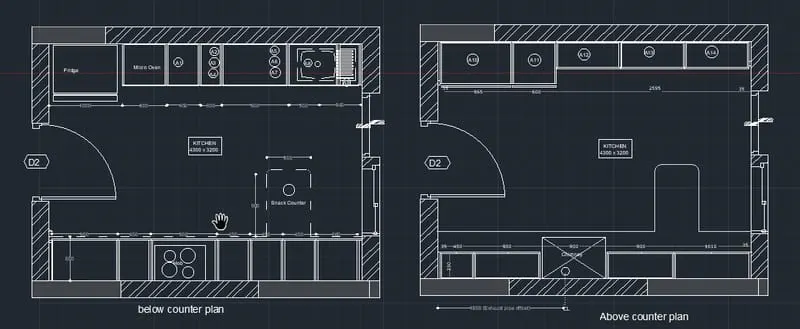

Result:

 2.

Aim:

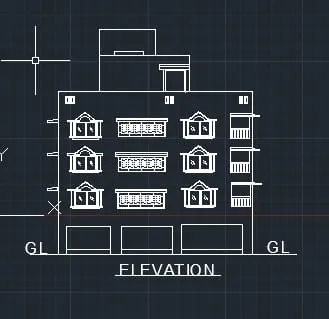

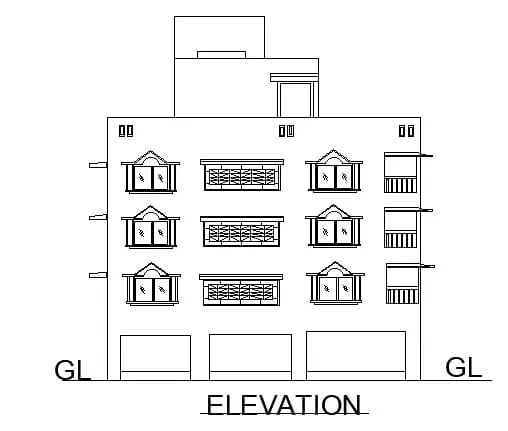

To create the elevation of the plan with hatch.

Procedure:

• In the command prompt type l to draw the lines.
• In the command prompt type rec to draw the rectangle.
• In the command prompt type arc to draw the arc.
• Therefore,the window is created.



•  In the command prompt type l to draw the lines.
• In the command prompt type to draw the rectangle.

•  In the command prompt type l to draw lines.
• In the command prompt type rec to draw the rectangle.

•  In the command prompt type rec to draw the rectangles.

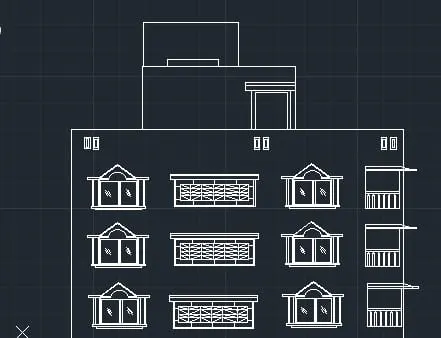

 FINAL RESULT:



3.

Aim:

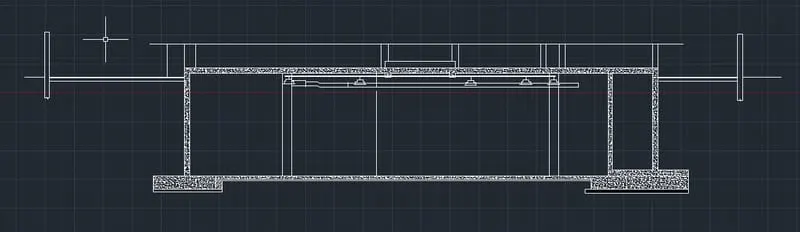

 To create the section view of an industrial building.

PROCEDURE:

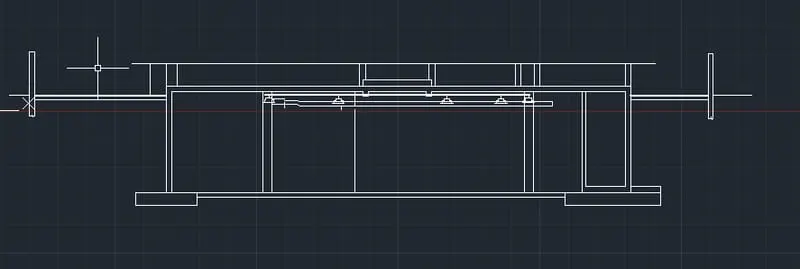

• In the command prompt type l to draw the lines.
• In the ribbon bar>Hatch>AR.CONC.
• In the command prompt type rec to draw the rectangle.

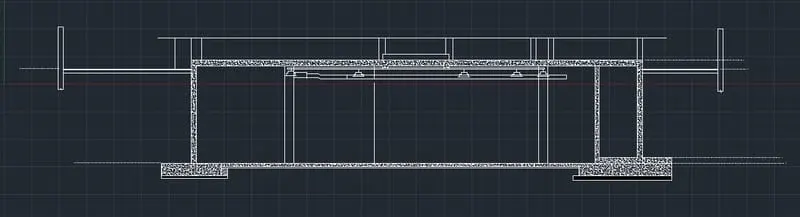

•  In the ribbon bar>Hatch>AR-Conc.

•  In the command prompt type LT to get the dotted lines.
• In the command prompt type c to draw the circle.
• In the command prompt type Mt to draft the text.
• In the command prompt type dim to draft the dimensions.

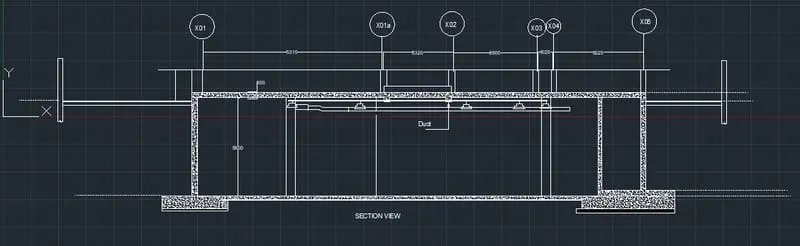

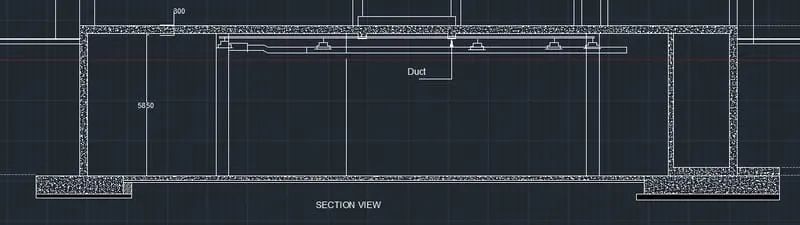

RESULT:
