Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

1.

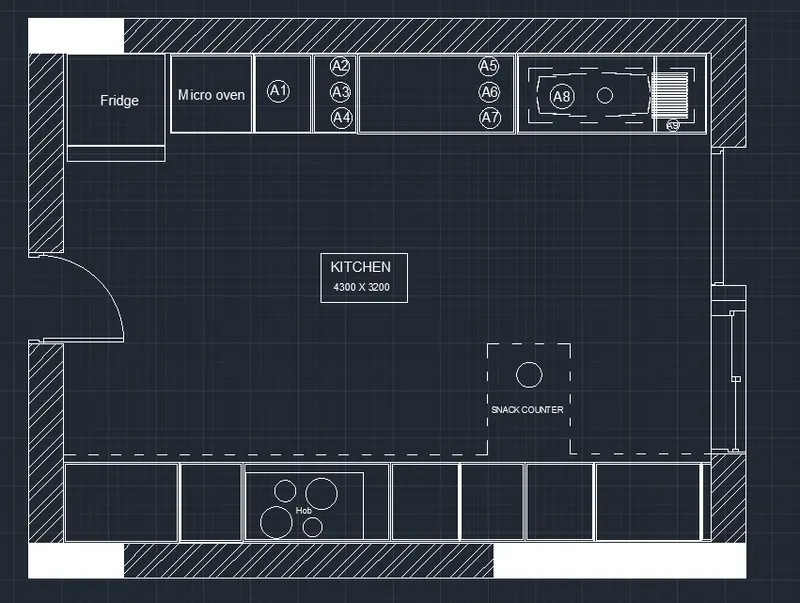

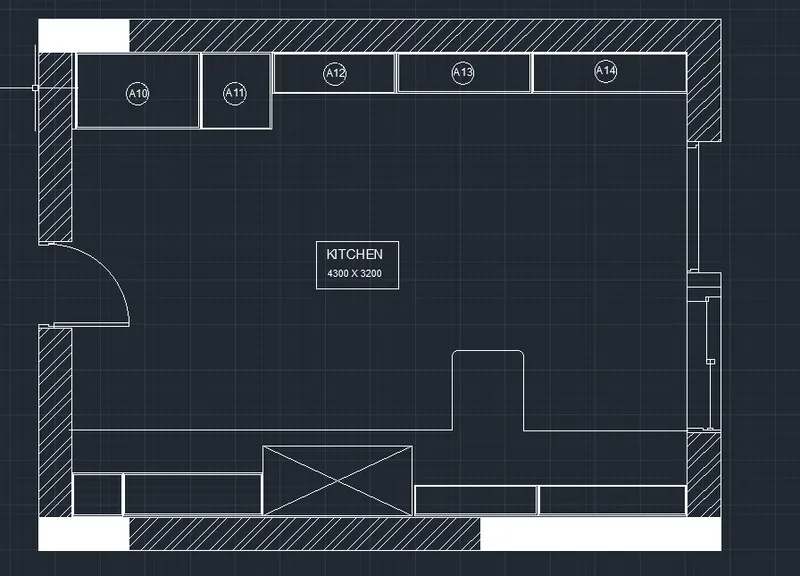

Aim : To create the kitchen layout and to also , use proper dimensions techniques to dimension the kitchen layout .Also insert text wherever required .All dimensions are in mm.

Procedure :

Step 1 :

• Units are set to mm
• Limits and limax are also set
• Zoom command is also used

Step 2 :

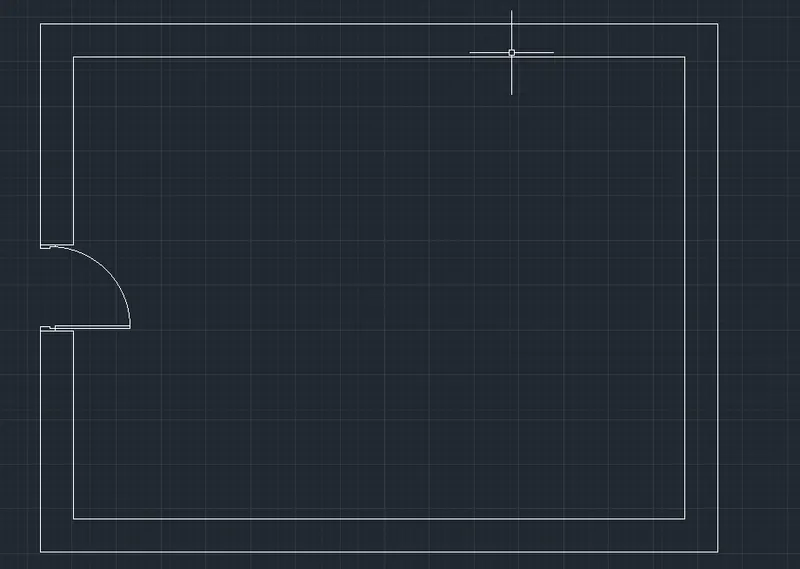

• In the command prompt type rectangle and the dimensions are 4734 x 3688 mm
• In the command prompt type offset and offset it to the distance of 230mm
• Using are and lines the door is drawn

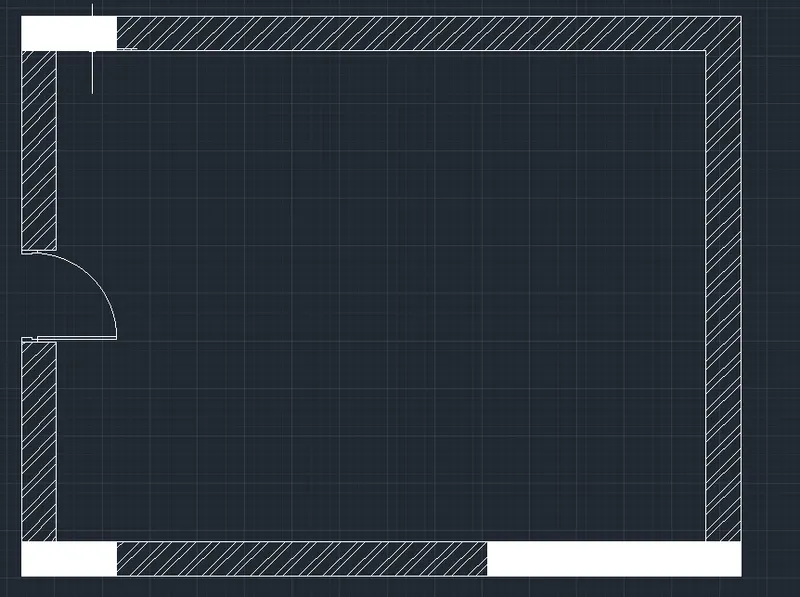

• In the command prompt type hatch to hatch the model
• In the command prompt type rec> dimensions to do the fridge
• In the command prompt type offset and offset it to the desired distance to get the micro oven
• In the command prompt type trim to trim the extras
• In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450, and 560
• In the command prompt type offset and offset it to the vertical distance of 600
• In the command prompt type trim to trim the extras
• In the command prompt type text to text the given commands
• In the command prompt type dimensions to given the dimension to your plan
• In the command prompt even the leader command is used to name the dimensions

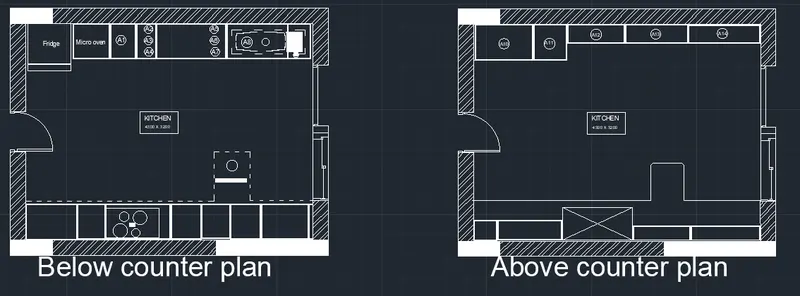

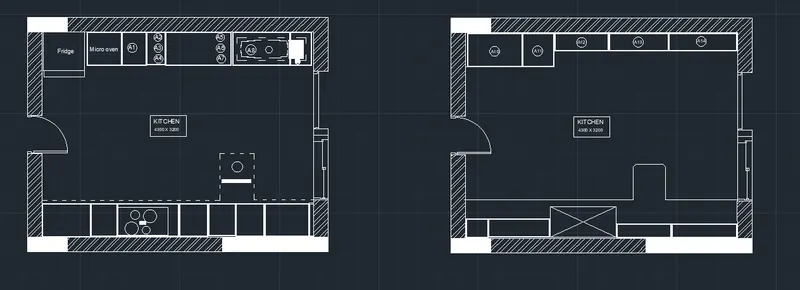

RESULT :

2.

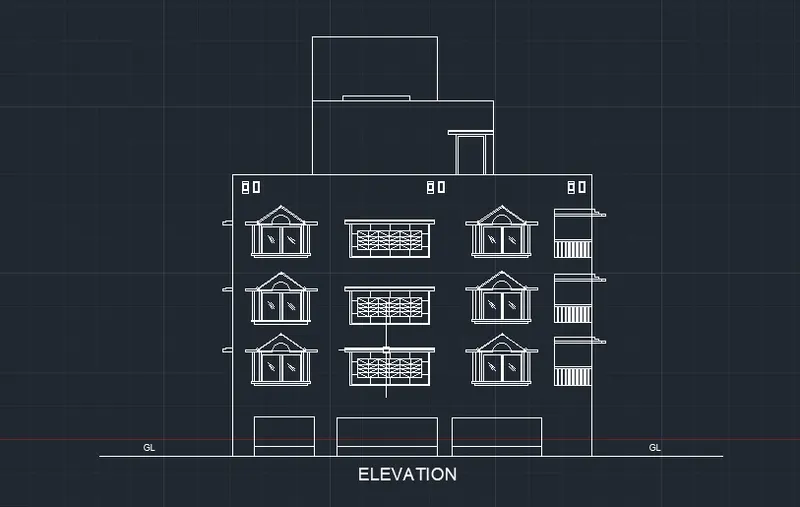

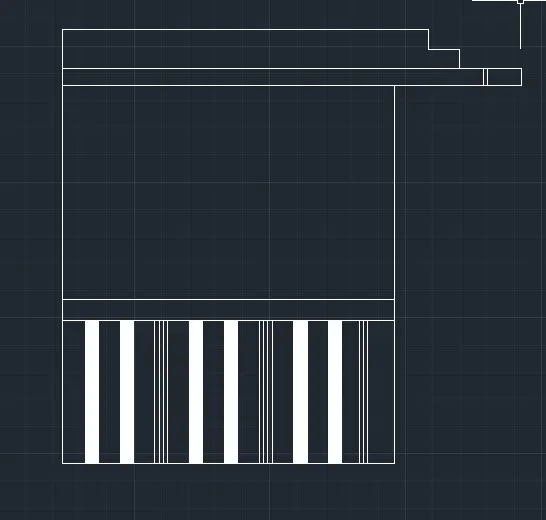

Aim : To create the elevation of the plan with hatch

Procedure :

• In the command prompt type l to draw the lines
• In the command prompt type rec to draw the rectangle
• In the command prompt type arc to draw the arc

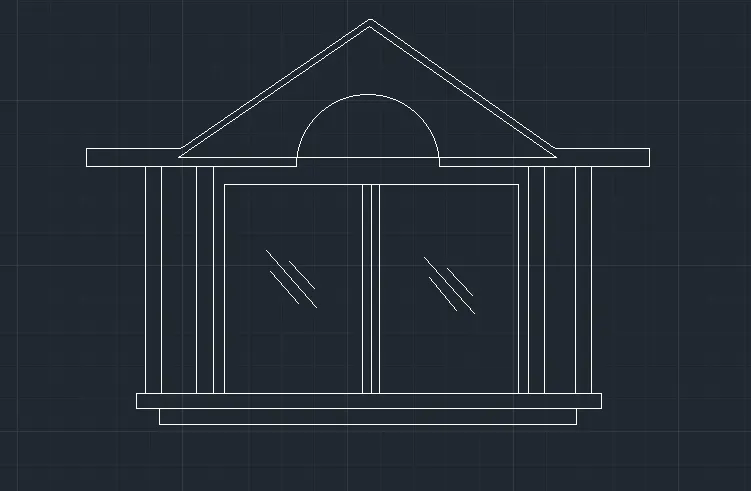

• Therefore , the windows is created

• In the command prompt type l to draw the line
• In the command prompt type rec to draw to draw the rectangle

• In the command prompt type l to draw the lines
• In the command prompt type rec to draw the rectangle

• In the command prompt type rec to draw the rectangle

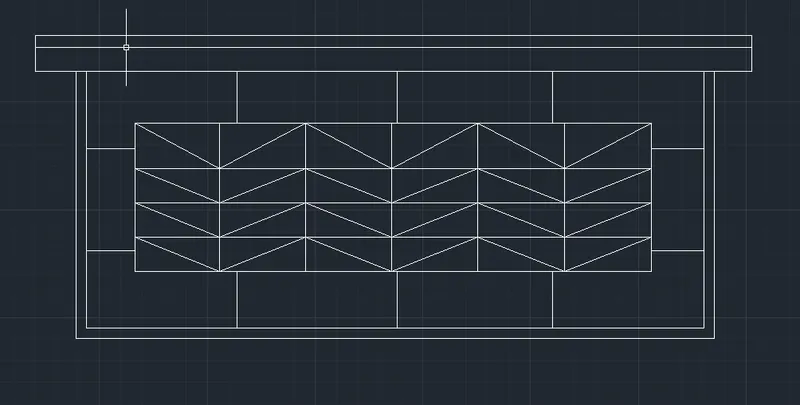

RESULT :

3.

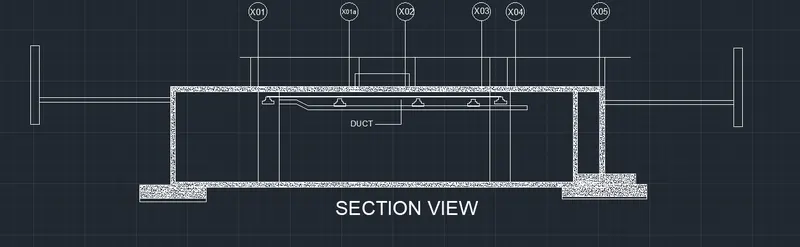

Aim : To create the section view of an industrial building

Procedure :

• In the command prompt type l to draw the lines
• In the ribbon bar > Hatch > AR.conc
• In the command prompt type rec to draw the rectangle
• In the Ribbon bar > hatch > AR-conc
• In the command prompt type LT to get the dotted lines
• In the command prompt type c to draw the circle
• In the command prompt type Mt to draft the text
• In the command prompt type dim to draft the dimensions

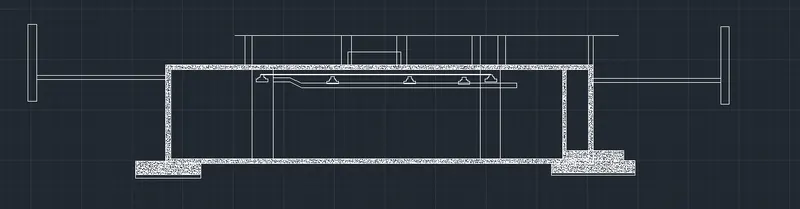

RESULT :
