Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

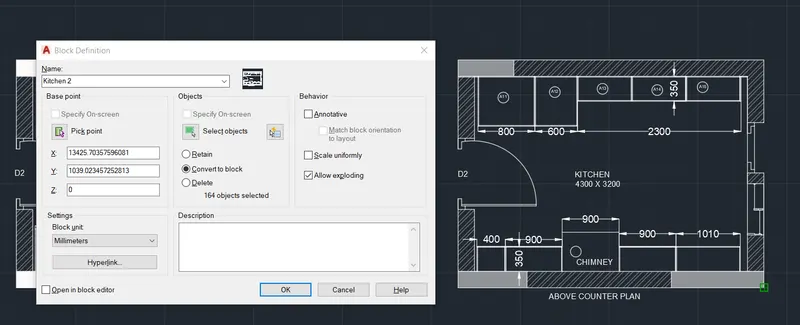

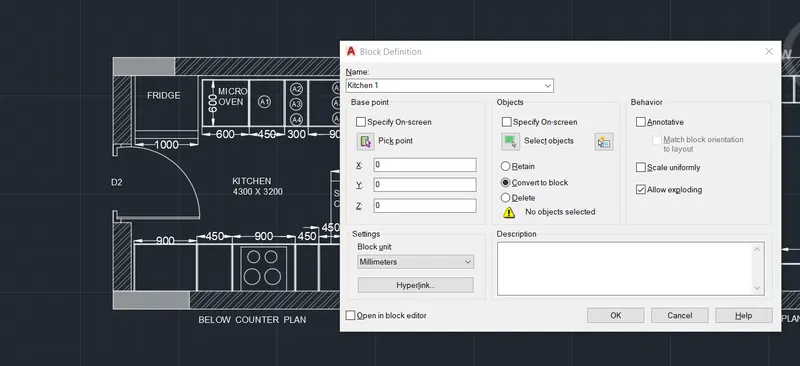

1. Aim - Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others as per the standards.

Commands Used - Line ,Trim ,Offset .Copy ,Move ,Dimension ,Text etc.

Procedure - Firestly units and limits set and select zoom and press all

In the command prompt type rec and the dimensions are 4734 x 3688 mm.

In the command prompt type offset and offset to the distance of 230 mm.

Using arc and line to draw the door.

In the command prompt type hatch to hatch the model.

In the command prompt type rec > dimensions to do the fridge.

In the command prompt type offset it to the desired distance to get the micro oven.

In the command prompt type trim to trim the unwanted lines.

In the command prompt type offset and offset it to desired horizontal distance 350, 450, 900, 450, 450 and 560.

In the command prompt type offset and offset it to desired vertical distance 600.

In the command prompt type trim to trim the extras.

In the command prompt type text to give annotations.

In the command prompt type dimensions to give the dimensions of the plan.

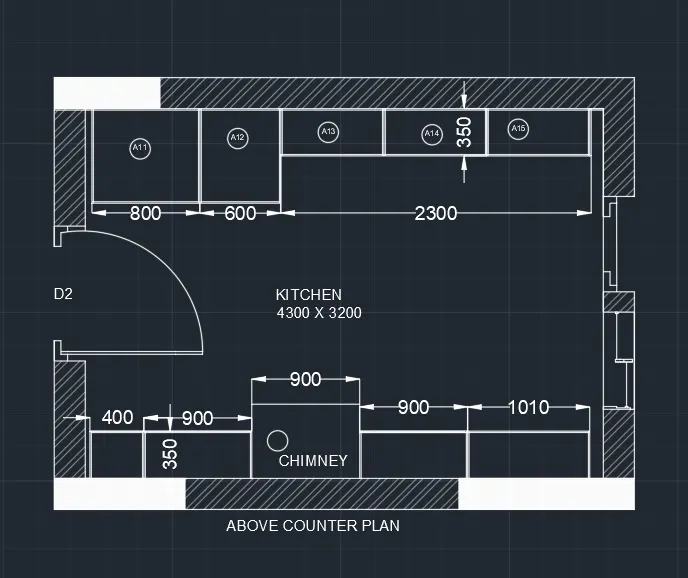

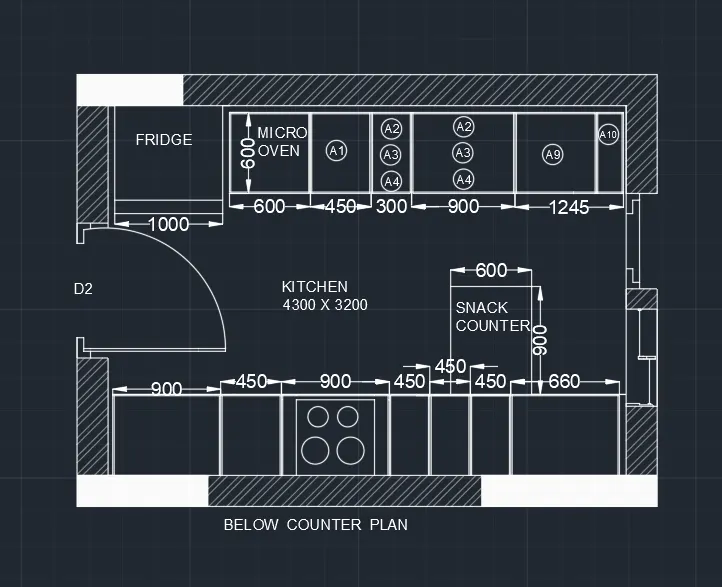

Final result -

2. Create the elevation of the plan created in the Challenges 7 and apply proper hatch in the walls, doors, windows, and other architectural elements. Refer to the dimensions in Plans and sections in Challenges 7.

Commands Used - line , offset ,trim ,Arc etc.

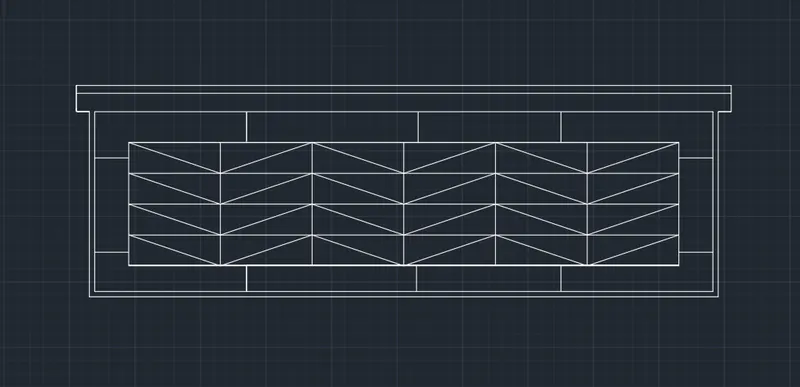

Procedure - In the command prompt type L to draw the lines .

In the command prompt type rec to draw the rectangle.

In the command prompt type arc to draw the arc.

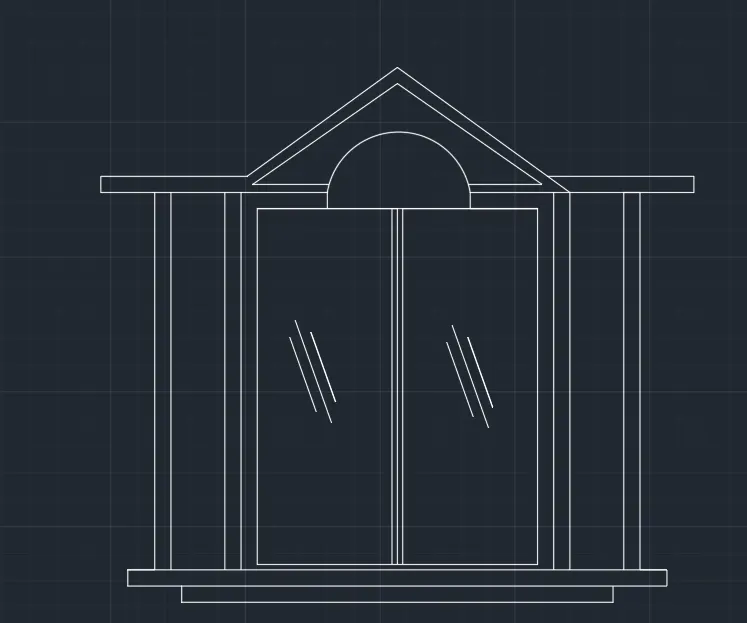

Therefore the window is created.

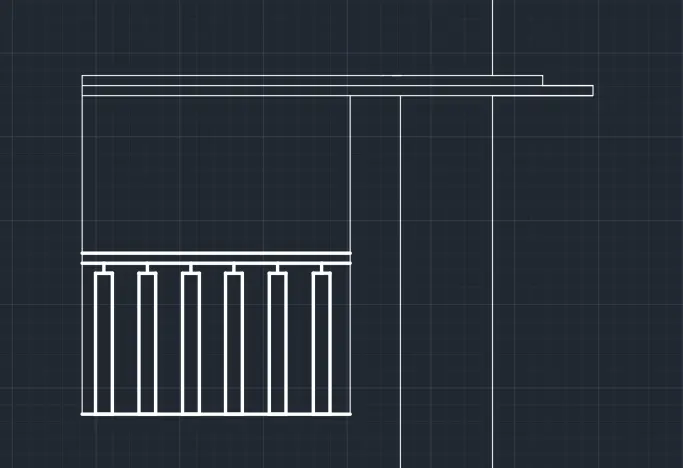

In the command prompt type L to draw the lines .

In the command prompt type rec to draw the rectangle.

In the command prompt type L to draw the lines .

In the command prompt type rec to draw the rectangle.

In the command prompt type rec to draw the rectangle.

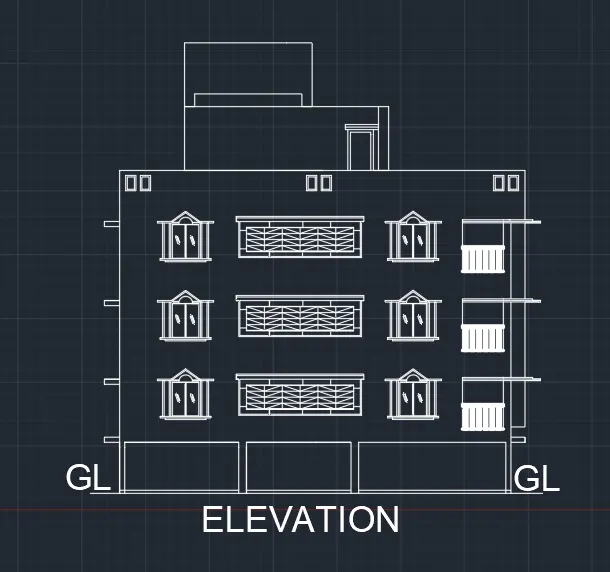

Final Result -

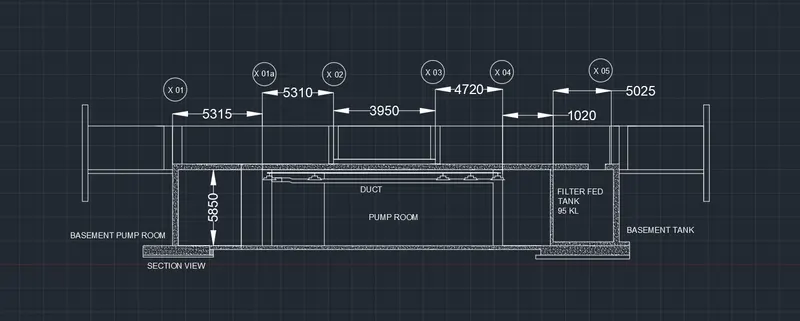

3. Create the section view of an industrial building as shown in Figure. Provide appropriate hatches and dimensions wherever required. Also, provide annotations to the drawing

Commands Used - Line , Offset , Hatch ,Trim etc.

Procedure - In the command prompt type L to draw the lines

In the command prompt type hatch AR.Conc

In the command prompt type rec to draw the rectangle.

In the ribbon > Hatch > AR.Conc

In the command prompt type LT to get the dotted lines.

In the command prompt type C to draw the circle.

In the command prompt type MT to draft the text.

In the command prompt type dim to draft the dimensions.

Final Result -
