Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

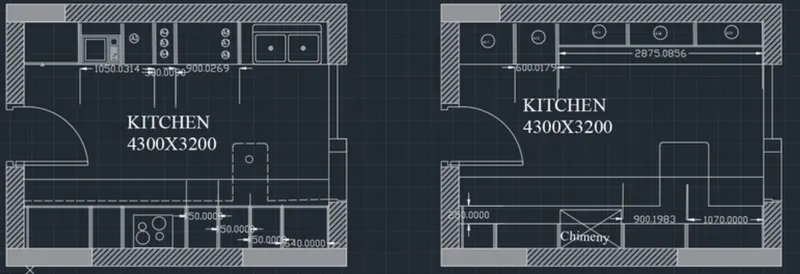

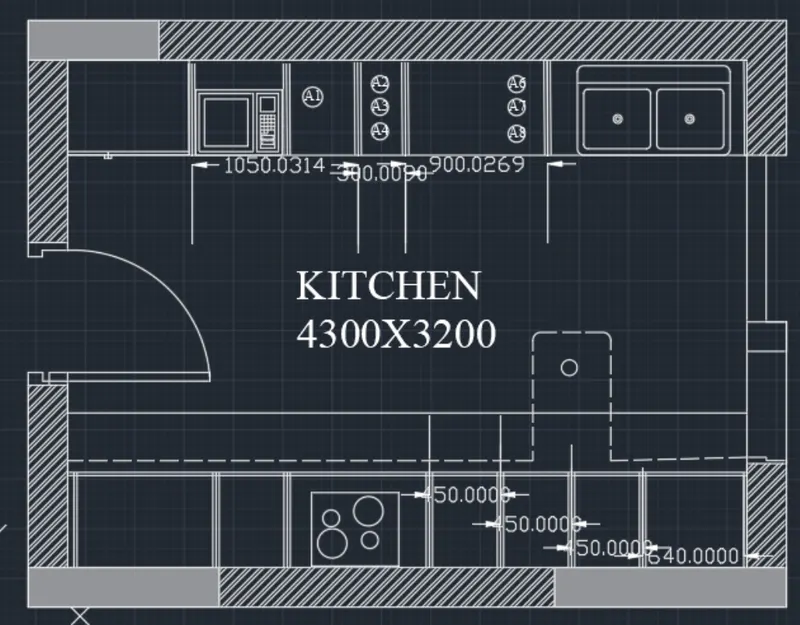

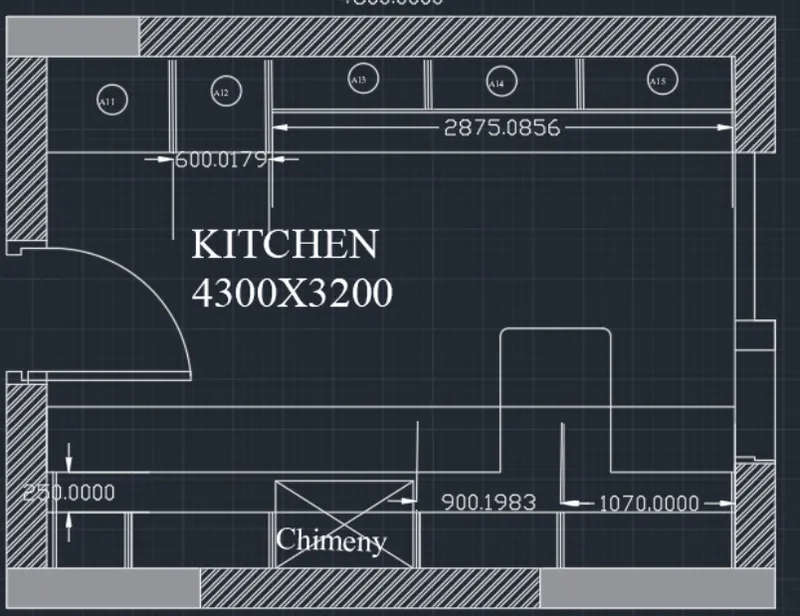

1. Aim: To create the kitchen Layout and to also, use proper dimension techniques to dimensions the kitchen layout.

Procedure:

Step-1:

• In the command box type units and set to mm
• In the command box type limits and limax are also set
• In the command box type zoom.

Step-2:

• In the command box type rec and select dimension as 4734x3688mm
• In the command box type offset and distance of offset is 230mm
• In the command box type trim
• using arc and lines the door is drawn
• In the command box type hatch to hatch the model
• In the command box type Rec - dimensions, to do the fridge.
• In the command box type offset for micro-oven
• In the command box type trim to trim the extra lines
• In the command box type offset it to a horizontal distance of 350,450,900,450,450 and 560
• In the command box type offset and offset it to a vertical distance of 600
• In the command box type trim to trim the extra lines
• In the command box type line type and load and select dotted lines
• In the command box type text.
• In the command box type dimensions to given the dimensions to your plan.
• In the command box type even the leader command is used to name the dimensions.

Result:

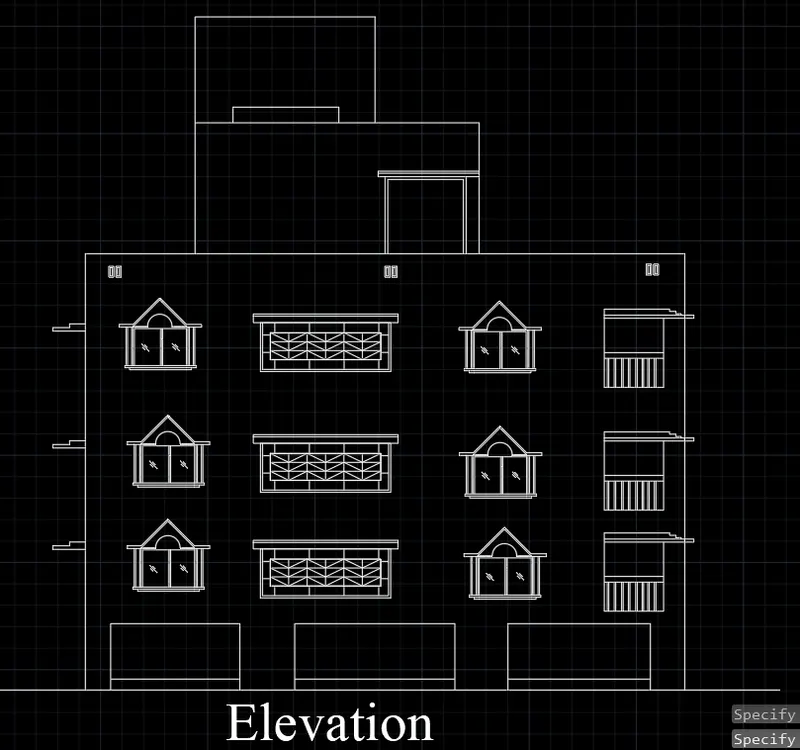

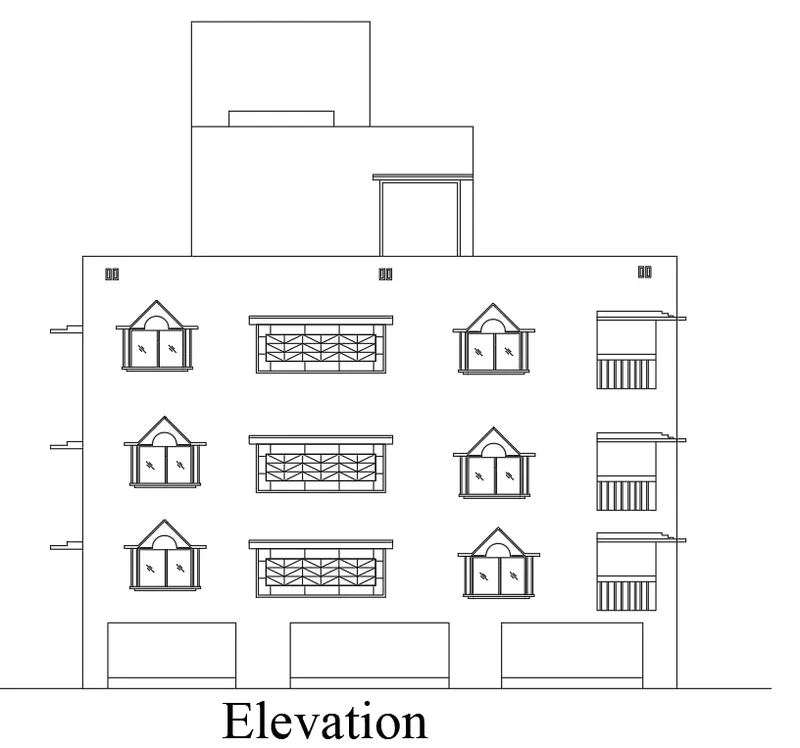

2. Aim: To create the elevation of the plan with hatch.

Procedure:

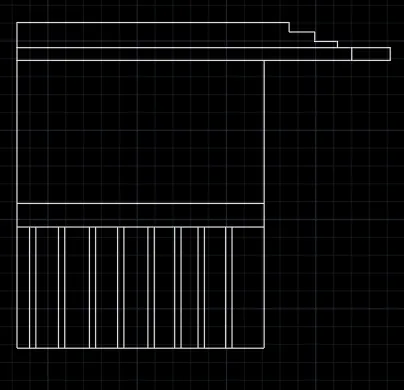

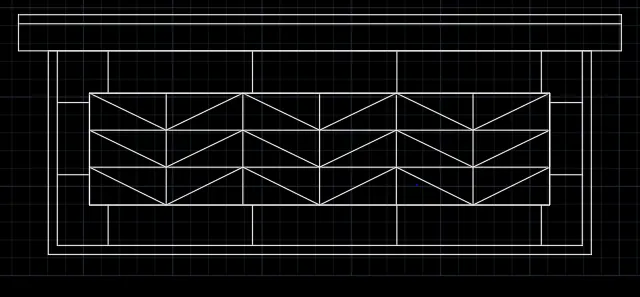

• In the command box type l to draw the line.
• In the command box type rec to draw the rectangle.

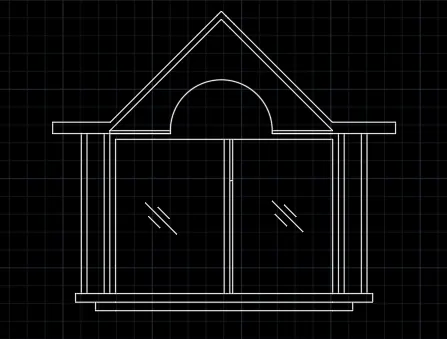

• In the command box type arc to draw the arc
• In the command box type trim the extra lines
• Therefore, Window is created

• In the command box type l to draw the lines
• In the command box type rec to draw the rectangle

• In the command box type l to draw the lines.
• In the command box type rec to draw the rectangle.

• In the command box type rec to draw the rectangle.

Result:

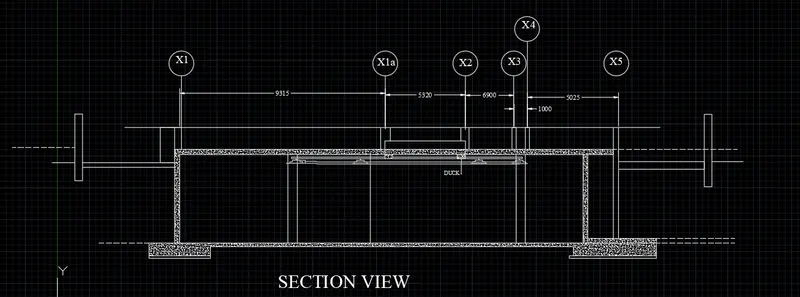

3. Aim: To create a section view of industrial building.

Procedure:

• In the command box type l to draw the lines.
• In the command box type hatch - AR<CONC
• In the command box type rec to draw the rectangle
• In the command box type LT to get the dotted lines
• In the command box type text to write the text
• In the command box type dim to dimensions the distance.

Result:
