Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

Aim & Introduction

Aim:

This challenge aims to to let the student experience a hands on application of the hatching command in the AutoCAD software while providing an inner collaboration with architectural sketches. It allows the student to understand the importance of the hatching tool in such sketches. It also aims to practice the student in sketching residential or Architectural works while utilizing the tools provided by the AutoCAD software

Introduction:

The AutoCAD software provides different tools. used in this challenge is as described below: Line- creates line object

Polyline- creates rectangle line object Rectangle- creates rectangles object Circle- create circle object

Trim-Cut unwanted lines or shapes with the provided cutting edges Extended- Extend lines to opposite corners

Move- Move objects to particular locations Copy- Copy obejects to particular locations

Rotate- Rotate selected objects to a particular angle with respect to base point Array- Copy an object in a set path linearly or polarly

Join- Joins separated line objects to a particular angle with respect to base point Dimlinear(DLI)- provides vertical or horizontal linear/ straight dimensions Dimligned(DAL)- Provides dimensions with respect to the angle of the object Dimangular(DAN)- Provides angular dimensions between two line objects.

Quicklinedimension(QDIM)-provides quick dimension of a geometry Leader- creates an arrow head line

Layer- Provides identification of line or object groups by their properties

Units- Open "Drawings Units" window to specify to modify the dimension properties Hatch- provides hatching pattern in a given object or internal point

Sketch and Procedure

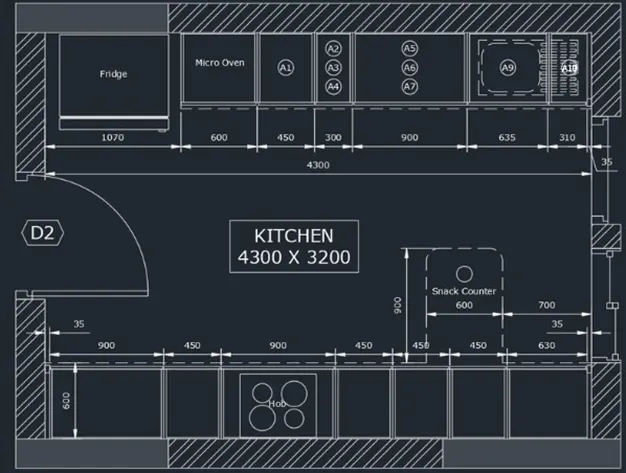

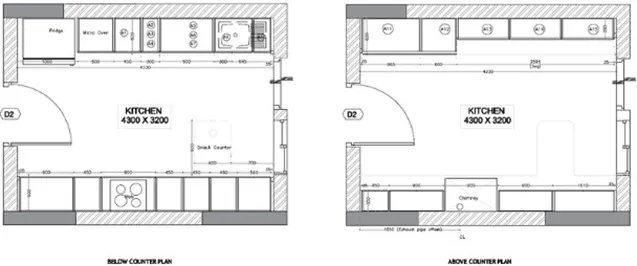

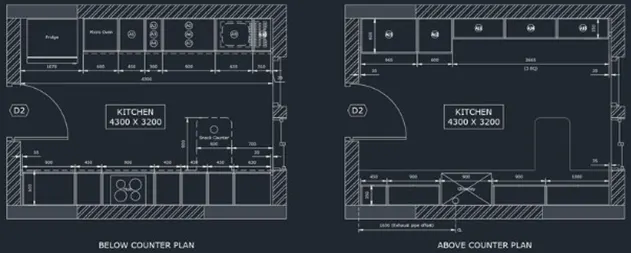

Create the layouts of the kitchen and provide hatches pattern as ALso, use blocks wherever required. Provide appropriate dimensions in the plan.Assume the size of doors,appliances, and others as per the standars

Procedure:

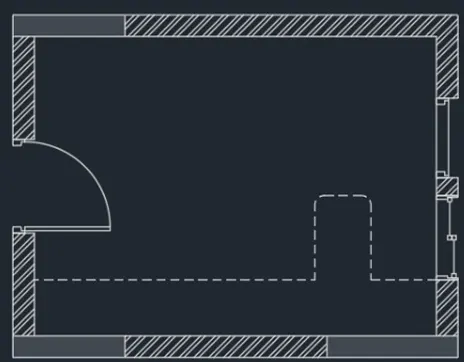

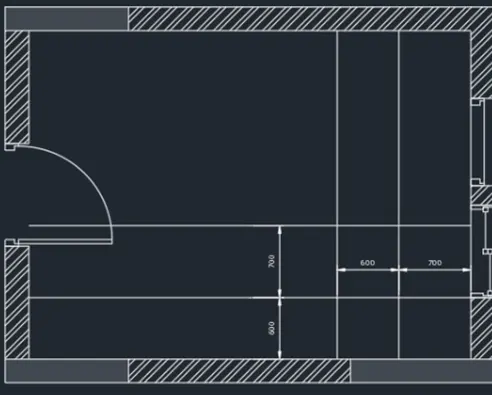

Proceed with the wall,doors and windows. This image is present on both plans

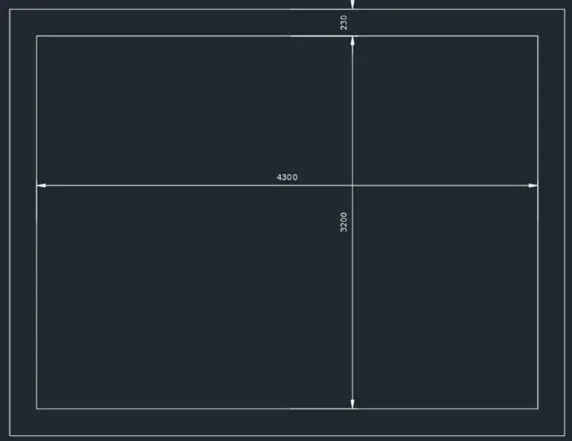

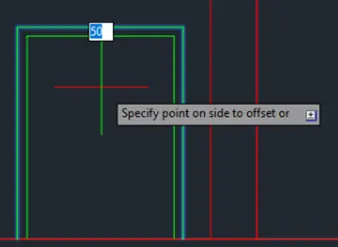

Create the inside boundary using rectangle command. Offset the by 230mm outside to create the wall thicknes

Explode the rectangles.Offset to make the opening boundary and trim

Create the hatching boundaries

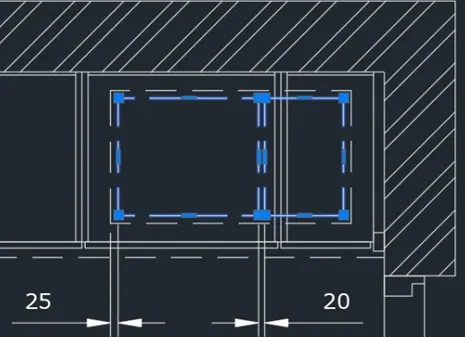

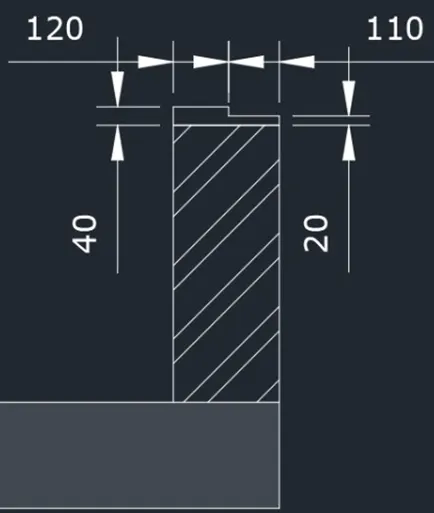

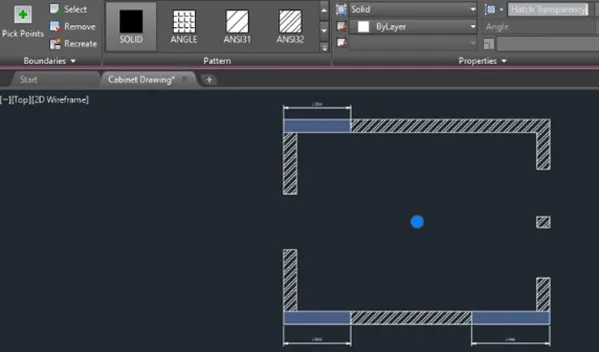

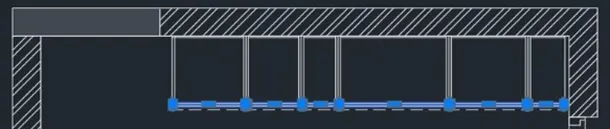

Hatch the wall using "Pick internal points" and edit using the hatch tab on top of the interface or the properties tab

Create the door. use polylines,rectangles and circle. Utilize mirror tool as well

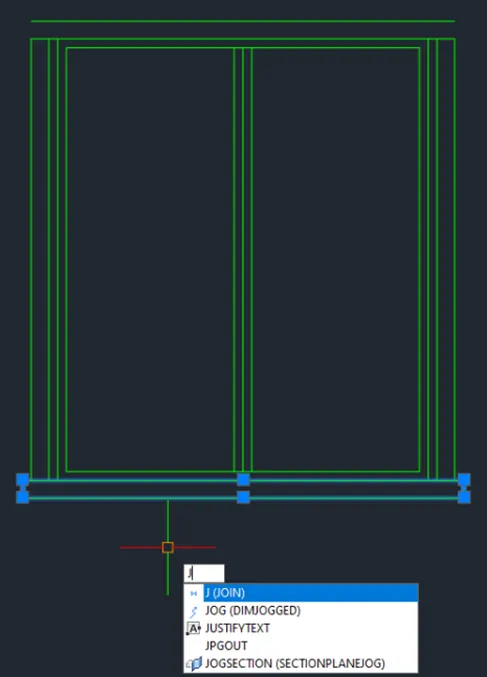

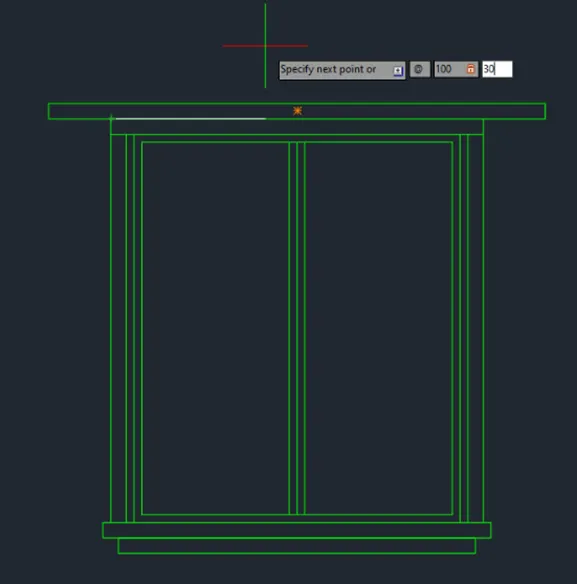

Proceed with the window sketch. Use the same tools used in creatingthe door

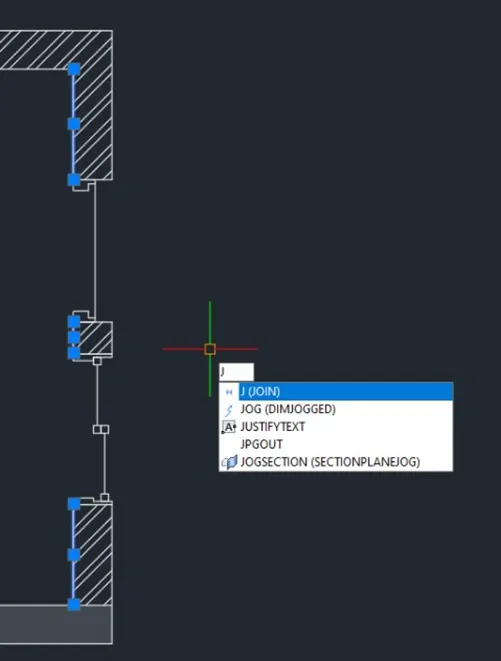

Join the lines to close the window

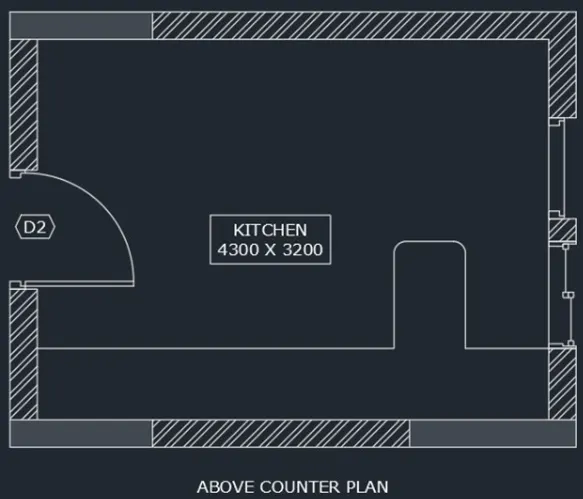

Duplicate the plan for above and below counter

--->Proceed with below the counter plan

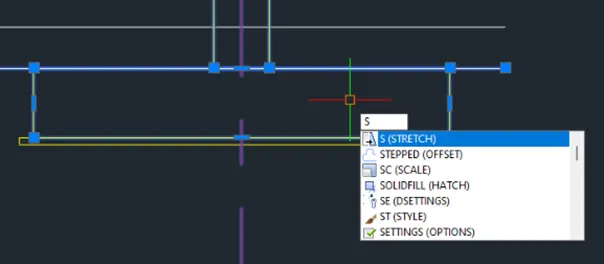

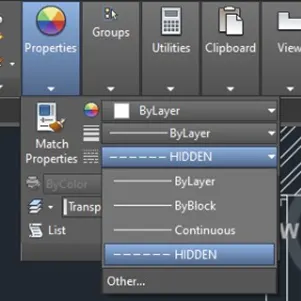

Create lines,trim lines and fillet corners with radius 100. Change linetype to hidden. Change line scale in properties tab to show the lines

Create the lines for the intersection.Use line and copy tool

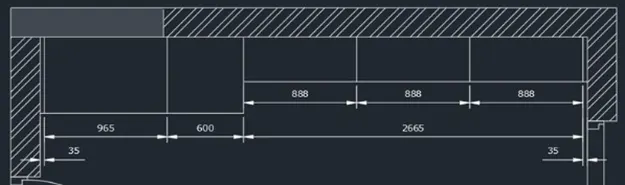

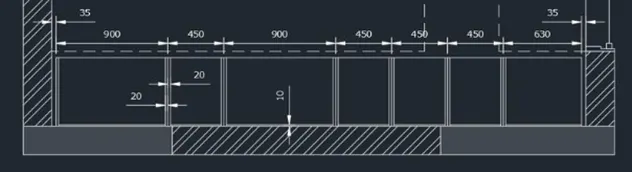

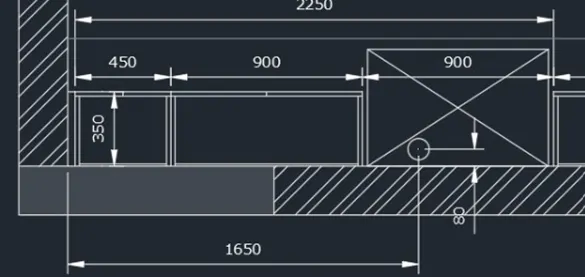

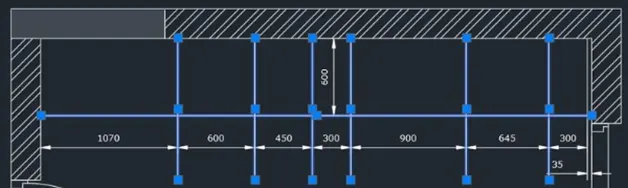

To create dimensions, use dimlinear command and dimmcontinue for easy progress

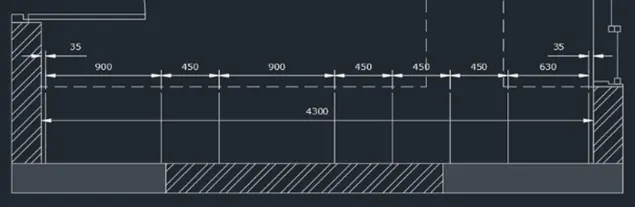

Adjustements are provided to accomodate the 4300 inner dimensions

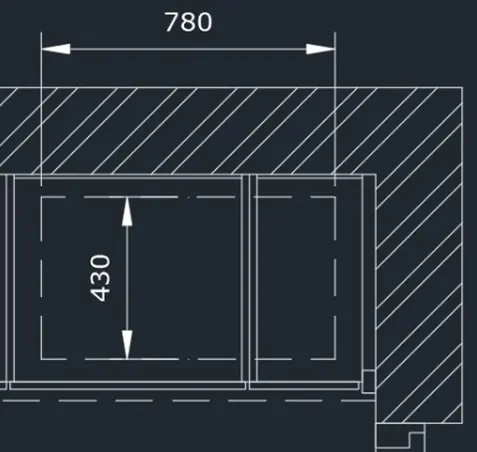

Offset lines to create depth.Use trim to cut unnecessary lines

Add the rectangle object at the corners and sletch the door using rectangle and move tool.

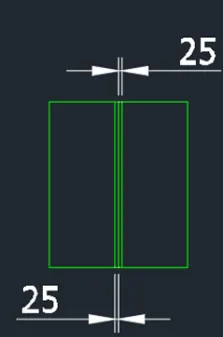

Utilize the sketch tool to for easy progress. Use 10mm spacing for the doors and 20mm thickness

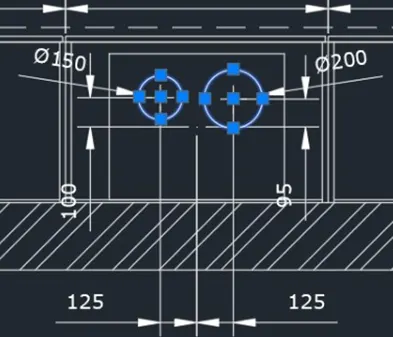

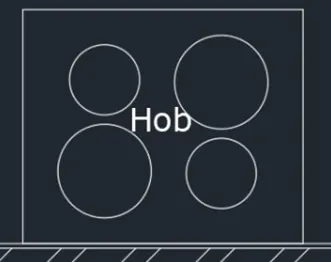

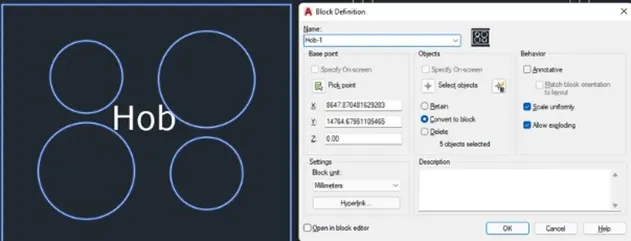

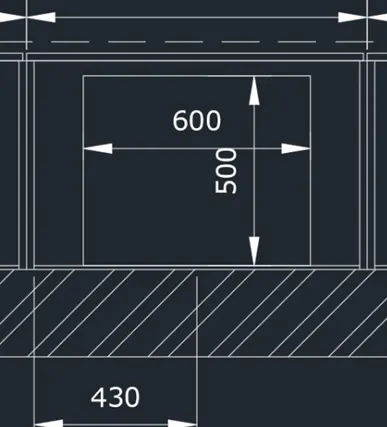

Create the HOb sketch. Use rectangle with 600x500 dimension. Circles with diameter of 200 and 150

Turn on Geometric center in the Osnap settings to check the center of the rectangle

Use mirror with center of the rectangle as mirror plane to dumplicate the objects

Then mirror again to invert objets

Use dtext to add the text object

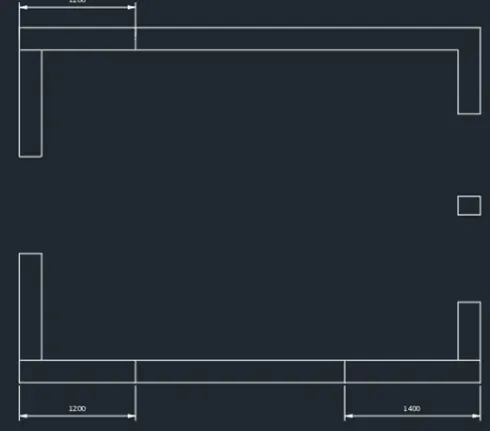

Proceed with the top part. Create boundary lines using line tools

Trim the lines and add line objects to enclose the boundaries

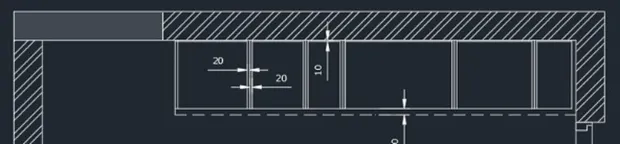

Vertical line thickness is 20mm both sides. The top line 10mm and 50mm for the bottom line

Change the outer bottom line to hidden line. Use match properties (ma) command for easy progress

Trim unnecessary lines to finish

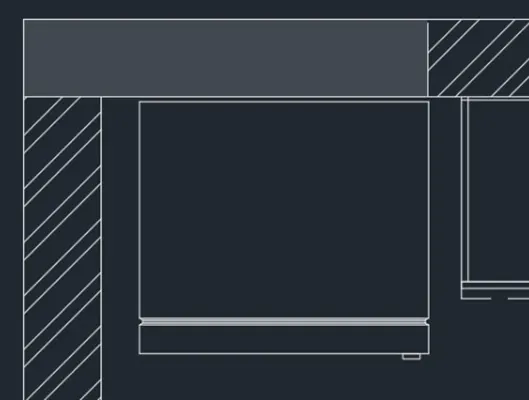

Create therectangle on the lower right side

Create the doors with 20mm thickness and 10mm spacing same as the first one

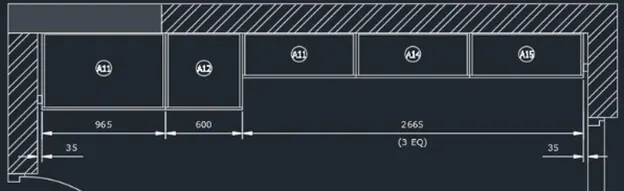

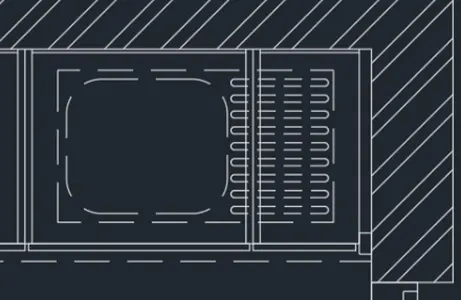

Add the inside objects using circle,rectangle,copy,text and fillet tool

Use rectangle and lines for the fridge object. Use circle tool as cell for the corner opeing

Add the text and finish

-------> Proceed with the above counter

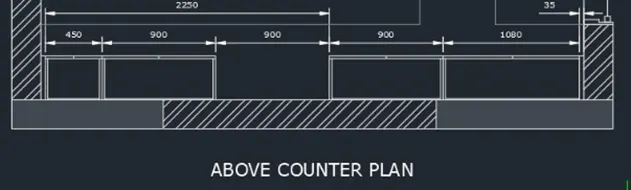

Copy any relative lines from below to above plan. Change line type as appropriate

Add the border lines for the below part.

Trim the line appropriately

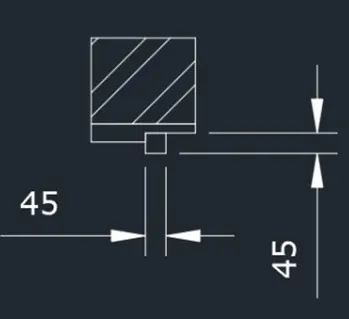

Create the cabinet walls using offset and trim tool. Thickness is 20mm. Bottom part is 10mm

Trim unnecessary lines

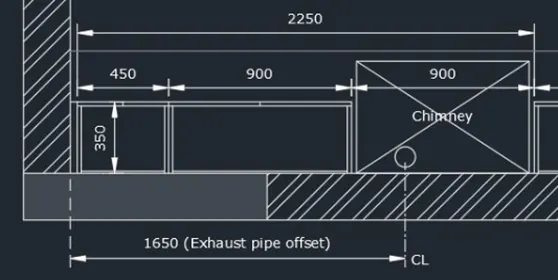

Create the chimney as below

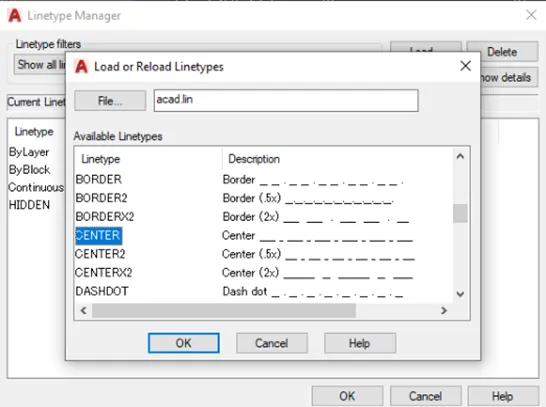

Add Centerline in the Linetype manager

Explode the dimension line and edit as below. Add the appropriate texts using dtext command

Proceed with above objects. Create boundary lines. trim the lines appropriately

Create the walls. Thickness=20mm Use offset,copy and trim tools.

Trim and add the rectangles and add text

Add the missing dimensions using dimlinear to finish

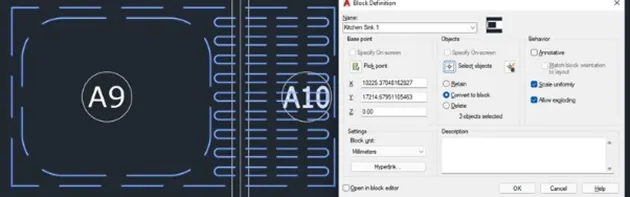

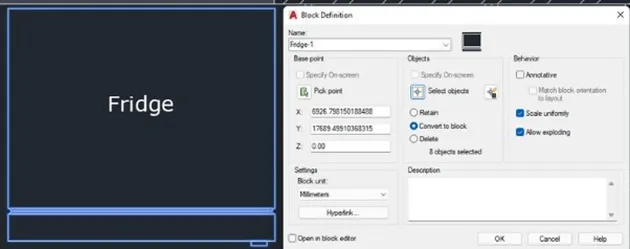

Convert necessary items to blocks

RESULT

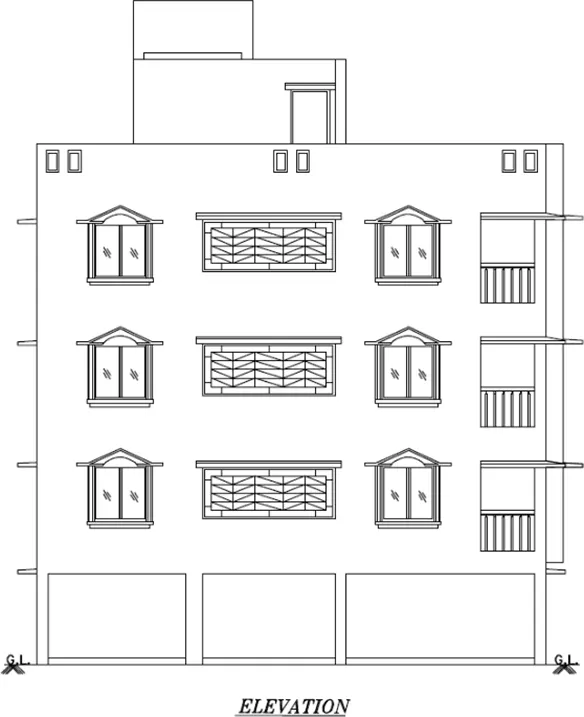

2) Create teh elevation of the plan created in the challenge 7 and apply proper hatch in the walls,doors,windows, and other architectural Refer to the dimensions in plans and section in challeneg 7

PROCEDURE:

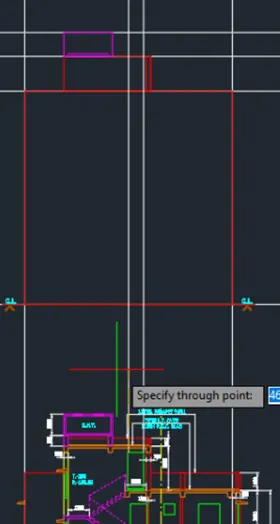

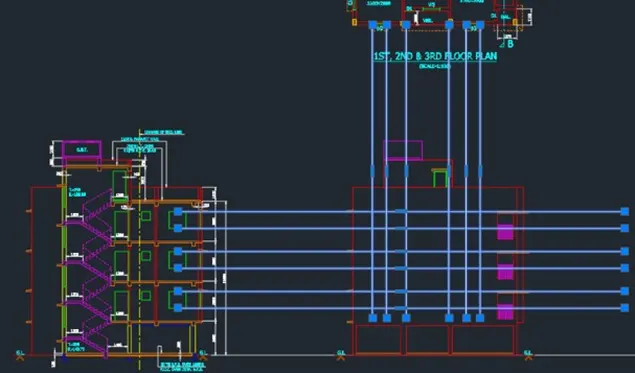

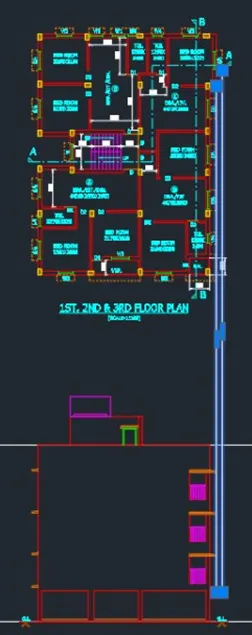

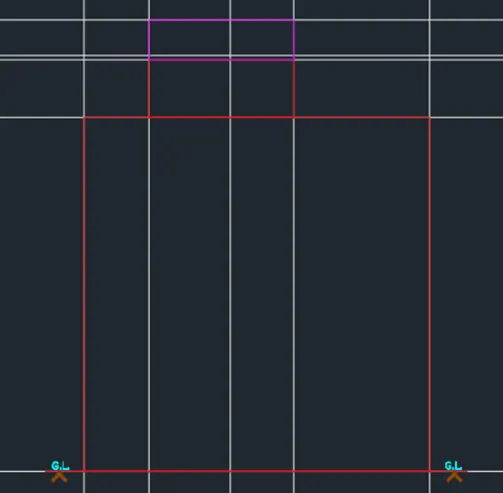

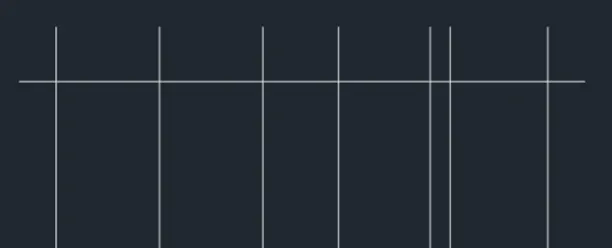

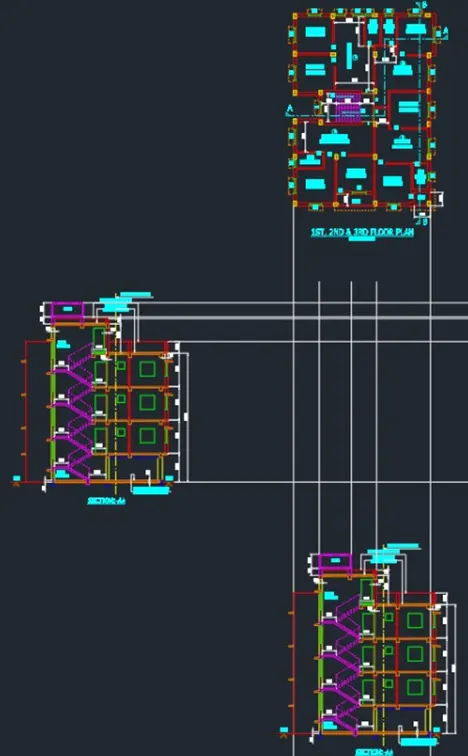

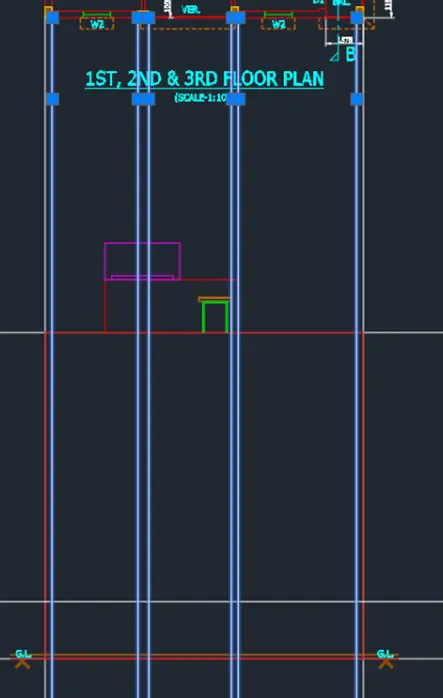

Project the borders from theplan and existing elevation. The view is south of the plan. Use ray or xline tool

Create the border

Utilize rectangle or line tool to your linking. Then delete the boundary lines when not needed.Start from the top for easier time. Create the O.H.T. Proceed with the upper structure (Staircase to rooftop).

Create the canopy

Trim unnecessary lines after. Top part is finished

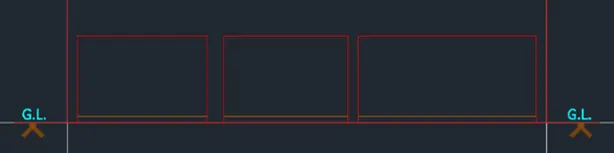

Proceed to the the bottom most part

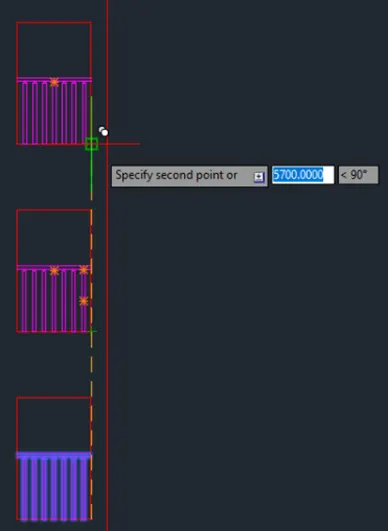

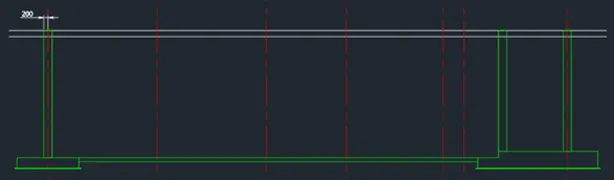

Project the columns

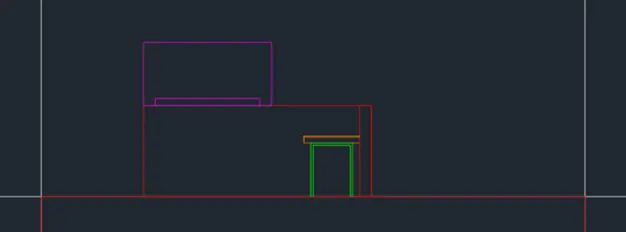

Copy the canopy from the elevation

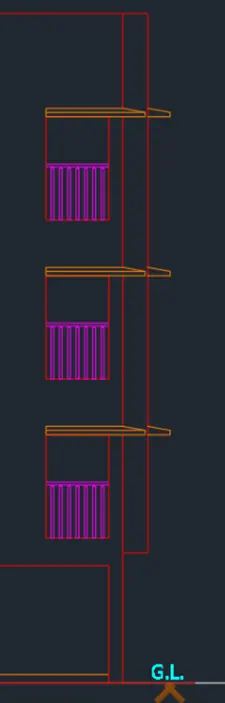

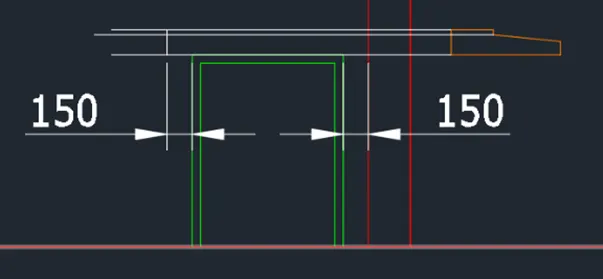

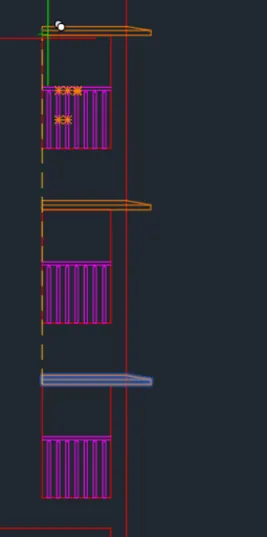

Proceed with the balcony

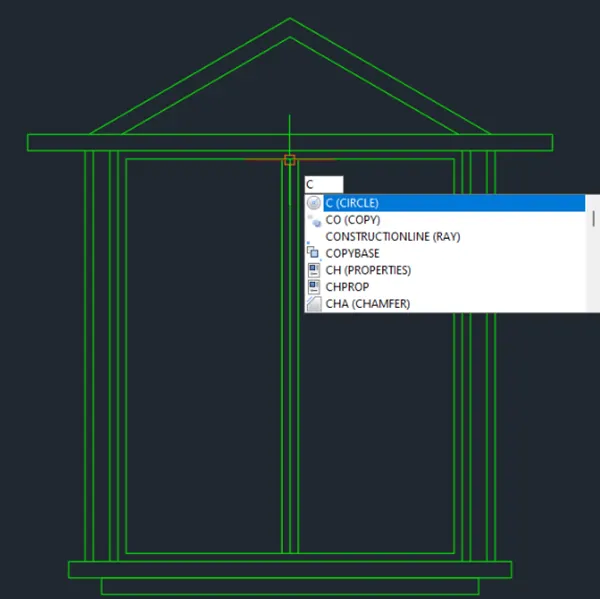

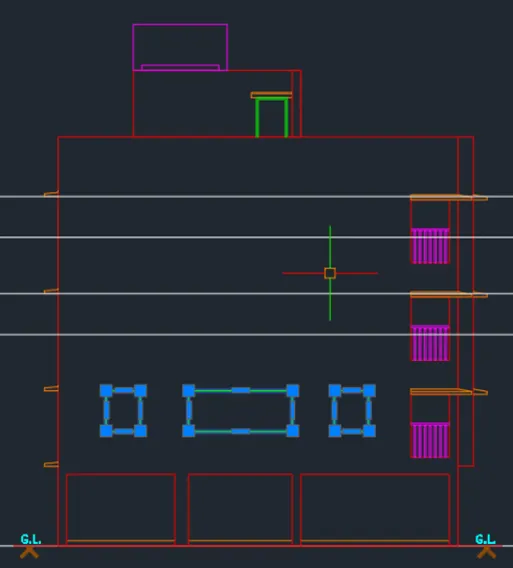

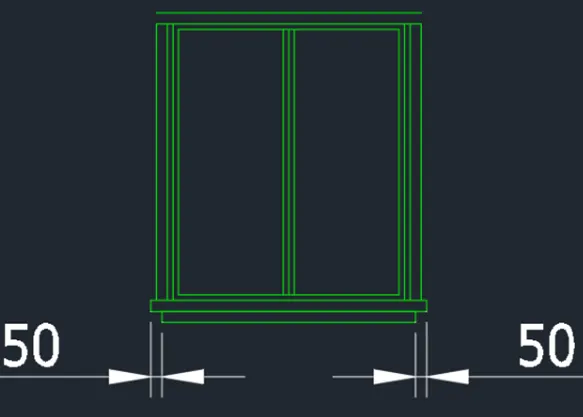

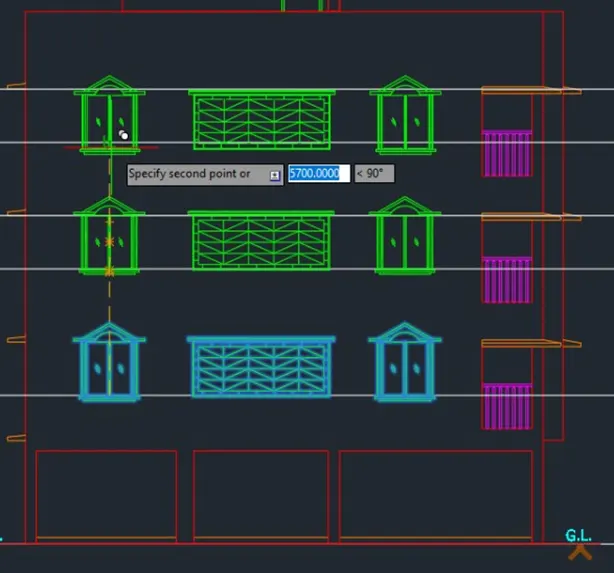

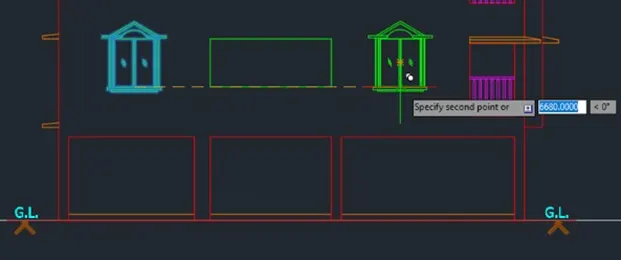

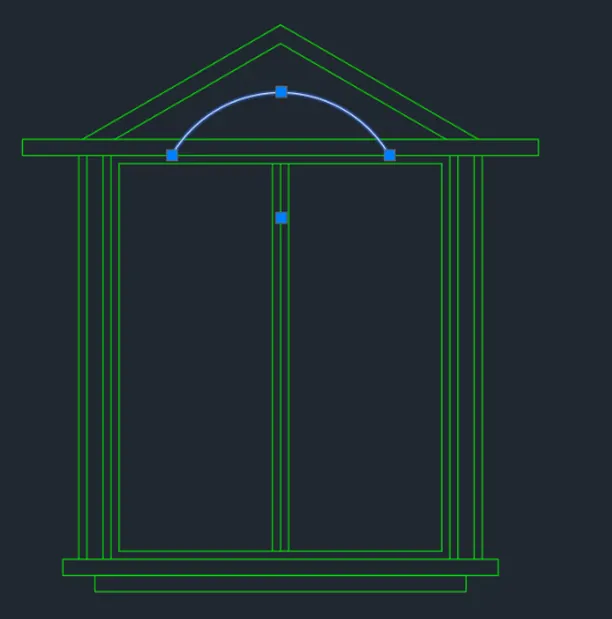

Proceed with the windows

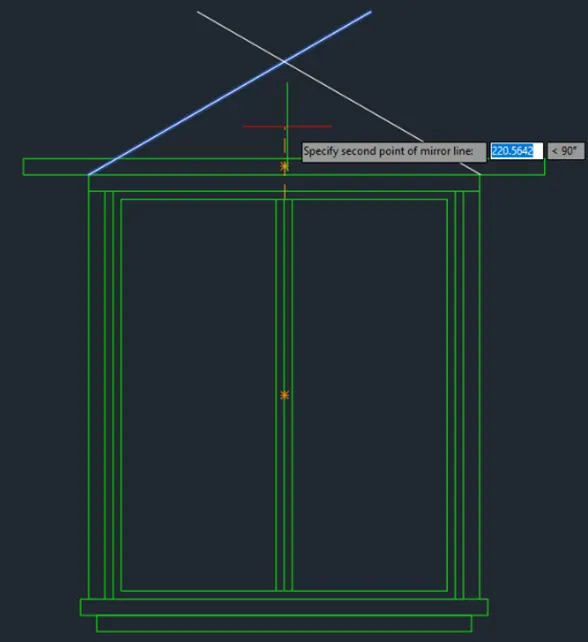

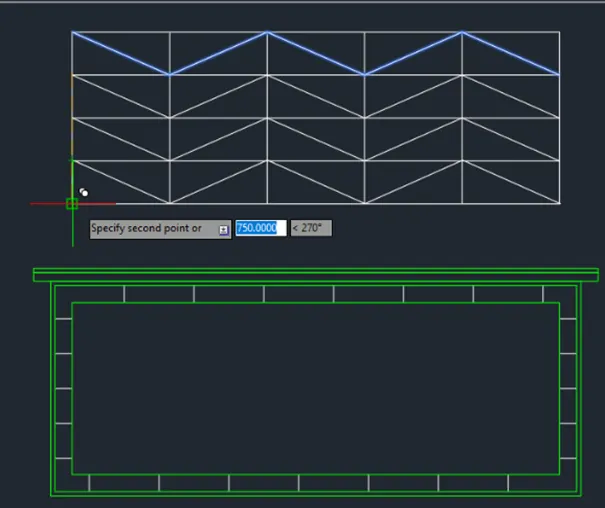

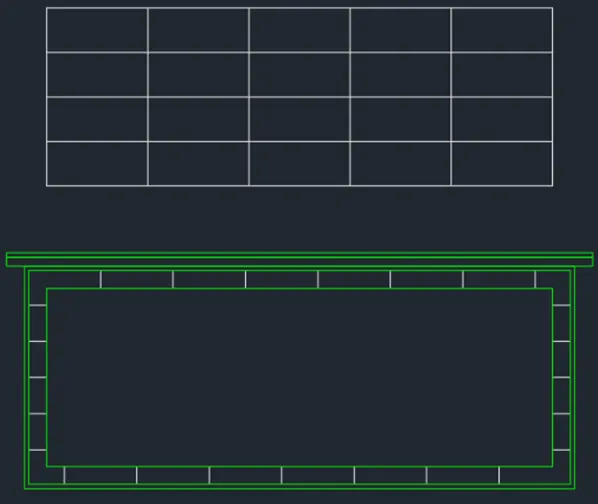

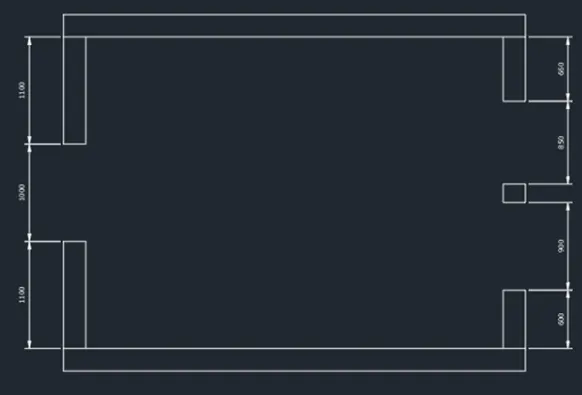

Create the side window

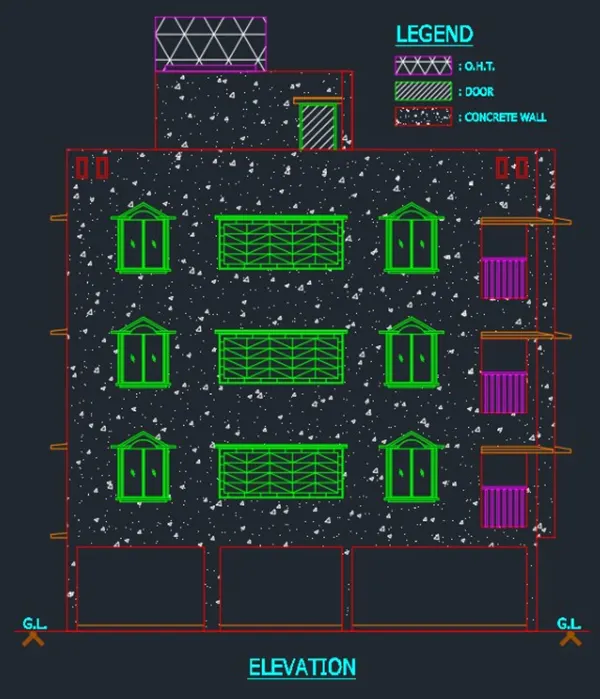

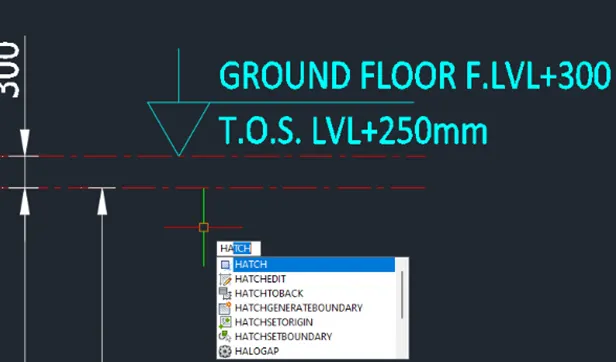

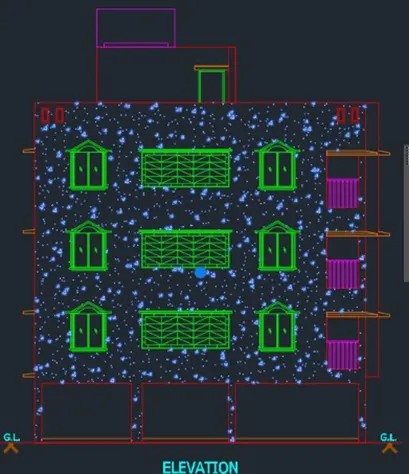

Add hatches to identify structural elements

RESULTS

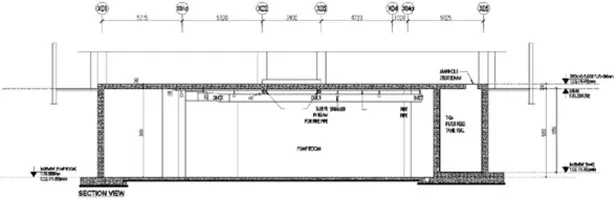

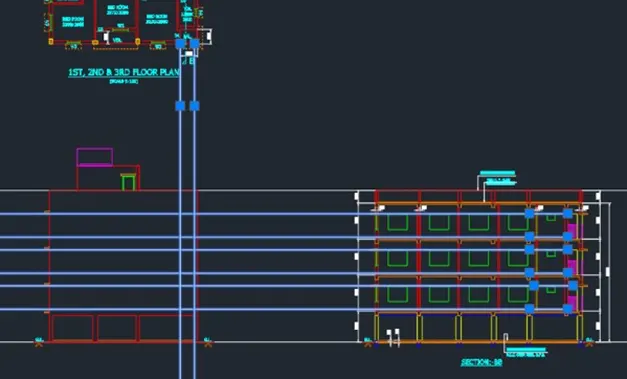

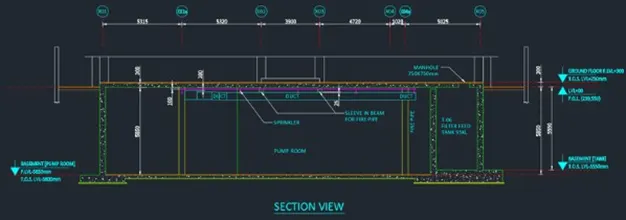

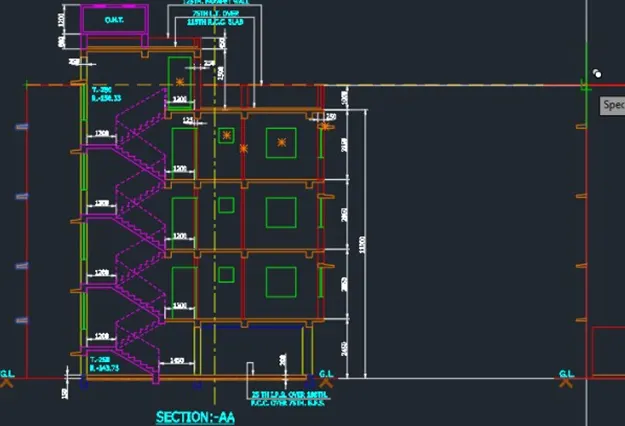

Create the section view of an industrial building as shown in Provide appropriate hatches and dimensions wherever required. Also, provide annotations to the drawing

PROCEDURE:

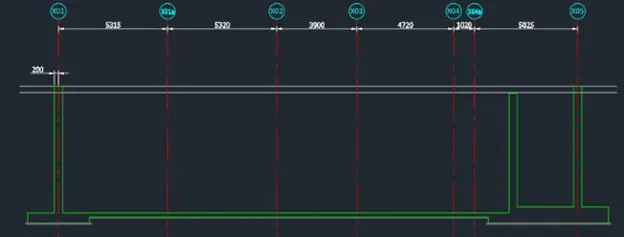

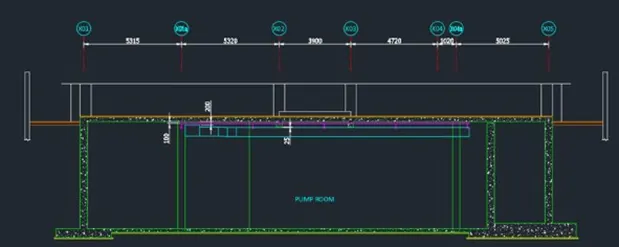

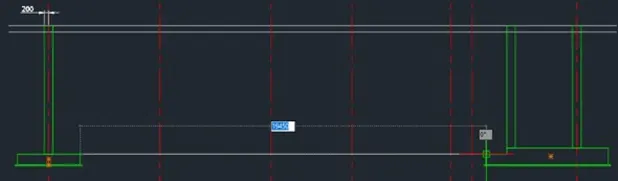

Create the borders using lines. Start from ground level

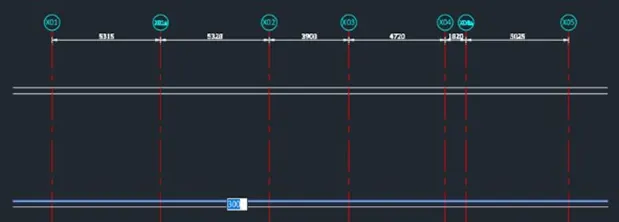

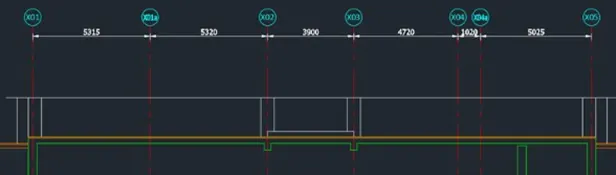

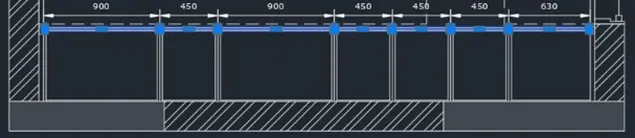

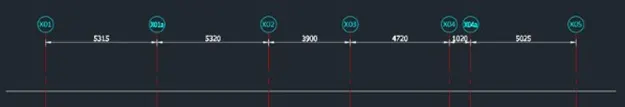

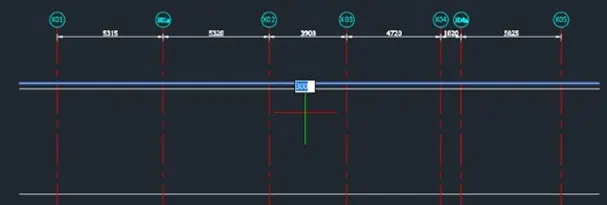

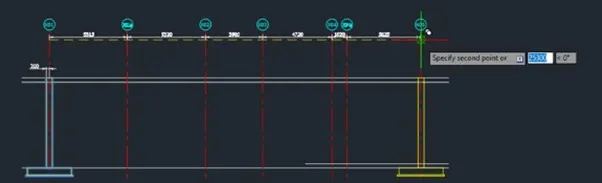

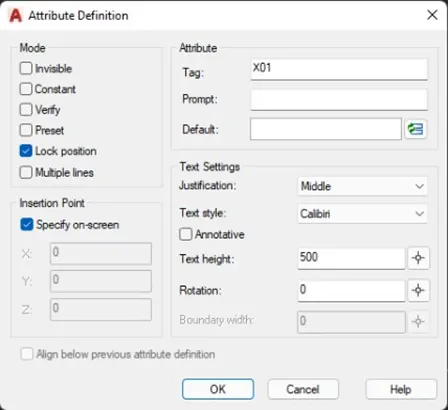

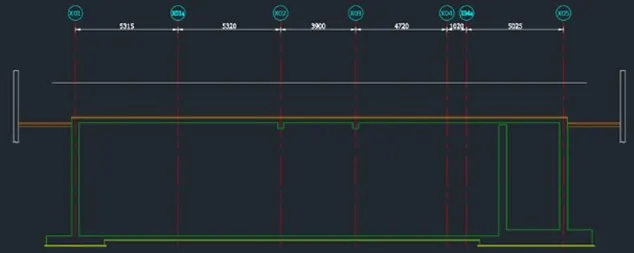

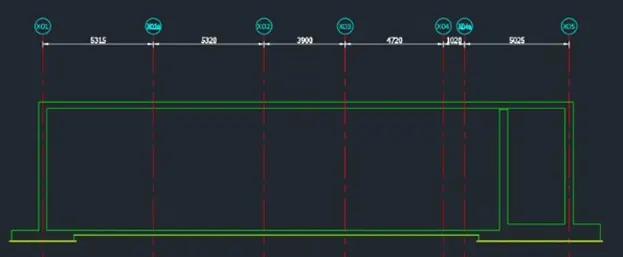

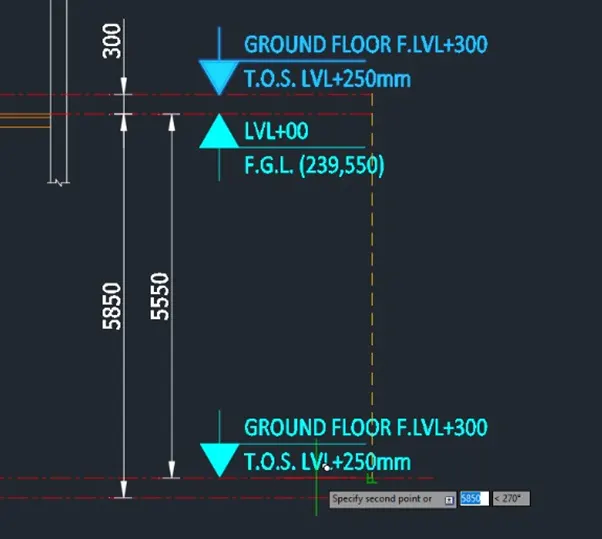

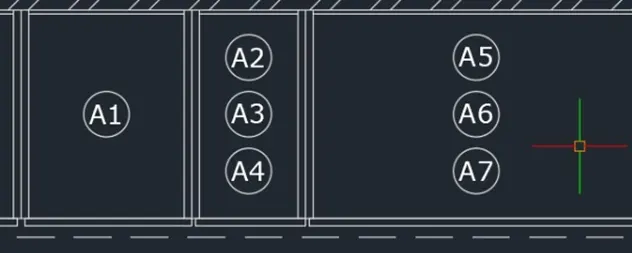

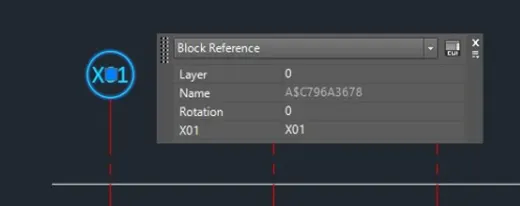

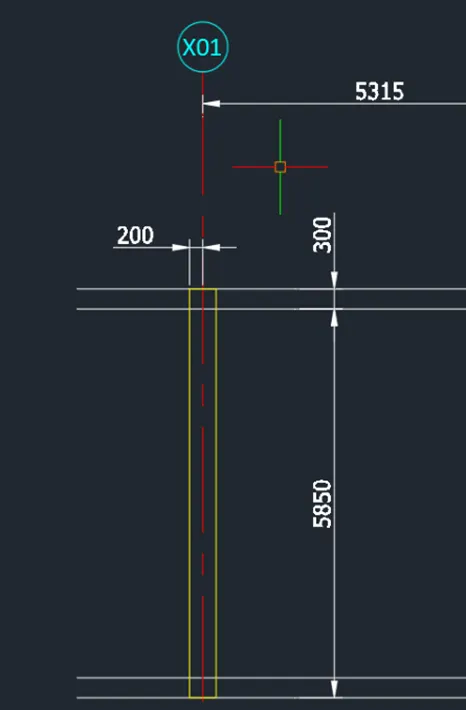

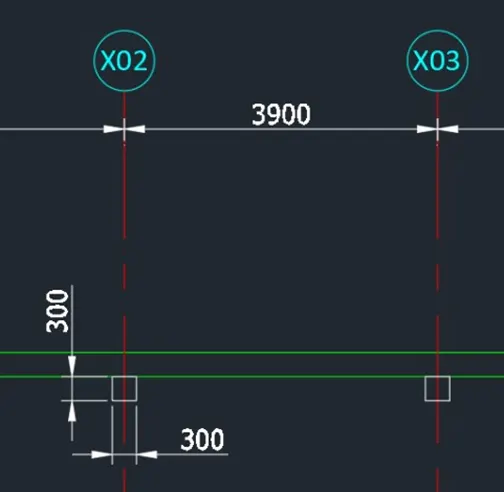

Add the grid tags and dimensions

Add the borders of wall

Trim the unnecessary lines

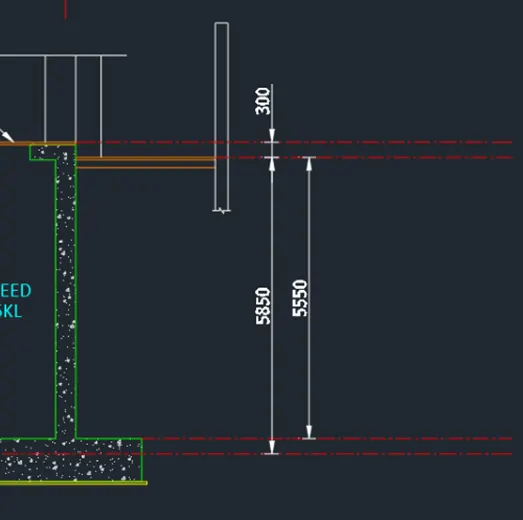

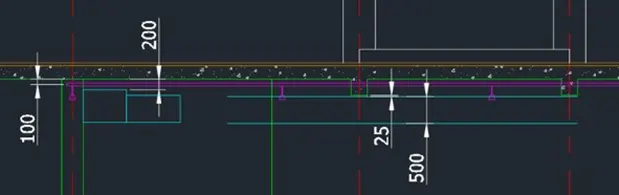

Do the same procedure for the top slab

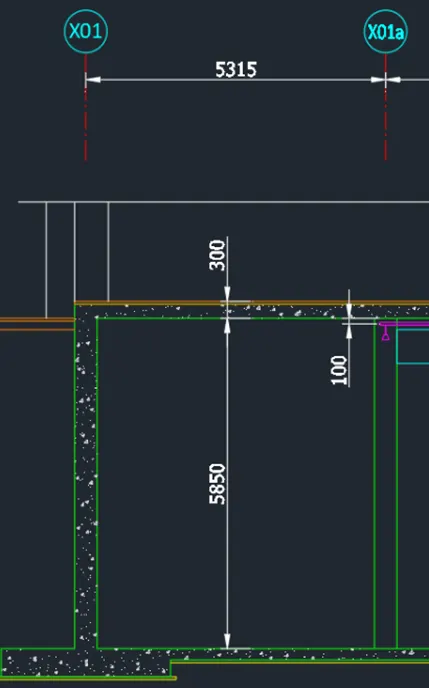

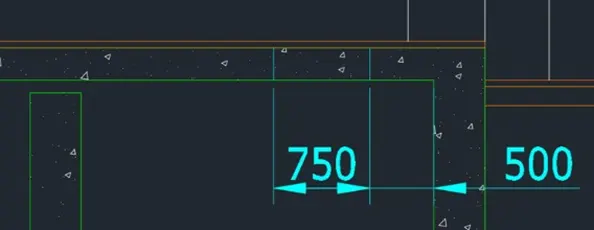

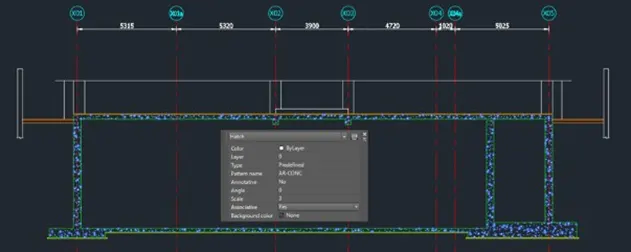

Add the wall hatch

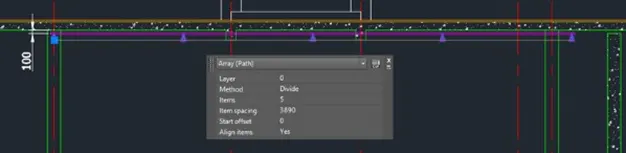

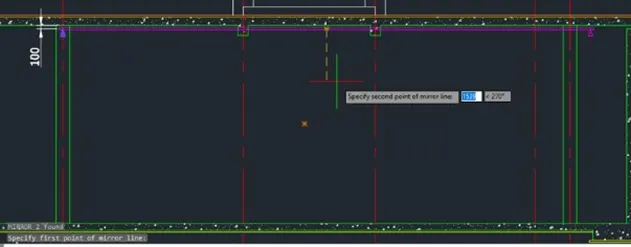

Add lines inside

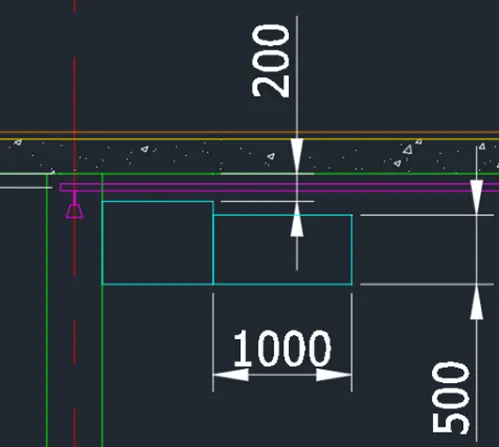

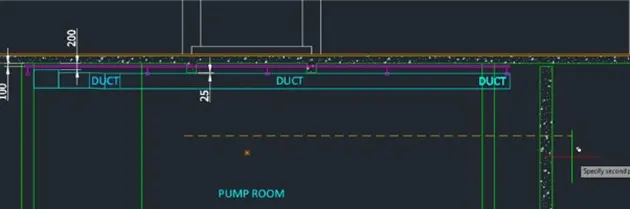

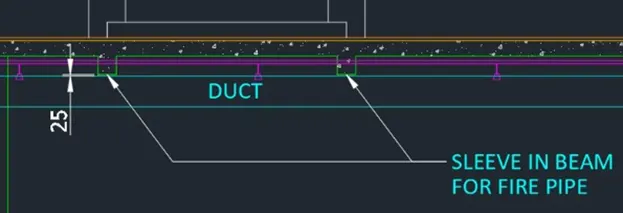

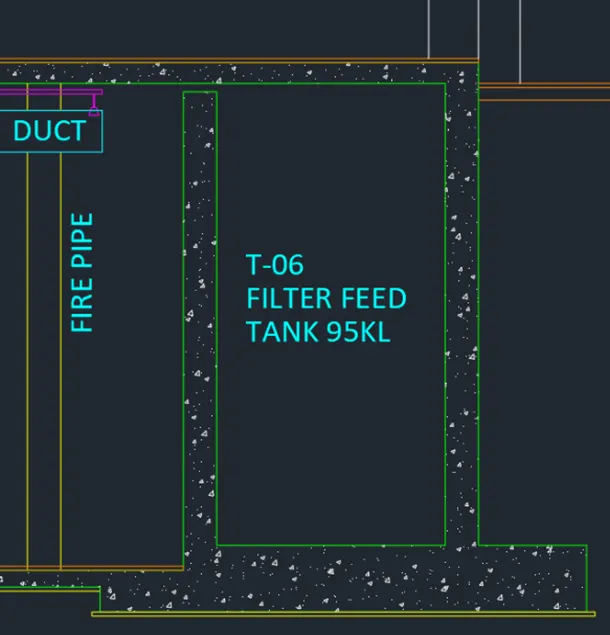

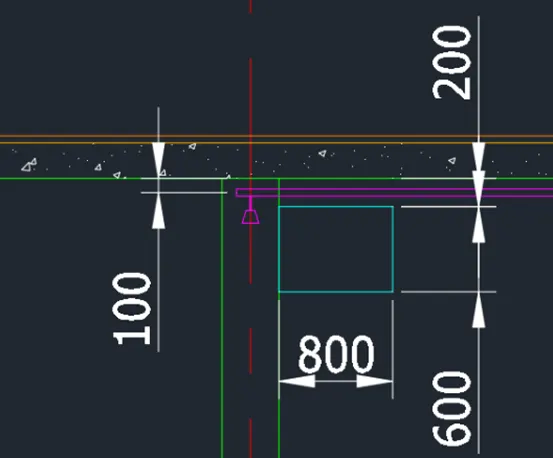

Create the duct

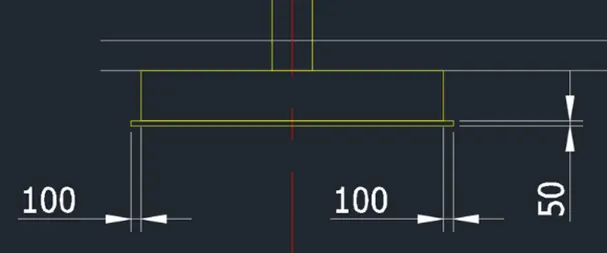

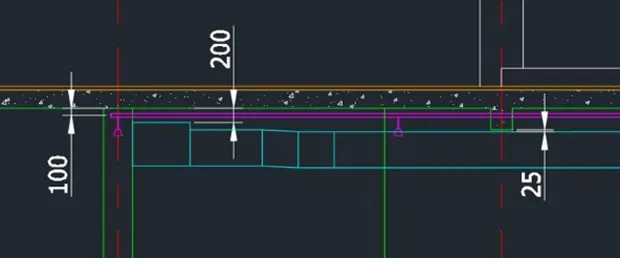

Add necessary texts and dimensions using dimlinear,dtext,move, and copy tool

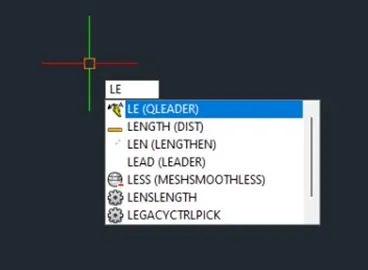

Add arrows using the leader command

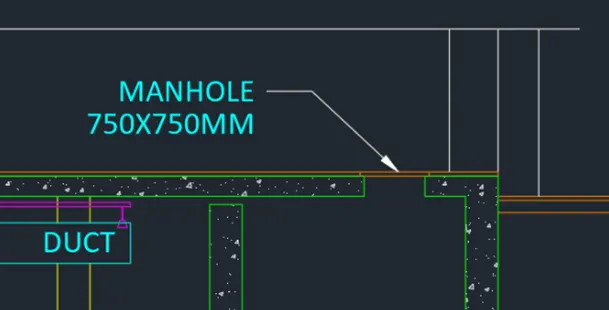

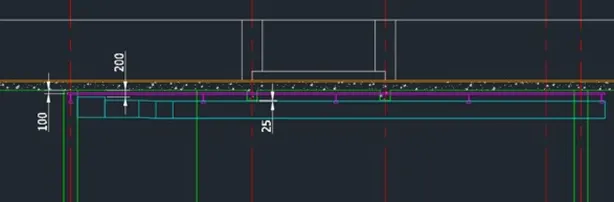

Add the manhole use line and trim command

RESULT

Conclusion:

The block tool and hatch is a convenient tool provided by the AutoCAD software where you can manipulate multiple objects into one objects. It also allows you to store objects in a server which can be used in other sketches. Same goes for the hatching tool which allows the user to create shading or pattern in a given point or object in which it can identify the objects in the sketch
