Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

1.

AIM:

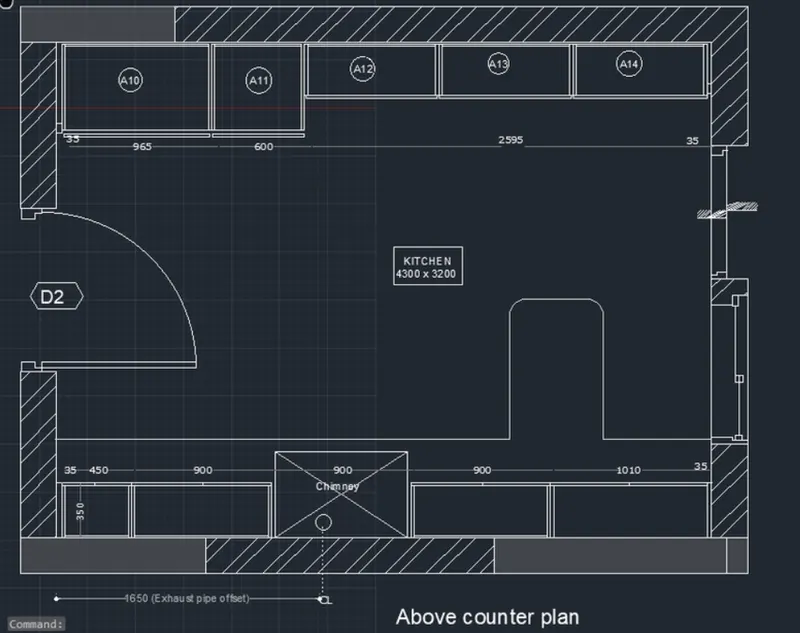

To create the kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

Procedure:

STEP 1:

• Units are in set to mm
• Limits and limax are also set
• Zoom command is also used

STEP 2:

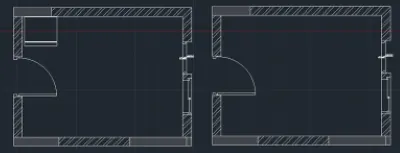

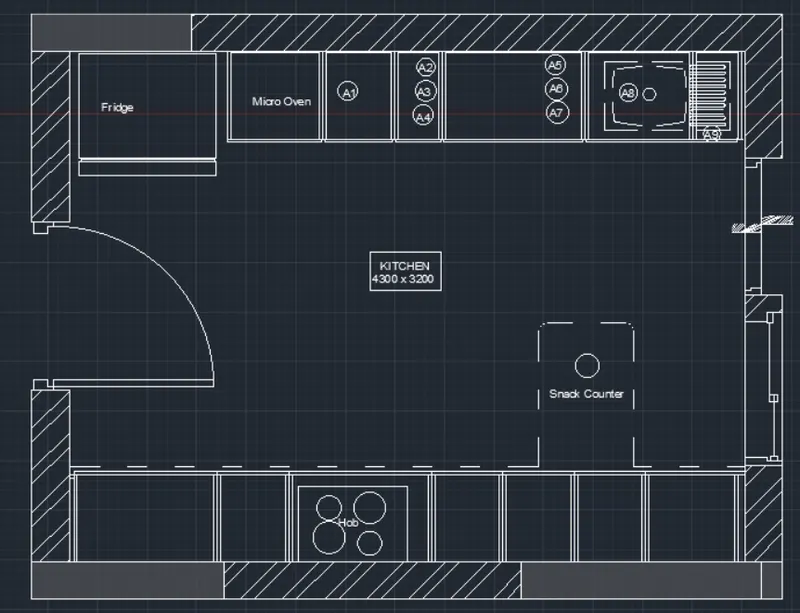

• In the command prompt type rec and the dimentions are 4734*3688 mm
• In the command prompt type offset it to the distance of 230mm
• Using arc lines the door is drawn
• In the command prompt type hatch to hatch the model
• In the command prompt type rec>dimentions, to do the fridge

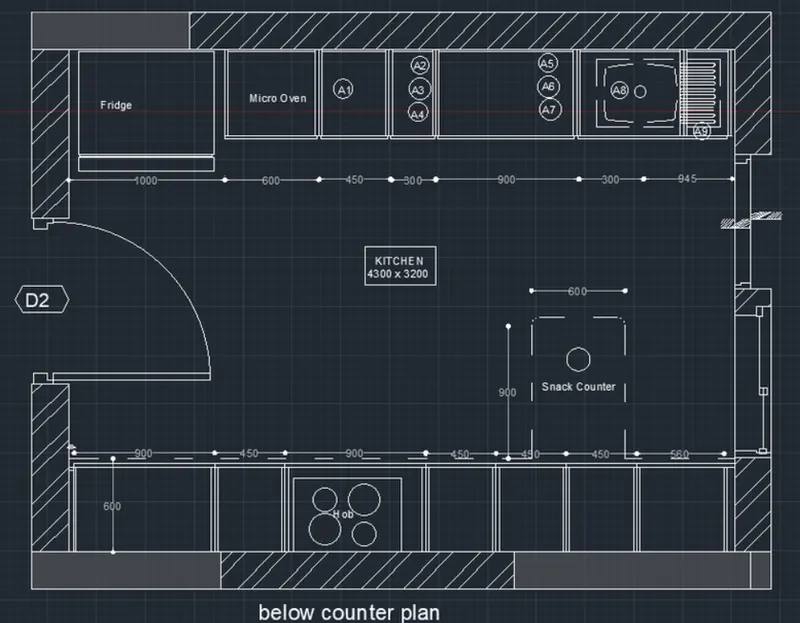

• In the command prompt offset and offset it to the desired distance to get the Micro Oven
• In the command prompt even the leader command is used to name the dimentions

RESULT:

2.

AIM:

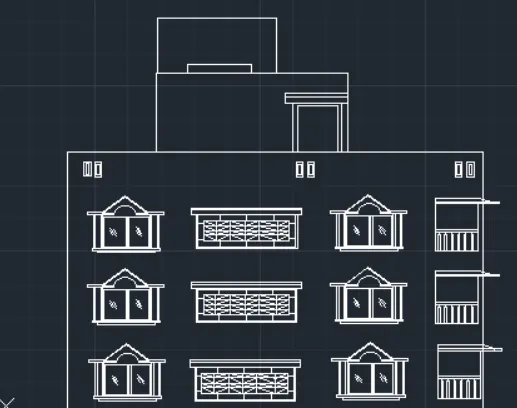

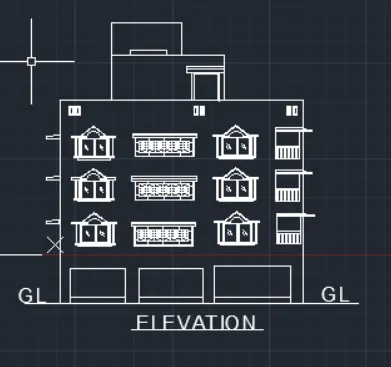

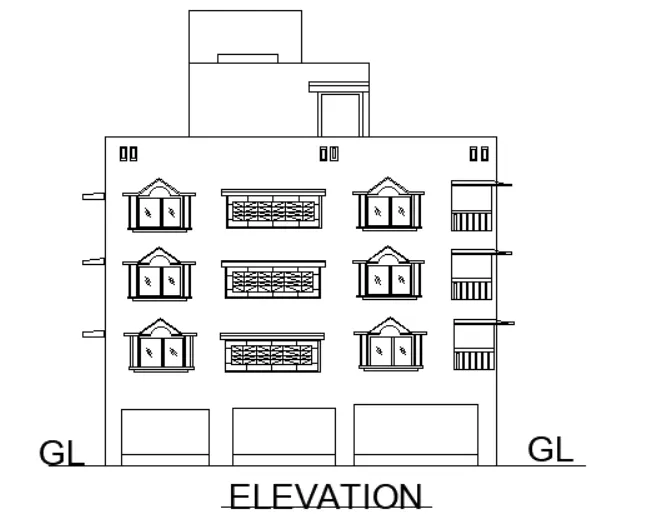

To create the elevation of the plan with hatch

PROCEDURE:

• In the command prompt type L to draw lines
• In the command prompt type rec to draw the rectangle
• In the command prompt type arc to draw the arc
• Therefore, the window is created

• In the command prompt type L to draw lines
• In the command prompt type rec to draw the rectangle

• In the command prompt type L to draw lines
• In the command prompt type rec to draw the rectangle

• In the command prompt type to draw the rectangles

RESULT:

3.

AIM:

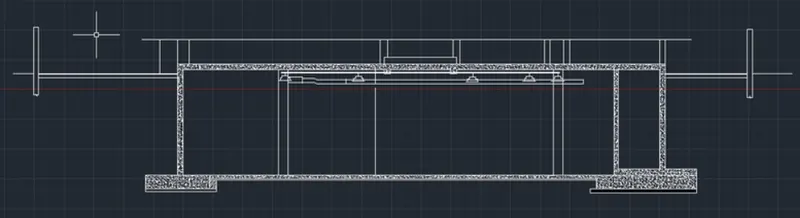

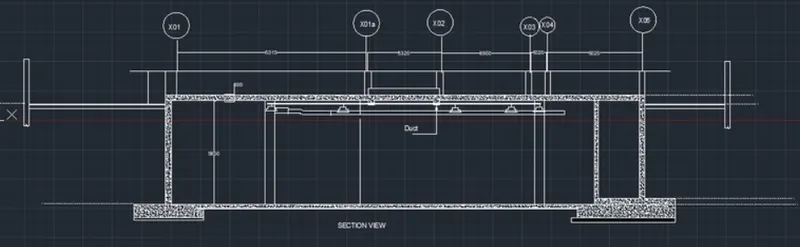

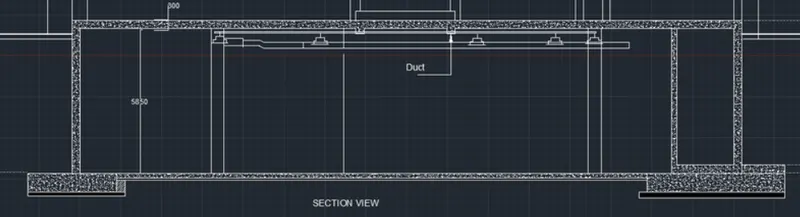

To create the section view of an individual building

• In the command prompt type L to draw the lines
• In the ribbon bar>hatch>AR.CONC.
• In the command prompt type rec to draw the rectangle

• In the ribbon bar>hatch>AR-Conc

• In the command prompt type L to get the dotted lines
• In the command prompt type c to draw the circle
• In the command prompt type M to draft the text
• In the cammand prompt dim to draft the dimention

RESULT:
