Dynamo is an open source visual programming language for Revit, written by designers and construction professionals. Its a programminglanguage that allows you to type lines of code; while also creating an algorithm that consist of nodes.

Using dynamo work can be carried out with enhanced BIM capabilities in Revit.Dynamo and Revit an together be utilized to model and analyze complex geometries, automate repetative processes,minimize human error and export data to exer and other file types.Dynamo can make the design process more efficient with an intuitive interface and many pre made scripting libraries availabe as well.

The user interface for dynamo is organized into five main areas, largest being the workspace where programms are processed and this user interface sections include

Main Menu

Toolbar

Library

Work Space

Execution Bar

The workspace is the place where designers develop visual programs but it is also the place where any elaborate geometry is previewed.

Conceptual mass of a building contains different types of parameters like level, floor area, floor perimeter and architect can generate early quanties takeoff from the mass. In Bim modelling services the conceptual mass of a building can be exported to to any other format for performing early energy analysis.

Q1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.

ANS:

AIM: TO CREATE A SET OF SINUSOIDAL POINTS AND CREATE A CURVE AND CREATE A SURFACE OUT OF THE CURVE USING DYNAMO

PROCEDURE:

STEP: 1

• GO TO Revit 2021

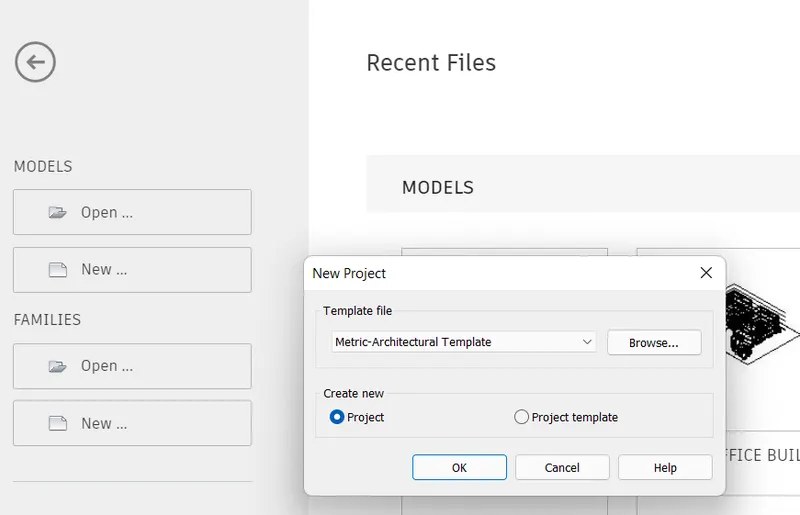

• Click on new

• Select architecture template
• Save the file

STEP: 2

• Go to manage tab

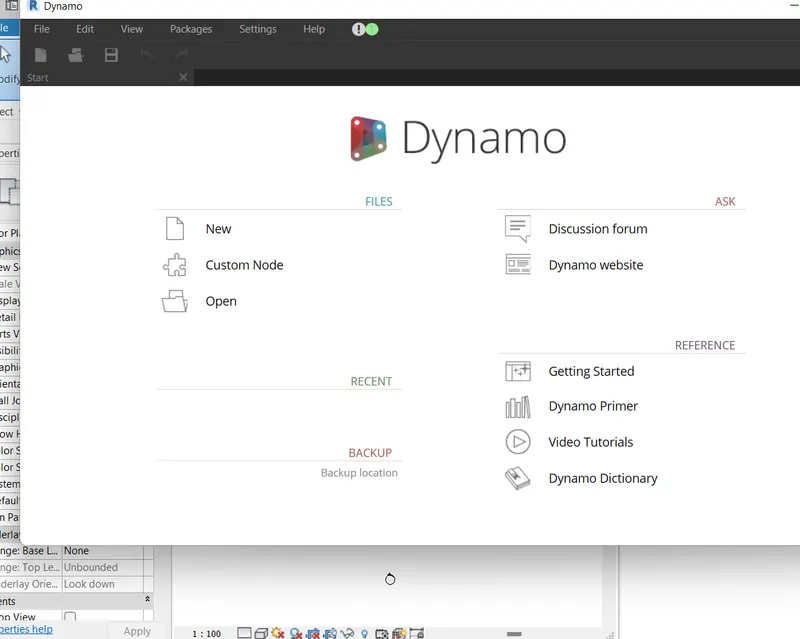

• Click on Dynamo
• Then a new window will open
• Click on new

STEP: 3

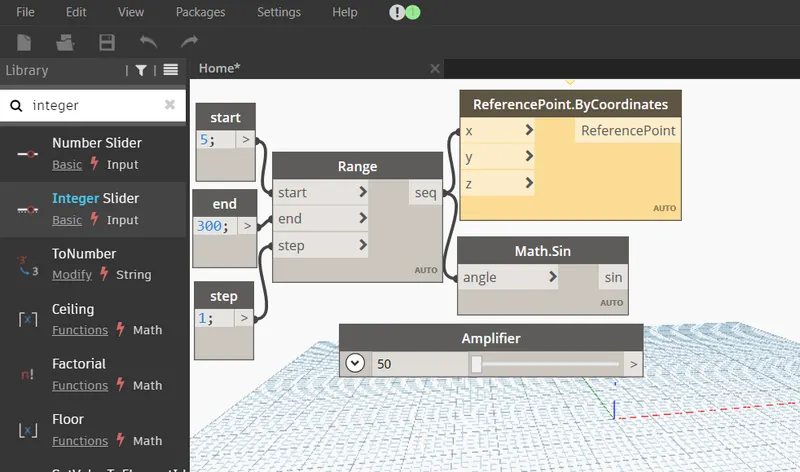

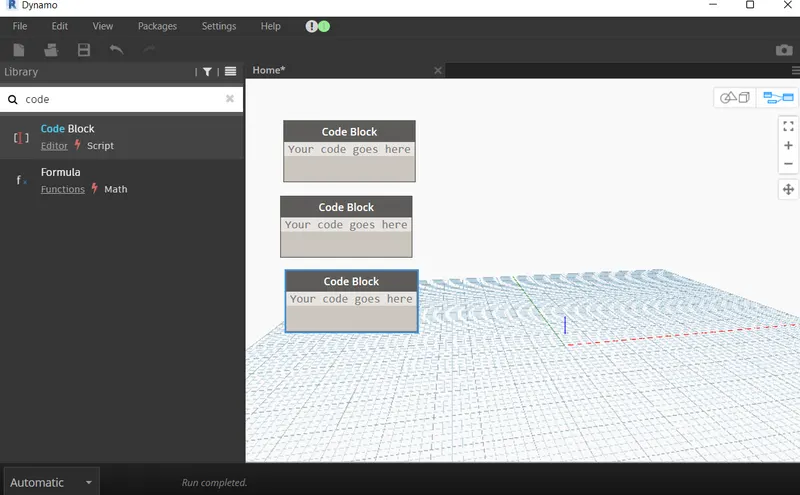

• Now, start the process, firstly, go on search tab and search code block
• Insert three Integer sliders

• Name the first block as (Value - 5)
• Name the first block as (Value - 300)
• Name the first block as (Value - 1)

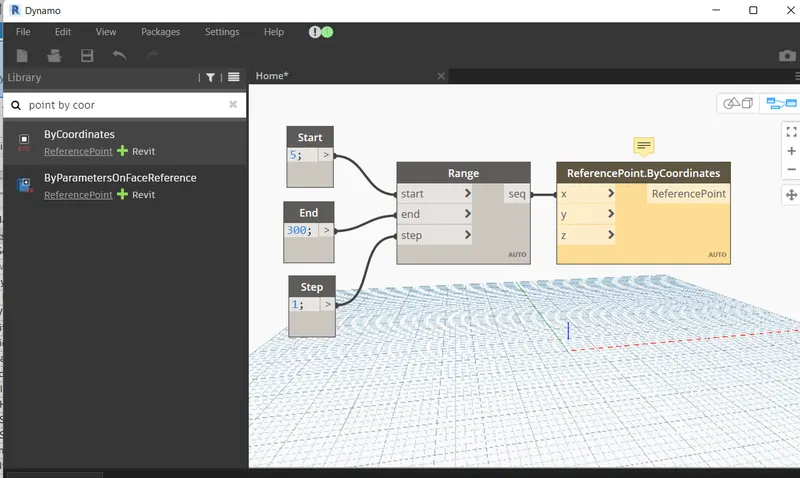

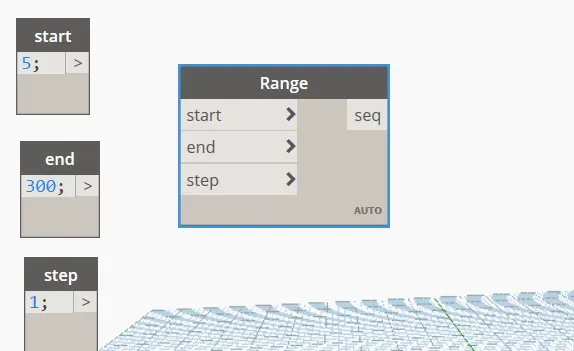

• Now type range in search panel of the library and insert it

•
• Now, connect these three code blocks as input to the range block
• Now, search pints by coordinates in the search panel.
• Then, connect the range block to the X coordinate of the point by coordinate block

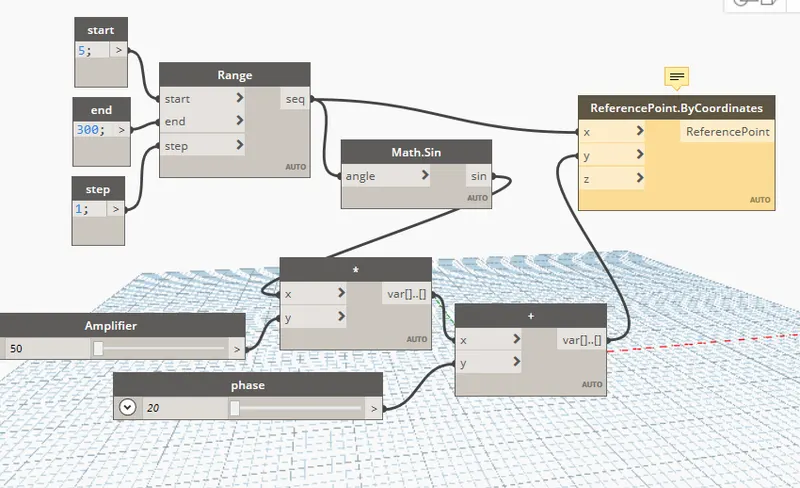

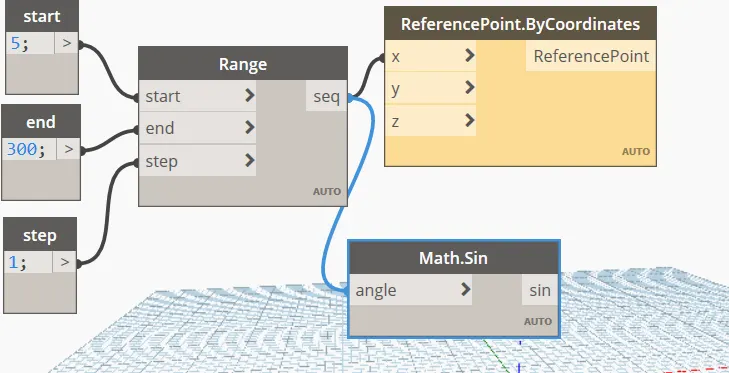

• Now, to produce sin wave, from the points, insert sin function which is given by math.Sin option in the library.

• Since sin values are very small, by using integer slider we need to insert amplifier

• This amplifier code block needs to be multiplied to sin block
• For this use product function from library
• Input for x value is sin block and for y value is amplifier

• Next, we need to provide phase for sin curve.
• so, by usinf integer slider and name it as phase

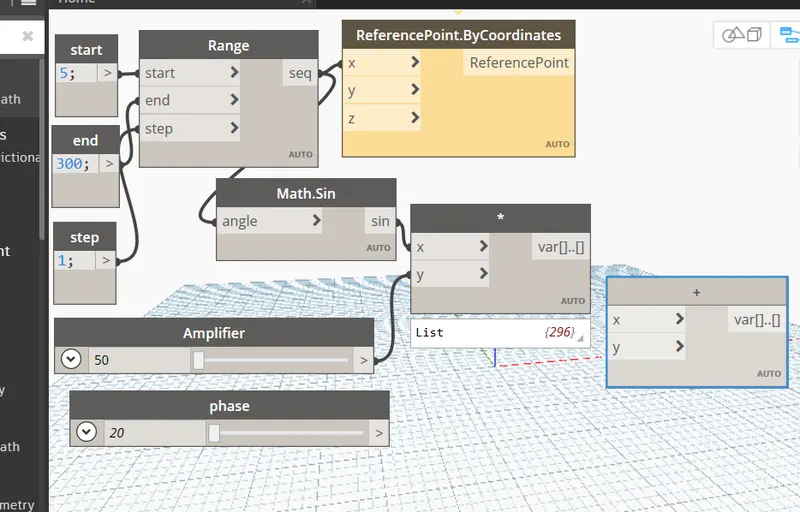

• Now, the phase block is then added to amplified sin block(*)
• For this, insert add operator block from library.

• Now, this is then connected to the y coordinate of point by coordinates block.

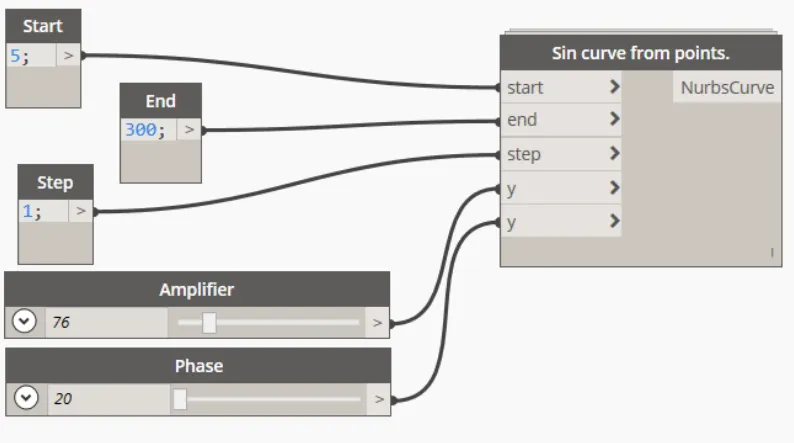

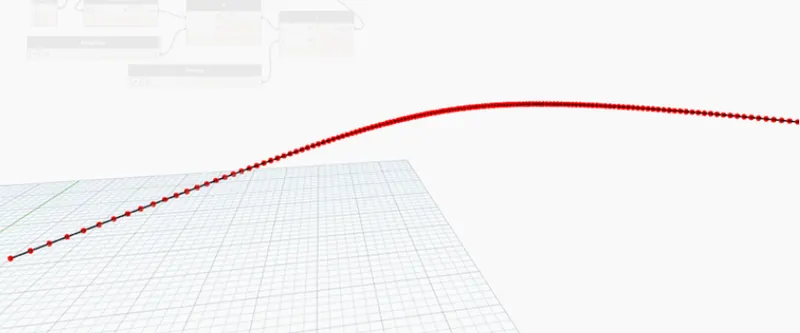

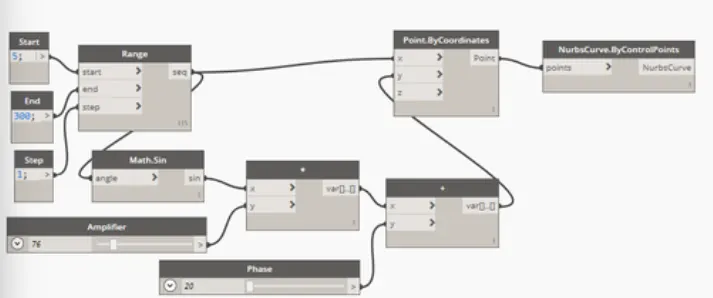

• Hence, the set of sinusoidal points are obtained.

STEP: 4

• Now, we have to convert them to a curve
• the curve can be created from nurbscurve
• using nurbscurve by control point option from library
• connect the point by coordinate block s input for the nurbs curve, a line will be developed connecting the points

• Hence, sinusoidal curve is also developed.

STEP: 5

• The next step is to develop surface.
• For this, first create a group of these items for easy manipulation. and then go to edit
• This can be done by selecting the required input blocks option in the top portion nd then choose create node from selection.
• The entire thing will be grouped together.

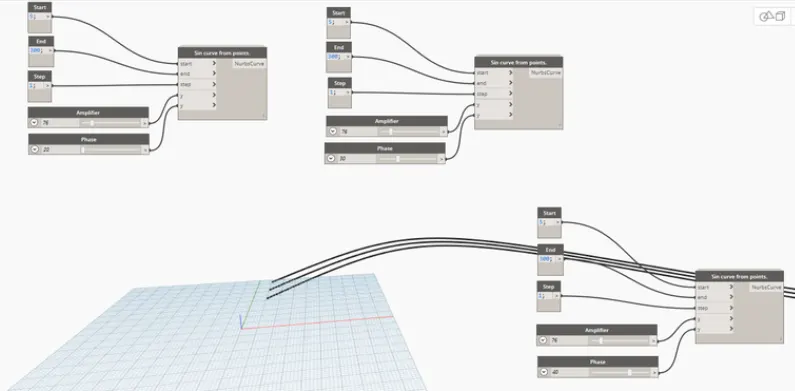

• Now, copy this entire blocks two times to create the surface.
• Adjust phase to view the two curves that is copied.

• Next step is to create the surface.

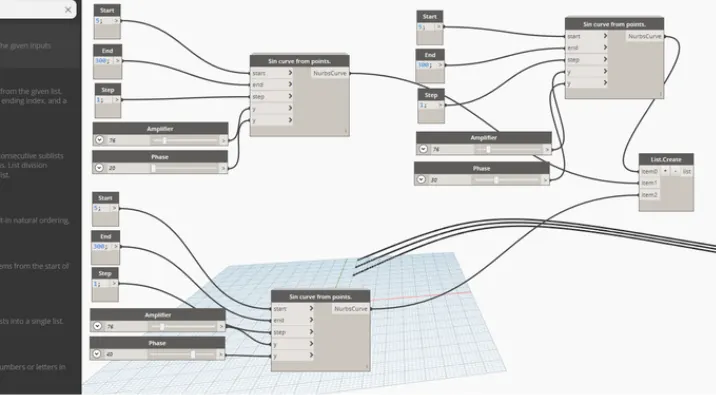

• For this, first create a list.
• This can be done by searching list.create in the search panel of library.
• Then connect all the output of the sine curves as input for the list.
• This will serve as the input for surface by loft block.

• Now we have to create the surface

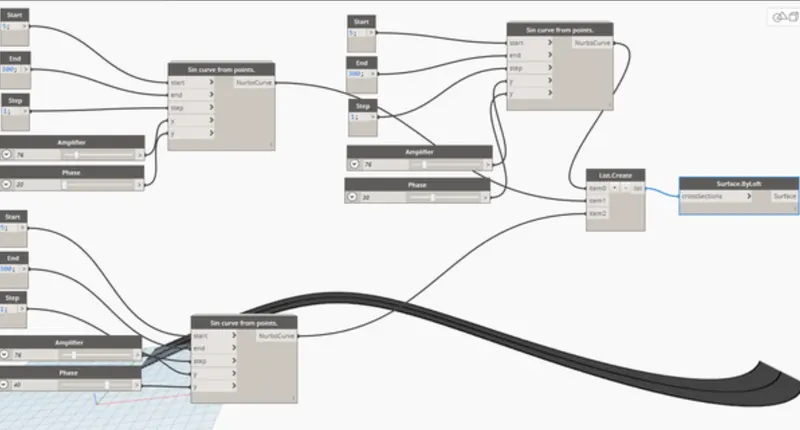

• For this, search surface by loft and connect it to the list creat block.

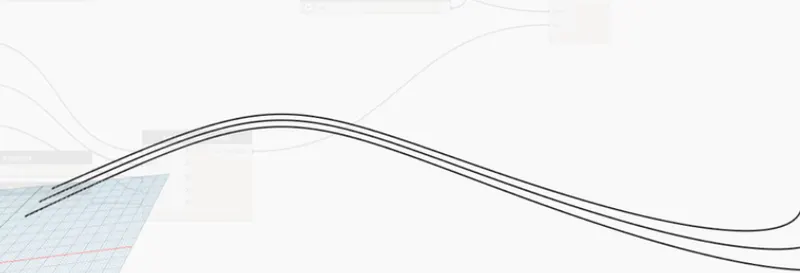

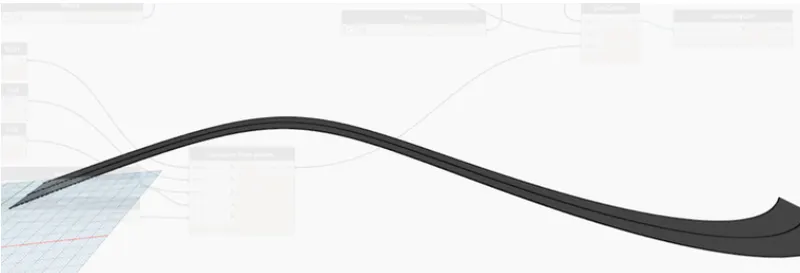

• Hence the surface is developed out of curve

RESULT:

Q2) Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.

ANS:

AIM: To Create a conceptual layout of floor plan in dynamo

PROCEDURE:

STEP: 1

• GO TO Revit 2021
• Click on new

• Select architecture template
• Save the file

STEP: 2

• Go to manage tab
• Click on Dynamo
• Then a new window will open
• Click on new

STEP: 3

• Inorder to create the wall first we have to create four control points.

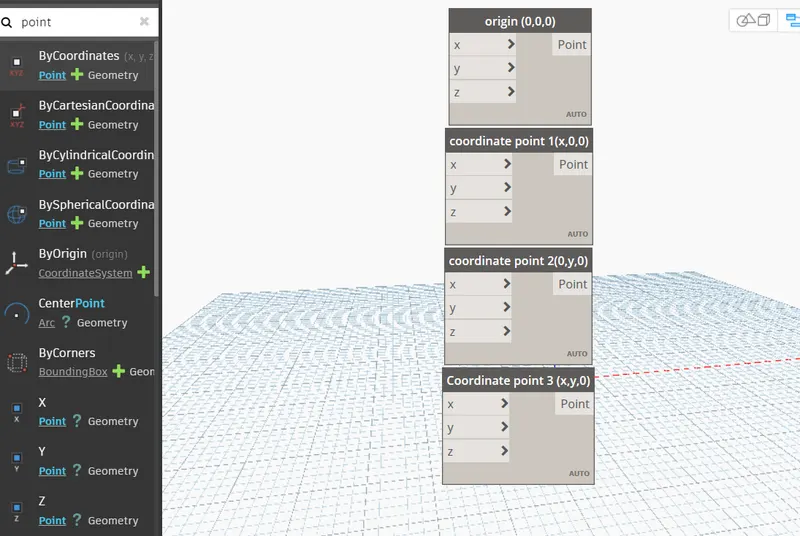

• For this, search points by coordinates in the search panel of the library.
• 1st one is named as origin (0,0,0) and the rest is named as control point 1(x,0,0), control point 2(0,y,0) and control point 3(x,y,0).

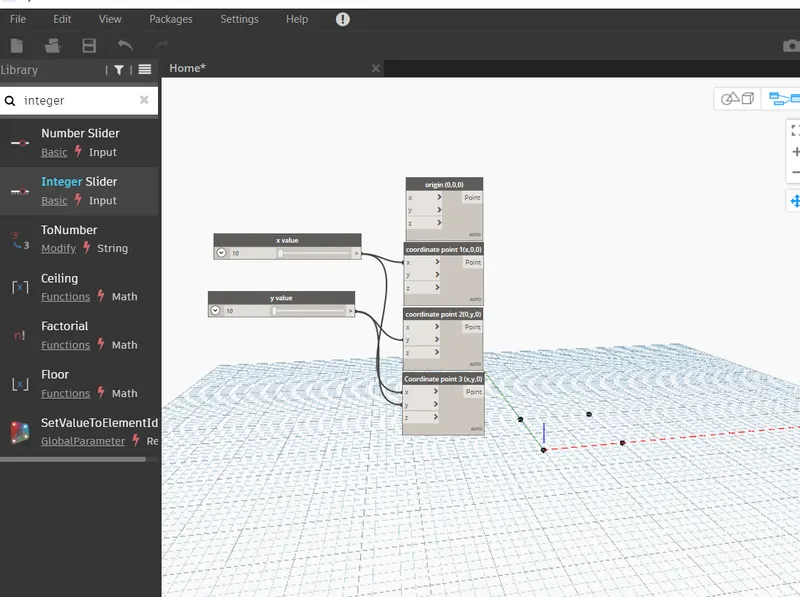

• Now, provide two integer sliders to provide the values for x and y.

• Now, we have to connect these points by a line.

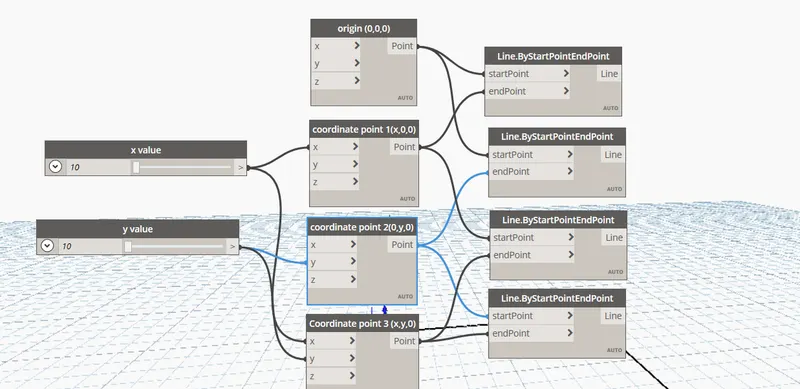

• So for this, search line by start and end point and insert 4 blocks
• The input for these blocks are the points created previously.

• Hence, the layout of the floor plan is obtained.

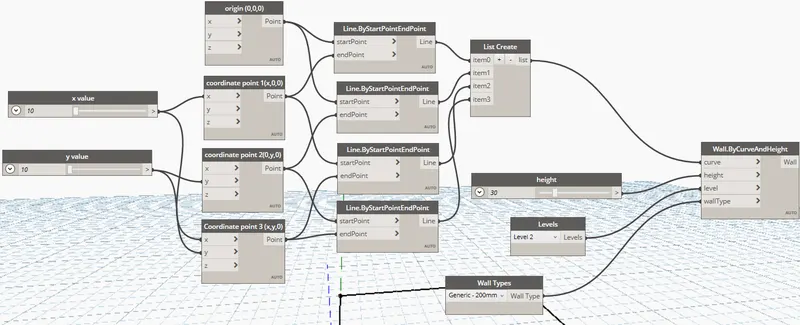

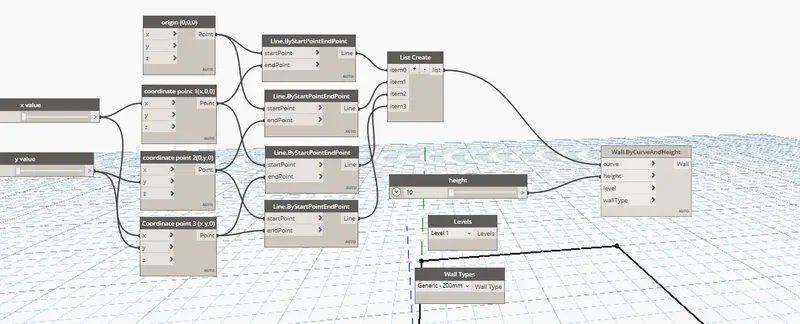

• Now, search wall in the panel and choose wall by curve and height.
• So, for this input required are curve, height, level and wall type. Inputs are given as follows:
• For curve, combine all the four lines in a list by choosing list.create.
• For height, another number slider is chosen and name it as height.
• For level, search level in the search panel it will contain the levels availbale in your revit folder.
• Then choose the level in which you want to place your structure.
• For wall type, search wall type in the panel and it will display the wall types linked in the revit file.

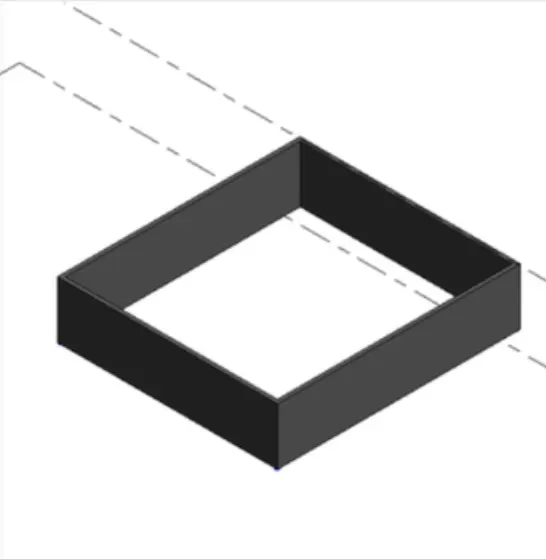

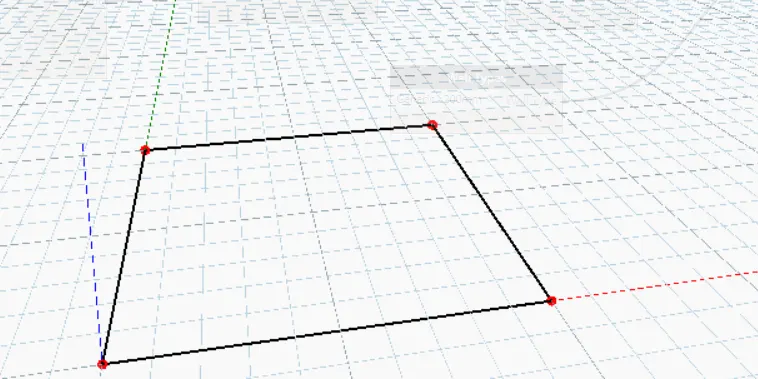

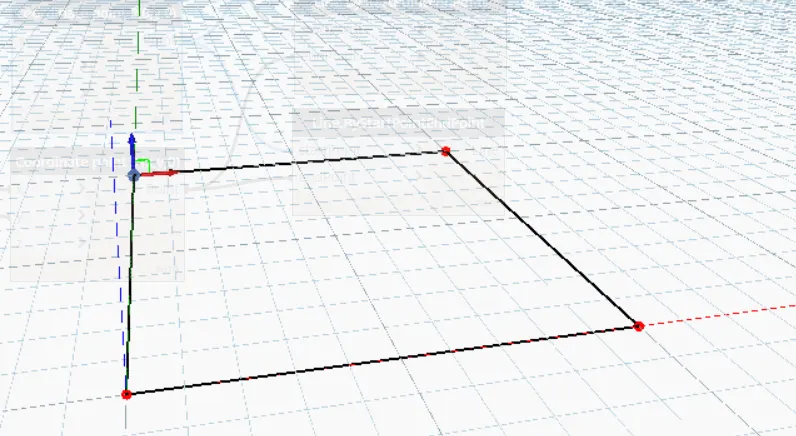

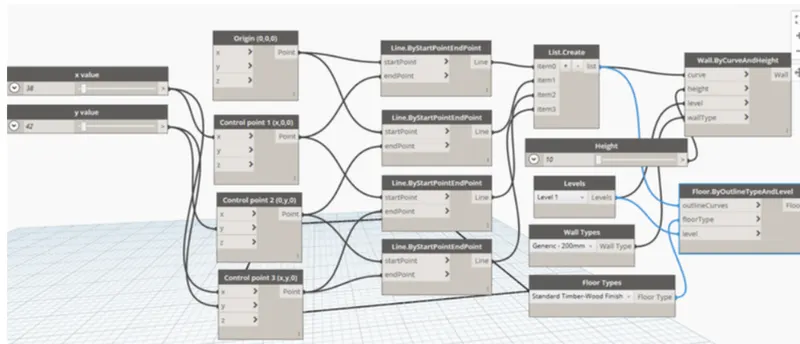

• The floor plan layout is given below:

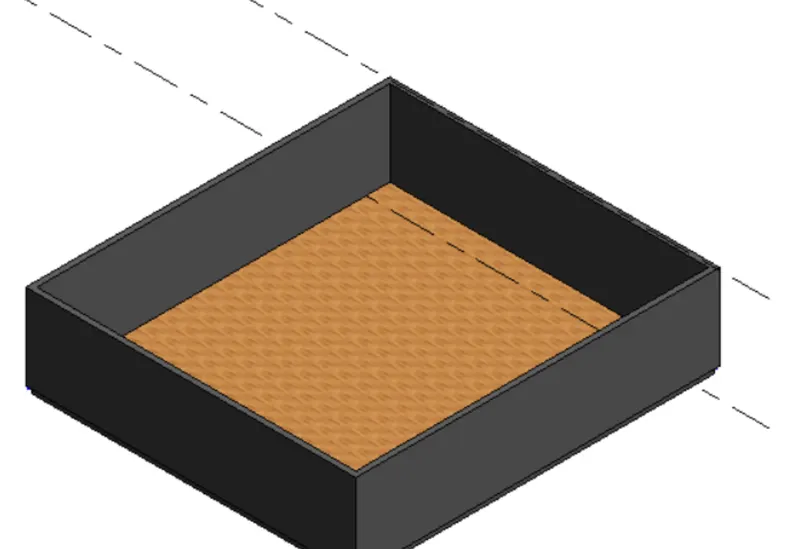

• Now, go to revit file to view the 3D form where the height of the wall is visible.

• The height of the wall can be adjusted using the slider.
• Now, we have to place the floor.
• For this, type floor in the library and select floor by outline curve, floor type and level.

• This can be viewed in 3D view in revit file.

RESULT:

Q3) Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block

ANS:

Aim: To create an array of model elements in revit.

Procedure:

STEP: 1

• GO TO Revit 2021
• Click on new

• Select architecture template
• Save the file

STEP: 2

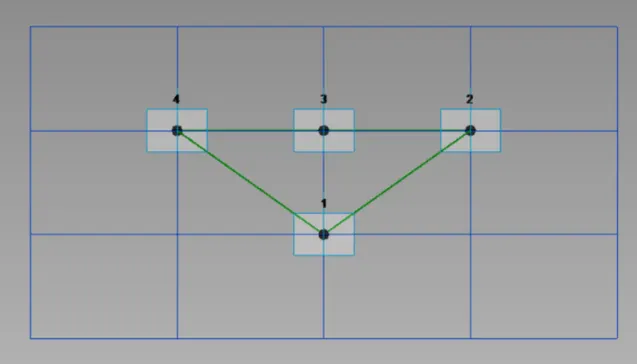

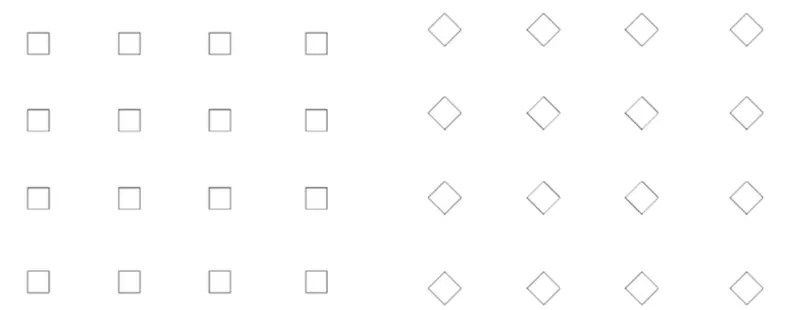

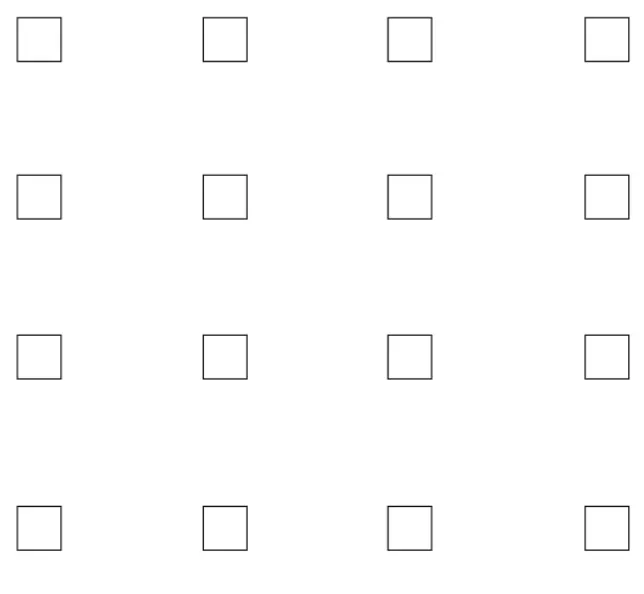

• In that go to architecture tab-> Columns --> Architectural column --> Place the column (610mmx610mm).

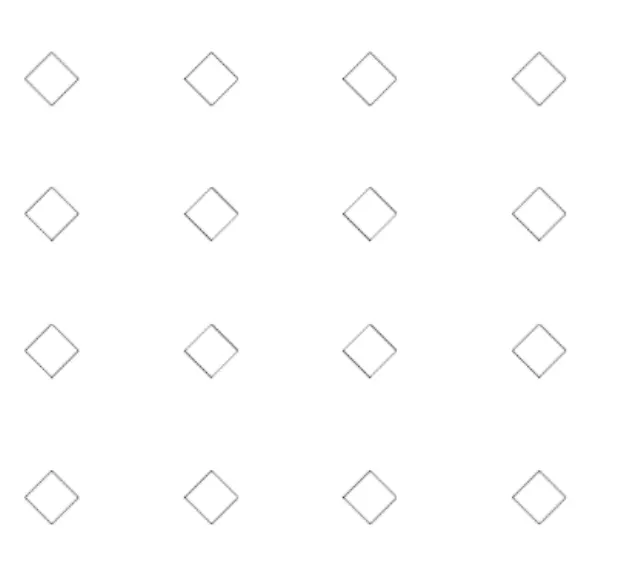

• Now, similarly 16 columns are created.

• The properties of the model elements are varied using dynamo.

STEP: 3

• Go to manage tab
• Click on Dynamo
• Then a new window will open
• Click on new

STEP: 4

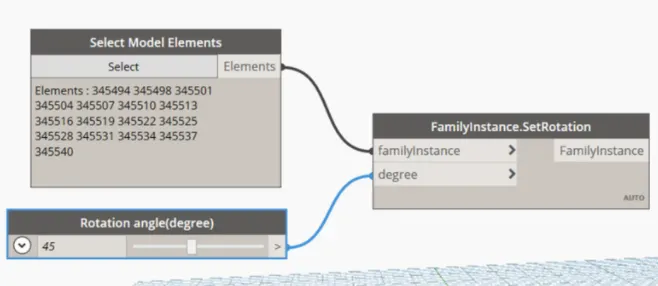

• In the search panel of the library search select model elements, integer slider and set rotation.
• The integer slider is renamed as rotation angle.
• Now, select model elements block will be the input for family instance and integer slider (rotation angle) will be input for degree.

• The rotation angle can be varied to desired value.

RESULT:

Q4) Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column

ANS:

Aim: To create a conceptual mass in Revit and develop a parametric column by dividing the surfaces.

Procedure:

STEP: 1

• Open revit software and under the families open a new --> conceptual mass-> mass.
• Now, go to elevation view and create a level at 3.6m and name it as Height of roof.

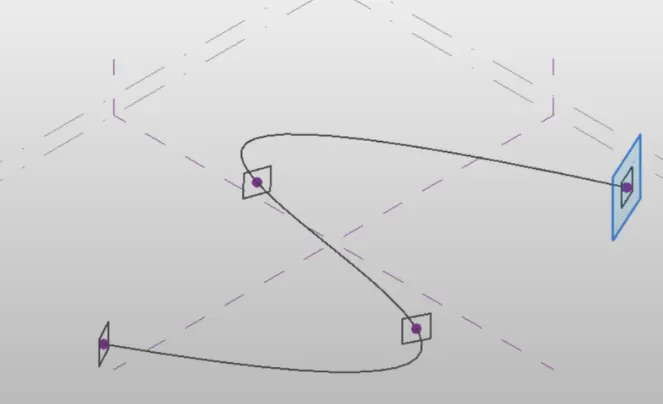

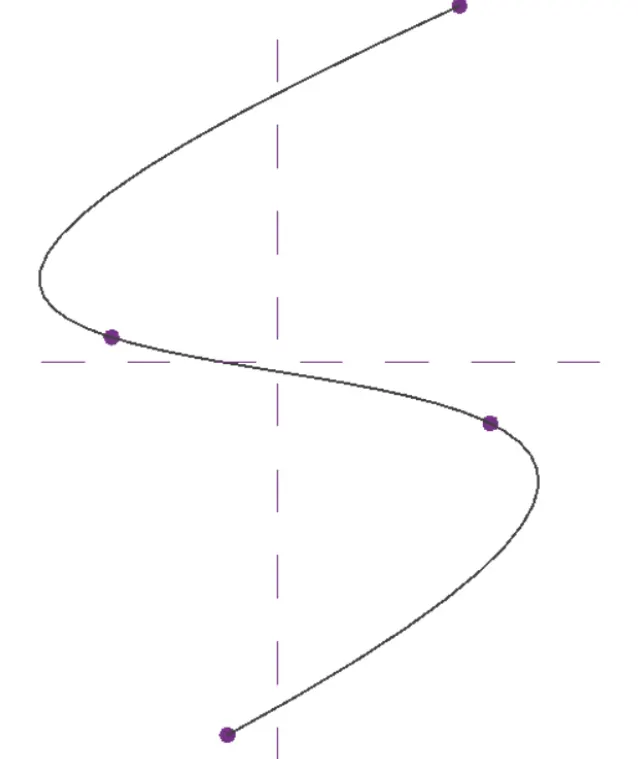

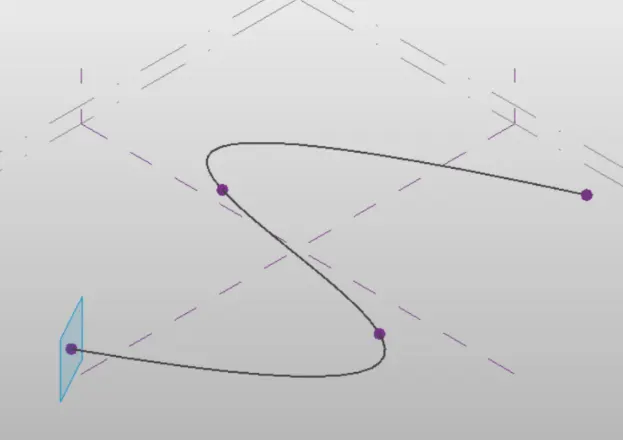

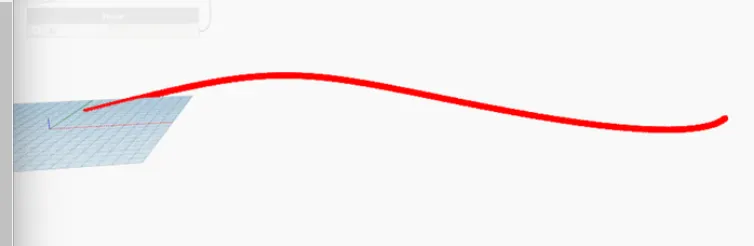

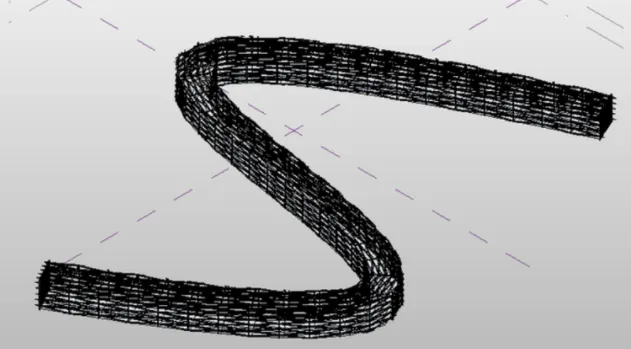

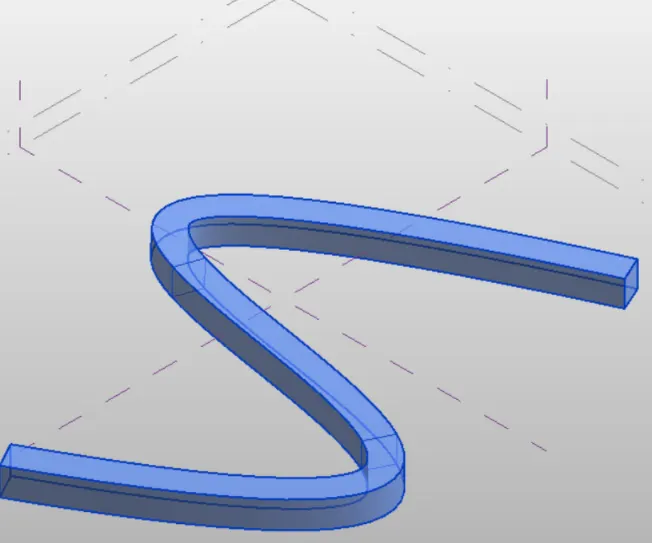

• Now, using spline tool draw the desired outline for the walkway.
•

• Now, we have to create a profile to sweep through the curve.

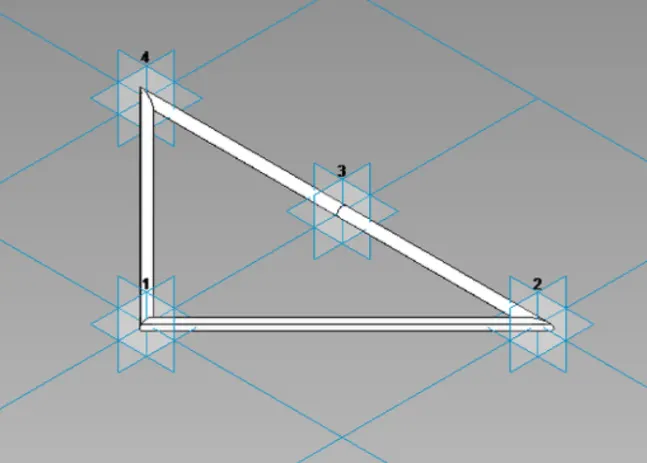

• For this, we have to set the workplane at the points and develop a polygon at the workplane keeping the point as centre.

• Now, a polygon is developed with point as center.
• Similarly, workplane and polygon is developed at all the nodes.

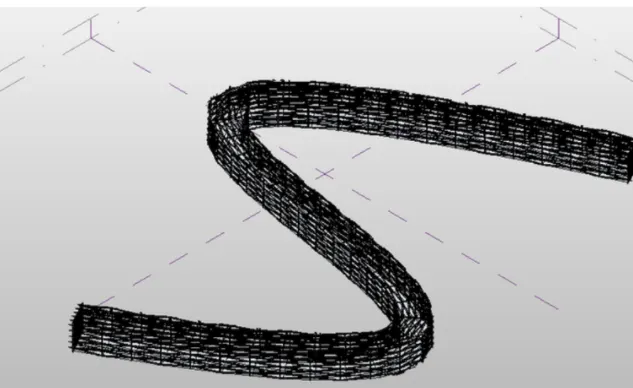

• Now, we have to create the surface which done through sweep.

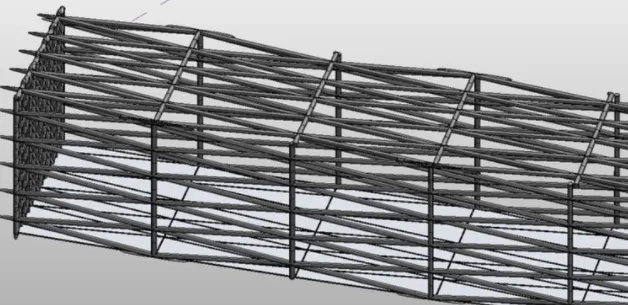

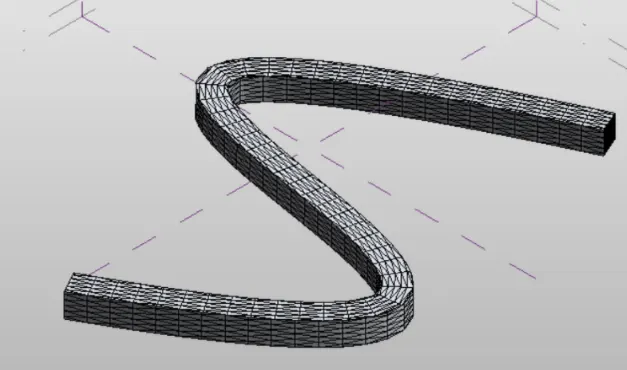

• For this, select all the polygons and the curve line and choose create form option.

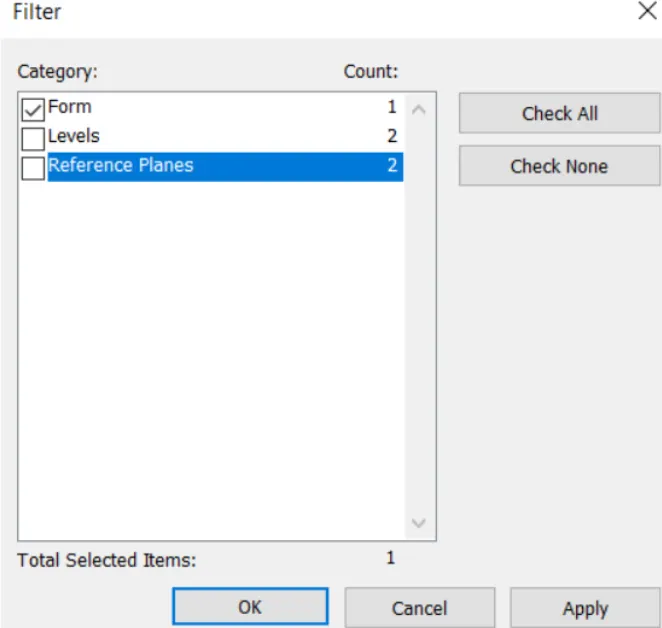

• Now select the entire form and then filter and retain only the form.

• Now select the form--> divide surface--> then provide the pattern

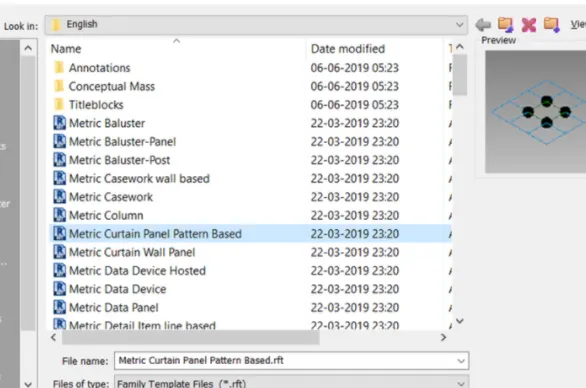

• Now open a new family --> curtain panel pattern based

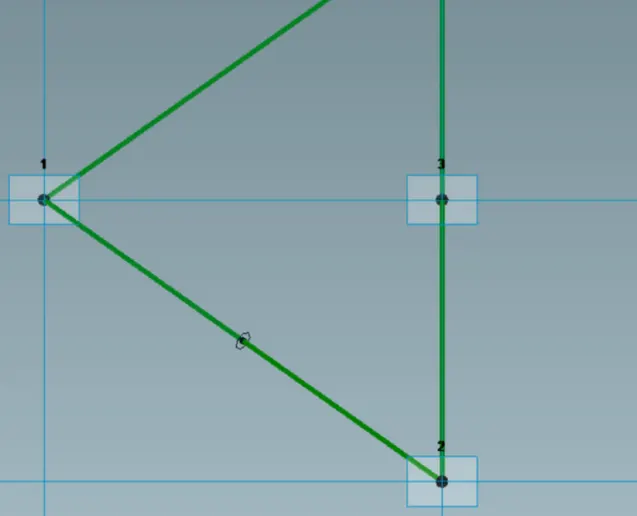

• Now select the pattern as triangle bent.

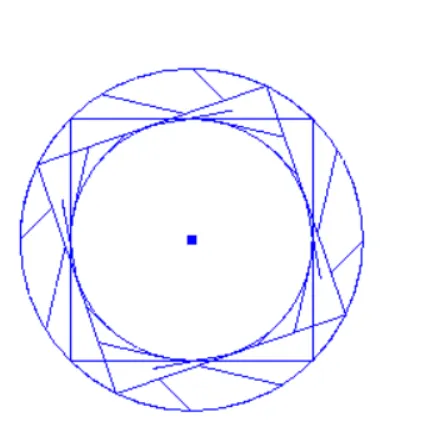

• Then creat a reference point at center of the face.
• Then draw a circle of radius 3" at the reference point .

• Now, select the pattern, refrence plane and circle created and choose create form.

• Now, load this into the project.
• Now, select the enitre form of the walkway and filter it to retain only the divided surface.
• Then in the pattern select the family that we havee created just now.

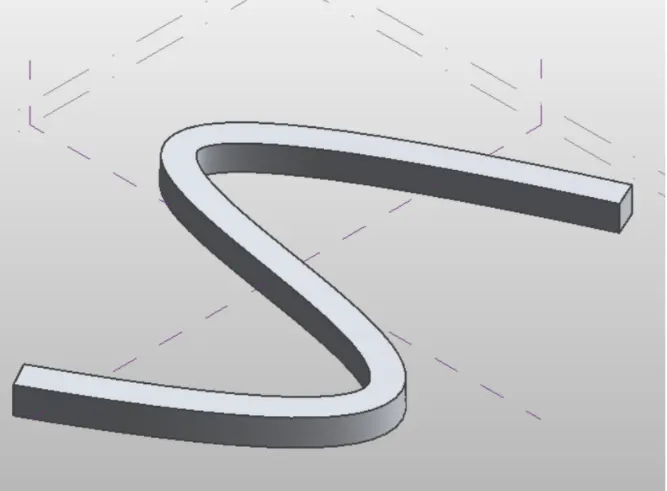

• Hence the conceptual mass has been created.

RESULT:

Q5) Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high rise tower in class for reference.

ANS:

AIM: To develop a Parametric Stadium using dynamo in Revit. Proced

PROCEDURE:

STEP: 1

• GO TO Revit 2021
• Click on new

• Select architecture template
• Save the file

STEP: 2

• Go to manage tab
• Click on Dynamo
• Then a new window will open
• Click on new

STEP: 3

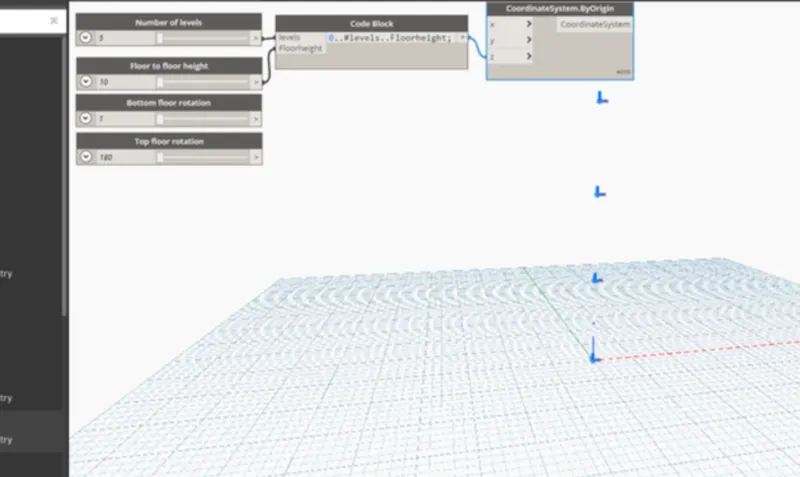

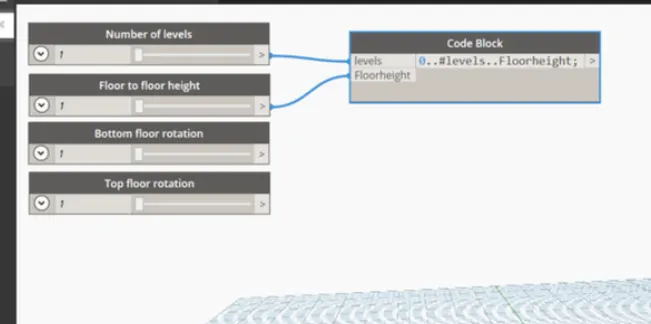

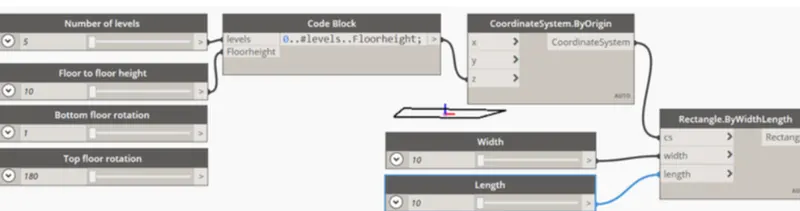

• Basic parameters to design a high rise structure is created as input in dynamo.

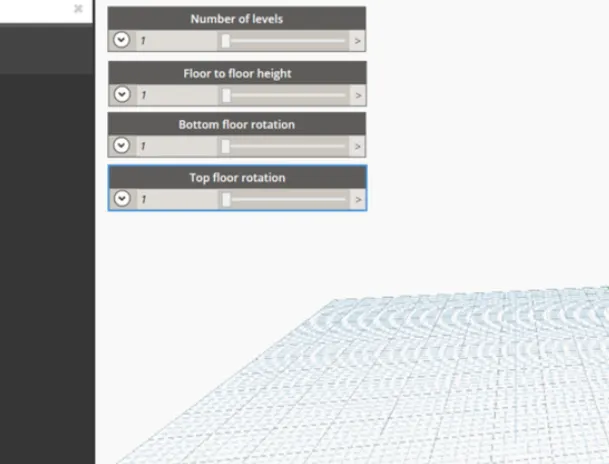

• Four integer sliders is taken from the library for the following
• Number of levels
• Floor to floor height
• Bottom floor rotation
• Top floor rotation

• Now, insert a code block from the library to combine level and floor to
• floor height and type 0.#levels Floor height.
• Now, connect the integer sliders named as levels and floor to floor hegiht as input to the code block

• Now, search coordinates by origin in the library and insert it.
• Then connect the code block as input for z coordinate in the coordinate by origin block.

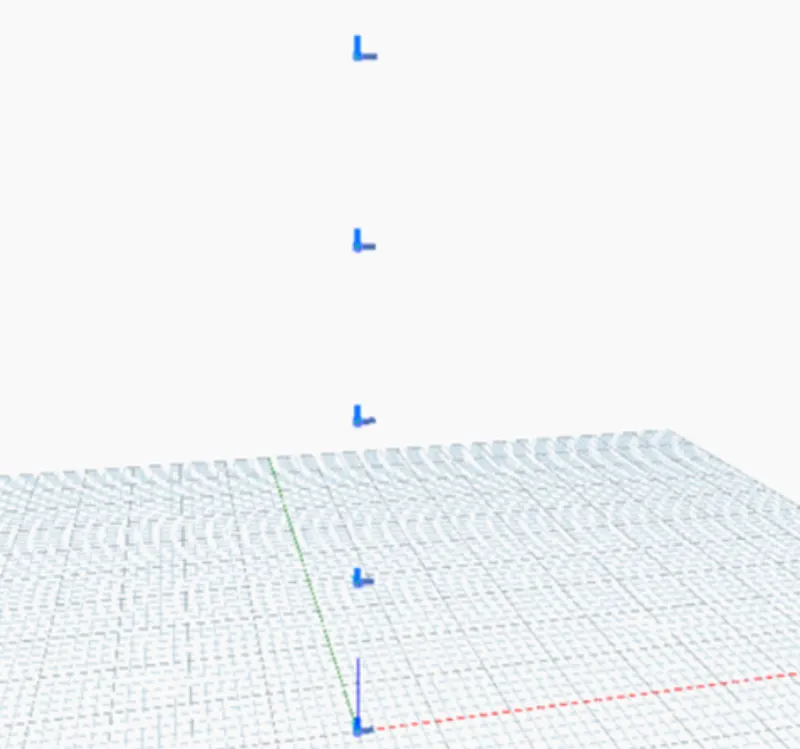

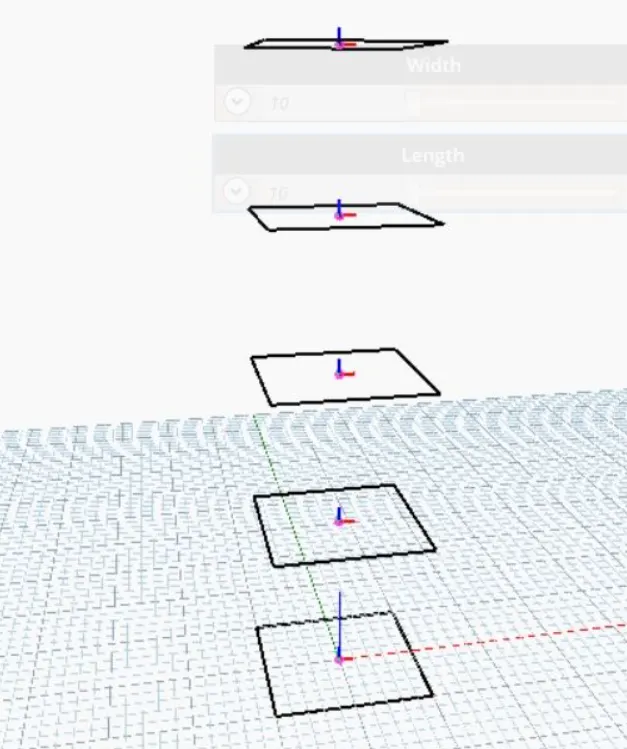

• Five points are generated corresponding to 5 levels.
• Now, insert rectangle by width and length from the library.
• For this, inputs requied are coordinate system, length and width.
• So insert integer slider for length and width.
• Then connect the inputs for the rectangle block.

• Now we have to rotate the geometry. So, for this insert the rotate black from the library.
• The inputs required are:
• Geometry: Rectangle block
• Origin: insert an origin block from the library.
• Axis: insert vector Z axis from the library.

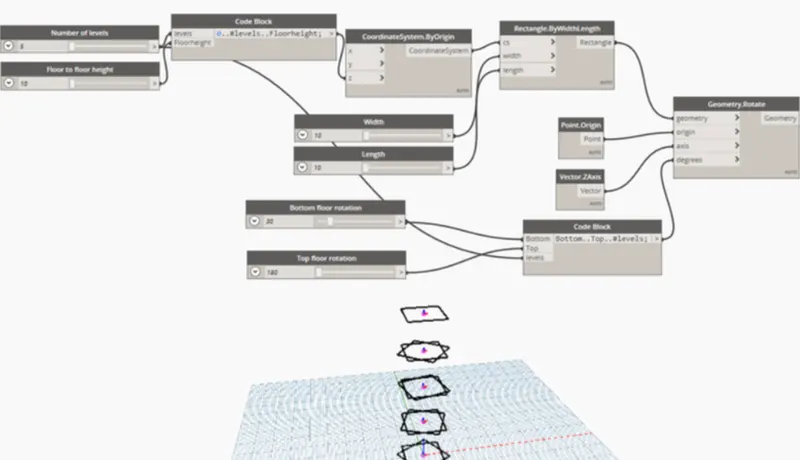

• Degrees: For this insert a code block and type Bottom..Top..#level.
• The inputs for this code block is already available i.e, Bottom floor rotation, top floor rotation and levels.

• Now, we have to create surface, for this type surface by loft in library.
• Then connect Geometry.rotate block as input for Surface by loft.

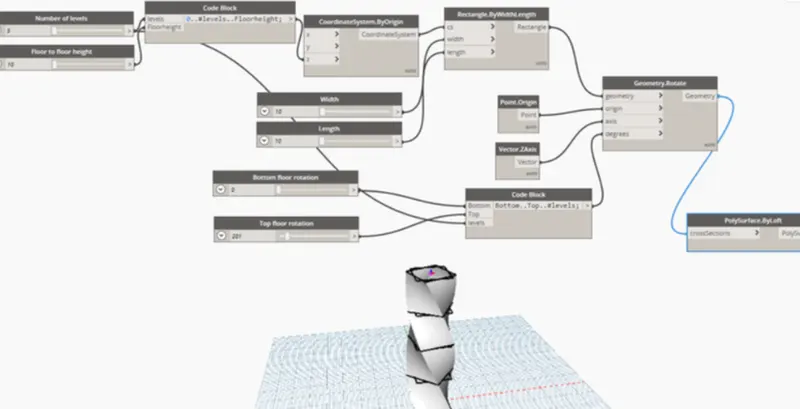

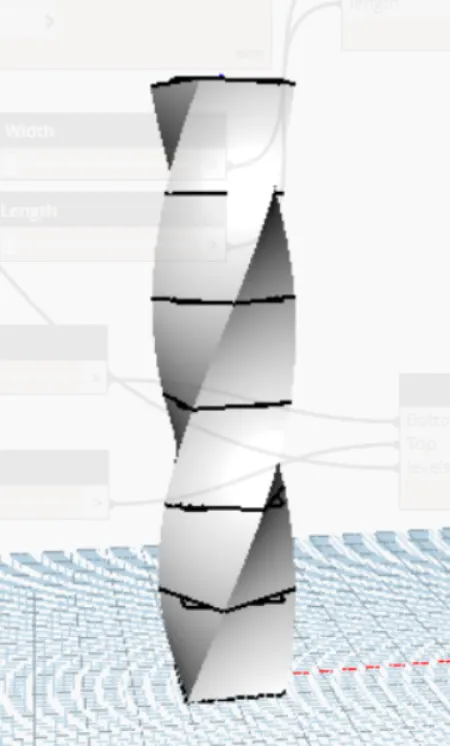

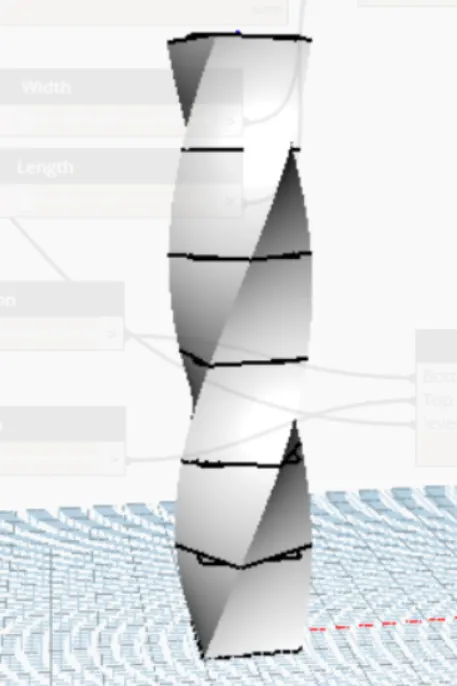

• Hence, the parametric stadium have been created.
• The number of levels and width and length of the rectangle can varied accordingly.

RESULTS:

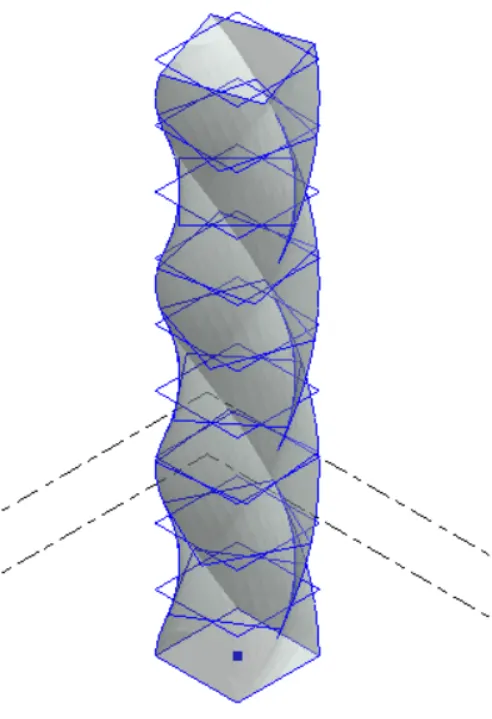

• In revit structure is visible as follows:
