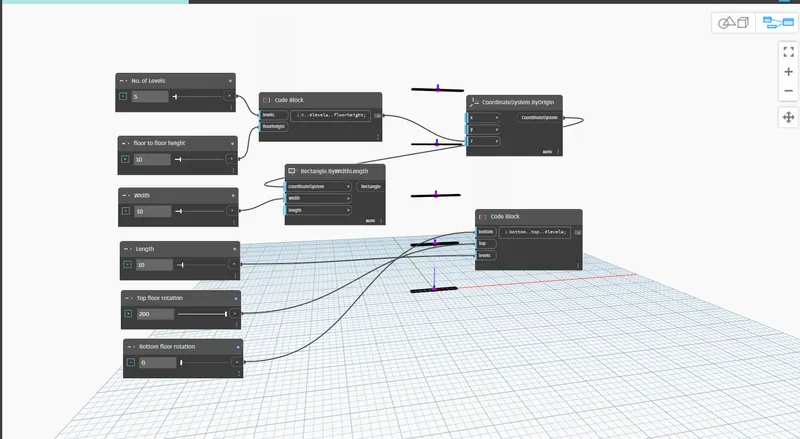

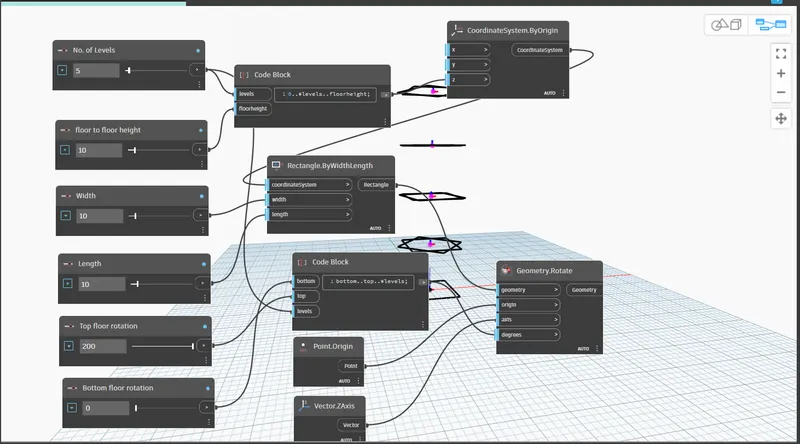

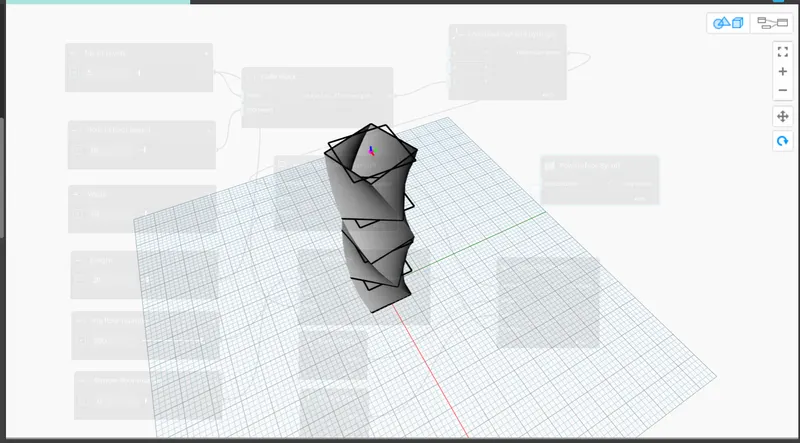

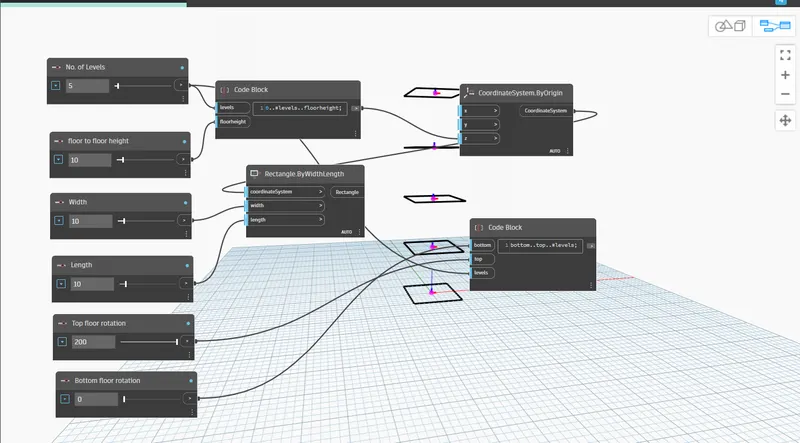

Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

Q1.

AIM:

Need to create sinusoidal point then curve from the point and then create surface

INTRODUCTION:

By using dynamo created a sinusoidal point then created a curve from the point and converted into the surface

PROCEDURE:

STEP 1) OPEN DYNAMO

• Open Revit software
• In new architectural template
• Go to manage tab, click on dynamo under visual programming
• Dynamo window will open

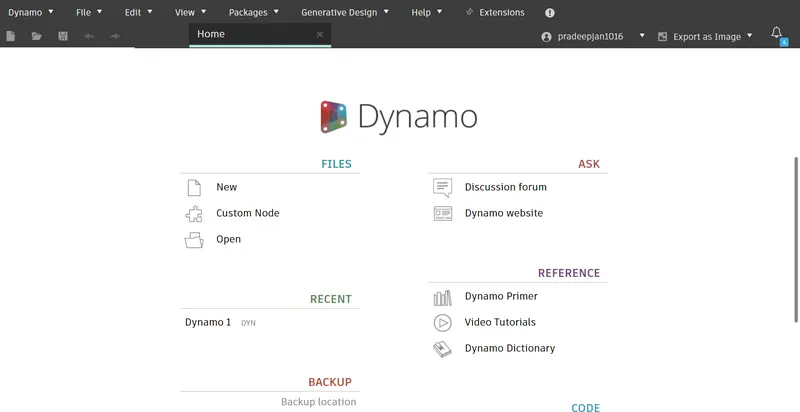

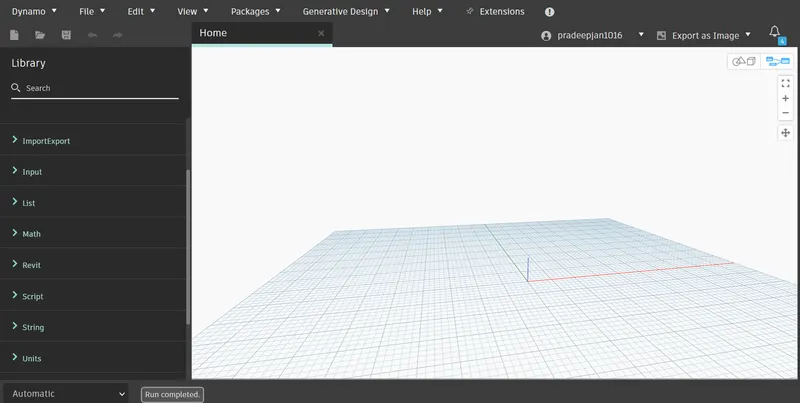

STEP 2) CREATE NEW FILE IN DYNAMO

• Click on new in dynamo window

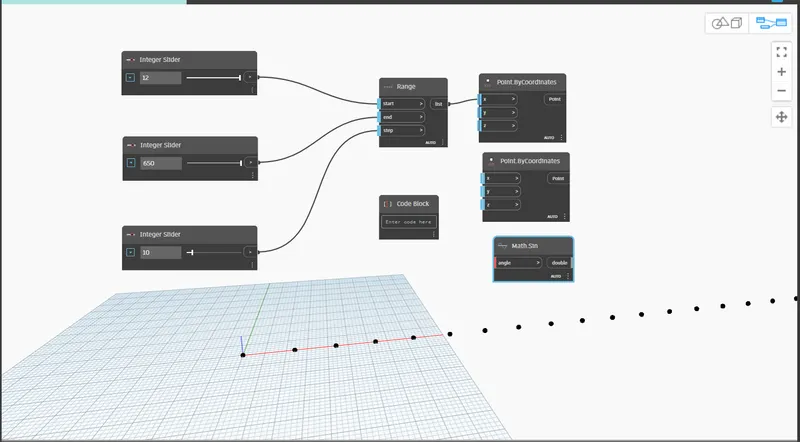

STEP 3) CREATE SINUSOIDAL POINT

• Insert 3 Integer Slider from Library and rename accordingly for Start, End and Step
• Insert Range and connected all inputs from Sliders
• Insert Point.ByCoordinate and connect “X” with seq (output of Range)
• Insert Math.sin and provided input from seq (output of Range)
• Insert Multiplication and CodeBlock (renamed with Curve)
• Provided inputs for multiplication from Math.sin and Curve
• Insert one more Integer Slider (renamed with Y-Point) and one Addition
• Provided inputs for addition from Y-Point and Multiplication
• Given output of addition to “z” point of Point.ByCoordinate

STEP 4) CREATE CURVE

• Insert NurbsCurve.ByControlPoints
• Provided input to NurbsCurve.ByControlPoints from output of Point.ByCoordinate
• This will create Curve on the Sinusoidal points

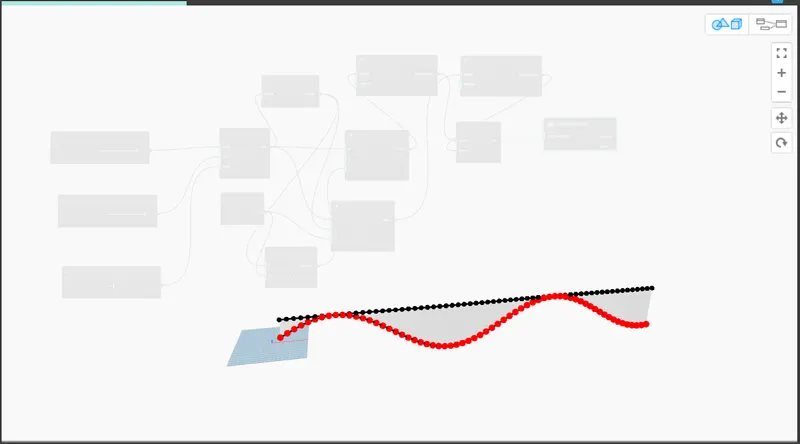

STEP 5) CREATE SURFACE

• Copy all the input nodes and output nodes and past it 2 times
• Change the value of Y-Points
• Insert one List and provide the output of SinWave as an input to List
• Insert one Surface.ByLoft and provide the output of List as Input of Surface.ByLoft

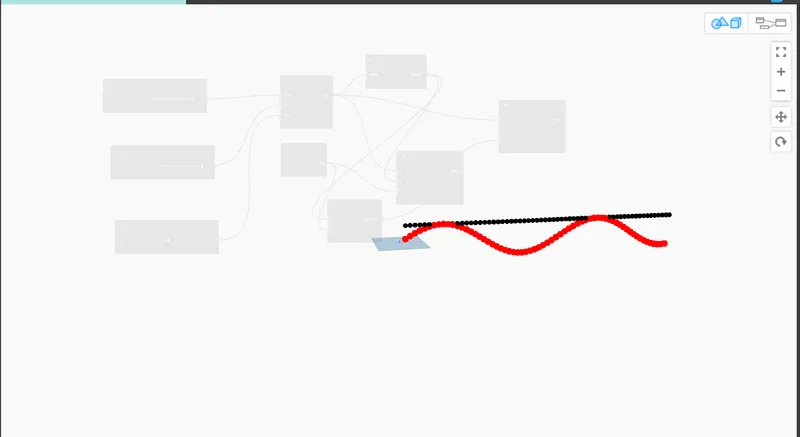

RESULT: After following above steps, we get the result of sinusoidal surface in Revit as shown below

Q2.

AIM:

By using dynamo created conceptual wall layout of floor plan

INTRODUCTION:

To create the conceptual layout of a floor plan in dynamo, used available tool for joining the line, wall type and floor type and used sliders for height and length of wall

PROCEDURE:

STEP 1) OPEN DYNAMO

• Open Revit software
• In new architectural template
• Go to manage tab, click on dynamo under visual programming
• Dynamo window will open
• Create a new dynamo model

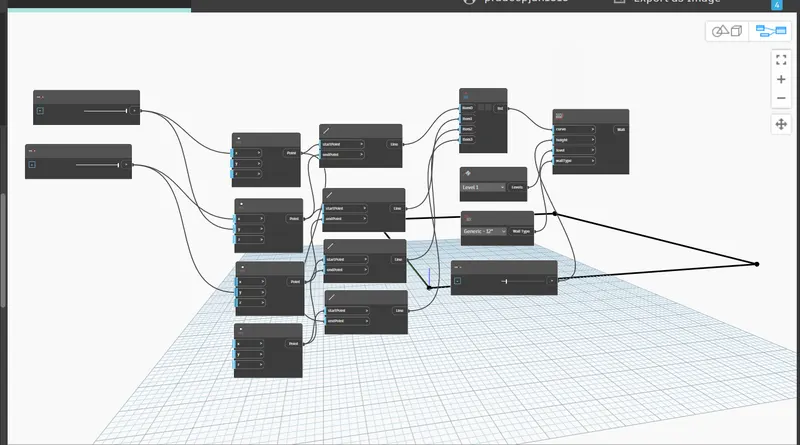

STEP 2) CREATE POINT

• Insert 2 integer sliders and rename with x and y
• Insert 4 Point.ByCoordinates and rename them accordingly i.e. (0, 0, 0), (0, y, 0), (x, y, 0), (x, 0, 0)
• Connect the output of integer sliders as an input of Point.ByCoordinates accordingly
• 4 points created, based on the length and width

STEP 3) CREATE LINE

• Insert 4 Line.ByStartPointEndPoint
• Provide output Point.ByCoordinates as an input of Line.ByStartPointEndPoint to connect the line between point accordingly

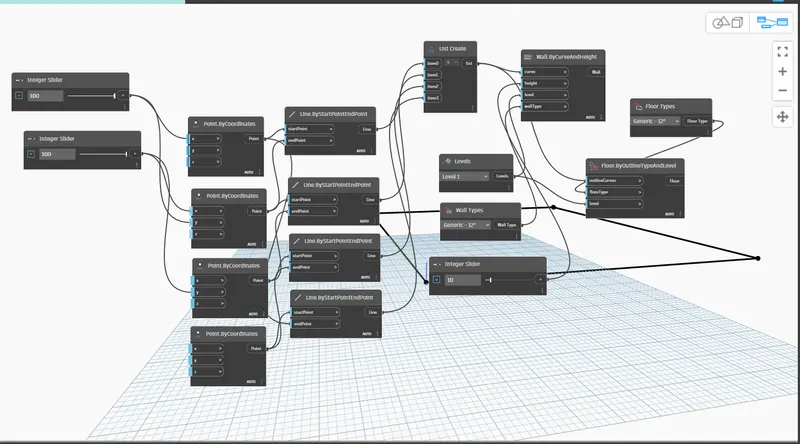

STEP 4) PROVIDE LEVEL, WALL TYPE AND HIGHT OF THE WALL

• Insert a List Create and add the 4 items in list
• Connect the outputs of each Line.ByStartPointEndPoint to one-by-one list items
• Insert Levels and select the level1
• Insert the Wall Type and choose the wall type as Generic 6” Masonry
• Insert Integer slider and rename as Hight and change the Hight as required
• Insert Wall.ByCurveAndHight and provide the inputs from List, Level, Wall Type and Height

STEP 5) PROVIDE FLOOR TYPE

• Insert Floor Type and select Wood Joist 10” – Ceramic Tile
• Insert Floor.ByOutlineTypeAndLevel
• Provide the input for Floor.ByOutlineTypeAndLevel from List, Floor Type and Level

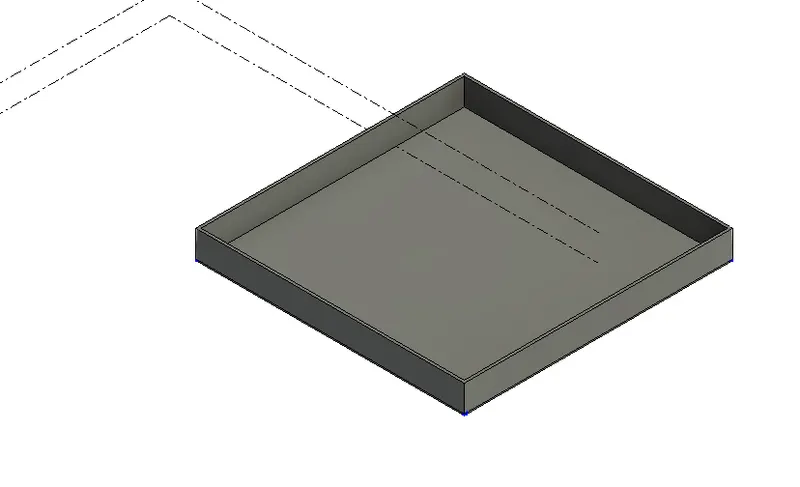

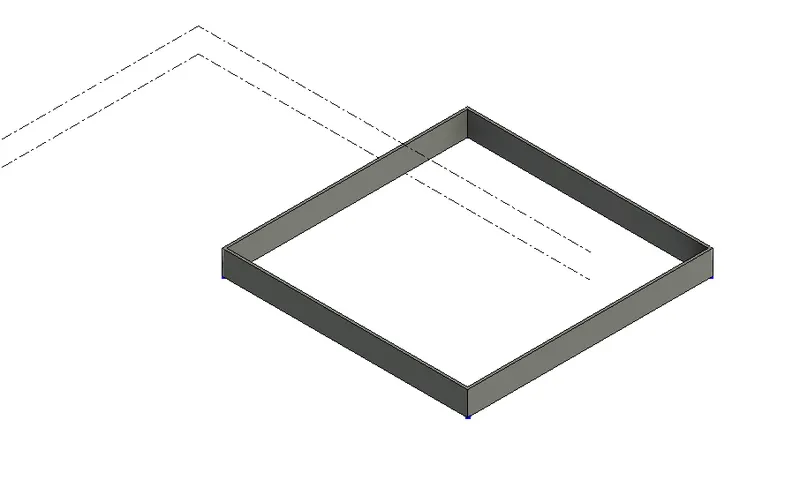

RESULT:

After following above steps, obtain the result in Revit as shown below with appropriate wall length, width, height and materials

Q3.

AIM:

Need to create an array of elements in Revit and vary the properties by using slider or code block in dynamo

INTRODUCTION:

Created the array of columns in Revit and by using the integer slider from dynamo, rotate the column in Revit

PROCEDURE:

STEP 1) OPEN REVIT AND CREATE ARRAY OF COLUMN

• Open Revit software
• In new architectural template
• Go to architecture and select architectural column

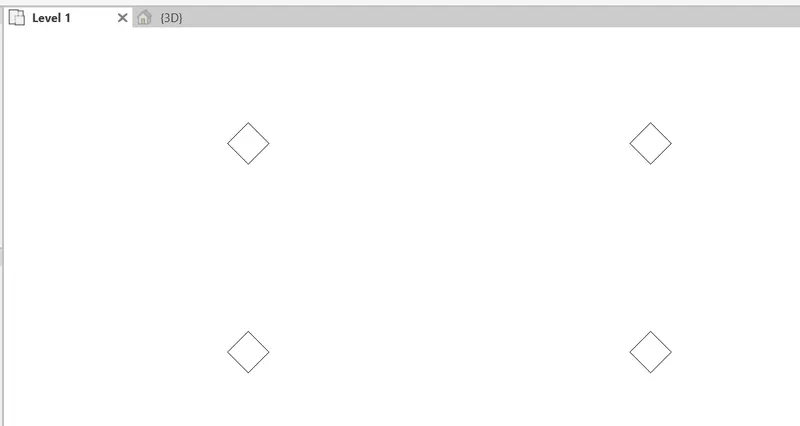

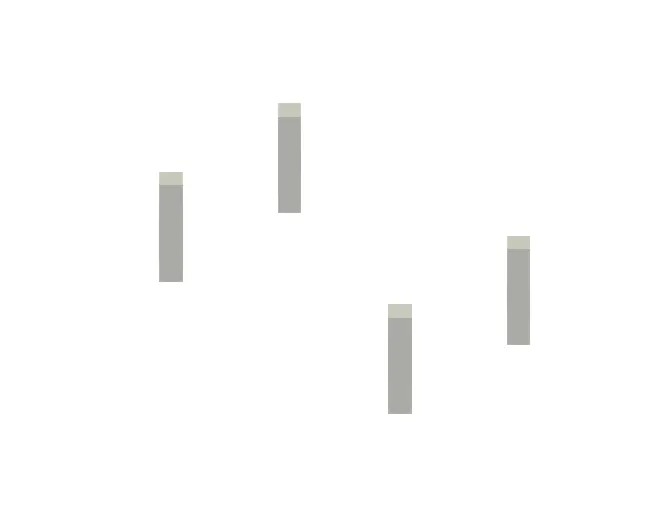

• Insert 4 columns as shown

STEP 2) OPEN DYNAMO

• Go to manage tab, click on dynamo under visual programming
• Dynamo window will open
• Create a new dynamo model

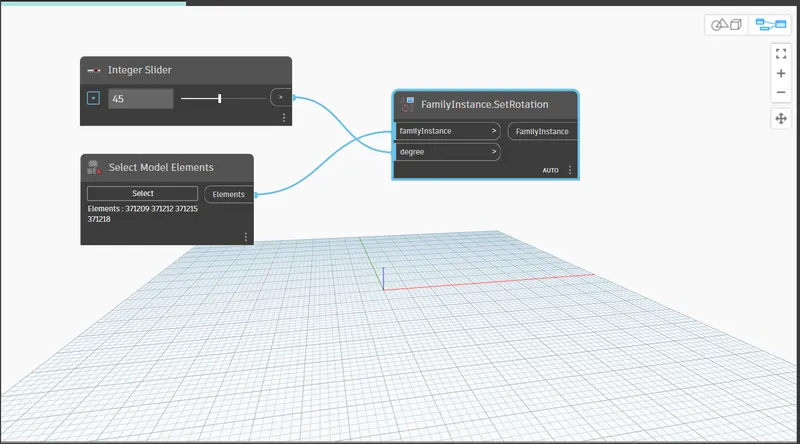

STEP 3) CREATE ROTATION IN DYNAMO

• Insert Select Model Elements
• Click on Select and select the all the column from Revit
• Insert Integer Slider and provide the angle to the slider
• Insert FamilyInstance.SetRotation and provide inputs from Select Model Element and Integer Slider

Result:

After following above steps, obtain the result as shown below, column as been rotated by 45 degree

Q4.

AIM:

Create the Conceptual Mass in Revit, create a form and use property of triangular bent icon in the parametric column

INTRODUCTION:

Created a Conceptual Mass and developed a parametric column by dividing the surface and finish the model by using triangular bent shape

PROCEDURE:

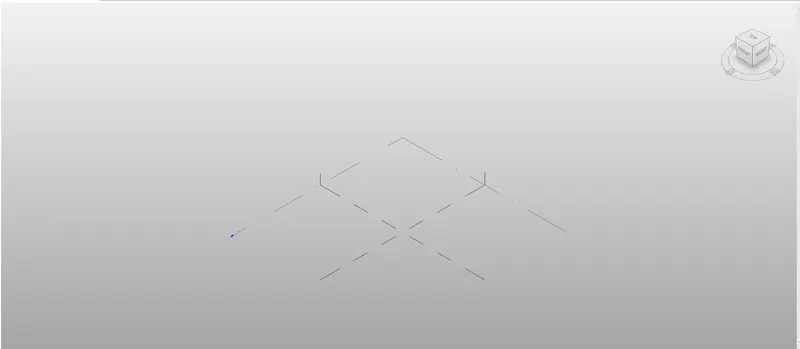

STEP 1) OPEN CONCEPTUAL MASS

• Open Revit software
• Go to File tab > from new select Conceptual Mass
• Select Metric Mass from Conceptual Mass folder > click Open

STEP 2) CREATE SPLINE COLUMN LINE

• Go to east elevation
• Click on model from modify tab then select pick line from draw tool
• Provide offset of 12’ from Level 1
• Go to level 1 floor plan

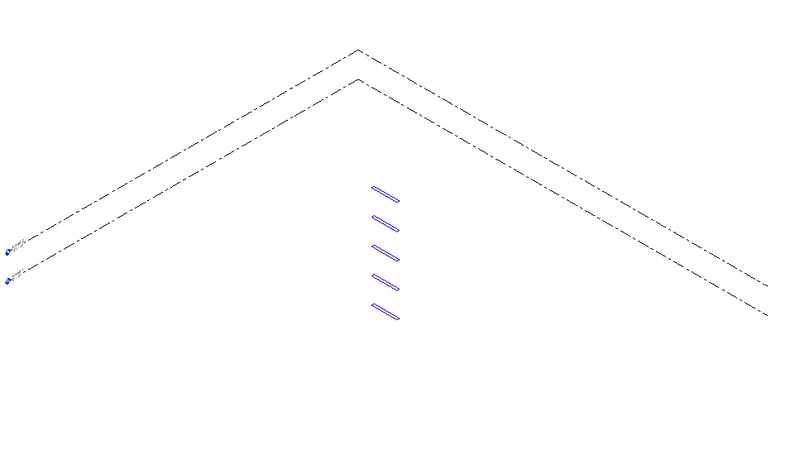

• In create tab select spline from draw tool and create 4 points

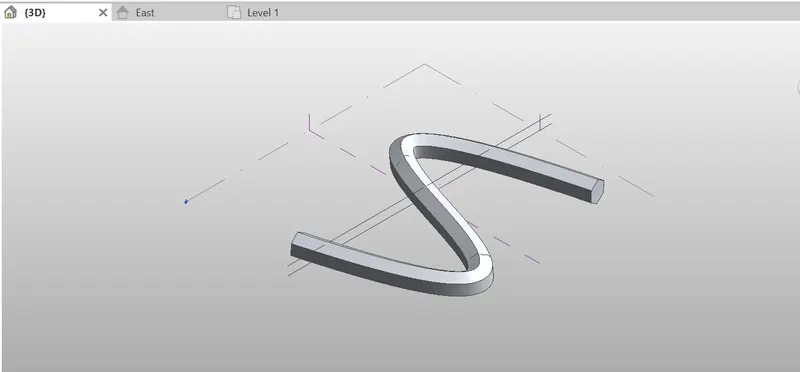

STEP 3) CONVERT INTO PARAMETRIC SOLID FORM

• In 3D view, select created column line
• Set plane at each created point

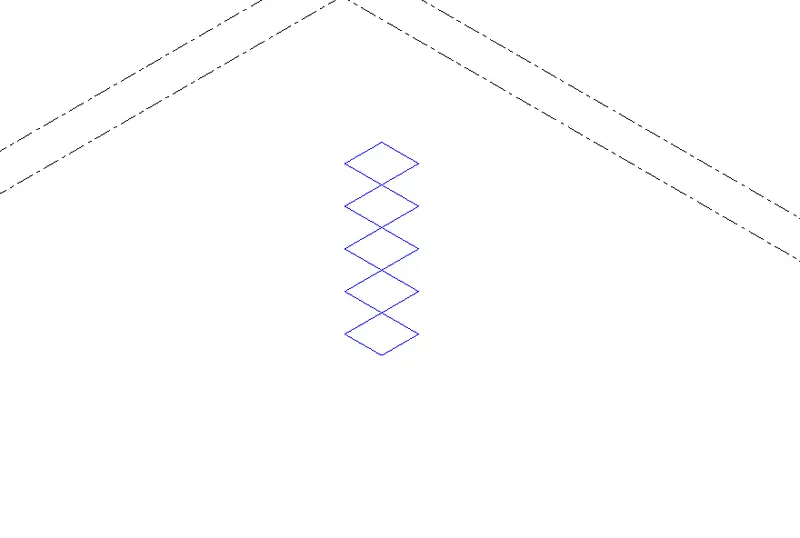

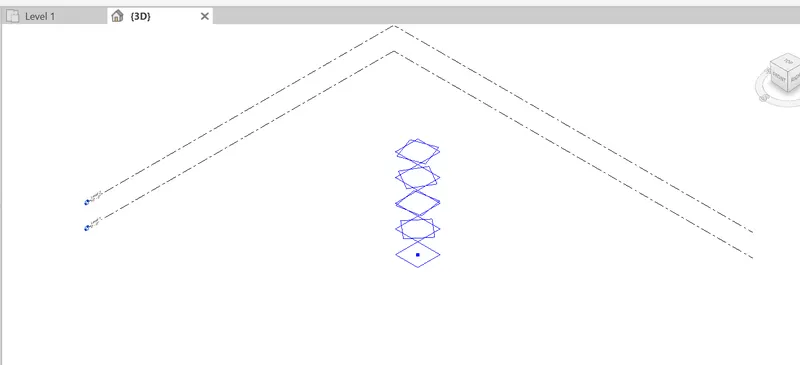

• Select polygon and create at all point with mass of 12’
• Again, select created column line and first polygon
• In modify tab, dropdown create form and select solid form

STEP 4) CONVERT SOLID FORM TO TRIANGULAR BENT

• Select only form with the help of filter

RESULT:

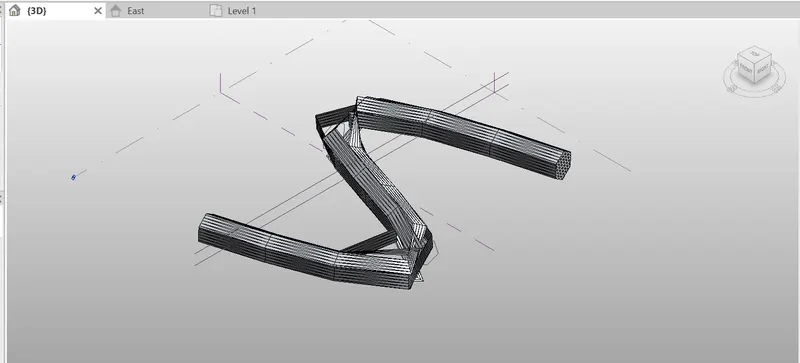

After following above steps, got the below shown result Conceptual Mass of parametric column and finished the model by using triangular bent shape
