Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

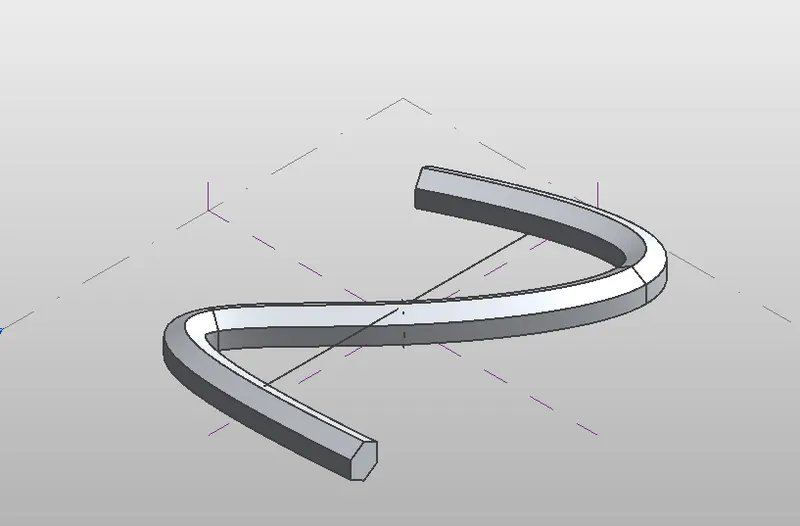

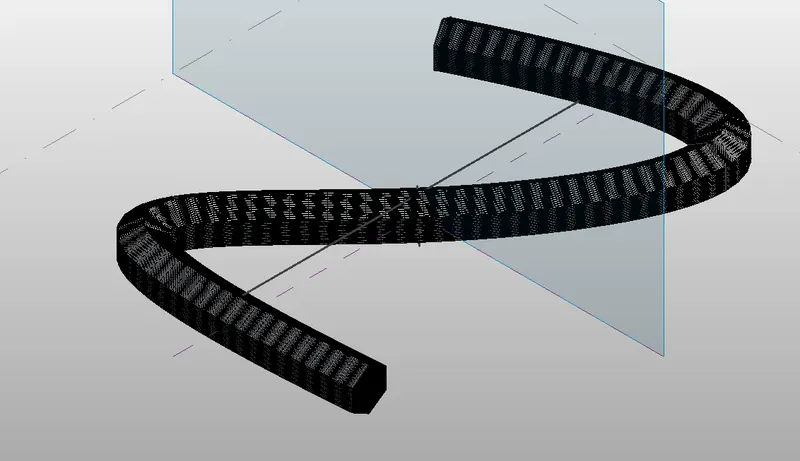

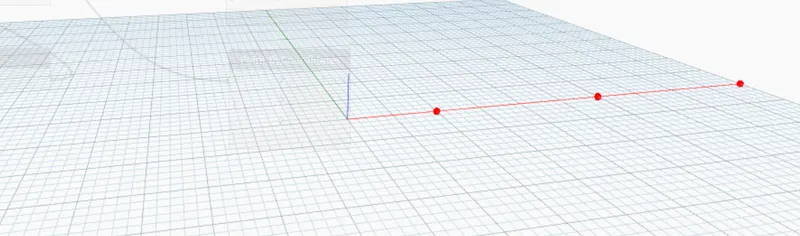

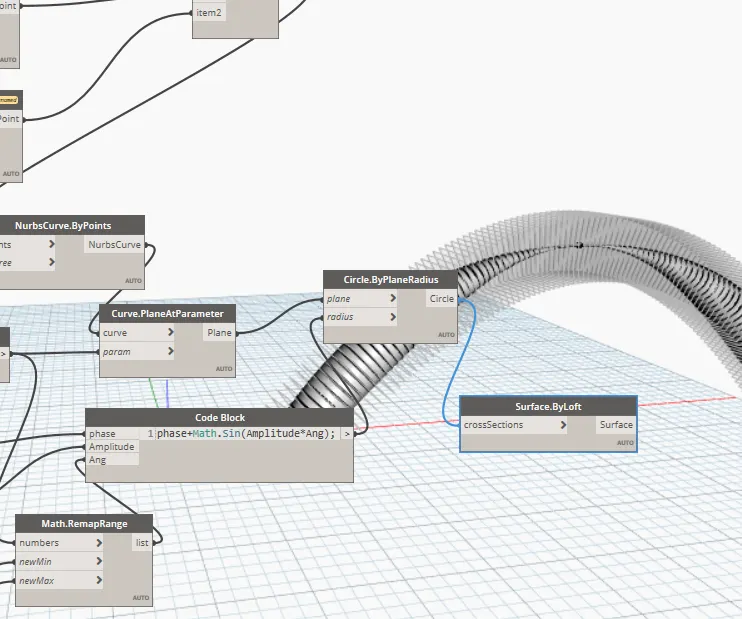

1. Aim: To create the set of sinusoidal points, curve, and surface out of the curve.

Procedure:

• Open Revit software.
• Go to the Manage tab and click on the dynamo.
• In dynamo click on new.

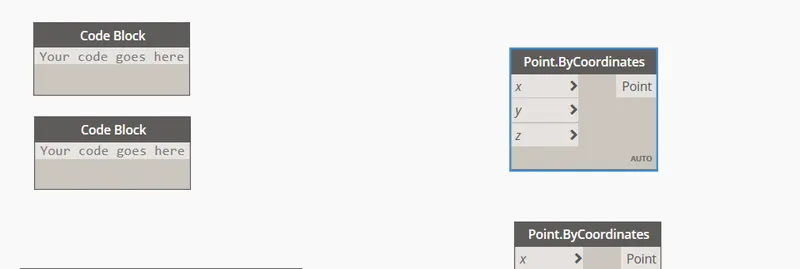

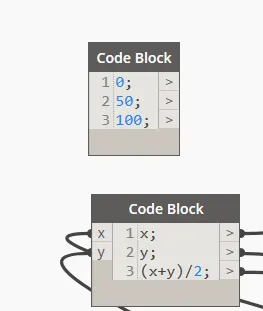

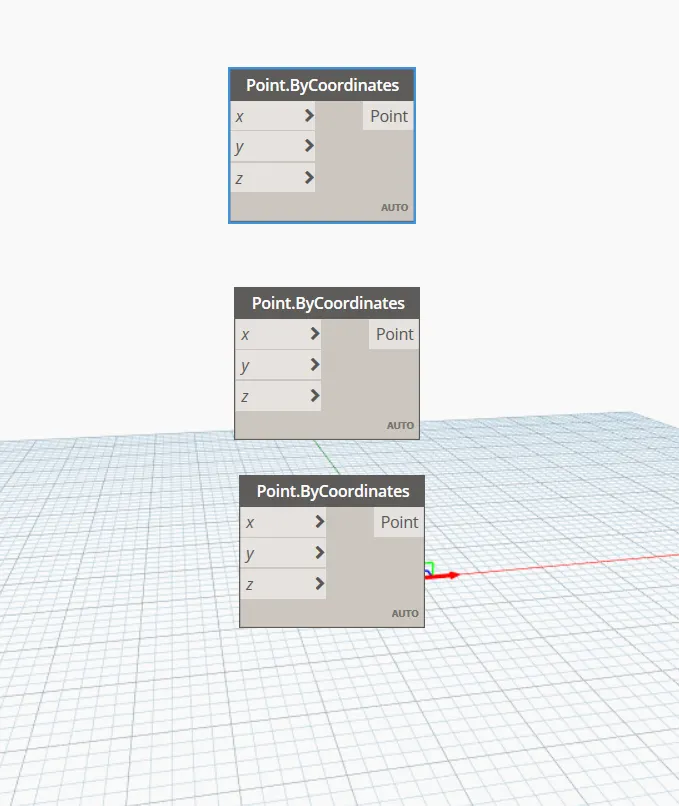

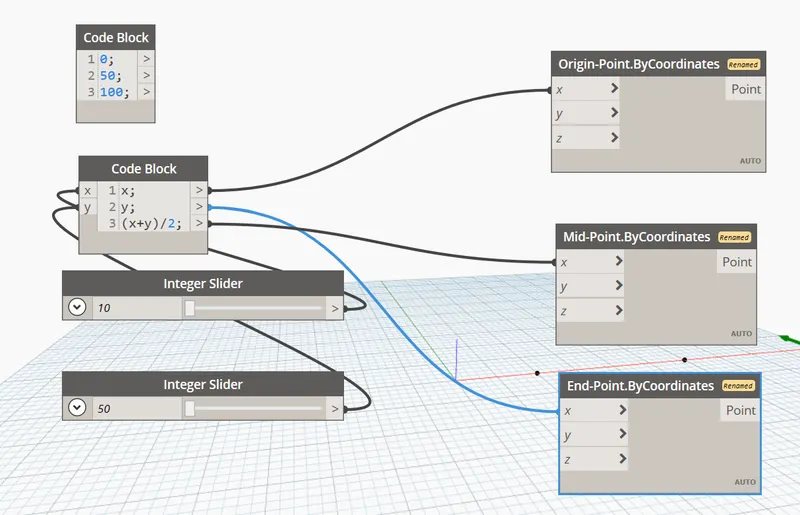

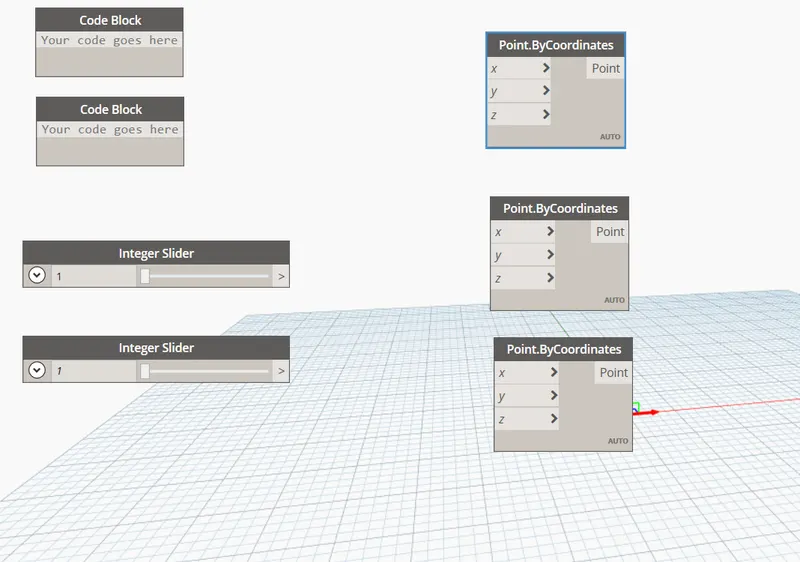

• In the search bar type coordinates points, code blocks, integer slider.

• Give the commands and connect them.

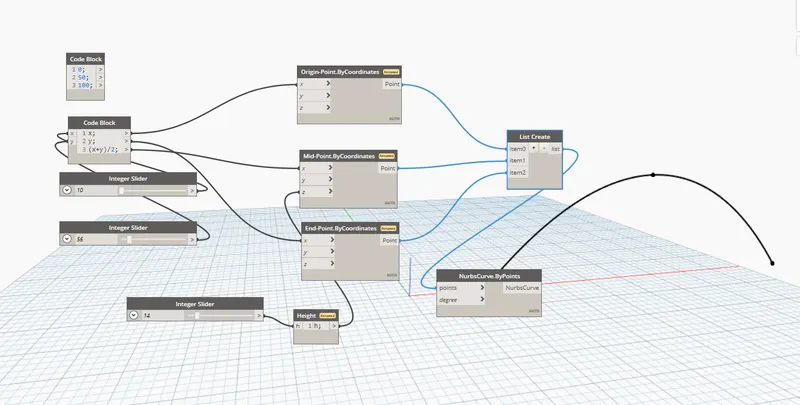

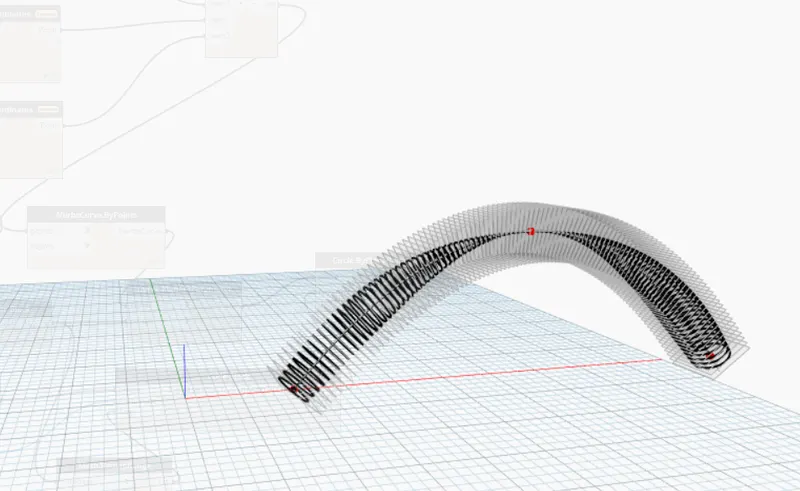

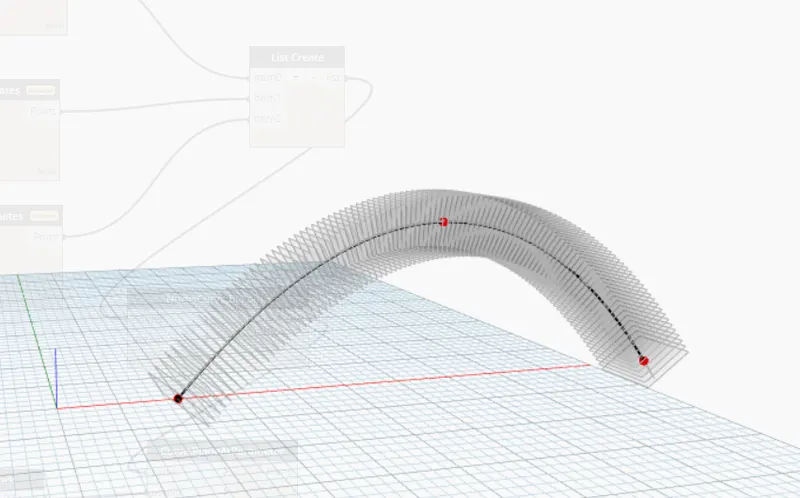

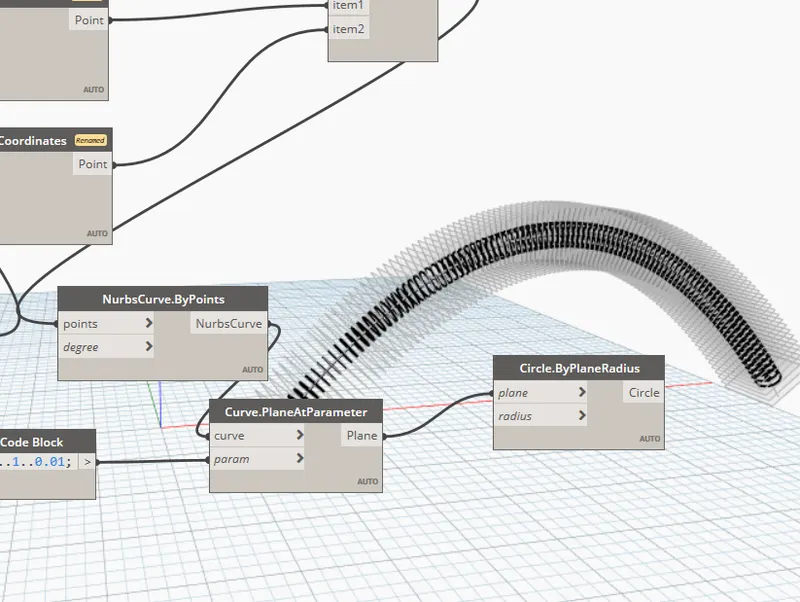

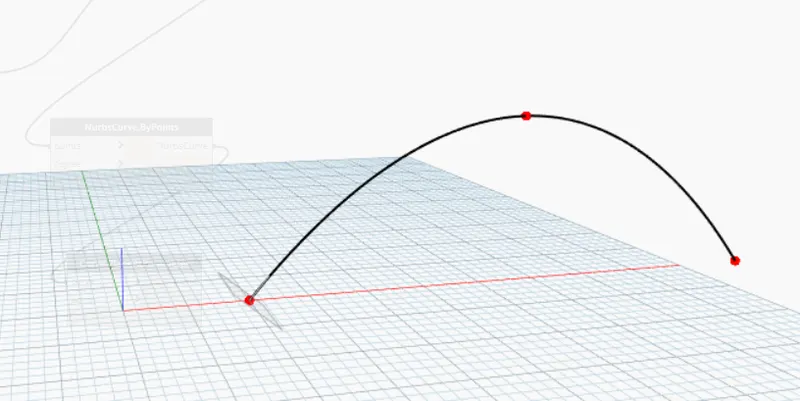

• Create the curve and give the height for the curve.

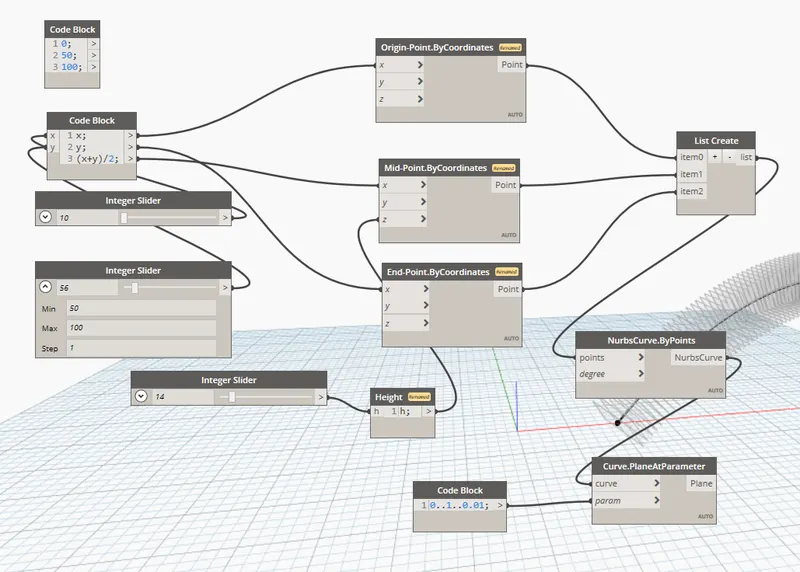

• Create the planeAtperimeter

• And create the circle command.

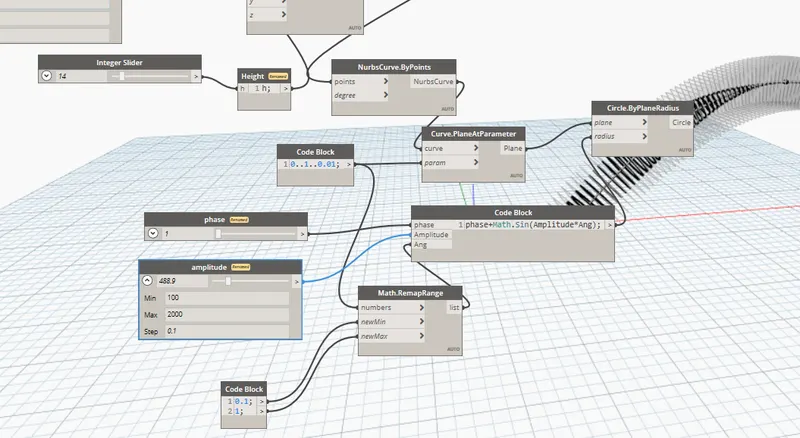

• Here give the phase, amplitude, angle.
• And connect to the code formula.
• And connect to the radius.

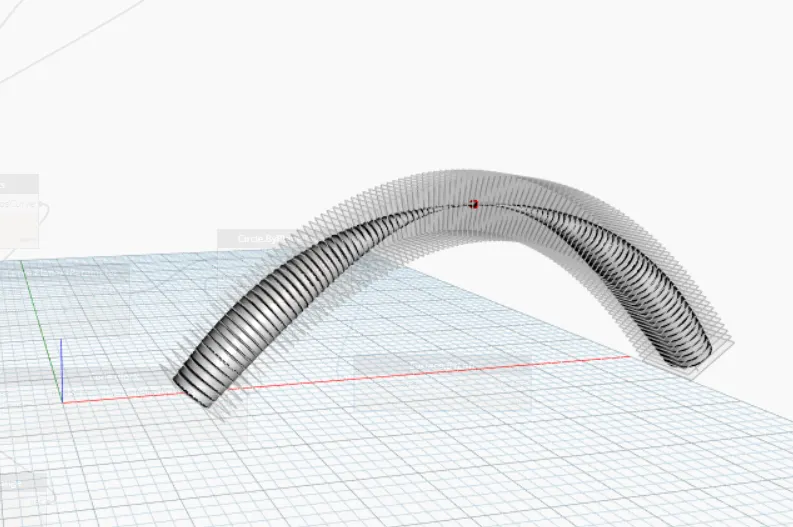

• Give the surface and connect the circle to the surface.

Result:

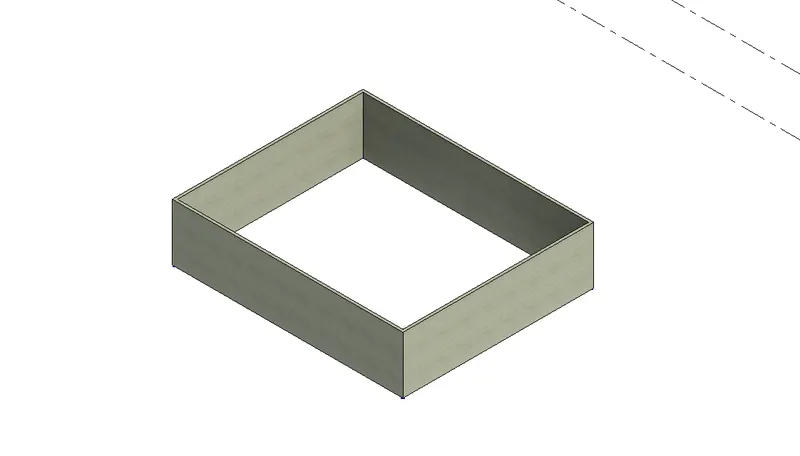

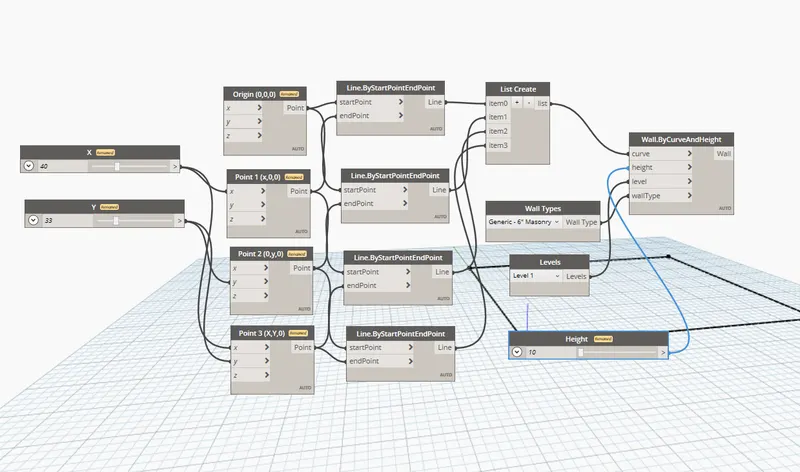

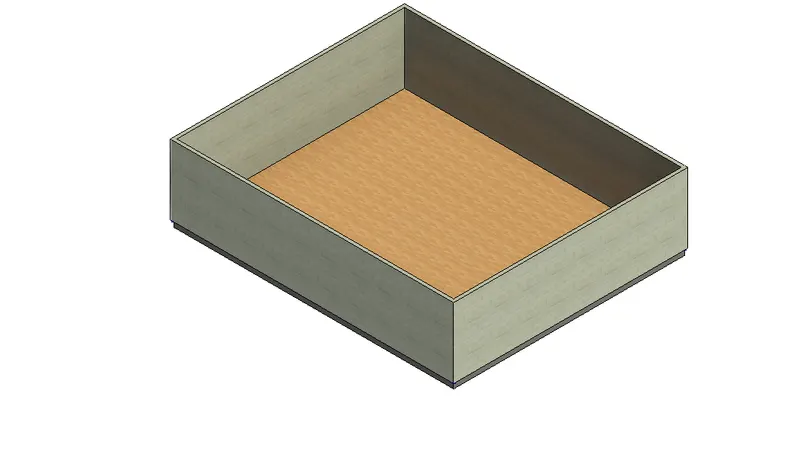

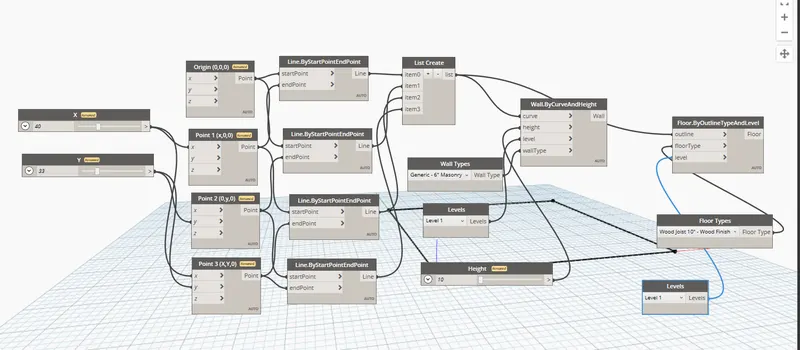

2. Aim: To Create a conceptual layout of the floor plan in dynamo by using the dynamo link.

Procedure:

• Open Revit software.
• Go to the Manage tab and click on the dynamo.
• In dynamo click on new.

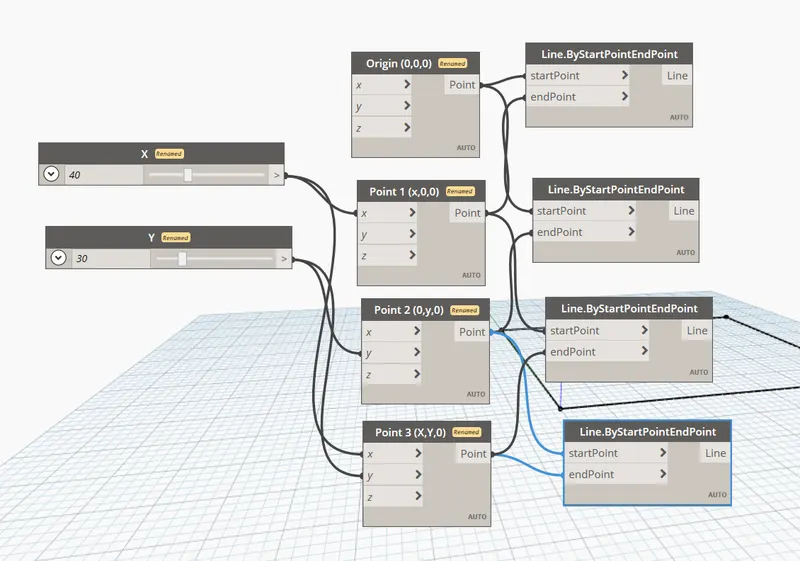

• In the search bar type coordinates points, integer slider.

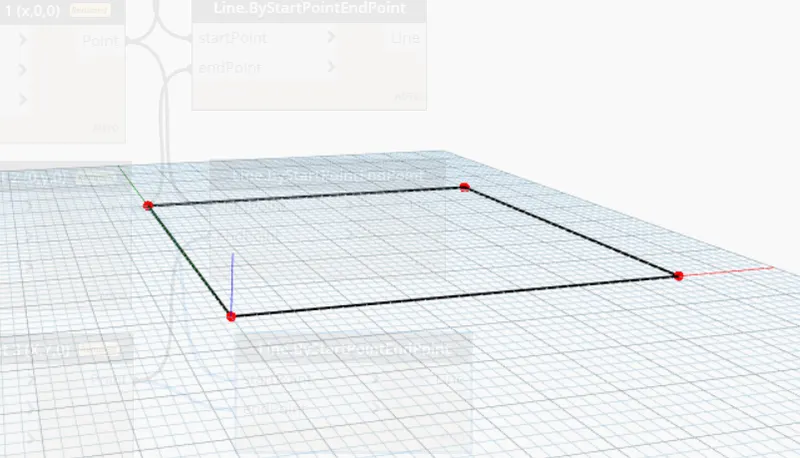

• And give the start point and endpoint.

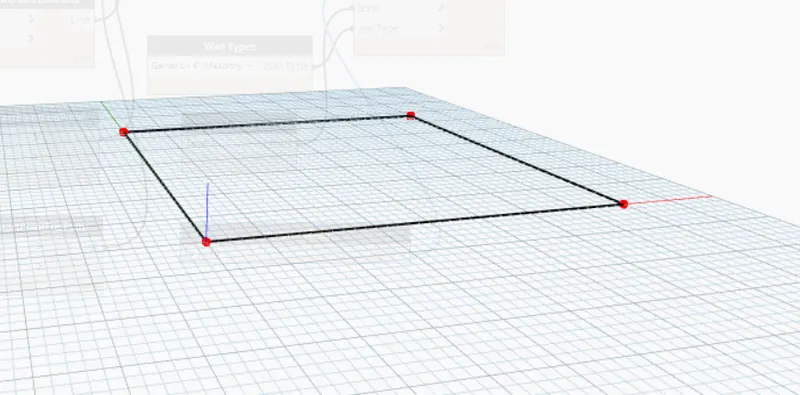

• And create the wall and assign the level.
• And specify the height.
• Give the wall type.

• create the floor and assign the levels.
• Give the floor type.

Result:

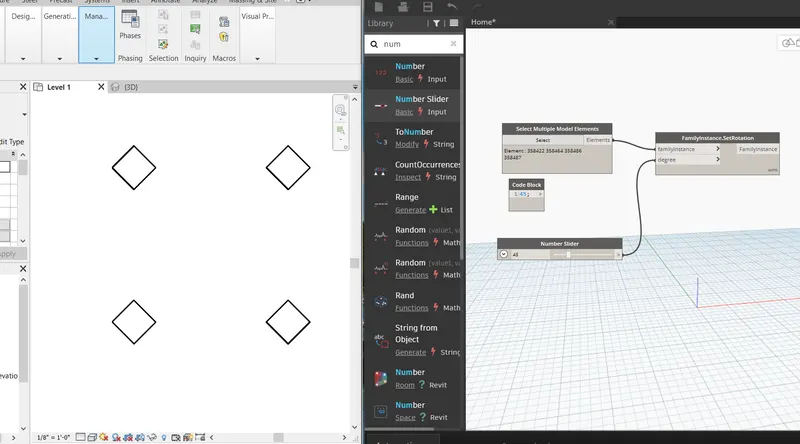

3. Aim: To Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block.

Procedure:

• Open the Revit software.
• Click on new and select architectural template.

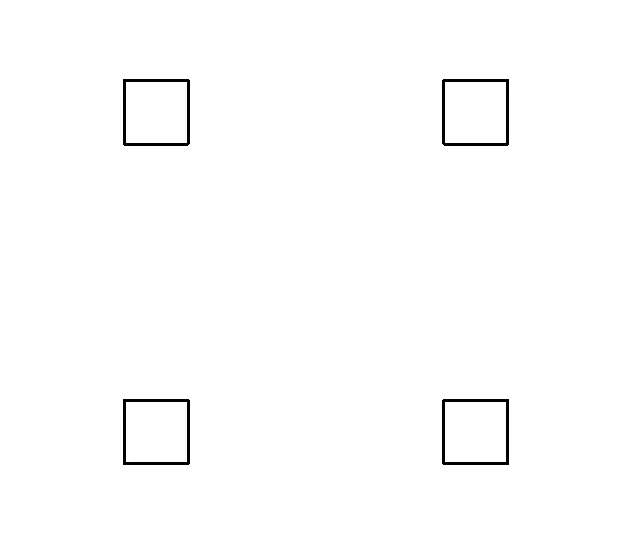

• Go to the architectural tab and click on a column

• Copy the column and paste it for 10'

• Go to the Manage tab and click on the dynamo.
• Give the commands and connect them.

Result:

4. Aim: To Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and Use triangular bent or square-shaped panels.

Procedure:

• Open the Revit software.
• Go to the family tab and click on new
• Select the mass and open it.

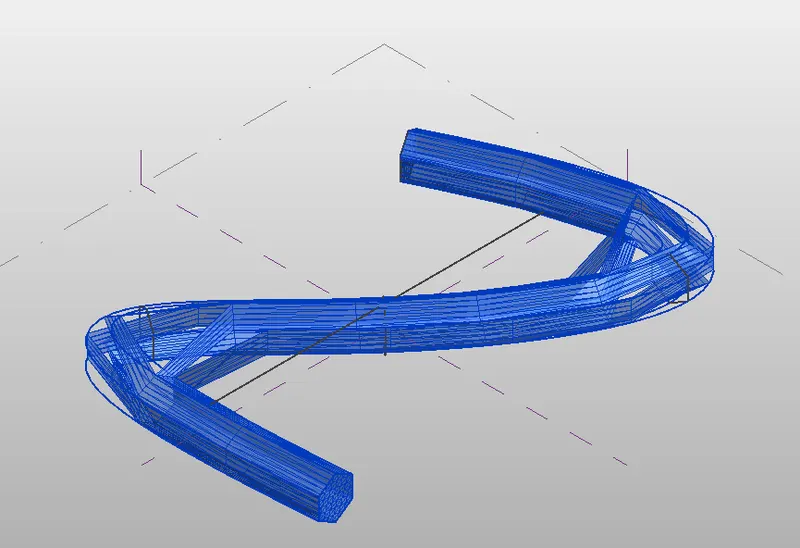

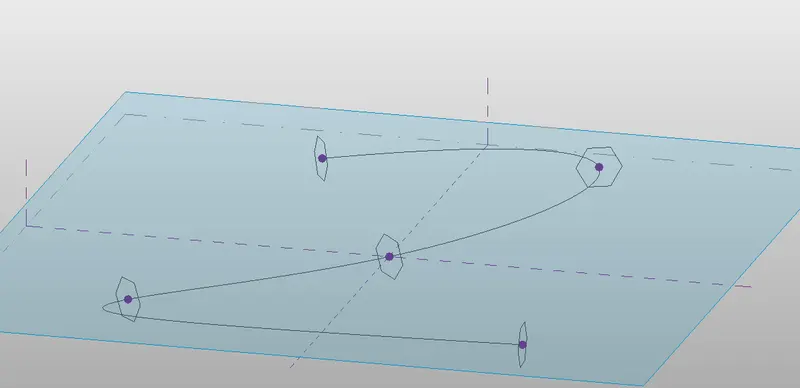

• Use the spline to draw the walkway curve.
• Now at control points, we have to create the polygon at the workplace.

• Select the spline and polygon.
• click on create form.

• select and click on divide surface.

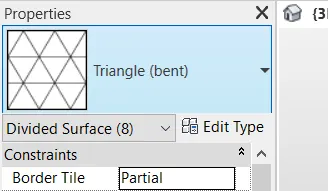

• Click on pattern and select triangle.

• And change numbers in v grig and u grid.

Result:

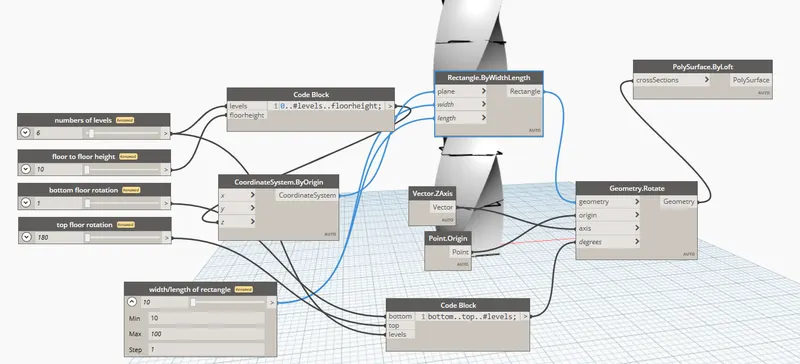

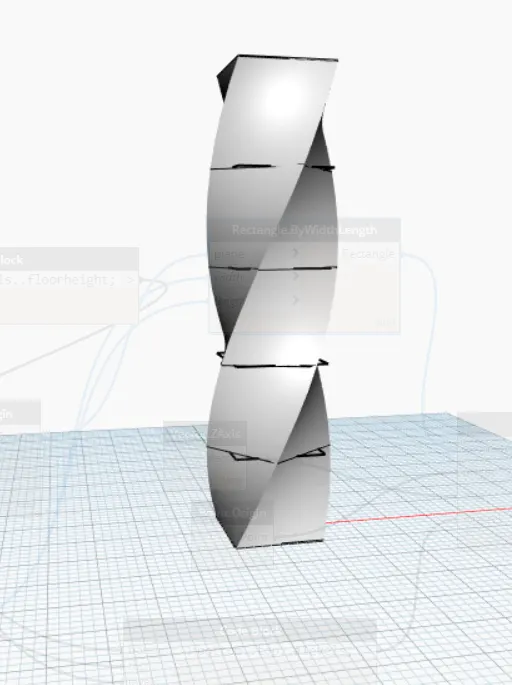

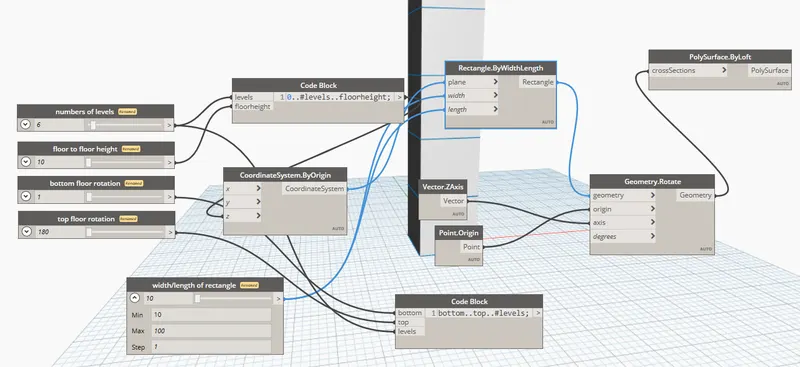

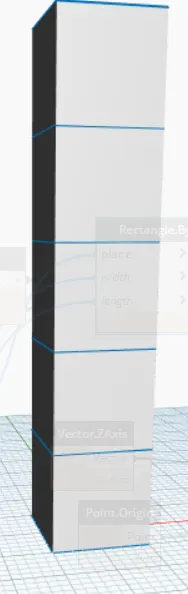

5. Aim: To create the conceptual mass using visual programming.

Procedure:

• Open Revit software.
• Go to the Manage tab and click on the dynamo.
• In dynamo click on new.
• In the search bar type coordinates points, integer slider.
• And give the connection to the commands.

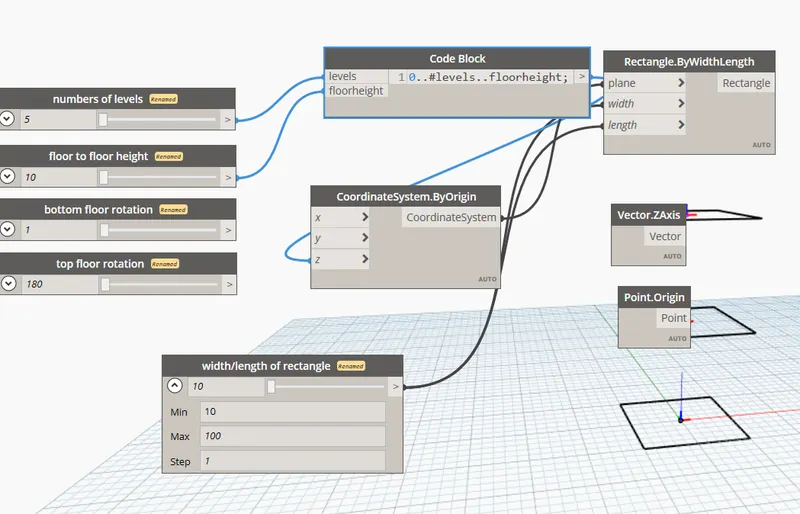

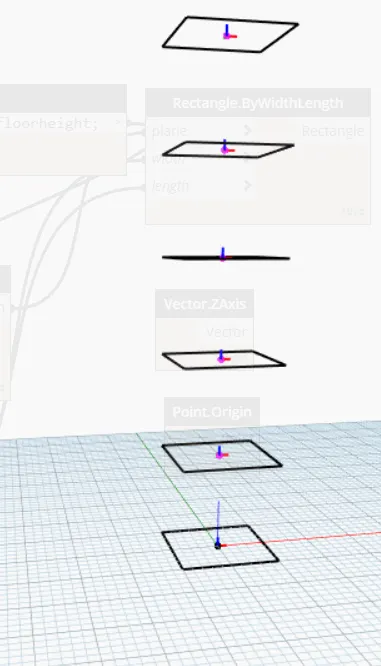

• Rectangle slides are created and connected by coordinates.
• A rotation slider is used to rotate the rectangle slides.
• The levels can be adjusted using the slider used to set the height.

Result:
