Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AIM : To create:

1. template,inserting text and attributes
2. Doors of warehouse and placing it in blocks
3. electrical legend and making it blocks
4. different types of door for residential project
5. drawing bars making it as block and making it as a table as bar bending schedule (BBS).

COMMANDS USED:

• BLOCK
• INSERT
• ATTRIBUTES
• DIV
• RECTANGLE
• LINE
• TEXT
• ARRAY
• MIRROR
• COPY
• OFFSET
• TRIM

1).

AIM: creating templates, inserting text and attributes

• custom 1_title block.
• custom 2_title block.

procedure:

custom1-title block

• create a rectangle of size 66.63mm and 158mm
• divide it with line for the text box into columns
• for rows, take offset of 5mm,10mm,5,5,8,30,15,15,20,20,10,15mm
• by multiline text, type, rev, by, date, on the first row by text height 2.5 and style times new roman.
• as it is repeated in the other two rows, take array give column as 1, rows as 3, spacing between rows as 7.
• again, use multiple text and type the required text in caps with text height 1.5 and style as times new romans.

CREATING BLOCK-

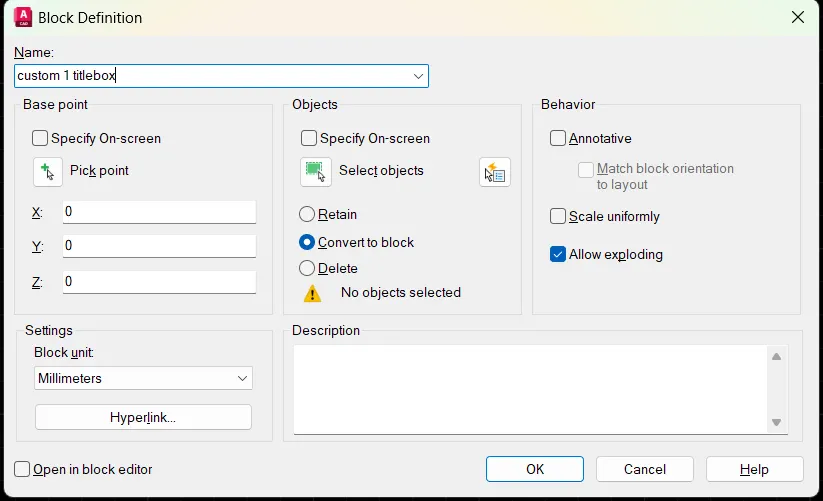

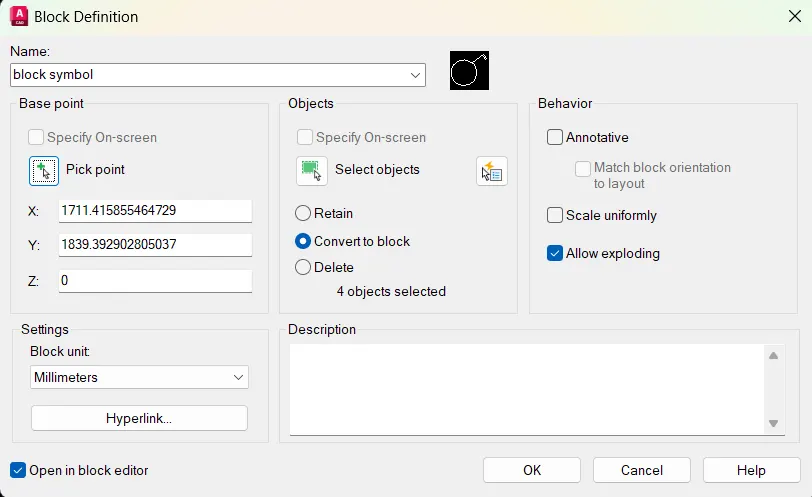

command "B"- block defination dialogue box appears-give name as "custom1_titleblock"- select pick point and select a point in the table-select the object-select the whole table including the text. give scale uniformly and tick allow exploding. select convert to block option.

As we have selected retain the object it will be retain and same as the actual drawing and a block is created for the object that we have selected, if we have selected, if we want to use the block goto inset select the object and insert it.

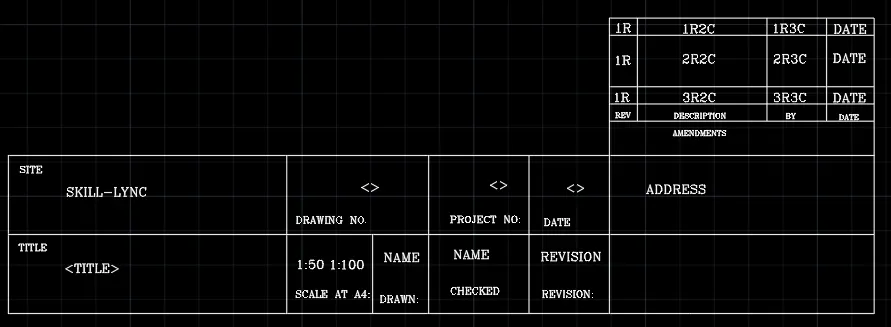

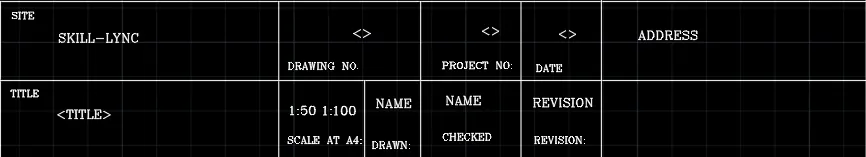

custom 2 title block

draw rectangle of 252mm and 46mm with lines divide the to the required rows and column.with the use of multiline text insert the following height 2,5.

create a small rectangle at the right corner, explode it, create rows and column. by attributes, create the text inside it

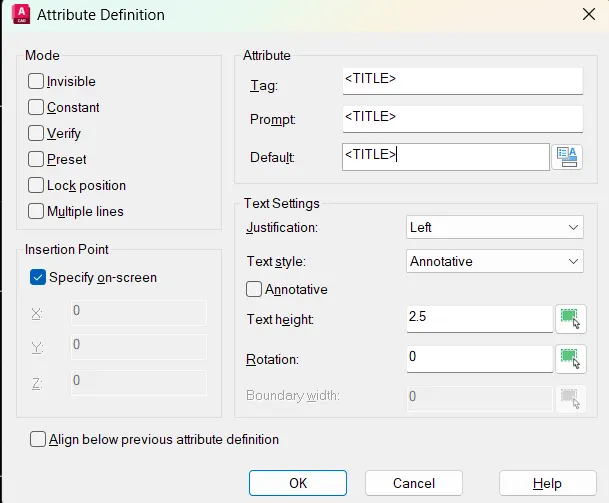

it command "ATT" - attribute definition dialogue box appears.

insert the tag line -tag we are giving visible before creating the block

prompt: question we need to add what are need to enter

default the value shown in drawing after making it as a block.

for eg. in the first-row 1st column "c" is the text to be displayed, command "ATT"

place the tag line on the place we need to hear 1 st row 1st column of the box created. create atributes similarly for the rest of the text. the attributes created are.

now create a block command "B" with name custom2 title box select the whole title block and make it as a block. after creating it as a block we can see that all attributes will change to their default values.

result:

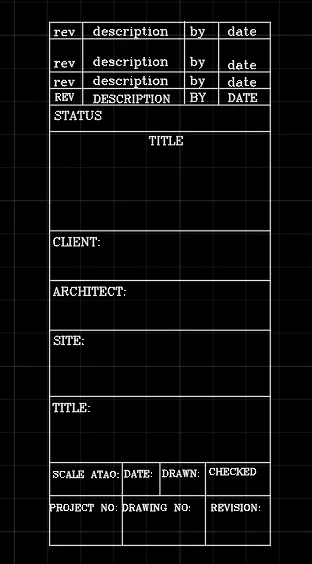

1. the custom_1title block is created:

2. the custom2_title block is created:

2)

AIM - creating doors for warehouse and placing it in blocks:

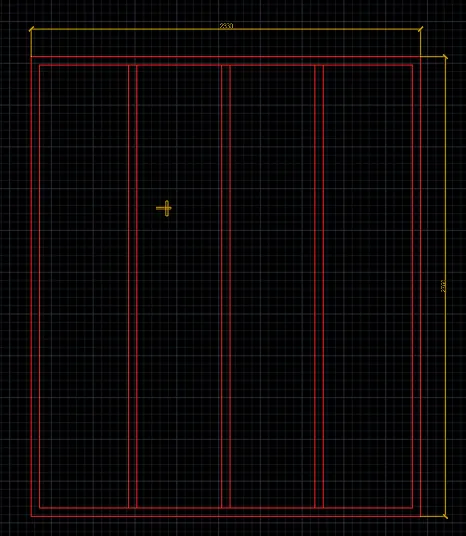

1. Door 1. 2330x2750mm

2. door 2. 2330x2750mm

procedure:

• make the outer rectangle of the given dimension
• make the following panels using polyline and thicken these lines using pedit
• draw the handle and save it as a block with the name door 1

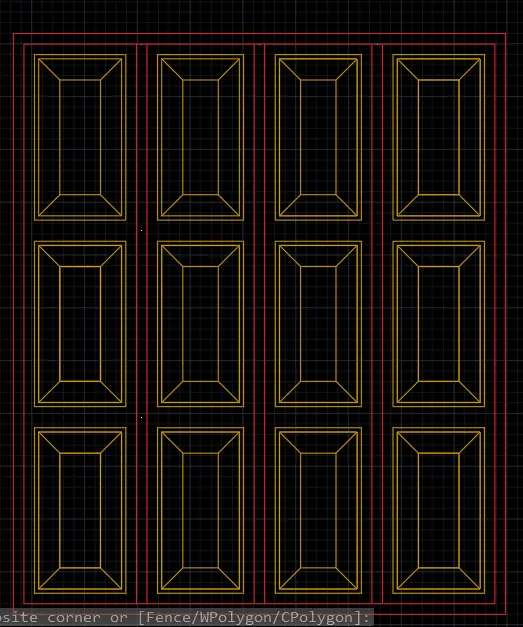

• make a following door panel using the drafting tools.
• make a 4x3 rectangular array of its as shown

• save this drawing as a block with the name door 2.

RESULT:

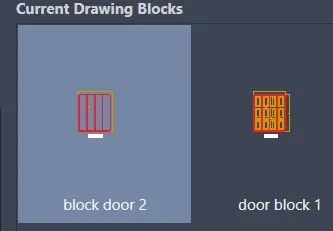

The two blocks of door types are made

3).

AIM :To create electrical legend

1. create each electrical symbols
2. creating them as block
3. arranging them in legends

procedure:

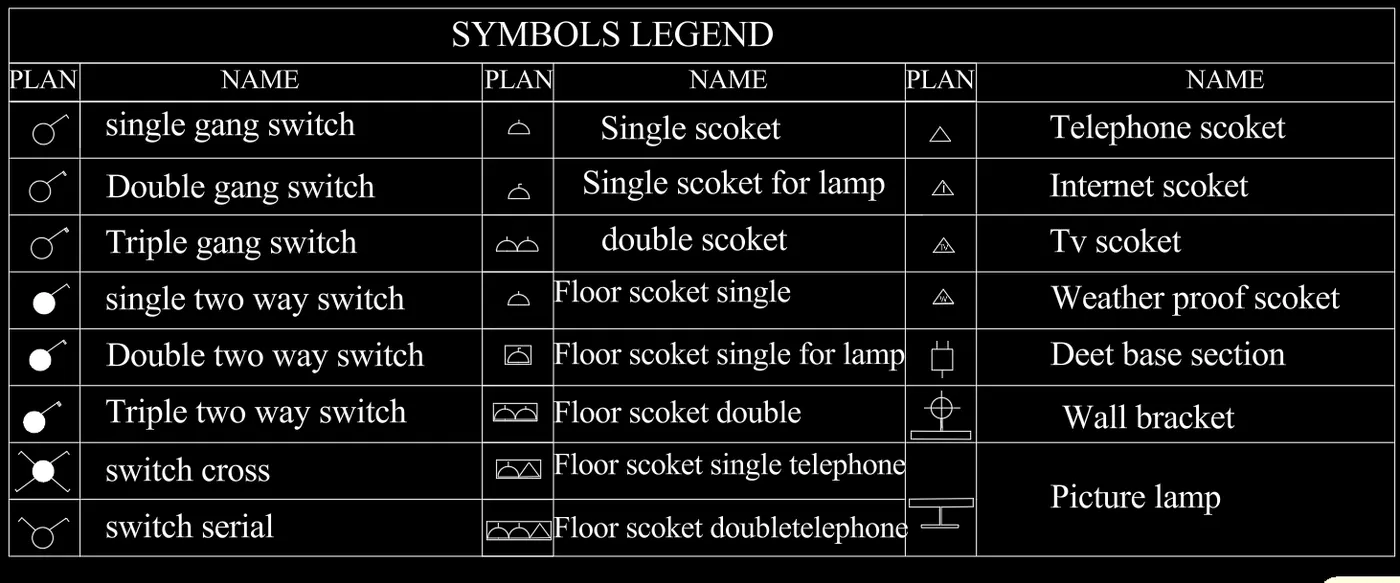

make the following table

creating electrical symbols

single gang switch: draw a circle of radius 64mm and with line draw an inclined line vertical and horizontal line perpendicular to the inclined as required.

double gang switch: draw circle and draw two horizontal lines and a vertical incline line.

triple gang switch: draw circle,1 vertical incline line and three horizontal lines

single two way switch: draw same as single gang switch and with donout command give internal dia as zero and for external diameter select it in the circle.

double two way switch: draw same as double gang switch and create donout.

triple two way switch: draw same as triple gang switch and create donout

switch cross: create a circle and donout inside and with line command draw an inclined vertical and perpendicular horizontal. mirror the line in both directions.

switch serial: copy the switch cross and delete two bottom lines, remove the donout also.

single socket: create a circle divide it into half and draw a line at the top.

single sacket for lamp : from the single socket draw a horizontal line perpendicular to vertical.

double socket : draw the single socket and copy it to create same and place it using snap on.

floor socket single: draw a rectangle surrounding single socket.

floor single socket for lamp : draw a rectangle surrounding single socket for lamp

floor socket double: create two single socket and place a rectangular surrounding it.

floor socket single telephone : draw a single socket a triangle and surrounded by a rectangle'

floor socket double telephone : draw 2 single socket and a triangle surrounded by a rectangle

telephone socket: draw a triangle

internet socket: insert text "i" in the triangle

tv socket : inset tv text in the triangle

weatherproof socket: inset text "w" in the triangle.

duct base section : draw a rectangle- select the bottom grip point-select add vertex-then pull the vertex to create a bend, with line draw the lines.

wall bracket : with rectangle draw the base, create a circle, draw a line connecting the rectangle and circle, draw a cross line inside the circle.

picture lamp: draw two rectangle connected by a line.

creating them as block:

command "B" give name as single gang switch- pick a point-select object ( created single gang switch)- tick scale uniformly and allow exploding options.

Result:

4)

AIM : To draw the doors of residential project and create it as block.

1. D1
2. D2
3. D3
4. D4
5. D5
6. D6

PROCEDURE:

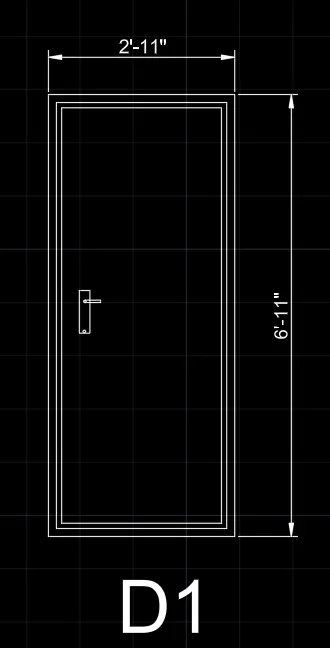

1). D1-2'11" X 6'11" :

Draw rectangle with dimension 2'11" x 6'11". draw offset 1.5" for frame. draw offset 1" for shutter.

draw lock by two rectangles perpendicular to each other and fillet the corners with radius 0.1" and circle. write text by multiline text "D1"

create it as block "B"

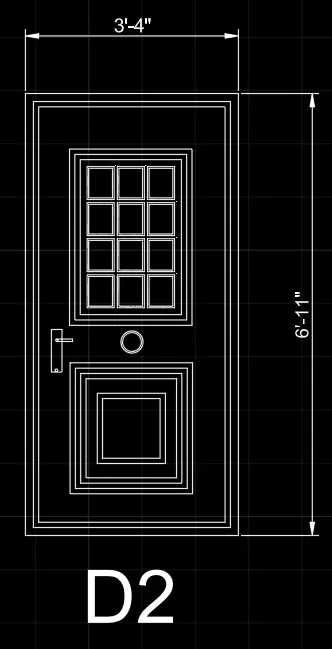

2). D2-3'4" X 6'11" :

Draw rectangle with dimension 3'4" x 6'11". draw offset 1.5" for frame . draw offset 1" for shutter

draw rectangle for panel 1'11"x 2'9.1'', then offset 1'' two times. draw a rectangle 5.4'' x 5.7'', offset 0.3''.

use div command and 3 part horizontal and 4part vertical divided in inner line.

create it as block "B"

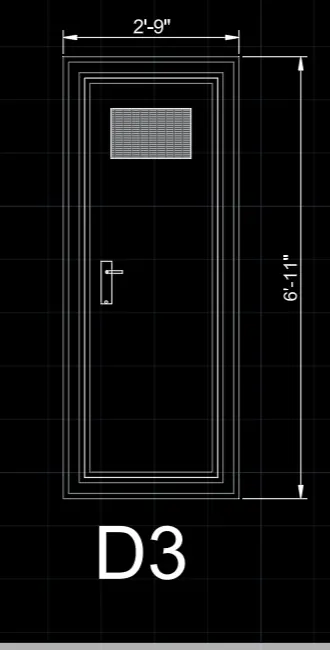

3). D3-2'9'' x 6'11'' :

draw a rectangle of 2'9'' x 6'11''.

offset 1'' for thickness, 1.5'' offset for frame, 1'' thickness. offset 1.5'' as shutter

draw a rectangle at the top for ventilation 1'3''x9.3''. hatch inside the rectangle.

create it as a block command "B"

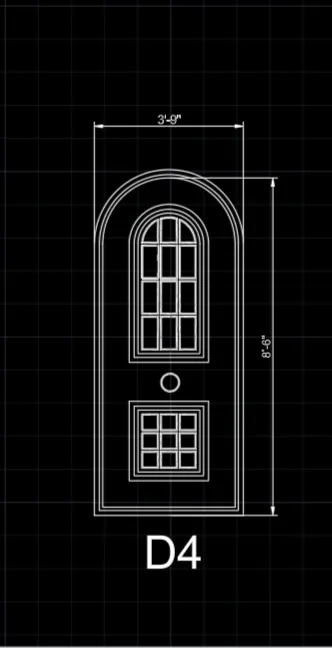

4).D4-3'9'' X 8'7'' :

Draw rectangle ''REC'' of dimension 3'9'' x 6'10''.explode it and create an arc with 2-point method with both point as the endpoints.

offset the arc and the line with 1.5'' and then 1''.

offset 8'' from arc and rectangle for panel and divide it into two. take 1'' offset 2 times to show the thickness on top figure and bottom rectangle

create rectangle inside the panel.

for lock, create a circle.

make it a block, name as type D4.

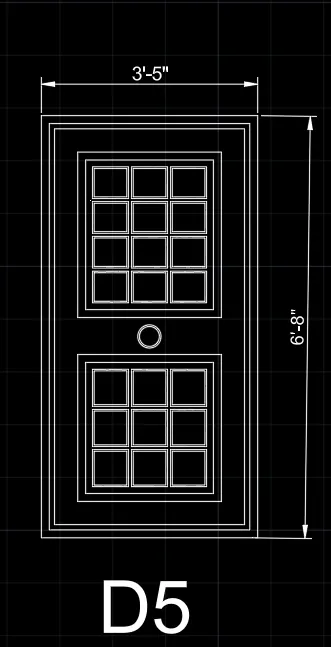

5). D5-3'5'' X 6'8'' :

Draw a rectangle of 3'5''x6'8''. offset 1.5'' for frame. offset 1'' as shutter thickness. create another rectangle inside with offset 4.4''.

create another rectangle on the bottom 2'2.9'' x 2'2.6''. offset 1'' two times for both rectangles.

create rectangle inside for panels with offset 0.5''. copy it for 3 column and 4 rows.

similarly copy it in bottom rectangle for 3 rows and 3 columns.

create it as a block command ''B''.

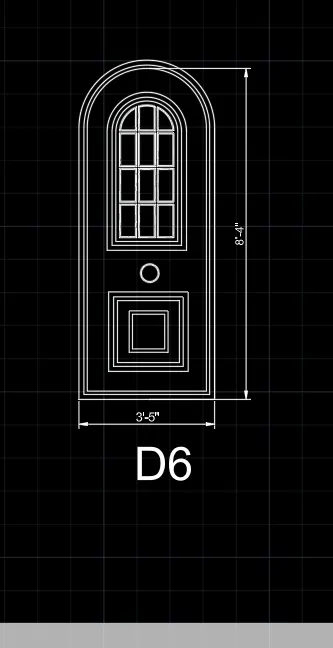

6). D6-3'5''X8'4'' :

Draw rectangle "REC'' of dimension 3'5'' x 8'4''. explode it and create an arc with 2-point method with both point as the endpoints.

offset the arc and the line with 1.5" and then 1" for frame.

offset 8'' from arc and rectangle for panel and divide it into two. take 1" offset 2 times to show the thickness on top figure and bottom rectangle.

create rectangle inside the top panel, 3 row and 4 columns.

for bottom panel, offset the rectangles by 1'' 3 time as and 3.3'' and again 1''. for lock, create a circle.

make it a block name as type D6.

RESULT : The doors are created and are made into blocks.

5)

AIM: To create bar bending schedule and insert it as block.

1. Drawing each shape.
2. creating it as block
3. inserting it in table as bar bending schedule.

PROCEDURE:

1. DRAWING EACH SHAPE :-

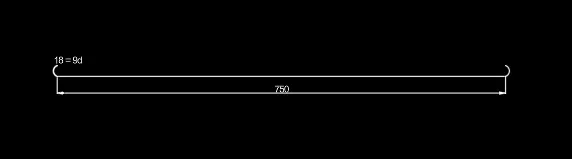

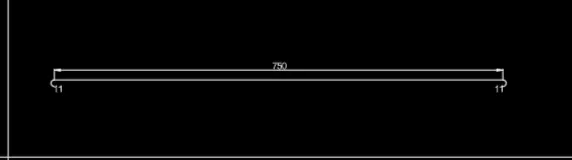

A - 20MM:

Draw a line of 750 cm for straight bar, create arc for the bend. create on one side and mirror it on another side.

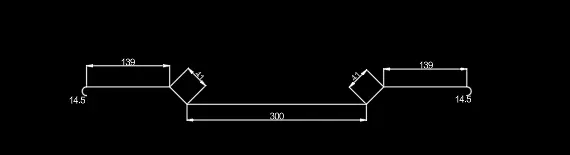

B- 16MM :

Draw line of 300mm for straight bar. draw vertical line of 41 cm and extend a horizontal line and draw a line inclined

at 45 degree from the base of vertical line up to horizontal line.

trim off the unwanted lines. copy the same on the other side, draw a horizontal line of 139cm and copy it on other side.

draw bend with arc and mirror the same on other side.

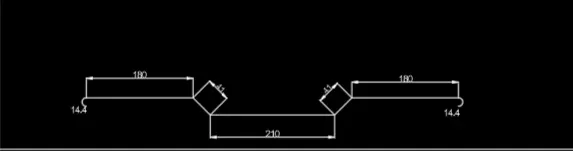

C - 16MM:

Draw line of 210mm for straight bar. draw vertical line of 41 cm and extend a horizontal line and draw a line inclined

at 45 degree from the base of vertical line up to horizontal line.

trim off the unwanted lines. copy the same on the other side, draw a horizontal line of 180cm and copy it on other side.

draw bend with arc and mirror the same on other side.

D- 12MM:

Draw a line of 750 cm for straight bar. draw an arc downwards. mirror it on the other side.

E - 10MM:

Draw a rectangle of 23mm and 43 cm. fillet the corner with fillet radius 5 cm. draw two line of 120 cm.

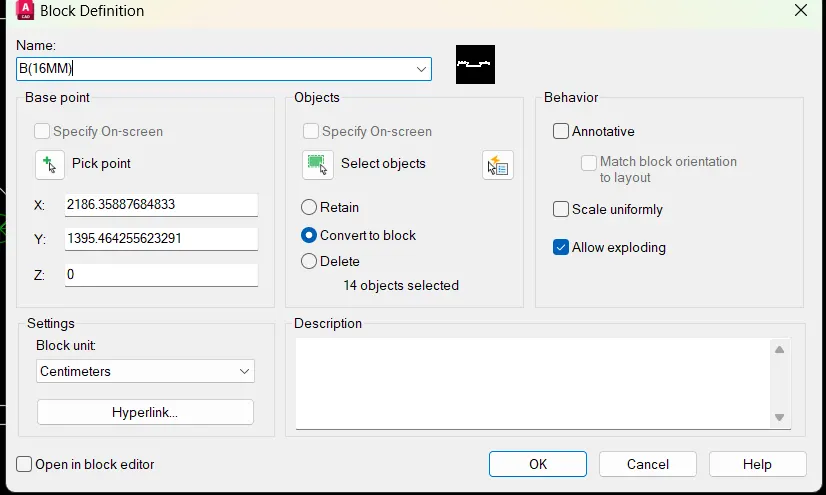

creating each of them as block by using command- "B''- Give name as A - pick a point select the object

- select delete- tick box of scale uniformly and explode all.

similarly create 5 blocks: A,B,C,D,E and insert each of the bars as blocks.

inserting blocks in the table:

create a table with rectangle and divide it into 6 rows and 7 columns. with multiline text enter type, shape size, length number, unit weight, total weight and all other text.

by command ''i'' insert each of the block in respective columns.

result :

template is drawn and text and attributes are inserted.

doors of warehouse are drawn and placed it in blocks

electrical legend are created and it is made into blocks

different types of doors for residential project are drawn and are placed in blocks

bars are drawn and made it as blocks and inserted it in table as bar bending schedule.
