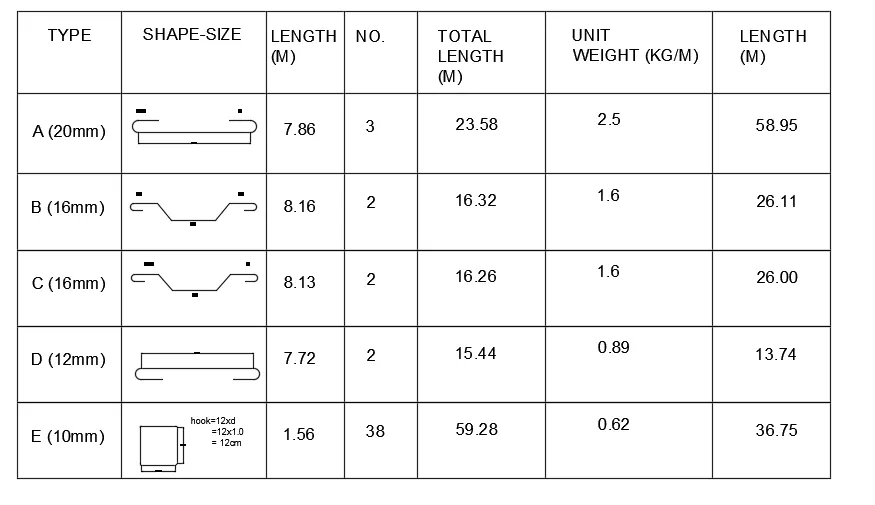

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

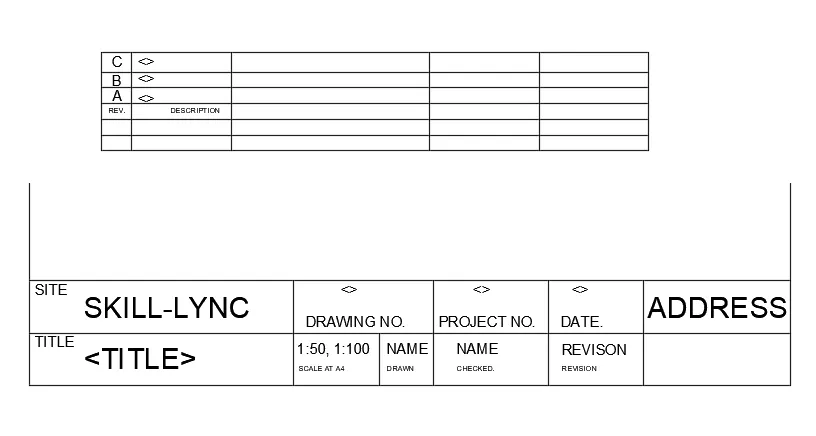

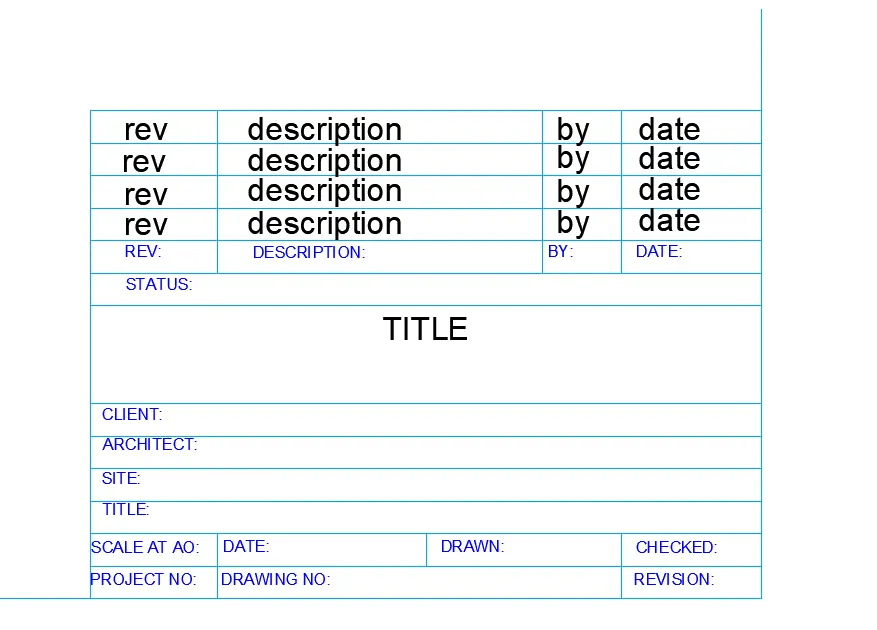

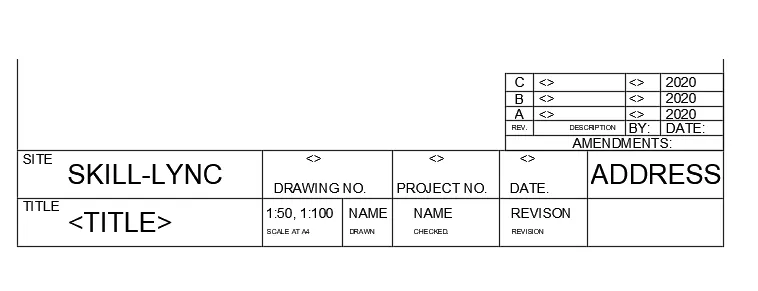

- Create the templates as shown in Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock, respectively.
ANS-CREATED THE TABLE BY USING TABLE COLUMN BY 12 ROWS AND 4 COULMN

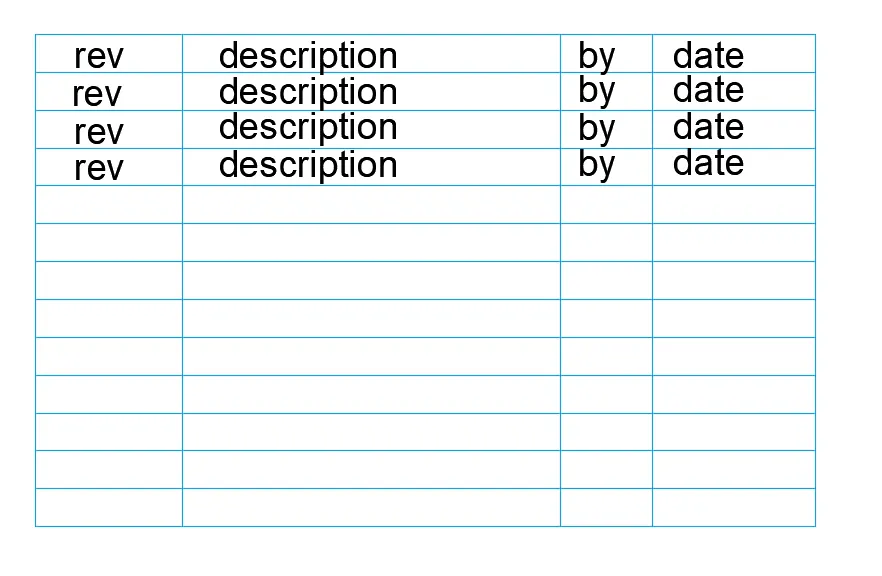

INSERTED THE TEXT BY USING MTEXT COMMAND AS WELL AS COPY AND PASTE COMMAND
INSERTED THE TEXT BY USING MTEXT AND EDITED THE TABLE BY USING MERGE, DELETED AND INSERTED ROWS AND COLUMNS
CREATTED THE LINE BY FOR DRAW THE TABLE AND CREATED A TEXT BY USING MTEXT
CREATTED THE LINE BY FOR DRAW THE TABLE AND CREATED A TEXT BY USING MTEXT AS WELL AS EDITED THE TABLE BY USING MERGE, DLETE ROWS AND DELETE COLUMNS...ETC.,

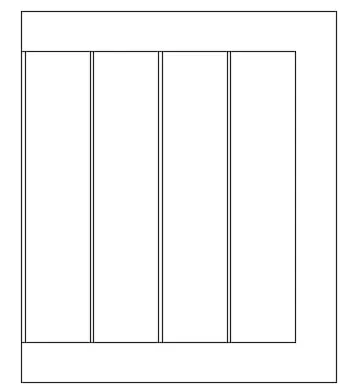

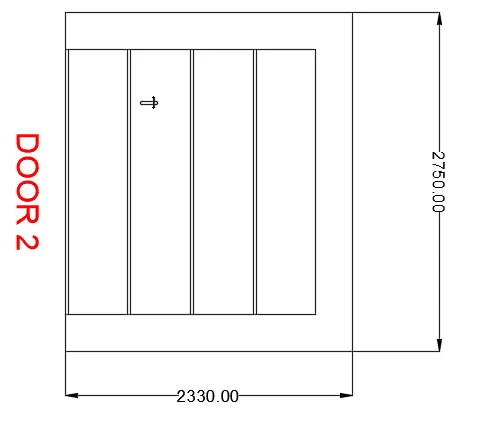

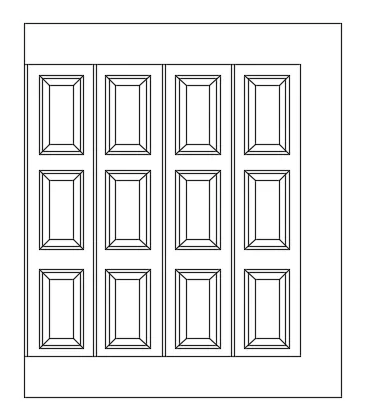

2. Create the doors type for warehouse as shown in the Figure. You need to create each door type as per standard size or given dimensions. Create the blocks of this door type after creating them.
CREATED THE RECTANGLE WITH DIMENSIONS BY USING REC COMMAND AS WELL AS USED LINE,OFFSET COPY, MOVE ...ETC.,

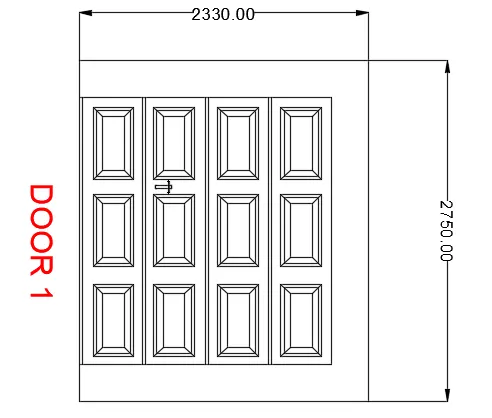

CREATED THE DOOR AS WELL INSERTED TEXT BY USING MTEXT AND MENTIONED THE DIMENSION BY USING DLI COMMAND

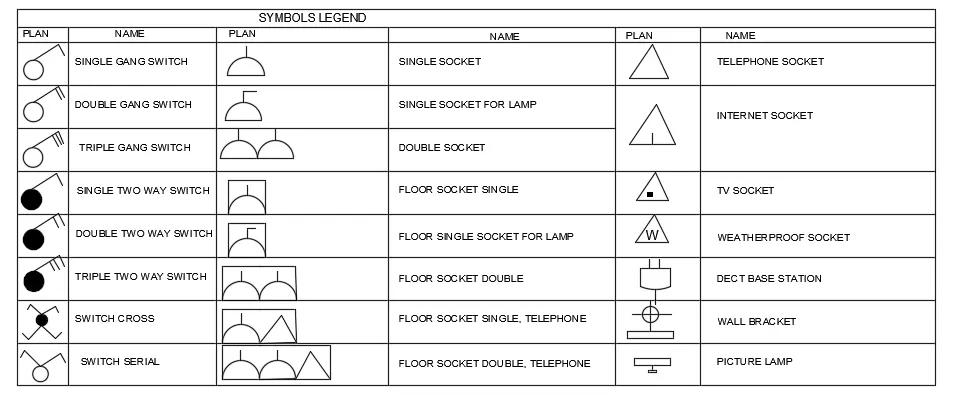

3. Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend as shown in the Figure
CREATED A TABLE AND DRAWN A SYMBOLS BY USING ARC, CIRCLE AND LINE COMMAND AND MADE IT HAS BLOCK NAMED IT AFTER THAT INSERTED IN THE TABLE BY USING INSERTED COMMAND, NAMED IT BY USING ATEXT COOMAND

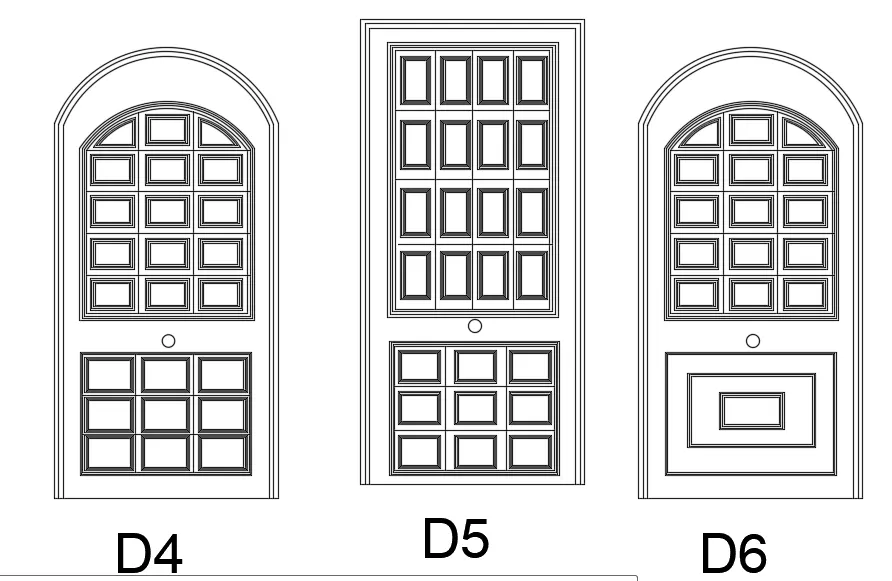

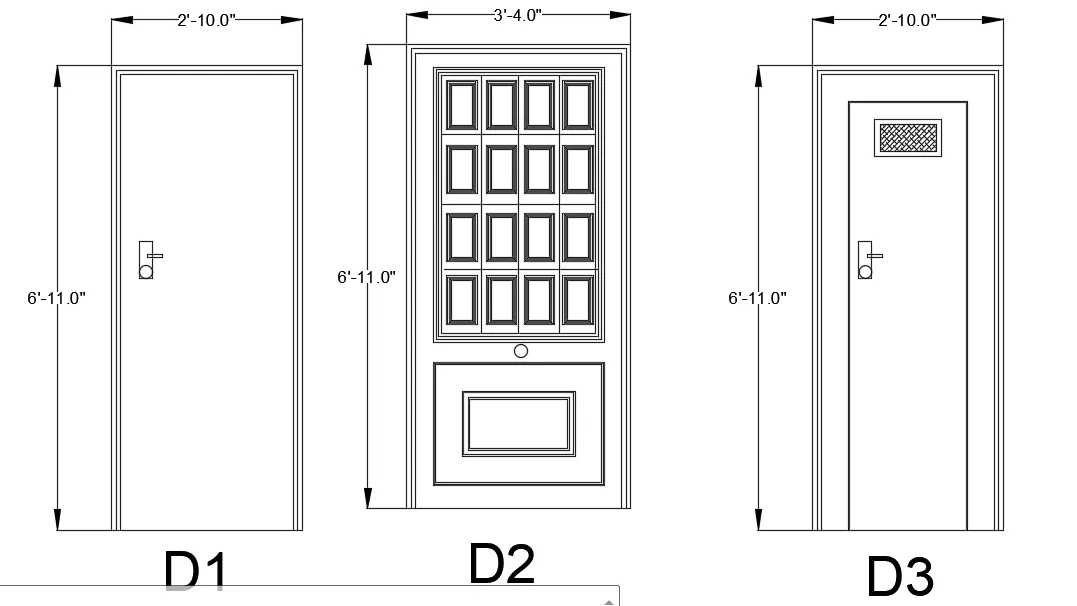

4. Create the door type for residential building as a block. Save the name of the blocks as type. Use given dimensions or assume dimensions as per industry standards.
CREATED A DORR BY SUING REC, LINE COMMAND AND NAMED BY USING A TEXT COMMAND
5. Create each shape as a block as shown in the Figure. Save the block and insert them on the table as shown in the Figure.
CREATED TABLE BY USING TABLE COMMAND, AND DRAWN A SYMBOLS BY UISNG LINE AND ARC COMMAND ,MADE IT HAS BLOCK BY USING BLOCK COOMAND AND NAMED IT AFTER THAT INSERTED THE SYMBOLS IN THE TABLE.
