Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

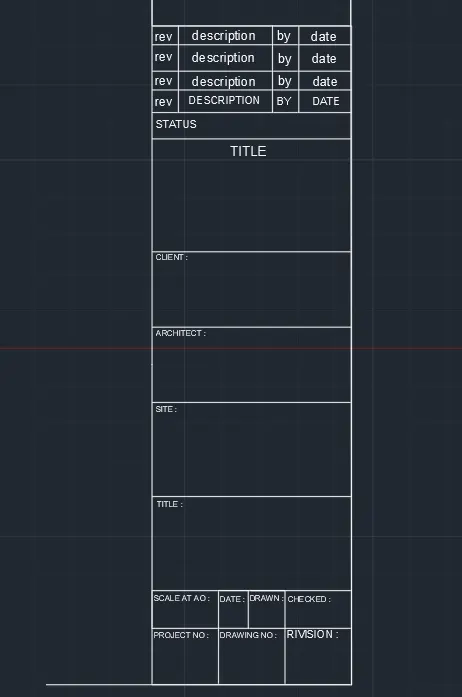

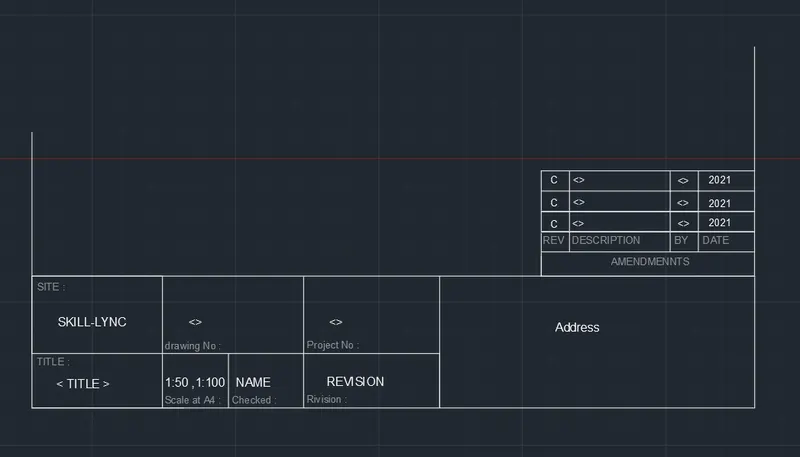

1. Aim - Create the templates as shown in Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock, respectively.

Commands Used - Line ,Trim ,offset etc.

Procedure - In the command prompt type L to draw the lines.

In the ribbon tab > Annotate > Mtline to draft the text.

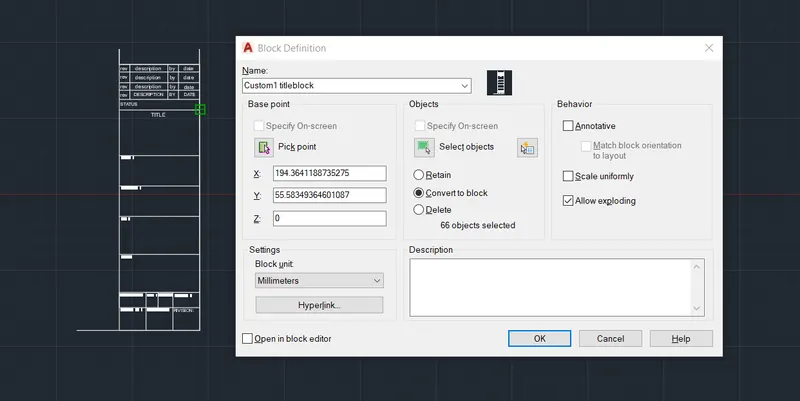

In the ribbon bar >block > create block and name it Custom1 titleblock. Therefore the block is created.

In the command prompt type L to draw the lines.

In the ribbon tab > Annotate > Mtline to draft the text.

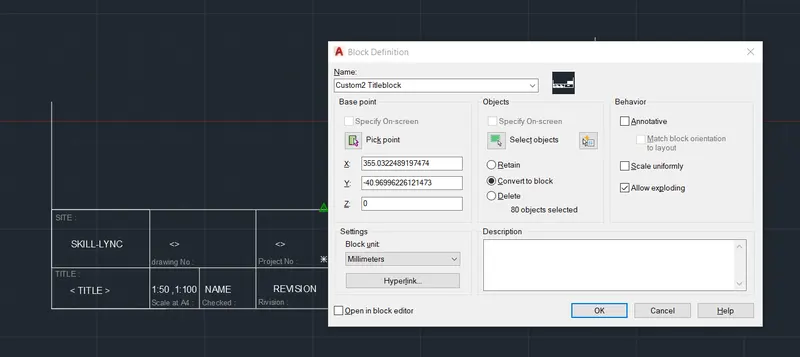

In the ribbon bar >block > create block and name it Custom2 titleblock. Therefore the block is created.

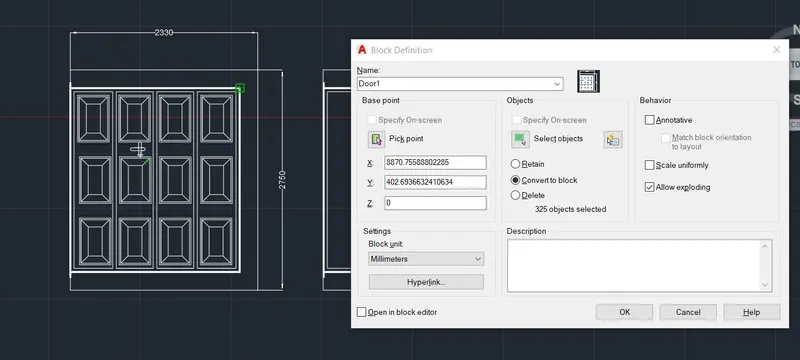

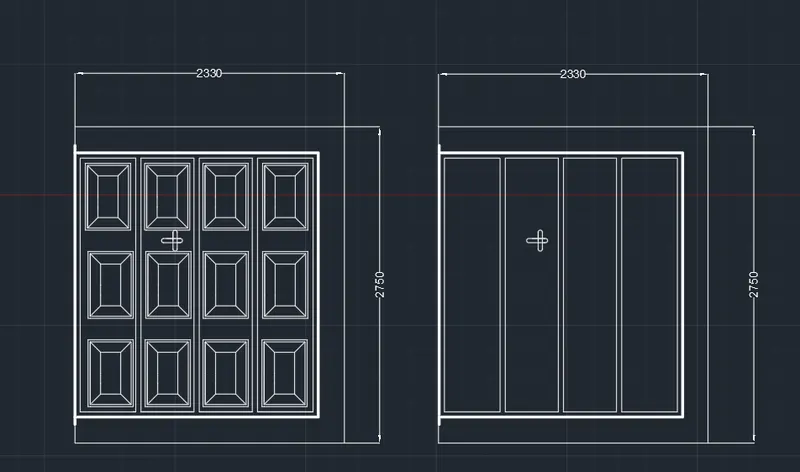

2. Create the doors type for warehouse as shown in the Figure. You need to create each door type as per standard size or given dimensions. Create the blocks of this door type after creating them.

Procedure - Firstly to set unit and limits then select zoom and press all.

In the command prompt type l to draft the lines.

In the command prompt type rec to draft the boxes.

In the command prompt type fillet to get the curve edges.

In the ribbon bar > dimesions > to give the dimensions of the door.

In the ribbon bar > anotation > text to give the text to the door.

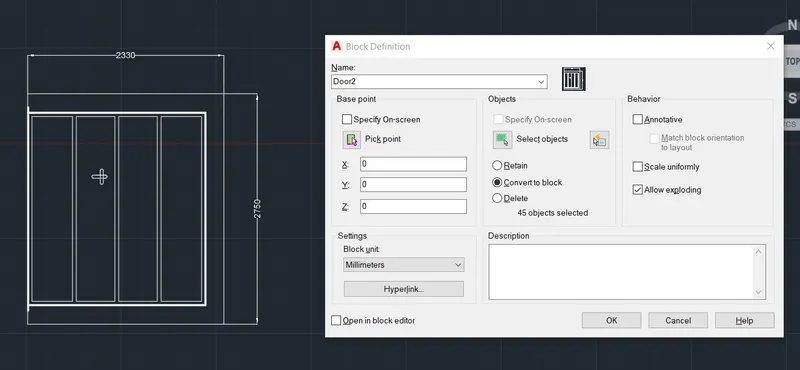

In the ribbon bar > block > create the door block.

In the command prompt type l to draft the lines.

In the command prompt type rec to draft the boxes.

In the command prompt type fillet to get the curve edges.

In the ribbon bar > dimesions > to give the dimensions of the door.

In the ribbon bar > anotation > text to give the text to the door.

In the ribbon bar > block > create the door block.

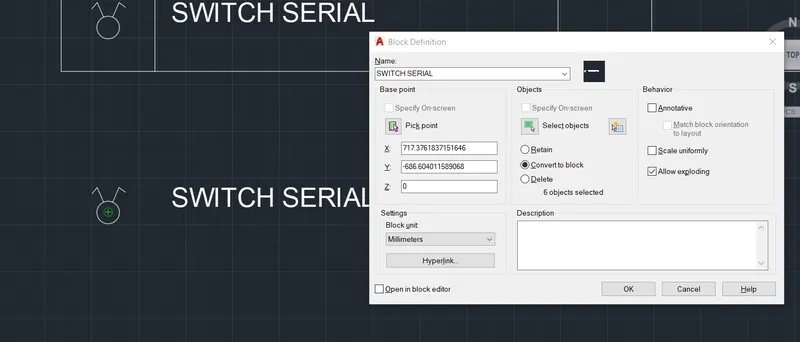

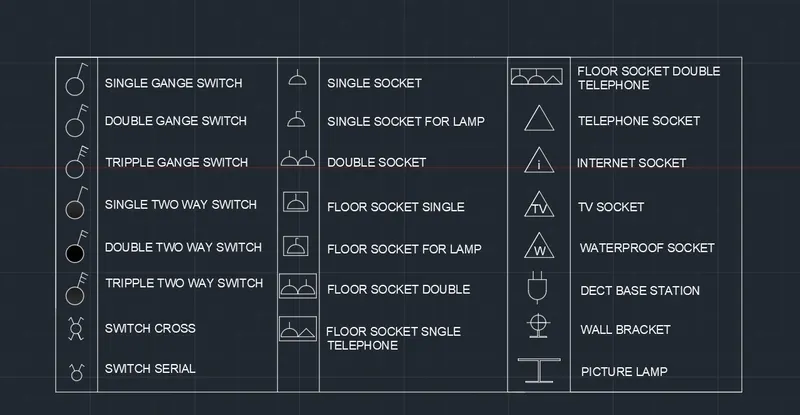

3. Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend as shown in the Figure.

Procedure - In the command prompt type C to get circle.

In the command prompt type L to get the Lines.

In the ribbon bar > annotation > multiline text.

In the ribbon bar > block > block edit.

Same commands and procedure are follow in first row symbols.

In the command prompt type L to draw the Lines.

In the command prompt type arc to draw the arc.

In the command prompt type Mtext.

In the ribbon bar > block > block create.

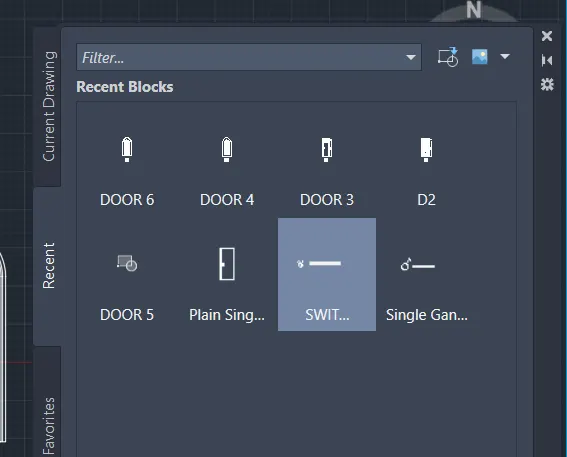

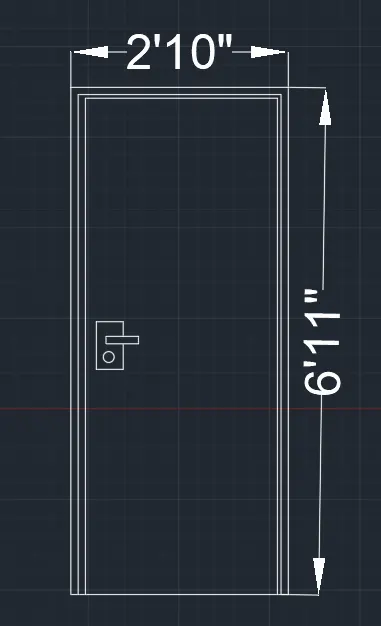

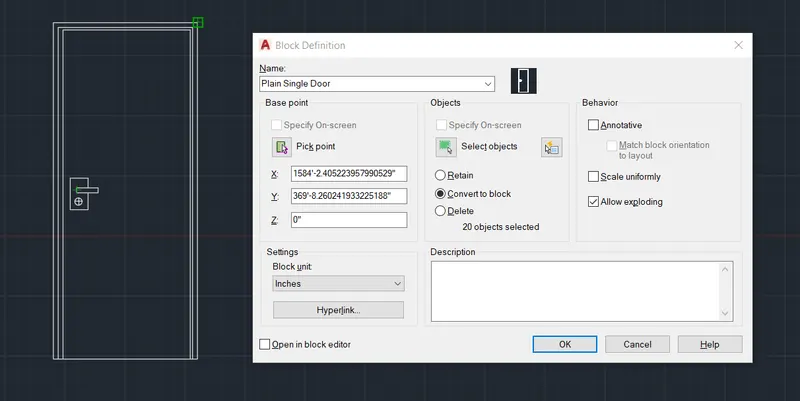

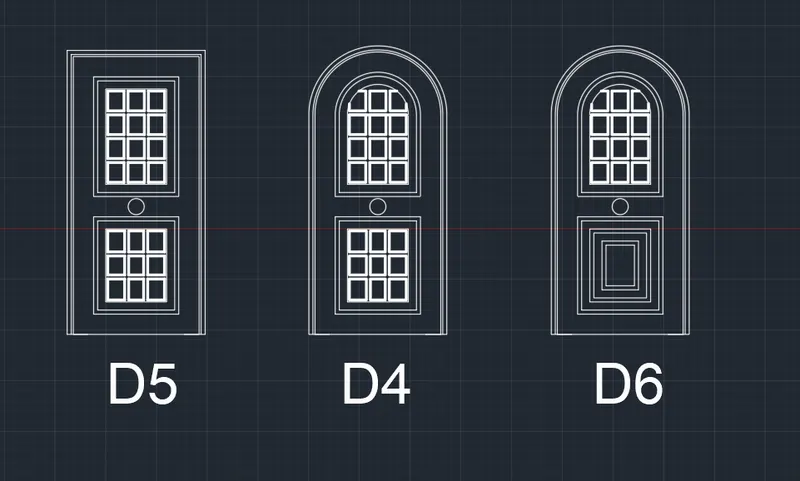

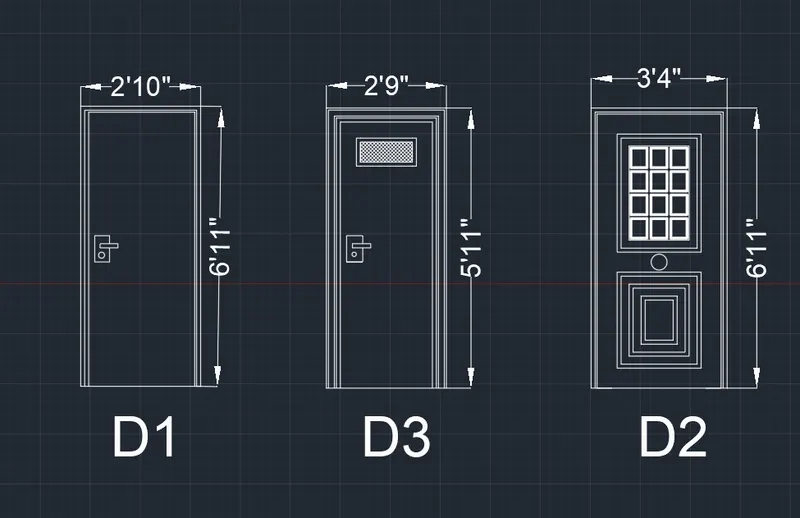

4. Create the door type for residential building as a block. Save the name of the blocks as type. Use given dimensions or assume dimensions as per industry standards.

Procedure - Firstly to set units and limits and then select zoom and press all.

In the command prompt type L to draw the Lines.

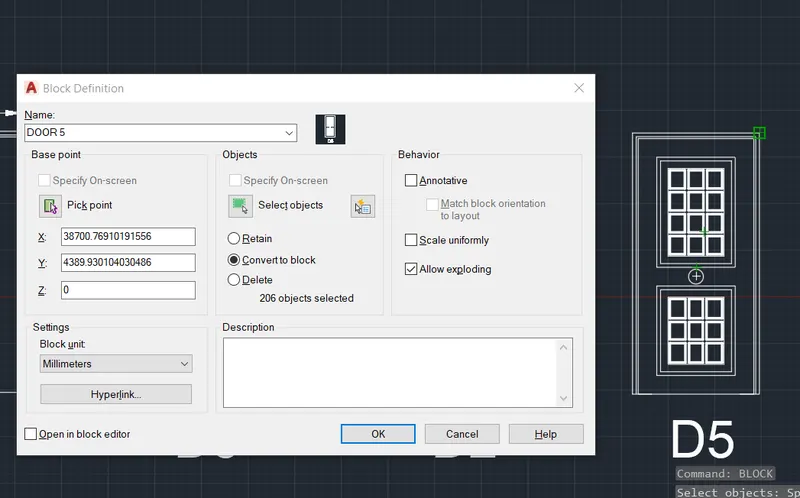

In the command prompt type B to create the blocks.

In the command prompt type ATT name of the block is save as type.

The same command and procedure is used for the rest of the door.

In the coomand type arc to create arc.

Final Result -

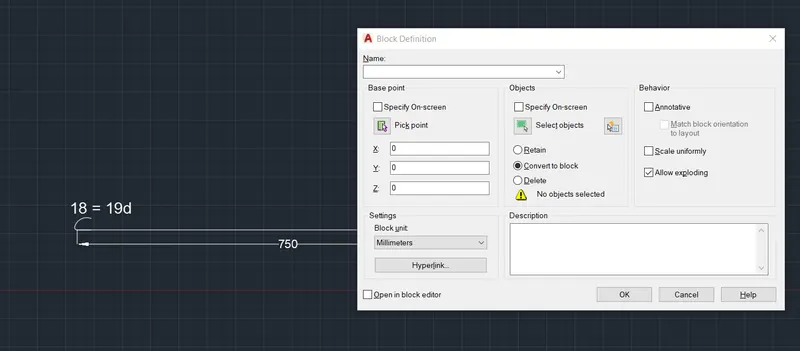

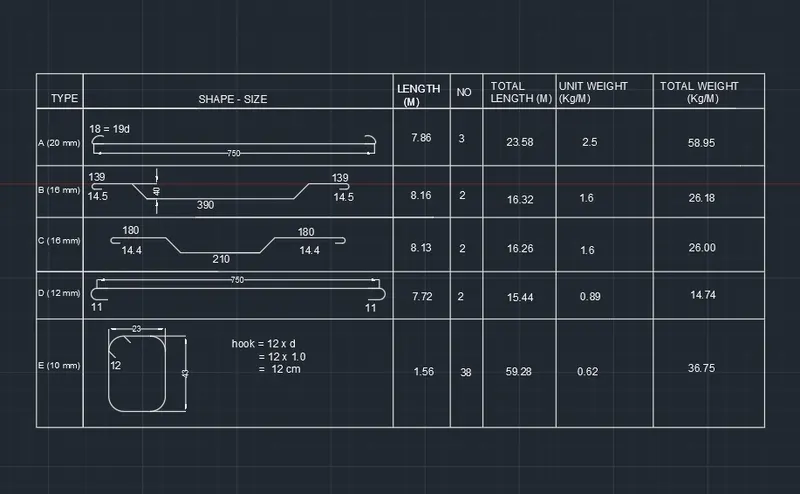

5. Create each shape as a block as shown in the Figure. Save the block and insert them on the table as shown in the Figure.

Procedure - Firstly to set units and limits and then select zoom and press all.

In the command prompt type L to draw the Lines.

In the command prompt type PL to draw the desired arc .

In the command prompt type mt to give anoootation and text.

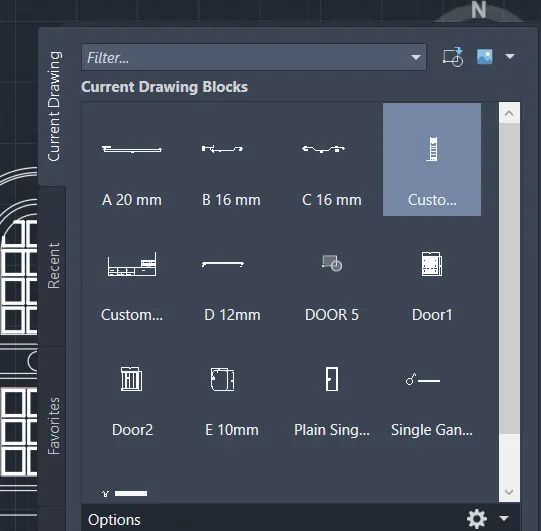

In the command prompt type B to create block.

In the command prompt type i to insert the created in the block.

In the command prompt type table to inset the table.

Final Result -
