Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

1) Aim : create standard drawing templates, inserting text and attributes using Autocad software

Custom 1_title block

Custom 2_title block

Procedure

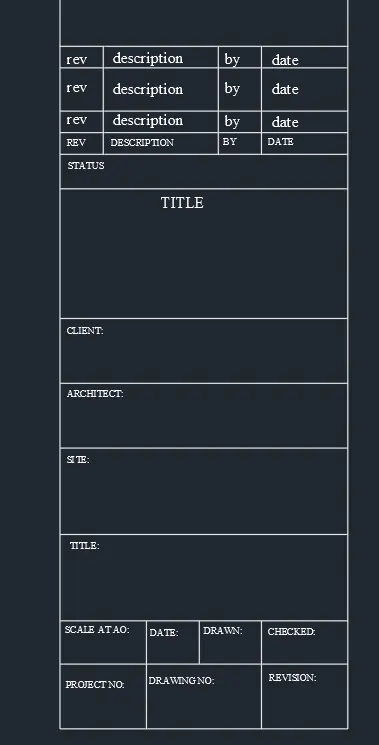

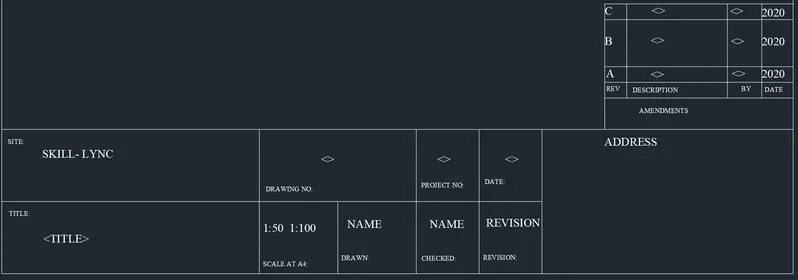

Custom 1_title block

• Creating a rectangle of size 66.63mm and 158mm
• Divide it with line for the text box into columns
• For rows , take Offset of 5,10,5,5,8,30,15,15,20,20,10,15mm
• By multiline text, type Rev, description, by,date on the first row by text height 2.5 and style times new Roman
• As it is repeated in the other two rows, take array give column as 1, rows as 3, spacing between rows as 7
• Again, use multiline text and type the required text in caps with text height 1.5 and style as times to new Roman
• Creating the blocks by using command B

Custom 2_title block

• Draw rectangle of 252 and 46mm with lines divide the to the required rows and columns.
• Multiline text is used to insert the height 2.5
• Attribute command is used to create text inside
• Insert the tag line
• The Custom title 1 and 2 is created

2)Aim : Creating doors for warehouse and placing it in block.

1. Door 1- 2330x2750mm

2. Door 2- 2330x2750mm

Procedure

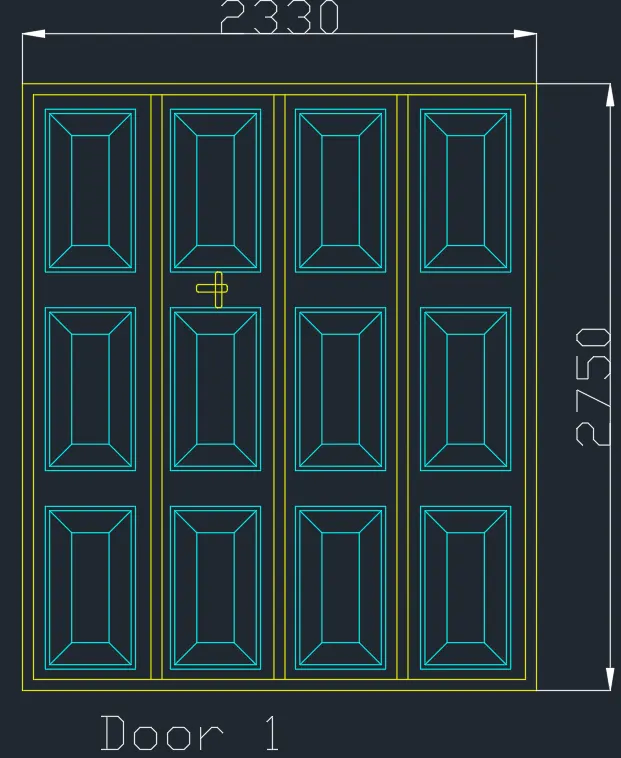

• Door 1 -2330x2750mm:
• Create a rectangle of size 2330x2750mm.
• Offset 50mm as a frame. 90mm for the left side.Explode the rectangle.
• By divide "DIV" divide the top line into 4 segments.From the division point, draw lines vertically to divide it into shutters.
• Offset 25mm on both sides for the thickness, delete the centre line.
• Create a rectangle to show the panels.Offset 20mm from the 1st rectangle and offset 100mm from the 2nd rectangle.Draw lines joining the corners of the outside and inside rectangle.
• Create the panel as a block, so that it is easy to copy.Create lock by rectangle command, and fillet the corners with radius 5mm.
• By using the copy all the frames are copied.
• Layer is created and all the objects are kept in different layers.

  Creating block:

• Command "B" - give name as door 1 - pick point- select corner point- select object - select the full object - ok.Select scale uniformly and allow exploding.

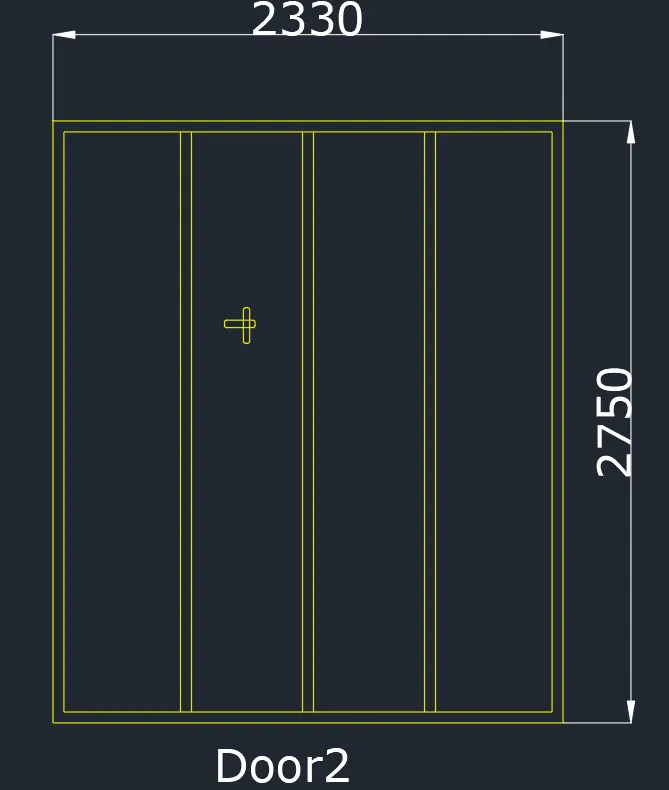

  Door 2 -2330 x2750mm:

• Create a rectangle of size 2330x2750mm.Offset 50mm as a frame. 90mm for the left side.Explode the rectangle.

• By divide "DIV" divide the top line into 4 segments.From the division point, draw lines vertically to divide it into shutters.To make the points visible, Command "DDPTYPE" select the style of point

• Offset 25mm on both sides for the thickness, delete the centre line.Create lock by rectangle drawn on opposite sides and fillet the corners with radius 5mm.

• Make layers and insert lock, frame in different layers

• Create it as a block "B" - pick a corner point - select the whole door -tick the box of scale uniformly- explode.

3)Aim: To create electrical legend

1. Create each electrical symbol
2. Creating them as block
3. Arranging them in legends

Procedure:

Creating electrical symbols

Single gang switch: Draw a circle of radius 64mm and with line draw an inclined line vertical and horizontal line perpendicular to the inclined as required.

Double gang switch: Draw circle and draw two horizontal lines and a vertical incline line.

Triple gang switch: Draw circle, 1 vertical incline line and three horizontal lines.

Single two-way switch: Draw same as single gang switch and with donout command give internal dia as zero and for external diameter select it in the circle.

Double two way switch: Draw same as double gang switch and create donout .

Triple two-way switch: Draw same as triple gang switch and create donout.

Switch cross: Create a circle and donout inside and with line command draw an inclined vertical and perpendicular horizontal. Mirror the line in both directions.

Switch serial: Copy the switch cross and delete two bottom lines, remove the donout also.

Single socket: Create a circle, divide it into half and draw a line at the top.

Single socket for lamp: From the single socket, draw a horizontal line perpendicular to vertical.

Double socket: Draw the single socket and copy it to create same and place it using snap on.

Floor socket single: Draw a rectangle surrounding single socket.

Floor single socket for lamp: Draw a rectangle surrounding single socket for lamp

Floor socket double: Create two single socket and place a rectangle surrounding it.

Floor socket single telephone: Draw a single socket, a triangle and surrounded by a rectangle.

Floor socket double, telephone: draw 2 single socket and a triangle surrounded by a rectangle.

Telephone socket: Draw a triangle

Internet socket: Insert text "i" in the triangle.

Tv socket: Insert text “TV' in the triangle.

Weatherproof socket: Insert text "w" in the triangle.

Duct base section: Draw a rectangle - select the bottom grip point - select add vertex - then pull the vertex to create a bend, with line draw the lines.

Wall bracket: With rectangle draw the base, create a circle, draw a line connecting the rectangle and circle, draw a cross line inside the circle.

Picture lamp: draw two rectangles connected by a line.

Creating them as block:

• Command "B" give name as single gang switch - pick a point - select object (created single gang switch) - tick scale uniformly and allow exploding options.
• Similarly define each one of them as block giving the respective names.Do the same procedure for the remaining symbols.
• Creating and arranging hem in layers:

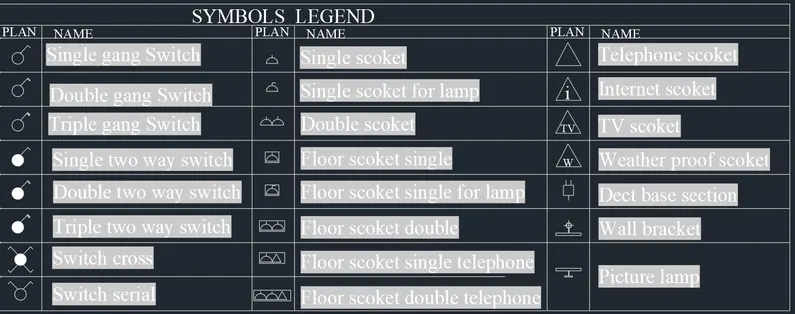

• First create a rectangular table having 10 rows and 6 columns.
• Place each of the blocks in the respective rows and columns.
• To enter text with the block from the insert tab- select field- select object -select block.
• E.g.: for single gang switch - select from the field. - select uppercase in format.
• Place the text in the respective rows give text heiht to 150.
• Similarly place all the title inside the legends.

4)Aim: To draw the doors of residential project and create it as block.

1. D1
2. D2
3. D3
4. D4
5. D5
6. D6

Procedure:

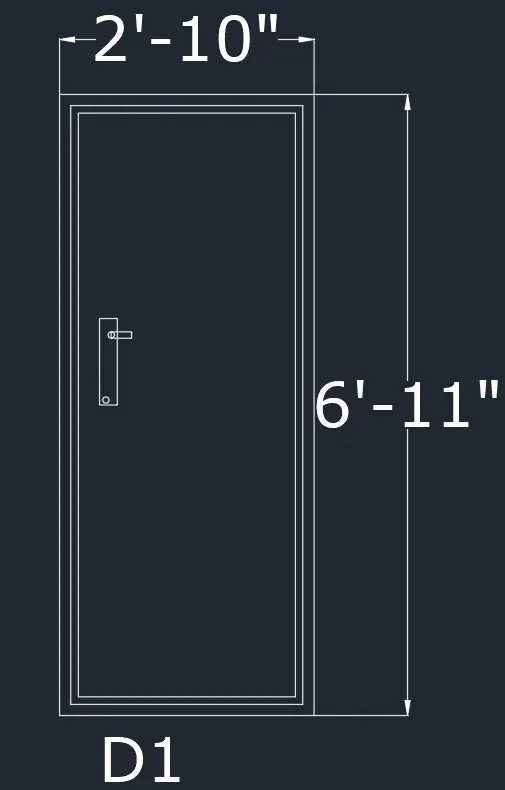

1). D1 - 2'10" x 6'11" :

• Draw rectangle with dimension 2'10" and 6'11".Draw offset 1.5" for frame.Draw offset 1" for shutter.
• Draw lock by two rectangles perpendicular to each other and fillet the corners with radius 0.1"and circle.Write text by multiline text "D1".
• Create it as block "B"- give name as "type-D1" -pick a corner point- select the object. then block is created.

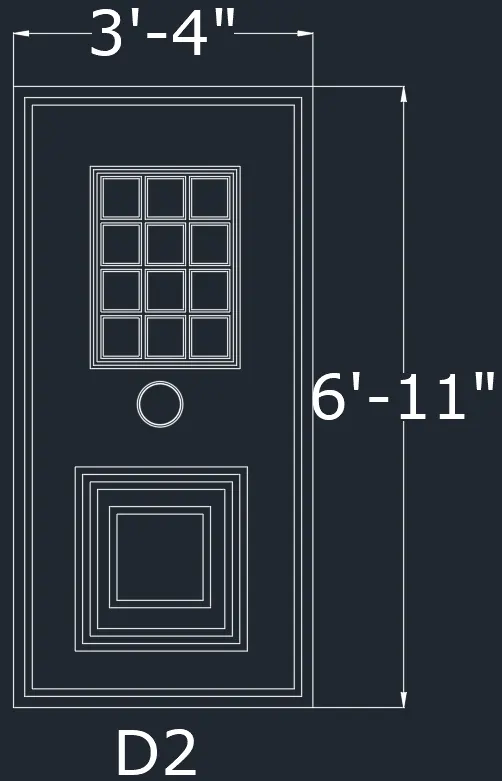

2). D2 - 3'4" x 6'11" :

• Draw rectangle with dimension 3'4" and 6'11".Draw offset 1.5" for frame.Draw offset 1" for shutter.
• Draw rectangle for panel 1'11" and 2'9.1", then offset 1" two times.Draw a rectangle 5.4" x 5.7", offset 0.3".
• Copy it with copy command "co" - select mode - select the rectangle- select array-enter no: of array as 3 -place it as required.Copy the 3 rectangles to 4 rows.
• For the second panel draw a rectangle of 1'11" x 2'0.6". Offset 1" 3 timesDraw another rectangle inside this of 1'0.8" x 1' 1.2" and offset 1".
• Draw lock by circle in between the two panels.Write text by multiline text "D2".
• Create it as block "B"- give name as "type-D2" -pick a corner point- select the object, then block is created.

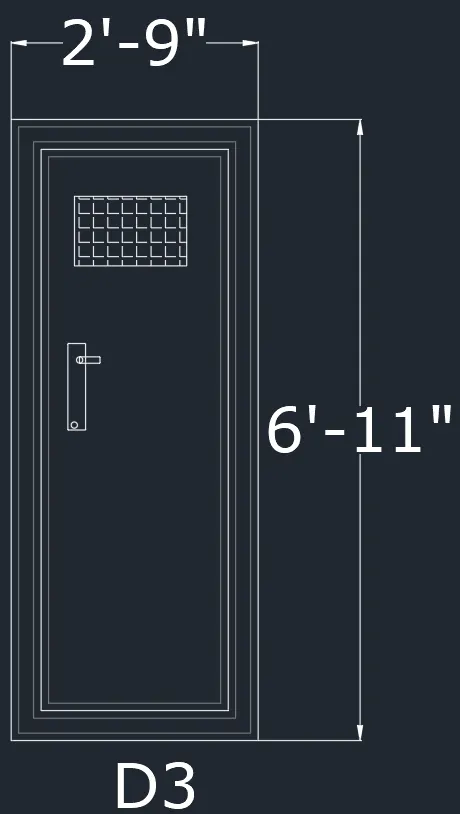

3). D3 -2'9" x 6'11" :

• Draw a rectangle of 2'9" x 6'11".
• Offset 1" for thickness ,2"offset for frame, 1" thickness. Offset 1.5" as shutter thickness.
• Draw a rectangle at the top for ventilation 1'3" x 9.3", give offset 1" for thickness.Hatch inside the rectangle.
• Create lock by rectangle two of them, perpendicular to each other and a circle.
• Create it as a block Command "B" - give name as type d3 -pick point- select object -tick scale uniformly and explode all.

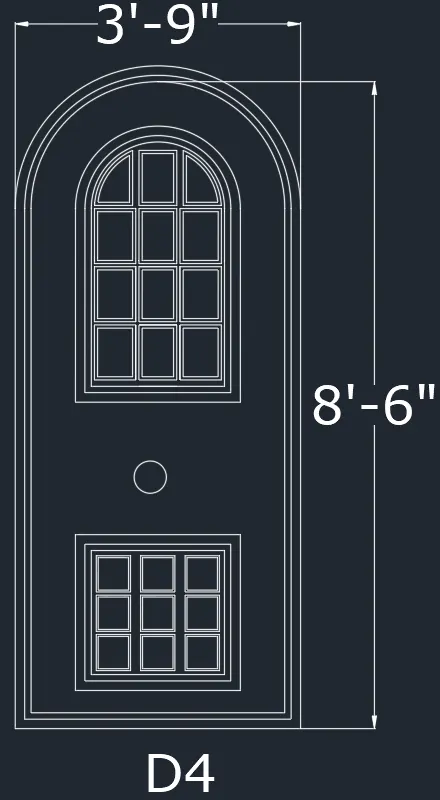

4). D4 - 3'9" x 8'7" :

• Draw rectangle "REC" of dimension 3'9" x 6'10".Explode it and create an arc with 2-point method with both point as the endpoints.Offset the arc and the line with 1.5" and then 1".
• Offset 8" from arc and rectangle for panel and divide it into two .Take 1" offset 2 times to show the thickness on top figure and bottom rectangle.Create rectangles inside the panel.
• For lock, create a circle.
• Make it a block, name as type D4 - pick a point and select the object tick the dialogue box of uniform scale and explode all.

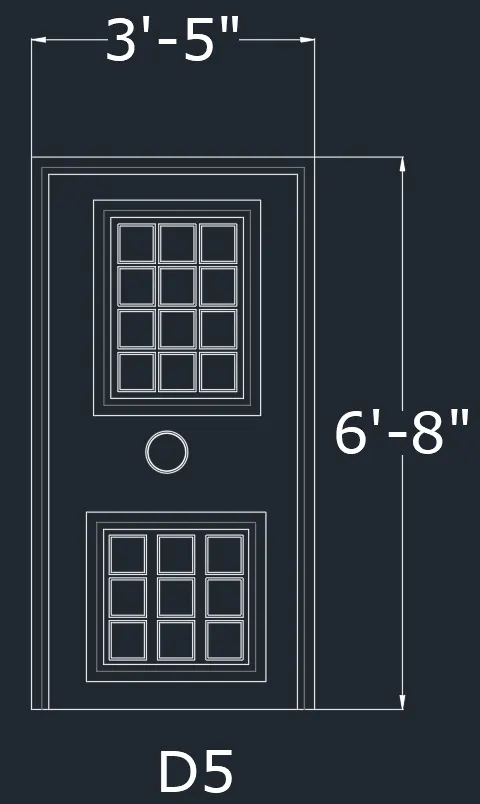

5). D5 - 3'5" x 6'8" :

• Draw a rectangle of 3'5" x 6'8".Offset 1.5" for frame.Offset 1" as shutter thickness.Create another rectangle inside with offset 4.4".
• Create another rectangle on the bottom 2'2.9" x 2'2.6".Offset 1" two times for both rectangles.
• Create rectangle inside for panels with offset 0.5".Copy it for 3 columns and 4 rows.Similarly copy it in bottom rectangle for 3 rows and 3 columns.
• Create it as a block Command "B" - give name as type D5 -pick point- select object -tick scale uniformly and explode all.

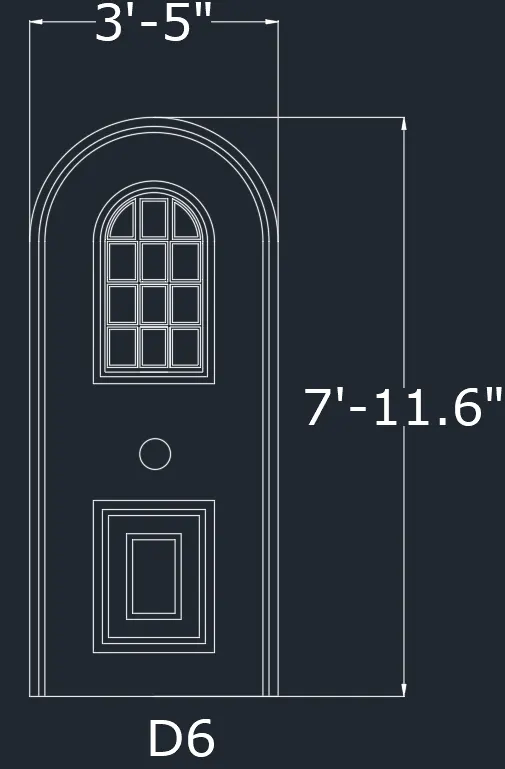

6). D6 - 3'5" x 7' 11.6" :

• Draw rectangle "REC" of dimension 3'5" x 7'11.6".Explode it and create an arc with 2-point method with both point as the endpoints.Offset the arc and the line with 1.5" and then 1" for frame.
• Offset 8" from arc and rectangle for panel and divide it into two.Take 1" offset 2 times to show the thickness on top figure and bottom rectangle.Create rectangles inside the top panel, 3 row and 4 columns.
• For bottom panel, offset the rectangles by 1" 3 time as and 3.3" and again 1".For lock, create a circle.
• Make it a block ,name as type D6 - pick a point and select the object tick the dialgue box of uniform scale and explode all.
• The doors are created and are made into blocks.

5)Aim: To create bar bending schedule and insert it as block.

1. Drawing each shape.
2. Creating it as block.
3. Inserting it in table as Bar bending schedule.

Procedure:

1).Drawing each shape:

A -20mm :

Draw a line of 750cm for straight bar.Create arc for the bend. Create on one side and mirror it on another side.

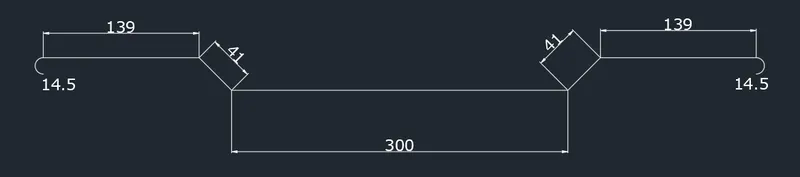

B-16mm :

• Draw line of 300mm for straight bar.Draw vertical line of 41cm and extend a horizontal line and draw a line inclined at 45 degree from the base of vertical line up to horizontal line.
• Trim off the unwanted lines.Copy the same on the other side.Draw a horizontal line of 139cm and copy it on other side .Draw bend with arc and mirror the same on other side.

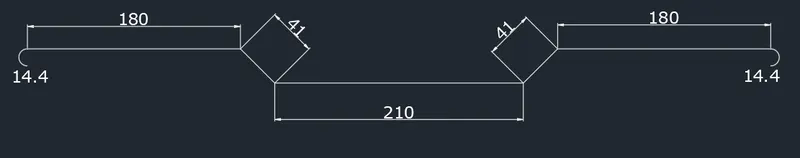

C -16mm :

• Draw a line of 210cm .Draw vertical line of 41cm and extend a horizontal line and draw a line inclined at 45 degree from the base of vertical line up to horizontal line.
• Trim off the unwanted lines.Copy the same on the other side.Draw a horizontal line of 180cm and copy it on other side.Draw bend with arc and mirror the same on other side.

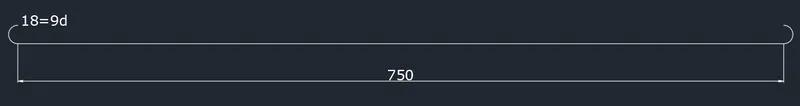

D -12mm :

Draw a line of 750cm for straight bar.Draw an arc downwards.Mirror it on the other side.

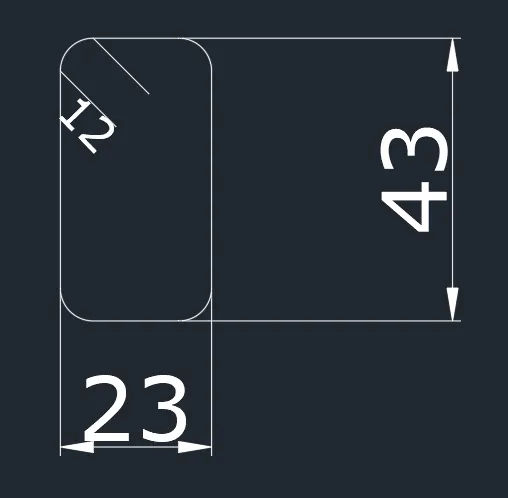

E- 10mm :

Draw a rectangle of 23cm and 43 cm.Fillet the corner with fillet radius 5cm.Draw two line of 120cm.

• Creating each of them as block by using Command -"B'- give name as A - pick a point- select the object - select delete - tick box of scale uniformly and explode all.
• Similarly create 5 blocks: A,B,C,D,E and insert each of the bars as blocks.

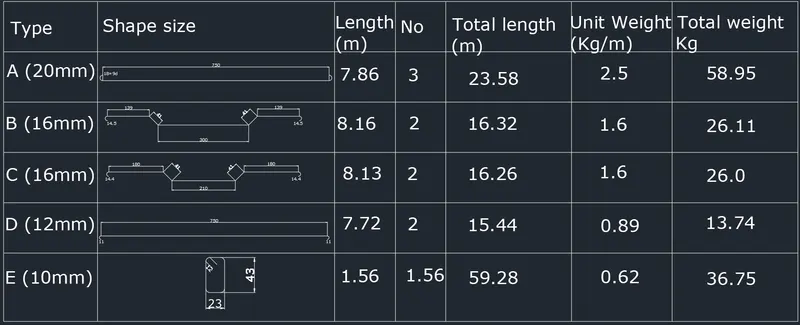

Inserting blocks in the table:

• Create a table with rectangle and divide it into 6 rows and 7 columns.With multiline text enter type, shape size, length, no, total length, unit weight, total weight and all other text.By command "I" insert each of the block in respective columns.
