Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

DDharani Donikala22 Oct 2022

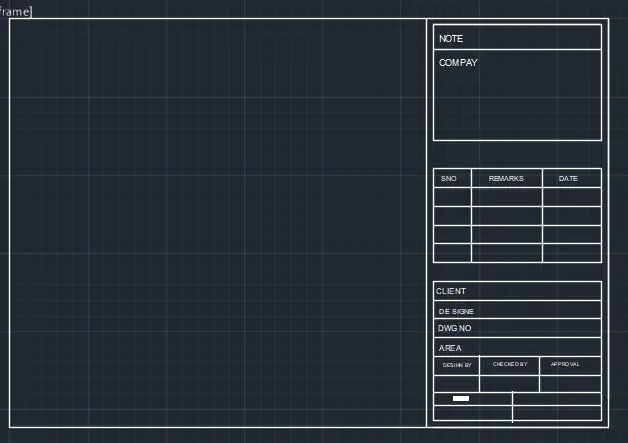

AIM :

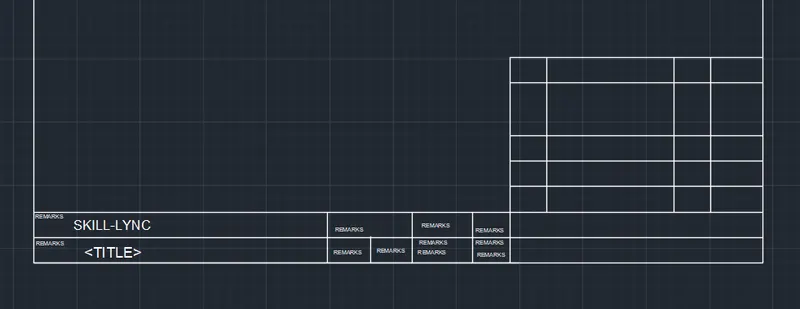

TO CREATE THE TEMPLATES BY USING AUTOCAD TOOL

IN THIS TAMPLATE

NAME OF THE PROJECT
CLIET NAME
CONRACTOR NAME
TYPE OF DRAWING
DRAWING TEMPLATE NUMBER
NUMBER OF THE REVISION
DRAWN BY
CHECKED BY
RECHECKED BY ETC.. ARE MENTIONED

PROCEDURE :

OPEN AUTOCAD
CHANGE UNITS AS YOUR REQURED
TYPE UN IN COMMAND BOX AND PRESS ENTER
CHANGE UNITS TYPE TO DECIMAL AND PRECISION TO 0.00 AND INSRTION SCALE TO MILLIMETERS
NEXT TYPE D IN COMMAND BOX AND PRESS ENTER
CHANGE DIMSTYLE AS BASED ON UNITS

COMMAND USED IN THIS
UNITS COMMAND
DIMSTYLE COMMAND
LINE COMMAND
TRIME COMMAND
REC COMMAND
DIM COMMAND
OFFSET COMMAND
CIRCLE COMMAND
BLOCK COMMAND
BEDIT COMMAND
INSERT COMMAND
ATTRIBUTE COMMAND
TEXT COMMAND

IN ABOVE THE DRAWING ALL THE LINES ARE DRAWN BY USEING THE LINE COMMAND IN THE BELOW COMMAND SECTION.
ALL THE TEXTS IN THE ABOVE DRAWING ARE DRAWN BY LINE COMMAND.
DIM COMMAND IS USED TO GIVE ALL THE DIMENSIONS TO THE DRAWING.
TRIM COMAND IS USED TO REMOVE UNWANTED OBJECTS FROM THE ABOVE DRAWING.
REC COMMAND IS USED TO DRAW THE TABLES.
OFFSET COMMAND IS USED TO CREAT ANOTHER OBJECT WITH THE SAME DIMENSIONS OF SAME OBJECT.
AFTER CAREATING THE TEMPLATES ALL THE TEMPLATES ARE CREATED AS BLOCKS BY USING BLOCK COMMAND.
ALL THE BLOCKS ARE SAVED BY GIVING DIFFERENT NAMES TO DIFFENRENT BLOCK.
AND THE CREATED BLOCKS ARE EDITED BY USEING THE COMMAND BEDIT.
THE TEXT INSIDE THE BLOCK ARE EDITED BY USEING ATTRIBUTES.
THEN THE CREATED BLOCKS ARE SAVED IN INSERT TOOL AND WE CAN INSET THE CREATED BLOCKS IN THE DRAWING BY USING INSET COMMAND.

AIM :

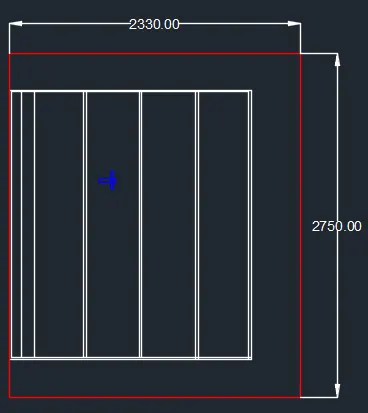

TO CREATE THE DOOR 1 AND DOOR 2 BY USING AUTOCAD TOOL

INTRODUCTION :

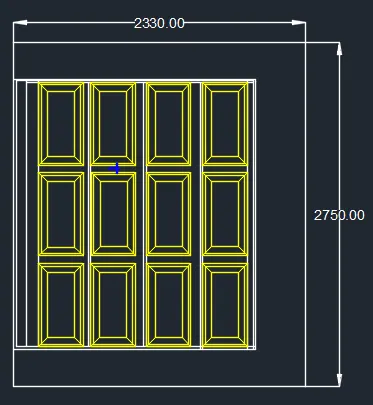

TWO DOOR TYPES ARE GIVEN , BOTH WITH SAME DIMENSIOS. FIRST DOOR TPES AS PROJECTION OR SHAPES ON TOP O IT ALONG WITH DOOR HANDLE AND DOOR FRAME. SECOND DOOR TYPE IS NORMAL. FOUR PANEL DOUBLE SWING DOOR WITH HANDLE AND DOOR FRAME.

PROCEDURE :

COMMAND USED IN THIS
UNITS COMMAND
DIMSTYLE COMMAND
LINE COMMAND
TRIME COMMAND
REC COMMAND
DIM COMMAND
OFFSET COMMAND
CIRCLE COMMAND
FILLET COMMAND
TEXT COMMAND

IN ABOVE DRAWING ALL THE LINES ARE DRAWN BY USING THE LINE COMMAND IN THE BELOW COMMAND SECTION.
ALL THE TEXTS IN THE DRAWING ARE WRITTEN BY USING THE LINE COMMAND.
DIM COMMAND IS USED TO GIVE ALL THE DIMENSIONS TO THE DRAWING.
TRIM COMAND IS USED TO REMOVE UNWANTED OBJECTS FROM THE ABOVE DRAWING.
REC COMMAND IS USED TO DRAW THE TABLES.
OFFSET COMMAND IS USED TO CREAT ANOTHER OBJECT WITH THE SAME DIMENSIONS OF SAME OBJECT.
AFTER CAREATING THE TEMPLATES ALL THE TEMPLATES ARE CREATED AS BLOCKS BY USING BLOCK COMMAND.

DRAW DOOR HANDLE USING RECTANGLE COMMAND , 2-POINT CIRCLE COMMAND AND TRIM COMMAND AS FOLLOWS
THE FINAL DRAWING OF DOOR 1 IS SHOWN IN RESULT

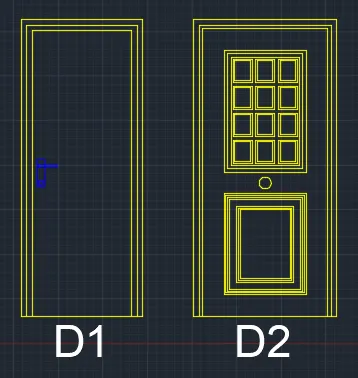

DOOR-1

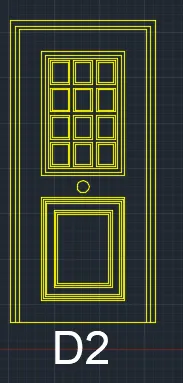

DOOR-2

AIM :

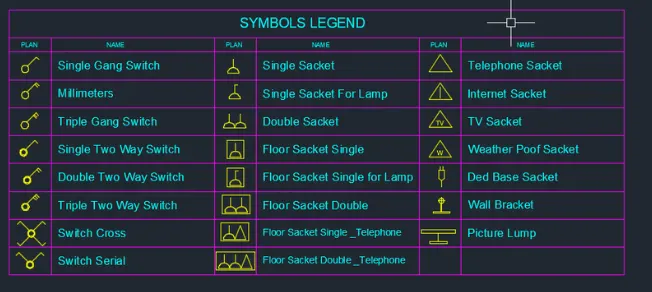

TO CREATE THE BLOCKS AND LEGEND AS SHOWN IN FIGURE BY USING AUTOCAD TOOL

INTRODUCTION :

THE LEGEND GIVEN COSISTS PLAN OF ELECTRICAL COMPONENT ALONG WITH THE NAMES OF COMPONENT. FIRST BLOCKS ARE CREATED USING PLAN VIEWS AND RESPECTIVE NAMES. THEN THE LEGEND IS PTEPARED USING FIELD BOX COMMAND IN WICH OBJECT NAME ARE SELECTED.

PROCEDURE :

IN ABOVE DRAWING ALL THE LINES ARE DRAWN BY USING THE LINE COMMAND IN THE BELOW COMMAND SECTION.
ALL THE TEXT IN THE ABOVE DRAWING ARE WRTTEN BY USING THE LINE COMMAND
DIM COMMAND IS USED TO GIVE ALL THE DIMENSIONS TI THE DRAWING
TRIM COMMAND IS USED TO REMOVE UNWANTED OBJECTS FROM THE DRAWING.
REC COMMAND IS USED TO DRAW THE TABLES
OFFSET THE EMPLATES ALL THE TEMPLATES ARE CREATED AS BLOCKS
ALL THE BLOCKS ARE SAVED BY DIFFERENT NAMES TO DIFFENRENT BLOCKS.
THE TEXT INSIDE THE BLOCKS ARE EDITED BY USING ATTRIBUTES.
THEN INSERT TOOL AND WE CAN INSERT THE CREATED BLOCKS IN THE DRAWING BY USING INSERT COMMAND.
CIRCLE COMMAND IS USED TO DRAW ALL THE CIRCLES IN ABOVE DRAWING.

AIM :

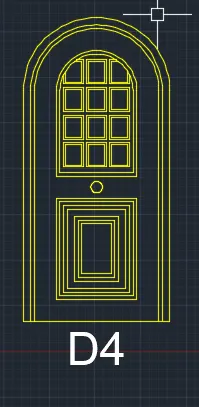

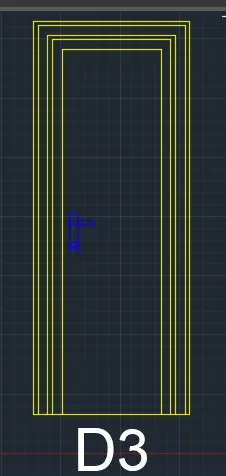

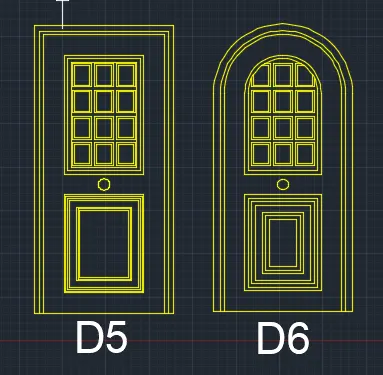

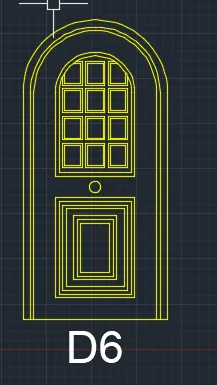

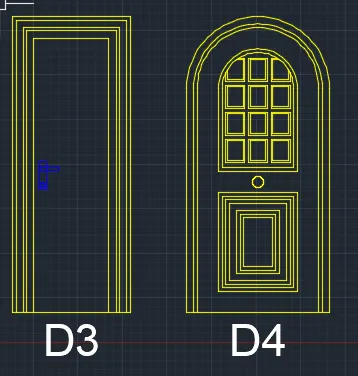

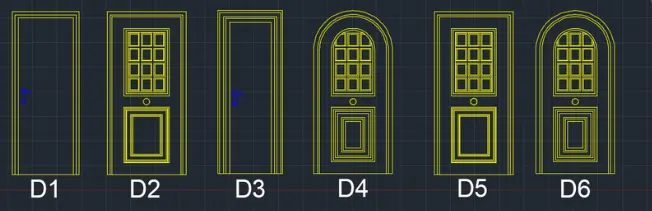

TO CREATE THE DOOR TYPE 1 TO 6 AS SHOWN IN FIGURE BY USEING AUTOCAD TOOL

INTRODUCTION :

PROCEDURE :

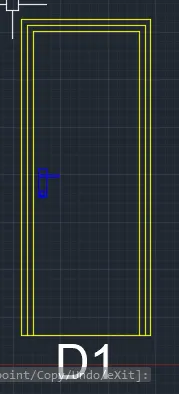

DOOR 1

DRAW A RECTANGLE OF DIMENSIONS 2'10" X 6'11"
SELECT THE RECTANGLE DRAWN ABOVE AND TYPE EXPLODE ( X ) AND PRESS ENTER
SELECT THE TOP,RIGHT, LEFT EDGES AND TYPE JOIN ( J ) AND PRESS ENTER
OFFSET TO THE INSIDE F RECTANGLE TO A DISTANCE 1.5"
OFFSET TO THE INSIDE F RECTANGLE TO A DISTANCE 3"
DRAW THE DOOR HANDLE USEIG THE RECTANGLE AND CIRCLE COMMAND AS SHOWN IN FIGURE.

AIM :

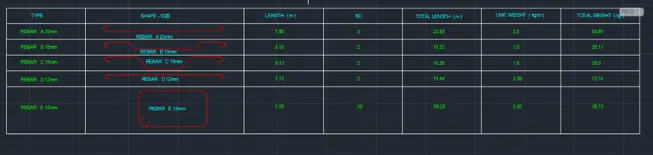

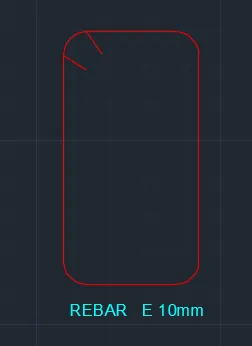

TO CREATE THE BLOCK AND REINFORCEMENT SCHEDULE AS SHOWN IN FIGURE BY USEING AUTOCAD TOOL
INTRODUCTION :

THE GIVEN FIGRE CONSISTS OF DIFFERENT REINFORCEMENT , AND WEIGHT DETAILS OF REBARS. THE MAIN AIM OF THIS QUESTION IS CREATING THE REBAR USEING DIMENSIONS , COVERT THESE REBARS TO BLOCKS AND CREATE TABLE COTAING THE DATA.

PROCEDURE :

REBAR A( 20mm)

DRAW A LINE AT ANY POINT ON THE SCREEN TO A DISTANCE OF 750cm
DRAW THE SEMICIRCLE AT BOTH ENDS FOR THE BEND OF 18cm TO UPSIDE.

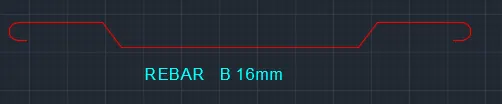

REBAR B(16mm)

DRAW A LINE AT ANY POINT ON THE SCREEN TO A DISTANCE OF 730cm
DRAW THE SEMICIRCLE AT BOTH ENDS FOR THE BEND OF 14.5cm .
DRAW A LINE WITH THE CENTERS COINCIDING OF LENGTH 390cm
MOVE THE LINE DOWN TO A DISTANCE OF 41cm.
DRAW THE INCLINED SHAPE OF BAR USING LINE COMMAND AS SHOWN IN FIGURE.

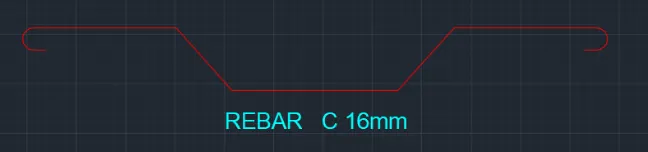

REBAR C(16mm)

DRAW A LINE AT ANY POINT ON THE SCREEN TO A DISTANCE OF 712cm
DRAW THE SEMICIRCLE AT BOTH ENDS FOR THE BEND OF 14.4cm
DRAW A LINE WITH THE CENTERS COINCIDING OF LENGTH 210cm
MOVE THE LINE DOWN TO A DISTANCE OF 80cm
DRAW THE INCLINED SHAPE OF BAR USING LINE COMMAND AS SHOWN IN FIGURE.

REBAR D(12mm)

DRAW A LINE AT ANY POINT ON THE SCREEN TO A DISTANCE OF 750cm
DRAW THE SEMICIRCLE AT BOTH ENDS FOR THE BEND OF 11cm TO DOWNSIDE.
